VDSL CPE CONVERTER USER’S MANUAL VER. A.5
1
VDSL CPE CONVERTER USER’S MANUAL
VDSL Solution
The VDSL (Very High Data Rate DSL) networking solution delivers
cost-effective, high-performance broadband access to multiunit buildings
(hotels, apartment, and multi-tenant unit office buildings) and enterprise
campus environments such as manufacturing, educational campuses, and
medical facilities. VDSL technology dramatically extends Ethernet over
existing Category 1/2/3 wiring at speeds 10Mbps (full duplex) and distances
up to 1200 meters. The VDSL technology delivers broadband service on
the same lines as Plain Old Telephone Service (POTS), digital telephone,
and ISDN system. In addition, VDSL supports modes compatible with
asymmetric digital subscriber line (ADSL), allowing service providers to
provision VDSL to buildings where broadband services already exist.
The VDSL solution includes VDSL Concentrator (VDSL switches), and
VDSL Modem for Customer Premise Equipment (CPE) device.
The VDSL solution delivers everything needed to quickly deploy an
Ethernet-based network with the performance required to deliver
high-speed Internet access at much greater distances and drive services
like IP telephony and audio/video streaming. With this technology, a broad
range of customers can benefit from lower operating costs and rapid
deployment. The VDSL solution provides multicast, Layer 2 quality of
service (QOS), Link Aggregation (LACP) dynamic trunking group, security,
GVRP, IGMP for VOD (Video on demand) and SNMP RMON management
and Web-based Switch network management.
The VDSL Concentrator is a bridge between external Internet backbone
through a router for IP sharing and the building 110D telephone rack or
telephone box. It utilizes the available telephone wire to enable
high-speed Internet access to building residents.
The Concentrator uses the phone line networking technology endorsed by
the VDSL, and the Concentrator utilizes the already existing telephone wire

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
2
to deliver 10 Mbps Internet access on each RJ-11 port.
This gives users a low-cost, end-to-end solution and eliminates the need to
train installation teams on multiple systems.
Foreword
The VDSL Converter is an Ethernet to VDSL adapter that enables high
speed internet access to building residents, campuses students and hotel
guests by connecting Ehternet equipped computers, set-top box or any
internet access device to the existing telephone wires.
The VDSL converter uses the phoneline networking technology endorsed
by the VDSL, an association of industry-leading companies for in –
networking focus on the existing telephone wire.
The Converter utilize the already existing telephone wire to deliver 10Mbps
internet access with no interference on the existing telephone service. It
allows user to make calls while access the internet on the same wire
simultaneously. It even allows staying connected 24 hours on internet
connections, thus, eliminating dial up prior to internet access.
The Converter is simple to install and use. One RJ-45 Ethernet
connects to a Router, Ethernet Switch or to LAN card. The RJ11
ports available to connect to any existing modular phone jack.
There are two RJ-11 jack on the Converter to provide a phone extensions.
No software installation makes the converter highly compatible with
different operating system ( Windows, Linux, Apple….etc).

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
3
Converter
Contents
1. Unpacking Information
Check List-----------------------------------------------------4
2. Installation
Hardware Installation---------------------------------------5
Pre-Installation Requirements ---------------------------5
General Rules------------------------------------------------6
Connecting the Converter---------------------------------6
Connecting the RJ-11/RJ-45 Ports --------------------------7
2. Hardware Description
Front Indicators ----------------------------------------------9
Rear Connectors --------------------------------------------11
Power On------------------------------------------------------11
4. Applications
Application for Home networking------------------------12
Appendix A Cable Requirement ----------------------------------13
Appendix B Product Specifications -----------------------------15
Appendix C Trouble Shooting-------------------------------------16
Appendix D Link Recover Procedure----------------------------19

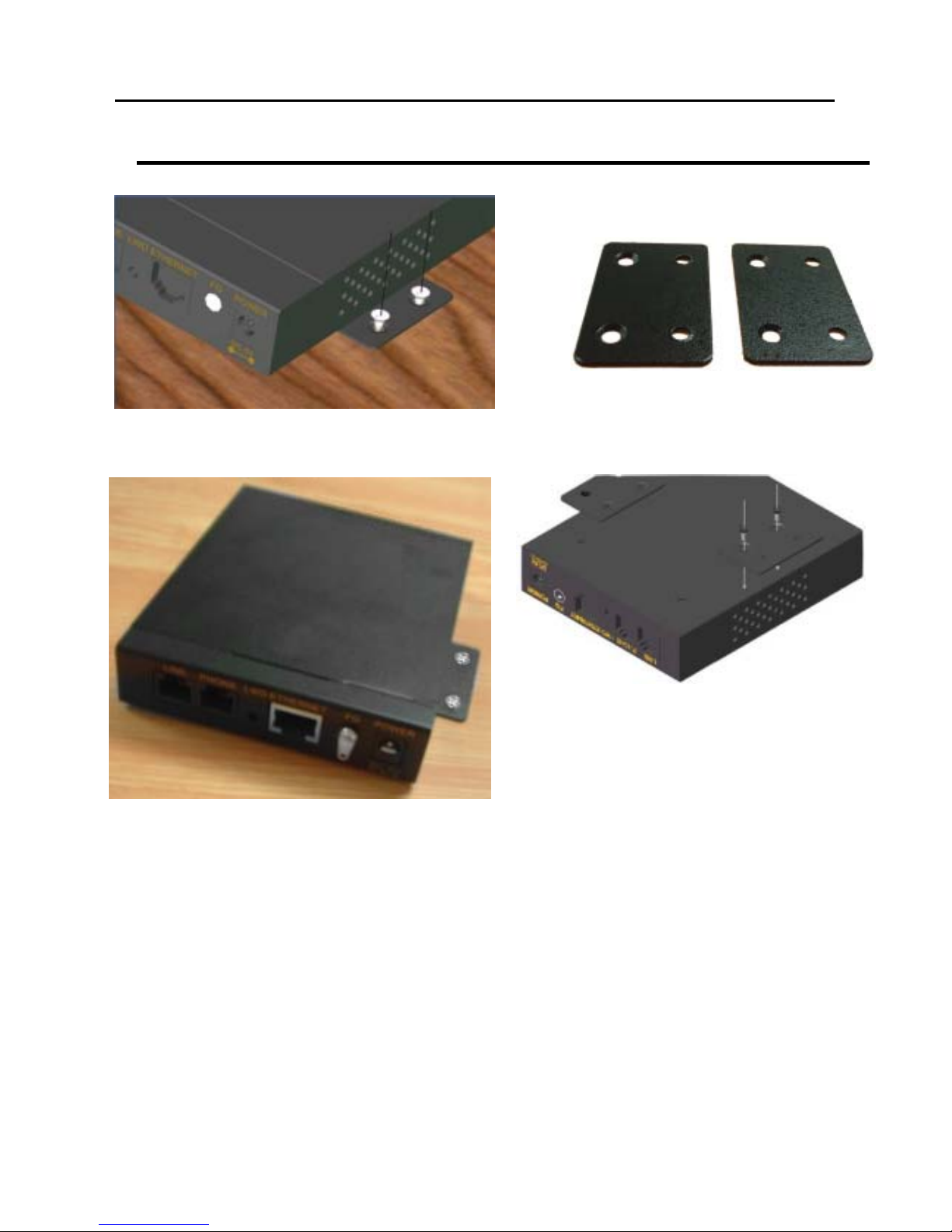

Appendix E Accessories-Bracket---------------------------------20
Appendix E Compliant and Safety Information--------------21
FCC/CE Warning..........................................................................23
Warranty…………………………………………….…………...24

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
4
1. Unpacking Information
Check List
Carefully unpack the package and check its contents against the
checklist.
Package Contents
 Ethernet to VDSL Converter
 Four plastic feet
 Diskette User Manual
 AC to DC Power Adapter
 Ethernet Straight-through cable
 RJ-11 cable
Please inform your dealer immediately for any missing, or damaged
parts. If possible, retain the carton, including the original packing
materials, Use them to repack the unit in case there is a need to return
for repair.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
5
2. Installing the Converter
Hardware Installation
This chapter describes how to install the converter and establishes
network connections. You may install the converter on any level
surface (e.q, a table or shelf). However, please take note of the
following minimum site requirements before you begin. Stick the 4
plastic feet at the bottom.
Pre-installation Requirements
Before you start actual hardware installation, make sure you can
provide the right operating environment, including power requirements,
sufficient physical space, and proximity to other network devices that
are to be connected. Verify the following installation requirement:
Power requirements: DC5V/1A or above.

The converter should be located in a cool dry place, with at least
10cm/4in of space at the front and back for ventilation.

Place the Converter out of direct sunlight, and away from heat
sources or areas with a high amount of electromagnetic interference.

Check if network cables and connectors needed for installation are
available

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
6
General Rules
Before making any connections to the converter, note the following rules:

Ethernet Port (RJ-45)
All network connections to the Converter Ethernet port must be
made using Category 5 UTP for 100Mbps; Category 3,4 UTP for
10Mbps
No more than 100 meters of cabling may be use between the MUX
or HUB and an end node.

VDSL Port (RJ-11)
All Home network connections to the RJ-11Port made using 24~26
Gauge phone wiring.
 We do not recommend using 28 Gauge or above phone line.
Connecting the Converter
The converter has one ETHERNET port which support connection to
Ethernet operation. The devices attached to these ports must support
auto-negotiation or 10Base-T OR 100Base-TX unless they will always
operate at half duplex.
Use any of the Ethernet ports to connect to devices such as HUB,
concentrator, bridge or router. You can also connect to another
compatible converter to an RJ-45 port on the other device.
The RJ11 Line port are use to connect to the wall RJ-11 modular
socket which is connect to VDSL Switch or VDSL converter CO side
The RJ11 Phone port of the converter can connected to a telephone
and a computer sharing one telephone wire for making calls and
accessing the internet at the same time.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
7
Connecting the RJ-11/RJ-45 Ports
1. The Converter’s RJ-11 ports support the transmission of data up to
10Mbps across existing phone wiring, without interfering with
standard voice transmissions, easy-to-use does not require the
installation of any additional wiring. Every RJ-11 modular phone
jack in the home can become a port on the LAN. Networking
devices can be installed on a single telephone wire that can span
within 1.9KM (6000 feet) between the two farthest points. (Figure
1.0).
2. VDSL Converter has embedded Splitter between every VDSL
side (Line) and POTS (Phone) side. It permit you can delivers
broadband service on the same lines as Plain Old Telephone
Service (POTS), PBX, ISDN traffic and VDSL Signal.

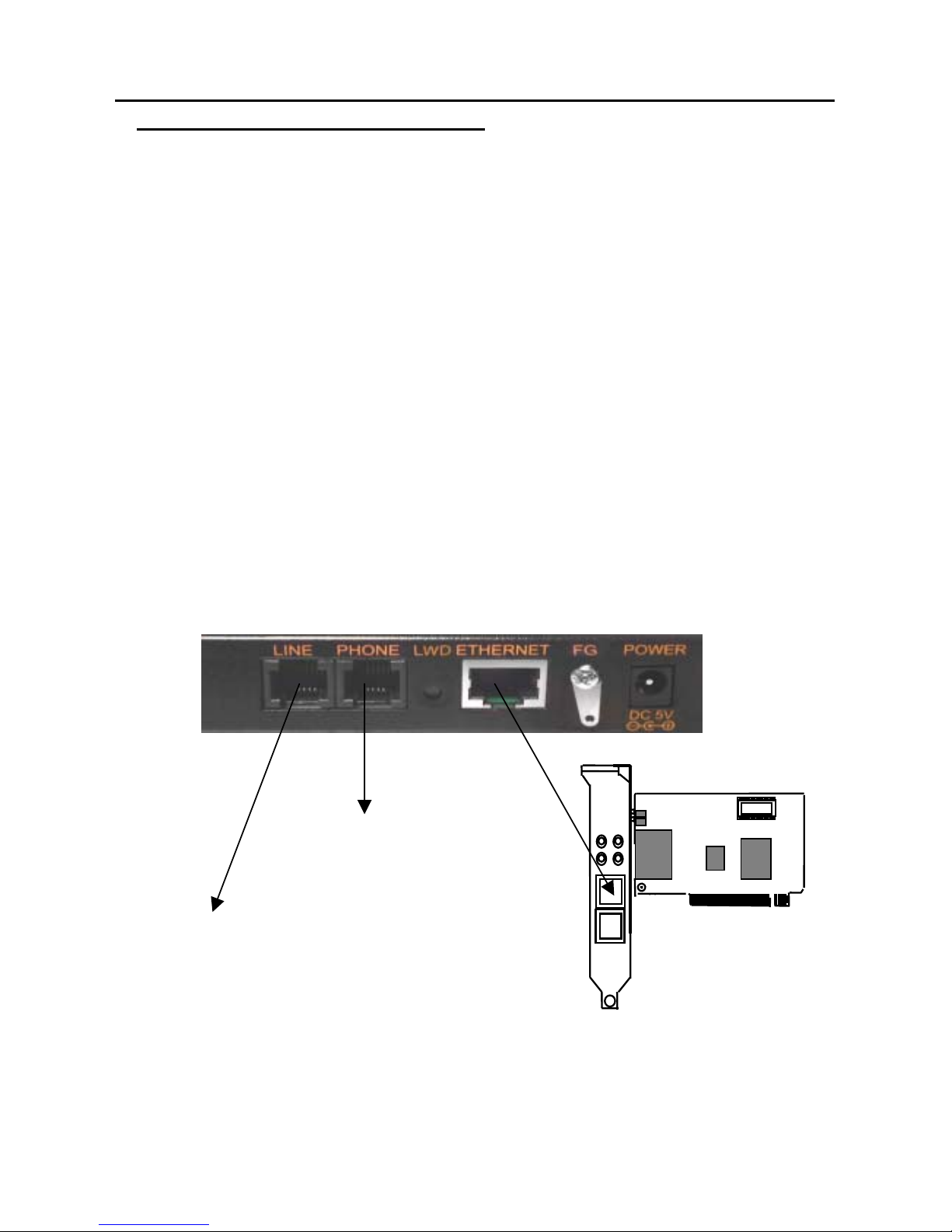

Figure 1.0 converter use as adapter to connect RJ-11 and the LAN card inside the PC
To VDSL CO
(VDSL CO Concentrator or CO Converter)
10/100 Fast Ethernet Networking Interface Card
Phone wiring
To telephone or FAX
or ISDN modem
Ethernet wiring
Phone wiring

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
8
1. The RJ-11 port support 10 Mbps connections. When inserting a
RJ-11 plug, be sure the tab on the plug clicks into position to ensure
that it is properly seated.
2. Do not plug a RJ-11 phone jack connector into the Ethernet port
(RJ-45 port). This may damage the converter Instead; use only
twisted-pair cables with RJ-45 connectors that conform to FCC
standard.
Notes:
1. Be sure each twisted-pair cable (RJ-45) does not exceeds 100
meters (333 feet).
2. RJ-11 port use 24 ~ 26 gauge phone wiring, we do not
recommend 28 gauge or above.
3. We advise using Category 3,4,5 cable for Cable
Modem or Router connections to avoid any confusion or
inconvenience in the future when you upgrade attached
to high band width devices.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
9
3 Hardware Description
This section describes the important parts of the converter. It
features the front indicators and rear connectors.
3.1 Front Indicators
The following figure shows the front panel.
Figure Chapter 2.2 Front Indicators
Three LED indicators.
At a quick glance of the front panel, it will be easy to tell if the
converter has power, if it has signal from its Ethernet RJ-45 port and if
there is phone line signal RJ-11port

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
10
Front Indicators
LED Description and Operation
The Converter has three LED indicators.
LEDs Status Descriptions
Ready
(Ready LED)
Steady
Green
It will light up (ON) to show that the
product is power good, and system reset
OK.
Ethernet
(Ethernet LED)
Steady Green
Flashing
(LINK/ACT)
Each RJ45 station port on the Ethernet is
assigned an LED light for monitoring port
“Good Linkage”. LED is normally OFF
after the power on operation, but will light
up steadily to show good linkage. And
Flashing to show data transmission.
VDSL
(VDSL LED) Steady Green
RJ11 station port on the VDSL is
assigned an LED light for monitoring port
“Good Linkage”. LED is normally OFF
after the power on operation, but will light
up steadily to show good linkage.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
11
Rear Panel
The following figure shows the rear connectors
Figure Chapter 2.3 Rear Connectors
Converter Rear Side Connectors
_____________________________________________________
Connectors Description Type
Line For connecting to the RJ-11 wall jack RJ-11
UsingaRJ-11cable
Phone For connecting to the telephone or Fax RJ-11
or ISDN modem
LWD For recovering LINK status between CPE & CO N/A
Ethernet For connecting to a Ethernet equipped device RJ-45
Power On
1. Check the converter is properly connected
2. Verify the power LED is steadily on

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
12
3.Applications
APPLICATION FOR HOME NETWORKING
The 10Mbps Converter is used to connect any device equipped with a
standard 10/100Mbps Ethernet port to a VDSL LAN.
The Converter have been designed to operate on the telephone wire
installed in homes throughout the world. They utilize the same modular
patch cords and connectors commonly used for telephones.
To install the Converter or to access the Internet, you simply plug into
your existing telephone jacks just like you would a telephone modem or a
fax machine. There is no need for special splitters, terminators or filters.
In fact, there is no need to add or modify the home telephone wiring at
all.
The Converter uses a frequency division multiplexing approach that
enables standard telephone wiring to simultaneously carry POTS voice,
ISDN and VDSL signals without any of the services impacting each other.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
13
Appendix A: Cable Requirements
A CAT 3,4 or 5 UTP (unshielded twisted pair) cable is typically used
To connect the Ethernet device to the converter.
A 10Base-T cable often consists of four pairs of wires, two of which are
used for transmission. The connector at the end of the 10Base-T cable is
referred to as an RJ-45 connector and it consists of eight pins.
The Ethernet standard uses pins 1,2,3 and 6 for data transmission
purposes.
Table RJ-45 Ethernet Connector Pin out Assignments
PIN MNEMONIC FUNCTION
1 TX+ Ethernet differential Transmit signal(+)
2 TX- Ethernet differential Transmit signal(-)
3 RX+ Ethernetdifferentialreceivesignal(+)
4 NC Unused
5 NC Unused
6 RX- Ethernet differential receive signal(-)
7 NC Unused
8 NC Unused

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
14
Standard telephone wire of any gauge or type-flat, twisted or quad is used
to connect the Converter to the telephone network. A telephone cable
typically consists of three pairs of wires, one of which is used for
transmission. The connector at the end of the telephone cable is called an
RJ-11 connector and it consists of six pins. POTS (plain old telephone
services) use pins 3 and 4 for voice transmission. A telephone cable is
shown below.
Figure Telephone cable
A
B
The A and B connectors on the rear of the converter are RJ-11 connectors.
These connectors are wired identically. The RJ-11 connectors have six
positions, two of which are wiring, The Converter uses the center two pins.
The pin out assignment for these connectors is presented below.
Table RJ-11 Pin out Assignments
Pin# MNEMONIC FUNCTION
1 NC Unused
2 NC Unused
3 TIP POTS
4 RING POTS
5 NC Unused
6 NC Unused_

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
15
Appendix B: Product Specification
Product Name：VDSL To Ethernet Converter (VDSL Modem)
Application：Home networking solution
Product Specification：
Compliant with IEEE 802.3 & 802.3u Ethernet Standards
Compliant with ETSI, ITU, ANSI VDSL standards
10/100M auto-sensing RJ-45 Ethernet ports x 1
10Mbps VDSL RJ-11 port x 1
POTS / ISDN Splitter port RJ-11 x 1
Splitter on board
Surge Protection
Switch method : store and forward
Full duplex : IEEE 802.3x
Half duplex : Backpressure
Driver capable : 10M/1.2km
Indication LED x 3
ReadyLEDx1
EthernetLink/ActiveLEDx1
VDSLLinkLEDx1
VDSL Frequency Spectrum :
Transmitter ：4.5 ~ 7.9MHz
Receiver：0.9 ~ 3.0 MHz
Power consumption : 3.85 Watt
Weight : 345 g
Dimensions: 95 x 110 x 24 mm
Provides LED indication Link/Active for VDSL port.
External switching power adapter Input :AC 85-240 volts/50-60Hz Output :DC 5V/1A or above
Operating Temperature : 5℃~ 50℃(41F ~ 122F)
Storage Temperature : - 20℃~ 65℃(-4F ~ 149F)
Humidity : 10%~90% non-condensing
Certifications: FCC/CE/EN60950

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
16
Appendix C: Troubleshooting
Diagnosing the Converter’s Indicators
The Converter can be easily monitored through its comprehensive
panel indicators. These indicators assist the network manager in
identifying problems the hub may encounter. This section describes
common problems you may encounter and possible solutions
1. Symptom: Ready indicator does not light up (green) after power
on.
Cause: Defective External power supply
Solution: Cheek the power plug by plugging in another that is
functioning properly. Check the power cord with another
device. If these measures fail to resolve the problem,
have the unit power supply replaced by a qualified
distributor.
2. Symptom: Link indicator does not light up (green) after making a
connection.
Cause: Network interface (e.q, a network adapter card on the
attached device), network cable, or switch port is
defective.
Solution:
2.1 Power off them Power on the VDSL Modem.
2.2 Verify that the switch and attached device are powered on.
2.3 Be sure the cable is plugged into both the switch and
corresponding device.
2.4 Verify that the proper cable type is used and its length does
not exceed specified limits.
2.5 Check the converter on the attached device and cable
connections for possible defects.
2.6 Replace the defective converter or cable if necessary.
2.7 Verify the VDSL switch and VDSL Modem during the same
speed mode. You can select VDSL Speed mode by 10 Mbps.
Only same speed mode can link and work. VDSL default
translation mode is 10 Mbps.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
17
System Diagnostics
Power and Cooling Problems
If the POWER indicator does not turn on when the power cord is
plugged in, you may have a problem with the power outlet, power cord,
or internal power supply as explained in the previous section.
However, if the unit power is off after running for a while, check for
loose power connections, power losses or surges at the power outlet,
and verify that the fan on back of the unit is unobstructed and running
prior to shutdown. If you still cannot isolate the problem, then the
internal power supply may be defective. In this case, contact your
dealer.
Installation
Verify that all system components have been properly installed. If one
or more components appear to be malfunctioning (e.g., the power cord
or network cabling), test them in an alternate environment where you
are sure that all the other components are functioning properly.
Transmission Mode
The default method of selecting the transmission mode for RJ-45 ports
is 10/100 Mbps ETHERNET, for RJ-11 port are 10Mbps VDSL.
Therefore, if the Link signal is disrupted (e.g., by unplugging the
network cable and plugging it back in again, or by resetting the power),
the port will try to reestablish communications with the attached device
via auto-negotiation. If auto-negotiation fails, then communications are
set to half duplex by default. Based on this type of industry-standard
connection policy, if you are using a full-duplex device that does not
support auto-negotiation, communications can be easily lost (i.e., reset

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
18
to the wrong mode) whenever the attached device is reset or
experiences a power fluctuation. The best way to resolve this problem
is to upgrade these devices to a version that support Ethernet and
VDSL.
Physical Configuration
If problems occur after altering the network configuration, restore the
original connections, and try to track the problem down by
implementing the new changes, one step at a time. Ensure that cable
distances and other physical aspects of the installation do not exceed
recommendations
System Integrity
As a last resort verify the switch integrity with a power-on reset. Turn
the power to the switch off and then on several times. If the problem
still persists and you have completed all the preceding diagnoses, then
contact your dealer

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
19
Appendix D：Link Recover Procedures
Operating Procedures:
1. Power on VDSL CO, start the speed change program, change speed
mode to 4/1Mbps.
2. Connect phone line between VDSL CO & VDSL CPE.
3. Push still Link Recover Button of VDSL CPE and power on VDSL CPE.
4. Wait for 5 seconds, then release Link Recover Button.
5. Now, VDSL CPE speed mode has changed to 4/1Mbps mode, wait until
VDSL CO & VDSL CPE establish link{You can see that both VDSL
LEDs(CO & CPE) are steadily on}.
6. Run speed change program, you can set your desired speed mode.
Remark: LWD represents 4/1Mbps.

VDSL CPE CONVERTER USER’S MANUAL VER. A.5
20
Appendix E：Accessories-Bracket
The brackets are specially designed to fix the VDSL converter on the table
to avoid someone to freely take it away, like in hotel rooms, internet café or
other public areas where providing the internet service. It is suggested to
use with the wooden table. This is an optional accessory, please contact
with your local dealer for further service.
Note: Do not install plastic feet at the bottom of the VDSL CPE
converter when using brackets.
Two Brackets
