ASP TGB BLADE 600 User manual
.
INSTALLATION INSTRUCTIONS
TGB
BLADE 600/1000
TGB
BLADE 600/1000
ASP Group s.r.o. Tel: +420 378 21 21 21 www.aspgroup.cz
Staroplzenecká 290, Letkov 326 00
2
SAFETY INSTRUCTIONS
Warning: Failure to heed all safety and operating instructions and
warnings regarding use of this product can result in serious bodily
injury.
ONLY TRAINED AND ADVACEND PERSONS CAN INSTALL THIS
CABINE
EVERY PERSON, WHO USING VEHICLE WITH CABINE, IS
OBLIGED TO USE PROTECTIVE HELMET AND PROTECTIVE GLASS
IS STRONGLY RECOMMENDED TO USE BODY PROTECTION
(LIKE MOTORBIKE SUITS)
READ PROPERLY COMPLETE ASSEMBLY INSTRUCTIONS BEFORE
STARTING OF ASSEMBLY
Install all parts indicated in assembly instructions. Failure to fully
assemble product before use could result in personal injury.
Assembly of product requires use of hand or power tools. If you are not
experienced in using these types of tools, have product dealer do the
install for you.
Some parts contain sharp edges, wear protective gloves if necessary.
Always keep your assembly area clean, uncluttered and well lit.
Keep visitors and children a safe distance away from the assembly area.
Visitors should wear the same safety equipment described under.
Dress for safety. DO NOT wear loose clothing, gloves, neckties or
jewelry if using power tools to assemble this product. Insert all nut
covers after you finish installation.
TGB
BLADE 600/1000
ASP Group s.r.o. Tel: +420 378 21 21 21 www.aspgroup.cz
Staroplzenecká 290, Letkov 326 00
3
MAINTANCE AND CLEANING
To clean polycarbonate surface use soapy water solution or
other subtle means.
Dirt and dust wash by gently water stream and swipe only
with wet or damp means in the direction from top to bottom.
The recommended frequency of cleaning of polycarbonate
part is about 1 time per month or according to the actual
degree of pollution.
Do not use detergents that could scratch the surface plates.
(abrasives, harsh fabrics, etc.)
Do not use solvents or alkaline detergents or cleaners with
ammonia (ammonium hydroxide).
Do not remove the impurities from the surface of the razor
blades or other sharp items.
Do not clean cabine, when the polycarbonate plates are
heated by the sun.
Do not use the squeegee, it could be scratched surface plates.
Do not clean the water current strength greater than 50 bar
(WAP)
The manufacturer is not responsible for scratching the surface
in case of failure to comply with the above instructions.
All bolted connections of cab must be by user at regular
intervals checked and tightened.
It is necessary to check the air filter of the heater regularly,
depending on the dust environment in which the vehicle is
operated.
TGB
BLADE 600/1000
ASP Group s.r.o. Tel: +420 378 21 21 21 www.aspgroup.cz
Staroplzenecká 290, Letkov 326 00
5
ELECTROINSTALLATION 1
SCHEMATIC OVERALL DIAGRAM
If you have a TGB 600 route the harnesses on the other side of the
vehicle.
- POWER SUPPLY HARNESS
- POWER SUPPLY HARNESS EXTENSION
- RELAY HARNESS (ACC)
- WIPER/WASHER HARNESS -
WINDOW DEFROST HARNESS
_ FRONT WINDOW DEFROST
TGB
BLADE 600/1000
ASP Group s.r.o. Tel: +420 378 21 21 21 www.aspgroup.cz
Staroplzenecká 290, Letkov 326 00
7

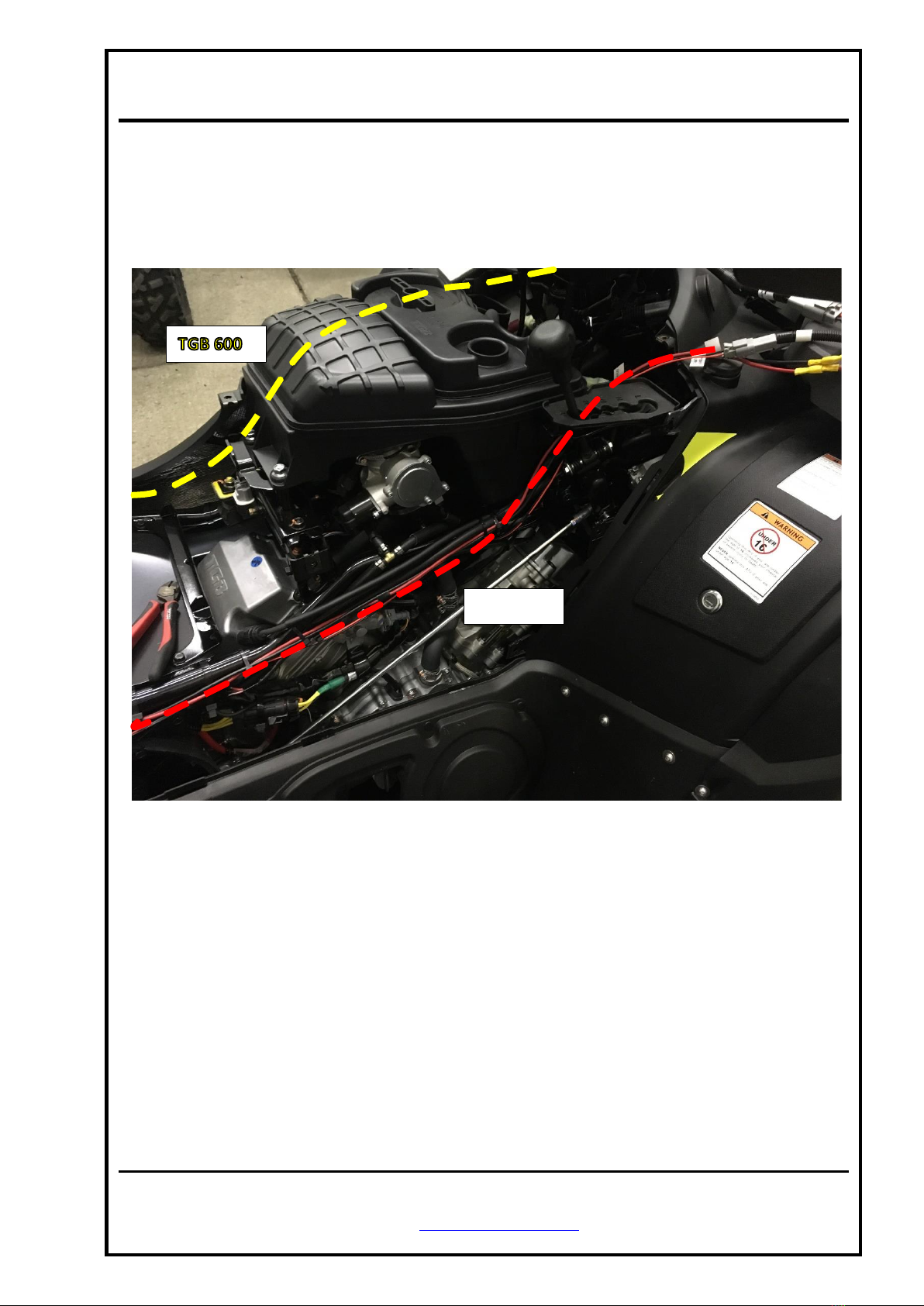

Connect Power supply harness and power supply harness extension
together. Place power supply harness, and if you have window
defrost electrical harness, and run the battery connectors branches
to the battery. See picture below for your better orientation.
SEE NEXT PAGE
TGB 1000
TGB
BLADE 600/1000
ASP Group s.r.o. Tel: +420 378 21 21 21 www.aspgroup.cz
Staroplzenecká 290, Letkov 326 00
11
Connect relay harness (ACC) connector with the appropriate
connector on the power supply harness.
Connect power supply connector on wiper/washer electrical harness
with the appropriate connector on the power supply harness.
TGB
BLADE 600/1000
ASP Group s.r.o. Tel: +420 378 21 21 21 www.aspgroup.cz
Staroplzenecká 290, Letkov 326 00
12
Run the washer harness under the grill to the left front space.
Replace original winch holder on the handlebar with a winch and
wiper/washer switch holder. Mount wiper/washer switch into the
holder and connect the appropriate connector wiper/washer
electrical harness to the switch.
Install the covers back to position.
This manual suits for next models
1
