Aspar ARB-0612 User manual

ARB-0612
ARB-0612
Converter
USB – RS 232/422/485/485-4W/TTL
Manual
ARB-0612_v1_01
U date date:
10/2018r.
10/2018 ARB-0612_v1_01 1

ARB-0612
Table of Contents
Symbols & Marks....................................................................................................................................3
General installation and safety rules......................................................................................................3
1.Destination of device...........................................................................................................................4
2.Device parameters...............................................................................................................................5
2.1. echnical parameters ..................................................................................................................5
2.2.Description of connectors.............................................................................................................6
2.3.Block diagram...............................................................................................................................8
2.4.Dimensions ..................................................................................................................................8
3.Wiring..................................................................................................................................................9
4.Instalation..........................................................................................................................................10
4.1.Installation of USB drivers..........................................................................................................10
4.2.Changing the COM port assignment in Windows.......................................................................11
4.3.Exploitation.................................................................................................................................14
5.Contact details ..................................................................................................................................14
10/2018 ARB-0612_v1_01 2

ARB-0612
Symbols & Marks
Advice
It suggests activities t at elp solve t e problem and / or
diagnose it. T eir implementation is not obligatory and
does not affect t e correct functioning of t e device.
Attention!
Important information or action relevant to t e correct
operation of t e device. T e implementation is not
obligatory. It will not cause any azards for people and
device. T e only effect of non-use may be incorrect
operation of t e device.
Warning!
Indicates important actions t at incorrectly performed
could result in danger to t e operator and / or damage to
t e device.
General installation and safety rules
T e device s ould be installed in accordance wit t is manual.
T e fulfillment of t is condition is t e basis for ensuring safety and correct
operation of t e device. T e fulfillment of t is condition is t e basis for ensuring
safety and correct operation of t e device. T e manufacturer is not liable for
damages resulting from using t e device in t e wrong way or not according to t e
purpose. Modifications to t e device are not allowed and can be a source of
danger.
10/2018 ARB-0612_v1_01 3

ARB-0612
1. Destination of device
T e ARB-0612 converter converts t e USB signal into a serial communication
standard RS232/RS422/RS485,RS485-4W/TTL-3.3,TTL-5V. T e device is powered
directly from t e USB port. T e converter supports two RS485 standards (2-wire and
4-wire), can act as HUB USB to 2xRS485 2-wire.
Works wit 32 and 64 bit operating systems. Remember to use t e appropriate
drivers. T e device is intended for t e USB 2.0 standard. W en connected to t e 3.0
standard, t e converter works as if it was connected to t e standard 2.0. It is possible
to c oose one of four serial transmission standards, i.e. RS232, RS422, RS485 or
TTL. T e converter provides 1500V, 2500V, 3000V or 5000V isolation between t e
USB port and t e ot er serial ports. In addition, t e RS422 and RS485 port as
overvoltage protection. T e operating system creates a virtual COM serial port t at
can be used by applications as an ordinary COM port. T e user as t e option of
assigning a different COM port number t an t e one t at automatically assigned t e
system. All parameters of t e COM port (for example: baudrate, parity c eck), are
determined by t e application using t e converter ARB-0612.
Application:
–Protecting your PC or laptop from overvoltages and from damage t at may
occur w en using serial communications.
–Creating or adding an additional serial port from 1 to 256.
–T e RS232 port is equipped wit all transmission and reception lines, w ic
allows for safe programming of controllers and ot er devices requiring serial
communication and using additional RS232 port signals.
–T e ARB-0612 converter as an internal reset signal, t us it can be used for
permanent operation in applications t at ave t e option of automatically
rebuilding t e serial port.
10/2018 ARB-0612_v1_01 4

ARB-0612
2. Device arameters
2.1. Technical arameters
Tec nical parameters of t e converter are presented in Table 2.1.1.
Table 2.1.1. Technical parameters of the converter ARB-0612
Parameter Descri tion
USB standard USB 2,0. type B socket
USB 3.0 supported like USB 2.0
Operating Systems Windows (32/64), Linux, Mac OS,
Android
Power supply voltage 5VDC(powered from USB)
Max. power consumption 500mW
Storage umidity 20% … 95% RH, non-condensing
Operating umidity 20% … 95% RH, non-condensing
Storage temperature -30⁰C … 60⁰C
Operating temperature -30⁰C … 60⁰C
Memory type Flas
Number of serial ports From 1 to 256
Serial transmission standards RS232,RS422,RS485,RS485-4W,
TTL-3,3V,TTL-5V
Supported lines of RS232 Txd, Rxd,CTS,RST,DTR,DSR,DCD,RI
Maks. baudrate of RS232 1Mb
Maks. baudrate of RS422,485 1Mb
Isolation voltage
1,5 kVDC / 2,5 kVDC/3,0 kVDC /
5,0kVDC
S ort circuit protection of t e USB port 200mA
Surge protection of RS422, 485 ports 600W
S ort circuit protection of RS422, 485
ports 100mA
RS422,485 Specification EEIA/TIA-485
RS232 Specification EEIA/TIA-232
Max. lengt of t e RS422/RS485 line 1200 m
Max number of gates RS485 to 32
Port line terminator RS422,485 YES
EMC According wit EN-61000-6-1/2/3/4
Type of connection RS422,RS485 Separable connectors.
wire 0,2...2,5mm2
Type of connection RS232 DB9
10/2018 ARB-0612_v1_01 5

ARB-0612
IP protection of terminals IP-20 according wit DIN 40050/EC 529
IP protection of ousing IP-43 according wit DIN 40050/EC 529
Installation Portable ousing
Weig t 70 g
Dimension wit terminals 57 x 96 x 23 mm
2.2. Descri tion of connectors
T e view of t e ARB-0612 converter is s own in Figure 2.2.1. A description of
its connectors is presented in Table 2.2.1. A description of t e function of connectors,
DB9 sockets, dip-switc and LED indicators is presented in Table 2.2.2.
Fig. 2.2.1. View of the converter ARB-0612
10/2018 ARB-0612_v1_01 6

ARB-0612
Tab. 2.2.1. escription of ARB-0612 converter connector type
Name of the
connector Descri tion
RS232 Socket DB9 RS232
RS422 Separable terminal block 2,5 mm2
RS485 Separable terminal block 2,5 mm2
USB USB type B connector
Tab. 2.2.2. escription of the function of connectors, dip-switch and LE indicators
Male socket
Pin number Descri tion
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Terminal number Descri tion
10 B* (D-) Rx- RS422/RS485-4W lub B(D-) RS485-1
11 A* (D+) Rx+ RS422/RS485-4W lub A(D+) RS485-1
12 B* (D-) Tx- RS422/RS485-4W lub B(D-) RS485-2
13 A* (D+) Tx+ RS422/RS485-4W lub A(D+) RS485-2
The in number of the
di -switch Descri tion
1÷4 Line terminating resistors RS422/RS485-
4W/RS485**
5 Level selection of TTL 3,3V/5V
6 RS422/RS485-4W or RS485***
LED indicators Descri tion
DL(green) T e LED indicates receiving data via RS ports
PWR(red) T e LED indicates t e power supply from USB
UL(yellow) T e LED indicates data sending via RS ports
* - A denotes t e D + line, B denotes t e D - line.
** - switc operations must be carried out in pairs.
*** - OFF position - active RS485; ON position - active RS422 / RS485-4W.
10/2018 ARB-0612_v1_01 7

ARB-0612
2.3. Block diagram
T e block diagram of t e ARB-0612 converter is s own in Figure 2.3.1.
Fig. 2.3.1. Block diagram of ARB-0612
2.4. Dimensions
Dimensions of t e ARB-0612 converter are s own in Figure 2.4.1.
Fig. 2.4.1. imensions of the ARB-0612
10/2018 ARB-0612_v1_01 8

ARB-0612
2.5. Versions
Table 2.5.1 presents t e available versions wit catalog numbers.
Tab. 2.5.1. Versions of the ARB-0612
Symbol O is Nr katalogowy
ARB-0612-1,5 USB – RS232/422/485/RS485-4W/TTL separation 1,5 kV, black 03-01-03-07-01-20
ARB-0612-2,5 USB – RS232/422/485/RS485-4W /TTL separation 2,5 kV, black 03-01-03-07-02-20
ARB-0612-3,0 USB – RS232/422/485/RS485-4W /TTL separation 3,0 kV, black 03-01-03-07-03-20
ARB-0612-5,0 USB – RS232/422/485/RS485-4W /TTL separation 5,0 kV, black 03-01-03-07-04-20
3. Wiring
T e device s ould be connected to a computer using a USB cable. One of t e
selected RS232, RS422, RS485, RS485-4W or TTL ports s ould be selected. T e
met od of connecting t e RS port is s own in Figure 3.1.
USB/RS485 USB/RS485 USB/HUB RS485
USB/RS422,485-4W USB/RS232 USB/TTL
Połączenie Null Modem
3-TxD
2-RxD
5-GND
*opis połączenia null modem w
tab. 3.1
Fig. 3.1. The method of connecting the RS ports.
10/2018 ARB-0612_v1_01 9

ARB-0612
Tab. 3.1. escription of the communication cable with full confirmation
Connector 1 Connector 2 Function
2 3 Rx ← Tx
3 2 Tx → Rx
4 6 DTR → DSR
5 5 GND
6 4 DSR ← DTR
7 8 RTS → CTS
8 7 CTS ← RTS
4. Instalation
4.1. Installation of USB drivers
Before you start t e proper operation, you must install t e appropriate USB
drivers on t e computer wit w ic t e converter s ould work. T e type of drivers
depends on t e operating system installed on your computer. T e drivers and
instructions for installing t em are available at:
ttp://www.ftdic ip.com/FTDrivers. tm.
Attention!
W en installing drivers, please pay attention to t eir
appropriate selection. T ere are various drivers for 32-bit
and 64-bit systems.
Advice.
Some of t e latest operating systems do not require
installation of drivers. Before installing t e drivers, make
sure t at it is necessary.
10/2018 ARB-0612_v1_01 10

ARB-0612
4.2. Changing the COM ort assignment in Windows
To c ange t e assignment of t e COM port, it is necessary to start t e Device
Manager w ile t e converter ARB-0612 is connected from t e USB side to t e
computer.
Menu: Start->Control Panel->System->Hardware->Device Manager
Select USB Serial Port w ose settings you want to c ange.
Press t e rig t mouse button and select Properties from t e expanded menu.
10/2018 ARB-0612_v1_01 11

ARB-0612
In t e Port Settings tab, please select Advanced options ...
10/2018 ARB-0612_v1_01 12

ARB-0612

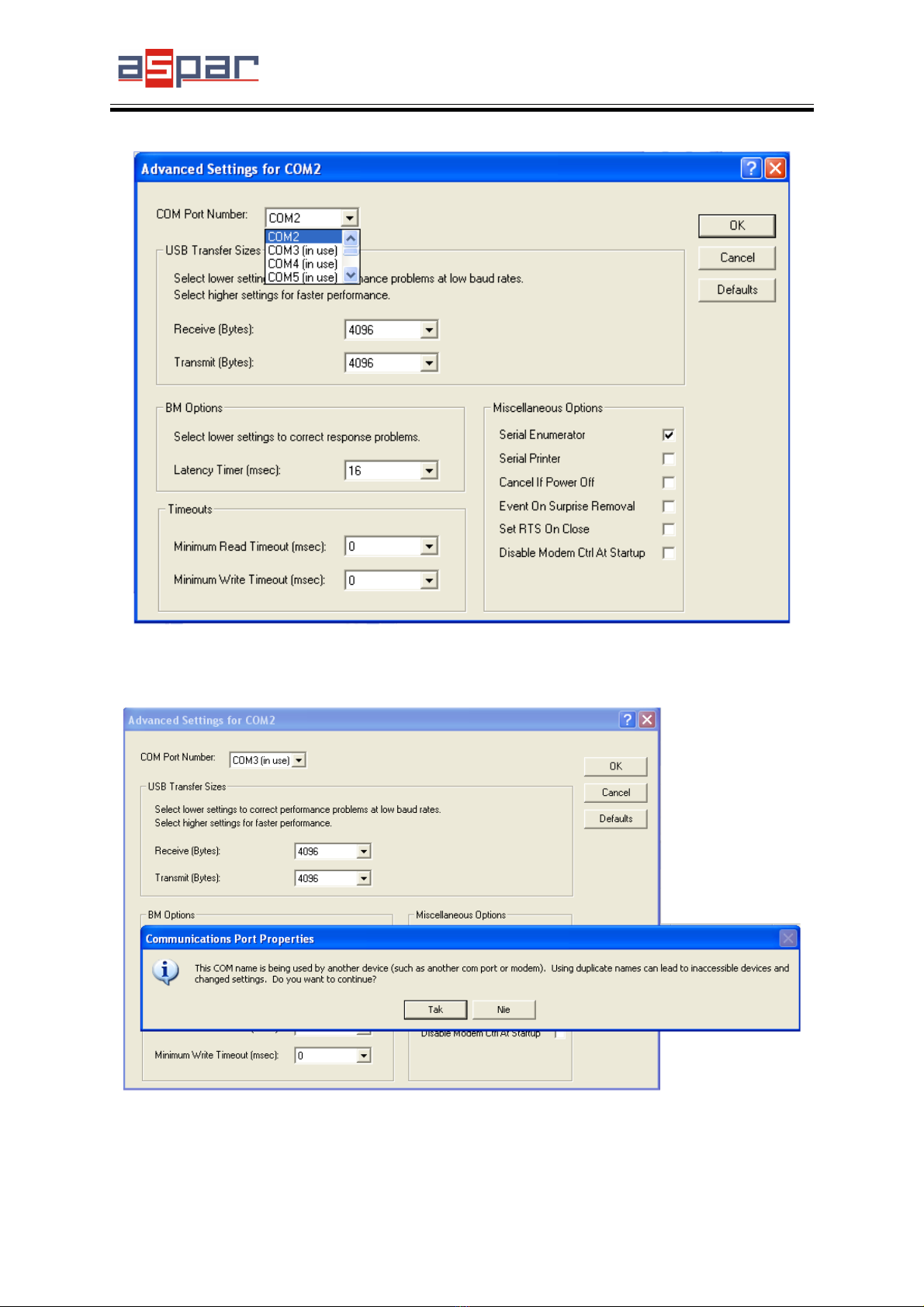

T en select t e appropriate COM port from COM Port Number.
In case t e selected port is already occupied by anot er device, t e following
message will appear:
If you ave to use t is port, press YES
10/2018 ARB-0612_v1_01 13

ARB-0612
Advice.
T e operation system often s ould be restarted after
c anging t e assignment of COM port.
4.3. Ex loitation
After correct installation of t e drivers and connecting t e converter to t e USB
port in t e device manager s ould be visible COM port assigned to t e converter.
T e device is signaled by sound and blinking of DL and UL diodes. T e PWR diode
s ould be permanently illuminated.
Advice.
During operation, please pay attention to t e condition
and quality of t e USB cable. As a rule, its lengt s ould
not exceed 2m.
Advice.
In t e event of damage during operation of one of t e
RS485 ports, it is possible to use a second RS485 port.
5. Contact details
ASPAR s.c.
ul. Oliwska 112,
80-209 Chwaszczyno, POLAND
hone [phone]; [phone]
am ero@am ero.eu
www.am ero.eu
