Motherboard Layout
FM2A58M-VG3+
RoHS
AMD
A58 FCH
(Bolton-D2)
Chipset
CMOS
BATTERY
64Mb
BIOS
ATXPWR1
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
SATA_ 3
SATA_ 1
ATX12V1
LAN
AUDIO
CODEC
1
CLRCMOS1
PCIE2
1
USB_6_7
1
USB_4_5
HD_AUDIO1
1
CPU_FAN1
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANE L 1
Top:
LINE I N
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB0
B: USB1
PS2
Mouse
PS2
Keyboard
CI1
1
SOCKET FM2b
SATA_ 4
SATA_ 2
PCI Express 3.0
PWR_FAN1
TPMS1
1
PCIE1
VGA1

3
English
FM2A58M-VG3+ R2.0

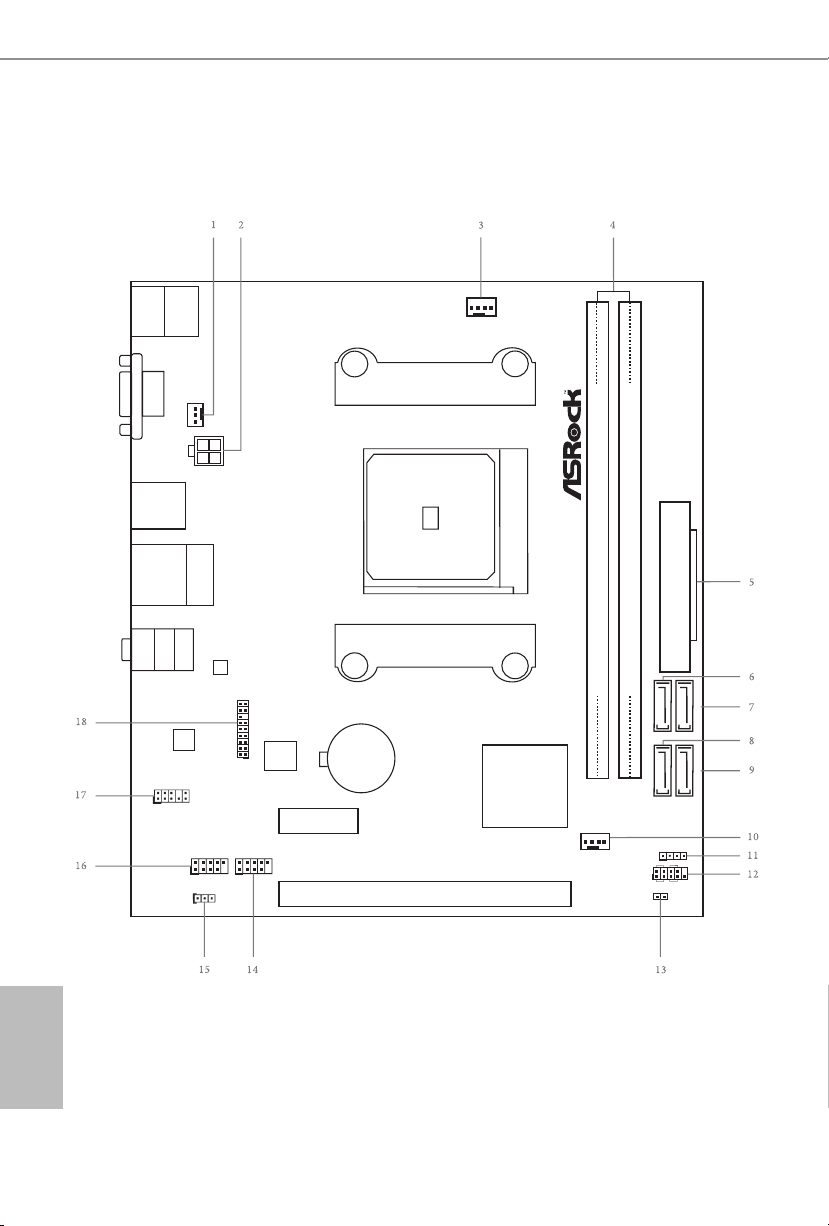

No. Description
1 Power Fan Connector (PWR_FAN1)
2 ATX 12V Power Connector (ATX12V1)
3 CPU Fan Connector (CPU_FAN1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
5 ATX Power Connector (ATXPWR1)
6 SATA2 Connector (SATA_3)
7 SATA2 Connector (SATA_4)
8 SATA2 Connector (SATA_1)
9 SATA2 Connector (SATA_2)
10 Chassis Fan Connector (CHA_FAN1)
11 Chassis Speaker Header (SPEAKER1)
12 System Panel Header (PANEL1)
13 Chassis Intrusion Header (CI1)
14 USB 2.0 Header (USB_6_7)
15 Clear CMOS Jumper (CLRCMOS1)
16 USB 2.0 Header (USB_4_5)
17 Front Panel Audio Header (HD_AUDIO1)
18 TPM Header (TPMS1)

4
English
I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 6 USB 2.0 Ports (USB_2_3)
2 LAN RJ-45 Port* 7 USB 2.0 Ports (USB_0_1)
3 Line In (Light Blue) 8 D-Sub Port
4 Front Speaker (Lime)** 9 PS/2 Keyboard Port
5 Microphone (Pink)
1 2 4
56789
3

5
English
FM2A58M-VG3+ R2.0
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-
tions.
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
To enable Multi-Streaming function, you need to connect a front panel audio
cable to the front panel audio header. Please refer to below steps for the
software setting of Multi-Streaming. After restarting your computer, please
double-click “Realtek HD Audio Manager” on the system tray. Set “Speaker
Conguration” to “Quadraphonic” or “Stereo”. Click “Device advanced set-
tings”, choose “Make front and rear output devices playbacks two different
audio streams simultaneously”, and click “ok”. Then reboot your system.

6
English
1. Introduction
Thank you for purchasing ASRock FM2A58M-VG3+ R2.0 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It
delivers excellent performance with robust design conforming to ASRock’s commit-
ment to quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found
in the user manual presented in the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock FM2A58M-VG3+ R2.0 Motherboard (Micro ATX Form Factor)
ASRock FM2A58M-VG3+ R2.0 Quick Installation Guide
ASRock FM2A58M-VG3+ R2.0 Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield

7
English
FM2A58M-VG3+ R2.0
1.2 Specications
Platform - Micro ATX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB
CPU - Supports Socket FM2+ 95W / FM2 100W processors
Chipset - AMD A58 FCH (Bolton-D2)
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066
non-ECC, un-buffered memory (see CAUTION 1)
- Max. capacity of system memory: 32GB (see CAUTION 2)
- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2
- Supports AMD Memory Prole Technology (AMP) up to AMP
2400
Expansion Slot - 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)
* PCIE 3.0 is only supported with FM2+ CPU. With FM2
CPU, it only supports PCIE 2.0.
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Dual Graphics
Graphics - Integrated AMD RadeonTM R7/R5 Series Graphics in
A-series APU
- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11,
Pixel Shader 5.0 with FM2 CPU.
- Max. shared memory 2GB
- Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
- Supports AMD Steady VideoTM 2.0: New video post
processing capability for automatic jitter reduction on
home/online video
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
- Supports LAN Cable Detection
- Supports Energy Efcient Ethernet 802.3az

8
English
- Supports PXE
Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Storage - 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Connector - 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 1.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- DRAM, CPU Voltage multi-adjustment
Hardware - CPU temperature sensing
Monitor - Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore
OS - Microsoft® Windows®10 32-bit / 10 64-bit / 8.1 32-bit / 8.1
64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
* For the updated Windows®10 driver, please visit ASRock’s
website for details: http://www.asrock.com
* Carrizo FM2r2 processor supports Windows®10 64-bit / 8.1
64-bit / 7 32-bit / 7 64-bit only.

9
English
FM2A58M-VG3+ R2.0
WARNING
Please realize that there is a certain risk involved with overclocking,
including adjusting the setting in the BIOS, applying Untied Overclocking
Technology, or using third-party overclocking tools. Overclocking may
affect your system’s stability, or even cause damage to the components
and devices of your system. It should be done at your own risk and
expense. We are not responsible for possible damage caused by
overclocking.
CAUTION!
1. Whether 2400/2133/1866/1600MHz memory speed is support-
ed depends on the CPU you adopt. If you want to adopt DDR3
2400/2133/1866/1600 memory module on this motherboard,
please refer to the memory support list on our website for the
compatible memory modules.
ASRock website http://www.asrock.com
2. Due to the operating system limitation, the actual memory size
may be less than 4GB for the reservation for system usage un-
der Windows®10 / 8.1 / 8 / 7. For Windows®64-bit OS with 64-
bit CPU, there is no such limitation.
Certications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

10
English
1.3 Jumpers Setup

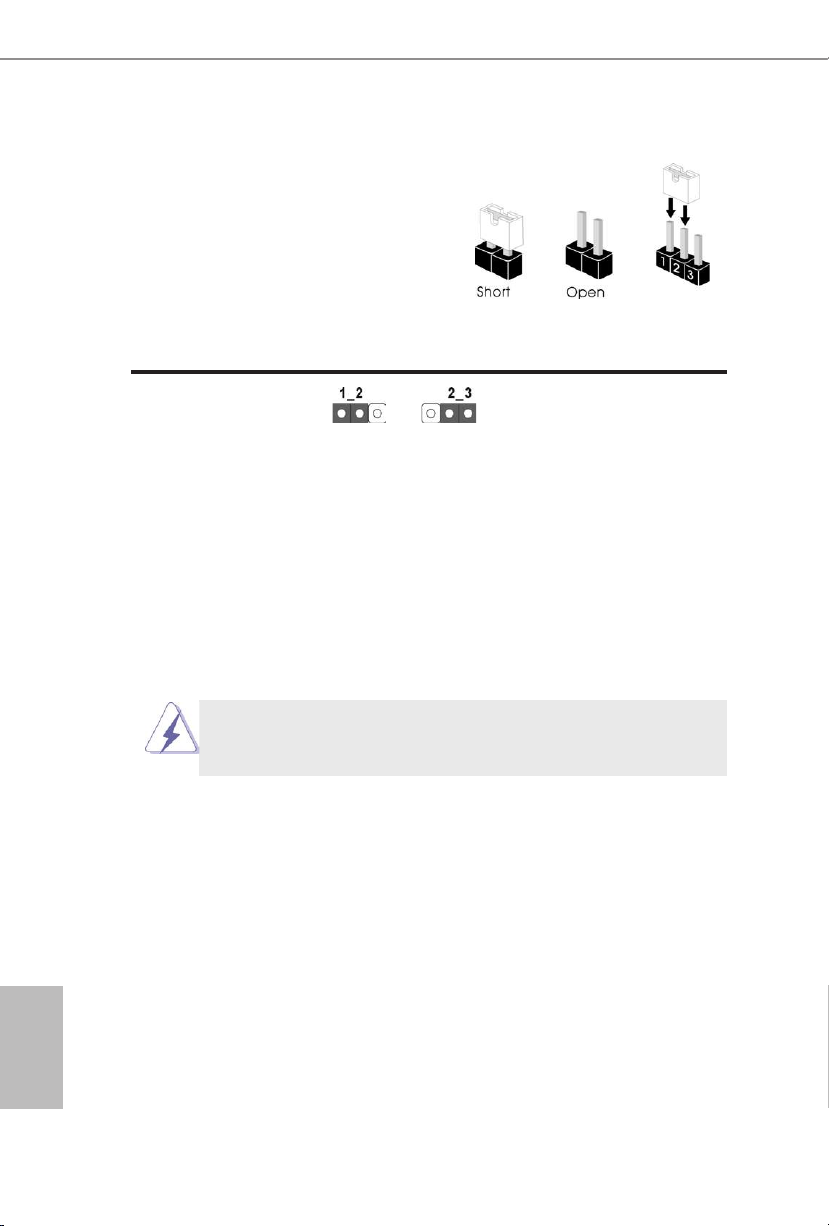

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1)
(see p.2, No. 15)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot
up the system rst, and then shut it down before you do the clear-CMOS ac-
tion. Please be noted that the password, date, time, user default prole, 1394
GUID and MAC address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
If you clear the CMOS, the case open may be detected. Please adjust the
BIOS option “Clear Status” to clear the record of previous chassis intrusion
status.

11
English
FM2A58M-VG3+ R2.0
1.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

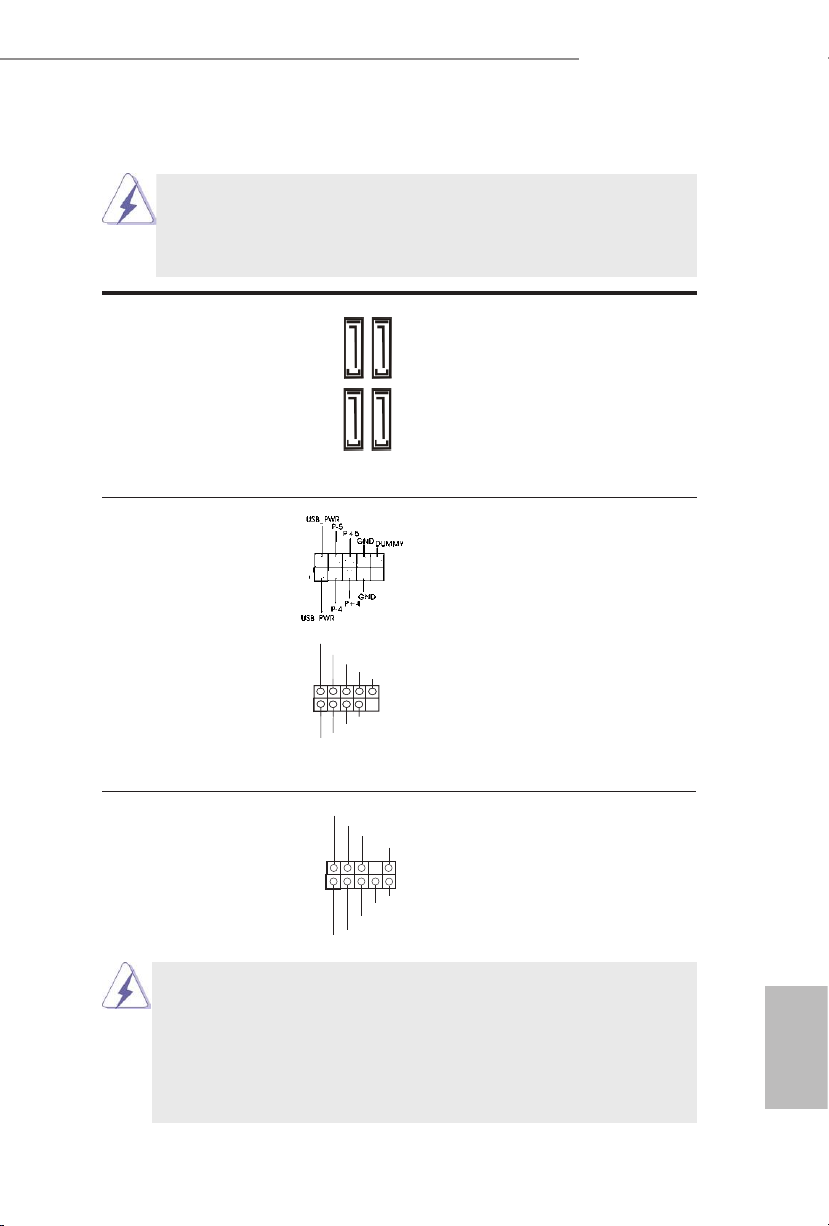

Serial ATA2 Connectors These four Serial ATA2
(SATA_1: see p.2, No. 8) (SATA2) connectors support
(SATA_2: see p.2, No. 9) SATA data cables for internal
(SATA_3: see p.2, No. 6) storage devices. The current
(SATA_4: see p.2, No. 7) SATA2 interface allows up to
3.0 Gb/s data transfer rate.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB_4_5) ports on the I/O panel, there
(see p.2 No. 16) are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
(9-pin USB_6_7) 2.0 ports.
(see p.2 No. 14)
Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2 No. 17) convenient connection and
control of audio devices.
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
SATA_4
SATA_3
SATA_2
SATA_1
P- 7
P+ 7
GND
DUMMY
USB_PWR
USB_PWR
P- 6P+6
GND
1

12
English
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.2 No. 12) functions.
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
Connect the power switch, reset switch and system status indicator
on the chassis to this header according to the pin assignments below.
Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may con-
gure the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to per-
form a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The
LED is on when the system is operating. The LED keeps blinking
when the sys-tem is in S3 sleep state. The LED is off when the system
is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The
LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module
mainly consists of power switch, reset switch, power LED, hard drive
activity LED, speaker and etc. When connecting your chassis front
panel module to this header, make sure the wire assignments and the
pin assign-ments are matched correctly.

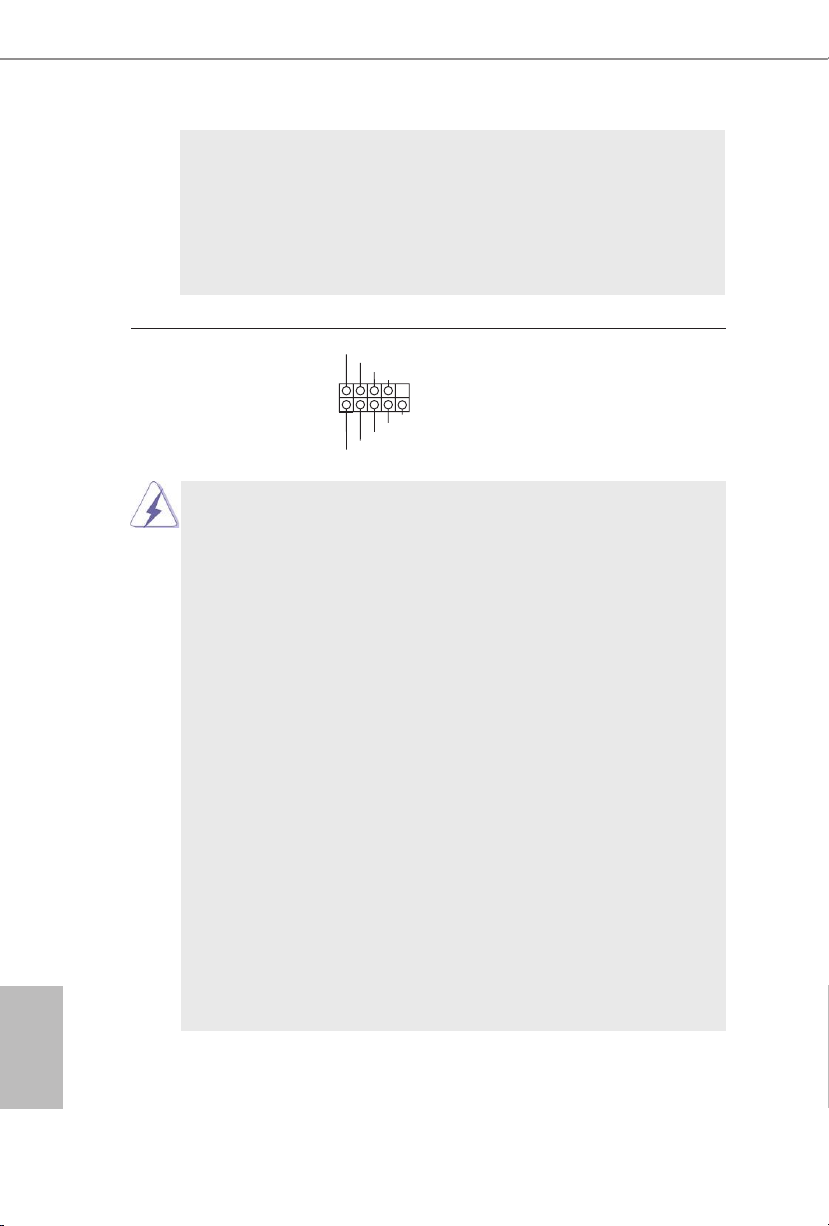

C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows®8.1 / 8.1 64-bit / 7 / 7 64-bit 64-bit OS:
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
“Recording Volume”.

13
English
FM2A58M-VG3+ R2.0

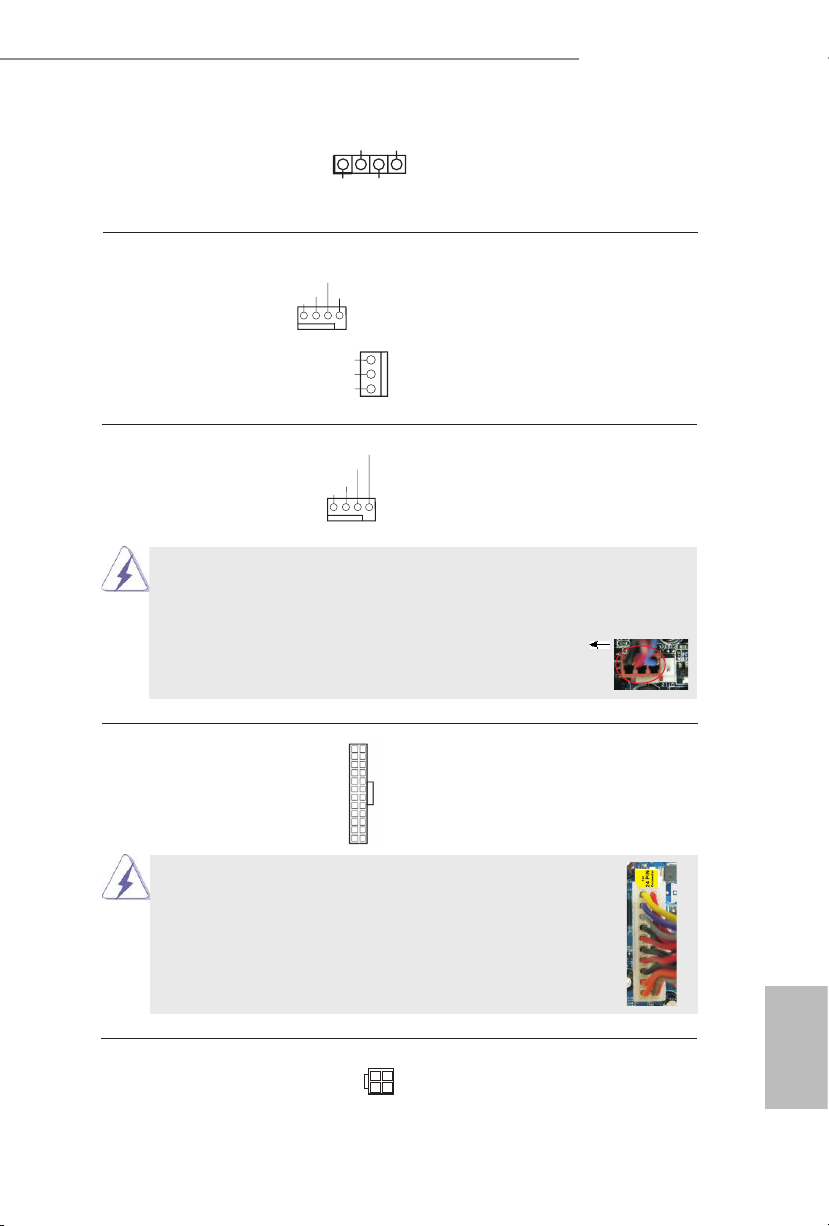

Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.2 No. 11)
1
+5V
DUMMY
DUMMY
SPEAKER
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1) to the fan connectors and
(see p.2 No. 10) match the black wire to the
ground pin. CHA_FAN1 fan
(3-pin PWR_FAN1) speed can be controlled through
(see p.2 No. 1) UEFI or A-Tuning.
CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.2 No. 3) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.2 No. 5)
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
20-Pin ATX Power Supply Installation
Pin 1-3 Connected
3-Pin Fan Installation
12
1
24
13
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.2 No. 2)
GND
+1 2 V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
FAN_SPEED
12
1
24
13

14
English

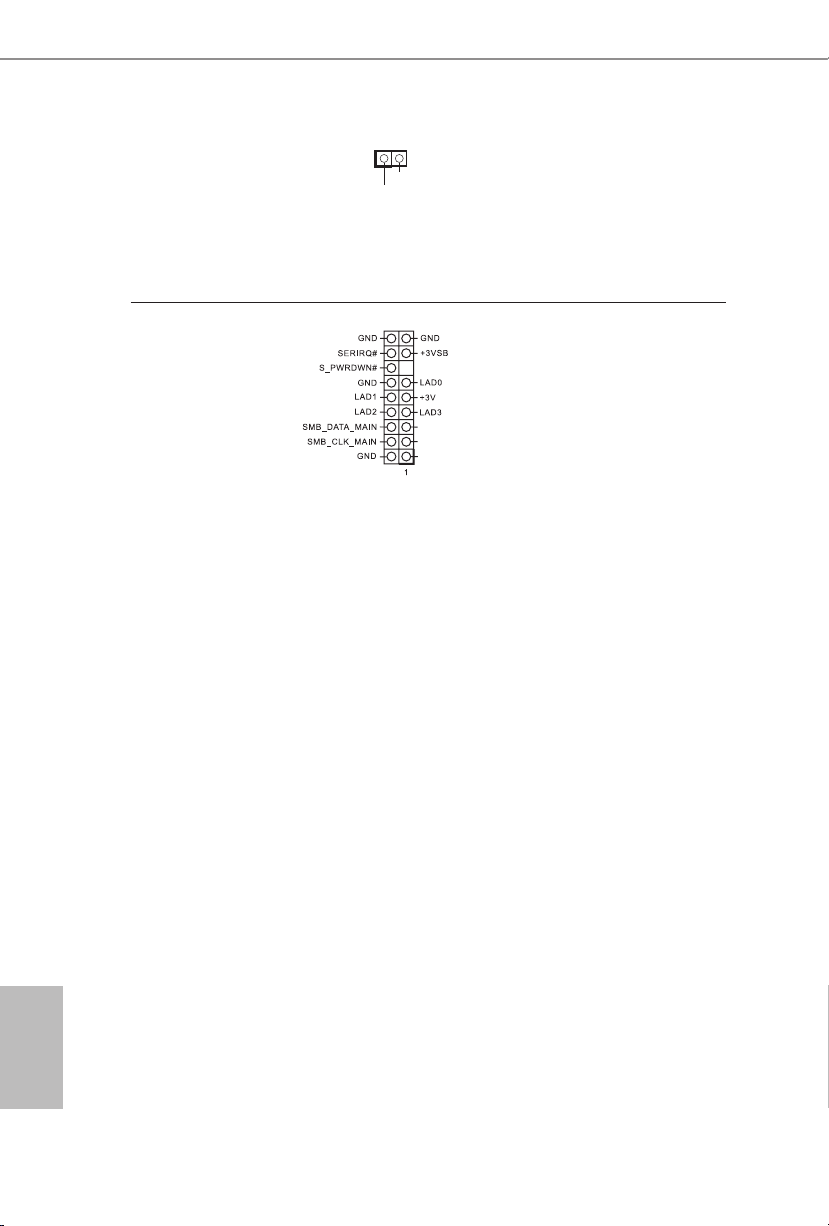

Chassis Intrusion Header This motherboard supports
(2-pin CI1) CASE OPEN detection feature
(see p.2, No. 13) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
TPM Header This connector supports
(17-pin TPMS1) Trusted Platform Module (TPM)
(see p.2, No. 18) system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
PCIRST#
FRAME
PCICLK

15
Deutsch
FM2A58M-VG3+ R2.0
Spezikationen
Plattform - Micro ATX-Formfaktor
- Vollständig solides Kondensatordesign
- PCB mit hochverdichtetem Glasfasergewebe
CPU - Unterstützt Prozessoren für Sockel FM2+ (95 W) /
FM2 (100 W)
Chipsatz - AMD A58 FCH (Bolton-D2)
Speicher - Unterstützung von Dual-Kanal-Speichertechnologie
- 2 x Steckplätze für DDR3
- Unterstützt DDR3 2400+(OC)/2133/1866/1600/1333/1066
non-ECC, ungepufferter Speicher
- Max. Kapazität des Systemspeichers: 32GB
- Unterstützt Intel® Extreme Memory Prole (XMP)1.3/1.2
- Unterstützt AMDs Memory Prole Technology (AMP) bis
AMP 2400
Erweiterungs- - 1 x PCI Express 3.0 x16-Steckplatz (PCIE2: x6-Modus)
steckplätze * PCIE 3.0 wird nur mit FM2+-Prozessor unterstützt.
FM2-Prozessor unterstützt nur PCIE 2.0.
- 1 x PCI Express 2.0 x1-Steckplatz
- Unterstützt AMD duale Grakkarten
Onboard-VGA - Integrierte Grakkarte der AMD RadeonTM R7/R5-Serie in
APU der A-Serie
- DirectX 11.1, Pixel Shader 5.0 mit FM2+-Prozessor. DirectX
11, Pixel Shader 5.0 mit FM2-Prozessor.
- Maximal gemeinsam genutzter Speicher 2GB
- Unterstützt D-Sub mit einer maximalen Auösung von
1920 x 1200 bei 60 Hz
- Unterstützt AMD Steady VideoTM 2.0: Neuartige Funktion der
Videonachbearbeitung für automatische Reduzierung von
Bildschwankungen bei Heim-/Online-Videos
Audio - 5.1-Kanal-HD-Audio (Realtek ALC662-Audiocodec)
- Unterstützt Überspannungsschutz (ASRocks
Komplettschutz vor Spannungsspitzen)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Unterstützt Wake-On-WAN
- Unterstützt Wake-On-LAN
- Unterstützt Schutz vor Blitzschlag/elektrostatischer
Entladung (ASRocks Komplettschutz vor
Spannungsspitzen)

16
Deutsch
- Unterstützt LAN-Kabelerkennung
- Unterstützt energieefzientes Ethernet 802.3az
- Unterstützt PXE
E/A-Anschlüsse - 1 x PS/2-Mausanschluss
an der - 1 x PS/2-Tastaturanschluss
Rückseite - 1 x D-Sub port
- 4 x USB 2.0-Ports (Unterstützt Schutz vor elektrostatischer
Entladung (ASRocks Komplettschutz vor
Spannungsspitzen))
- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED
LED)
- HD Audiobuchse: Audioeingang / Lautsprecher vorne /
Mikrofon
Speicher - 4 x SATA 2-Anschluss mit 3,0 Gb/s, unterstützt RAID-
(RAID 0, RAID 1 und RAID 10), NCQ-, AHCI- und „Hot
Plugging“-Funktionen
Anschlüsse - 1 x Verteiler für Gehäuseeindringversuche
- 1 x TPM-Stiftleiste
- 1 x CPUlüfter-Anschluss (4-pin)
- 1 x Gehäuselüfter-Anschluss (4-pin)
- 1 x Stromlüfter-Anschluss (3-pin)
- 1 x 24-pin ATX-Netz-Header
- 1 x 4-pin anschluss für 12V-ATX-Netzteil
- 1 x Anschluss für Audio auf der Gehäusevorderseite
- 2 x USB 2.0-Anschlüsse (Unterstützung 4 zusätzlicher
USB 2.0-Anschlüsse) (Unterstützt Schutz vor
elektrostatischer Entladung (ASRocks Komplettschutz vor
Spannungsspitzen))
BIOS - 64Mb AMIs Legal BIOS UEFI mit GUI-Unterstützung
- Unterstützung für “Plug and Play”
- ACPI 1.1-Weckfunktionen
- JumperFree-Modus
- SMBIOS 2.3.1
- DRAM und CPU Stromspannung Multianpassung
Hardware Monitor - CPU-Temperatursensor
- Motherboardtemperaturerkennung
- Drehzahlmessung für CPUlüfter
- Drehzahlmessung für Gehäuselüfter
- Geräuscharmer CPU/Gehäuselüfter
- Mehrstuge Geschwindigkeitsteuerung für CPU-/
Gehäuselüfter

17
Deutsch
FM2A58M-VG3+ R2.0
- GEHÄUSE OFFEN-Erkennung
- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore
Betriebssysteme - Unterstützt Microsoft®Windows®8.1 32-Bit / 8.1 64-Bit / 7
32-Bit / 7 64-Bit
Zertizierungen - FCC, CE, WHQL
- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung
gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich)
* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website:
http://www.asrock.com

18
Français
Spécications
Format - Facteur de forme Micro ATX
- Conception à condensateurs solides
- PCB High Density Glass Fabric
CPU - Prend en charge les processeurs à socket FM2+ 95W / FM2
100W
Chipsets - AMD A58 FCH (Bolton-D2)
Mémoire - Compatible avec la Technologie de Mémoire à Canal
Double
- 2 x slots DIMM DDR3
- Supporter DDR3 2400+(OC)/2133/1866/1600/1333/1066
non-ECC, sans amortissement mémoire
- Capacité maxi de mémoire système: 32GB
- Prend en charge le prol de mémoire extrême Intel®(XMP)
1.3/1.2
- Prend en charge la technologie AMD Memory Prole
(Prol de mémoire AMD - AMP) jusqu’à AMP 2400
Slot d’extension - 1 x slot PCI Express 3.0 x16 (PCIE2 à mode x16)
* PCIE 3.0 est uniquement pris en charge le processeur
FM2+. Avec le processeur FM2, seul PCIE 2.0 est pris en
charge.
- 1 x slot PCI Express 2.0 x1
- Support de AMD Dual Graphics
VGA sur carte - APU AMD RadeonTM R7/R5 série graphiques A-series
- DirectX 11.1, Pixel Shader 5.0 avec processeur FM2+.
DirectX 11, Pixel Shader 5.0 avec processeur FM2.
- mémoire partagée max 2GB
- Prend en charge le D-Sub avec une résolution maximale
jusqu’à 1920x1600 @ 60Hz
- Supporte AMD Steady VideoTM 2.0: Nouvelle fonctionnalité
de traitement post-vidéo pour réduction automatique des
tremblements dans les clips vidéo en ligne/maison
Audio - Audio 5.1 CH HD (codec audio Realtek ALC662)
- Supporte la protection contre les surtensions (protection
complète contre surges ASRock)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mo/s
- Realtek RTL8111GR
- Supporte du Wake-On-WAN
- Prend en charge la fonction Wake-On-LAN

19
Français
FM2A58M-VG3+ R2.0
- Supporte la protection contre la foudre/ESD (protection
complète contre surges ASRock)
- Prise en charge de la détection de câble LAN
- Prend en charge la fonction d’économie d’énergie Ethernet
802.3az
- Prend en charge PXE
Panneau arrière - 1 x port souris PS/2
- 1 x port clavier PS/2
- 1 x port D-Sub
- 4 x ports USB 2.0 par défaut (Supporte la protection ESD
(protection complète contre surges ASRock))
- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et
LED VITESSE)
- Prise HD Audio: Entrée Ligne / Haut-parleur frontal /
Microphone
Stockage - 4 x connecteurs 3,0 Gb/s SATA2, prise en charge des
fonctions RAID (RAID 0, RAID 1 et RAID 10), NCQ, AHCI et
« Connexion à chaud »
Connecteurs - 1 x Embase d’intrusion châssis
- 1 x embase TPM
- 1 x Connecteur pour ventilateur de CPU (br. 4)
- 1 x Connecteur pour ventilateur de Châssis (br. 4)
- 1 x Connecteur pour ventilateur de pouvoir (br. 3)
- 1 x br. 24 connecteur d’alimentation ATX
- 1 x br. 4 connecteur d’alimentation 12V ATX
- 1 x Connecteur audio panneau avant
- 2 x En-tête USB 2.0 (prendre en charge 4 ports USB 2.0
supplémentaires) (Supporte la protection ESD
(protection complète contre surges ASRock))
BIOS - 64Mb AMI UEFI Legal BIOS avec support GUI
- Support du “Plug and Play”
- Compatible pour événements de réveil ACPI 1.1
- Gestion jumperless
- Support SMBIOS 2.3.1
- DRAM et CPU Tension Multi-ajustement
Surveillance - Détection de la température du processeur
système - Détection de la température du châssis
- Tachéomètre du ventilateur processeur
- Tachéomètre du ventilateur châssis
- Fonction ventilateur silencieux processeur/châssis Quiet
Fan

20
Français
- Contrôle simultané des vitesse du ventilateur processeur/
châssis
- Détection d’OUVERTURE DE BOÎTIER
- Monitoring de la tension: +12V, +5V, +3.3V, Vcore
OS - Microsoft®Windows®8.1 32-bit / 8.1 64-bit / 7 32-bit /
7 64-bit
Certications - FCC, CE, WHQL
- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise)
* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web:
http://www.asrock.com
