ASTEC Peterson 6710D Instruction Manual

Track Mounted Horizontal Grinder
Serial Number: 32D-29-2116 and Up
109401B English
6710D Operator Safety
Manual

Copyright © 2020 Peterson Pacific Corp.
All rights reserved.
Peterson Pacific Corp. reserves the copyright for this
manual and the sole right to add, change, summarize,
delete, or otherwise edit and update information con-
tained in this manual, including text, images, tables,
translations, formatting, and all forms of information
herein.
Peterson Pacific Corp. is a subsidiary of Astec Indus-
tries, Inc.
Trademarks
Peterson and the Peterson icon are trademarks of Peter-
son Pacific Corp. Caterpillar and CAT are registered
trademarks of Caterpillar, Incorporated. All other prod-
ucts or services mentioned in this document are identi-
fied by the trademarks or service marks of their
respective companies or organizations, and Peterson
Pacific Corp disclaims any responsibility for specifying
theirownership.Anysuch marks are used in an editorial
way, to the benefit of the owner, with no intention of
infringement.
Patents
The 6710D is a remote-controlled, track mounted, hori-
zontal grinder with critical parts licensed under U.S.
Patents. For a list of Peterson patents, active and pend-
ing, go to the Patents page of the Peterson website.
California Proposition 65 Warning
1WARNING:
Breathing diesel engine exhaust exposes you to
chemicals known to the State of California to
cause cancer and birth defects or other repro-
ductive harm.
• Always start and operate the engine in a well-
ventilated area.
• If in an enclosed area, vent the exhaust to the
outside.
• Do not modify or tamper with the exhaust
system.
• Do not idle the engine except as necessary.
1WARNING:
Drilling, sawing, sanding or machining wood
products can expose you to wood dust, a sub-
stance know to the State of California to cause
cancer. Avoid inhaling wood dust or use a dust
mask or other safeguards for personal protec-
tion.
For more information go to www.P65warnings.ca.gov/
diesel.
Contacts
Contact your Peterson distributor for current operation,
safety, maintenance, and service information.
Peterson Pacific Corp.
PO Box 40490
Eugene, Oregon 97404
U.S.
Peterson Product Support 888.813.0712
Fax [phone]
www.petersoncorp.com
Document History
Document Number: 109401B
Publication Date: September 2020
Original Instructions
Reference Documents
The following documents for the 6710D grinder are
provided to 6710D owners at no added cost.
•The6710DOperatorSafetyManualdescribesbasic
safety and operating information.
•The 6710D Maintenance Manual provides step-by-
step procedures for many common maintenance
activities, such as lubrication, replacing bits, grates,
and some other common wear parts, operating parts
and subsystems for maintenance access, a mainte-
nance schedule and log, plus other valuable infor-
mation.
The 6710D Operator Safety Manual and the 6710D
Maintenance Manual should be kept at the equip-
ment at all times for the use of operators and others
who are expected to work with or on the 6710D hor-
izontal grinder.
•The6710DParts Book makesorderingreplacement
parts easier and quicker. It is shipped separately
from the machine when it leaves the factory. The
bookisprovidedbythePetersonDistributor,who is
the primary source for replacement parts. The
6710DPartsBookis available bydownloadorUSB
flash drive, which in some cases, may make it pos-
sible to have a copy of it at the work site.
Additional copies and replacement copies of these man-
ualsare provided at afee.Copiesofthemanualsarealso
available to regional dealers.
Peterson welcomes your comments for improving the
content, design and usefulness of these documents.

109401B 6710D GRINDER OPERATOR SAFETY MANUAL 1
CONTENTS
ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . .5
The Manual Set. . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Document Number. . . . . . . . . . . . . . . . . . . . . . .5
Alert Messages. . . . . . . . . . . . . . . . . . . . . . . . . .5
Important Messages and Notes . . . . . . . . . . . . .6
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . .6
Small Numbers on Figures . . . . . . . . . . . . . . . .6
Units of Weight and Measure . . . . . . . . . . . . . .6
LIMITED WARRANTY POLICY. . . . . . . . . . . . .7
Peterson Horizontal Grinders . . . . . . . . . . . . . .7
1. MACHINE DESCRIPTION . . . . . . . . . . . . . . . . .9
Machine Overview . . . . . . . . . . . . . . . . . . . . . . . . .9

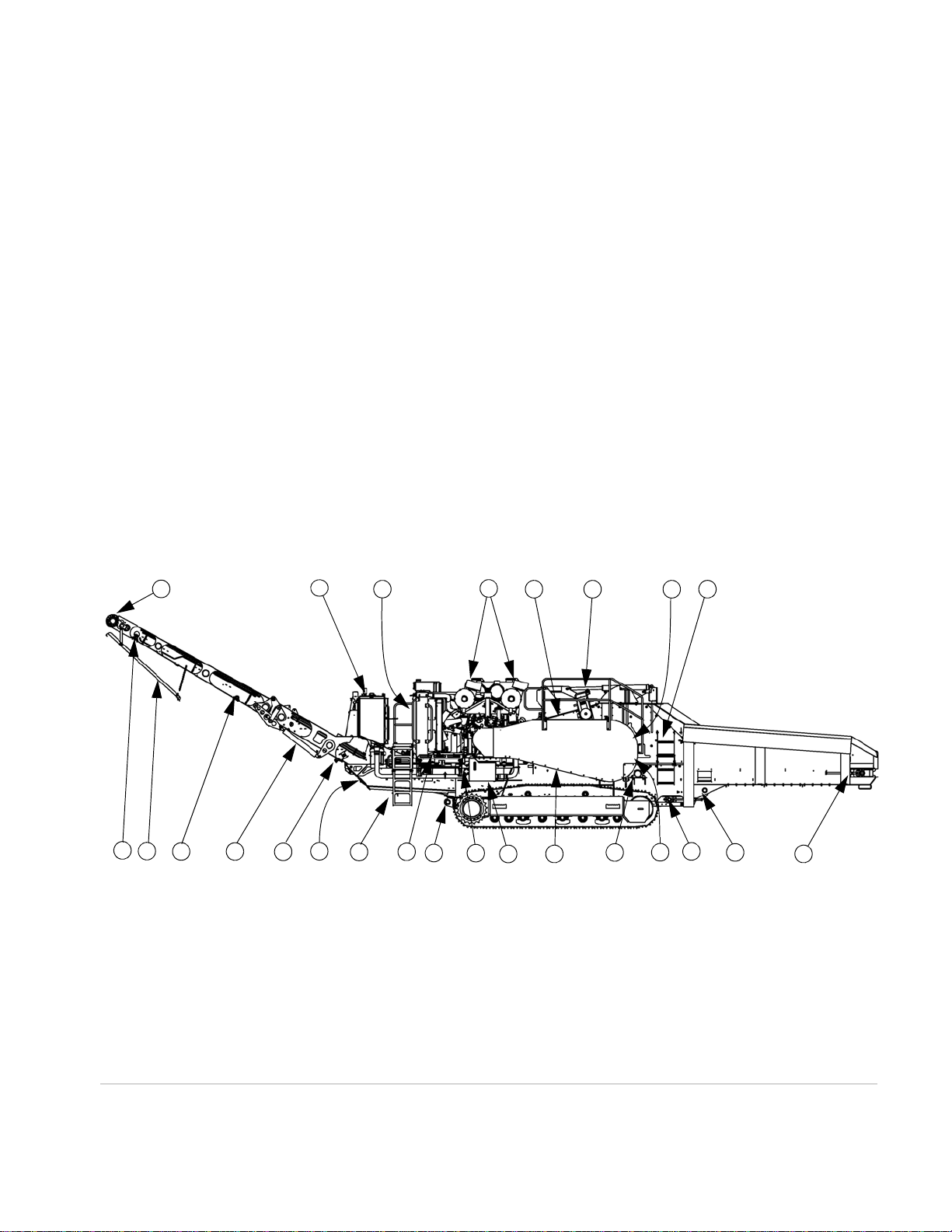

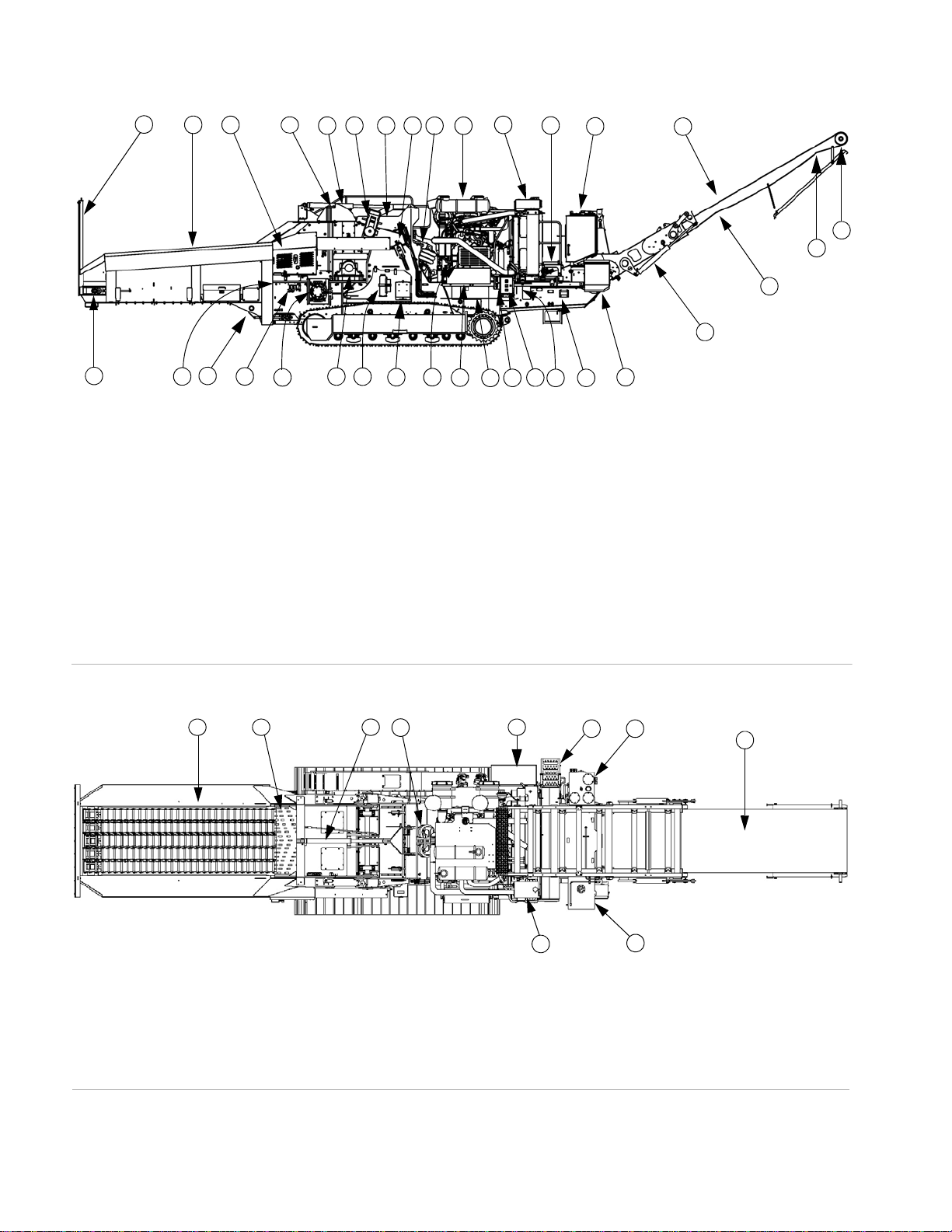

Parts Locations. . . . . . . . . . . . . . . . . . . . . . . . . .9

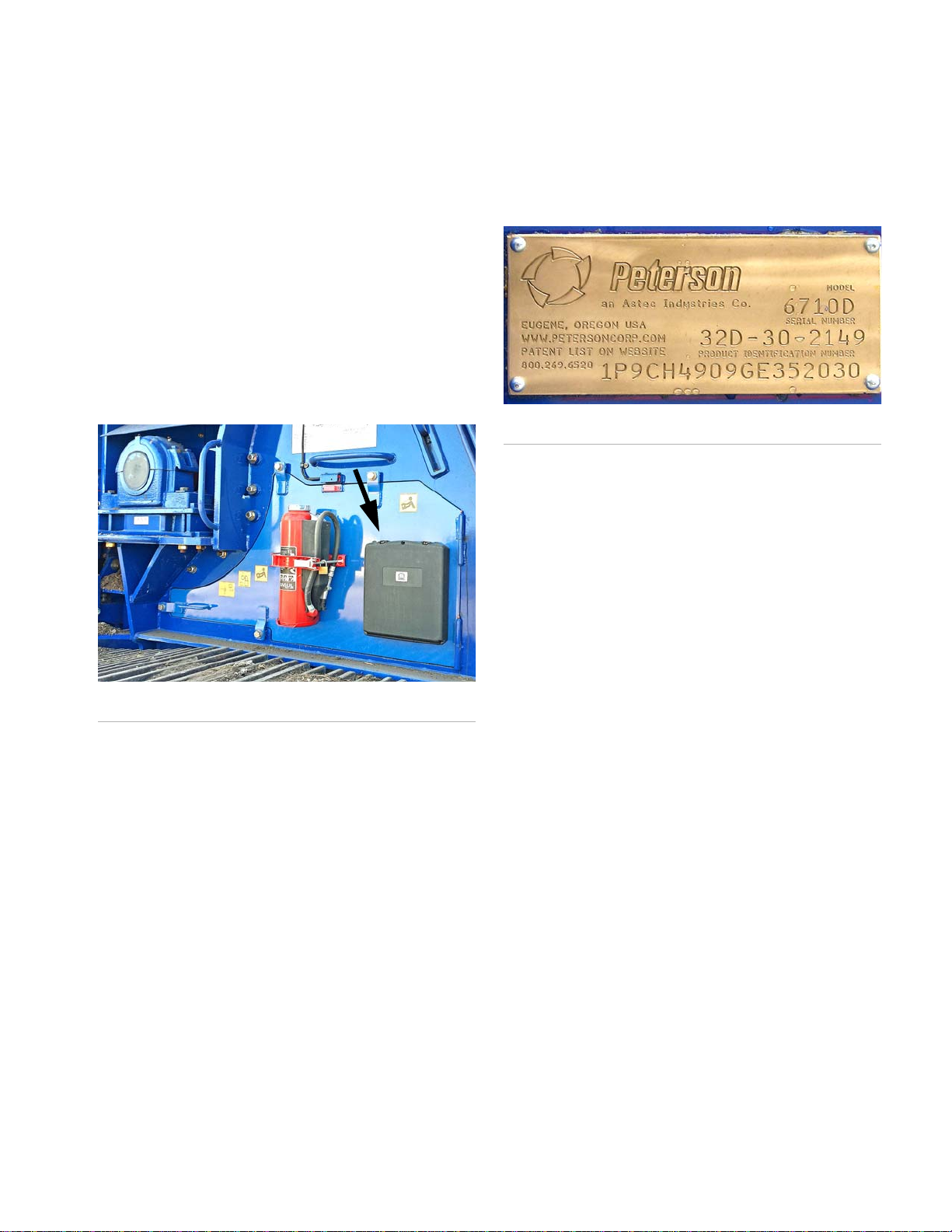

Machine Information Storage Box. . . . . . .11
Machine Serial Number Plate. . . . . . . . . . .11
Power Distribution . . . . . . . . . . . . . . . . . . . . . . . .11
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Hydraulic Clutch . . . . . . . . . . . . . . . . . . . . . . .12
Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Machine Controls . . . . . . . . . . . . . . . . . . . . . . . . .14
Electrical Disconnect Switches . . . . . . . . . . . .14
Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . .14

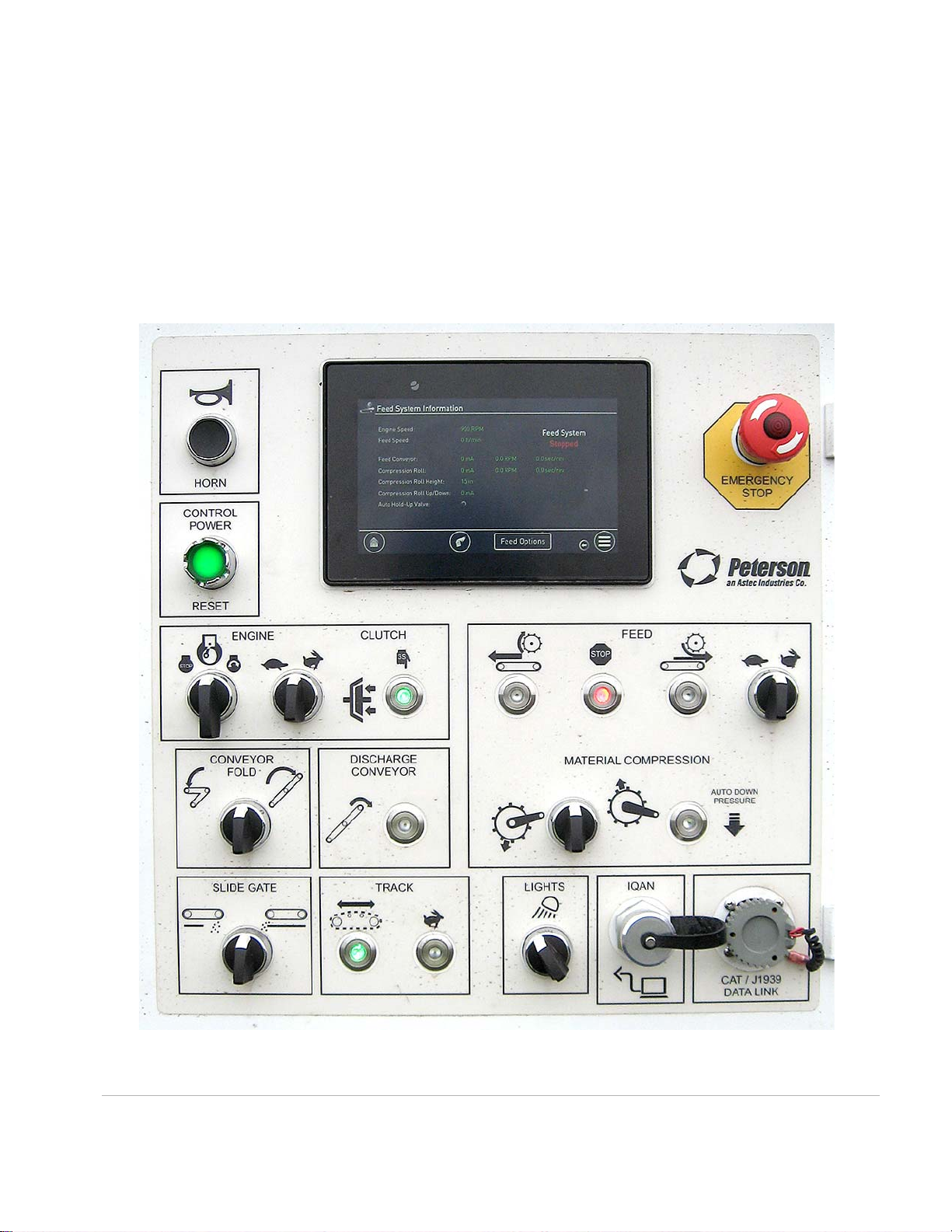

Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . .15

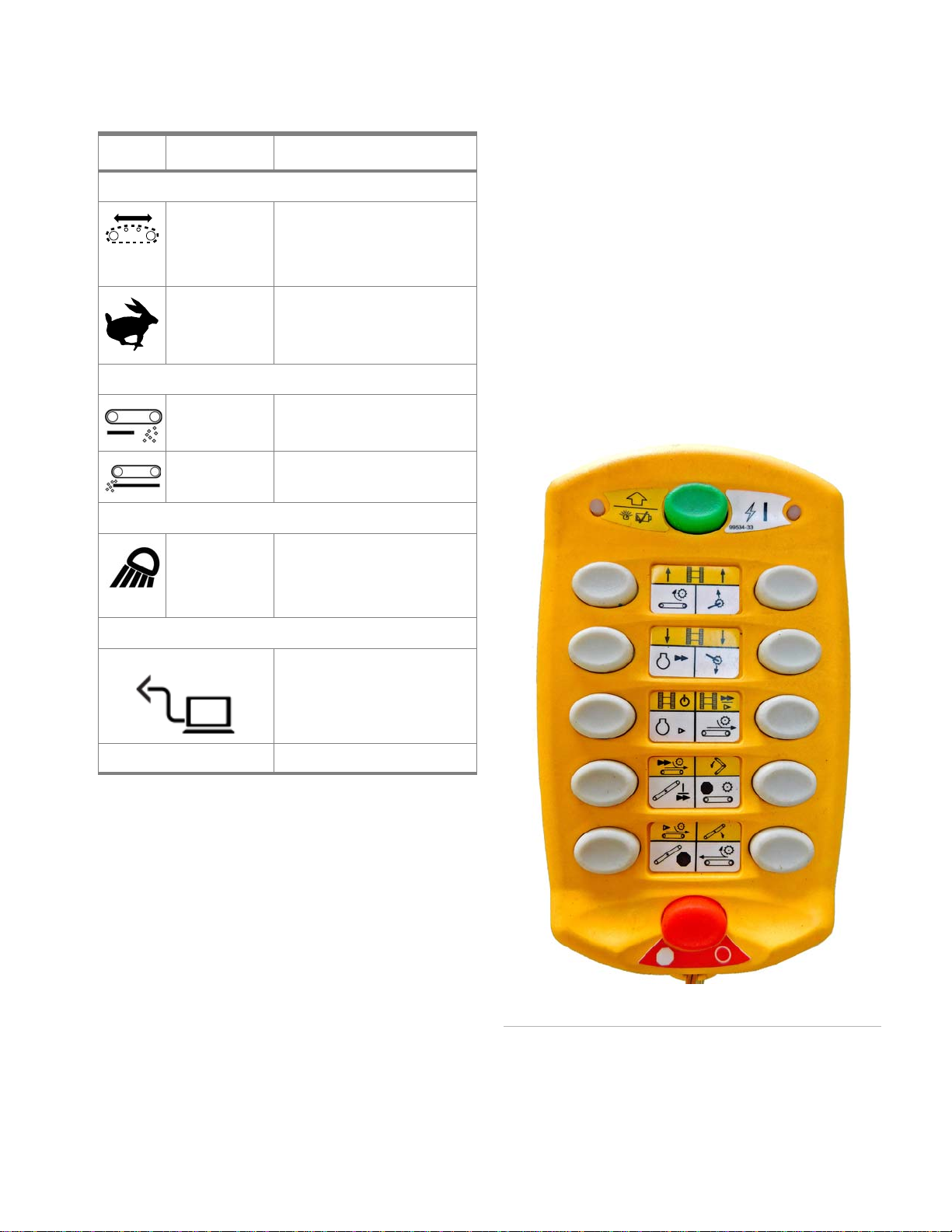

Remote Transmitter. . . . . . . . . . . . . . . . . . . . .17
Control Buttons . . . . . . . . . . . . . . . . . . . . .18
Care and Handling . . . . . . . . . . . . . . . . . . .19
Material Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Adaptive Feed Control. . . . . . . . . . . . . . . . . . .20
Hopper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Compression Roll . . . . . . . . . . . . . . . . . . . . . .20
Feed Chain . . . . . . . . . . . . . . . . . . . . . . . . .20
Slide Gate . . . . . . . . . . . . . . . . . . . . . . . . . .21
Debris Curtain . . . . . . . . . . . . . . . . . . . . . .21
Grinder Assembly. . . . . . . . . . . . . . . . . . . . . . . . .22
Rotor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rotor Bits . . . . . . . . . . . . . . . . . . . . . . . . . 22
Anvil and Grates. . . . . . . . . . . . . . . . . . . . . . . 22
Impact Protection . . . . . . . . . . . . . . . . . . . . . . 22
Limit Switches. . . . . . . . . . . . . . . . . . . . . . 23
IRS Limit Switch. . . . . . . . . . . . . . . . . . . . 23
Compression Bumpers and Shear Pins . . . 23
Latching Mechanism and Air Bags. . . . . . 24
Material Discharge System . . . . . . . . . . . . . . . . . 26
Discharge Conveyor . . . . . . . . . . . . . . . . . . . . 26
Magnetic Head Pulley . . . . . . . . . . . . . . . . . . 26
Support Systems. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Strobe Lights. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Water Sprinkler System . . . . . . . . . . . . . . . . . 27
Track Drive System . . . . . . . . . . . . . . . . . . . . 27
Air Compressors. . . . . . . . . . . . . . . . . . . . . . . 27
Water Sprayer. . . . . . . . . . . . . . . . . . . . . . . . . 28
Optional Equipment . . . . . . . . . . . . . . . . . . . . 28
6710D Machine Specifications . . . . . . . . . . . . . . 29
2. WORKING SAFELY . . . . . . . . . . . . . . . . . . . .31
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety Topics . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety Summary . . . . . . . . . . . . . . . . . . . . . . . 31
Safety First! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Responsibility for Safety . . . . . . . . . . . . . . . . 32
Use Only for the Designed Purpose . . . . . . . . 32
Qualified Operators . . . . . . . . . . . . . . . . . . . . 32
Machine Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Safety Controls . . . . . . . . . . . . . . . . . . . . . . . . 33
Disconnect Switches . . . . . . . . . . . . . . . . . 33
Disconnect Lockout/Tagout . . . . . . . . . . . 34
Emergency Machine Stop . . . . . . . . . . . . . 35
Remote Machine Stop. . . . . . . . . . . . . . . . 36
Loss of Link. . . . . . . . . . . . . . . . . . . . . . . . 36
Idle or Shutdown Due to Impact . . . . . . . . 36

CONTENTS
2 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Compression Roll Vertical Movement. . . 37
Grate Access Interlock Switch . . . . . . . . . 37
Track Enable Alarm . . . . . . . . . . . . . . . . . 37
Stored Energy. . . . . . . . . . . . . . . . . . . . . . . . . 37
Compression Roll Safety Locking Stops . 38
Grinding Rotor Precautions . . . . . . . . . . . 39
Anvil Housing Precautions. . . . . . . . . . . . 40
Falling Objects . . . . . . . . . . . . . . . . . . . . . 41
Pressurized Gases and Fluids . . . . . . . . . . 41
Electrical Energy. . . . . . . . . . . . . . . . . . . . 41
Moving Parts . . . . . . . . . . . . . . . . . . . . . . . . . 42
Guards and Shields . . . . . . . . . . . . . . . . . . 42
Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Conveyors. . . . . . . . . . . . . . . . . . . . . . . . . 42
Drive Tracks . . . . . . . . . . . . . . . . . . . . . . . 44
Fire Prevention and Suppression. . . . . . . . . . . . . 44
Daily Fire Prevention. . . . . . . . . . . . . . . . . . . 44
Before Operation. . . . . . . . . . . . . . . . . . . . 44
During Operation . . . . . . . . . . . . . . . . . . . 44
After Operation. . . . . . . . . . . . . . . . . . . . . 45
Sources and Causes of Fires. . . . . . . . . . . . . . 45
Fire Suppression Equipment . . . . . . . . . . . . . 46
Fire Extinguisher . . . . . . . . . . . . . . . . . . . 46
Water Pump Sprayer. . . . . . . . . . . . . . . . . 46
Water Sprinkler System . . . . . . . . . . . . . . 48
Job Site Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Moving Machinery. . . . . . . . . . . . . . . . . . . . . 49
Flying Objects Hazard . . . . . . . . . . . . . . . . . . 49
Noise Levels. . . . . . . . . . . . . . . . . . . . . . . . . . 49
Creating a Safe Workplace . . . . . . . . . . . . . . 50
Wearing Protective Gear. . . . . . . . . . . . . . 50
Avoiding Unsafe Conditions . . . . . . . . . . 50
Practicing Safe Behaviors. . . . . . . . . . . . . 51
Demolition and Disaster Cleanup Operations 51
Hazardous Materials and Regulated
Substances. . . . . . . . . . . . . . . . . . . . . . . . . 51
Fire Hazards/Explosive Materials. . . . . . . 53
Operating and Hazard Zones . . . . . . . . . . . . . 54
Safety Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Maintenance Safety. . . . . . . . . . . . . . . . . . . . . . . 62
3. OPERATING THE 6710D . . . . . . . . . . . . . . . 63
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Preparing the Work Site . . . . . . . . . . . . . . . . . 63
Inspecting Before Startup . . . . . . . . . . . . . . . . 63
Inspecting the Feed Material for
Contaminates . . . . . . . . . . . . . . . . . . . . . . . 66
Setting Up for Operation. . . . . . . . . . . . . . . . . 67
Unrolling the Debris Curtain. . . . . . . . . . . 67
Positioning the Folding Ladder . . . . . . . . . 68
Connecting the Water Sprinkler . . . . . . . . 68
Inflating the IRS Air Bags. . . . . . . . . . . . . 69
Starting the Machine. . . . . . . . . . . . . . . . . . . . 70
Starting the Engine . . . . . . . . . . . . . . . . . . 70
Setting the Slide Gate . . . . . . . . . . . . . . . . 71
Unfolding the Conveyor . . . . . . . . . . . . . . 71
Running the Grinder. . . . . . . . . . . . . . . . . . . . . . . 72
Starting the Grinder. . . . . . . . . . . . . . . . . . . . . 72
Starting the Discharge Conveyor. . . . . . . . 72
Engaging the Clutch . . . . . . . . . . . . . . . . . 72
Starting the Feed System . . . . . . . . . . . . . . 73
Feed System Options. . . . . . . . . . . . . . . . . 73
Inspecting Before Grinding . . . . . . . . . . . . 75
Controlling the Grinder. . . . . . . . . . . . . . . . . . 75
Reversing the Feed System . . . . . . . . . . . . 75
Operating the Compression Roll . . . . . . . . 75
Monitoring the Machine While Grinding. . . . 76
Removing Jams . . . . . . . . . . . . . . . . . . . . . 76
Recovering from a Feed Auto Shutdown . 76
Inspecting the Machine During Periodic Daily
Shutdowns. . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Checking the Bits . . . . . . . . . . . . . . . . . . . . . . 81
Moving the Machine. . . . . . . . . . . . . . . . . . . . 84
Guidelines for Safe Travel. . . . . . . . . . . . . 84
Traveling on Sloped Ground . . . . . . . . . . . 84
Machine Orientation and Direction for
Travel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Operating the Track Controls . . . . . . . . . . 85
Using the Track Speeds . . . . . . . . . . . . . . . 86
Towing When Stuck . . . . . . . . . . . . . . . . . 86
Finishing Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Shutting Down . . . . . . . . . . . . . . . . . . . . . . . . 88

CONTENTS
109401B 6710D GRINDER OPERATOR SAFETY MANUAL 3
Clean and Service the Machine . . . . . . . . . . . .89
Inspecting After Shutdown . . . . . . . . . . . . . . .89
Securing the Machine . . . . . . . . . . . . . . . . . . .90
Starting the Maintenance Air Compressor . . .90
4. DISPLAYING MACHINE DATA . . . . . . . . . . . .93
Module Description . . . . . . . . . . . . . . . . . . . . . . .93
Adjusting the Display . . . . . . . . . . . . . . . . . . .93
Cleaning the Display . . . . . . . . . . . . . . . . . . . .94
Display Icons. . . . . . . . . . . . . . . . . . . . . . . . . .94
Machine Status (Home) . . . . . . . . . . . . . . . . . . . .95
Alert Messages . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Machine Operation Alert Messages . . . . . .97
Clutch Alert Messages . . . . . . . . . . . . . . .100
ECM Alert Messages . . . . . . . . . . . . . . . .102
Display Failure Modes . . . . . . . . . . . . . . .104
Expansion Module Error Codes. . . . . . . .106
Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
CAC/Hyd Oil/Clutch Oil Fan . . . . . . . . . . . .109
Engine Coolant Fan . . . . . . . . . . . . . . . . . . . .110
Engine Fuel Usage. . . . . . . . . . . . . . . . . . . . .112
Hydraulics 1/2. . . . . . . . . . . . . . . . . . . . . . . . . . .113
Hydraulics 2/2. . . . . . . . . . . . . . . . . . . . . . . . . . .114
Track Drive . . . . . . . . . . . . . . . . . . . . . . . . . .115
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Electrical Inputs 1/3. . . . . . . . . . . . . . . . . . . .117
Electrical Inputs 2/3. . . . . . . . . . . . . . . . . . . .119
Electrical Inputs 3/3. . . . . . . . . . . . . . . . . . . .120
Electrical Outputs 1/3 . . . . . . . . . . . . . . . . . .121
Electrical Outputs 2/3 . . . . . . . . . . . . . . . . . .122
Electrical Outputs 3/3 . . . . . . . . . . . . . . . . . .123
Remote Transmitter Test . . . . . . . . . . . . . . . .124
Feed System . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Feed System Options. . . . . . . . . . . . . . . . . . .127
Peterson Adaptive Control System . . . . . . . .129
Feed Speed . . . . . . . . . . . . . . . . . . . . . . . .129
Compression Roll Speed . . . . . . . . . . . . .129
Feed System Options. . . . . . . . . . . . . . . . 129
Other Automatic Actions. . . . . . . . . . . . . 129
Air Bag Information. . . . . . . . . . . . . . . . . . . . . . 130
Clutch Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Clutch Fault Messages . . . . . . . . . . . . . . . . . 132
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 138
Revision History. . . . . . . . . . . . . . . . . . . . . . 139
Main. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Adjust Menu . . . . . . . . . . . . . . . . . . . . . . . . . 141
Feed System Setup . . . . . . . . . . . . . . . . . 142
Feed Clear Auto Reverse. . . . . . . . . . . . . 144
Compression Roll . . . . . . . . . . . . . . . . . . 145
Air Bag (Adjust) . . . . . . . . . . . . . . . . . . . 146
Measure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . 148
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
5. TRANSPORTING THE 6710D. . . . . . . . . . . .151
Preparing for Transport . . . . . . . . . . . . . . . . . . . 151
Loading the 6710D for Transport . . . . . . . . . . . 155
6. OPTIONAL EQUIPMENT. . . . . . . . . . . . . . . .159
Magnetic Cross-Belt Conveyor . . . . . . . . . . . . . 159
Other Options. . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Feed Chain Return Pan. . . . . . . . . . . . . . . . . 160
Work Lights . . . . . . . . . . . . . . . . . . . . . . . . . 160
Mid-Speed Package . . . . . . . . . . . . . . . . . . . 160
LIMITED WARRANTY POLICY . . . . . . . . . . 161
Peterson Horizontal Grinders . . . . . . . . . . . . 161
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163

CONTENTS
4 6710D GRINDER OPERATOR SAFETY MANUAL 109401B

109401B 6710D GRINDER OPERATOR SAFETY MANUAL 5
ABOUT THIS MANUAL
The information about this manual describes all the manuals that support the 6710D grinder, the safety notices you
need to follow, the definitions of special terms, and the text of the limited warranty.
The Manual Set
This manual is one book in a set that owners and opera-
tors should read and understand. The set consists of the
6710D Parts Book, this 6710D Operator Safety Man-
ual, and the 6710D Maintenance Manual.
This 6710D Operator Safety Manual provides owners
andoperatorsofthePeterson6710DHorizontal Grinder
with valuable information to produce quality, sized
material in the safest, best manner known to us.
Do not remove manuals from the machine. Missing
manuals can lead to hazards and delays when the man-
uals are not read or cannot be found by those who need
them.
Peterson recommends that you become thoroughly
familiarwith thesemanualstohelpensuresafe,efficient
material processing and long machine life.
Changes
Product development is a continual focus of engineer-
ing at Peterson. Updates and improvements to the
machines’ design and controls system are an ongoing
activity. Any of this information is subject to change
without notice. Therefore, some changes made to the
machine may not be captured in the content of this man-
ual; the information, specifications, and illustrations are
current as of the publication date.
For the most current information on your machine,
check with Peterson or your dealer for service bulletins
or manual updates.
Document Number
Every Peterson manual, parts book, and service docu-
ment is identified by a document number, which
appears on most pages. Reference this number when
contacting a Peterson representative concerning the
most up-to-date information available.
Alert Messages
Throughoutthismanualandonmanylabelsmountedon
the machine, you will see three types of hazard alert
messages that refer to risks of possible injury to people.
These messages are shown with the following safety
alert symbols:
1DANGER
Indicates an immediate hazard that, if not
avoided, will result in death or serious injury.
1WARNING
Indicates a potential hazard that, if not avoided,
could result in death or serious injury.
1CAUTION
Indicates a potential hazard that, if not avoided,
may result in minor or moderate injury.
Because alert messages can disrupt the flow of a proce-
dure, shortened alert messages may appear in the step-
by-step task descriptions.

ABOUT THIS MANUAL
6 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Important Messages and
Notes
In addition to the hazard alert messages that refer to pos-
sible injury to people, the manual uses the following
type of alert message.
Important
Indicates a situation which, if not noticed or
avoided, may result in equipment or property dam-
age. This message type is also used to call atten-
tion to opportunities for improving machine
performance or efficiency.
NOTE: Provides additional information to enhance
understanding of the topic.
Safety Instructions
Be sure to read the entire Safety chapter (“Working
Safely” on page 31) to avoid hazardous operations and
to become aware of hazards that may arise during main-
tenance.
Small Numbers on Figures
In Peterson product manuals, we insert a number, such
as F05555, in small typeface below each graphic to
identify its file name. This number is for editorial use
only.
Units of Weight and Measure
In this manual, U.S. customary units of weight and mea-
sure are stated first, followed by their SI (metric) values
in parentheses. For example, 10 lb (4.5 kg). Many SI
units here have been rounded to avoid an improper
appearance of precision.
U.S. customary units are sometimes stated in words, or
as abbreviations, such as ft for foot or feet, °F for tem-
perature degrees Fahrenheit, and in. for inch or inches,
lbs for pounds, and psi for pounds per square inch.
Ft-lb is an abbreviation for “foot-pounds of torque,”
although in some fields the abbreviation lb-ft, for
“pound-feet of torque” is used.

ABOUT THIS MANUAL
109401B 6710D GRINDER OPERATOR SAFETY MANUAL 7
LIMITED WARRANTY POLICY
Peterson Horizontal Grinders
Peterson Pacific Corp. ("Peterson") warrants to the first end-user all new equipment manufactured by it to be
free from defects in workmanship and materials under normal use and conditions for a period of twelve (12)
months or 2000 operating hours, whichever occurs first, from the warranty start date. Products sold as com-
plete machines or operating units have a warranty start date defined by the operating start date. Non-wear
parts utilized for machine repair during the warranty period will be warranted through the remainder of the
machine warranty period. This limited warranty remains in force for the above time period only if all of
Peterson's operational and warranty procedures are followed and recommended maintenance is per-
formed.
Should any defect in workmanship or materials be proven to Peterson's satisfaction within the warranty period,
Peterson's liability under this warranty shall be limited to, at Peterson's option, the repair or replacement of any
defective part or workmanship. Before evaluating a warranty claim, Peterson reserves the right to require
defective parts to be returned for inspection with all charges prepaid. The right to have a defective product
repaired or replaced shall constitute the sole and exclusive remedy for breach of this warranty.
This warranty shall not apply to any Peterson equipment where the equipment has been subjected to accident,
misuse, negligence or improper care or where the equipment has been repaired or altered by others, unless
Peterson has given prior written consent to such repair or alteration.
This warranty is null and void if other than genuine Peterson’s parts are used. Peterson makes no warranties
with respect to trade accessories or component parts not manufactured by or distributed by Peterson. Those
accessories or components are subject only to such warranties, if any, as may be made by their respective
manufacturers.
This limited warranty is Peterson’s entire and only warranty with respect to the equipment manufactured by
Peterson and sold hereunder. THIS WARRANTY IS IN LIEU OFALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR APARTICULAR
PURPOSE OR FROM COURSE OF DEALING OR USAGE OF TRADE ARE HEREBY EXPRESSLY DIS-
CLAIMED. IN NO EVENT SHALL PETERSON BE LIABLE TOANY PARTY FOR LOSS OF USE, REVENUE
OR PROFIT OR FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, EXEMPLARY OR PUNITIVE
DAMAGES OF ANY KIND. This is a limited warranty, referring only to the product, machine, part(s), or unit
identified on the original sales order and is subject to other limitations as set forth herein. This warranty is gov-
erned by the laws of the State of Oregon and may not be modified except pursuant to a written agreement
signed by Peterson.
Peterson and its customers may expect that certain operating parts of the product or unit require replacement
as a result of normal use during the warranty period. These parts include, but are not limited to: wear liners,
chains, bits or knives, bearings, filters, light bulbs, belts, etc. Replacement of such parts is not included within
this warranty.
NOTE: Peterson’s products are not designed for processing rocks, metal, or other non-crushables. Processing
rocks, metal, or other non-crushables may damage the machine and/or its parts. Peterson shall not be liable
for any damage or personal injury as a result of rocks, metal, or other non-crushables going through the
machine.
(June, 2017)

ABOUT THIS MANUAL
8 6710D GRINDER OPERATOR SAFETY MANUAL 109401B

109401B 6710D GRINDER OPERATOR SAFETY MANUAL 9
CHAPTER 1
MACHINE DESCRIPTION
This chapter describes the 6710D material handling assemblies for feeding, grinding, and discharging the material.
Supporting systems include the engine, clutch, and hydraulics as well as the electronic controls and the drive tracks.
Machine Overview
The machine uses an array of advanced, heavy-duty
mechanisms for reducing the following materials:
•Construction and demolition debris
•Land clearing slash
•Urban wood waste
•Scrap lumber and pallets
•Tree stumps
•Lumber mill yard waste
•Wet leaves and grass
•Other green waste
Whole, irregular, or piece materials are fed into the
machine, where a rotor grinds the materials to a cus-
tomer-specified size.
Parts Locations
Figure 1, Figure 2, and Figure 3 on page 10 identify the
locations of major machine parts and systems.
Figure 1: 6710D Horizontal Grinder, Drive Side View
1. Discharge Belt Drive Pulley (Magnetic)
2. Hydraulic Tank
3. Engine and Oil Cooling Units
4. Air Pre-cleaners
5. Top of Belt Guard; Belt Access Door;
Anvil Housing Access
6. Safety Pin
7. Safety Locking Stop Handle
8. Hopper Access Ladder
9. Return Idler
10. Scrap Metal Return Tray
11. Beater Bar
12. Conveyor Fold Cylinder
13. Return Roll with Finger Guard
14. Water Tank
15. Catwalk Access Ladder
16. Engine Service Deck
17. Tow Point, Rear
18. Emergency Stop Button (1 of 5)
19. Clutch Hydraulic Tank
20. Rotor Belt Guard
21. Feed Drive Roll Bearing
22. Safety Locking Stop Handle
23. Discharge Belt Return Pulley
24. Tow Point, Front
25. Tail Pulley
F08448
910 13 15
11
12345678
12 14 16 17 19 20 21 22
18 23 24 25

CHAPTER 1MACHINE DESCRIPTION
10 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Figure 2: 6710D Horizontal Grinder, Non-drive Side View
F08376
1 2 56710
9
811
19
13
12 14
20 21 22 24 26
25 27 28 29
3
23
31
30
15 18
16 17
32
33 34
1. Debris Curtain
2. Hopper
3. Auxiliary Air Compressor
4. Safety Locking Stop
5. Compression Roll Housing
6. Single Pivot Shaft with Coil Spring and
Shear Pin
7. Anvil Housing
8. Grate Release
9. Impact Release System with Air Bags
10. Engine Mufflers
11. Radiator with Surge Tank
12. Catwalk
13. Fuel Tank
14. Discharge Conveyor
15. Tail Pulley, Feed Chain
16. Emergency Stop Button (1 of 5)
17. Air Tanks, Auxiliary Air Compressor
18. Water Sprinkler Valves (3)
19. Feed Chain Drive
20. Rotor Shaft Bearing
21. Fire Extinguisher and Access to Grates
22. Information Box
23. Engine
24. Battery Box
25. Hydraulic Valve Assembly
26. Electrical Disconnect Switches and E-
Stop
27. Power Distribution Box
28. Emergency Stop Button
29. Water Sprayer
30. Control Panel
31. Conveyor Folding Cylinder
32. Beater Bar
33. Return Idler
34. Discharge Belt Drive Pulley (Magnetic)
4
Figure 3: 6710D Horizontal Grinder, Top View and Orientation
1. Hopper and Feed Chain
2. Compression Roll
3. Compression Roll Lift Cylinder
4. Anvil Latch Air Bags
5. Engine Service Deck
6. Ladder to Catwalk
7. Hydraulic Oil Tank
8. Discharge Conveyor Belt
9. Engine Fuel Tank
10. Radiator Surge Tank
F08375
2 3 467
10
1 5
9
8
Right side
Left side

CHAPTER 1MACHINE DESCRIPTION
109401B 6710D GRINDER OPERATOR SAFETY MANUAL 11
Machine Information Storage Box
The document box for storing machine information is
installed on the grate access door (Figure 4).
Documents in this box include the machine’s operator
safety and maintenance manuals, hydraulic and electric
schematics, and transportation instructions for the truck
driver.
Additional information is included in the Owner’s
Information Package that is shipped to your Peterson
dealer.Thispackage includes OEM (original equipment
manufacturer) material relating to certain components
installed on your machine, such as the engine and the
clutch.
Figure 4: Document Box Location
Machine Serial Number Plate
The machine serial number is engraved on a brass plate
installed at the end of the hopper on the drive side of the
machine (Figure 5).
Figure 5: Machine Serial Number Plate
F09471
F10041

CHAPTER 1MACHINE DESCRIPTION
12 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Power Distribution
The engine drives two power distribution systems:
•Hydraulic clutch and drive belts for the grinder
rotor.
•Hydraulic pumps for the hydraulic motors, cylin-
ders, and drive tracks.
Engine
The 6710D is equipped with a Caterpillar C32 diesel
engine, with a PTTech HPTO15 (hydraulic power take
off) clutch.
The engine includes an ECM (electronic control mod-
ule) that communicates with the Peterson Adaptive
Control System. The ECM monitors engine perfor-
mance that can be viewed on the control panel display.
Machines sold in the U.S. include engines with a Tier 4
aftertreatment. Machines sold outside the U.S. may
include a Tier 2 engine that does not include the after-
treatment.
For detailed engine operation and maintenance infor-
mation, refer to the Caterpillar Operation and Mainte-
nance Manual, provided in the Owner’s Information
Package,andthe6710DMaintenanceManual,storedin
the document box onboard your 6710D.
Hydraulic Clutch
When the engine starts, the clutch remains disengaged
until the operator presses the CLUTCH control button on
the control panel.
Engaging: The clutch may be engaged when the
engine speed is between 750–1000 rpm.
During the engage cycle, the clutch provides controlled
slippage to bring the rotor up to engine speed gradually.
When the engine and rotor speeds match, the clutch
becomes fully engaged.
Operating: When the clutch is fully engaged, the
greenringaroundtheCLUTCH button andagreen clutch
icon on the display are illuminated.
While the engine is running, the clutch controller senses
and compares input and output speeds for engaging, dis-
engaging, and adjusting clutch performance.
Disengaging: The clutch should be disengaged
before shutting down the engine. For instructions on
operating the clutch, see “Engaging the Clutch” on
page 72.
The clutch controller monitors clutch conditions. When
a condition exists that may cause damage to the clutch,
the clutch may either disengage or fail to engage.
Failure to Engage–Possible Causes
The following are some causes of an automatic disen-
gagement or a failure to engage:
•High oil temperature or clogged filter
•Engine speed too low or too high
•Shock load causing engine speed to drop below 500
rpm
•Overload on the clutch (clutch slippage)
•Previous overload not yet cleared
•Pushing the CLUTCH button while clutch is in the
process of engaging
•Increasing engine speed while clutch is in the pro-
cess of engaging
•Trying to re-engage clutch when the grinder is mov-
ing too fast
For details on clutch faults, see “Clutch Fault Mes-
sages” on page 132.

CHAPTER 1MACHINE DESCRIPTION
109401B 6710D GRINDER OPERATOR SAFETY MANUAL 13
Hydraulics
Hydraulic pressure-compensated, load-sense pumps
and valves distribute power to several machine assem-
blies:
•Direct drive hydraulic motors power the following
units:
•Feed conveyor
•Compression roll
•Discharge conveyor
•Drive tracks
•One hydraulic cylinder raises and lowers the com-
pression roll. The linkage to this cylinder can be
reconfigured to lift the anvil housing for mainte-
nance.
•Two hydraulic cylinders fold and unfold the dis-
charge conveyor.
•One cylinder opens and closes the slide gate on the
feed system.
The hydraulic oil tank (separate from the clutch oil
tank) includes a sight gauge and fill cap. The suction
line contains a ball valve that must remain open when-
ever the engine runs.

CHAPTER 1MACHINE DESCRIPTION
14 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Machine Controls
Machine controls are located on the control panel and
on the remote transmitter. The control panel is powered
by the batteries. Circuit protection is provided by circuit
breakers. Power shut-off is provided by the disconnect
switches.
A gateway device is installed on the outside of the con-
trol box for the Remote Monitoring option. The gate-
way enables a wireless link for transmittinginformation
from the MD4 controller.
Electrical Disconnect
Switches
The 6710D is equipped with two switches to connect
and disconnect battery electrical power (Figure 6 on
page 14):
•Control power disconnect switch to disconnect
electrical power to all systems except the work
lights and the water sprayer system.
•Battery disconnect switch to disconnect all electri-
cal power.
For detailed informationon the disconnectswitchesand
lockout procedures, see “Disconnect Switches” on
page 33.
1WARNING
Personal injury hazard. Electrical hazard.
Unauthorized operation and electrical accidents
are possible when a machine is left unattended
with the electrical power enabled. Disconnect
electrical power at the battery disconnect
switch:
• Overnight and on weekends
• Whenever the operator is away
• During transport
Always use the battery disconnect to turn off the electri-
cal system.
Exception: if the work lights or the water sprayer are
required for maintenance, then use the control power
disconnect.
Follow “lockout/tagout” procedures with either switch.
See “Disconnect Lockout/Tagout” on page 34.
Circuit Breakers
Circuit breakers protect the electrical circuits. They are
locatedinthepowerdistributionbox.Ifacircuitbreaker
trips, determine the cause. To reset a breaker, first open
the control power disconnect, push in the button on the
breaker, then close the control power disconnect.
If both of the electrical disconnect switches are turned
on, but the machine controls do not operate and the con-
trol panel is unlit, check the CONTROL POWER CIRCUIT
BREAKER (Figure 6). The button on a tripped breaker
extends out. Push it back in until it snaps into place.
For more information on circuit breakers and the power
distribution box, see the Electrical section in the 6710D
Maintenance Manual.
Figure6:ElectricalDisconnectSwitchesandCircuitBreakers
F08803
3
1
1. Control Power Disconnect Switch
2. Battery Disconnect Switch
3. Circuit Breaker Reset Buttons
2

CHAPTER 1MACHINE DESCRIPTION
109401B 6710D GRINDER OPERATOR SAFETY MANUAL 15
Control Panel
The main operating controls (Figure 7) are mounted in
a lockable cabinet on the side of the machine.
The control panel is operated from the ground level. Its
standardlockout system prevents unauthorizedstart-up.
The panel includes the Peterson display screen for the
IQAN controller.
For information about the Peterson display, see “Dis-
playing Machine Data” on page 93.
For all other controls, see Table 1 on page 16.
F09936
Figure 7: Control Panel

CHAPTER 1MACHINE DESCRIPTION
16 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Table 1: Control Panel Controls
Icon Description Function
Horn Press to signal to others in
the area about safety events,
such as starting the engine.
Control
Power/Reset
Turns on the display at
machine startup.
If the control panel fails to
power up, press for 3
seconds to reset.
Emergency
Stop
Press to stop the engine
quickly in an emergency. Pull
it out before restarting.
NOTE: The LED in the middle of the button illuminates
any time an Emergency Stop button is pressed.
Engine
Engine Stop Stops the engine.
Engine Run Leave in this position while
the engine runs.
Engine Start Rotate to this position and
hold for 3 seconds to start
the engine.
Slow Idle Lowers the engine RPM.
Fast Idle Raises the engine RPM.
Clutch
Clutch Press and hold for 3 seconds
to engage the clutch.
3-Second
Delay
There is a 3-second delay
between pressing the CLUTCH
button and clutch
engagement.
STOP
3S
Conveyor Fold
Conveyor
Fold
Folds the discharge
conveyor.
Conveyor
Open
Unfolds the discharge
conveyor.
Discharge Conveyor
Conveyor
Start
Starts the discharge
conveyor.
Feed
Feed Reverse Press and hold to reverse
the feed system at full speed
(upper and lower feed rolls).
Feed Stop Stops the feed system (upper
and lower feed rolls).
Feed Forward Turns on the feed system
(upper and lower feed rolls).
Speed is determined by the
control system.
Slow Feed Moves the feed system
slower.
Fast Feed Moves the feed system
faster.
Material Compression
Compression
Roll Down
Lowers the compression roll
onto the feed material.
Compression
Roll Up
Raises the compression roll.
Auto Down
Pressure
Applies downward pressure
to the compression roll onto
the feed material. Press to
enable/disable.
Table 1: Control Panel Controls (Continued)
Icon Description Function
STOP

CHAPTER 1MACHINE DESCRIPTION
109401B 6710D GRINDER OPERATOR SAFETY MANUAL 17
Remote Transmitter
Many machine functions can be controlled using the
remote transmitter (Figure 8). It can be carried by hand
or in a separate vehicle, such as a loader, to remotely
control many machine functions.
The transmitter can be attached to metal surfaces due to
built-in magnets.
1CAUTION
The red OFF & STOP button is not an emergency
stop switch.
The machine may not stop if the transmitter bat-
teries are discharged or if the transmitter is out
of range.
Do not rely on the OFF & STOP button to turn off
the machine.
Be prepared to turn off the machine at the con-
trol panel using the Engine switch or one of the
Emergency Stop push buttons located on the
machine.
For more information on the OFF & STOP button,
see “Remote Machine Stop” on page 36.
Figure 8: Remote Transmitter
Track
Track Enable Enables the drive tracks
without starting any
movement. (The tracks are
controlled from the remote.)
Fast Track Sets the drive tracks to high
speed mode. Press again to
switch back to slow mode.
Slide Gate
Slide Gate
Open
Opens the slide gate under
the feed conveyor drive.
Slide Gate
Closed
Closes the slide gate.
Lights
Work Lights Turns on the machine lights.
Operational any time the
battery disconnect switch is
turned on.
Data Ports
IQAN USB USB port to connect a
computer to the IQAN
system.
CAT / J1939 DATA LINK Engine ECM connection.
Table 1: Control Panel Controls (Continued)
Icon Description Function
F11177

CHAPTER 1MACHINE DESCRIPTION
18 6710D GRINDER OPERATOR SAFETY MANUAL 109401B
Important
When you are finished using the remote transmit-
ter, make sure that the green POWER ON light is
off. Otherwise, the transmitter batteries will be
dead next time you want to use it.
If you move the transmitter out of range while the
machine is running, or if the batteries become too
weak, the feed system, tracks, and discharge sys-
tem stop immediately. Then, after 90 seconds, the
engine slows to low idle. An error message is dis-
played and a loss of link is logged on the controller.
For further details, see “Loss of Link” on page 36.
Control Buttons
The transmitter controls are explained in Table 2.
The white pushbuttons each serve a dual function, as
indicated by the white and yellow labels.
The green pushbutton (SHIFT function) changes opera-
tion between white-labeled functions and yellow-
labeled functions.
Table 2: Remote Transmitter Buttons
Icon Function
Power Press the green button to turn ON
the remote.
The green LED is on during
operation.
Shift Enables one function set—either
the yellow label set or the white
label set—while disabling the other
function set.
The red LED stays lit during
operation.
Low Battery The red LED blinks when the
battery is low.
Compression
Roll Reverse
Reverses the direction of the
compression roll.
Roll Up Raises the compression roll.
Roll Down Lowers the compression roll.
Engine Speed
Fast
Increases the engine rpm.
Engine Speed
Slow
Decreases the engine rpm.
Feed Forward Moves the feed forward.
Feed Stop Stops movement of the feed.
Feed Reverse Reverses direction of the feed.
Discharge On/
Speed Select
Turns on the discharge conveyor in
medium speed. Press again for
fast, press again for slow.
Table 2: Remote Transmitter Buttons (Continued)
Icon Function
