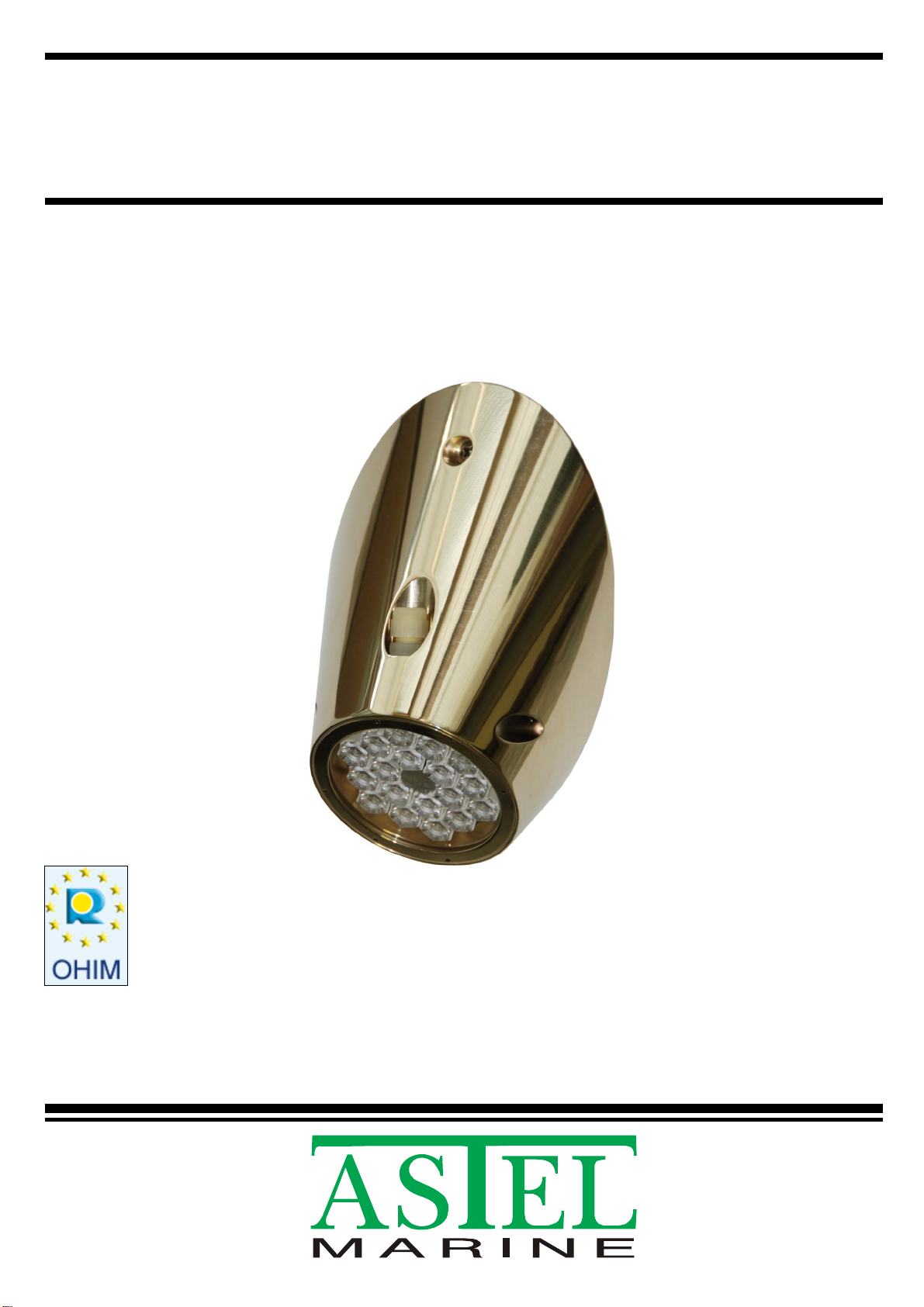

ASTEL MARINE CONUS MST18240 User manual

CONUS
MST18240
UNDERWATER
LIGHT
Registered Community Design
Operating Instructions

2
CONTENTS
Preface...............................................................................................................................................3
Features.............................................................................................................................................3
Precautions........................................................................................................................................3
Controls and Connectors....................................................................................................................4
Underwater Light CONUS MST18240.........................................................................................4
Power Supply Unit MPS06800.....................................................................................................5
Installation..........................................................................................................................................6
Underwater Light CONUS MST18240.........................................................................................6
Power Supply Unit MPS06800.....................................................................................................7
Appearance........................................................................................................................................9
Technical Specifications.....................................................................................................................9
Warranty...........................................................................................................................................10
Declaration of Conformity.................................................................................................................11
_________________________________________________________________________________

3
PREFACE
The CONUS series underwater lights are
designed to use the latest LED lighting
technology.
The surface-mount designed casings enable
very simple installation on the hull without
making any bigger holes through the hull under
water line. By the help of slope-truncated cone
designed casing the CONUS series
underwater lights can be installed on the hull to
light in different directions, to the sea ground
and to the both sides of the yacht.
All the models are available in aluminium
bronze and anodized aluminium casings in
different colors. The lighting is available in
white, blue or green colors or three-color. All
the models are designed with 18 power LEDs
and suitable power supply units.
FEATURES
Aluminium Bronze or Anodized Aluminium
Casing
18 Power LEDs Design
White, Blue, Green or Three-Color Lighting
Tempered Glass Optical Window
High-Efficiency Lens
Low Power Consumption
Over-Temperature Protection
Simple Installation
Remote Control (optional)
PRECAUTIONS
The underwater light has to be installed and
used in accordance with the instructions of
this manual only.
The power supply has to be disconnected
before installation.
The underwater light is recomended to be
installed around 0.2 m below the waterline
for the best illumination and to avoid over-
heating.
Do not try to install or remove the
underwater light while the vessel is in the
water.
The optical window has to be cleaned by a
soft brush or cloth. Avoid using any
abrasive or chemical cleaner on the optical
window.
Avoid installing the power supply unit in
extremely hot places and near appliances
generating strong magnetic fields.
Do turn power off immediately and refer
servicing to qualified service personnel if
the underwater light does not operate
normally following the operating
instructions.

4
CONTROLS AND CONNECTORS

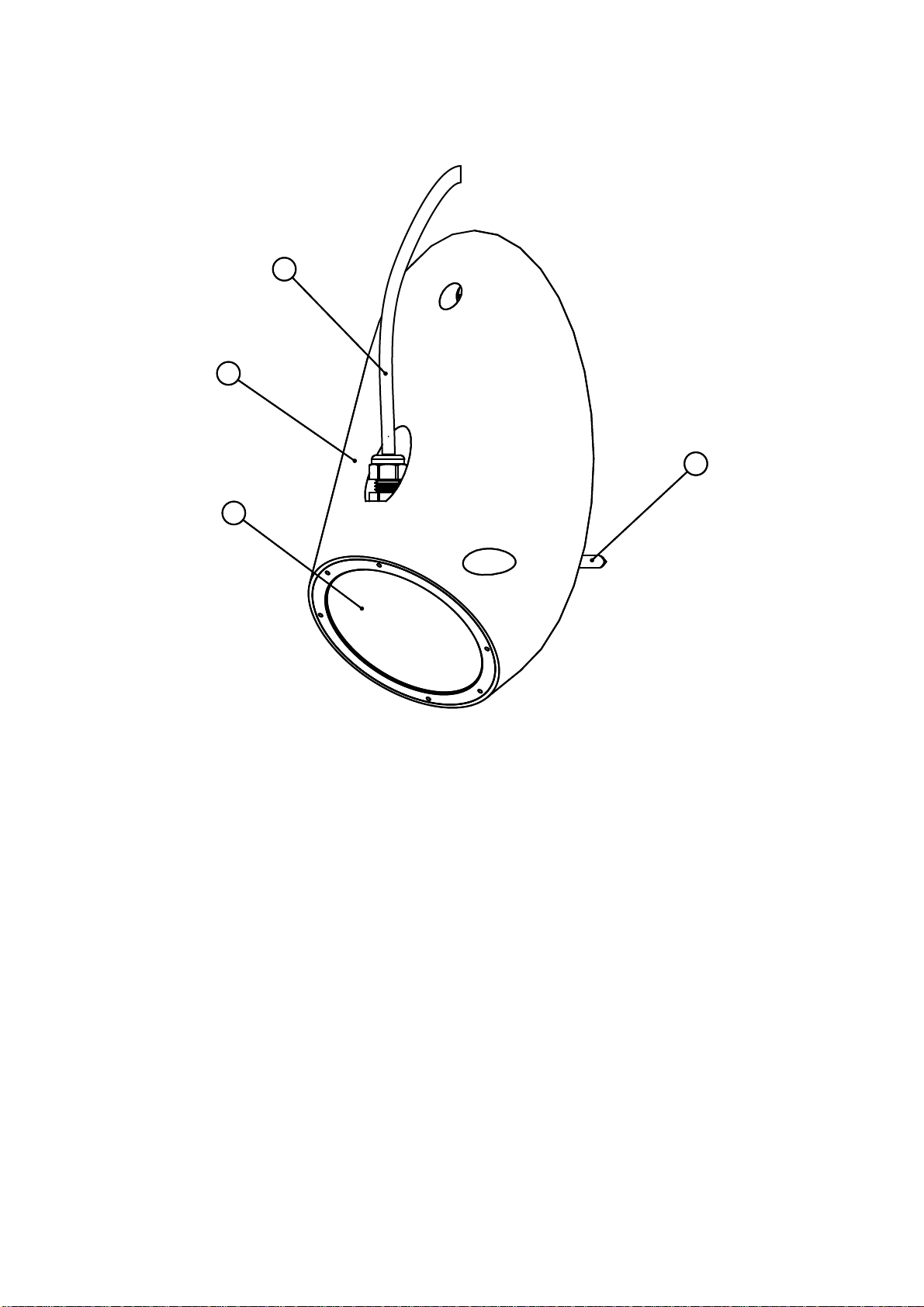

Underwater Light CONUS MST18240
4
2
1
3
(1) Optical window
The 6 mm depth tempered glass optical window.
(2) Underwater light casing
Aluminium bronze or anodized aluminium casing with fixing holes and cable gland.
(3) Cable
The 8-pole multi-core cable to connect the power supply unit.
(4) Fixing screw
The fixing screws to fix the underwater light on the hull.

5

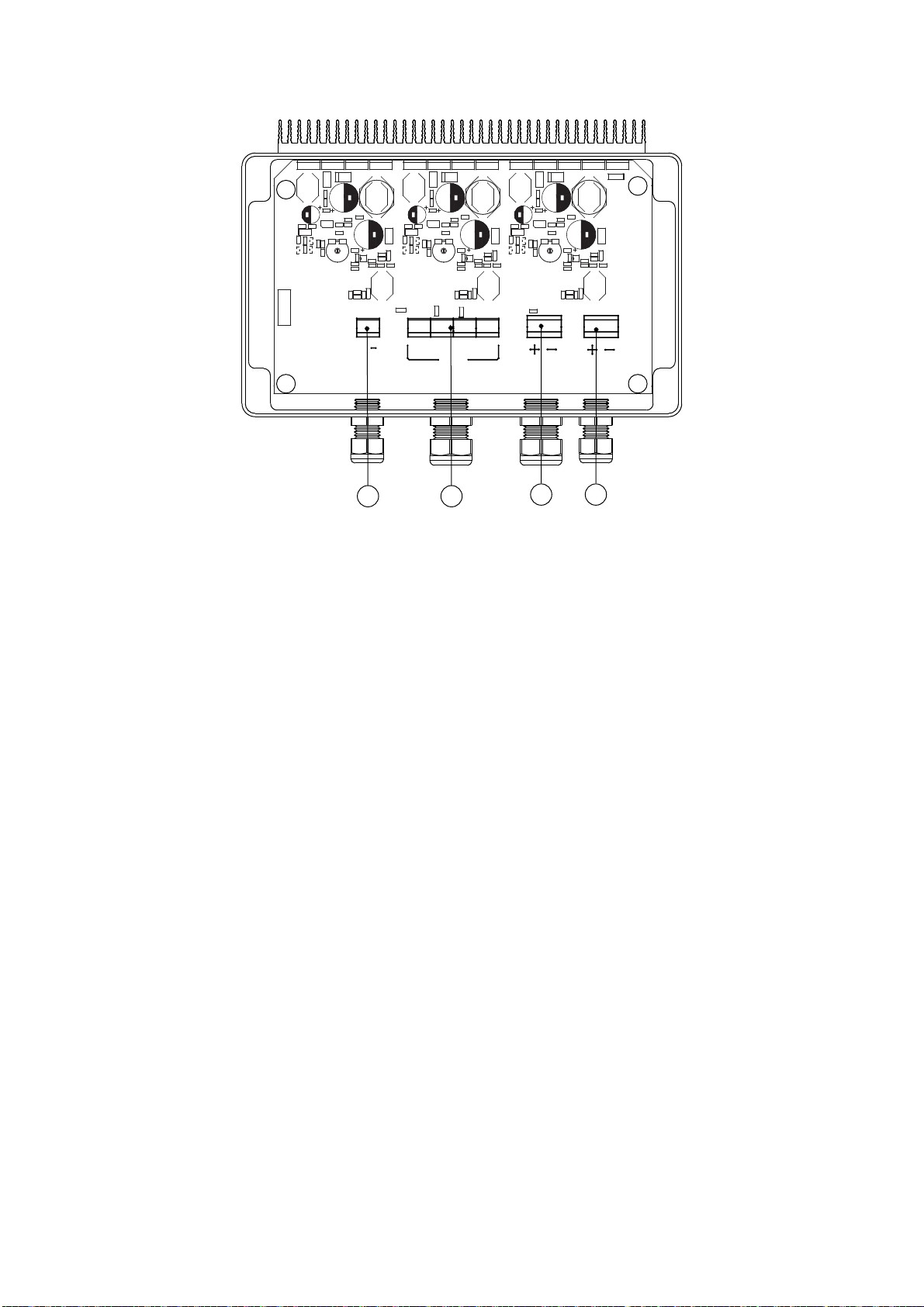

Power Supply Unit MPS06800
12 34
C20 C120 C27 R211 C219
L3
L13
C215
R27
R23
D2
C8
R12 R112
L4 L14
C7 C19
R11 C110 C119
R111 C220
C15
R7
D1
R3
D11
R17
R18 L23
D21
R8 D13
D12
R28
D22
D23
C115
R212
C11
C111
C122
D3 R19
C211
C123
L24
L5
U6
R13
T1
R1
L15
U16
R119
R121
R114
R113
C23
R215
R214
R25
R22 R26
C210
C13
C1
K2
L1
K3
L11
C18
K6 K7 K5
C3
R16
R2 R6
R10
R15
RT1
R5
R14
C14
R115
C112
C10
R118
R120
C118
R122
RT11
T11
C127
R117
C24
U26
R210
L25
R213 C214
R21
T21
D4
Z1
C12
C17
D6
R9
D5
C16
L17
T13
C116
C117 R116
D15
T12
L16
C216
C217
D26
C213
L26
K1
K4 C218
C4
C128
R4
R110
R24
RT21
C124
T3
L7
T2
C125
D16
L6
C212
T23
D25
T22
R29
L27
C2
C6
C5
C113
C114 C126
C22
L21
C25
R216
L12
C26
U3
C121
U13
C28
L2
L22
C9
C29
U23
PWM 86532
SERIAL NUMBER:
714
CONTROL
MARINE
ASTEL
DC IN
LIGHT
DC OUT
(1) CONTROL
Terminal-block connector to connect optional remote control unit or switch.
(2) LIGHT
Terminal-block connector to connect the LED underwater light using 8-pole multi-core cable.
(3) DC IN
Terminal-block connector to connect 12-24Vdc power supply.
(4) DC OUT
Terminal-block connector to connect to the DC IN connector of another power supply unit.

6
INSTALLATION
The underwater light kit consists of the following components:
Underwater Light CONUS MST18240
Power Supply Unit MPS06800
3 x fixing screw 5.5x38
2 x cable gland M12
Operating Instructions with Declaration of Conformity and Warranty conditions
Underwater Light CONUS MST18240
The CONUS MST18240 has to be installed on a flat surface on the stern of the hull of the vessel.
Do not try to install the underwater light while the vessel is in the water.
When the installation is finished briefly test the underwater light prior to launching the vessel.
The installation have to be realized by a qualified personnel.
SEALING GROOVES
SEALANT
SEALING
HULL
SCREW 5.5X38
BONDING
Note:
Avoid using the underwater light out of the water for more than 5 minutes.
The underwater light is protected by a temperature sensor against over-heating. When the
temperature of the underwater light exceeds 60°C the power supply unit starts to reduce
the current of the LEDs. If the temperature of the underwater light exceeds 90°C the
underwater light is automatically switched off.
Hull preparation
The underwater light is recomended to be installed around 0.2 m below the waterline for the best
illumination and to avoid over-heating.
To fix the underwater light with screws 5.5x38 the diameter of holes drilled into the hull depends on
hull material. The diameter of the hole through the hull to insert the cable above the water line has to
be around 6 mm.
Sealing
Before fixing the underwater light the sealant has to be used into the grooves, around the three fixing
holes and around the cable hole above the water line.
The sealant can be on silicon basis but the best solution is two-component polymer sealant.
Fixing
The underwater light has to be fixed with three screws 5.5x38.
The cable has to be inserted through the hole above the water line from outside of the hull.

7
Note:
All the stainless steel fixing screws it is highly recommended to be sealed in the contact
with underwater light casing by optional TEF-GELTM waterproof paste (not included) to
prevent galvanic corrosion.
To install the underwater light on the steel hull it is highly recommended to use the
optional isolation board (not included) between the hull and underwater light casing to
prevent galvanic corrosion.
Note:
Do not overtighten the screws as this can result in hull or underwater light damage.
Bonding
The underwater light has to be connected to the vessels bonding and cathodic protection using a pre-
tinned wire a minimum of 8 AWG (8.36 mm2) with green insulation or green with a yellow stripe. The
wire has to be connected to the underwater light by the help of one screw 5.5x38.
Note:
At the anodized aluminium casing the anodized layer has to be removed in the contact
point with the wire.
Note:
It is highly recommended to paint the entire underwater casing exposed to the water with
anti-foul paint but at the anodized aluminium casing with epoxy paint first and then with
anti-foul paint.
The optical window is protected with foil which has to be removed after anti-fouling
process.

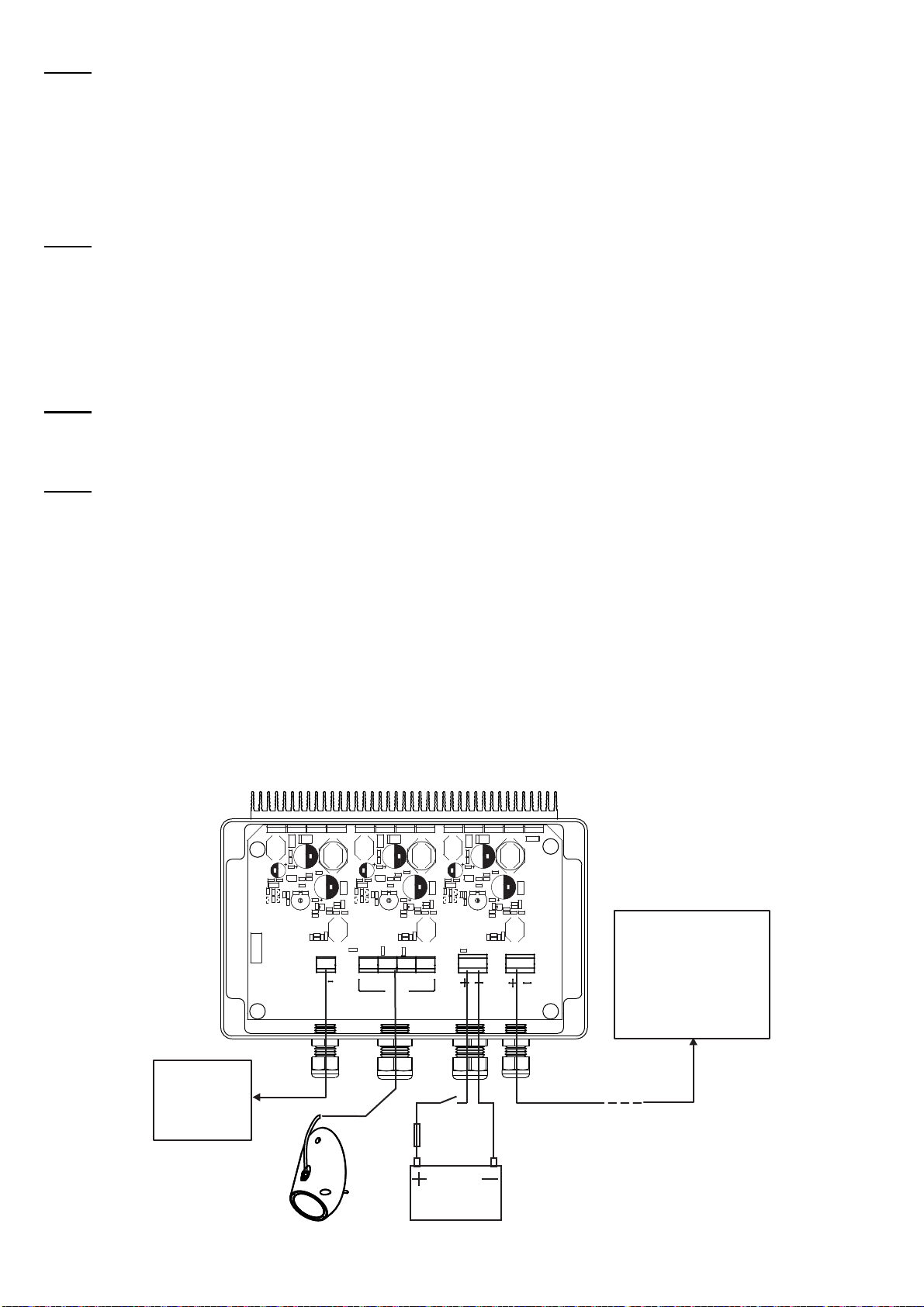

Power Supply Unit MPS06800
The MPS06800 has to be installed near the underwater light inside of the vessel.
Avoid the installation in extremely hot places and near appliances generating strong magnetic fields.
An extension cable can be used in case of longer distance between the underwater light and the
power supply unit but with suitable length and thickness.
The installation have to be realized by a qualified personnel.
C20 C120 C27 R211 C219
L3
L13
C215
R27
R23
D2
C8
R12 R112
L4 L14
C7 C19
R11 C110 C119
R111 C220
C15
R7
D1
R3
D11
R17
R18 L23
D21
R8 D13
D12
R28
D22
D23
C115
R212
C11
C111
C122
D3 R19
C211
C123
L24
L5
U6
R13
T1
R1
L15
U16
R119
R121
R114
R113
C23
R215
R214
R25
R22 R26
C210
C13
C1
K2
L1
K3
L11
C18
K6 K7 K5
C3
R16
R2 R6
R10
R15
RT1
R5
R14
C14
R115
C112
C10
R118
R120
C118
R122
RT11
T11
C127
R117
C24
U26
R210
L25
R213 C214
R21
T21
D4
Z1
C12
C17
D6
R9
D5
C16
L17
T13
C116
C117 R116
D15
T12
L16
C216
C217
D26
C213
L26
K1
K4 C218
C4
C128
R4
R110
R24
RT21
C124
T3
L7
T2
C125
D16
L6
C212
T23
D25
T22
R29
L27
C2
C6
C5
C113
C114 C126
C22
L21
C25
R216
L12
C26
U3
C121
U13
C28
L2
L22
C9
C29
U23
PWM 86532
SERIAL NUMBER:
714
CONTROL
MARINE
ASTEL
DC IN
LIGHT
DC OUT
F10A
S
MPS06800
REMOTE
CONTROL

8
Note:
The main DC power supply of the vessel has to be switched off before installation.
Power supply connection
The power supply has to be connected through the switch (not included) and protected by a fuse (not
included) to the DC IN terminal-block connector with correct polarity. The power supply voltage has to
be from 10 - 30Vdc.
A power supply unit of another underwater light can be connected to the DC OUT terminal-block
connector.
Note:
Only one additional power supply unit of the same model number can be connected to the
DC OUT terminal-block connector and suitable power supply cable should be used. The
appurtenant cap should be removed from the casing and enclosed cable gland M12 should
be inserted.
Underwater light connection
The underwater light has to be connected to the LIGHT terminal-block connector as described in the
table below:
MPS06800
terminal-block connector
LIGHT
CONUS MST18240
wire colour FUNCTION
1 Brown LED1+
2 Blue LED1-
3 Orange LED2+
4 Violette LED2-
5 Yellow LED3+
6 Green LED3-
7 Red Temperature sensor +
8 Black Temperature sensor -
Remote control connection
Remote control (optional) can be connected to the CONTROL terminal-block connector to turn-on
and turn-off and to control the luminosity of the underwater light.
To remotely turn-on and turn-off the underwater light the simple switch (not included) can be used
and connected to the CONTROL terminal-block connector by a 2-pole signal cable (not included).
Note:
To connect the 2-pole signal cable the appurtenant cap should be removed from the casing
and enclosed cable gland M12 should be inserted.
Note:
If remote control is not used for normal operation the both contacts of CONTROL terminal-
block connector has to be bridged.

9

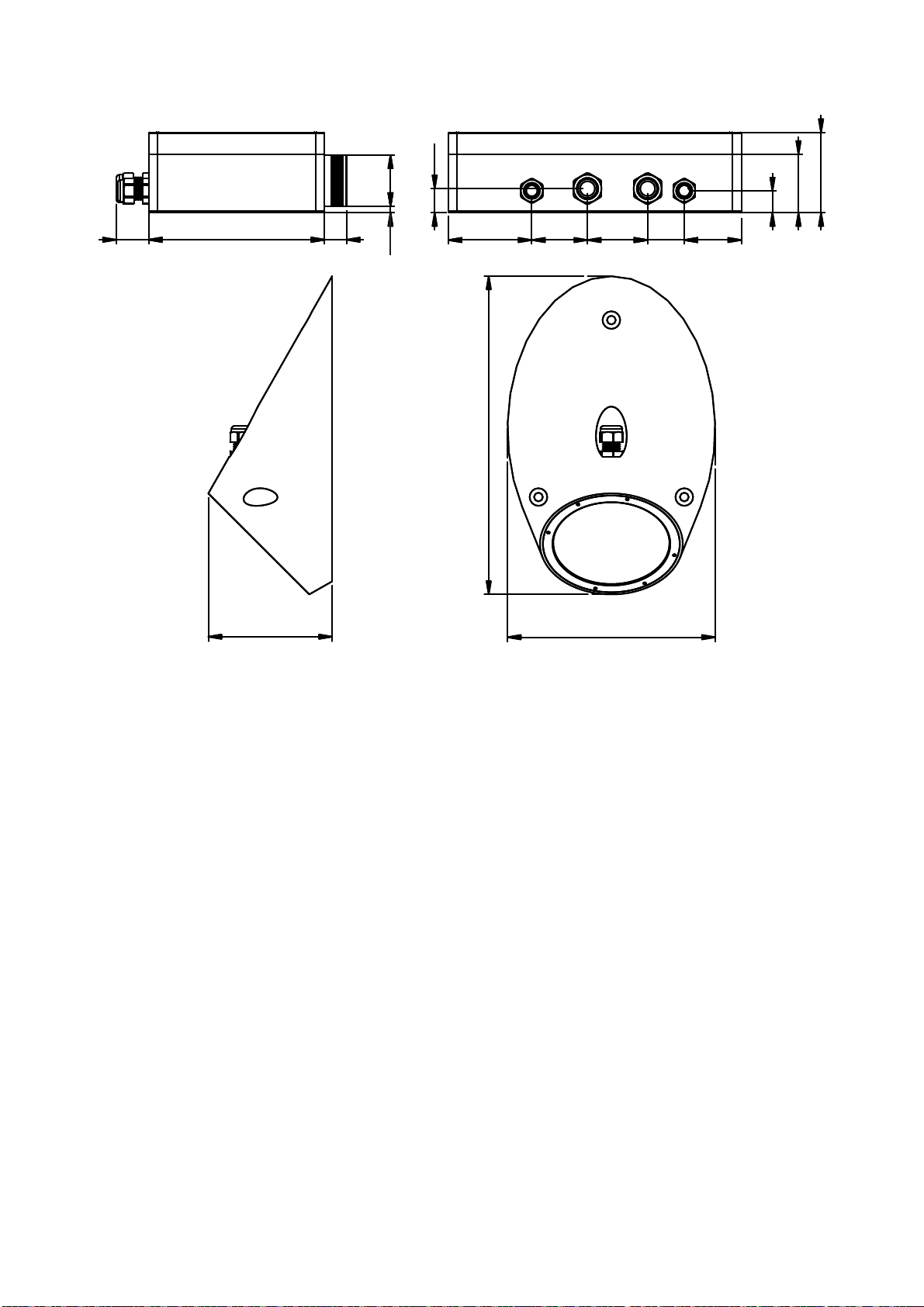

APPEARANCE
40
15
39
16.5
55.5
57 38 41 25
4.5
25 120 15
35
142
217
85
TECHNICAL SPECIFICATIONS
LED Underwater Light CONUS MST18240
Power requirement 3x800 mA
Lens angle 50°
Optical window 6 mm depth tempered glass
Luminous flux 3.900 lm
White color temperature 10.000 K
Operating temperature -10C - +50C
Casing Aluminium bronze (AB2) or anodized aluminium
Protection IP 68
Dimensions 217x142x85mm
Weight 6.0 kg (bronze) / 2.3 kg (aluminium)
Power Supply Unit MPS06800
Input voltage 12-24 Vdc
Consumption max. 5.4 Adc/12 Vdc or 2.5 Adc/24 Vdc
Operating temperature -10C - +50C
Casing Polycarbonate
Protection IP 65
Dimensions 200x160x55.5mm
Weight 0.6 kg
Design and specifications subject to change without notice.

10
WARRANTY
1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in
workmanship and materials under normal use and service.
2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase
must be included, to establish that it is inside the warranty period.
3. This Warranty is transferrable and covers the product for the specified time period.
4. In case any part od the equipment proves to be defective, other than those parts excluded in
paragraph 5 below, the owner should do the following:
(a) prepare a detailed written statement of the nature and circumstances of the defect, to the best
of the Owner’s knowledge, including the date of purchase, the place of purchase, the name and
adress of the installer, and the Purchaser’s name, adress and telephone number;
(b) the Owner should return the defective part or unit along with the statement referenced in the
preceding paragraph to the warrantor, ASTEL d.o.o., or an authorized distributor,
postage/shipping prepaid and at the expense of the Purchaser;
(c) if upon the Warrantor’s or authorized distributor’s examination, the defect is determined to
result from defective material or workmanship, the equipment will be repaired or replaced at the
Warrantor’s option without charge, and returned to the Purchaser at the Warrantor’s expense;
(d) no refund of the purchase price will be granted to the Purchaser, unless the Warrantor is
unable to remedy the defect after having a reasonable number of opportunities to do so. Prior
to refund of the purchase price, Purchaser must submit a statement in writing from a
professional boating equipment supplier that the installation instructions of the Operating
Instructions manual have been complied with and that the defect remains;
(e) warranty service shall be performed only by the Warrantor, or an authorized distributor, and
any attempt to remedy the defect by anyone else shall render this warranty void.
5. There shall be no warranty for defects or damages coused by faulty installation or hook-up, abuse
or misuse of the equipment including exposure to excessive heat, salt or fresh water spray, or
water immersion except for equipment specially designed as waterproof.
6. There shall be no responsibility or liability whatsoever on the part of the Warrantor or its
employees and representatives for injury to any person or persons, or damage to property, loss of
income or profit, or any other consequential or resulting damage or cost which may be claimed to
have been incurred through the use or sale of the equipment, including any possible failure or
malfunction of the equipment, or part thereof.
7. The Warrantor assumes no liability for incidental or consequential damages of any kind including
damages arising from collision with other vessels or objects.

11
DECLARATION OF CONFORMITY
according to IEC Guide 22 and EN 45014
Manufacturer's Name: ASTEL, Podjetje za projektiranje, proizvodnjo in
trgovino, d.o.o.
Manufacturer's Address: Dutovlje 138
6221 Dutovlje
Slovenija
declares that the products
Item, Product Name and Model Number: 1. Underwater Light CONUS MST18240 with
Power Supply Unit MPS06800
conform to the following Product Specifications:
EMC: EN 55022 (CISPR 22: 1993)
EN 50130-4: 1994
Safety: EN 60950
EN 60529
Supplementary Information:
The products herewith comply with the requirements of the following Directives and carry the CE-
marking accordingly:
- the EMC Directive 89/336/EEC
- the Safety Directive 73/23/EEC
ASTEL d.o.o.
Dutovlje 138
6221 Dutovlje
Slovenija
5
th December, 2008

12
ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia
Tel: [phone]
Fax:[phone]
E-mail: [email protected]
Web: www.astel-marine.com
