Astral Pool RPT Plus User manual

Product 11702
Installation and Operating Instructions
RPT Plus Robotic Pool Cleaner
®
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au

12 cm
1
2
4
5 6 7
3
Chlorine
2-5 ppm
pH
7.2-7.6
Temp
13°C-35°C NO
SWIM
3.6m
Quick Start Guide
2

Contents
Safety
Quick Start Guide
Introduction
System Overview
How the Robotic Cleaner Cleans Your Pool
Operating Conditions
Components
Cleaner And The Main Parts
Power and Control Unit
Operation
Before First Use
Placing Cleaner Unit into the Water
Starting the Robotic Cleaner
Cleaning Cycle
Stopping Robotic Cleaner Operation
Pulling Cleaner Unit out of the Water
Maintenance
Cleaning Filter
Storing the Robotic Cleaner
Checking Water Outlet Propeller
Model 400 - Aquacontrol Super Remote
Remote Control

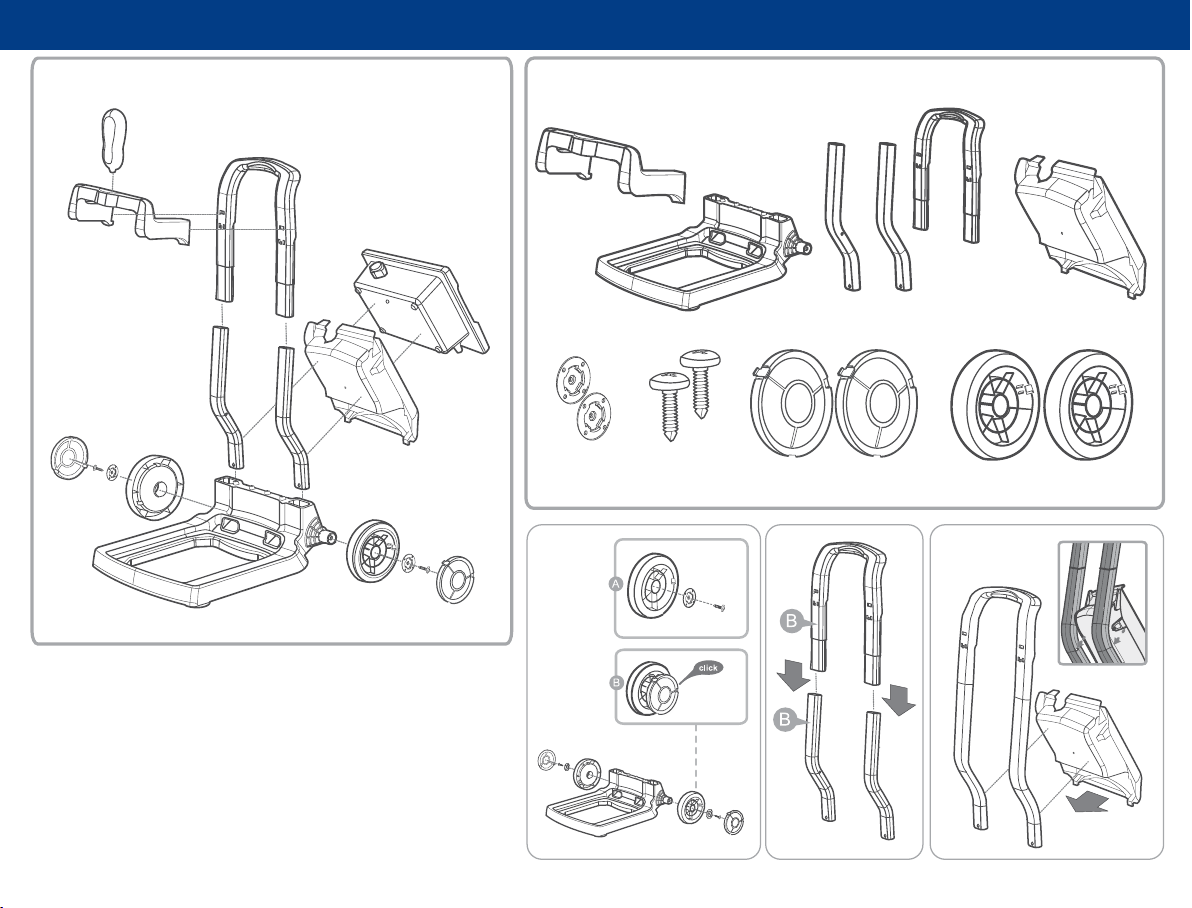

Trolley
T
Warranty Terms and Conditions
Warranty Claims
Exclusions and Limitations
roubleshooting
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL THE INSTRUCTIONS
CAUTION: Do not plug the power supply into a grounded outlet or do not switch the
pool cleaner “ON” if it is not fully immersed in water. Operating the cleaner out of water
will cause severe damage immediately and will result in loss of warranty.
Allow the cleaner to remain in the pool for 15 to 20 minutes following the end of its
cleaning cycle. This will allow the motors to cool adequately. Do not leave the cleaner
in the pool all the time.Always remember to turn the power supply “OFF” and unplug it
from the power outlet before removing the cleaner from the pool.
WARNING: The cleaner must not be used when people are in the water. For use
with swimming pool only
Safety Note
- The unit must be supplied through a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA
- The connection to the branch circuit should be consistent with the local and national
wiring rules (electrical code).
- Mishandling of the unit can result in leakage of lubricants.
- If the supply cord is damaged, it must be replaced by the manufacturer’s service
agent or a qualified and trained person in order to avoid hazards.
WARNING: A Ground Fault Current Interrupter (GFCI-USA) or a Residual Current
Device (RCD-EUROPE) must be installed to protect your electric outlet and prevent
any possible electric shock.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
SAVE THESE INSTRUCTIONS
3

Introduction Components
System Overview
The robotic cleaner sweeps the pool floor and walls to collect dirt and debris
into its internal filters. This user manual explains how to operate the robotic
cleaner, including cleaning, maintenance and storage procedures.
Note:
This manual reviews several robotic cleaner models. There are some
variations in components according to specific model.
How the Robotic Cleaner Cleans Your Pool
After the robotic cleaner is placed in the pool and activated, it operates
according to the program set via the power and control unit. The robotic cleaner
moves along the floor and walls of the pool, covering the entire area of the pool
floor and walls. When the robotic cleaner has finished its program, it remains
inactive on the pool floor.
Note:
Wall climbing is an optional feature. When the wall climbing feature is enabled,
the robotic cleaner climbs the wall at intervals according to its internal program.
The robotic cleaner ability to climb over stairs in swimming pool is subject to
stair geometry and material.
Operating Conditions
The robotic cleaner is intended for use in swimming pools in the following
conditions:
- Temperatures ranging from 13°C-35°C , recommended temperature
is between 22°C-32°C.
- Water pH : 7.2 - 7.6
- Chlorine level: pool is maintained according to the pool manufacturer’s
instructions. (recommended 2-5 ppm)
Note:
Failure to maintain the pool according to the recommended operating
conditions could prevent the robotic cleaner from functioning properly.
Remove the cleaner out of water when performing "Chemical Shock
Treatment" to the pool water.
4
1) Handle
2) Outlet Top
3) Filter Lock Release
4) Filter Lid
5) Handle Lock Mechanism
6) Drive Track
7) Scrubbing Brush
8) Unit Body
9) Water Inlet
10) Power Supply
11) Remote Control
12) Trolley
10
10
112
2
5
1) Handle
2) Outlet Top
3) Filter Lock Release
4) Filter Lid
5) Handle Lock Mechanism
6) Drive Track
7) Scrubbing Brush
8) Unit Body
9) Water Inlet
10) Power Supply
11) Remote Control
12) “Trolley” Cart
12
11
10
9
876
6
7
8
3
4
1
2
5
9
6
7
8
3
4

Power and Control Unit
The power and control unit is
connected to the robotic
cleaner via the floating cable.
The unit is powered by AC
power (1) and supplies low
voltage and commands to the
cleaner unit through the outlet
socket (2).
The unit features a control
panel (3) with various controls
to operate the robotic cleaner.
Contents of Packing Box
The robotic cleaner is packed in a box containing:
- Robotic cleaner and floating cable
- Power and control unit
- User
- Remote Control
- Trolley
manual
1
2
3
Components Operation
Removing Brush Covers
The robotic cleaner is shipped with a protective cover over the scrubbing
brushes. Carefully remove the nylon covers from the scrubbing brushes.
CAUTION: Do not use a sharp tool to remove the cover as it could harm
the brushes.
Physical
Dimensions (W * D * H)
Weight
Electrical
Input rating
Output rating
Storage temperature
Operating temperature
Ingress protection
273mm * 242mm * 90mm
1.9 Kg
100-240V~, 50/60Hz, 210W
29V ,6.3A.
-10° C - 60° C
0° C - 45 ° C
IP54
Aquacontrol Power Supply Specifications
Adjusting Floating Handle
On wall climbing models, set the floating handle:
1. Press the lock button (1 or 2 according to the model) to release the handle
lock.
2. Place the handle (3) diagonally at maximum position.
3. Repeat steps 1 and 2 on the other side of the cleaner unit.
2 31 Handle lock vertical Handle lock horizontal
5

Placing Cleaner Unit into the Water
1. Unroll the floating cable. It is recommended to extend a length of
cable that is equal to the pool diagonal size plus an additional two
meters.
2. Place the cleaner unit in the pool.
3. Let the robotic cleaner sink to the bottom of the pool.
Do not start operation before the robotic cleaner is settled on the
pool floor.
4. Spread the floating cable across the pool. Make sure that only the
required length of cable is spread across the pool. Smooth out
coils or twists in the cable. Roll extra cable outside the pool near
the power and control unit.
5. Connect the floating cable (A) to the socket (B) located on the
power and control unit.
CAUTION: Operating the cleaner out of water causes
immediate severe damage and results in loss of warranty.
12 cm
Operation
Chlorine
2-5 ppm
pH
7.2-7.6
Temp
13°C-35°C NO
SWIM
3.6m
Socket (B)
Cable plug (A)
Placing the Power and Control Unit
4. Place the power and control unit at least 3.6 meters/11.8 feet from
the pool and at least 12 cm/4 inches above the surface.
CAUTION: The power and control unit must not be exposed to
water or to direct sunlight.
5. Release floating cable plastic ties, which are used to secure the
cables during shipping, by pressing plastic snap on the tie.
Before placing the cleaner unit in the water
1. Make sure there are no people in the pool.
2. Make sure that the filters are clean.
3. Make sure the pool conditions are met; (see “Operating
Conditions” ).
6

Starting the Robotic Cleaner
Connect the power and control unit to the wall socket (1). The Operation LED is lit (4) and the
robotic cleaner starts its cleaning program.
If the power and control unit is already connected to the AC socket, the Operation LED flashes
(5) to indicate that the robotic cleaner is in standby mode.
Press the Operation button (6). The Operation LED turns on (6) and the robotic cleaner starts
the cleaning program.
Cleaning Cycle
During the cleaning cycle, the robotic cleaner:
- Moves across the pool floor picking up dirt and debris.
- Changes direction and rotates automatically.
Note: The robotic cleaner might occasionally stop moving for a few seconds. This is
part of normal operation, not a malfunction.
Stopping Robotic Cleaner Operation
The robotic cleaner moves automatically to STANDBY after every cleaning cycle and the
operation LED starts flashing (5).
To stop the cleaner operation during a cleaning cycle, press the operation button (7) once. The
operation LED starts flushing (7) and the cleaner is in standby mode.
Pulling Cleaner Unit out of the Water
1. Unplug the floating cable from the power and control unit.
2. Pull up on the floating cable to pull the cleaner unit closer until it is possible to take hold of the
handle.
3. Using the handle, lift the cleaner unit out of the pool.
CAUTION: Do not use the floating cable to lift the cleaner unit out of the water.
Operation
1
2
4 5
6 7
Note: When the Check Filter LED (3) is lit, the robotic cleaner filters must be cleaned
before placing the cleaner unit in the pool.
7

Maintenance
Storing the Robotic Cleaner
Follow these instructions to store the robotic cleaner when not in
use:
1. Disconnect the power cord from the wall outlet.
2. Disconnect the floating cable from the power and control unit.
3. Spread out the floating cable and release any twists in the
cable.
4. Wash the cleaner unit interior space with fresh water and let it
dry.
5. Roll the floating cable and place it ON THE CLEANER unit.
Caution: DO NOT ROLL the floating cable ON THE HANDLE
of the cleaner unit.
6. Store the robotic cleaner components in a dry, closed location.
7. Verify that the power and control unit is not exposed to water.
Checking Water Outlet Propeller
It is recommended to periodically clean debris
and hair from the propeller of the water outlet:
1. Remove the screws (3) that holds water outlet
cover(2).
2. Remove the water outlet cover (2).
3. Clean any hairs, dirt, or debris.
4. Verify that the propeller (1) is not broken.
5. Return the cover (2) and fasten it with the
screws (3).
CLEAN THE FILTER BAG AFTER EVERY CLEANING CYCLE
a. Unplug the power supply. (Please keep the plug away from contact with
water).
b. If the unit is in the pool, gently pull the cleaner toward you using the cable until
the handle is within reach. Use the handle (not the cable) to pull the cleaner
out of the pool after allowing most of the water to drain from the unit.
c. Lay the unit on its back on a smooth surface (in order to prevent scratches on
the machine body), release the lock tabs and remove the bottom lid
assembly.
d. Remove the filter bag from the support bars, turn it inside out and wash off all the dirt with a
garden hose or in a sink. Squeeze the bag gently until the rinse water is clear. If necessary,
machine wash the bag using only cold water with NO DETERGENT!
e. Re-install the bag on the support bars with the label in the center of one of the long sides of the
bottom lid.
f. Re-install the bottom lid assembly in the body. Push down on it until lock tabs will snap into
place properly.
Smooth Surface
Swivel Tab
Filter Bag
1
3
2
4
57
6
30°C
3
2
1
label
8

Model 400 - Aquacontrol Super Remote
PROGRAM
02
PROGRAM
03
PROGRAM
01
HIGH
NORMAL
96h
48h
72h
)"+&+$
.,$.*
+0".+)0&*".
40".+)0&*".
3&2")
10,!"0" 0 ,,)/%-"
%" (#&)0".
)"+&+$-.,$.*/")" 0&,+
.,$.*6%,1.#),,.,+)5 )"+&+$-.,$.*
.,$.*6%,1.#),,.+!3)) )"+&+$
.,$.*6%,1.#),,.+!3)) )"+&+$
+0".+)0&*".10,*0& ,-".0&,+,-0&,+
2".5%,1./
2".5%,1./
2".5%,1./
3&2")6!'1/00%".,,0/.0",#01.+/&+0%"-,,)
 ,.*)60+!.!,-".0&,+
 &$%6&##"."+0.0",#01.+/
10,"0" 0%&/,-0&,+/%,1)!"/")" 0"!&#5,1/""5,1.-,,) )"+". %+$&+$!&." 0&,+&+0%"*&!!)",#0%"-,,)3&0%,10*(&+$ ,+0 03&0%+5,/0 )"/
10,"0" 0%"-,,) )"+"./%,1)! %+$"!&." 0&,+3%"+*(&+$ ,+0 03&0% ".0&+,/0 )"/%,,/"0%&/,-0&,+3%"+0%"-,,)%/,/0 )"//1 %/&+
#),,. )"+&+$/5/0"*/*&+!.&+/+!)!!"./
10,!"0" 00%&/#"01."-."2"+0/0%".,,0#.,*$"00&+$/01 (,+,/0 )"/&+0%"-,,)/1 %/*&+!.&+//0"-/)!!"./"0 ."//0%&/100,+0, %,,/",+",#0%"
#,)),3&+$,-0&,+/
,,)/%-"
)),3/0%".,,00, ) 1)0"0%"*,/0"##& &"+0 )"+&+$-00".+#,.0%"-,,)/%-" %,/"+."//0%"100,+0,/")" 00%"!.3&+$*,/0/1&0)"0,0%"/%-",#0%"-,,)
."!)&$%03&))&+!& 0"5,1./")" 0&,+
%" (#&)0".
6))1*&+0"!)&$%0*"+/0%"#&)0".$*1/0"."*,2"! )"+"!+!-.,-".)5&+/0))"! (&+0,0%".,,00,3,.("##& &"+0)5

 










40".+)0&*".6
%&/#"01."$&2"/0%",-0&,+0,0%""+!1/".0,-.,$.*0%" )"+&+$/ %"!1)"0%.,1$%+"40".+)0&*"./,)!/"-.0")5."//&+$0%&/100,+"+)"/+!!&/)"/0%&/
#"01."
9

1. CLEANER DOES NOT TURN ON.
There is no electricity in the wall socket.
a) Disconnect cleaner from the power and control unit.
b) Disconnect power supply from the wall socket, wait 30 seconds and
reconnect.
c) Turn power ON. If not activated, connect the unit to a different wall
socket.
Floating cable not connected properly to the power and control unit.
Reconnect the floating cable to the power and control unit.
Obstacle in the drive system of the cleaner unit.
a) Turn the cleaner unit carefully to view the underside.
b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it
should not rotate freely.
c) Clean and remove obstacles and debris if necessary.
Propeller is seized due to accumulation of hair.
Check if the propeller is broken or needs to be cleaned (see “Checking
Water Outlet Propeller”).
2. CLEANER MOVES BUT DOES NOT PUMP WATER.
Filter is dirty.
a) Open the bottom-lid, remove the filter-bag, and close the lid without the
bag
b) Run the robotic cleaner in the pool without the filters. If working properly,
clean the filter well or replace the filter.
Propeller is broken or seized due to accumulation of hair.
Check if the propeller is broken or needs cleaning (see “Checking Water
Outlet Propeller”).
3. CLEANER PUMPS WATER BUT DOES NOT MOVE.
Obstacle in the drive system of the cleaner unit.
a) Turn the cleaner unit carefully to view the underside.
b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it
should not rotate freely.
c) Clean and remove obstacles and debris if necessary.
4. CLEANER STARTS AND SHUTS OFF AFTER A SHORT TIME.
Filter is dirty.
a) Remove the filter.
b) Run the robotic cleaner without the filters. If working properly, clean the
filters well or replace the filters..
Propeller is broken or seized due to accumulation of hair.
a) Remove the top screws on the top outlet.
b) Check if the propeller is broken or needs to be cleaned.
Obstacle in the drive system of the cleaner unit.
a) Turn the cleaner unit carefully to view the underside.
b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it
should not rotate freely.
c) Clean and remove obstacles and debris if necessary.
5. CLEANER DOES NOT PICK UPDIRT.
Filter is dirty or has holes.
Clean as needed and verify that there no holes in the filter.
Propeller is broken or seized due to accumulation of hair.
Check if the propeller is broken or needs cleaning (see “Checking Water
Outlet Propeller”).
The suction inlet is not close enough to the pool floor.
Move the suction inlet OUT (see “Adjusting Suction Height”).
6. DIRT COMES OUT OF THE CLEANER WHEN REMOVING IT FROM
POOL.
Filter shutter is broken or missing.
The filter shutter is located on the bottom lid. Check that both shutters are
not broken and function properly.
Holes in the filter.
Verify that there are no holes in the filter (see “Cleaning Filters”)
Bottom lid is not properly closed.
Make sure that the bottom lid is properly closed.
Troubleshooting
10

Troubleshooting
7. CLEANER UNIT DOES NOT COVER THE ENTIRE POOL.
Filter is dirty.
Clean the filter.
There is not enough length of the floating cable in the water to reach
the far end of the pool, or the cable is tangled.
a) Verify that there is enough length of the floating cable in the water to
reach the far end of the pool.
b) Make sure that the floating cable is properly spread out and is not
tangled.
The angle of the floating handle affects the cleaner movement.
Increase diagonal angle of the floating handle (see “Adjusting Floating
Handle”).
Pool pH level is incorrect.
Make sure that the pH level is between 7.2 and 7.6.
Chlorine level is incorrect.
Check water chlorine treatment and correct if required (Remove the
cleaner from the pool during the treatment.)
Propeller is broken or seized due to accumulation of hair.
a) Remove the top screws on the top outlet.
b) Check if the propeller is broken or needs cleaning.
Obstacle in the drive system of the cleaner unit.
a) Turn the cleaner unit carefully to view the underside.
b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it
should not rotate freely.
c) Clean and remove obstacles and debris if necessary.
8. THE CLEANER DOES NOT CLIMB WALLS.
The cleaner is not climbing the pool walls.
a) Verify that your robotic cleaner is not a floor-only model.
b) Verify that P1, floor cleaning only, is not selected on the power and
control unit (see “Robotic Cleaner Programming”).
Filter is dirty.
Clean the filter.
Propeller is broken or seized due to accumulation of hair.
Check if the propeller is broken or needs cleaning (see “Checking Water
Outlet Propeller”).
pH level is incorrect.
Make sure that pH is between 7.2 and 7.6.
Chlorine level is incorrect.
Check water chlorine treatment (remove the cleaner from the pool during
treatment).
Water temperature is not optimal.
Recommended temperature is between 22°C–32°C
9.THE CABLE IS TANGLED.
Filter is dirty.
Clean the filter.
Bottom lid is not properly closed.
Make sure that the bottom lid is properly closed.
Cable is not spread out before putting the cleaner unit into the pool.
Make sure that the floating cable is properly spread out and not tangled
before operating the robotic cleaner.
The length of the cable in the water is too long.
Verify that the length of cable in the water equal to the pool diagonal length
plus two meters.
Propeller is broken or seized due to accumulation of hair.
Check if the propeller is broken or needs cleaning (see “Checking Water
Outlet Propeller”).
10. REMOTE CONTROL DOES NOT WORK.
The battery is empty. The LED is blinking or OFF.
Check the battery by pressing one of the buttons. The red light on the
remote control unit does not blink or stay lit continuously if the battery is
empty. Contact your dealer or service center.
11

Operating the Wireless Remote Control
NOTE:
Wireless Remote Control - R/C Model
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help. Changes or
modifications to this equipment not expressly approved by the party responsible for
compliance (Aquatron Robotic Systems Ltd.) could void the user's authority to
operate the equipment.
12

Operating the Wireless Remote Control
To match the Remote Control Unit to the
Power Supply: Disconnect the Robot's cable
from the power supply. Turn the power supply
ON then simultaneously hold down the Right
and Left buttons on the Remote Control.
The red LED on the remote will illuminate for
1 second and the Change Filter LED on the
power supply will blink signifying that the
operation has been completed successfully.
13

Operating the Wireless Remote Control
14

Trolley
12 3
The trolly is an optional accessory that makes it easy to move the robotic
cleaner and provides a mounting site for the power and control unit.
To assemble the trolly:
1. Attach the wheels to both sides of the trolly base and fasten each
wheel with the screw and install the cover.
2. Assemble the two sections of the handle.
3. Attach the power and control unit housing by clicking the upper tabs
into the holes in the handle.
Assembly Diagram Parts
15

Trolley
56
78
4
4. Insert the handle into the trolly
base. Click the lower tabs of the
power and control unit housing
into the trolly base.
5. Attach the remote control holder
by inserting the upper part into
the trolly handle and turning the
holder downward until the lower
part clicks.
6. Attach the cable of the power
supply
7. Place the power and control unit
cable in the groove in the trolly
base.
8. Place the upper part of the
power and control unit in the
housing and push the lower part
downward until it clicks into the
trolly base.
16

Operating the Pool Cleaner
17

Astral Pool Australia Pty Ltd (ABN 97 007 284 504) ("Astral Pool") provides the following warranty in relation
to its Robotic Pool Cleaners.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
The benefits of this warranty are in addition to any rights and remedies imposed by Australian state and
federal legislation that cannot be excluded. Nothing in this warranty is to be interpreted as excluding,
restricting or modifying any state or federal legislation applicable to the supply of goods and services which
cannot be excluded, restricted or modified.
Your Astralpool Robotic Pool Cleaner is covered by a limited 2 year warranty against defect in material and assembly.
This warranty is for residential use only.If cleaner is being used in a commercial or communal pool then warranty
period is 12 months.
Warranty Period
Robot Motor, Drives and Electrical System
Transformer
The rollers, tracks, pulleys, filter cartridge or bag
Trolley
2 Years
2 Years
1 Year
1 Year
Parts
Warranty Terms and Conditions
18

1.If a fault covered by warranty occurs, the customer must first contact AstralPool at the contact address listed
below, or an Authorised AstralPool Service Agent.
2. Any warranty claim must be accompanied by:
(a) proof of purchase;
(b) full details of the alleged defect; and
(c) appropriate documentation (such as historical and maintenance records).
3. The customer must make the Product available to AstralPool or its Authorised AstralPool Service Agent for
inspection and testing. AstralPool or its Authorised AstralPool Service Agent will attend the premises where the
Product is installed for inspection and testing.
4. If such inspection and testing finds no defect in the Product, the customer must pay AstralPool's usual costs
of service work and testing. If such inspection and testing finds a defect that is not covered by this warranty, the
customer must pay AstralPool's usual costs of service work plus any parts and labour required to repair the
Product, unless recoverable from AstralPool on the failure of any statutory guarantee under the ACL.
5. If your Robot Cleaner needs to be returned to Astralpool the following is required:
6. For Service please return to your nearest AstralPool Trade Centre which can be found at:
http://www.astralpool.com.au/contact
(a) Your Robot Cleaner must be packaged carefully including your name, address and contact
number.
(b) Delivered freight prepaid to your nearest AstralPool Warehouse.
(c) You must also include a copy of your invoice showing date of purchase or date of handover of
your swimming pool.
(d) Description of the fault.
Warranty Terms and Conditions
19

EXCLUSIONS
The warranty will not apply where:
(a) the customer is in breach of the Terms and Conditions of Sale;
(b) the Product was used for a purpose other than one it was intended for;
(c) the Product was repaired, modified or altered by any person other than AstralPool;
(d) the Product has not been installed, maintained and/or operated in complete compliance with the
installation and operating instructions and any instructions by AstralPool;
(e) the Product has been subject to accident, negligence, alteration, abuse or misuse.
The warranty does not extend to:
a) normal wear and tear;
b) weather and other environmental conditions including but not limited to storm, flood, and/or heat wave
damage; or
c) service and maintenance items.
Examples of exclusions include but are not limited to:
• Incorrect installation
• External power spikes / surge
• Normal wear and tear of consumable parts such as rollers, pulleys, drive belts and filter cartridge/bag
LIMITATIONS
AstralPool makes no express warranties or representations other than set out in this warranty.
The repair or replacement of the Product or part of the Product is the absolute limit of AstralPool's liability under
this express warranty.
Exclusions and Limitations
20
®
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Email: [email protected]
Web: www.rainbowpoolproducts.com.au
