Astro Pneumatic Tool 7445 User manual
Page 1
7445
Before use, check the parts diagram and part number listing
on page 3 to make sure all parts are included. If any parts
are missing or damaged, please call your distributor.
Before Use
www.astrotools.com
45pc. TIRE REPAIR TOOL KIT
PLEASE DO NOT RETURN ANY PRODUCT WITHOUT CALLING
1-800-221-9705 FOR INSTRUCTIONS
• Astro Pneumatic Tool Co. warrants our products to the original user against defective
material or workmanship for a period of 1 year (except where noted on our price
schedule) from the date of 1st use. Astro reserves the right to determine whether the
product failed because of defective material, workmanship or other causes and to charge
back for missing parts. Astro Pneumatic Tool Co., at its discretion, will repair products
covered under this warranty free of charge. The distributor should direct the original user
to return the product (with the exceptions listed below) with the distributor’s name,
address, adequate proof of date of purchase or a copy of warranty card, and a short note
explaining the problem. Failures caused by accident, alteration, or misuse are not
covered by this warranty.
• If one part of this product fails, please do not return the entire product. Astro will
replace free of charge component parts of this product that fail within 1 year of first
use by the original user. Items included in this category include but are not limited
to kits, hand tool kits and any other product where there are multiple items or
components that make up the unit. Please contact the phone number below in
order to obtain the replacement components covered under warranty.
• Astro Pneumatic Tool Co. or its authorized service representatives must perform all
warranty repairs. Any repair to the product by unauthorized service representatives
voids this warranty. The rights under this warranty are limited to the original user and may
not be transferred to subsequent owners.
• This warranty is in lieu of all other warranties, expressed or implied, including warranties
of merchantability and fitness for a particular purpose. Some states do not allow the
exclusion of limitations of incidental or consequential damages so the
above limitations may not apply to you.
1 YEAR LIMITED WARRANTY
PRODUCT INFORMATION:
Study, understand and follow all instructions provided with this product.
Read these instructions carefully before installing, operating, servicing
or repairing this tool. Keep these instructions in a safe accessible place.
This tool intended to be used to manually repair damaged
tires. Do not use this tool outside of the designed intent.
Never modify the tool for any other purpose.
• Normal use of this product is likely to expose the user to
dust and/or microscopic particles containing chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm. Always wear
appropriate safety equipment and clothing when using this
product. Study, understand and follow all instructions
provided with this product. Failure to read and follow all
warnings and operating instructions may result in damages
and serious injury or death.
• Always wear ANSI approved goggles when using this
product. (Users and Bystanders).
• Never use this tool for any application other than for which
it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
•Improper operation and/or maintenance of the tool,
modification of the tool, or use of the tool with accessories
not designed for it could result in serious injury or death.
• Always select the correct accessories of the correct size
and design for the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
•Do not begin repairs without assurance that vehicle is in
secure position, and will not move during repair.
WARNING
INTENDED USE OF THE TOOL
WARNING
DO NOT DISCARD – GIVE TO USER
Product Type:Model:
Set Includes:
• 1pc - Heavy-Duty Steel T-handle Insert Tool
• 1pc - Heavy-Duty Steel T-handle Spiral
Probe Reamer
• 2pcs - Replacement tool - 3mm Allen Wrench
• 40pcs - 4" Tire Repair String (Tire Plug)
• 1pc - Lubricant
MADE IN CHINA
45pc. TIRE REPAIR TOOL KIT
2-2
3. 4.
1
2-12
Page 2
7445
45pc. TIRE REPAIR TOOL KIT
Product Type:Model:
INSTRUCTIONS:

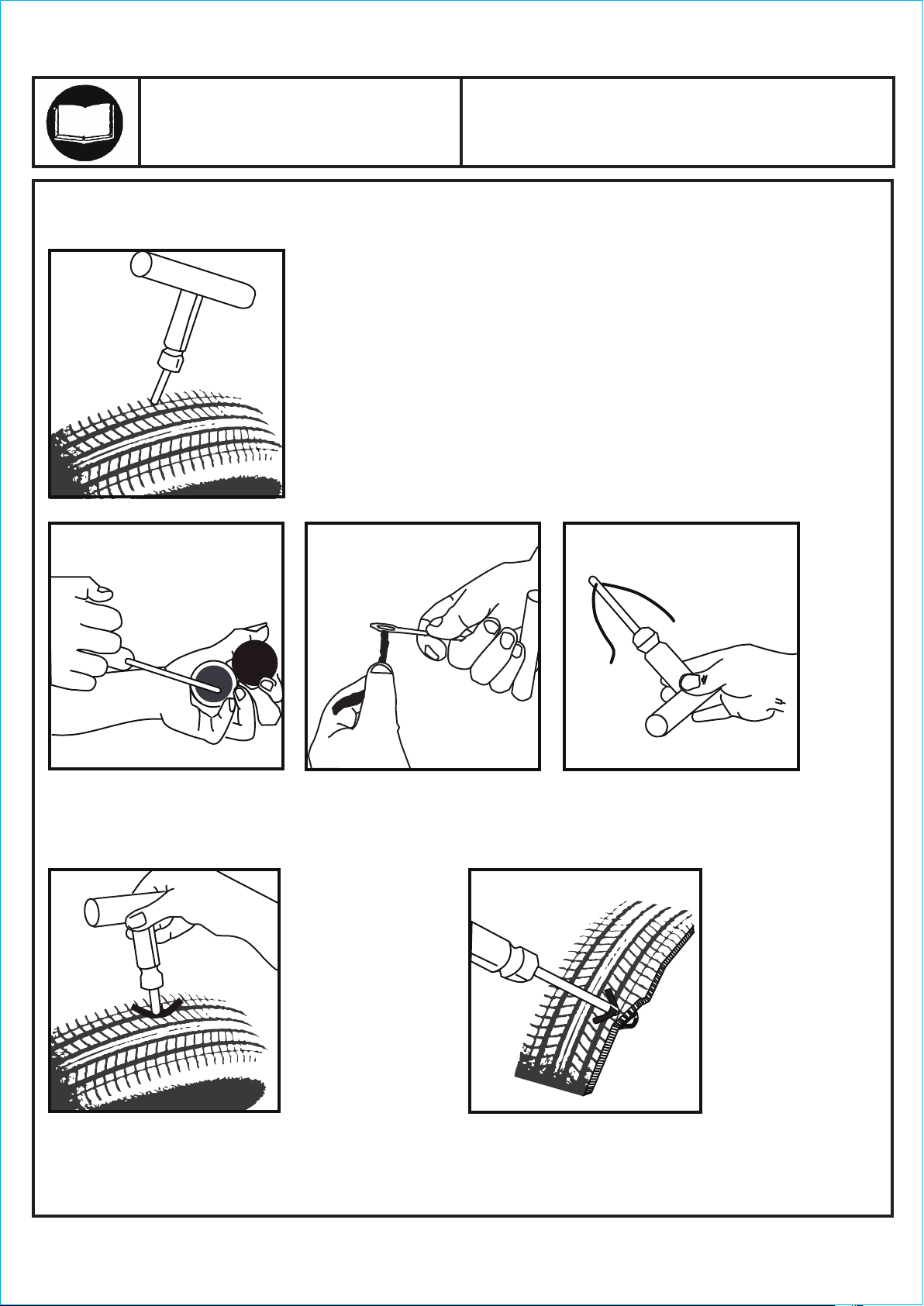

1. Insert the Heavy-Duty Steel T-handle Spiral
Probe Reamer into the punctured tread at a
slight angle then straighten the reamer and
push the tapered shaft in and out of the hole
several times to expand and enlarge the
broken steel cord.
2. Prepare Heavy-Duty Steel T-handle Insert Tool for insertion by first dipping the tip into the lubricant.
2-1. Next insert the tire repair string (tire plug) through the hole in the installer tool.
2-2. Make sure that the tire repair string (tire plug) is fairly well centered in the shaft prior to installation.
3. Insert the tire repair
string (tire plug) into
the hole and push
straight down on the
insert tool handle till
the ends of the tire
repair string (tire plug)
are sticking out of
the tire 1/2" to 1"
(13-25mm).
4. Pull the Heavy-Duty
Steel T-handle Insert
Tool straight out of
the hole till the tip is
just even with the
tire tread then cut
the exposed tire
plug ends just
slightly above the
tread and remove
the installation tool.
5. Air tire to its correct tire pressure and check that the puncture is sealed and not leaking.
7445-01 7445-07
7445-07
7445-06
7445-06
7445-02
7445-03 7445-03
7445-05
7445-04
Call 1.800.221.9705 for questions concerning performance of the product
or other inquiries.
Page 3
7445
372 Old US Highway 52 South
Mount Airy, NC 27030
T-handle Insert Tool
T-handle Spiral Probe Reamer
3mm Allen Wrench
4" Tire Repair String (Tire Plug)
Lubricant
Steel T-Handle
T-Handle Set Screw
45pc. TIRE REPAIR
TOOL KIT
Description Qty
1
1
2
40
1
2
2
1
2
3
4
5
6
7
7445-01
7445-02
7445-03
7445-04
7445-05
7445-06
7445-07
Index No. Part No.
