AstroAI ATJ-8366 User manual

ATJ-8366
MULTIFUNCTIONAL
AIR COMPRESSOR
USER MANUAL
UNIT
PSI BAR KPA KG
/
CM²

CATALOGUE
05
DIAGRAM
INTRODUCTION 02
WARNING 03
14
SPECIFICATIONS
14
PACKAGE INCLUDES
INSTRUCTIONS 07
12
TROUBLESHOOTING
15
RECYCLING
FEATURES 15
WARRANTY PERIOD 16

INTRODUCTION
Thank you for purchasing the AstroAI AC/DC Multifunctional 2 in 1,
Portable Air Compressor.
This air compressor is equipped with dual motors, providing rapid
inflation. This product is compatible with AC and DC power supplies,
suitable for various inflation needs. It can inflate regular tires and
other large inflatable objects. Once the preset air pressure is
reached, the Air Compressor will automatically shut o.
Thank you again for choosing AstroAI, if you have any questions or
concerns regarding your product, please contact us via
[email protected]
Please fully read and understand this manual before using
this product and keep this manual for future reference.
- 02 -

WARNING
Please read the instructions carefully before use. Incorrect usage
may damage the product.
Please practice electrical safety while using this product.
Do not use the product for unintended purposes.
Do not place the air compressor near any heat sources, such as
vehicle exhaust pipes.
Do not use the product near any flammable liquids or gases.
Do not disassemble the air compressor.
Ensure the air compressor is intact before use, do not use it if it
is damaged please.
Do not use the compressor if it is damaged or if its wires are
exposed, doing so poses risk of electric shock.
Do not overinflate tires. Excessive pressure may cause injury.
Keep out of reach of children.
Keep the device away from fire, corrosive gases, liquids, and
strong magnetic fields.
Check the preset pressure value before use. The preset pressure
value should match the object to be inflated.
Do not store the air compressor in high-temperature or humid
environments.
When not in use, disconnect the air compressor from all power
sources.
- 03 -

The air nozzle is compatible with all Schrader Valves. For use with
cars, midsize SUVs, motorcycles, and bicycles. The large-volume
hose is only for inflating and deflating low-pressure, large-capacity
objects.
During use, do not touch any part of the air compressor apart
from the switch and handle. The air compressor gets hot during
use and stays hot for some time after.
Please let the pump cool for at least 10 minutes after every 15
minutes of use.
PSI, BAR, KPA, KG /CM² are the pressure units, not the pressure
levels.
Please do not use this product in the rain or near any liquids.
Do not aim the nozzle at people or any part of a human body.
This product contains small accessories which are a choking
hazard for children. Please keep out of reach of children.
Do not use this product with 24V car power. Connect the air
compressor to a 12V 15A DC cigarette lighter.
Do not drag the product by pulling the power cord or the air hose.
Do not use chemical cleaners to clean the air compressor. Only
use mild soap and a cloth dipped in hot water to clean the plastic
parts.
If the attachments are missing or damaged after the package is
delivered, please contact us.
- 04 -

DIAGRAM
- 05 -
64 7
10
95 8
12
11
3
12
1Accessory Compartment
2LED Light
3AC/DC Power Switch
4Handle
5LED Button
6Unit Button
7Screen
8‘+’ & ‘-’ Buttons
9Mode Switch
10 Quick Connector
11 Large-Volume Hose
12 12V Cigarette Lighter Cable
UNIT
PSI BAR KPA KG/CM²

16 17 18 19
15 AC Power Cord
16 2 x Air Nozzles
17 Presta to Schrader Adapter
18 Replacement Fuse
19 Needle Valve Adapter
- 06 -
13 Large-Volume Inflate Port
14 Large-Volume Deflation Port
D
e
fl
a
t
e
13
14
15

- 07 -

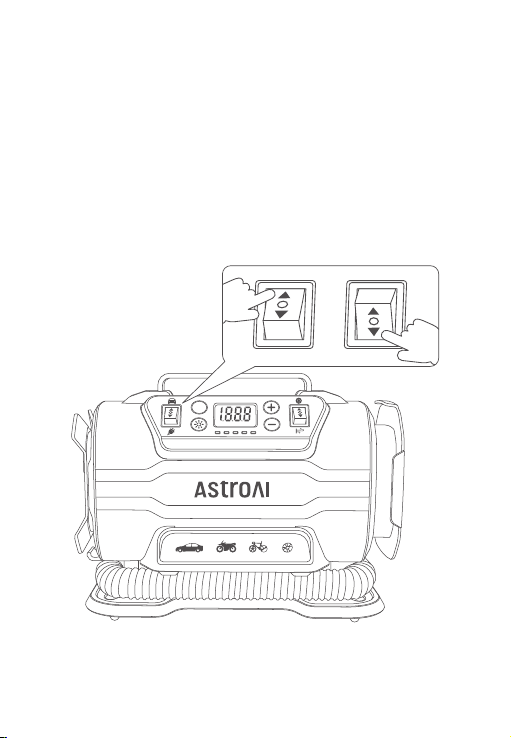

1. Firmly insert the compressor’s DC power cable into the car’s 12V
cigarette lighter socket. Press the power switch upward to the DC
side, the screen will light up when it is powered. (If you are using
AC power, press the power switch downward to the AC side.)
INSTRUCTIONS
Tire mode
Note: Ensure that your car engine is running before you use it.
UNIT
PSI BAR KPA KG/CM²
DC
AC

- 08 -
2. Press the UNIT button to choose the desired unit.
(4 options: PSI, BAR, KPA, Kg/cm².)
3. Use the ‘+’and ‘-’ buttons to set the desired pressure.
Use the tire pressure guide on the inside of the driver’s door for
guidance. Make sure that the preset pressure is higher than the
current pressure of your tire.
UNIT
PSI BAR KPA KG/CM²
UNIT
UNIT
PSI BAR KPA KG/CM²

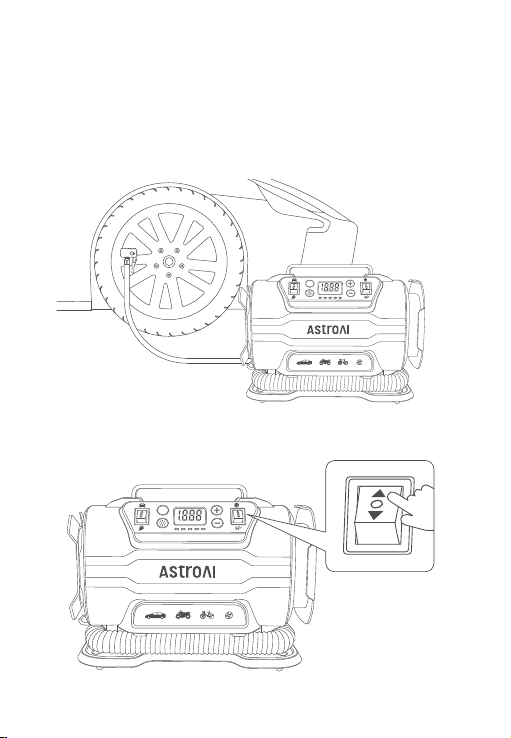

4. Remove the valve cap from the valve stem of the tire and connect
the air nozzle to the valve stem. If you need to illuminate the
surrounding area, press the LED button.
5. Press the mode switch to the ‘▲’ side to start tire mode.
- 09 -
Tip: For better sealing when using the quick connector, align it
to the valve stem, press it in firmly, and flip the small lever.
UNIT
PSI BAR KPA KG/CM²
UNIT
PSI BAR KPA KG/CM²

- 10 -

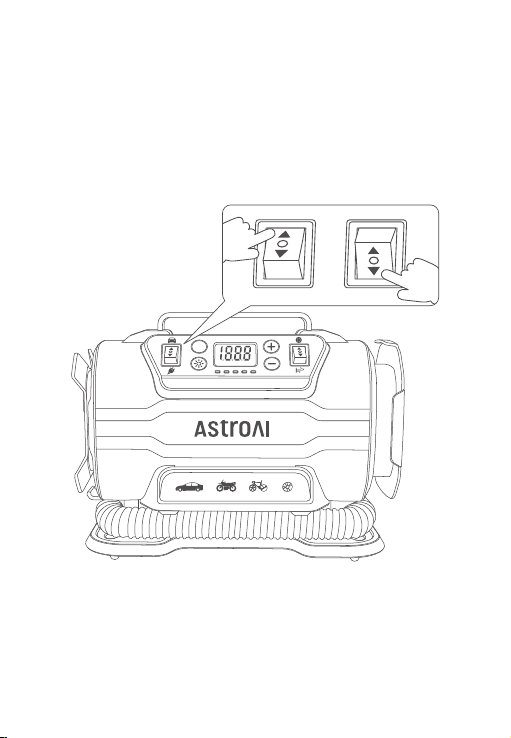

1. Firmly insert the compressor’s DC power cable into the car’s 12V
cigarette lighter socket. Press the power switch upward to the DC
side, the screen will light up when it is powered. (If you are using
AC power, press the power switch downward to the AC side.)
Large-volume Mode
UNIT
PSI BAR KPA KG/CM²
DC
AC

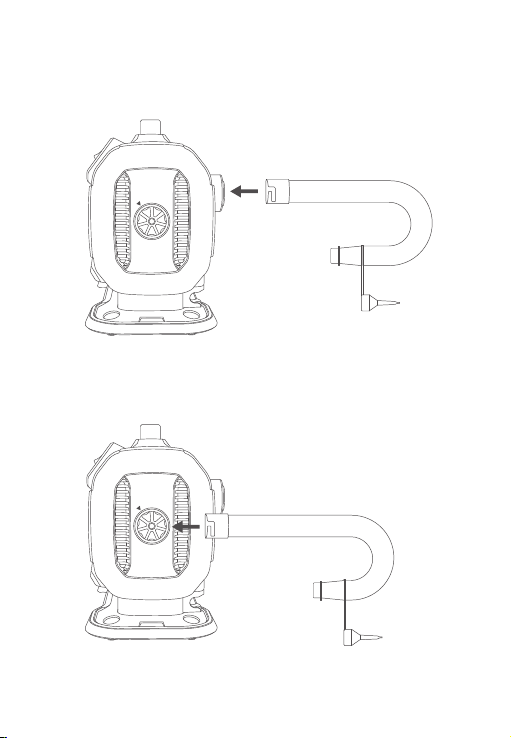

2. Align the hose with the port’s buckle and turn it counterclockwise
until it stops.
- 11 -
D
e
fl
a
t
e
D
e
fl
a
t
e
Note: To deflate, insert the hose as instructed in the picture.

3. Insert the nozzle into the object to be inflated.
4. Press the mode switch to the ‘▼’side to start large volume mode.
- 12 -
Trouble
Solution
Air Compressor is Operating Abnormally
The inflation nozzle is not properly connected to the
tire’s valve stem.
Ensure there is a strong connection between the
power cord and 12V socket.
The preset tire pressure is lower than the current tire
pressure. Increase the preset tire pressure to the
manufacturer recommended level.
Ensure the large volume hose is inserted correctly.
TROUBLESHOOTING
UNIT
PSI BAR KPA KG/CM²

- 13 -
Trouble
Solution
Air Leaking Through The Hose
Ensure there is a strong connection between the inflation
nozzle and valve stem.
Trouble
Solution
Air Compressor Will Not Inflate
Ensure the in-line fuse is securely inserted correctly;
replace the fuse if necessary.
Check the vehicle’s cigarette lighter fuse, it should be
rated at 15A.
Ensure there is a secure connection between the
power cord and 12V socket.
Ensure the AC plug is plugged into the AC socket
firmly.
The preset tire pressure is lower than the current tire
pressure. Increase the preset tire pressure to the
manufacturer recommended level.
Ensure the tire mode/large-volume mode switch is
in the correct position.
Trouble
Solution
Slow Inflation
The inflation nozzle is not properly connected to the
tire’s valve stem.
Excessive use will slow the inflation rate of the air
compressor. Turn it o and let it cool for at least 10
minutes.

SPECIFICATIONS
Model
Working Voltage
Power Rating
Inflating Speed
Maximum Working Pressure
Display Units
Maximum Current
Inflation Hose Length
Power Cord Length
Dimensions
Certificate
ATJ-8366
DC12V
AC110V~240V 50/60Hz
120W
22L/min
150PSI
PSI, BAR, KPA, KG/CM²
15A
2.29ft (0.7m)
DC-3m (9.84ft) / AC-9.18ft (2.8m)
11.8×6.3×10.2in (0.3×0.16×0.26m)
CE, FCC
PACKAGE INCLUDES
AstroAI Air Compressor
Needle Valve Adapter
Presta to Schrader Adapter
User Manual
×1
×1
×1
×1
Air Nozzles
Replacement Fuse
Large-Volume Hose
×2
×1
×1
- 14 -

- 15 -
RECYCLING
You may dispose of the product when its service life has ended,
please recycle the recyclable parts according to local guidelines.
FEATURES
AC/DC, two types of power supply.
Tire mode and large-volume mode.
Auto shuto: Once the preset air pressure is reached, the air
compressor will automatically shut o.
LCD screen: Easy to operate, read and understand.
Longer power cords: AC 9.18ft (2.8m), DC 9.84ft (3m).
Portable design: Easy to carry and store in a car.
Power Cut Memory Function: Automatically recalls the previously
set pressure.
LED light provides illumination in dark environments.

WARRANTY PERIOD
2 Year Limited Warranty From AstroAI
Each AstroAI Portable Air Compressor will be free from defects in
material and workmanship.
This warranty does not cover damage from neglect, misuse, contami-
nation, alteration, accident, or abnormal conditions of operation or
handling. This warranty covers the original purchaser only and is
not transferable.
AstroAI always wants to provide our customers with excellent products
and customer service.
Questions or Concerns? We’re happy to help!
Please contact us via [email protected]
