Asus AAEON UP 4000 M.2 Plus User manual

Last Updated: September 30, 2022
UP 4000 M.2 Plus
Carrier Board
UP-APL03CB
User’s Manual 1st Ed

Preface II
Carrier Board UP 4000 M.2 Plus
Copyright Notice
This document is copyrighted, 2022. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

Preface III
Carrier Board UP 4000 M.2 Plus
Acknowledgement
All other products’ name or trademarks are properties of their respective owners.

Preface IV
Carrier Board UP 4000 M.2 Plus
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
⚫UP-APL03CB (UP 4000 M.2 Plus Carrier Board)
1
⚫FPC Cable
1
⚫Screws (pack)
1
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

Preface V
Carrier Board UP 4000 M.2 Plus
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver installation
instructions (if any), to facilitate users in setting up their product.
Users may refer to the product page at AAEON.com for the latest version of this
document.

Preface VI
Carrier Board UP 4000 M.2 Plus
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the device.
3. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
4. Always completely disconnect the power before working on the system’s
hardware.
5. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
6. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray detergents.
9. Make sure the device is installed near a power outlet and is easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent falls
12. Do not cover the openings on the device to ensure optimal heat dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is running
15. Never pour any liquid into the openings. This could cause fire or electric shock.
16. As most electronic components are sensitive to static electrical charge, be sure to
ground yourself to prevent static charge when installing the internal components.
Use a grounding wrist strap and contain all electronic components in any
static-shielded containers.

Preface VII
Carrier Board UP 4000 M.2 Plus
17. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH
TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES
(SEE CHAPTER 1) TO PREVENT DAMAGE.

Preface VIII
Carrier Board UP 4000 M.2 Plus
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received including interference that may cause
undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.

Preface IX
Carrier Board UP 4000 M.2 Plus
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
X
X
○
○
○
○
外部信号
连接器及线材
X
X
○
○
○
○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此产品所标示之环保使用期限，系指在一般正常使用状况下。

Preface X
Carrier Board UP 4000 M.2 Plus
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
AAEON Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCB & Other
Components
X
X
O
O
O
○
Wires &
Connectors
for External
Connections
X
X
O
O
O
O
O：The quantity of poisonous or hazardous substances or elements found in each of the
component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least one of the
component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this product is applicable under normal
usage only

Preface XI
Carrier Board UP 4000 M.2 Plus
Table of Contents
Chapter 1 - Product Specifications.......................................................................................... 1
1.1 Specifications............................................................................................................ 2
Chapter 2 –Hardware Information ....................................................................................... 3
2.1 UP-APL03-A10-0001 (M.2 B/E-Key) Dimensions...............................................4
2.2 UP-APL03-A10-0001 (M.2 B/E-Key) Jumpers and Connectors...................... 5
2.3 UP-APL03-A10-0001 (M.2 B/E-Key) List of Jumpers and Connectors..........5
2.4 UP-APL03-A10-0001 (M.2 B/E-Key) Connector Index .....................................6
2.4.1 FPC/FFC Connector (CN1).......................................................................... 6
2.4.2 M.2 B-Key (CN2) .......................................................................................... 8
2.4.3 M.2 E-Key (CN5) .........................................................................................10
2.4.4 Nano SIM Card Socket (U2)......................................................................12
2.5 UP-APL03-A10-0002 (M.2 M-Key) Dimensions ...............................................13
2.6 UP-APL03-A10-0002 (M.2 M-Key) Jumpers and Connectors.......................14
2.7 UP-APL03-A10-0002(M.2 M-Key) List of Jumpers and Connectors ............14
2.8 UP-APL03-A10-0002(M.2 M-Key) Connector Index .......................................14
2.8.1 FPC/FFC Connector (CN1).........................................................................15
2.8.2 M.2 M-Key (CN3)........................................................................................16
Chapter 3 –Module Installation............................................................................................18
3.1 UP 4000 M.2 Plus Module Installation ...............................................................19

Carrier Board UP 4000 M.2 Plus
Chapter 1
Chapter 1 - Product Specifications

Chapter 1 –Product Specifications 2
Carrier Board UP 4000 M.2 Plus
1.1 Specifications
I/O Placements
I/O
UP-APL03CB-A10-0001:
M.2 3052/3042 B Key x 1 (USB 3.0)
M.2 2230 E Key x 1 (PCIe x1)
Push-push Nano SIM card x 1
41-pin FPC Connector x 1
UP-APL03CB-A10-0002:
M.2 2280 M Key x 1 (PCIe x1)
41-pin FPC Connector x 1
Dimension
UP-APL03CB-A10-0001: 2" x 2.56" (51mm x 65mm)
UP-APL03CB-A10-0002: 2" x 3.5" (51mm x 89 mm)
Net Weight
UP-APL03CB-A10-0001: 0.035 lbs. (0.016Kg)
UP-APL03CB-A10-0002: 0.041 lbs. (0.019Kg)
Gross Weight
UP-APL03CB-A10-0001: 0.12 lbs. (0.055Kg)
UP-APL03CB-A10-0002: 0.12 lbs. (0.058Kg)
Operating Temperature
32°F ~ 140°F (0°C ~ 60°C), 0.5m/s airflow
Operation Humidity
10% ~ 80% relative humidity, non-condensing
Certification
CE/FCC Class A, RoHS Compliant

Carrier Board UP 4000 M.2 Plus
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 –Hardware Information 4
Carrier Board UP 4000 M.2 Plus

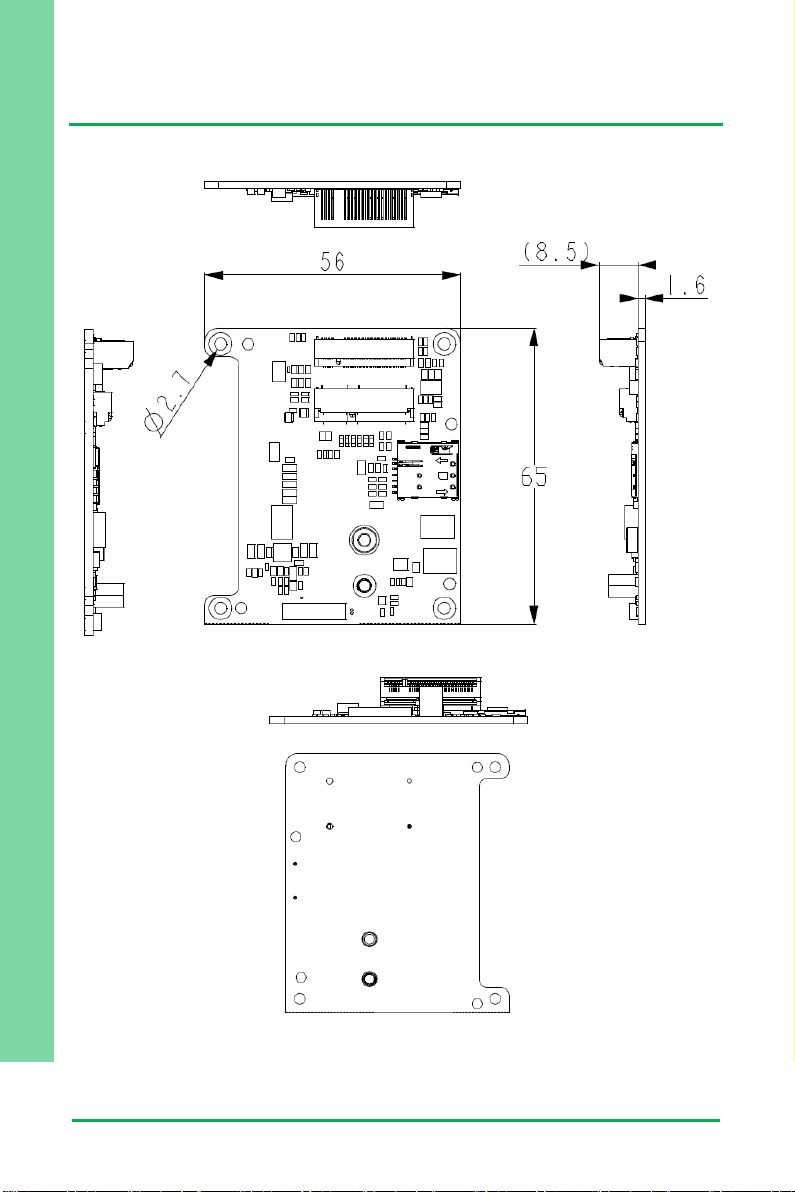

2.1 UP-APL03-A10-0001 (M.2 B/E-Key) Dimensions

Chapter 2 –Hardware Information 5
Carrier Board UP 4000 M.2 Plus
2.2 UP-APL03-A10-0001 (M.2 B/E-Key) Jumpers and Connectors
2.3 UP-APL03-A10-0001 (M.2 B/E-Key) List of Jumpers and Connectors
Label
Functional Description
CN1
FPC/FFC Conn
CN2
M.2 B-Key
CN5
M.2 E-Key
U2
Nano SIM Card Socket

Chapter 2 –Hardware Information 6
Carrier Board UP 4000 M.2 Plus
2.4 UP-APL03-A10-0001 (M.2 B/E-Key) Connector Index
Reference
Designation
Functional
Description
Connector Type
CN1
FPC/FFC Conn
(TF)FPC/FFC Conn.41P.90D(F).SMD
.0.6mm.Hirose.FH35C-41S-0.3SHW(50)
CN2
M.2 B-Key
(TF)M.2 KEY-B SLOT.75P.90D(F).SMD.H
=8.5mm.FOXCONN.2E0BC21-S85BB-7H
CN5
M.2 E-Key
(TF)M.2 Key-E Slot.H=4.0mm conn.75P.90D(F).
BLACK.SMD.FOXCONN.AS0BC21-S40BE-7H
U2
Nano SIM Card
Socket
(AOH)(TF)Nano SIM Card Socket.7P.90D(F).
SMD.Push-Push type.TRONTEK.TH63-SIM07-137

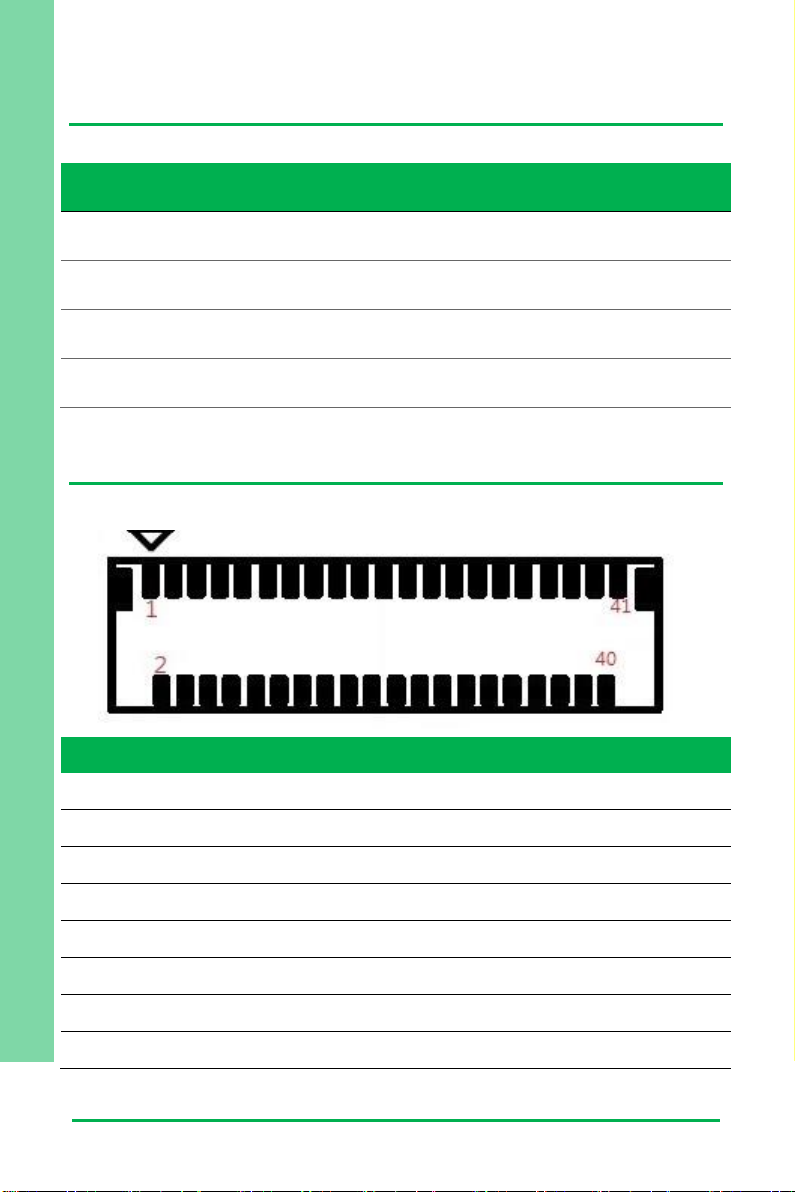

2.4.1 FPC/FFC Connector (CN1)
Pin
Signal Description
Pin
Signal Description
1
GND
2
NC
3
NC
4
GND
5
USB3_RXN
6
USB3_RXP
7
GND
8
USB3_TXN
9
USB3_TXP
10
GND
11
USB2_DN
12
USB2_DP
13
GND
14
PCIE_Clock_N
15
PCIE_Clock_P
16
GND

Chapter 2 –Hardware Information 7
Carrier Board UP 4000 M.2 Plus
Pin
Signal Description
Pin
Signal Description
17
PCIE_RXP
18
PCIE_RXN
19
GND
20
PCIE_TXN
21
PCIE_TXP
22
GND
23
PCIe wake
24
Suspend clock
25
SMBus ALERT
26
SMBus Clock
27
SMBus Data
28
Platform reset
29
Platform sleep S3(3.3V)
30
Platform sleep S0(3.3V)
31
GND
32
+1.8V
33
+1.8V
34
+12V
35
+12V
36
+12V
37
+12V
38
+12V
39
+12V
40
+12V
41
GND
42
GND
43
GND
-
-

Chapter 2 –Hardware Information 8
Carrier Board UP 4000 M.2 Plus

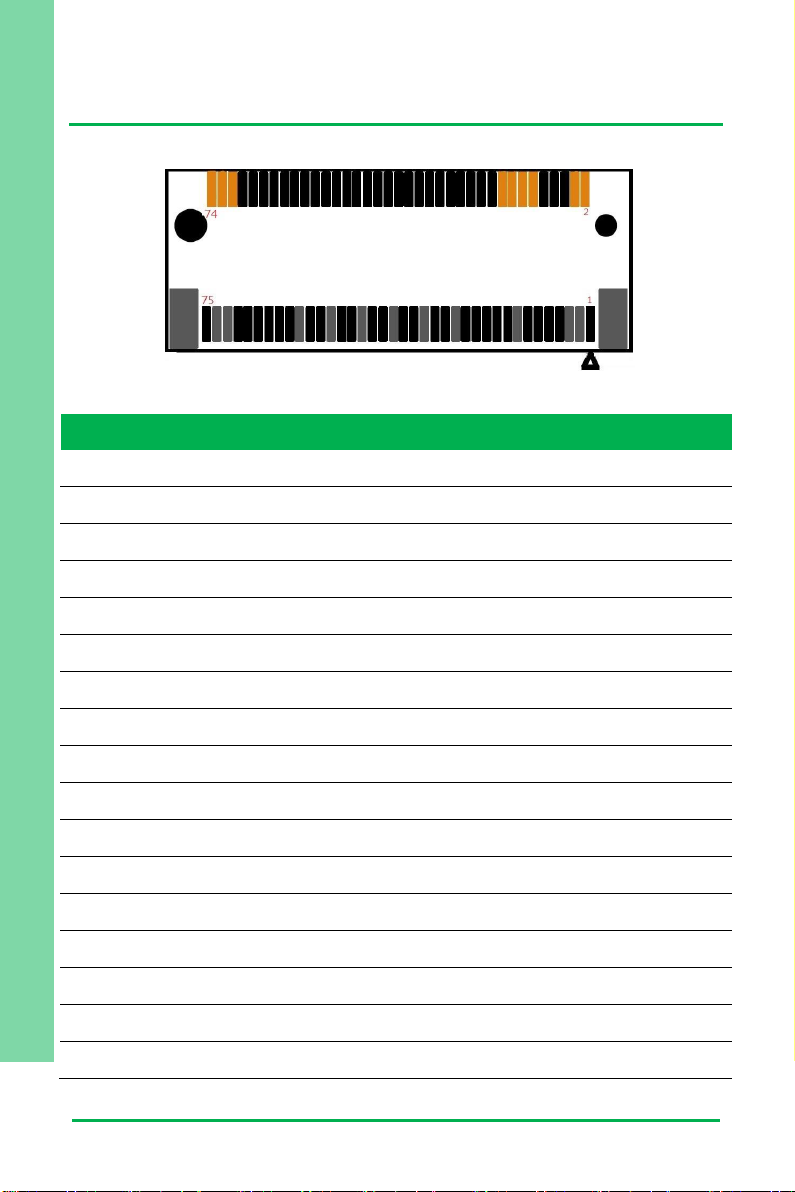

2.4.2 M.2 B-Key (CN2)
Pin
Signal Description
Pin
Signal Description
1
NC
2
+3.3V
3
GND
4
+3.3V
5
GND
6
Full card power
7
USB2_DP
8
5G power Enable
9
USB2_DN
10
NC
11
GND
20
NC
21
NC
22
NC
23
5G wake
24
NC
25
NC
26
NC
27
GND
28
NC
29
USB3_RXN
30
UIM_Reset
31
USB3_RXP
32
UIM_Clock
33
GND
34
UIM_Data
35
USB3_TXN
36
UIM_Power
37
USB3_TXP
38
NC
39
GND
40
NC
41
NC
42
NC

Chapter 2 –Hardware Information 9
Carrier Board UP 4000 M.2 Plus
Pin
Signal Description
Pin
Signal Description
43
NC
44
NC
45
GND
46
NC
47
NC
48
NC
49
NC
50
Platform reset
51
GND
52
PCIe clock request
53
NC
54
M.2 wake
55
NC
56
NC
57
GND
58
NC
59
NC
60
NC
61
NC
62
NC
63
NC
64
NC
65
NC
66
SIM_Detect
67
WWAN_RESET
68
NC
69
NC
70
+3.3V
71
GND
72
+3.3V
73
GND
74
+3.3V
75
NC
76
GND
77
GND
H1
NC
H2
NC
-
-
