Asus Digital Entertainment PC AB-V100 Instruction Manual

Digital Entertainment PC
(AB-V100)
®
DiGiMatrix
User Handbook

2 ASUS DiGiMatrix
Copyright © 2003 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.
IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGEATANY TIME
WITHOUT NOTICE,AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BYASUS.
ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
E1468
Revised Edition V2
November 2003

3 User Handbook
Table of contents
Table of contents ............................................................................ 3
Notices ........................................................................................... 6
Safety information .......................................................................... 7
About this handbook....................................................................... 8
System package contents ............................................................ 10
Chapter 1: System Introduction
1.1 Welcome! ............................................................................ 12
1.2 Front panel (external) .......................................................... 12
1.3 Front panel (internal) ........................................................... 14

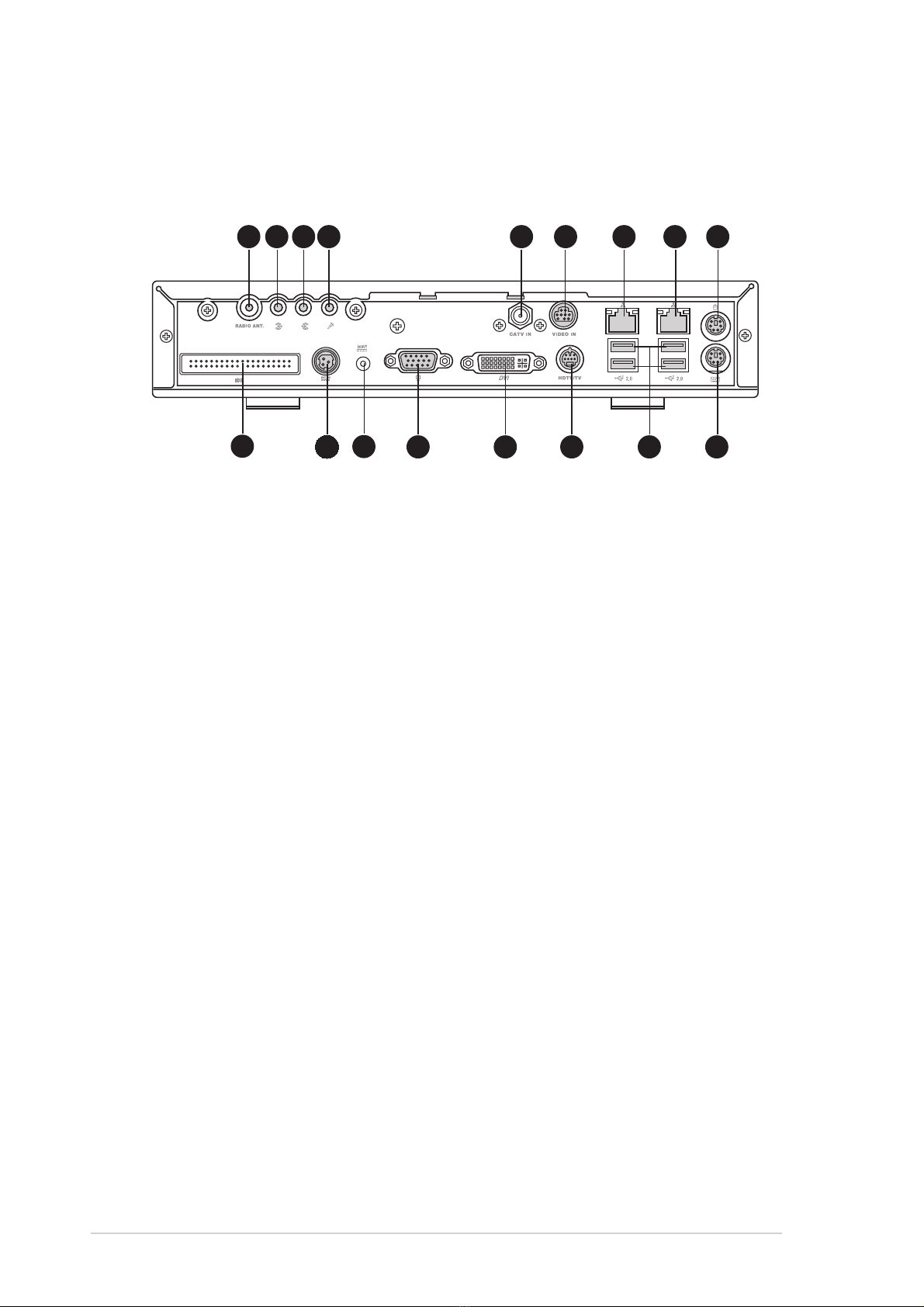

1.4 Rear panel........................................................................... 16
1.5 LED panel............................................................................ 18
Chapter 2: Connections
2.1 Preparation.......................................................................... 20
2.2 Connecting cables............................................................... 20
2.2.1 Power adapter and cable ...................................... 20
2.2.2 Radio antenna....................................................... 21
2.2.3 Audio/Video cable ................................................. 21
2.2.4 Video out cable ..................................................... 21
2.2.5 HDTV cable........................................................... 22
2.2.6 Audio out cable ..................................................... 22
2.3 Connecting external devices ............................................... 23
Chapter 3: Using DiGiMatrix
3.1 Installing an operating system............................................. 26
3.2 Powering up ........................................................................ 26
3.3 Optical drive operation ........................................................ 26
3.3.1 Loading a disc ....................................................... 26
3.3.2 Ejecting a disc from the drive ................................ 28
3.3.3 Using the emergency eject pinhole ....................... 28
3.4 Using the 4-slot storage card reader ................................... 29

4 ASUS DiGiMatrix
Table of contents
Chapter 4: Software support
4.1 Support CD information....................................................... 32
4.1.1 Running the support CD........................................ 32
4.1.2 Drivers menu......................................................... 33
4.1.3 Utilities menu......................................................... 34
4.1.4 ASUS contact information ..................................... 35
4.1.5 Other information .................................................. 35
4.2 Software information ........................................................... 36
4.2.1 ASUS Update........................................................ 36
4.2.2 ASUS PC Probe.................................................... 38
4.2.3 Multi-channel audio feature................................... 42
4.2.4 Music Wizard......................................................... 45
4.3 Audio DJ.............................................................................. 48
4.3.1 Selecting an audio source..................................... 49
4.3.2 Playing MP3 files from the hard disk drive ............ 49
4.3.3 Playing an audio CD/DVD..................................... 49
4.3.4 Tuning into an FM radio station............................. 50
4.3.5 Presetting a station ............................................... 51
4.3.6 Adjusting the volume............................................. 51
4.4 ASUS Home Theater........................................................... 51
4.4.1 Installing ASUS Home Theater ............................. 51
4.4.2 Using ASUS Home Theater .................................. 53
4.4.3 Entertainment modes ............................................ 55
4.5 ASUS Wireless LAN adapter............................................... 64
4.5.1 Installing the WLAN Card utilities and driver......... 65
4.5.2 Setting the Windows® XP wireless options .......... 65
4.5.3 Other support CD options ..................................... 65
4.5.4 Setup Wizard......................................................... 66
4.5.5 The Control Center utility ...................................... 79
4.5.6 Configuring the wireless LAN adapter by Wireless
Settings utility......................................................... 89

5 User Handbook
Table of contents
Appendix
A.1 Subsystem............................................................................. 2
A.1.1 Front and rear panel features.................................. 2
A.1.2 Removing the top cover .......................................... 3
A.1.3 Installing a hard disk drive....................................... 3
A.1.4 Connecting the Subsystem to DiGiMatrix ............... 4
A.2 DiGiMatrix remote controller.................................................. 5
A.2.1 Specifications .......................................................... 5
A.2.2 Remote control layout ............................................. 5
A.2.3 Remote control functions in Audio DJ ..................... 6
A.2.4 Remote control functions in Home Theater............. 7
A.3 Optical drive technical specifications..................................... 9
A.4 Wireless LAN adapter channels .......................................... 10

6 ASUS DiGiMatrix
Notices
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with manufacturer’s instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
WARNING!
The use of shielded cables for connection of the monitor to the graphics
card is required to assure compliance with FCC regulations. Changes or
modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.

7 User Handbook
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that
the power cables for the devices are unplugged before the signal
cables are connected.
• If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
Operation safety
• Before installing devices into the system, carefully read all the
documentation that came with the package.
• Before using the product, make sure all cables are correctly
connected and the power cables are not damaged. If you detect any
damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away
from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the
product in any area where it may become wet. Place the product on a
stable surface.
• If you encounter technical problems with the product, contact a
qualified service technician or your retailer.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the
manufacturerís instructions.
VORSICHT: Explosionsgetahr bei unsachgemäßenAustausch der
Batterie. Ersatz nur durch denselben oder einem vom Hersteller
empfohlenem ähnljchen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
LASER PRODUCT WARNING
CLASS 1 LASER PRODUCT

8 ASUS DiGiMatrix
About this handbook
Audience
This handbook provides general information about the ASUS DiGiMatrix
system and is intended for users with general knowledge of personal
computers.
How this handbook is organized
This handbook contains the following parts:
1. Chapter 1: System Introduction
This chapter gives a general description of the ASUS DiGiMatrix. The
chapter lists the system features including introduction on the front
and rear panel, and internal components.
2. Chapter 2: Connections
This chapter provides step-by-step instructions on how to connect
devices and accessories to the DiGiMatrix system.
3. Chapter 3: Using DiGiMatrix
This chapter provides information on powering up the DiGiMatrix
system and using the optical drive and storage card reader.
4. Chapter 4: Software support
This chapter helps you install the drivers and utilities from the support
CD.
5. Appendix
The Appendix provides information on the DiGiMatrix Subsystem,
remote controller, optical drive technical specifications, and IEEE
802.11b channels for the wireless LAN adapter.

9 User Handbook
Conventions used in this handbook
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
Where to find more information
Refer to the following sources for additional information and for product
and software updates.
1. ASUS Websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to the ASUS contact
information.
2. Optional Documentation
Your product package may include optional documentation, such as
warranty flyers, that may have been added by your dealer. These
documents are not part of the standard package.

10 ASUS DiGiMatrix
System package contents
If any of the above items is damaged or missing, contact your retailer
immediately.
Check your ASUS DiGiMatrix package for the following items.
1. ASUS DiGiMatrix Digital Entertainment System with:
• ASUS P4SQ motherboard
• Intel
®
Pentium
®
4 (2.4GHz) or Celeron (2.0GHz) processor
• 80GB or 160 GB 7200RPM IDE hard disk drive
• 256MB PC2700 DDR DIMM
• DVD-ROM/CD-RW Combo or DVD-ROM drive
• 7-in-1 storage card reader
2. Cables
• Universal power adapter and cable (100V-240V)
• HDTV cable
• Audio/video cable
• Video out cable
• Audio out cable
3. Accessories
• Radio antenna
• Remote controller
4. DiGiMatrix support CD
5. User Handbook
Component specifications are subject to change without notice.

digital
entertainment PC
Chapter 1
System introduction
This chapter gives a general
description of the ASUS DiGiMatrix.
The chapter lists the system features
including introduction on the front and
rear panel, and internal components.

12 ASUS DiGiMatrix User Handbook
1.1 Welcome!
1.2 Front panel (external)
The DiGiMatrix front panel includes the system and audio control buttons,
system LEDs and LED panel.
— VOLUME +
12 3 4 5
6 7 8 9 10 11 12
1. Power LED. When lit, this LED indicates that the system is ON.
2. HDD LED. This LED lights up when data is being read from or written
to the hard disk drive.
Thank you for choosing the ASUS DiGiMatrix!
The ASUS DiGiMatrix is a smart personal computer and a versatile home
entertainment system in one. Powered by the ASUS P4SQ motherboard,
DiGiMatrix delivers the cutting edge technology for your computing and
multimedia entertainment needs. DiGiMatrix comes with an Intel
®
Pentium
®
4 (2.4GHz)/Celeron (2.0GHz) processor, 256MB PC2700 system
memory and 80GB/160GB IDE hard disk drive to give you a dependable
PC platform. The DiGiMatrix also comes with a slim optical drive, 4-slot
storage card reader, and 6-channel digital audio in a compact and stylish
casing.
Providing the best connectivity for external devices and peripherals are
eight (8) USB 2.0 ports, fast Ethernet and Gigabit LAN ports, IEEE 1394
port, and S/PDIF interface. The DiGiMatrix includes a TV/FM tuner and an
IEEE 802.11b-compliant wireless network adapter to support your wireless
networking needs.
The DiGiMatrix features the most silent multimedia system to give you
pure acoustic enjoyment. With the ASUS DiGiMatrix, you don’t need
anything else!

13 Chapter 1: System introduction
3. Card LED. This LED lights up when data is being read from or written
to a storage card inserted in any of the card reader slots.
4. LED panel. The LED panel displays the audio medium (HD/CD/FM),
radio frequency, player status ( / ), real time clock, track number and
time, and CPU temperature. See page 18 for details.
5. System power button. Press this button to turn the system on and
enter the DiGiMatrix operating system.
6. System volume dial. Turn this dial clockwise to increase the system
volume or counterclockwise to decrease the system volume. In Audio
DJ mode, press the system volume dial to mute sound.
7. Remote sensor. This sensor receives signals from the DiGiMatrix
remote controller. See page A-5 for details on the remote controller.
8. Audio DJ power button. Press this button to turn on the DiGiMatrix
Audio DJ. The Audio DJ feature allows you to play CD/DVD audio
tracks and MP3 files on your hard disk drive, or tune into an FM radio
station without entering the DiGiMatrix operating system. See page
48 for details.
The following front panel buttons are activated only when DiGiMatrix is in
Audio DJ mode.
9. PLAY/PAUSE button. Press this button to perform various functions in
different modes.
In CD mode, plays the first track of the audio CD/DVD in the optical
drive. When playing an audio track, pauses the track being played.
In Hard Disk (HD) mode, plays the first MP3 file of a selected playlist.
When playing an audio track/file, pauses the track/file being played.
In Radio mode, scans the available FM stations.
10. STOP button. Press this button to perform various functions in
different modes.
In CD/HD mode, (pressed once) stops the audio track/file being
played, or (pressed twice) sets the Audio DJ in Playlist mode.
In Radio mode, sets the Audio DJ in Playlist mode.

14 ASUS DiGiMatrix User Handbook
FRONT PANEL (OPEN)

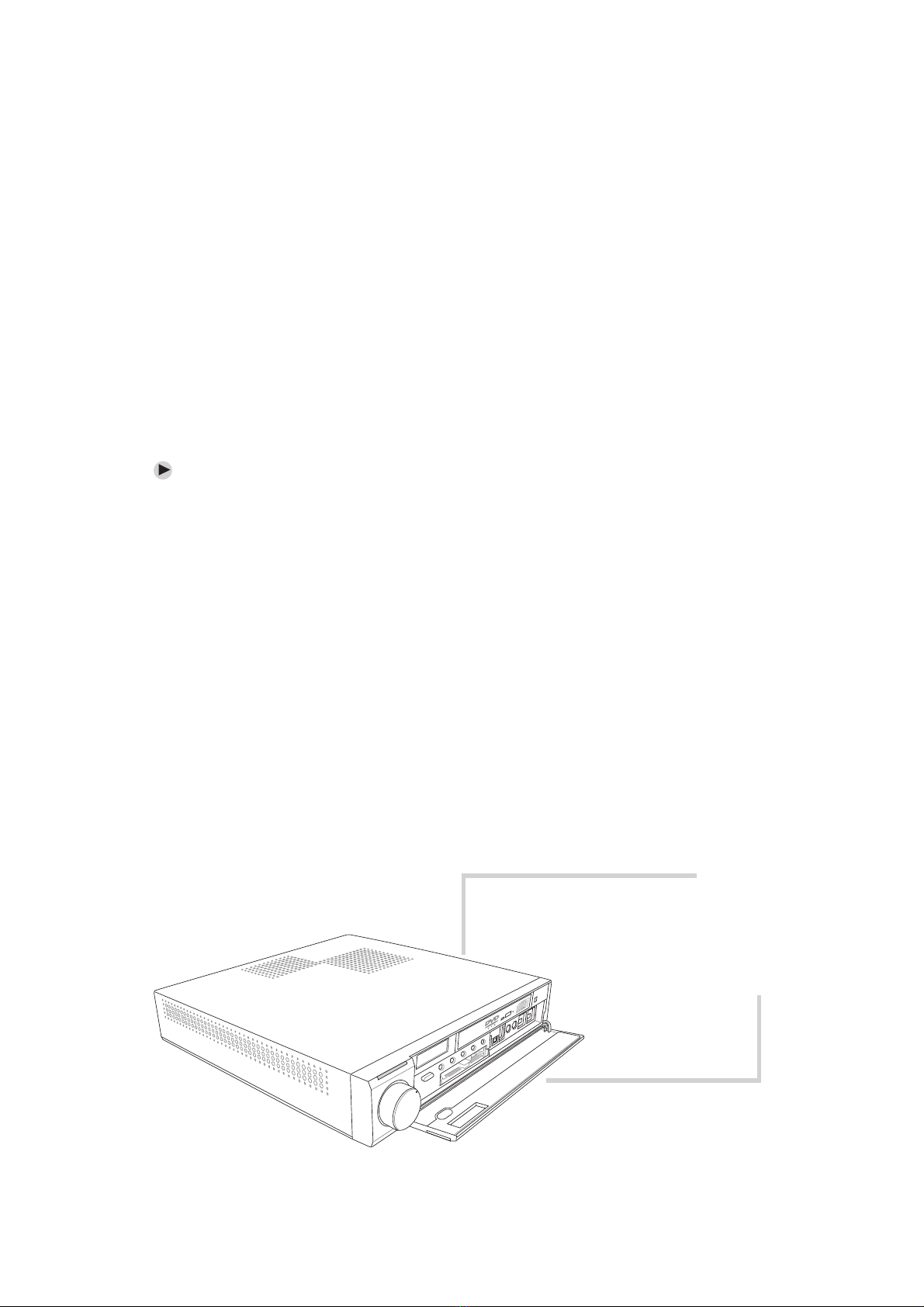

1.3 Front panel (internal)
The optical drive, storage card slots, and several I/O ports are located
inside the front panel door.
Flip down the front panel door to open. Refer to
the illustration on the right.
— VOLUME +
13 14 15 16 17 18
19 20 21 22 23 24 25 26
You can not close the front panel door if a
flash memory card is inserted into any of the
card slots.
11. PREVIOUS button. Press this button to perform various functions in
different modes.
In CD/HD mode, selects the previous audio track/file.
In Radio mode, selects the previous preset station.
In Playlist mode, selects the previous available audio source.
12. NEXT button. Press this button to perform various functions in
different modes.
In CD/HD mode, selects the next audio track/file.
In Radio mode, selects the next preset station.
In Playlist mode, selects the next available audio source.

15 Chapter 1: System introduction
13. CompactFlash
®
/Microdrive™ card slot. This slot is for a
CompactFlash
®
/Microdrive™ storage card.
14. Memory Stick
®
/Memory Stick Pro™ card slot. This slot is for a
Memory Stick
®
/Memory Stick Pro™ storage card.
15. DVD-ROM/CD-RW Combo or DVD-ROM drive. This is a slim
DVD-ROM/CD-RW Combo or DVD-ROM drive.
16. Drive activity LED. This LED lights up when you place a disc on the
drive tray, and turns off when you remove the disc. The LED flashes
when data is being read from or written to the disc.
17. STOP/EJECT button. Press this button to eject the disc loading tray.
18. Emergency eject pinhole. The emergency eject pinhole allows you
to manually eject a disc when the STOP button does not work due to
power failure or software problems. Insert the emergency eject pin or
a paper clip into this hole to manually eject the tray and the disc.
19. SmartMedia
®
card slot. This slot is for a SmartMedia
®
storage card.
20. Secure Digital™/MultimediaCard slot. This slot is for a Secure
Digital™/MultimediaCard storage card.
21. Optical S/PDIF port. This port connects your audio system for
5.1-channel surround sound and enhanced 3D audio.
22. 4-pin IEEE 1394 port. This port provides high-speed connectivity for
IEEE 1394-compliant audio/video devices, storage peripherals, and
other PC devices.
23. 6-pin IEEE 1394 port. This port provides high-speed connectivity for
IEEE 1394-compliant audio/video devices, storage peripherals, and
other PC devices.
24. Headphone port. This port connects a headphone with a stereo
mini-plug.
25. Microphone port. This Mic (pink) port connects a microphone.
26. USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports are
available for connecting USB 2.0 devices such as a mouse, printer,
scanner, camera, PDA, and others.

16 ASUS DiGiMatrix User Handbook
1.4 Rear panel
The DiGiMatrix rear panel includes the power socket and several I/O ports
that allow convenient connection of devices.
1
11
2 3 4 5 6 7 8 9
15 16 171413
10 12
1. Radio antenna port. This port connects the FM antenna.
2. Line In port. This Line In (light blue) port connects a tape player or
other audio sources. In 6-channel mode, the function of this port
becomes Low Frequency Enhanced Output/Center.
3. Line Out port. This Line Out (lime) port connects a headphone or a
speaker. In 4/6-channel mode, the function of this port becomes Front
Speaker Out.
4. Microphone port. This Microphone (pink) port connects a
microphone. In 4/6-channel mode, the function of this port becomes
Surround Speaker.
5. Cable TV connector. This connects a cable TV twist-on connector.
6. Video In port. This port connects a television or a video casette
recorder.
7. Ethernet LAN port. This port allows connection to a Local Area
Network (LAN) through a network hub.
8. Gigabit LAN port. This port allows high speed connection to the
Internet via a DSL or cable modem.
9. PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.
10. Secondary IDE connector. This interface connects the optional
DiGiMatrix subsystem. See page A-2.
11. DC IN socket. This socket connects the power adapter and plug.

17 Chapter 1: System introduction
12. DC OUT socket. This socket connects the DC power cable that
supplies power to the optional DiGiMatrix Subsystem. See page A-4
for details.
13. VGA port. This port connects a VGA monitor.
14. DVI port. This port connects a DVI-enabled flat screen or LCD
monitor using a DVI cable.
15. HDTV/TV port. This port connects a high-definition television
(HDTV) or a regular TV set using the supplied HDTV, audio/video, or
video out cable.
16. USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports are
available for connecting USB 2.0 devices such as a mouse, printer,
scanner, camera, PDA, and others.
17. PS/2 keyboard port. This purple 6-pin connector is for a PS/2
keyboard.

18 ASUS DiGiMatrix User Handbook
1.5 LED panel
The DiGiMatrix LED panel displays
different system information
depending on the system mode.
Time - The LED panel displays the
system time in 24-hour format when
DiGiMatrix is in soft-off or stand-by
mode, S3 (Suspend-to-RAM), or S4
(Suspend-to-Disk) state. Enter the
BIOS setup or the DiGiMatrix
operating system to adjust the time.
CPU Temperature - The LED panel
displays the CPU temperature when
DiGiMatrix is in Windows
®
mode.
0018:30
— VOLUME +
0000:00
1088.70
.
HD CD
FM
HD CD
FM
HD CD
FM
Refer to page 50 on how to preset a radio station.
00
HD CD
FM 47:
0
C
Audio DJ
The LED panel displays the playlist
number when Audio DJ is set to HD
mode. In play status, the LED panel
displays the play icon, track number,
and track duration.
In DVD/CD mode, the LED panel
displays the audio mode. In play
status, the LED panel displays the
play icon, track number and track
duration.
The LED panel displays the station
preset number and station frequency
when Audio DJ is in radio mode.
P100:00
HD CD
FM
HD mode, standby/stopped status
0102:45
HD CD
FM
HD mode, play/paused status
10:00CD
HD CD
FM
DVD/CD mode, standby/stopped status
0101:29
HD CD
FM
DVD/CD mode, play/paused status
FM radio mode

19 ASUS DiGiMatrix
digital
entertainment PC
Chapter 2
Connections
This chapter provides step-by-step
instructions on how to connect devices
and accessories to the DiGiMatrix
system.

20 ASUS DiGiMatrix User Handbook
1
2
3
4
Power LED
Power cable
DC IN power plug
Power adapter
Use an outlet adapter if the power plug does not fit the power outlet in your
area.
2.1 Preparation
Before you proceed, make sure that you have all the devices that you plan
to connect to the DiGiMatrix system.
2.2 Connecting cables
The DiGiMatrix package includes a universal power adapter (100V - 240V)
and various other cables to connect devices such as television, video
recorder, and audio system. The following sections describe how to
connect these cables.
2.2.1 Power adapter and cable
The power adapter and cable lets you to use your DiGiMatrix anywhere
you are regardless of the power voltage in your area.
To connect the power adapter and power cable:
1. Connect the power cable (female plug) to the power adapter.
2. Connect the other end of the power cable (male plug) to a power
outlet.
3. Check the power adapter LED. The LED lights up to indicate that the
power from the source is within the operating range.
4. Connect the DC IN power plug to the DiGiMatrix DC IN socket.
