Asus PB50 Series User manual

Mini PC
PB50 Series
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to
the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR
LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damages resulted from omission or failure of performing legal duties under this Warranty Statement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1)THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3)
SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support/
First Edition
March 2019
CA15072

PB50 Series 3
Contents
About this manual.................................................................................................................5
Conventions used in this manual....................................................................................6
Typography .............................................................................................................................6
Package contents ..................................................................................................................7
Getting to know your Mini PC
Features.....................................................................................................................................10
Front view ................................................................................................................................10
Left view ..................................................................................................................................12
Rear view..................................................................................................................................13
Using your Mini PC
Getting started .......................................................................................................................18
Mounting your device on the stand...............................................................................18
Connect the AC power adapter to your Mini PC........................................................19
Connect a display panel to your device........................................................................21
Connect the USB cable from keyboard or mouse.....................................................23
Turn on your Mini PC ...........................................................................................................24
Turning your Mini PC off .....................................................................................................25
Putting your Mini PC to sleep............................................................................................25
Entering the BIOS Setup......................................................................................................25
Load default BIOS settings.................................................................................................26
Upgrading your Mini PC
Removing the top cover......................................................................................................28
Replacing the top cover......................................................................................................29
Installing 2.5”HDD or SSD ..................................................................................................30
Installing the M.2 SSD ..........................................................................................................32
Installing top memory module.........................................................................................34
Installing the wireless card.................................................................................................36
Installing an external button.............................................................................................37

4 PB50 Series
Appendix
Safety information.................................................................................................................40
Setting up your system.......................................................................................................40
Care during use......................................................................................................................40
Regulatory notices ................................................................................................................42

PB50 Series 5
About this manual
This manual provides information about the hardware and software features
of your Mini PC, organized through the following chapters:
Chapter 1: Getting to know your Mini PC
This chapter details the hardware components of your Mini PC.
Chapter 2: Using your Mini PC
This chapter provides you with information on using your Mini PC.
Chapter 3: Upgrading your Mini PC
This chapter provides you with information on how to upgrade the
memory modules, wireless modules, and hard disk drive / solid state
drive of your Mini PC.
Appendix
This section includes notices and safety statements your Mini PC.

6 PB50 Series
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your Mini PC's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

PB50 Series 7
Package contents
Your Mini PC package contains the following items:
Mini PC
AC power adapter* Power cord*
Technical documents

8 PB50 Series
NOTE:
• *Thebundledpoweradaptermayvarybymodelandterritories.
• Somebundledaccessoriesmayvarywithdierentmodels.
For details on these accessories, refer to their respective user
manuals.
• Thedeviceillustrationisforreferenceonly.Actualproduct
specications may vary with models.
• Ifthedeviceoritscomponentsfailormalfunctionduring
normal and proper use within the warranty period, bring the
warranty card to the ASUS Service Center for replacement of
the defective components.

1
Getting to know your Mini
PC

10 PB50 Series
Features
Front view
USB 3.1 Gen 1 port
The USB 3.1 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s. These ports also support the
Battery Charging 1.2 technology that allows you to charge
your USB devices.
NOTE: This port provides a maximum of 5V / 1.5A
output.
Power button
ThepowerbuttonallowsyoutoturntheMiniPConoro.
You can use the power button to put your Mini PC to sleep
mode or press it for four (4) seconds to force shutdown
your Mini PC.

PB50 Series 11
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free
from obstructions.
USB 3.1 Gen 2 Type-C™ port
This USB Type-C™ (Universal Serial Bus) port provides a
transfer rate of up to 10 Gbit/s.
USB 3.1 Gen 1 port
The USB 3.1 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s.
Headphone/Headset jack
This port allows you to connect amplied speakers or
headphones. You can also use this port to connect your
headset or an external microphone.
Microphone jack
The microphone jack is designed to connect to a
microphone used for video conferencing, voice narrations,
or simple audio recordings.

12 PB50 Series
Graphics module port
This port allows you to connect the Graphics module with
your Mini PC. If the port cover is attached, remove the
cover before installing the Graphics module to your Mini
PC.
NOTE: The availability of the Graphic module may
vary between models and territories.
Left view

PB50 Series 13

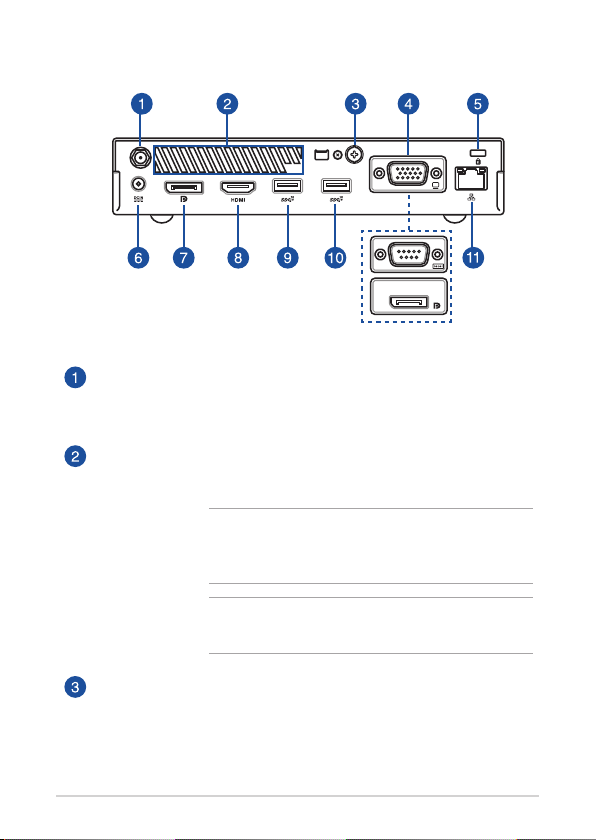

Rear view
Wireless antenna jack
The jack is used to connect the supplied wireless antenna
to enhance wireless signal reception.
Air vents (exhaust vent)
The air vents allow your Mini PC chassis to expel hot air
out.
IMPORTANT! For optimum heat dissipation and air
ventilation, ensure that the air vents are free from
obstructions.
CAUTION! Be careful of the hot air expelled at the
air vents as it may cause discomfort or injuries.
Punch-out port
Removing the metal cover allows you to install an external
power button or CLRTC button.

14 PB50 Series
Congurable port
This port varies between models and consists of the
following port options:
VGA port
This port allows you to connect your Mini PC to an
external display.
Serial (COM) connector
The 9-pin serial (COM) connector allows you to
connect devices that have serial ports such as
mouse, modem, or printers.
DisplayPort
This port allows you to connect your Mini PC to an
external display.
Kensington® security slot
The Kensington® security slot allows you to secure your
PC using Kensington® compatible security products.
Power input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Mini PC. To prevent damage to
the Mini PC, always use the supplied power adapter.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.

PB50 Series 15
DisplayPort
This port allows you to connect your Mini PC to an
external display.
HDMI port
The HDMI (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
USB 3.1 Gen 2 port
The USB 3.1 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.
USB 3.1 Gen 2 port (on selected models)
The USB 3.1 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
NOTE: This port supports 10M/bps, 100M/bps, and
1000M/bps connection speed.

16 PB50 Series

2
Using your Mini PC

18 PB50 Series
Getting started
stand screws
Mounting your device on the stand
To mount your Mini PC on the stand:
1. Locate the mounting holes at the bottom of your Mini PC.
2. Align the stand’s mounting hole with the mounting hole on your Mini
PC, then secure it in place with the stand screws.

PB50 Series 19
Connect the AC power adapter to your Mini PC
To connect the AC power adapter to your Mini PC:
A. Connect the power cord to the AC power adapter.
B. Connect the DC power connector into your Mini PC’s power (DC)
input.
C. Plug the AC power adapter into a 100V~240V power source.
NOTE: The power adapter may vary in appearance, depending on
models and your region.

20 PB50 Series
NOTE:
The power adapter may vary between models and territories, please
refertothefollowingformoreinformationonthedierentadapters:
65W Power adapter
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:3.42A(65W)
• Ratingoutputvoltage:19V
90W Power adapter
• Inputvoltage:100-240Vac
• Inputfrequency:50-60Hz
• Ratingoutputcurrent:4.74A(90W)
• Ratingoutputvoltage:19V
