About this manual
This manual provides information about the hardware and software features
of your Edge Computer, organized through the following chapters:
Chapter 1: Getting to know your Edge Computer
This chapter details the hardware components of your Edge Computer.
Chapter 2: Using your Edge Computer
This chapter provides you with information on using your Edge
Computer.
Chapter 3: Upgrading your Edge Computer
This chapter provides you with information on how to upgrade the
memory modules, wireless modules, and hard disk drive / solid state
drive of your Edge Computer.
Chapter 4: Using the software
This chapter provides you with information on how to install the ASUS
IEC Vision software and also provides a brief summary of the software
layout.
Appendix
This section includes notices and safety statements your Edge
Computer.

6 PE200U Series
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that can
help complete tasks.
WARNING! This message contains important information that must be
followed to keep you safe while performing certain tasks and prevent
damage to your Edge Computer's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

PE200U Series 7
Package contents

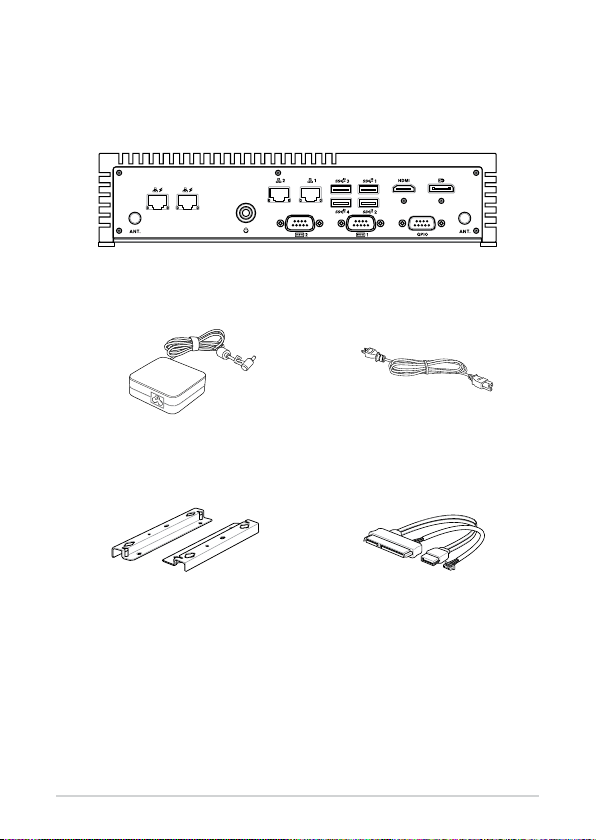

Your Edge Computer package contains the following items:
PE200U Series
AC power adapter* Power cord*
Wall mount kit SATA and power cable

8 PE200U Series
NOTE:
• *Thebundledpoweradaptermayvarybymodelandterritories.
• Somebundledaccessoriesmayvarywithdierentmodels.For
details on these accessories, refer to their respective user manuals.
• Thedeviceillustrationisforreferenceonly.Actualproduct
specications may vary with models.
• Ifthedeviceoritscomponentsfailormalfunctionduringnormal
and proper use within the warranty period, bring the warranty
card to the ASUS Service Center for replacement of the defective
components.

1
Getting to know your Edge
Computer

10 PE200U Series
1.1 Features

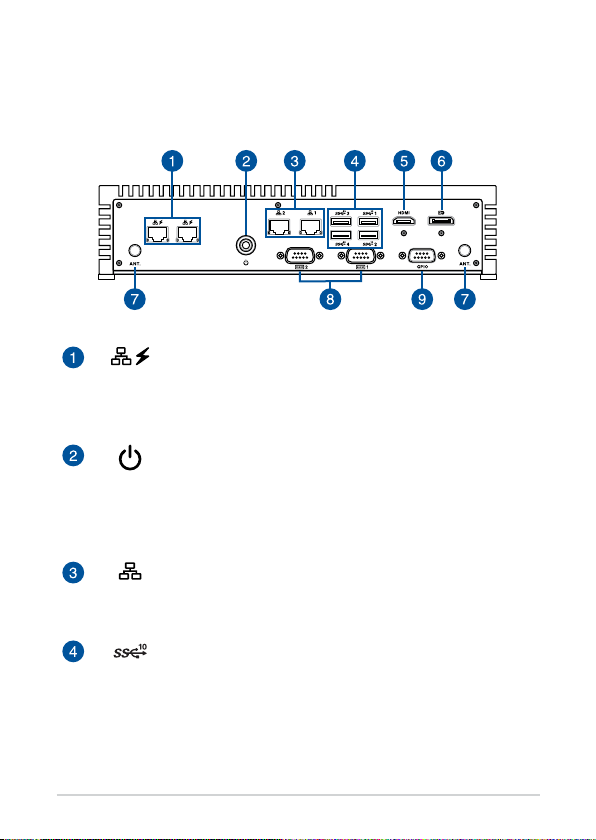

1.1.1 Front view
LAN port with PoE (on selected models)
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network, and supports
Power over Ethernet (PoE).
Power button
The power button allows you to turn the Edge Computer
onoro.YoucanusethepowerbuttontoputyourEdge
Computer to sleep mode or press it for four (4) seconds to
force shutdown your Edge Computer.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
USB 3.2 Gen 2 port
The USB 3.2 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.

PE200U Series 11
HDMI port
The HDMI (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
Dual-mode DisplayPort
This port allows you to connect your Edge Computer to an
external display, and supports DVI or HDMI adpaters.
Antenna hole
The antenna hole allows you to connect a wireless
antenna to enhance wireless signal reception.
Serial (COM) connector
The 9-pin RS232/422/485 serial (COM) connector allows
you to connect devices that have serial ports such as bar
code scanner, modem, or printers.
GPIO connector
The 9-pin GPIO (General-purpose Input/Output)
connector allows you to program it for input or output
use, such as lighting control, door control or alarm control.

12 PE200U Series
Serial (COM) connector (on selected models)
The 9-pin RS-232 serial (COM) connector allows you to
connect devices that have serial ports such as bar code
scanner, modem, or printers.
USB 2.0 port (on selected models)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
ash disk drives, external HDDs, speakers, cameras and
printers.
Microphone
The built-in microphone can be used for video
conferencing, voice narrations, or simple audio recording.
Power input
The supplied terminal block power adapter converts AC
power to DC power for use with this jack. Power supplied
through this jack supplies power to the Edge Computer.
WARNING! The power adapter may become warm to
hot when in use. Do not cover the adapter and keep
it away from your body.
1.1.2 Rear view

PE200U Series 13
Antenna hole
The antenna hole allows you to connect a wireless
antenna to enhance wireless signal reception.
Headphone jack
This port allows you to connect amplied speakers or
headphones.

14 PE200U Series
1.2 Motherboard Overview

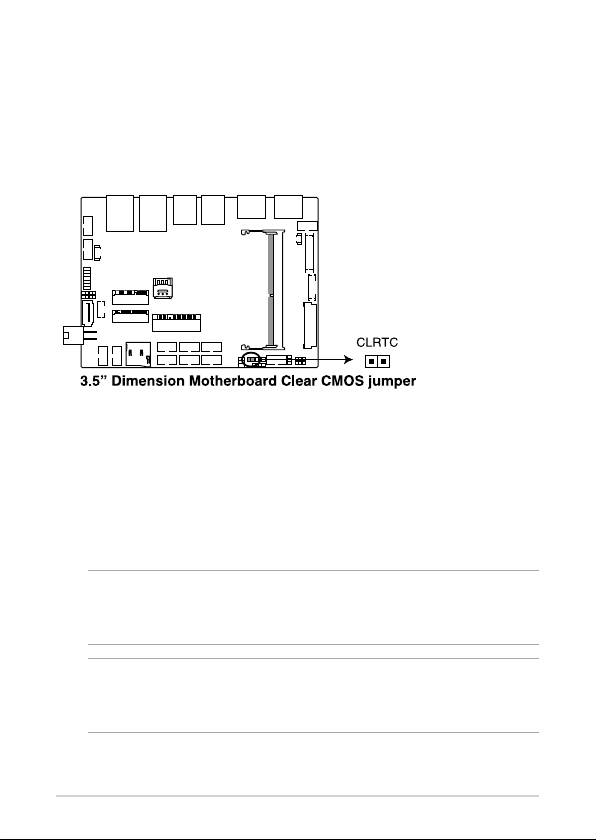

1.2.1 Motherboard layout
The PE200U Series features a motherboard with a 3.5”dimension (146mm x
105mm).

PE200U Series 15

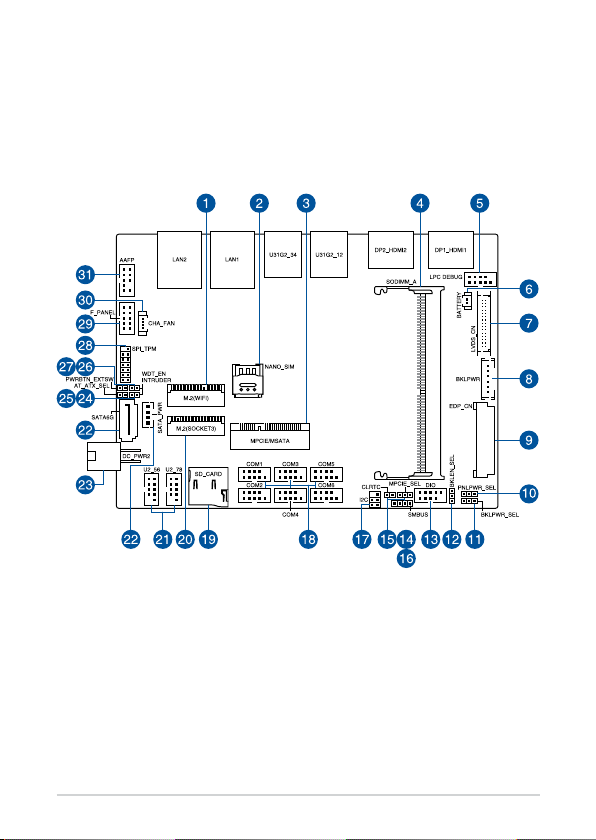

Layout contents Page
1. M.2 Wi-Fi slot 24
2. Nano SIM Card slot 24
3. Mini PCIe/mSATA slot 22
4. DIMM slot 16
5. Low Pin Count connector 26
6. Battery connector 26
7. LVDS connector (on selected models) 25
8. Back Light Inverter Power connector (on selected models) 33
9. EDP Signal connector (on selected models) 27
10. LVDS Panel Power Selection jumper (on selected models) 18
11. Back Light Power Selection jumper (on selected models) 18
12. Back Light Power Enable jumper (on selected models) 19
13. GPIO connector 28
14. Mini PCIe/mSATA conguration jumper 20
15. Clear RTC RAM jumper 17
16. System Management Bus connector 28
17. I2C connector 29
18. Serial Port connector 30
19. Micro SD card slot 23
20. M.2 slot 23
21. USB 2.0 connector 31
22. SATA 6Gb/s & SATA Power connector 21
23. DC-in 4-Pin Power connector 33
24. Chassis Intrusion connector 32
25. AT/ATX Mode Conguration jumper 20
26. HW WDT Enable jumper 19
27. Power button connector 25
28. SPI TPM connector 29
29. System Panel connector 35
30. Fan connector (on selected models) 34
31. Line Out / Mic connector 36

16 PE200U Series
1.2.2 System memory
The motherboard comes with a Small Outline Dual Inline Memory Module
(SODIMM) slot designed for DDR4 (Double Data Rate 4) memory modules.

PE200U Series 17
1.2.3 Onboard jumpers
1. Clear RTC RAM jumper
The Clear RTC RAM jumper allows you to clear the Real Time Clock (RTC)
RAM in the CMOS, which contains the date, time, system passwords,
and system setup parameters.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about
5-10 seconds.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter
BIOS setup to re-enter data.
WARNING! DO NOT remove the jumper cap from its default position
except when clearing the RTC RAM. Removing the jumper cap will
cause system boot failure!
NOTE: If the steps above do not help, remove the onboard button cell
battery and move the jumper again to clear the CMOS RTC RAM data.
After clearing the CMOS, reinstall the button cell battery.

18 PE200U Series
2. LVDS Panel Power Selection jumper (on selected models)
The LVDS Panel Power jumper allows you to select the voltage for the
LVDS panel.
3. Back Light Power Selection jumper (on selected models)
The Back Light Power Selection jumper allow you to select the voltage
for the LVDS back light module.

PE200U Series 19
4. Back Light Power Enable jumper (on selected models)
The Back Light Power Enable jumper allows you to congure the power
setting for the panel.
5. HW WDT Enable jumper
A watchdog timer is an electronic timer that is used to detect and
recover from computer malfunctions. The HW WDT (watchdog
timer) Enable jumper allows the HW watchdog resets the system
automatically even when the system crashes.
NOTE: The default setting for this jumper is set to HW WDT enabled
with a jumper cap attached.

20 PE200U Series
6. AT/ATX Mode Conguration jumper
The AT/ATX Mode Conguration jumper allows you to switch between
AT or ATX modes. The default setting for this jumper is set to ATX mode
with a jumper cap attached, to switch to AT mode, remove the jumper
cap.
7. Mini PCIe/mSATA conguration jumper
The Mini PCIe/mSATA conguration jumper allows you to select
between Mini PCIe mode or mSATA mode. Set to pins 1-2 for mSATA
mode, or set to pins 2-3 for Mini PCIe mode.
