Asus BP5220 User manual

BP5220/AS-D592
ASUS Desktop PC
User Manual
SD
MMC
CF
MD
MS
SMC

ii
Copyright © 2008 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
E4368
First Edition V1
December 2008

iii
ASUS contact information
ASUSTeK Computer Inc.
Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone [phone]
Fax [phone]
E-mail [email protected]
Web site www.asus.com.tw
Technical Support
Telephone [phone]
Online support support.asus.com
ASUS Computer International (America)
Address 800 Corporate Way, Fremont, CA 94539, USA
Telephone [phone]
Fax [phone]
Web site usa.asus.com
Technical Support
Telephone [phone]
Support fax [phone]
Online support support.asus.com
ASUS Computer GmbH (Germany and Austria)
Address Harkort Str. 21-23, D-40880 Ratingen, Germany
Telephone [phone]
Fax [phone]
Web site www.asus.de
Online contact www.asus.de/sales
Technical Support
Telephone [phone]
Support Fax [phone]
Online support support.asus.com

iv
Contents
Notices........................................................................................................ vii
Safety information .................................................................................... viii
General precautions ................................................................................... ix
About this guide .......................................................................................... x
System package contents......................................................................... xii
Chapter 1: System introduction
1.1 Front panel.................................................................................... 1-2

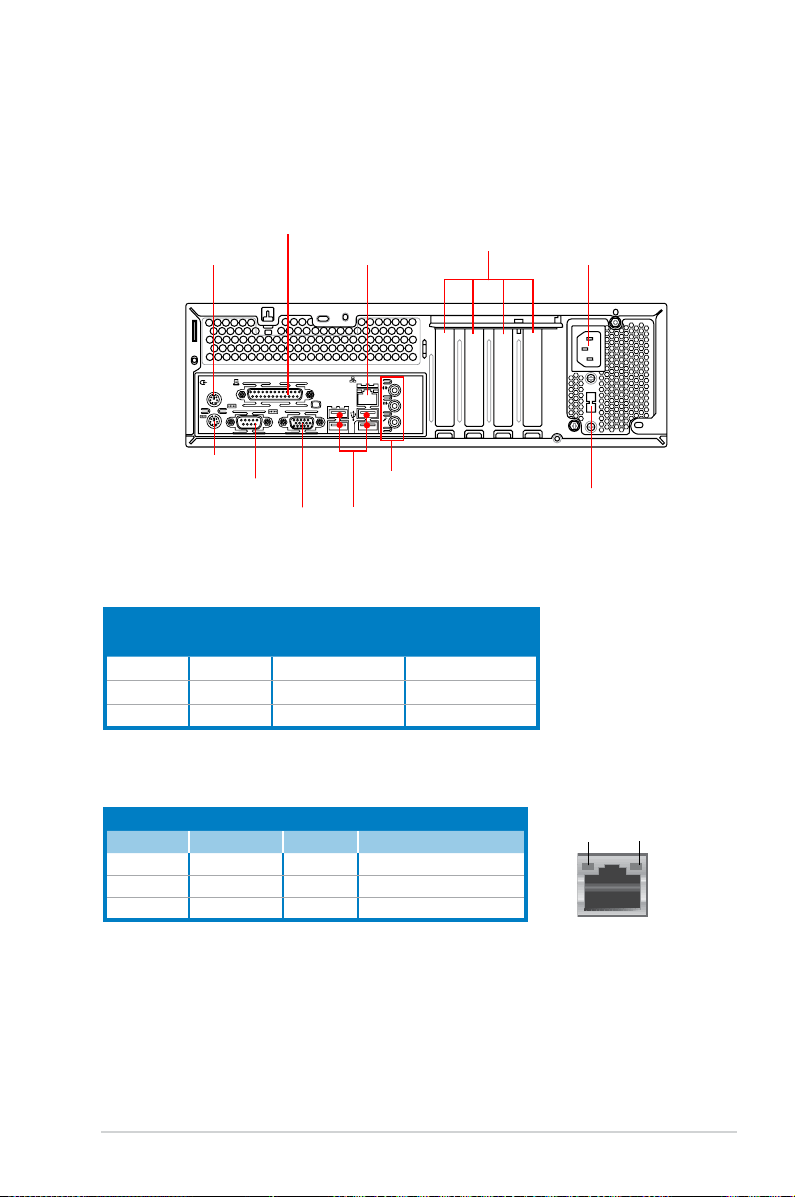

1.2 Rear panel..................................................................................... 1-3
1.3 Connecting to the keyboard and the mouse ............................. 1-5
1.4 Connecting to other peripheral devices .................................... 1-5
Chapter 2: Getting started
2.1 Installing an operating system ................................................... 2-2
2.2 Powering your system................................................................. 2-2
2.3 Support DVD information............................................................ 2-3
2.3.1 Running the Support DVD .............................................. 2-3
2.3.2 Drivers menu................................................................... 2-4
2.3.3 Utilities menu .................................................................. 2-5
2.3.4 ASUS contact information............................................... 2-6
2.3.5 Other information ............................................................ 2-7
2.4 ASUS AI Manager......................................................................... 2-9
2.4.1 Installing AI Manager ...................................................... 2-9
2.4.2 Launching AI Manager .................................................... 2-9
2.4.3 AI Manager Quick Bar..................................................... 2-9
2.4.4 Main .............................................................................. 2-10
2.4.5 My favorites................................................................... 2-14
2.4.6 Support ......................................................................... 2-15
2.4.7 Information .................................................................... 2-15
2.5 Loading the initial OS default settings..................................... 2-16
2.6 Recovery DVD ............................................................................ 2-16
2.6.1 Recovering a Windows®XP OS:................................... 2-16
2.6.2 Recovering a Windows®Vista OS:................................ 2-17

v
Contents
Chapter 3: BIOS setup
3.1 Managing and updating your BIOS ............................................ 3-2
3.1.1 Creating a bootable oppy disk....................................... 3-2
3.1.2 ASUS EZ Flash 2 utility................................................... 3-3
3.1.3 AFUDOS utility................................................................ 3-4
3.1.4 ASUS CrashFree BIOS 3 utility ...................................... 3-6
3.1.5 ASUS Update utility ........................................................ 3-8
3.2 BIOS setup program .................................................................. 3-11
3.2.1 BIOS menu screen........................................................ 3-12
3.2.2 Menu bar....................................................................... 3-12
3.2.3 Navigation keys............................................................. 3-12
3.2.4 Menu items ................................................................... 3-13
3.2.5 Sub-menu items............................................................ 3-13
3.2.6 Conguration elds ....................................................... 3-13
3.2.7 Pop-up window ............................................................. 3-13
3.2.8 Scroll bar....................................................................... 3-13
3.2.9 General help ................................................................. 3-13
3.3 Main menu .................................................................................. 3-14
3.3.1 System Time ................................................................. 3-14
3.3.2 System Date ................................................................. 3-14
3.3.3 Legacy Diskette A ......................................................... 3-14
3.3.4 Primary IDE Master/Slave............................................. 3-15
3.3.5 SATA1, SATA2, SATA3 and SATA4............................... 3-16
3.3.6 Storage Conguration ................................................... 3-18
3.3.7 System Information ....................................................... 3-19
3.4 Advanced menu ......................................................................... 3-20
3.4.1 JumperFree Conguration ............................................ 3-20
3.4.2 USB Conguration ........................................................ 3-22
3.4.3 CPU Conguration ........................................................ 3-23
3.4.4 Chipset.......................................................................... 3-25
3.4.5 Onboard Devices Conguration.................................... 3-27
3.4.6 PCI PnP ........................................................................ 3-28

vi
3.5 Power menu................................................................................ 3-29
3.5.1 Suspend Mode.............................................................. 3-29
3.5.2 ACPI 2.0 Support .......................................................... 3-29
3.5.3 ACPI APIC Support....................................................... 3-29
3.5.4 APM Conguration........................................................ 3-30
3.5.5 Hardware Monitor ......................................................... 3-31
3.6 Boot menu .................................................................................. 3-32
3.6.1 Boot Device Priority ...................................................... 3-32
3.6.2 Boot Settings Conguration .......................................... 3-33
3.6.3 Security ......................................................................... 3-34
3.7 Tools menu ................................................................................. 3-36
3.7.1 ASUS EZ Flash 2.......................................................... 3-36
3.7.2 AI NET 2........................................................................ 3-37
3.8 Exit menu.................................................................................... 3-38
Contents

vii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modications
to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.

viii
Safety information
Electrical safety
• To prevent electric shock hazard, disconnect the power cable from the electric
outlet before relocating the system.
• When adding or removing any devices to or from the system, contact a
qualied service technician or your retailer. Ensure that all the power cables for
the devices are unplugged before the signal cables are connected. If possible,
disconnect all the power cables from the existing system before you add or
remove a device to or from the system.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
VORSICHT: Explosionsgetahr bei unsachgemäßen Austausch der Batterie.
Ersatz nur durch denselben oder einem vom Hersteller empfohlenem
ähnljchen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
LASER PRODUCT WARNING
CLASS 1 LASER PRODUCT
Operation safety
• Before installing devices into the system, carefully read all the documentation
that comes with the package.
• Before using the product, ensure that all cables are correctly connected and
the power cables are not damaged. If you detect any damage, contact your
dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets, and circuitry.
• Avoid dust, humidity, and extreme temperatures. Do not place this product in a
location where it may get wet. Place this product on a at and stable surface.
• When using this product, do not block any air inlet/outlet on the chassis.
• We recommend that you use this product in environments with an ambient
temperature below 35ºC.
• If you encounter technical problems with this product, contact a qualied
service technician or your retailer.

ix
General precautions
Before using the ASUS BP5220/AS-D592 Desktop PC, carefully read the general
precautions below. Improper operation could lead to personal injury or damage to
the product.
• Before using this product, ensure that all components are correctly installed
and all cables are correctly connected. If you detect any damage, contact your
dealer immediately.
• Avoid dust and extreme temperatures. Do not place this product in a location
where it may receive direct sunlight.
• Do not place this product in a location where it may get wet.
• Do not block the air vents on the chassis. Always provide proper ventilation for
this product.
• Before turning on the system, check if all the peripherals are correctly
connected.
• To avoid short circuits, keep scraps, screws, and threads away from
connectors, slots, sockets, and circuitry.
• Do not insert any object or spill liquid into the air vents on the chassis.
• If this product has been used for a long time, avoid direct contact with the
heatsinks and the surfaces of IC as they may become very warm and hot.
Check if the system receives proper ventilation.
• Before you add or remove a peripheral device to or from the system, ensure
that you unplugged the system from the power source.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
• Do not service this product yourself.
• Though the system casing is elaborately designed to protect users from
scratches, be careful with those sharp tips and edges. Put on a pair of gloves
before you remove or replace the system cover.
• Unplug this product from the power source when it is left unused for a long
period of time.
• We recommend that you use this product in environments with an ambient
temperature below 35ºC.
• Use this product only with the correct voltage as instructed by the
manufacturer.
• To prevent re or electric shock, do not overload power outlets and extension
cords.
• Warning: Ensure that you replace the battery with a correct type; otherwise, it
may cause an explosion hazard.

x
About this guide
How this guide is organized
This guide contains the following parts:
1. Chapter 1: System introduction
This chapter gives a general description of ASUS BP5220/AS-D592 Desktop
PC. The chapter lists the system features, including introduction on the front
and rear panels.
2. Chapter 2: Getting started
This chapter helps you power up the system and install drivers and utilities
from the Support DVD.
3. Chapter 3: BIOS setup
This chapter tells how to change the system settings through the BIOS setup
menus. Detailed descriptions of the BIOS parameters are also provided.
Audience
This guide provides general information about ASUS BP5220/AS-D592 Desktop
PC and instructions on how to use the Support DVD that comes with the system
package.

xi
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following
symbols used throughout this guide.
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
Where to nd more information
Refer to the following sources for additional information and for product and
software updates.
1. ASUS Websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to the ASUS contact information.
2. Optional Documentation
Your product package may include optional documentation, such as warranty
yers, that may have been added by your dealer. These documents are not
part of the standard package.

xii
System package contents
Check your BP5220/AS-D592 system package for the following items.
If any of the above items is damaged or missing, contact your retailer
immediately.
Optional items
1. Optical disk drive (ODD)
2. Storage card reader / Floppy disk drive
3. LAN cable
4. Power strip
• Optional items are not included in the system package. They are purchased
separately.
• Specications are subject to the desktop PC you purchased. Check with
your supplier for the exact offers.
Standard items
1. ASUS BP5220/AS-D592 Desktop PC with
• ASUS Desktop x1
• Mouse x1
• Keyboard x1
2. Cables
• AC power cable x1
3. Accessories
• Mouse pad x1
4. DVD
• Support DVD x1
• Recovery DVD x1
5. Documentation
• User Manual x1
• Warranty card x1

SD
MMC
CF
MD
MS
SMC
Chapter 1
System introduction
This chapter gives a general description
of the desktop PC. The chapter lists the
system features including introduction on
the front and rear panels.

1-2 Chapter 1: System introduction
1.1 Front panel
The ASUS BP5220/AS-D592 Desktop PC includes an ASUS motherboard, a power
supply unit, a front panel, and a rear panel. All of these components are integrated
in a system casing elaborately designed by ASUS.
The illustration below shows the front panel and the components on it.
4 x USB 2.0 ports
1 x Headphone port
1 x Microphone port
ODD LED
1 x 3.5 inch drive bay* 1 x 5.25 inch optical disk drive bay*
Power button / Power LED
SD
MMC
CF
MD
MS
SMC
• The storage card reader, optical disk drive, and oppy disk drive are
optional items which are not included in the system package. They are
purchased separately.
• The 5.25 inch optical disk drive bay is for a 5.25 inch DVD-ROM / CD-RW /
DVD-RW device.
• The 3.5 inch drive bay is for a 3.5 inch hard disk drive / oppy disk drive /
USB storage card reader.
• The storage card reader is for Secure Digital™ / MultimediaCard / Memory
Stick®/ CompactFlash®/ Microdrive™ / SmartMedia®storage cards.

1-3ASUS BP5220/AS-D592
1.2 Rear panel
The system rear panel includes the power connector and several I/O ports that
allow convenient connection of devices.
The illustration below shows the rear panel and the components on it.
1 x PS/2 Mouse port
1 x PS/2 Keyboard port
1 x Parallel port
1 x Power connector
1 x VGA port
6-Channel audio ports
Voltage selector
1 x RJ-45 port
1 x COM port
LINE
IN
MIC IN
15
4 x Expansion slots
4 x USB 2.0 ports
Audio 2, 4, or 6-channel conguration
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
Port Headset
2-channel 4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center

1-4 Chapter 1: System introduction
LINE
IN
MIC IN
15

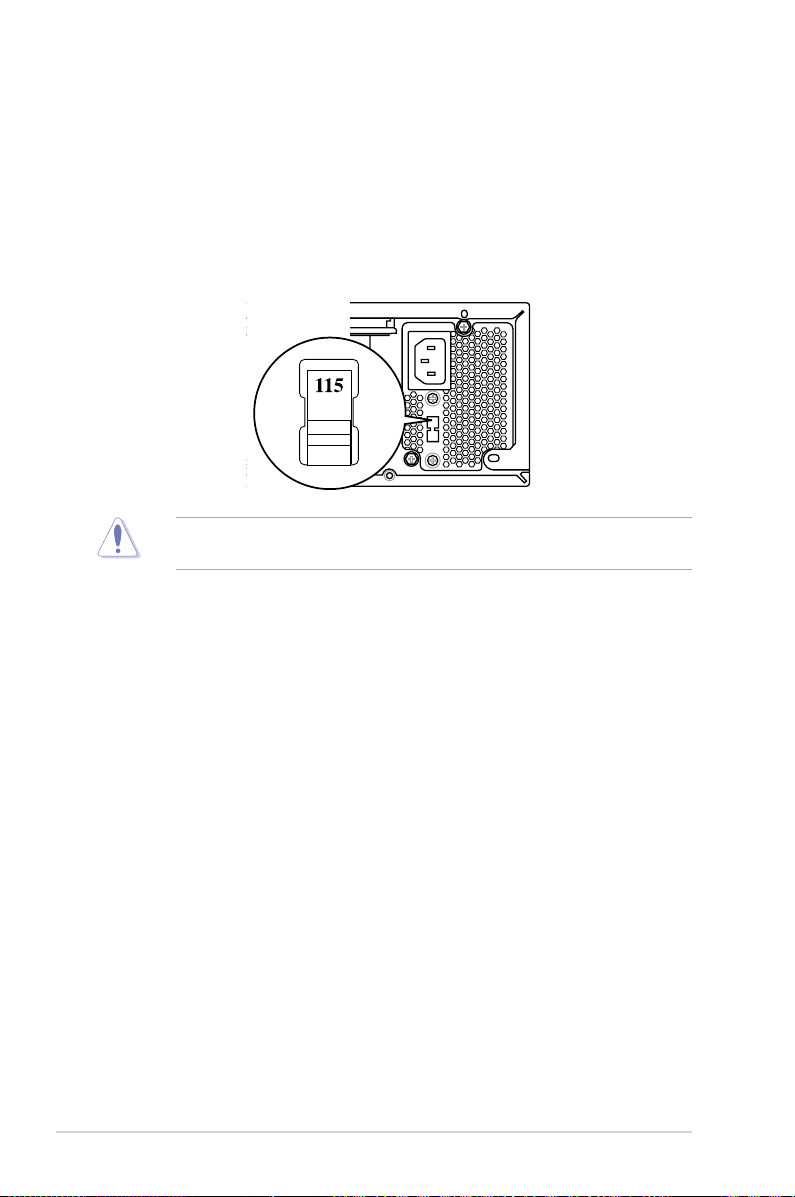

Voltage selector
The system’s power supply unit has a 115V / 230V voltage selector located below
the power connector. Use this switch to select the appropriate system input voltage
according to the voltage supply in your area.
If the voltage supply in your area is 100-127V, set the switch to 115V.
If the voltage supply in your area is 200-240V, set the swith to 230V.
Setting the switch to 115V in a 230V environment or 230V in a 115V
environment will seriously damage the system!

1-5ASUS BP5220/AS-D592
1.3 Connecting to the keyboard and the
mouse
Your ASUS BP5220/AS-D592 Desktop PC package includes a PS/2 keyboard
or USB keyboard and a USB mouse. Connect the PS/2 keyboard to the PS/2
keyboard port at the rear panel or the USB keyboard to a USB port either at the
rear panel or front panel. Connect the USB mouse to a USB port either at the rear
panel or front panel.
1.4 Connecting to other peripheral devices
The ASUS BP5220/AS-D592 Desktop PC is equipped with a number of ports at
the rear and front panels where you can connect peripheral devices to the system.
Refer to the illustration below for details.
Before you connect a peripheral device to the system, refer to the
documentation that comes with the device or contact your supplier directly for
information on how to install it.
LINE
IN
MIC IN
15
Microphone
USB
PS/2 keyboard
VGA
PS/2 mouse
Parallel
Expansion slots
RJ-45
COM
Line In
Line Out
Power connector

1-6 Chapter 1: System introduction

Chapter 2
Getting started
This chapter helps you to power up the
system and install drivers and utilities
from the Support DVD.
SD
MMC
CF
MD
MS
SMC

2-2 Chapter 2: Getting started
2.1 Installing an operating system
This motherboard supports Windows®XP / Vista operating systems (OS). Always
install the latest OS version and the corresponding updates to maximize the
features of your hardware. When you start the system for the rst time, the system
automatically detects the built-in audio and graphics chips and attempts to install
the drivers that come with the OS. Select NO when a window appears asking if
you want to restart the system. Install drivers according to the instructions in the
following sections.
2.2 Powering your system
Press the Power button to power up the system.
• To ensure that the OS works properly, install the drivers included in the
Support DVD.
• Motherboard settings and hardware options vary. Use the setup
procedures presented in this chapter for reference only. Refer to your OS
documentation for detailed information.
SD
MMC
CF
MD
MS
SMC
Press the Power button to turn ON
the system
