Asus PN64 Series User manual

Mini PC
PN64 Series
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to
the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR
LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damages resulted from omission or failure of performing legal duties under this Warranty Statement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1)THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3)
SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support/
Revised Edition V2
July 2022
CA20561

ASUS Mini PC PN Series 3
Contents
About this manual.................................................................................................................5
Conventions used in this manual....................................................................................6
Package contents ..................................................................................................................7
Getting to know your Mini PC
Features.....................................................................................................................................10
Front view ................................................................................................................................10
Rear view..................................................................................................................................14
Using your Mini PC
Getting started .......................................................................................................................20
Connect the AC power adapter to your Mini PC........................................................20
Connect a display panel to your Mini PC......................................................................22
Connect the USB cable from keyboard or mouse.....................................................25
Turn on your Mini PC ...........................................................................................................26
Turning o your Mini PC .....................................................................................................27
Putting your Mini PC to sleep............................................................................................27
Entering BIOS Setup .............................................................................................................27
Load default BIOS settings.................................................................................................28
Upgrading your Mini PC
Removing the bottom cover .............................................................................................31
Replacing the bottom cover..............................................................................................33
Installing memory modules...............................................................................................35
Installing a 2.5” HDD or SSD...............................................................................................36
Installing an M.2 SSD............................................................................................................38
Installing a wireless card.....................................................................................................40
TPM
About the TPM........................................................................................................................44

4 ASUS Mini PC PN Series
Appendix
Safety information.................................................................................................................46
Setting up your system.......................................................................................................47
Care during use......................................................................................................................47
Regulatory notices ................................................................................................................49
Service and Support.............................................................................................................56
Contents

ASUS Mini PC PN Series 5
About this manual
This manual provides information about the hardware and software features
of your Mini PC, organized through the following chapters:
Chapter 1: Getting to know your Mini PC
This chapter details the hardware components of your Mini PC.
Chapter 2: Using your Mini PC
This chapter provides you with information on using your Mini PC.
Chapter 3: Upgrading your Mini PC
This chapter provides you with information on how to upgrade the
memory modules, wireless modules, and hard disk drive / solid state
drive of your Mini PC.
Chapter 4: TPM
This chapter provides you with information on the TPM options.
Appendix
This section includes notices and safety statements for your Mini PC.

6 ASUS Mini PC PN Series
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your Mini PC's data and components.

ASUS Mini PC PN Series 7
Package contents
Your Mini PC package contains the following items:
ASUS Mini PC PN Series
AC power adapter* Power cord*
Technical documentation

8 ASUS Mini PC PN Series
NOTE:
• *The bundled power adapter may vary by model and territory.
• Some bundled accessories may vary with dierent models.
For details on these accessories, refer to their respective user
manuals.
• The device illustration is for reference only. Actual product
specications may vary depending on model.
• If the device or its components fail or malfunction during normal
and proper use within the warranty period, bring the warranty
card to the ASUS Service Center for replacement of the defective
components.

1
Getting to know your Mini PC

10 ASUS Mini PC PN Series
Features

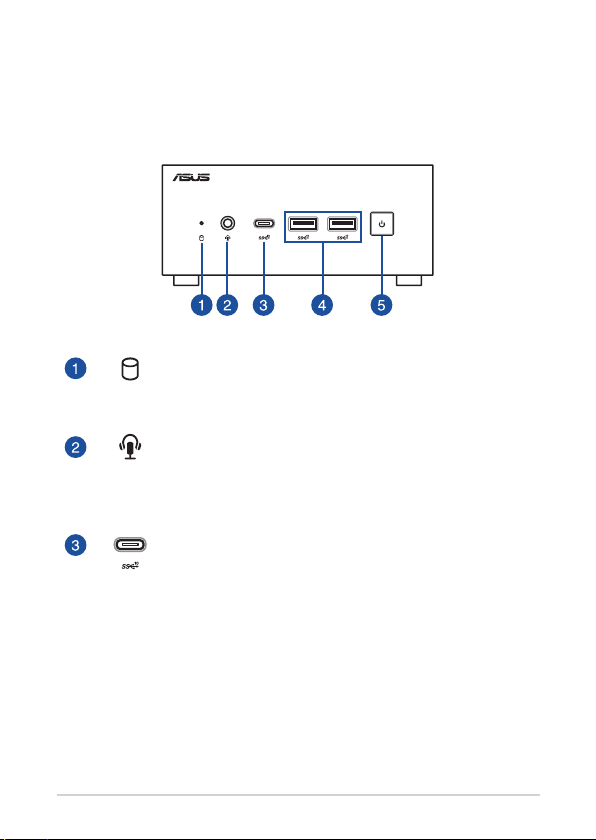

Front view
Drive activity indicator
This indicator lights up when your Mini PC is accessing the
internal storage drive.
Headphone/Headset/Microphone jack (optional)
This port allows you to connect amplied speakers or
headphones. You can also use this port to connect your
headset or an external microphone.
USB 3.2 Gen 2 Type-C® port
This USB 3.2 Gen 2 Type-C® port provides the following:
• Transfer rate of up to 10 Gbit/s for USB 3.2 Gen 1
devices.
• Backward compatible to USB 2.0.
• USB power delivery with a maximum of 5V / 3A
output.

ASUS Mini PC PN Series 11
USB 3.2 Gen 2 port
The USB 3.2 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.
Power button
The power button allows you to turn the Mini PC on or o.
You can use the power button to put your Mini PC to sleep
mode or press it for four (4) seconds to force shutdown
your Mini PC.

12 ASUS Mini PC PN Series
Left view
Padlock ring
This ring allows you to attach a standard padlock to
prevent unauthorized disassembly of your Mini PC.
NOTE: The padlock is purchased separately.
Kensington security slot
The Kensington security slot allows you to secure your
Mini PC using Kensington® security products.
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For optimal heat dissipation and air
ventilation, make sure that the air vents are free
from obstructions.

ASUS Mini PC PN Series 13
Right view
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For optimal heat dissipation and air
ventilation, make sure that the air vents are free
from obstructions.

14 ASUS Mini PC PN Series

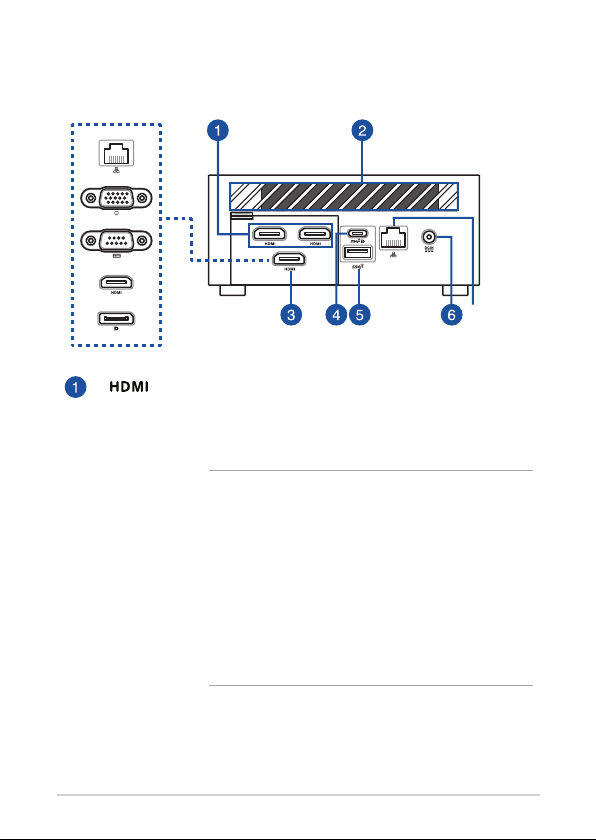

Rear view
HDMI™ port
The HDMI™ (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
NOTE:
The left HDMI port supports CEC (Consumer
Electronics Control). Connect any CEC compatible
device that you want to control with a remote
control to this port, and make sure that the device’s
HDMI-CEC is enabled.
When using only this port as a display output
source, this port will support a resolution of up to
4096 x 2160 @60Hz. The resolution may also be
aected by the cabling and output device.

ASUS Mini PC PN Series 15
Air vents (exhaust vent)
The air vents allow your Mini PC chassis to expel hot air.
IMPORTANT: For optimal heat dissipation and air
ventilation, make sure that the air vents are free
from obstructions.
Congurable port
This port varies between models and consists of the
following port options:
NOTE: This port may vary depending on model.
LAN port
The 8-pin RJ-45 LAN port supports a standard
Ethernet cable for 10/100/1000/2500Mbps
connection to a local network.
VGA port
This port allows you to connect your Mini PC to
an external display.
NOTE: When using only this port as
a display output source, this port will
support a resolution of up to 1920 x
1200 @60Hz. The resolution may also be
aected by the cabling and output device.
Serial (COM) connector
The 9-pin serial (COM) connector allows you to
connect devices that have serial ports, such as
mouse, modem, and printers.

16 ASUS Mini PC PN Series
HDMI™ port
The HDMI™ (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
NOTE: When using only this port as a display
output source, this port will support a resolution of
up to 7680 x 4320 @60Hz. The resolution may also
be aected by the cabling and output device.
DisplayPort
This port allows you to connect your Mini PC to an
external display.
NOTE: When using only this port as a display
output source, this port will support a resolution of
up to 5120 x 2160 @60Hz. The resolution may also
be aected by the cabling and output device.
USB 3.2 Gen 2 Type-C® / DisplayPort / Power (DC) input
combo port
This USB 3.2 Gen 2 Type-C® port provides the following:
• USB power delivery with a maximum of 5V / 3A
output.
• Support for power (DC) input when connected to an
external device that is PD (Power Delivery) compliant
with a 20V / 5A output.
• Support for DisplayPort 1.4 with a maximum
resolution of 5120 x 2160 at 60Hz with 24-bit color
when it is the only display output source. Use a USB
Type-C® adapter (purchased separately) to connect
your Mini PC to an external display.

USB 3.2 Gen 2 port
The USB 3.2 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.
Power input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Mini PC. To prevent damage to
the Mini PC, always use the supplied power adapter.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for 10/100/1000/2500Mbps connection to a local
network.

2
Using your Mini PC

20 ASUS Mini PC PN Series
Getting started
Connect the AC power adapter to your Mini PC
To connect the AC power adapter to your Mini PC:
A. Connect the power cord to the AC power adapter.
B. Connect the DC power connector into your Mini PC’s power (DC)
input.
C. Plug the AC power adapter into a 100 V~240 V power source.
NOTE: The power adapter may vary in appearance, depending on
the model and your region.
