Asus E874 User manual

E874
R
DVD-ROM Drive
ATAPI / Enhanced IDE Interface
USER’SMANUAL
USER’SMANUAL

2ASUS High-Speed DVD-ROM Drive
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of the ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OFANY KIND, EI-
THER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE. IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EM-
PLOYEES ORAGENTS BE LIABLE FORANYINDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIALDAMAGES(INCLUDINGDAMAGES FOR LOSSOFPROFITS,LOSS
OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE
LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAM-
AGES ARISING FROMANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service shall not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Intel is a registered trademark of Intel Corporation.
• OS/2 are registered trademarks of International Business Machines.
• WinBench is a registered trademark of Ziff-Davis Inc.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, drivers, or product release information, contact ASUS at
http://www.asus.com.tw or through any of the means indicated on the back cover.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORSOR INACCURACIES THATMAYAPPEARINTHIS MANUAL,INCLUD-
ING THE PRODUCTSAND SOFTWARE DESCRIBED IN IT.
Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved.
Product Name: ASUS DVD-ROM Drive
Manual Revision:1.01E874
Release Date: September 2001

ASUS High-Speed DVD-ROM Drive 3
FCC & DOC COMPLIANCE
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer’s instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

4ASUS High-Speed DVD-ROM Drive
ASUS DVD-ROM Drive Safety Warnings
CLASS I LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
KLASSE 1 LASER APPARAT
LUOKAN 1 LASERLAITE
PRODUIT LASER CATEGORIE 1
CAUTION INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM.
ADVARSEL LASERSTRÅLING VED ÅBNING SE IKKE IND I STRÅLEN.
ADVARSEL LASERSTRÅLING NÅR DEKSEL ÅPNES. STIRR IKKE INN I STRÅLEN.
VARNING LASERSTRÅLNING NÅR DENNA DEL ÄR ÖPPNAD. STIRRA EJ IN I STRÅLEN.
VARO! AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE.
VARNING LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. ÄLÄ TUIJOTA
SÄTEESEEN. STIRRA EJ IN I STRÅLEN.
VORSICHT UNSICHTBARE LASERSTRAHLUNG WENN GEÖFFNET. NICT IN DEN
STRAHL SEHEN.
ATTENTION RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE.
EVITER TOUTE EXPOSITION AU FAISCEAU.
CAUTION USE OF ANY CONTROLS OR ADJUSTMENTS OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPO-
SURE. TO PREVENT EXPOSURE TO LASER EMANATIONS (HARMFUL TO HUMAN
EYES), DO NOT ATTEMPT TO DISASSEMBLE THIS UNIT.
SAFETY WARNINGS

ASUS High-Speed DVD-ROM Drive 5
The package should contain the following items along with the drive. Check to see
if you have all these items. If you discover damaged or missing items, contact your
retailer.
(1) DVD-ROM Drive
(1) Audio Cable
(1) Mounting Screw Package
(1) DVD-ROM Driver Disk
(1) ASUS DVD Playback Program CD
(1) User’s Manual and Multi-language Quick Installation Guide
Item Checklist
Thank you for purchasing anASUS DVD-ROM Drive. The DVD-ROM Drive adds
multimedia capabilities, such as sound and video, into your system.
DVD-ROM, short for Digital Versatile Disc Read-Only Memory or Digital Video
Disc Read-Only Memory, is a type of read-only compact disk that can hold a mini-
mum of 4.7GB, enough for a full-length movie or hours of music.
One of the many compelling reasons to upgrade to anASUS DVD-ROM Drive is its
backward-compatibility with CD-ROMs. Thus, you will be able to take advantage
not only of the growing number of DVD-ROM titles today for your entertainment,
education, and productivity but also the thousands of CD-ROM titles currently avail-
able. This means that yourASUS DVD-ROM Drive can play old CD-ROMs, CD-I
disks, CD-R disks, and VCDs, and of course, DVD-ROMs.
Another reason is that the ASUS DVD-ROM Drive is connected by means of the
IDE connector of your computer. This connector is usually used to install the hard
disk to your computer. By using the IDE connection, you avoid the need to use an
interface card.
This User’s Manual explains how to install the ASUS DVD-ROM Drive and the
software to use your new drive. Installation is quick and easy if you follow the
instructions carefully.
You’ll also learn from this manual how to use your ASUS DVD-ROM Drive and
detect and solve any problems you might encounter.
I. INTRODUCTION
I. Introduction

6ASUS High-Speed DVD-ROM Drive
II. HARDWARE INSTALLATION
II.
HardwareInstallaton

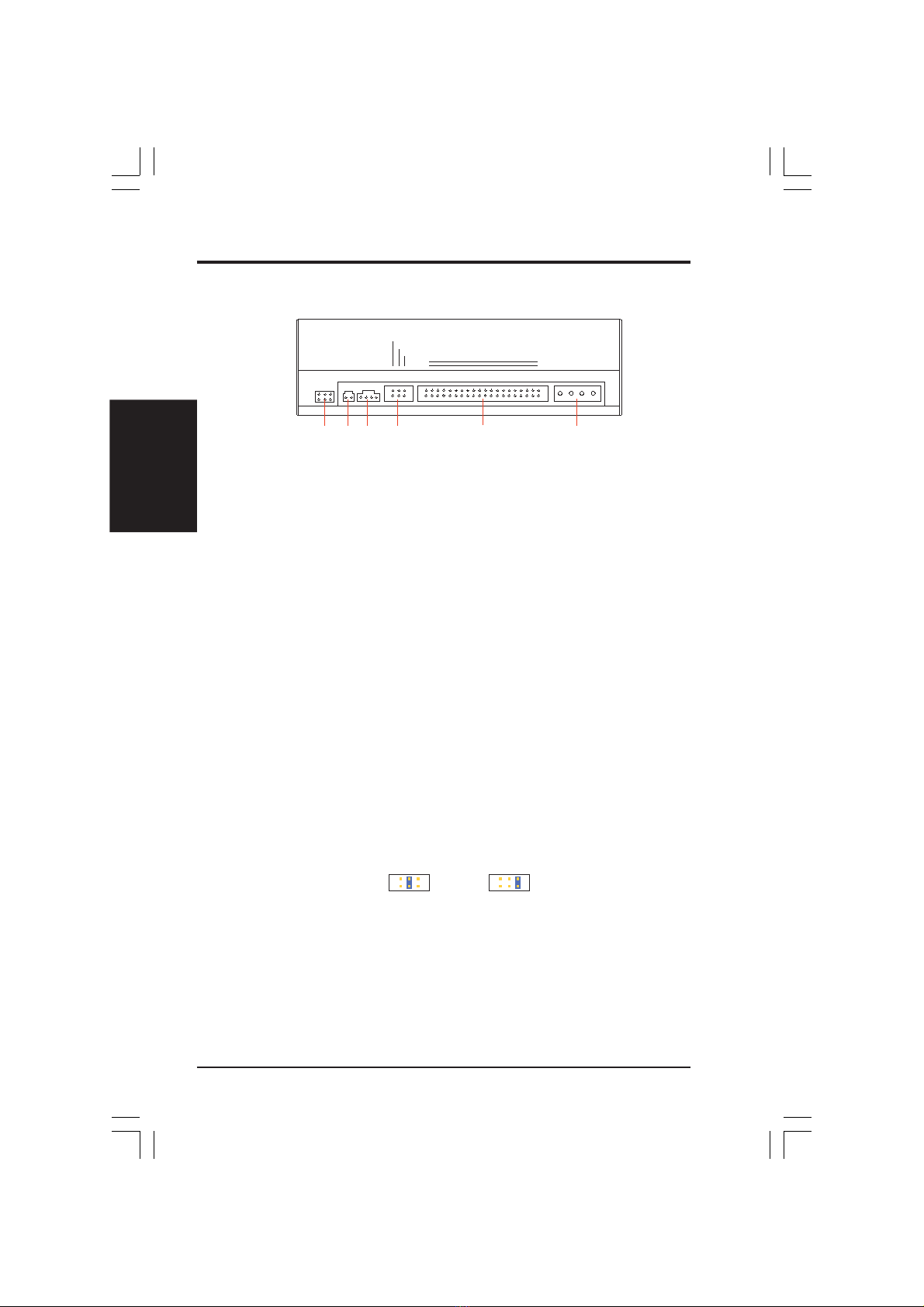

Rear Panel Features
+5V
OG OG O+12V O
DIGITAL
AUDIO
D
OG O
ANALOG
AUDIO
CABLE SELECT
SLAVE
MASTER
OOO
39
40 1 2
IDE INTERFACE POWER
G
O
R
OG OL
O
➀
➁
➂
➃
➄
➅
D: Digital; G: Ground; R: Right audio channel; L: Left audio channel
NOTE: The pin settings or definitions of the connectors and jumpers are also en-
graved on the Rear Panel of your DVD-ROM Drive.
1. Power Supply connector connects to the computer’s power supply.
2. IDE Interface connector connects to the 40-pin interface cable.
3. Device configuration jumper allows you to set your DVD-ROM Drive as the
Master or Slave drive. The default setting is Slave, wherein the jumper is on
“SLAVE”. “CABLE SELECT” is reserved and should not be used.
4. Analog Audio line out connector has two channels, right (“R”) and left (“L”)
audio outputs, and allows you to direct audio output from your DVD-ROM Drive
to your sound card when connected using a CD audio cable. “G” is for Ground.
5. Digital Audio output connector offers high quality audio effect by outputting
digital signal to a D/Aconverter or for recording to a digital audio tape (DAT) or
professional audio recording system. The connector follows the EBU-IEC958
standard set by the European Broadcast Union.
6. Testingjumpersare reservedformanufacturer’sinternaltesting/diagnostic purposes.
Setting Your DVD-ROM Drive
Set your drive as either the Master or Slave (default) drive by placing the jumper cap
on the desired jumper ➂.
Slave Drive (Default) Master Drive
NOTE: If your computer only allows you to connect a maximum of two devices and you
have two hard disks, remove the Slave hard disk — you need the other IDE connector for
your DVD-ROM Drive. If you only have one hard disk, set your DVD-ROM Drive as
Slave.If your computerhas two IDEconnectors and twohard disks installed,either set
your DVD-ROM Drive as Master on the secondary IDE connector or remove the Slave
hard disk and replace it with your DVD-ROM Drive. Refertoyour computer’smanualfor
your system’s configuration and instructions on hardware installation.

ASUS High-Speed DVD-ROM Drive 7
II. HARDWARE INSTALLATION
II.
HardwareInstallaton

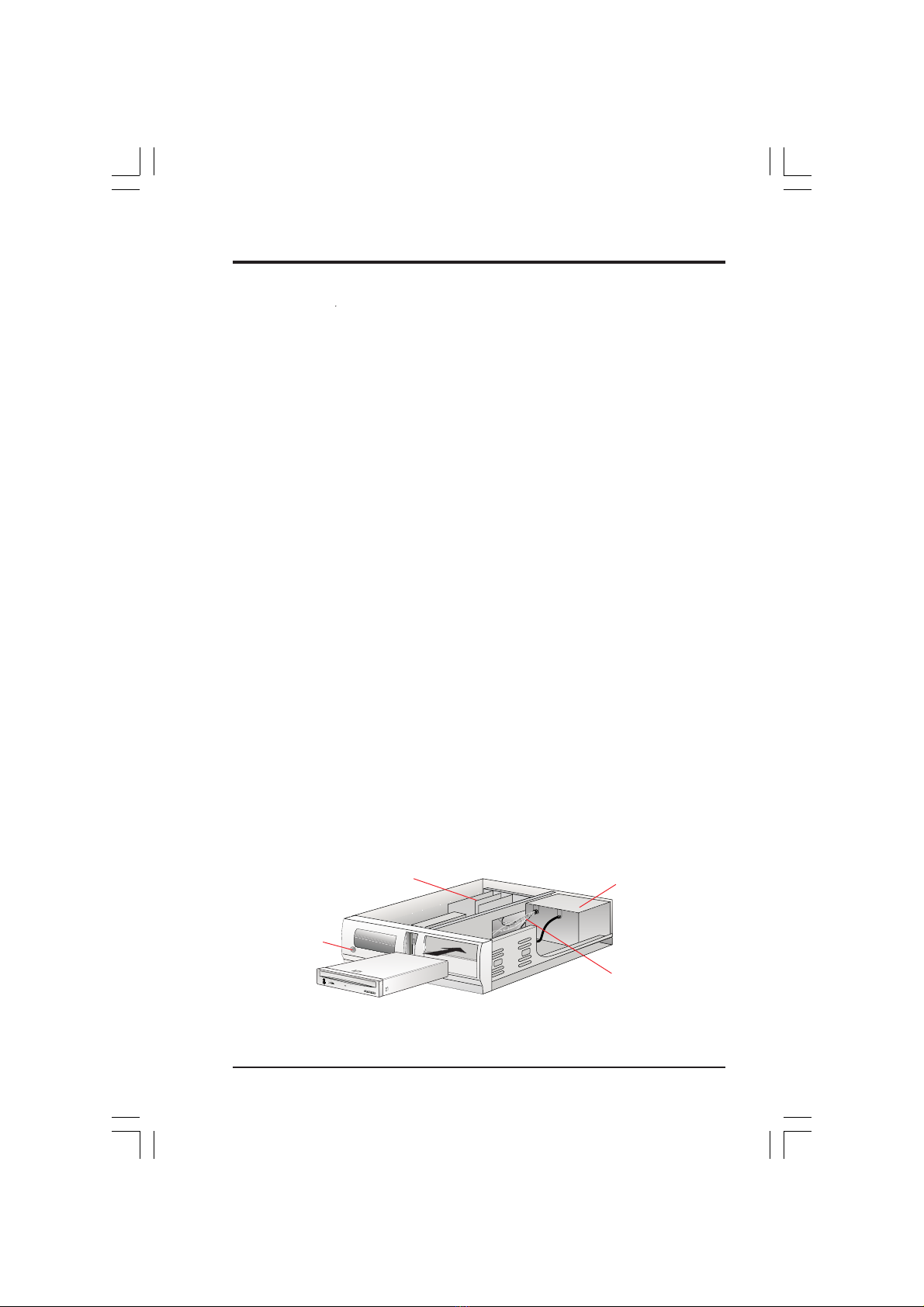

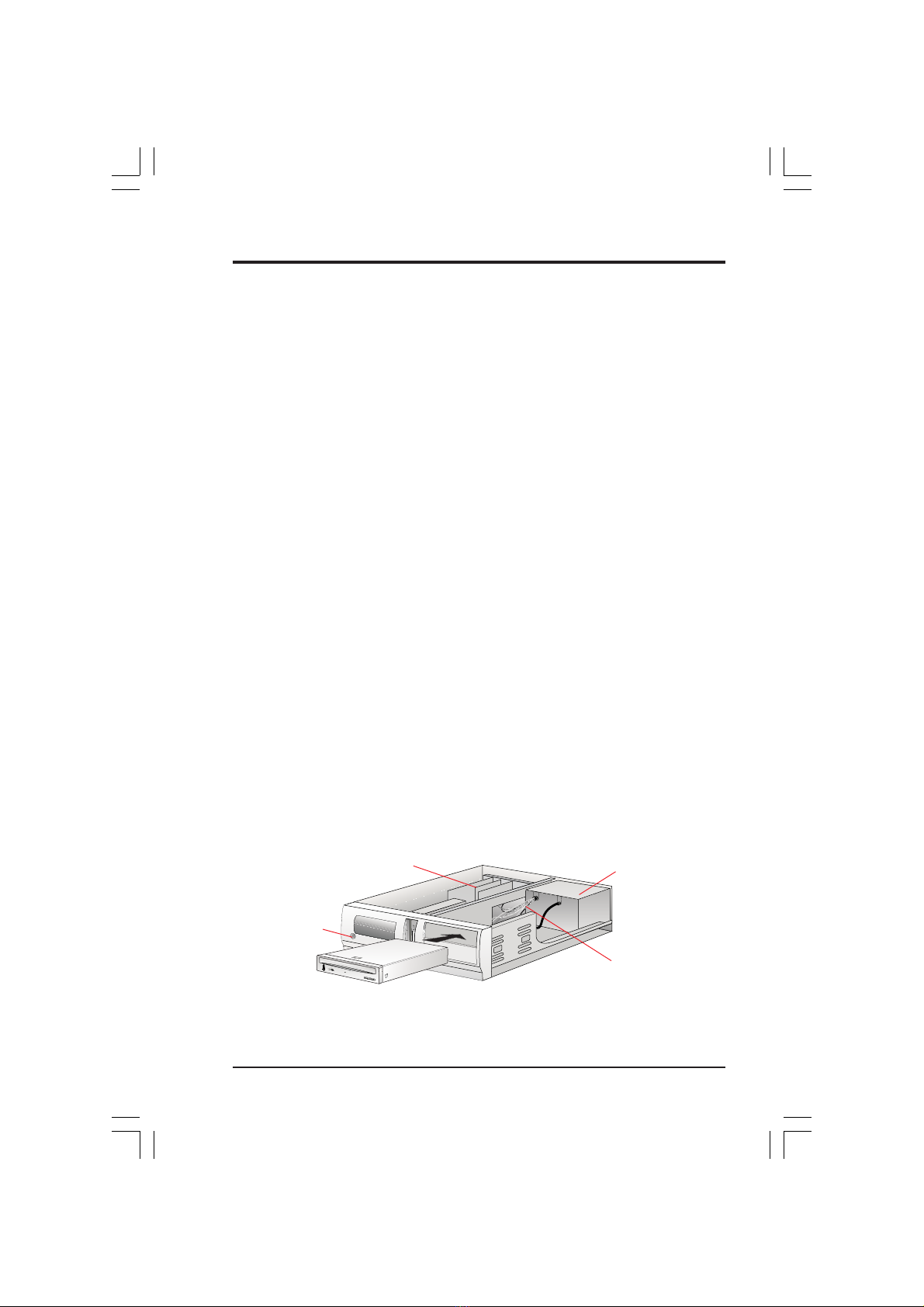

Inserting Your DVD-ROM Drive into Your Computer
Insert the DVD-ROM Drive into one of the free 5.25-inch bays available for disk drives.
NOTE: Do not slide the drive completely into the vacant drive bay. Leave some space at
the rear so that it is easier for you to connect cables to your drive.
Connecting Cables to the DVD-ROM Drive
1. Connect an unused power supply cable to the back ➀of your DVD-ROM Drive.
2. Connect the 40-pin IDE ribbon cable to the back ➁of your DVD-ROM Drive.
NOTE: Orient the red stripe on the cable with Pin 1 of the DVD-ROM Drive’s IDE
Interface connector.
3. If you have a sound card, connect the 4-pin CD audio cable to the DVD-ROM
Drive’s Analog Audio line out connector 4. Otherwise, proceed to the next step.
NOTE: If the pin definitions on your sound card are not the same as that (see preced-
ing section) on your DVD-ROM Drive, check with your dealer for a compatible cable.
4. If you do not have a sound card, plug earphones, headphones, or powered/self-
amplified speakers to the Headphones Jack on your DVD-ROM’s front panel (see
DVD-ROM DRIVEOPERATION).Setthe volumecontrols ofyourdriveandpow-
ered/self-amplified speakers to minimum before starting or restarting your com-
puter. This is to prevent possible damage to the earphones, headphones, or speakers.
NOTE: The Headphones Jack can only be used to listen to audio CD discs.
Audio Cable
Red stripe (IDE Ribbon Cable) Power Supply Cable
Pin 1

8ASUS High-Speed DVD-ROM Drive
III.
SoftwareInstallation
Windows 9x, Windows NT/2000
If your DVD-ROM Drive is already installed, Windows 9x or Windows NT/2000
will automatically detect it and determine the appropriate settings for the drive and
install or load the correct driver.
OS/2 and Other Operating Systems
Your DVD-ROM Drive supports theATAPI drive interface.Your system should be able
to automatically detect your DVD-ROM Drive and load the appropriate device driver.
III. SOFTWARE INSTALLATION

ASUS High-Speed DVD-ROM Drive 9

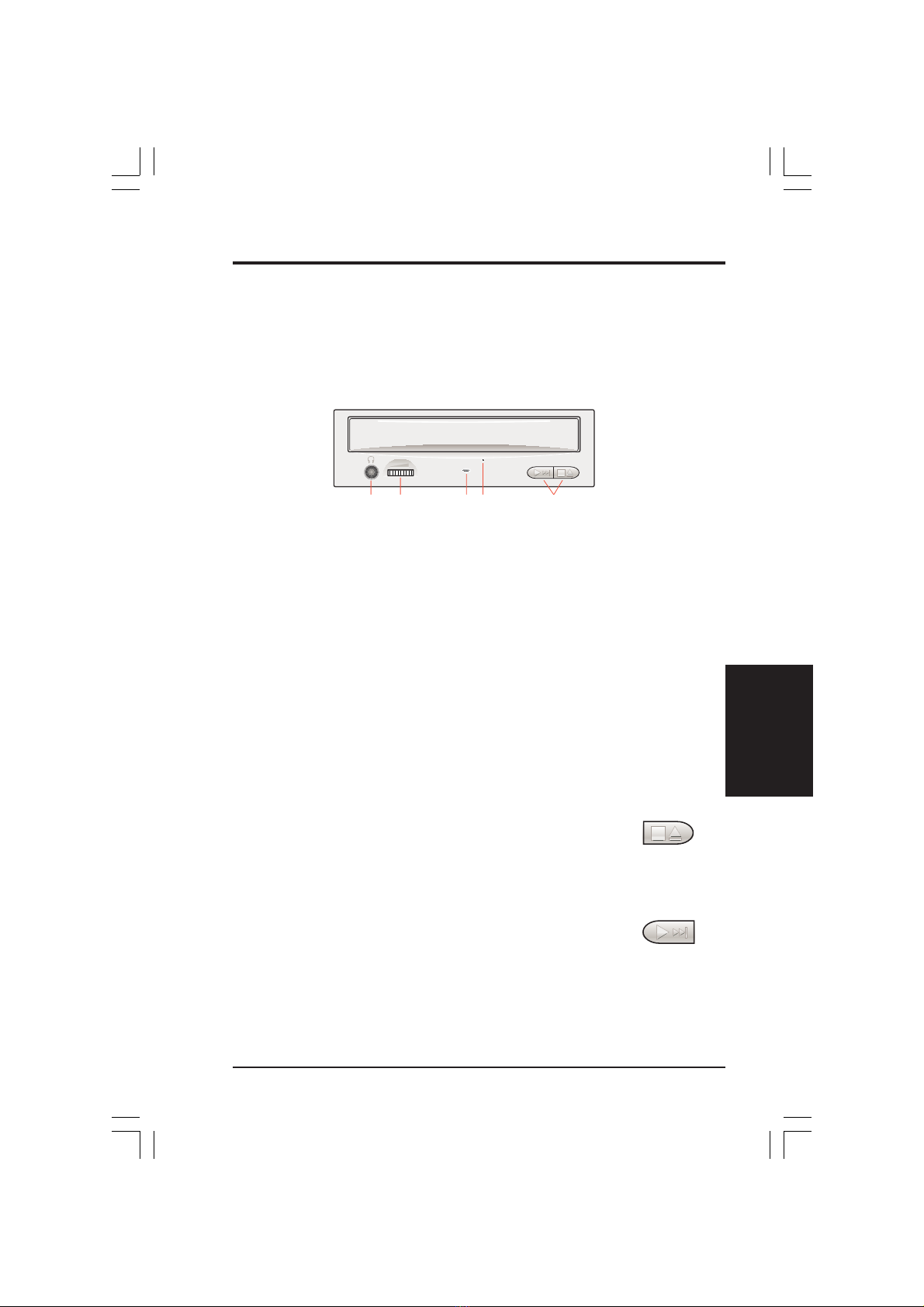

IV. DVD-ROM DRIVE OPERATION
Now that you’ve installed your DVD-ROM Drive, you’re ready to start using it. To
start using your DVD-ROM Drive, you need to know how to (1) operate the DVD-
ROM Drive using the controls on the front panel, (2) insert CD/DVD discs into and
remove them from the drive, and (3) handle CD/DVD discs.
Front Panel Controls
➃
➂➁
➀➄
1. Headphones Jack allows you to connect a pair of earphones or headphones to
the drive for private listening. It also allows you to connect a pair of powered/
self-amplified speakers. Just plug them into the Headphones Jack.
2. Volume Controls allows you to adjust the volume of your earphones, headphones
or powered/self-amplified speakers connected to the Headphones Jack. This con-
trol has no effect on the audio output from devices (such as speakers) connected to
your sound card.
3. DiscIndicatorlights up when there is a disc inside your DVD-ROM Drive, other-
wisethis indicator will not light.Thisindicatorflasheswhenever your DVD-ROM
Drive is busy reading information from your disc or when your drive is in use.
4. EmergencyEjection Hole allows you to manually eject the tray in case of power
failure. See Emergency Eject for more information.
5. Select Buttons allows you to manually control your audio discs without having
to run any software program.
Open/Close/Stop Button
The right button has three states: OPEN, CLOSE, and STOP. If tray
is closed, pressing this button will OPEN or eject it. If tray is out,
pressing this button will CLOSE it. If the drive is playing, pressing
this button will momentarily STOP or pause CD playback.
Play/Skip Button | Change Speed Button
The left button has two states: PLAY track and SKIP track. If the drive
is idle, pressing this button will start PLAYing audio CD discs from the
first track on. If the drive has been momentarily STOPped or paused,
pressingthis buttonwillresume CDplaybackor rePLAYtheaudiodiscs.
Ifthedriveisplaying,pressing momentarily this button will SKIP to the
next track of an audio CD disc.
IV. DVD-ROM Drive
Operation

10 ASUS High-Speed DVD-ROM Drive
IV. DVD-ROM Drive
Operation
Emergency Eject
In case of power failure or if the tray of your DVD-ROM Drive won’t open using the
Open/Close/Stop button or your software, you may have to manually eject the tray.
NOTE: Use the manual method only when necessary or as a last resort. Do not use this
method in lieu of the Open/Close/Stop button when, for example, you forgot to eject the
tray while the computer is on. Turn your computer back on to eject the tray, if possible.
To manually eject the tray:
1. Turn off your computer.
WARNING! If you don’t turn off your computer before you attempt to eject the tray
using the steps below, you may damage your DVD-ROM Drive.
2. Locate the Emergency Ejection Hole of your DVD-ROM Drive. See Front
Panel Controls for the location.
3. Insert the end of a large straightened paper clip about 3 cm (1.25 inches) into the
Emergency Ejection Hole, slightly toward the right.
4. Push gently but firmly until the tray is
released,thencarefullypullthetray open.
WARNING! Do not force the tray open;
wait until the paper clip has dislodged it to
be sure you don’t break the tray’s front.
5. Remove the CD disc, turn on your computer, and press the Open/Close/Stop
button of your DVD-ROM Drive to see if it is working properly.
NOTE: If ejecting the tray using a paper clip does not work, your DVD-ROM Drive may
be damaged. Contact your dealer for further assistance.
IV. DVD-ROM DRIVE OPERATION

ASUS High-Speed DVD-ROM Drive 11
V. TROUBLESHOOTING
General Problems
PROBLEM Unable to access DVD-ROM Drive.
CAUSES 1. The information in your CONFIG.SYS or AUTOEXEC.BAT
or both files might be incorrect. (DOS only.)
2. Some BIOSthat include powermanagement features useIRQ14
or IRQ 15, which should be reserved for IDE devices like your
CD-ROM Drive. (DOS only.)
SOLUTIONS 1. Check the LASTDRIVE= entry in your CONFIG.SYS file.You
might have to set the drive letter to one higher than your actual
last drive letter. For example, if the last drive on your system is
drive D, try setting the parameter in the CONFIG.SYS file to
LASTDRIVE=E. (DOS only.)
•Your DVD-ROM Drive requires the drivers, MSCDEX.EXE
and ASUSCD.SYS, to access the drive. Check your AUTO-
EXEC.BAT file for the statement C:\DOS\MSCDEX.EXE /
D:ASUCD01 and CONFIG.SYS file for the statement
DEVICE=C:\ASUS_CD\ASUSCD.SYS/D:ASUSCD01(see
Software Installation for more information). (DOS only.)
2. Change the IRQ setting of the device that is using IRQ 14 or IRQ
15, for example, sound card or motherboard. Refer to the card or
motherboard documentation for more information. (DOS only.)
PROBLEM Cannotdetect theDVD-ROMDrive (Windows9xorWindowsNT).
CAUSE There are times when Windows cannot detect a new hardware.
SOLUTION Install the drivers manually.
•Start the Add New Hardware wizard by double-clicking My
Computer | Control Panel | Add New Hardware and then
follow the instructions on your screen.
NOTE: Let Windows detect your DVD-ROM Drive. Make sure you have
installed and connected your DVD-ROM Drive in your computer before
running the wizard.
V. Troubleshooting
SAFETY WARNINGS
CAUTION 1. Use of any controls or adjustments or procedures other than
specified herein may result in hazardous radiation exposure.
2. To prevent exposure to laser emanations (harmful to human
eye), do not attempt to disassemble this unit.

12 ASUS High-Speed DVD-ROM Drive
V. Troubleshooting
V. TROUBLESHOOTING
PROBLEM No sound from speakers.
CAUSES 1. Audio cable or speakers are not connected properly.
2. The volume is not adjusted to an audible level.
3. The drive may be faulty.
4. The card may be faulty.
SOLUTIONS 1. Check that the CD audio cable is connected to theAnalogAudio
line out connector on the drive and sound card. Check also that
the pin definitions of your DVD-ROM Drive and sound card are
the same. If not, check with your dealer for a compatible audio
cable or ask a qualified technician to adjust the cables to match
your DVD-ROM Drive’s pin definitions. Also, check that the
speakers are connected to the correct jack on the sound card.
2. Make sure the volume is turned up to an audible range.
3. Connect earphones or headphones to the Headphones Jack. If
there is no sound from your earphones or headphones, consult
your dealer about your faulty drive.
4. Connect earphones or headphones to the sound card’s Headphones
Jack.If thereis nosoundfromyourearphones orheadphones,check
to see the audio cable is connected from the drive to the sound card
(refertoyour soundcardmanualformoreinformation).Iftheaudio
cableisconnectedandthereisstill nosoundfromyourearphonesor
headphones, consult your dealer about your faulty card.
PROBLEM Cannotachievethemaximumdatatransferrateperformancespeci-
fied for the DVD-ROM Drive.
CAUSES 1. If you are using a benchmarking utility, it may be old.
2. The disc is not full.
3. Given the signal quality issues with PIO Mode 4 transfer rates
in some systems and such variables as error correction, cach-
ing, processor overhead, and rotational speed, higher transfer
ratesmay not be achievable with the default transfer mode.Thus
transfer rates may be lower.
4. The disc you are playing may not be in a CD-ROM or DVD-
ROM format.

ASUS High-Speed DVD-ROM Drive 13
V. Troubleshooting
V. TROUBLESHOOTING
SOLUTIONS 1. Upgrade your benchmarking utility to one that supports tests
on the outer tracks of your drive. Your DVD-ROM Drive uses
Constant Angular Velocity (CAV) technology, wherein the
spindle motor is running at the same velocity, while the drive is
accessing data at the inner or outer tracks. In this way, the drive
will achieve lower data transfer rates at the inner tracks and
higher transfer rates at the outer tracks. Thus using some or
older benchmarking utilities, such as WinBench 96, will give
lower data transfer rates because these utilities use the drive’s
inner tracks for its performance tests.
2. A disc will occupy only the inner tracks when it is not full.
Thus, because of the way your DVD-ROM Drive accesses data
(see preceding explanation on CAV technology), the drive will
achieve lower data transfer rates. Use a full disc if possible to
get the maximum transfer rate from your drive.
3. Change the transfer mode of your DVD-ROM Drive to Multi-
word or Ultra DMA Mode to maximize its capability.
•For DOS, see Custom Setup under SOFTWARE INSTAL-
LATION for more information.
•For Windows 95 or Windows NT, Bus Master driver must
be installed. Unless your computer dealer installed the driver
whenyouboughtitoryour motherboard supports Bus Master
mode, Windows will not use bus mastering for your CD-
ROM Drive.
•Click My Computer | Control Panel | System | Device
Manager | CD-ROM controllers. If you are using the bus
master, PCI Bus Master will be displayed. If not and your
motherboard has the new PCI controller chipsets from Intel,
for example, the 430TX or 440BX, but does not have a
CMOS setting for Bus Master mode, you may have to get
the driver from Intel. Check with your dealer for more
information.

14 ASUS High-Speed DVD-ROM Drive
V. Troubleshooting
V. TROUBLESHOOTING
DVD-ROM Specific Problems
PROBLEM Cannot play any DVD movie.
CAUSE You may not have an MPEG-2 card and/or decoder software in-
stalled on your computer system.
SOLUTIONS 1.Install an MPEG-2 card. To install an MPEG-2 card, you need
at least a 166MHz Pentium, AGP motherboard, 32MB system
memory, and Windows 95 OSR2.
2.Install a software-only DVD decoder. To install a software-only
DVD decoder, you need at least a 300MHz Pentium II, AGP
motherboard, 32MB system memory,AGPgraphics card, sound
card supporting 48MHz sample rate, and Windows 95 OSR2
with USB upgrade.
3.Contact your dealer for more information.
PROBLEM When playing a DVD movie, I get an error message about an
invalid country or region code.
CAUSE DVD movies are regionally coded so you may be trying to play a
DVD movie from a region other than the one specified for your
MPEG-2 card or DVD player software.
SOLUTION Check your DVD movie to see which Region Code it has then
purchase an MPEG-2 card and/or DVD player software specific
for that region.
4. Your DVD-ROM drive reads data at different speeds depend-
ing on the disc format. Your DVD-ROM drive performs at its
best when it is reading a CD-ROM or DVD-ROM format disc.
With other formats, such asAudio CD or Video CD, data trans-
fer rate performance may be slower than the maximum rate
performance specified.
PROBLEM Cannot display the directory on an audio CD disc with the DIR
command.
CAUSE The DIR command does not work with audio CD discs while in
DOS. You can use the command, however, to display the direc-
tory on a data CD.
NOTE: You can use the DIR command to display the directory on an audio
disc while in Windows using the command prompt or MS-DOS Prompt.
Refer to your Windows manual on how to find the command prompt.

15
QUICK INSTALLATION GUIDE
I. Check that your package is complete: DVDROM Drive, CD audio cable, mounting screws,
installation disk, and user’s manual.
I. Hardware Installation
1. Turn off your computer and peripheral devices, such as your printer.
2. Ground yourself by using a wrist strap. If you do not have one, touch both of your
hands to a safely grounded object or to a metal object on your system.
3. Remove the cover from your computer.
4. Set your drive as either the Master or Slave (default) drive by placing the jumper
cap on the desired jumper.
5. Insert the DVDROM Drive into one of the free 5.25-inch bays available for disk drives.
6. Connect an unused power supply cable to the back of your DVDROM Drive.
7. Connect the 40-pin IDE ribbon cable to the back of your DVDROM Drive. Make
sure that the red stripe on the cable is aligned to Pin 1 of the IDE connector.
8. If you have a sound card, connect the 4-pin CD audio cable to the DVDROM Drive’s
Analog Audio line out connector. If you do not have a sound card, plug earphones,
headphones, or powered/self-amplified speakers to the Headphones Jack on your
DVDROM’s front panel. Set the volume controls of your drive and powered/self-
amplified speakers to minimum before starting or restarting your computer.
9. If you removed any drive or other items other than your DVDROM Drive, put them
back into place and secure them to your computer.
10. Slide your DVDROM Drive now into place and fasten it to your system with the
screws provided.
11. Replace the cover on your computer and secure it with the screws you removed earlier.
12. Reconnect the power supply.
I.SoftDwareInstallation
1. For DOS/Windows 3.x, insert the DVDROM Driver for DOS/Win 3.x Installation
disk into either driveAor drive B, type A: install (or B: install) and then press [Enter],
choose your preferred setup option and then follow the instructions on the screen, and
then restart your computer after installation is complete.
2. For Windows 9x or Windows NT, Windows will automatically detect and deter-
mine the current settings for your drive and install the correct driver.
3. For other operating systems, your DVDROM Drive supports theATAPI drive inter-
face and your system should be able to load the appropriate driver for your drive.
DVD-ROM Drive
Power Supply
Sound Card
Insert Your DVDROM Drive
Into a Free Drive Bay
Power Supply
Cables
Power
Switch
ENGLISH
ASUS High-Speed DVD-ROM Drive
II

16
GUIDE D’INSTALLATION RAPIDE
I. Vérifiez que votre ensemble est complet : Lecteur de DVDROM, câble CD audio, vis de
montage, disque d’installation, et notice d’explication.
I. Installation du Matériel
1. Eteignez votre ordinateur et ses périphériques, tel que l’imprimante.
2. Reliez vous à la terre par une courroie à votre poignet. Adéfaut, maintenez le contact
de vos deux mains avec un objet lui-même relié à la terre, ou à une partie en métal de
votre système.
3. Enlevez le couvercle de votre ordinateur.
4. Réglez votre lecteur en tant que lecteur Maître ou Esclave (choix par défaut) en plaçant
le cavalier sur la position désirée.
5. Insérez le lecteur de DVDROM dans l’un des emplacement libre de 5.25 pouces
disponible pour les drivers.
6. Connectez un câble d’alimentation inutilisé à l’arrière de votre lecteur de DVDROM.
7. Connectez la nappe 40 broches à l’arrière de votre lecteur de DVDROM. Assurez
vous que la bande rouge du câble est aligné avec la broche 1 du connecteur IDE.
8. Si vous possédez une carte son, connectez le câble CD-audio 4 broches à la prise
Analog Audio line out du lecteur de DVDROM. Si vous n’avez pas de carte son,
branchez des écouteurs, casques ou enceintes autonomes à la prise jack du panneau
frontal de votre lecteur de DVDROM. Avant de redémarrer votre ordinateur, baissez
le volume du lecteur et vos enceintes au minimum.
9. Si au cours de l’opération vous avez retiré des éléments autres que votre DVDROM,
remettez les en place.
10. Faites glisser votre lecteur de DVDROM dans son emplacement et fixez le au système
avec les vis fournies.
11. Replacez le couvercle de votre ordinateur avec les vis que vous avez enlevées préalablement.
12. Rebranchez l’alimentation électrique.
II. Installation du Logiciel
1. Pour les environnements DOS/Windows 3.x, insérez la disquette d’installation du lecteur
de DVDROM pour DOS/Win 3.x dans le lecteurAou B, tapez A: install (ou B: install)
puis tapez [Entrée], choisissez vos paramètres d’installation et suivez les instruction
sur l’écran, redémarrez votre ordinateur après la fin de l’installation.
2. Pour Windows 9x ou Windows NT, Windows détectera et déterminera automatiquement
les paramètres présents et installera le bon pilote.
3. Pour les autres systèmes d’exploitation, votre lecteur de DVDROM supporte l’interface
ATAPI ce qui permettra à votre système de charger le pilote correspondant à votre lecteur.
Lecteur de DVD-ROM
Alimentatión
Carte Son
Insérer votre Lecteur de DVDROM dans un Espace pour Lecteur Disponible
Câbles
d’Alimentatión
Bouton
d’Alimentation
FRENCH
Lecteur de DVD-ROM Haute Vitesse ASUS

17
EINFACHE INSTALLATIONANLEITUNG
I. Überprüfen Sie, ob Ihr Paket komplett ist: DVDROM-Laufwerk, CD-Audio-Kabel,
Schrauben, Installationsdiskette und Handbuch.
I. Installation der Hardware
1. Schalten Sie Ihren Computer und periphäre Geräte, wie z. B. Drucker, aus.
2. Erden Sie sich durch ein spezielles Band am Handgelenk. Ist ein solches Band nicht
verfügbar, sollten Sie ein sicheres, geerdetes Objekt oder ein Objekt aus Metall an
Ihrem PC berühren.
3. Entfernen Sie die Abdeckung Ihres Computers.
4. Schließen Sie Ihr Laufwerk entweder als Master oder Slave (default) an, indem Sie
den Jumper an die gewünschte Stelle setzen.
5. Setzen Sie das DVDROM-Laufwerk in die dafür vorgeseheneAussparung in Ihrem System.
6. Schließen Sie ein ungenutztes Stromversorgungskabel an Ihrem DVDROM-Laufwerk an.
7. Schließen Sie das 40-pin IDE Kabel an Ihrem DVDROM-Laufwerk an. Vergewissern
Sie sich, dass der rote Streifen auf der Seite von Pin 1 des IDE-Anschlusses liegt.
8. Sollten Sie eine Soundkarte haben, schließen Sie das 4-pin CD-Audiokabel amAnalog
Audio line out-Anschluß des DVDROM-Laufwerks an. Haben Sie keine Soundkarte,
schließen Sie einen Kopfhörer oder Lautsprecher an die Lautsprecherbuchse auf der
Vorderseite desDVDROM-Laufwerksan. Drehen SiedieLautstärkeregler des Laufwerks
und der Lautsprecher auf Minimum bevor Sie Ihren Computer starten oder neu starten.
9. Falls Sie außer Ihrem DVDROM-Laufwerk noch andere Geräte entfernt haben,
setzen Sie diese wieder ein und verbinden Sie mit Ihrem System.
10. Setzen Sie nun Ihr Laufwerk ein und befestigenSie esmit denmitgelieferten Schrauben.
11. Setzen Sie die Abdeckung wieder auf Ihren Computer und befestigen Sie sie mit
den vorher entfernten Schrauben.
12. Schließen Sie die Stromversorgung wieder an.
II. Installation der Software
1. Unter DOS/Windows 3.x legen Sie die Treiberdiskette für DOS/Windows 3.x in LaufwerkA
oder B und geben A:install (oder B:install) ein. Drücken Sie die Enter-Taste und wählen Sie
die bevorzugte Setup Option aus. Folgen Sie danach denAnweisungen auf dem Bildschirm
und starten Ihren Computer nach Beendigung der Installation erneut.
2. Unter Windows9x oder Windows NT werden automatisch die richtigen Einstellungen
vorgenommen und der richtigeTreiber installiert.
3. BeianderenBetriebssystemenunterstütztIhrDVDROM-LaufwerkdasATAPI-Treiberinterface
und Ihr System ist in der Lage, den jeweiligen Treiber für Ihr Laufwerk zu laden.
DVD-ROM Laufwerk
Stromversorgung
Soundkarte
Setzen Sie Ihr Laufwerk in eine dafür vorgesehene Aussparung
Stromkabel
Schalter
GERMAN
ASUS High-Speed DVD-ROM-Laufwerk

18
GUIDAPER UNAINSTALLAZIONE VELOCE
I. Verificate che la confezione sia completa di: drive DVDROM, cavo CD audio, viti di
montaggio, dischetto d’installazione e il manuale d’uso.
I. Installazione Hardware
1. Spegnete il computer e i dispositivi periferici, quali la stampante.
2. Collegatevi alla massa con un bracciale anti statico. Se non ne avete uno, toccate
con entrambe le mani una superficie collegata a terra o una parte metallica del vostro
sistema.
3. Aprite il cabinato.
4. Configurate il DVDROM drive come master o come slave (default) spostando il
jumper nella posizione adeguata.
5. Inserite il DVDROM drive in un vano da 5,25” libero.
6. Alimentate il DVDROM con un cavo di alimentazione non utilizzato.
7. Connettete il cavo IDE da 40 poli al connettore IDE del DVDROM. Assicuratevi
che il lato con la striscia rossa sia allineato al pin 1 del connettore IDE.
8. Se avete una scheda sonora connettete il cavo audio a 4 pin al connettore Analog
Audio line out del DVDROM. Se non avete una scheda sonora inserite una cuffia o
delle casse acustiche all’uscita per cuffie sul pannello frontale del DVDROM.
Impostate il controllo del volume del drive e delle casse acustiche al minimo prima
di avviare il computer.
9. Se avete rimosso altri dispositivi per installare il DVDROM drive rimetteteli al
posto e fissateli al computer.
10. Fissate nella giusta posizione il DVDROM tramite le viti fornite.
11. Richiudete il computer.
12. Riconnettete il cavo di alimentazione.
II. Installazione Software
1. Per i sistemi operativi DOS/Windows 3.x, inserite il dischetto con il driver per DOS/
Win 3.x nel drive A o drive B, digitate A: install (o B: install) e premete [Invio],
scegliete le opzioni di setup preferite e seguite le istruzioni a schermo. Al termine
dell’installazione riavviate il computer.
2. Per Windows 9x o Windows NT, Windows rileverà automaticamente il vostro drive
e installerà il driver corretto.
3. Per altri sistemi operativi il drive DVDROM supporta l’interfaccia ATAPI e il vostro
sistema dovrebbe essere in grado di caricare il driver appropriato.
Drive DVD-ROM
Alimentatore
Scheda Sonora
Inserite il Vostro Drive DVDROM
in un Vano Libero
Cavi di
Alimentazione
Pulsante di
Accensione
ITALIAN
DVD-ROM ASUS ad Alta Velocità

19
GUÍA DE INSTALACIÓN RÁPIDA
I. Compruebe que los siguientes elementos estén incluidos en el embalaje: lector de
DVDROM , cable CD audio, tornillos de montaje, disco de instalación y manual de
usuario.
I. Instalación de la Unidad
1. Apague su equipo y los periféricos conectados a él, como, por ejemplo, la impresora.
2. Utilice una muñeca antiestática para evitar dañar el equipo. Si no dispone de una, ponga en
contactoambas manoscon unobjeto contoma detierra ocon unobjeto metálicode susistema.
3. Retire la cubierta de su ordenador.
4. Configure su unidad como Principal o Subordinada -por defecto- (maestro o esclavo)
conectando la salida del cable al conector que desee.
5. Inserte la unidad del DVDROM en una de las bahías de 5.25” libres para unidades de disco.
6. Conecte un cable de alimentación libre en la parte trasera del lector de DVDROM.
7. Conecte el cable plano IDE de 40 pines en la parte posterior de su unidad de DVDROM.
Asegúrese de que la franja roja del cable esté alineada con el pin 1 del conector IDE.
8. Si posee usted una tarjeta de sonido, conecte el cable CD audio de 4 pines al conector de salida
deaudio analógica(AnalogAudio lineout) del lector de DVDROM.Si nodispone detarjeta de
sonido, conecte los auriculares, altavoces o altavoces autoamplificados en la clavija (tipo jack)
para auriculares localizada en el panel frontal del lector de DVDROM. Configúre los controles
de volumen de su unidad y de los altavoces al mínimo antes de iniciar o reiniciar su ordenador.
9. En caso de que hubiese extraído alguna unidad o cualquier otro elemento además de su
lector de DVDROM, emplácelos de nuevo en su anterior posición y fíjelos debidamente.
10. Inserte el lector de DVDROM en la posición deseada y fíjelo con los tornillos entregados.
11. Coloque denuevola cubierta desu ordenador yfíjela con lostornillosretirados anteriormente.
12. Conecte de nuevo la fuente de alimentación.
II. Instalación del Software
1. Para DOS/Windows 3.x, inserte el disco de instalación para DOS/Win 3.x en las
unidadesAo B, teclee A: install (o B: install) y a continuación pulse [Enter], escoja
la opción de sistema adecuada y siga las instrucciones en pantalla. Reinicie su
ordenador una vez completada la instalación.
2. En Windows 9x o Windows NT, Windows detectará automáticamente la unidad y realizará
losajustesnecesarios para ellectorde DVDROM, asícomolainstalación del drivernecesario.
3. Para otros sistemas operativos, el lector de DVDROM soporta la interfaz de driveATAPI
y su sistema operativo podrá cargar el driver adecuado para el lector de DVDROM.
Lector de DVD-ROM
Fuente de
Alimentación
Tarjeta de
Sonido
Inserte el Lector de DVDROM
en una Bahía Libre
Cables de
Alimentación
Botón de
Encendido/
Apagado
SPANISH
ASUS DVD-ROM de Alta Velocidad

20
