Asus P30A Instructions for use

Notebook PC
Hardware User’s Manual
E4500 / February 2009
<---

2
Contents
Table of Contents
1. Introducing the Notebook PC
About This User’s Manual ������������������������������������������������������������������������������������������ 6
Preparing your Notebook PC�������������������������������������������������������������������������������������� 9
2. Knowing the Parts
Top Side�������������������������������������������������������������������������������������������������������������������� 12
Bottom Side �������������������������������������������������������������������������������������������������������������� 15
Left Side ������������������������������������������������������������������������������������������������������������������� 17
Right Side����������������������������������������������������������������������������������������������������������������� 18
Front Side����������������������������������������������������������������������������������������������������������������� 20
Rear Side������������������������������������������������������������������������������������������������������������������ 21
3. Getting Started
Power System ���������������������������������������������������������������������������������������������������������� 23
Using AC Power��������������������������������������������������������������������������������������������������� 23
Using Battery Power �������������������������������������������������������������������������������������������� 24
Battery Care��������������������������������������������������������������������������������������������������������� 24
Powering ON the Notebook PC ��������������������������������������������������������������������������� 25
The Power-On Self Test (POST)�������������������������������������������������������������������������� 25
Checking Battery Power �������������������������������������������������������������������������������������� 26
Charging the Battery Pack����������������������������������������������������������������������������������� 26
Power Options ����������������������������������������������������������������������������������������������������� 27
Power Management Modes��������������������������������������������������������������������������������� 28
Sleep and Hibernate �������������������������������������������������������������������������������������������� 28
Thermal Power Control���������������������������������������������������������������������������������������� 28
Special Keyboard Functions������������������������������������������������������������������������������������� 29
Colored Hot Keys������������������������������������������������������������������������������������������������� 29
Microsoft Windows Keys�������������������������������������������������������������������������������������� 31
Keyboard as a Numeric Keypad ������������������������������������������������������������������������� 31
Keyboard as Cursors ������������������������������������������������������������������������������������������� 31
Switches and Status Indicators �������������������������������������������������������������������������������� 32
Switches��������������������������������������������������������������������������������������������������������������� 32
Status Indicators �������������������������������������������������������������������������������������������������� 34
Status Indicators �������������������������������������������������������������������������������������������������� 35

3
Contents
Table of Contents (Cont.)
4. Using the Notebook PC
Pointing Device��������������������������������������������������������������������������������������������������������� 38
Using the Touchpad ��������������������������������������������������������������������������������������������� 38
Touchpad Usage Illustrations������������������������������������������������������������������������������� 39
Caring for the Touchpad��������������������������������������������������������������������������������������� 40
Automatic Touchpad Disabling����������������������������������������������������������������������������� 40
Storage Devices ������������������������������������������������������������������������������������������������������� 41
Expansion Card ��������������������������������������������������������������������������������������������������� 41
Optical Drive �������������������������������������������������������������������������������������������������������� 42
Flash Memory Card Reader �������������������������������������������������������������������������������� 44
Hard Disk Drive���������������������������������������������������������������������������������������������������� 45
Memory (RAM)����������������������������������������������������������������������������������������������������� 46
Connections�������������������������������������������������������������������������������������������������������������� 47
Modem Connection (on selected models) ����������������������������������������������������������� 47
Network Connection �������������������������������������������������������������������������������������������� 48
Wireless LAN Connection (on selected models) ������������������������������������������������� 49
Windows Wireless Network Connection �������������������������������������������������������������� 50
Bluetooth Wireless Connection (on selected models) ����������������������������������������� 51

4
Contents

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not show
what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in this
manual. Please accept your Notebook PC as being correct.

6
1 Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides informa-
tion on the various components in the Notebook PC and how to use them. The following
are major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data, com-
ponents, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]

7
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before clean-
ing. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened
with a solution of nonabrasive detergent and a few drops of warm water and remove
any extra moisture with a dry cloth.
DO NOT expose to or use near liquids,
rain, or moisture. DO NOT use the
modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
5°C (41°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in re.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical elds.
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT throw the Notebook PC in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment and mercury-containing button
cell battery) should not be placed in municipal waste. Check local regulations for disposal
of electronic products.
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will
reduce air circulation such as a carrying bag.
INPUT RATING: Refer to the rating
label on the bottom of the Notebook
PC and be sure that your power adapter
complies with the rating.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin
indicates that the battery should not be placed in municipal waste.

8
1 Introducing the Notebook PC
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walking
through security checks), and magnetic wands (hand-held devices used on people or
individual items). You can send your Notebook PC and diskettes through airport X-ray
machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restric-
tions for using electronic devices. Most airlines will allow electronic use only between and not during
takeoffs and landings.
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external peripher-
als to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned
OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport
the Notebook PC while the power is still ON. Close the display panel and check that it is latched securely
in the closed position to protect the keyboard and display panel.
CAUTION! The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.

9
Introducing the Notebook PC 1
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed informa-
tion on using your Notebook PC.
1. Install the battery pack 2. Connect the AC Power Adapter
IMPORTANT! When opening, do not
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
1
2
3
110V-220V
3. Open the Display Panel 4. Turn ON the Notebook PC
The power switch turns ON and OFF the Notebook
PC or putting the Notebook PC into sleep or hiber-
nation modes. Actual behavior of the power switch
can be customized in Windows Control Panel >
Power Options > System Settings.
2
3
1

10
1 Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not show
what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in this
manual. Please accept your Notebook PC as being correct.

12
2 Knowing the Parts

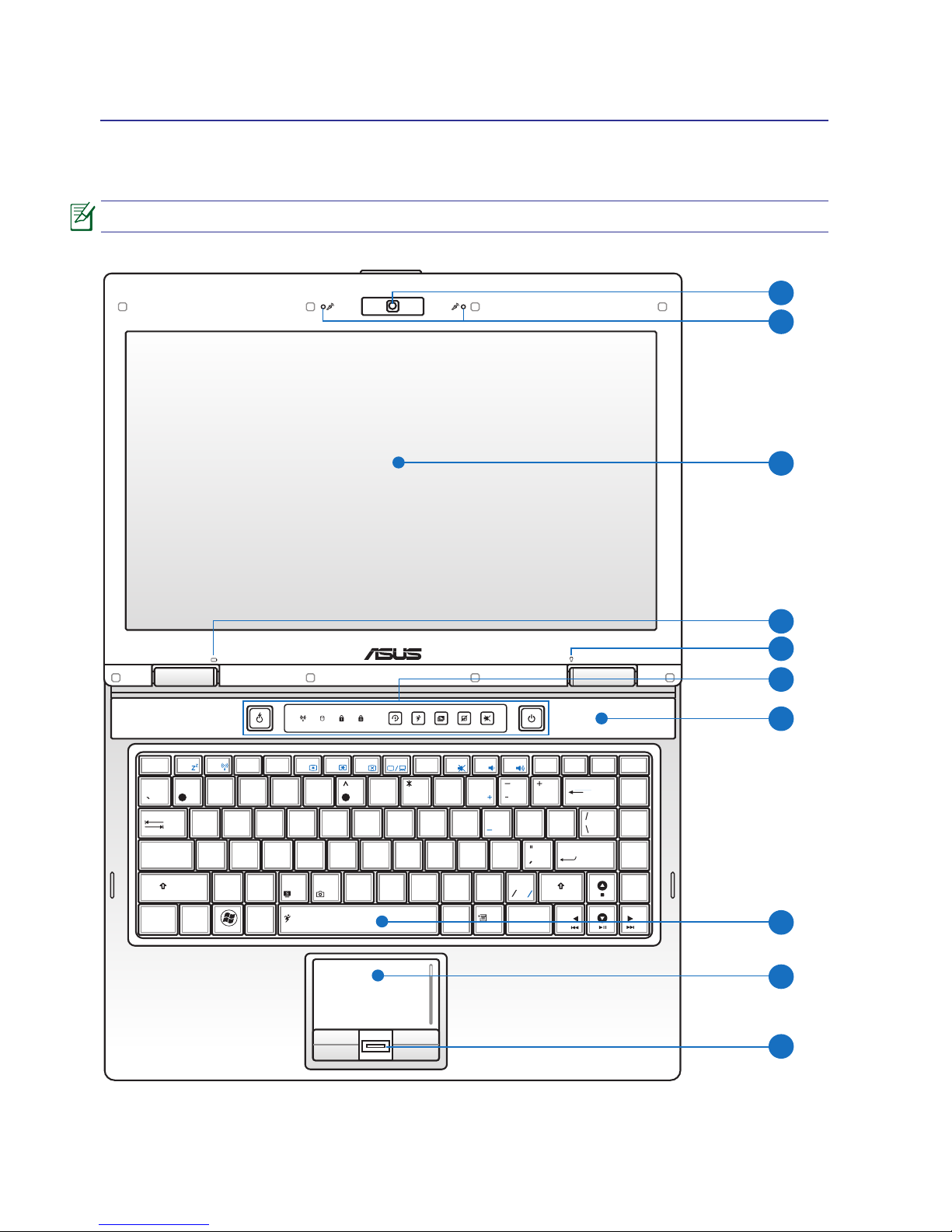

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
ESC
Tab
QWERTYUIOP
LK
Alt Gr
Alt
Ctrl
Ctrl Fn
J
H
G
F
D
S
A
BV M<
>
..
,
?
NCX
Z
Caps Lock
{
[
:
;
}
]
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
Pause
Break
Prt Sc
SysRq
Insert
Delete
Enter
Backspace
=
)
0
(
987
7 8 9
4 5 6
1
0
2 3
5
%
4
$
32
!
&
Shift
Shift
1 6
Num LK
Home
PgUp
PgDn
End
Scr LK
#
@
~
3
6
4
5
7
8
9
2
1
10
The keyboard differs for each territory.

13
Knowing the Parts 2
2
3
4
1

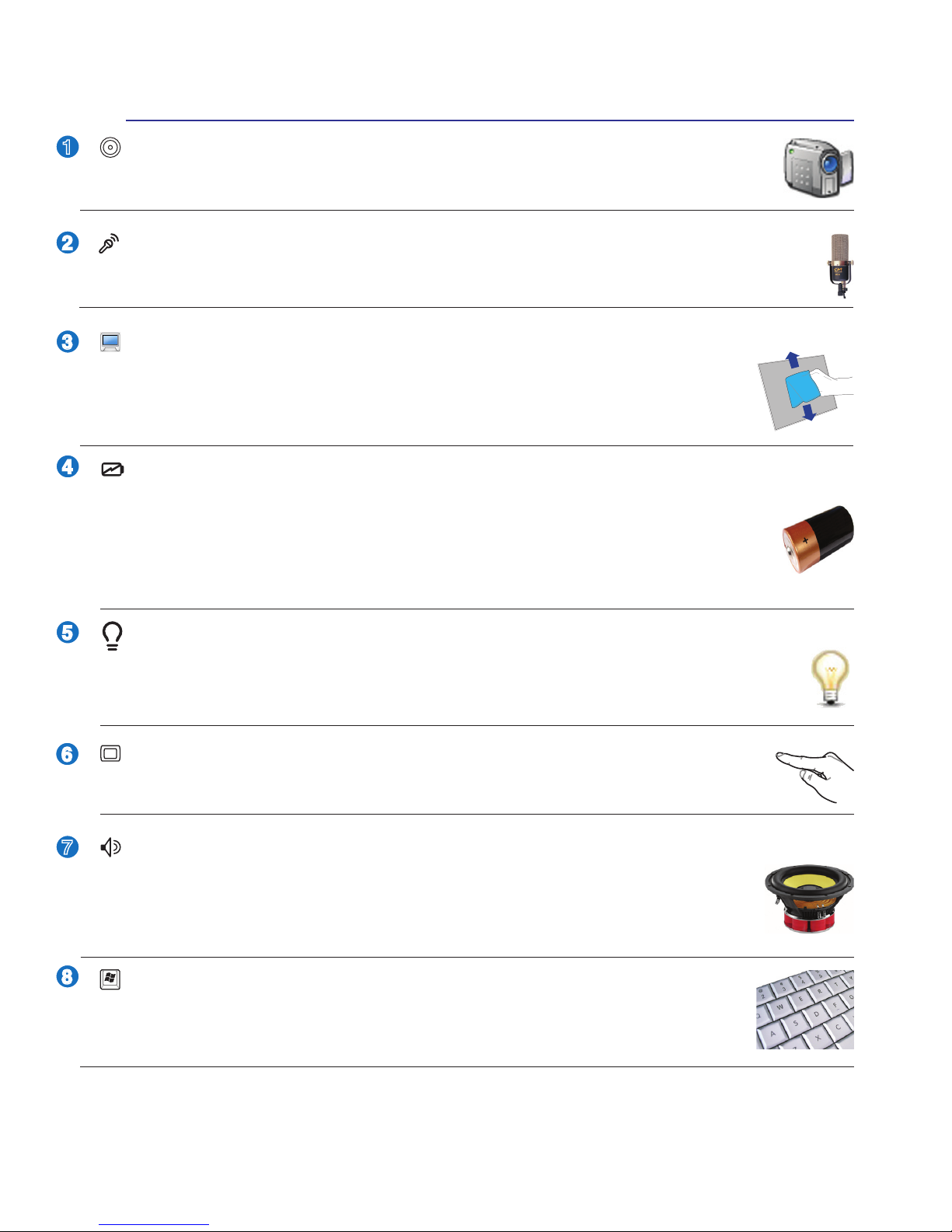

Display Panel
The display panel functions the same as a desktop CRT monitor. The Notebook PC uses an active
matrix TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop
CRT monitors, the LCD panel does not produce any radiation or ickering, so it is easier on the eyes.
Use a soft cloth without chemical liquids (use plain water if necessary) to clean the display panel.
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video con-
ferencing and other interactive applications.
Microphone (Built-in) (on selected models)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
Instant Keys
Instant keys allow you to launch frequently used applications with one push of a button.
Details are described in section 3.
Power Indicator
The power indicator lights when the Notebook PC is turned ON and blinks slowly when the
Notebook PC is in the Suspend-to-RAM (Sleep) mode. This indicator is OFF when the Notebook
PC is turned OFF or in the Suspend-to-Disk (Hibernation) mode.
Battery Charge Indicator
The battery charge indicator shows the status of the battery’s power as follows:
ON: The Notebook PC’s battery is charging when AC power is connected.
OFF: The Notebook PC’s battery is charged or completely drained.
Blinking: Battery power is less than 10% and the AC power is not connected.
5
6
7
Audio Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments.
The multimedia sound system features an integrated digital audio controller that produces
rich, vibrant sound (results improved with external stereo headphones or speakers). Audio
features are software controlled.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys
can be depressed) and palm rest for both hands. Two Windows function keys are provided
to help ease navigation in the Windows operating system.
8

14
2 Knowing the Parts
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.
Touchpad and Buttons
The built-in ngerprint scanner allows security software using your ngerprint as your identication key
9
10

15
Knowing the Parts 2
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling
the Notebook PC while it is in operation or recently been in operation. High tempera-
tures are normal during charging or operation. Do not use on soft surfaces such as
beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
The bottom side may vary in appearance depending on model.
The battery pack size varies depending on model.

16
2 Knowing the Parts
2
3
4
1
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory. Additional
memory will increase application performance by decreasing hard disk access. The BIOS
automatically detects the amount of memory in the system and congures CMOS accordingly
during the POST (Power-On-Self-Test) process. There is no hardware or software (including
BIOS) setup required after the memory is installed. Visit an authorized service center or retailer for information
on memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers of this
Notebook PC to ensure maximum compatibility and reliability.
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Visit an authorized service center or retailer for
information on hard disk drive upgrades for your Notebook PC. Only purchase hard disk drives
from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC power source
and maintains power to the Notebook PC when AC power is not connected. This allows use when moving
temporarily between locations. Battery time varies by usage and by the specications for this Notebook
PC. The battery pack cannot be disassembled and must be purchased as a single unit.
Central Processor Unit (CPU) Compartment
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster
processors in the future. Some models feature a ULV design for compactness and may not
be upgraded. Visit an authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it
will automatically lock. To remove the battery pack, this spring lock must be held in the unlocked posi
tion.
Wireless LAN (WLAN) Compartment (on selected models)
The WLAN compartment allows the installation of a wireless networking card in order to
wirelessly connect to network access points or other wireless networking devices.
SIM Card Compartment (on selected models)
The SIM card compartment allows insertion of a mobile SIM card for 3G functions.
5
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the
unlocked position to insert or remove the battery pack. Move the manual lock to the locked posi-
tion after inserting the battery pack.

17
Knowing the Parts 2
1
2
3
4
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
EXPRESS
2 4
3
1
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a monitor
or projector to allow viewing on a larger external display.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may occur.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
ExpressCard Slot (on selected models)
One 26pin Express card slot is available to support one ExpressCard/34mm or one
ExpressCard/54mm expansion card. This new interface is faster by using a serial bus
supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC
card slot. (Not compatible with previous PCMCIA cards.)
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in
a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices
to run simultaneously on a single computer, with some peripherals acting as additional plug-in sites or
hubs. USB supports hot-swapping of devices so that most peripherals can be connected or disconnected
without restarting the computer.

18
2 Knowing the Parts
2
3
1
4
Optical Drive/Dummy ODD Bay (Optional)/ODD Battery (Optional)/
2nd HDD Module (Optional)
The Notebook PC comes in various models with different optical drives. The Notebook
PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD) and
may have recordable (R) or re-writable (RW) capabilities. See the marketing specica-
tions for details on each model.
This slot is for the bundled ODD by default. You can also install optional devices such
as a second HDD, exetended battary module or a dummy ODD module in this slot.

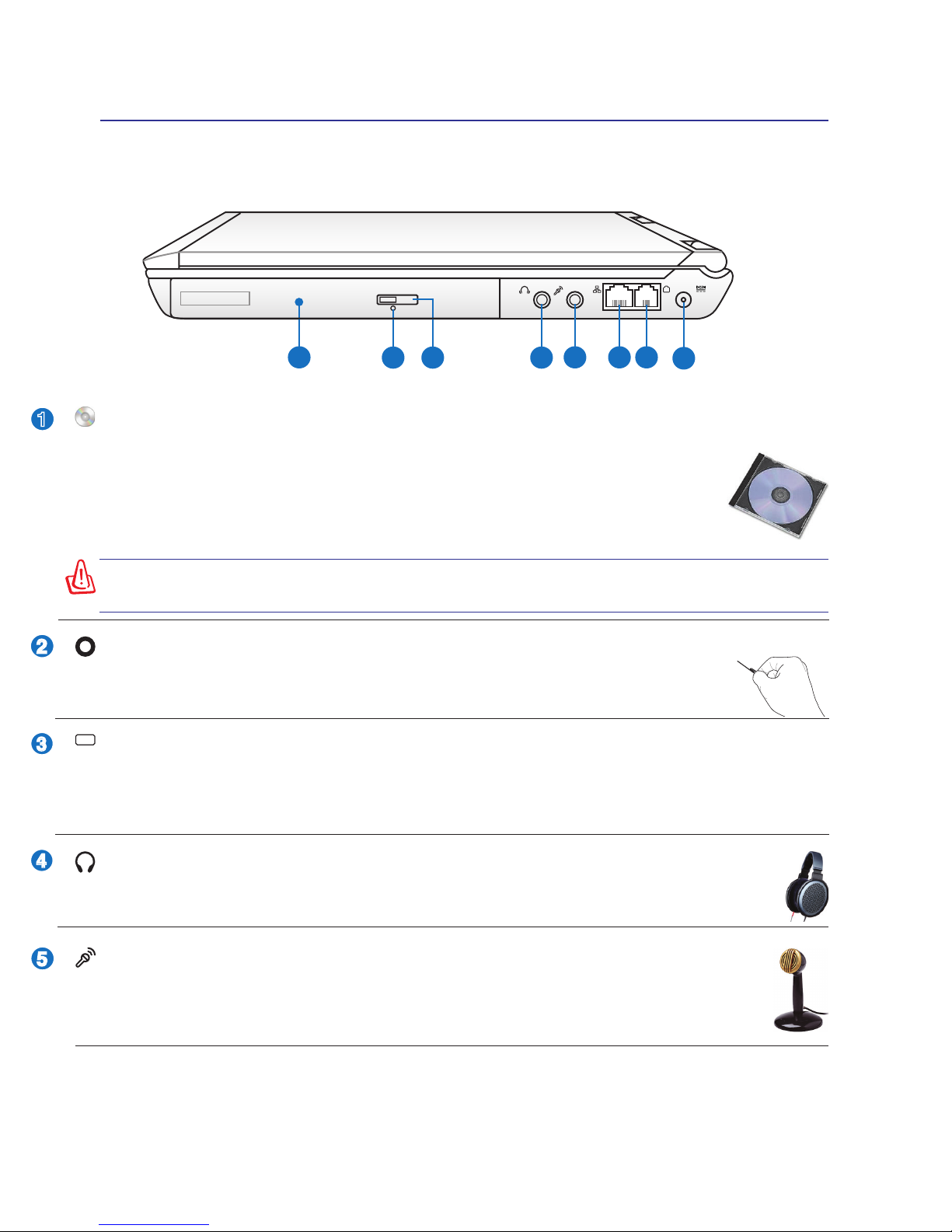

Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
12 3 4 65 7
8
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output
signals from audio devices. Using this jack automatically disables the built-in microphone. Use
this feature for video conferencing, voice narrations, or simple audio recordings.
5
Optical Drive Emergency Eject (location varies by model)
The emergency eject is used to eject the optical drive tray in case the electronic eject does
not work. Do not use the emergency eject in place of the electronic eject.
Optical Drive Electronic Eject
The optical drive eject has an electronic eject button for opening the tray. You can also eject the optical
drive tray through any software player or by right clicking the optical drive in Windows “Computer”
and selecting Eject.

19
Knowing the Parts 2
6
7
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a
standard Ethernet cable for connection to a local network. The built-in connector allows
convenient use without additional adapters.
Modem Port (on selected models)
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports
a standard telephone cable. The internal modem supports up to 56K V.90 transfers. The
built-in connector allows convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or
else damage will occur to the Notebook PC.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power sup-
plied through this jack supplies power to the Notebook PC and charges the internal battery pack.
To prevent damage to the Notebook PC and battery pack, always use the supplied power
adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE
NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
8

20
2 Knowing the Parts
1
Front Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Flash Memory Slot
Normally an external MMC/SD/Mini-SD/XD/Memory Stick/MS Pro/MS-Duo/MS-Pro-
Duo memory card reader must be purchased separately in order to use memory cards
from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This
Notebook PC has a built-in high-speed memory card reader that can conveniently read from
and write to many ash memory cards as mentioned later in this manual.
Wireless Switch (on selected models)
Use this switch to switch on/off the built-in wireless LAN.
2
Table of contents
Other Asus Laptop manuals

Asus
Asus ROG Zephyrus G15 User manual

Asus
Asus ZenBook Flip 14 UX463FA-AI040R Guide

Asus
Asus VivoBook 14 User manual

Asus
Asus N82JG User manual

Asus
Asus T300L series Guide

Asus
Asus Eee PC 900A Series User manual

Asus
Asus ZenBook 14 UX425 User manual

Asus
Asus G51J User manual

Asus
Asus UX410UA Guide

Asus
Asus TX201L Guide
