Asus U30JC User manual

Notebook PC User Manual
December 2009
E5235

2 Notebook PC User Manual
Table of Contents
Chapter 1: Introducing the Notebook PC
About This User’s Manual................................................................................ 6
Notes for This Manual ....................................................................................... 6
Safety Precautions ............................................................................................. 7
Preparing your Notebook PC......................................................................... 9
Chapter 2: Knowing the parts
Top Side ...............................................................................................................12
Bottom Side........................................................................................................15
Right Side............................................................................................................17
Left Side...............................................................................................................19
Front Side............................................................................................................21
Chapter 3: Getting Started
Power System ....................................................................................................24
Using AC Power...............................................................................................24
Using Battery Power ......................................................................................26
Battery Care ......................................................................................................27
Powering ON the Notebook PC.................................................................28
The Power-On Self Test (POST) ..................................................................28
Checking Battery Power...............................................................................30
Charging the Battery Pack...........................................................................31
Power Options.................................................................................................32
Power Management Modes .......................................................................34
Sleep and Hibernate......................................................................................34
Thermal Power Control.................................................................................36
Special Keyboard Functions.........................................................................37
Colored Hot Keys ............................................................................................37
Microsoft Windows Keys..............................................................................39
Multimedia Control Keys (on selected models)...................................41
Switch and Status Indicators........................................................................42
Switch .............................................................................................................42
Status Indicators .............................................................................................43

Notebook PC User Manual 3
Chapter 4: Using the Notebook PC
Pointing Device.................................................................................................46
Using the Touchpad.......................................................................................47
Touchpad Usage Illustrations.....................................................................48
Caring for the Touchpad ..............................................................................51
Automatic Touchpad Disabling.................................................................51
Storage Devices ................................................................................................53
Flash Memory Card Reader.........................................................................53
Hard Disk Drive................................................................................................54
Memory (RAM).................................................................................................56
Connections.......................................................................................................57
Network Connection.....................................................................................57
Wireless LAN Connection (on selected models) .................................59
Windows Wireless Network Connection................................................61
Bluetooth Wireless Connection(on selected models).......................63
Appendix
Optional Accessories.....................................................................................A-2
Optional Connections.................................................................................A-2
Operating System and Software...............................................................A-3
System BIOS Settings ..................................................................................A-4
Common Problems and Solutions .........................................................A-7
Recovering Your Notebook PC ............................................................... A-13
Using Recovery Partition ....................................................................... A-13
Using Recovery DVD (on selected models)...................................... A-14
DVD-ROM Drive Information................................................................. A-16
Internal Modem Compliancy ................................................................ A-18
Declarations and Safety Statements.................................................... A-22
Federal Communications Commission Statement........................ A-22
FCC Radio Frequency (RF) Exposure Caution Statement............ A-23
Declaration of Conformity(R&TTE directive 1999/5/EC).............. A-23
CE Marking................................................................................................... A-24
IC Radiation Exposure Statement for Canada ................................. A-24
Wireless Operation Channel for Different Domains...................... A-25
France Restricted Wireless Frequency Bands .................................. A-25

4 Notebook PC User Manual
UL Safety Notices....................................................................................... A-27
Power Safety Requirement .................................................................... A-28
TV Tuner Notices ........................................................................................ A-28
REACH ........................................................................................................ A-28
ENERGY STAR complied product ......................................................... A-28
Nordic Lithium Cautions (for lithium-ion batteries)...................... A-29
Optical Drive Safety Information ......................................................... A-30
Laser Safety Information......................................................................... A-30
Service warning label............................................................................... A-30
CDRH Regulations ..................................................................................... A-30
Macrovision Corporation Product Notice......................................... A-31
CTR 21 Approval(for Notebook PC with built-in Modem) .......... A-32
Global Environmental Regulation Compliance and
Declaration .................................................................................................. A-34
Copyright Information .............................................................................. A-36
Limitation of Liability................................................................................. A-37
Service and Support................................................................................... A-37

1
Chapter 1:
Introducing the
Notebook PC

6 Notebook PC User Manual
About This User’s Manual
You are reading the Notebook PC User’s Manual.This User’s Manual
provides information regarding the various components in the
Notebook PC and how to use them.The following are major sections
of this User’s Manual:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional
information.
The actual bundled operating system and applications differ by
models and territories.There may be differences between your
Notebook PC and the pictures shown in this manual. Please
accept your Notebook PC as being correct.
Notes for This Manual
A few notes and warnings are used throughout this guide, allowing
you to complete certain tasks safely and effectively.These notes have
different degrees of importance as follows:
WARNING! Important information that must be followed for safe
operation.
IMPORTANT! Vital information that must be followed to prevent
damage to data, components, or persons.
TIP: Tips for completing tasks.
NOTE: Information for special situations.

Notebook PC User Manual 7
Safety Precautions
The following safety precautions will increase the life of the
Notebook PC. Follow all precautions and instructions. Except as
described in this manual, refer all servicing to qualified personnel.
Battery safety warning:
DO NOT throw the
battery in fire. DO NOT
short circuit the contacts.
DO NOT disassemble the
battery.
DO NOT leave the
Notebook PC on your lap
or any part of the body
to prevent discomfort
or injury from heat
exposure.
DO NOT expose to dirty
or dusty environments.
DO NOT operate during a
gas leak.
DO NOT expose to
strong magnetic or
electrical fields.
DO NOT expose to or
use near liquids, rain,
or moisture. DO NOT
use the modem during
electrical storms.
DO NOT press or touch
the display panel. Do not
place together with small
items that may scratch or
enter the Notebook PC.
DO NOT place on
uneven or unstable work
surfaces. Seek servicing
if the casing has been
damaged.
DO NOT place or drop
objects on top and
do not shove any
foreign objects into the
Notebook PC.
Disconnect the AC power and remove the battery pack(s) before
cleaning.Wipe the Notebook PC using a clean cellulose sponge
or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.

8 Notebook PC User Manual
SAFE TEMP:This
Notebook PC should
only be used in
environments with
ambient temperatures
between 10°C (50°F) and
35°C (95°F).
DO NOT carry or cover
a Notebook PC that
is powered ON with
any materials that will
reduce air circulation
such as a carrying bag.
DO NOT throw the Notebook PC in municipal waste.This
product has been designed to enable proper reuse of parts
and recycling.The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste.Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste.The symbol
of the crossed out wheeled bin indicates that the battery
should not be placed in municipal waste.
INPUT RATING: Refer to
the rating label on the
bottom of the Notebook
PC and be sure that your
power adapter complies
with the rating.
Incorrect installation
of battery may cause
explosion and damage
the Notebook PC.
DO NOT use damaged
power cords, accessories,
or other peripherals.
DO NOT use strong
solvents such as
thinners, benzene, or
other chemicals on or
near the surface.

Notebook PC User Manual 9
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC.
3
2
1
13
110V-220V
2

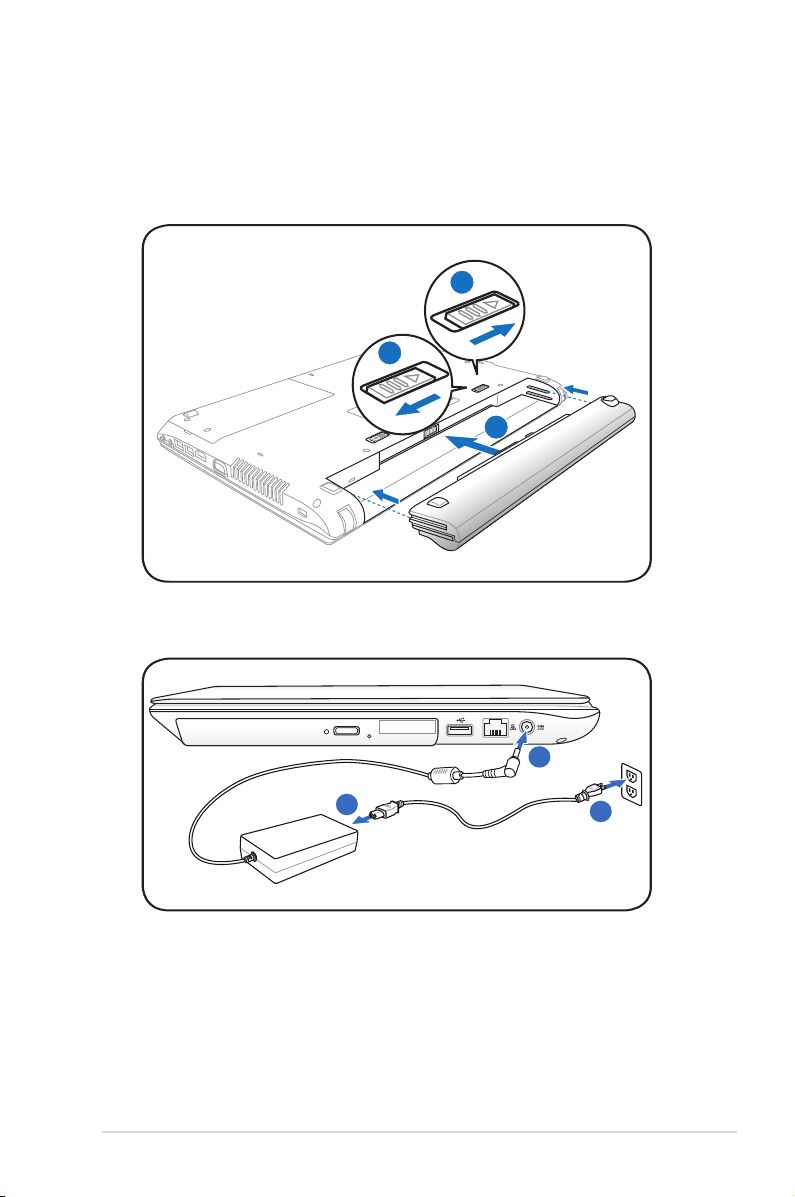

Installing the Battery Pack
Connecting the Power Adapter

10 Notebook PC User Manual
Opening the LCD display panel
1. Carefully lift up the display panel with your thumb.
2. Slowly tilt the display panel forward or backward to a
comfortable viewing angle.
Turning on the Power
1. Push and release the power button located beneath the LCD
display panel.
2. Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.
OFF ON
OFF ON

2
Chapter 2:
Knowing the parts

12 Notebook PC User Manual
Top Side
The keyboard differs for each territory.
4
3
5
6
7
2
1
8
9

Notebook PC User Manual 13
Camera
The built-in camera allows picture taking or video
recording. Can be used with video conferencing and other
interactive applications.
Camera Indicator
The camera indicator shows when the built-in camera is in
use.
Microphone (Built-in)
The built-in mono microphone can be used for video
conferencing, voice narrations, or simple audio recordings.
Display Panel
The display panel functions the same as a desktop monitor.
The Notebook PC uses an active matrix TFT LCD, which
provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce
any radiation or flickering, so it is easier on the eyes. Use
a soft cloth without chemical liquids (use plain water if
necessary) to clean the display panel.
Power Switch
The power switch allows powering ON and OFF the
Notebook PC and recovering from STD. Use the switch once
to turn ON and once to turn OFF the Notebook PC.The
power switch only works when the display panel is opened.
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when
lighted. Capital lock allows some of the keyboard letters to
type using capitalized letters (e.g. A, B, C).When the capital
lock light is OFF, the typed letters will be in the lower case
form (e.g. a,b,c).
1
2
3
4
5
6

14 Notebook PC User Manual
Keyboard
The keyboard provides full-sized keys with comfortable
travel (depth at which the keys can be depressed) and
palm rest for both hands.Two Windows function keys are
provided to help ease navigation in the Windows operating
system.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that
provides the same functions as a desktop mouse. A
software-controlled scrolling function is available after
setting up the included touchpad utility to allow easy
Windows or web navigation.
Status Indicators (front)
Status indicators represent various hardware/software
conditions. See indicator details in Chapter 3.
7
8
9

Notebook PC User Manual 15
Bottom Side
The bottom side may vary in appearance depending on model.
The battery pack size varies depending on model.
WARNING! The bottom of the Notebook PC can get very hot. Be
careful when handling the Notebook PC while it is in operation
or recently been in operation.High temperatures are normal
during charging or operation. Do not use on soft surfaces such
as beds or sofas which may block the vents. DO NOT PUT THE
NOTEBOOK PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO
AVOID INJURY FROM THE HEAT.
2
1
4
5
132

16 Notebook PC User Manual
Battery Lock - Manual
The manual battery lock is used to keep the battery pack
secured. Move the manual lock to the unlocked position to
insert or remove the battery pack. Move the manual lock to
the locked position after inserting the battery pack.
Battery Lock - Spring
The spring battery lock is used to keep the battery
pack secured.When the battery pack is inserted, it will
automatically lock.To remove the battery pack, this spring
lock must be held in the unlocked position.
Battery Pack
The battery pack is automatically charged when the
Notebook PC is connected to an AC power source and
maintains power to the Notebook PC when AC power is
not connected.This allows use when moving temporarily
between locations. Battery time varies by usage and by
the specifications for this Notebook PC.The battery pack
cannot be disassembled and must be purchased as a single
unit.
Memory (RAM) Compartment
The memory compartment provides expansion capabilities
for additional memory. Additional memory will increase
application performance by decreasing hard disk access.
The BIOS automatically detects the amount of memory
in the system and configures accordingly.There is no
hardware or software (including BIOS) setup required
after the memory is installed.Visit an authorized service
center or retailer for information on memory upgrades
for your Notebook PC. Only purchase expansion modules
from authorized retailers of this Notebook PC to ensure
maximum compatibility and reliability.
1
2
3
4

Notebook PC User Manual 17
Hard Disk Drive Compartments
The hard disk drive is secured in a compartment.Visit an
authorized service center or retailer for information on hard
disk drive upgrades for your Notebook PC. Only purchase
hard disk drives from authorized retailers of this Notebook
PC to ensure maximum compatibility and reliability.
5
Right Side
Optical Drive
The Notebook PC comes in various models with different
optical drives.The Notebook PC’s optical drive may support
compact discs (CD) and/or digital video discs (DVD) and
may have recordable (R) or re-writable (RW) capabilities.
See the marketing specifications for details on each model.
Optical Drive Electronic Eject
The optical drive eject has an electronic eject button for
opening the tray.You can also eject the optical drive tray
through any software player or by right-clicking the optical
drive in Windows™ Computer and select Eject.
Optical Drive Emergency Eject
The emergency eject is used to eject the optical drive tray
in case the electronic eject does not work. Do not use the
emergency eject in place of the electronic eject.
1
2
3
2 43 5 61

18 Notebook PC User Manual
4
5
USB Port (2.0)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec
(USB 2.0). USB allows many devices to run simultaneously
on a single computer, with some peripherals acting as
additional plug-in sites or hubs.USB supports hot-swapping
of devices so that most peripherals can be connected or
disconnected without restarting the computer.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11
modem port and supports a standard Ethernet cable for
connection to a local network.The built-in connector allows
convenient use without additional adapters.
Power (DC) Input
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the Notebook PC and charges the
internal battery pack.To prevent damage to the Notebook
PC and battery pack, always use the supplied power
adapter.
The adapter may become warm to hot when in use. Ensure
not to cover the adapter and keep it away from your body.
6

Notebook PC User Manual 19
Left Side
2
Kensington® Lock Port
The Kensington® lock port allows the Notebook PC to
be secured using Kensington® compatible Notebook PC
security products.These security products usually include
a metal cable and lock that prevent the Notebook PC to
be removed from a fixed object. Some may also include a
motion detector to sound an alarm when moved.
Air Vents
The air vents allow cool air to enter and warm air to exit the
Notebook PC.
Ensure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may
occur.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-
compatible device such as a monitor or projector to allow
viewing on a larger external display.
HDMI
HDMI Port
HDMI (High-Definition Multimedia Interface) is an
uncompressed all-digital audio/video interface between
any audio/video source, such as a set-top box, DVD player,
and A/V receiver and an audio and/or video monitor, such
as a digital television (DTV). Supports standard, enhanced,
or high-definition video, plus multi-channel digital audio
on a single cable. It transmits all ATSC HDTV standards and
supports 8-channel digital audio, with bandwidth to spare
to accommodate future enhancements or requirements.
1
HDMI
1 2 43 5 76
3
4

20 Notebook PC User Manual
USB Port (2.0)
(See other side for description.)
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect
the Notebook PC’s audio out signal to amplified speakers
or headphones. Using this jack automatically disables the
built-in speakers.
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to
connect an external microphone or output signals from
audio devices. Using this jack automatically disables the
built-in microphone. Use this feature for video conferencing,
voice narrations, or simple audio recordings.
5
6
7
