Asus U50F Instructions for use

Notebook PC
Hardware User’s Manual
E4603 / December 2010

2
Table of Contents
Contents
1. Introducing the Notebook PC
About This User’s Manual �������������������������������������������������������������������������������6
Notes For This Manual�������������������������������������������������������������������������������������������6
Safety Precautions ������������������������������������������������������������������������������������������7
Preparing your Notebook PC���������������������������������������������������������������������������9
2. Knowing the Parts
Top Side���������������������������������������������������������������������������������������������������������12

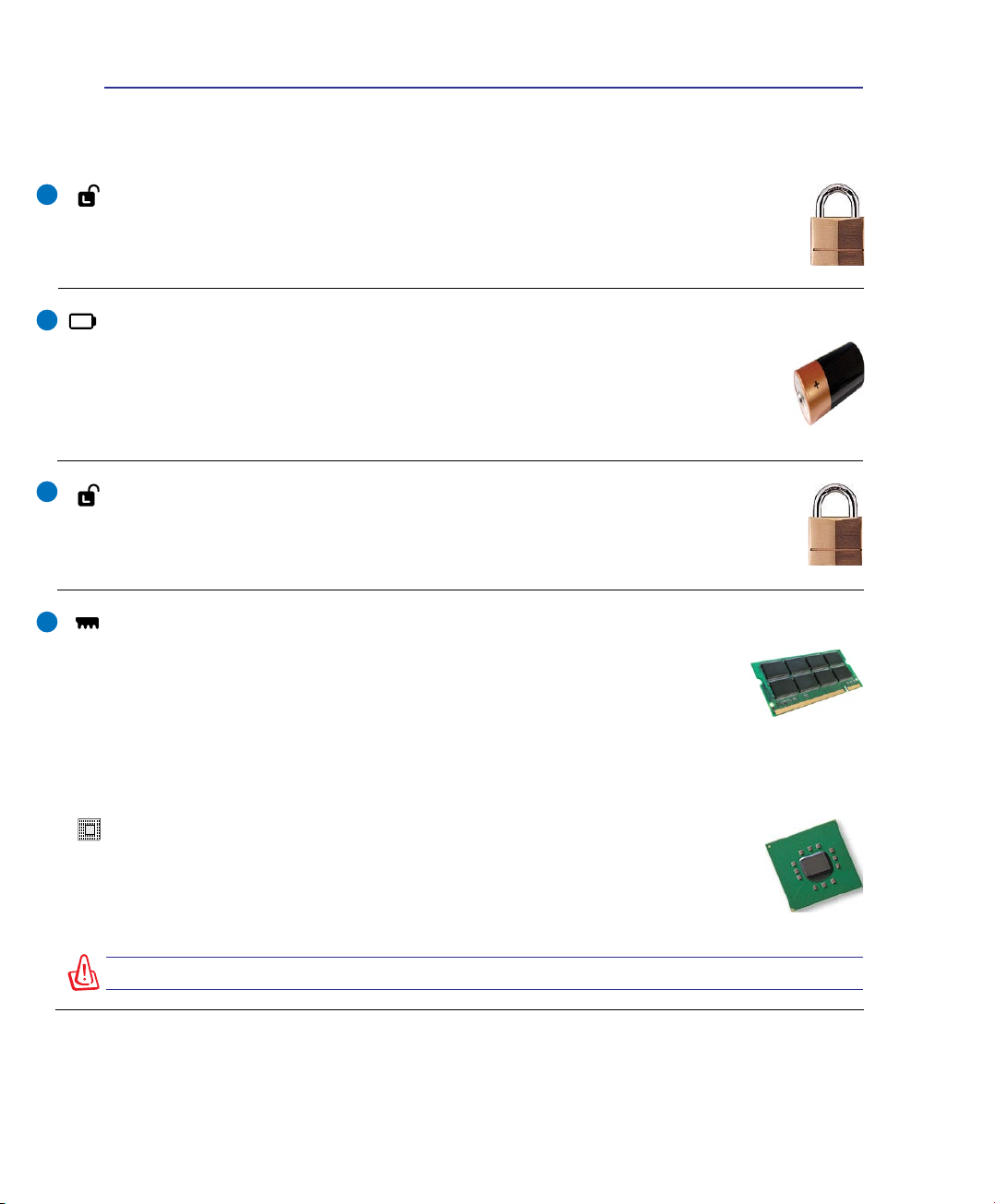

Bottom Side���������������������������������������������������������������������������������������������������15

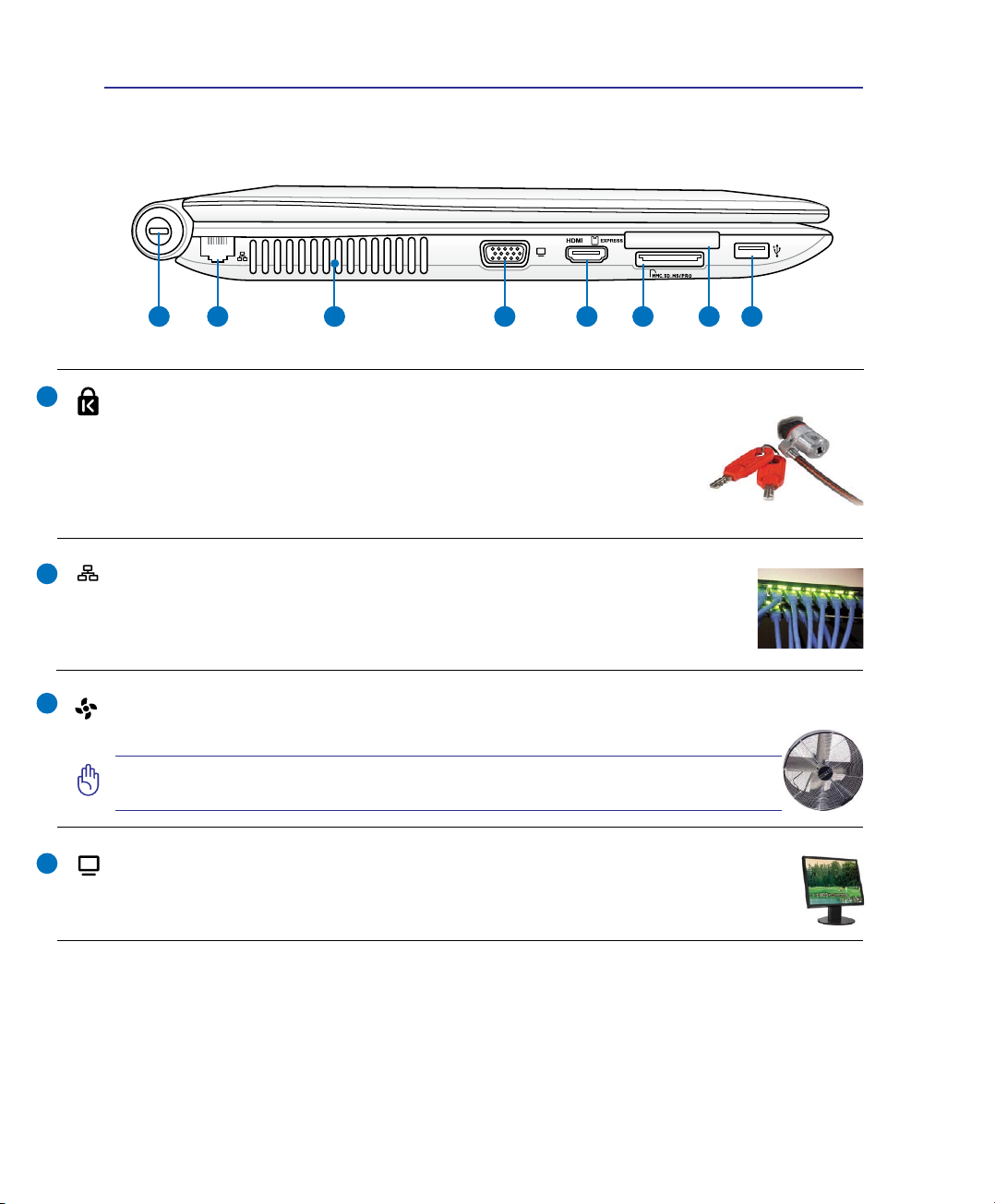

Left Side ��������������������������������������������������������������������������������������������������������18
Right Side������������������������������������������������������������������������������������������������������20
Front Side������������������������������������������������������������������������������������������������������22
3. Getting Started
Power System �����������������������������������������������������������������������������������������������24
Using AC Power��������������������������������������������������������������������������������������������������� 24
Using Battery Power �������������������������������������������������������������������������������������������� 25
Battery Care��������������������������������������������������������������������������������������������������������� 26
Powering ON the Notebook PC ��������������������������������������������������������������������������� 27
The Power-On Self Test (POST)��������������������������������������������������������������������������27
Checking Battery Power �������������������������������������������������������������������������������������� 28
Charging the Battery Pack�����������������������������������������������������������������������������������28
Power Options ����������������������������������������������������������������������������������������������������� 29
Power Management Modes���������������������������������������������������������������������������������30
Sleep and Hibernate ��������������������������������������������������������������������������������������������30
Thermal Power Control����������������������������������������������������������������������������������������30
Special Keyboard Functions��������������������������������������������������������������������������31
Colored Hot Keys������������������������������������������������������������������������������������������������� 31
Extended Keyboard ��������������������������������������������������������������������������������������������� 33
Multimedia Control Keys (on selected models) ���������������������������������������������������34
Switches and Status Indicators ���������������������������������������������������������������������35
Switches���������������������������������������������������������������������������������������������������������������35
Status Indicators �������������������������������������������������������������������������������������������������� 36

3
Table of Contents (Cont.)
Contents
4. Using the Notebook PC
Pointing Device����������������������������������������������������������������������������������������������38
Using the Touchpad ��������������������������������������������������������������������������������������������� 38
Touchpad Usage Illustrations������������������������������������������������������������������������������� 39
Dimming the Touchpad ���������������������������������������������������������������������������������������� 41
Caring for the Touchpad���������������������������������������������������������������������������������������42
Automatic Touchpad Disabling����������������������������������������������������������������������������� 42
Storage Devices ��������������������������������������������������������������������������������������������43
Expansion Card ��������������������������������������������������������������������������������������������������� 43
Optical Drive ��������������������������������������������������������������������������������������������������������44
Flash Memory Card Reader ��������������������������������������������������������������������������������46
Hard Disk Drive���������������������������������������������������������������������������������������������������� 47
Memory (RAM)����������������������������������������������������������������������������������������������������� 49
Connections���������������������������������������������������������������������������������������������������50
Network Connection �������������������������������������������������������������������������������������������� 50
Wireless LAN Connection (on selected models) �������������������������������������������������51
Windows Wireless Network Connection �������������������������������������������������������������� 52
Bluetooth Wireless Connection (on selected models) ����������������������������������������� 53
Appendix
Optional Accessories����������������������������������������������������������������������������������� A-2
Optional Connections ���������������������������������������������������������������������������������������� A-3
Bluetooth Mouse Setup (optional) ��������������������������������������������������������������������� A-4
Operating System and Software������������������������������������������������������������������ A-6
System BIOS Settings ��������������������������������������������������������������������������������������� A-6
Common Problems and Solutions ��������������������������������������������������������������������� A-9
Windows Vista Software Recovery������������������������������������������������������������������ A-16
Glossary ���������������������������������������������������������������������������������������������������� A-18
Declarations and Safety Statements ��������������������������������������������������������� A-22
Notebook PC Information �������������������������������������������������������������������������� A-34

4
Contents

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.

6
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides
information on the various components in the Notebook PC and how to use them. The
following are major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data,
components, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
1Introducing the Notebook PC

7
Introducing the Notebook PC 1

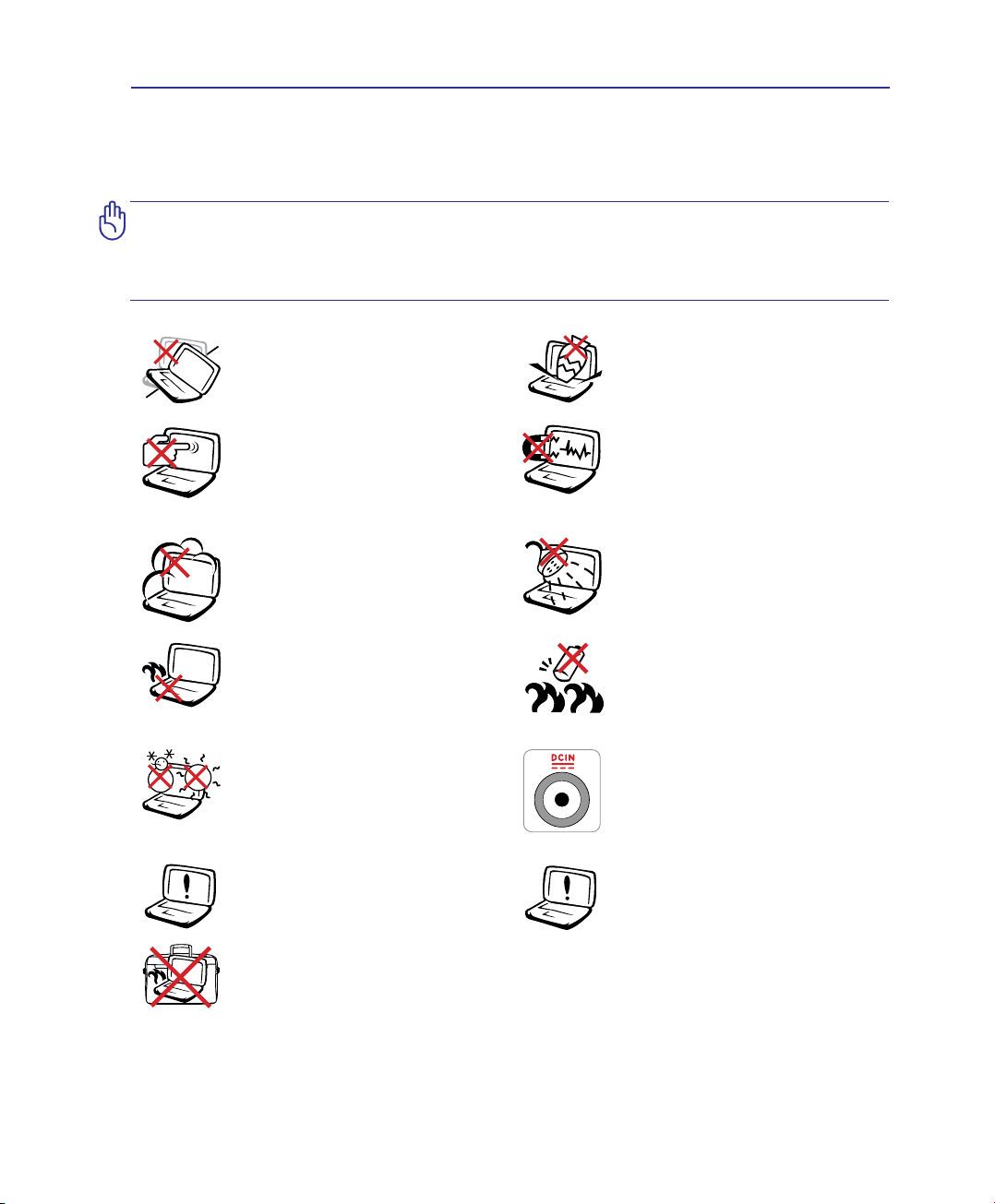

Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before
cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth
dampened with a solution of nonabrasive detergent and a few drops of warm water
and remove any extra moisture with a dry cloth.
DO NOT expose to or use near liquids,
rain, or moisture. DO NOT use the
modem during an electrical storm.
DO NOT expose to dirty or dusty
environments. DO NOT operate
during a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
10°C (50°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in re.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical elds.
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on
top and do not shove any foreign
objects into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will
reduce air circulation such as a carrying bag.
INPUT RATING: Refer to the rating
label on the bottom of the Notebook
PC and be sure that your power
adapter complies with the rating.
DO NOT use damaged power cords,
accessories, or other peripherals.
DO NOT use strong solvents such
as thinners, benzene, or other
chemicals on or near the surface.

8
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people
walking through security checks), and magnetic wands (hand-held devices used on
people or individual items). You can send your Notebook PC and diskettes through
airport X-ray machines. However, it is recommended that you do not send your
Notebook PC or diskettes through airport magnetic detectors or expose them to
magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external
peripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the
power is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you
should not transport the Notebook PC while the power is still ON. Close the display panel and check
that it is latched securely in the closed position to protect the keyboard and display panel.
CAUTION! The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.
1Introducing the Notebook PC
DO NOT throw the Notebook PC in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled
bin indicates that the product (electrical, electronic equipment and mercury-containing
button cell battery) should not be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled
bin indicates that the battery should not be placed in municipal waste.

9
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed
information on using your Notebook PC.
1. Install the battery pack 2. Connect the AC Power Adapter
IMPORTANT! When opening, DO NOT
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
3. Open the Display Panel 4. Turn ON the Notebook PC
The power switch turns ON and OFF the
Notebook PC or putting the Notebook PC into
sleep or hibernation modes. Actual behavior of
the power switch can be customized in Windows
Control Panel > Power Options > System
Settings.
Introducing the Notebook PC 1
2
1
3
1
2
3
110V-220V
ON OFF
ON OFF

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.

12

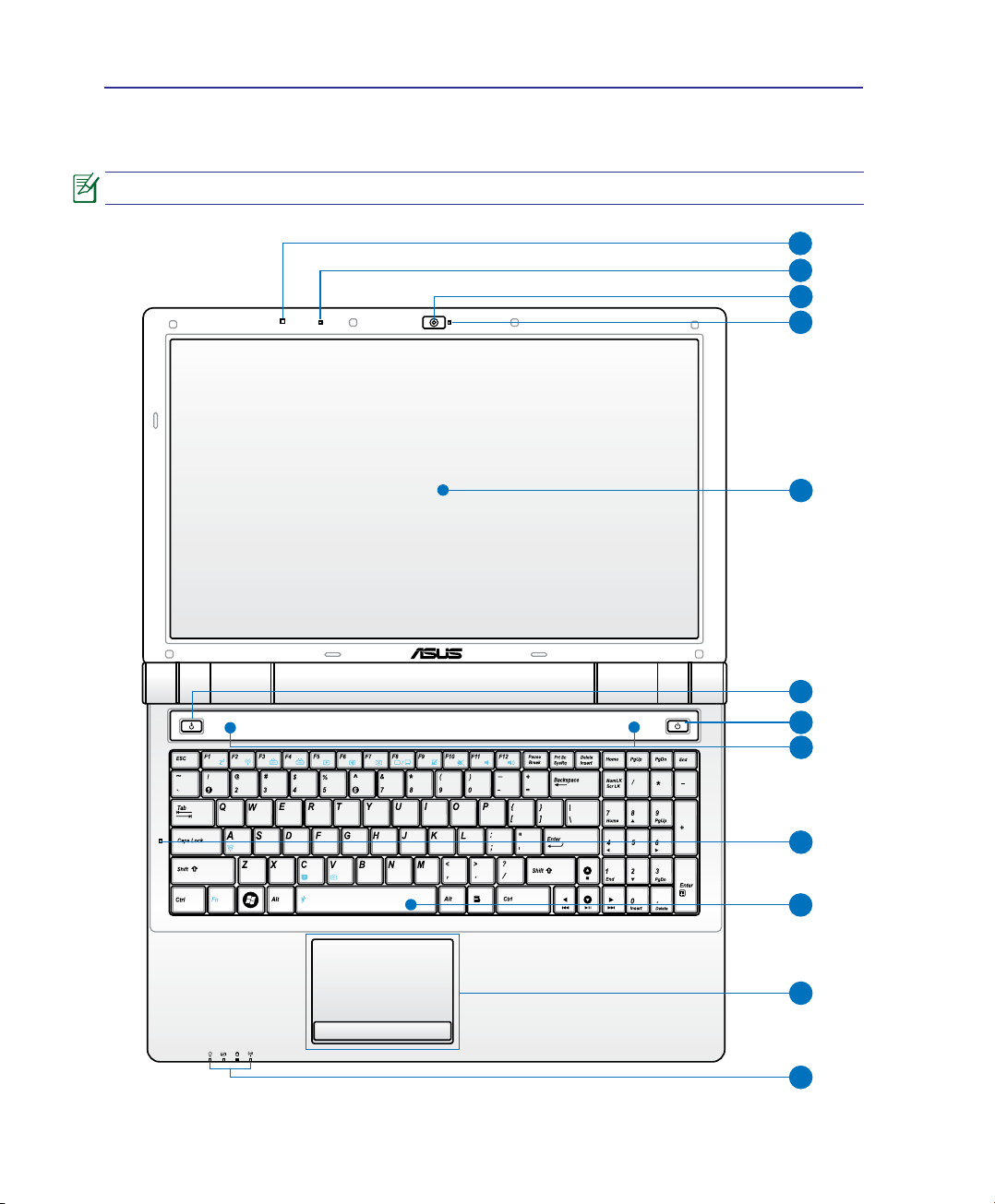

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
The keyboard differs for each territory.
2Knowing the Parts
5
6
7
9
11
12
4
3
1
2
8
10

13
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses
an active matrix TFT LCD, which provides excellent viewing like that of desktop
monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or
ickering, so it is easier on the eyes. Use a soft cloth without chemical liquids (use
plain water if necessary) to clean the display panel.
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video
conferencing and other interactive applications.
Camera Indicator (on selected models)
The camera indicator shows when the built-in camera is in use. The camera may be auto-activated
by supported software.
1
Power Switch
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into
sleep or hibernation modes. Actual behavior of the power switch can be customized in
Windows Control Panel “Power Options.”
2
3
4
5
6
7
Knowing the Parts 2
Express Gate / Power4Gear eXtreme Key
Pressing this button will launch Express Gate when the Notebook PC is powered off.
Details are described in section 3.
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
Light Sensor (on selected models)
The light sensor measures the amount of ambient light and changes the illumination of the LCD display,
keyboard, and touchpad accordingly.

14
Illuminate Interactive Touchpad and Buttons (on selected models)
The illuminate interactive touchpad with its buttons is a pointing device that provides the
same functions as a desktop mouse. A software-controlled scrolling function is available
after setting up the included touchpad utility to allow easy Windows or web navigation.
The touchpad automatically adjusts the brightness when the light sensor is turned on. You
can disabled the touchpad function to dim the touchpad.
Status Indicators (front)
Status indicators represent various hardware/software conditions. See indicator details in
section 3.
2Knowing the Parts
8
9
10 Illuminate Keyboard (on selected models)
The illuminate keyboard provides full-sized keys with comfortable travel (depth at
which the keys can be depressed) and palm rest for both hands. Two Windows function
keys are provided to help ease navigation in the Windows operating system. The
keyboard automatically adjusts the brightness when the light sensor is turned on. Or,
you can use functions keys to manually increase and decrease the keyboard lightness.
11
Capital Lock Indicator
Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows some of
the keyboard letters to type using capitalized letters (e.g. A, B, C). When the capital lock light is
OFF, the typed letters will be in the lower case form (e.g. a,b,c).
Audio Speaker
The built-in stereo speaker system allows you to hear audio without additional
attachments. The multimedia sound system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with external stereo headphones or
speakers). Audio features are software controlled.
12

15
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling
the Notebook PC while it is in operation or recently been in operation. High temperatures
are normal during charging or operation. Do not use on soft surfaces such as beds or
sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR LAP
OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
The bottom side may vary in appearance depending on model.
The battery pack size varies depending on model.
Knowing the Parts 2
21 3
4
5

16
Central Processor Unit (CPU) Compartment
Some Notebook PC models feature a socketed-processor design to allow upgrading to
faster processors in the future. Some models feature a ULV design for compactness and
may not be upgraded. Visit an authorized service center or retailer for information on
upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory.
Additional memory will increase application performance by decreasing hard disk
access. The BIOS automatically detects the amount of memory in the system and
congures accordingly. There is no hardware or software (including BIOS) setup
required after the memory is installed. Visit an authorized service center or retailer for information on
memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers
of this Notebook PC to ensure maximum compatibility and reliability.
1
2
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is
inserted, it will automatically lock. To remove the battery pack, this spring lock must be held
in the unlocked position.
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled
and must be purchased as a single unit.
4
2Knowing the Parts
3Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the
unlocked position to insert or remove the battery pack. Move the manual lock to the locked
position after inserting the battery pack.

17
5
Knowing the Parts 2
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Visit an authorized service center or retailer
for information on hard disk drive upgrades for your Notebook PC. Only purchase hard disk
drives from authorized retailers of this Notebook PC to ensure maximum compatibility and
reliability.

18
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
2
3
4
2Knowing the Parts
1
1 2 3 4 5 7 86
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Ensure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may occur.
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®
compatible Notebook PC security products. These security products usually include
a metal cable and lock that prevent the Notebook PC to be removed from a
xed object. Some may also include a motion detector to sound an alarm when
moved.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports
a standard Ethernet cable for connection to a local network. The built-in connector
allows convenient use without additional adapters.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a
monitor or projector to allow viewing on a larger external display.

19
ExpressCard Slot
One 26pin Express card slot is available to support one ExpressCard/34mm expansion card. This
new interface is faster by using a serial bus supporting USB 2.0 and PCI Express instead of the
slower parallel bus used in the PC card slot. (Not compatible with previous PCMCIA cards.)
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many
devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or
disconnected without restarting the computer.
5
6
Knowing the Parts 2

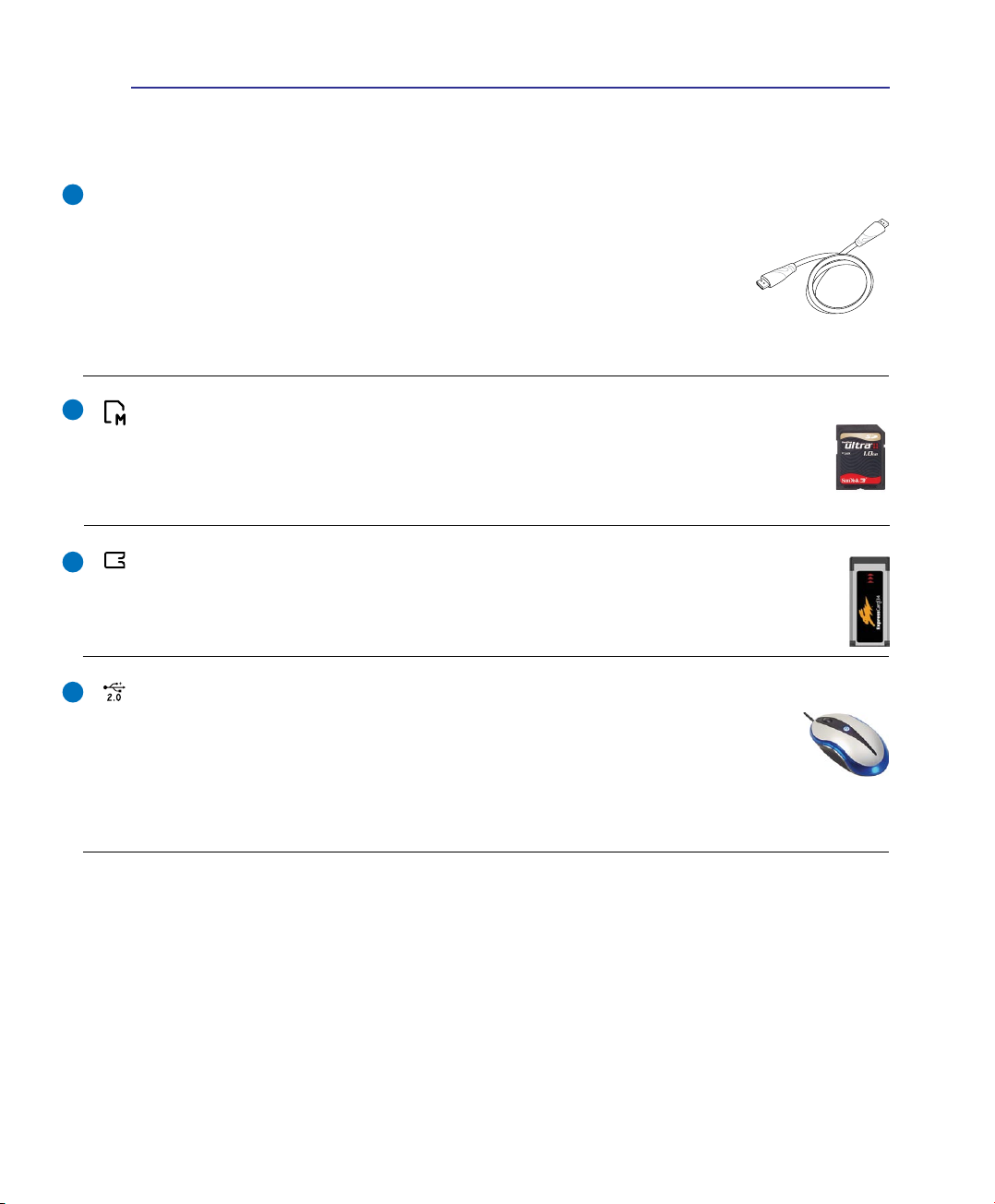

HDMI Port (on selected models)
HDMI (High-Denition Multimedia Interface) is an uncompressed all-digital
audio/video interface between any audio/video source, such as a set-top box,
DVD player, and A/V receiver and an audio and/or video monitor, such as a
digital television (DTV). Supports standard, enhanced, or high-denition video,
plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV
standards and supports 8-channel digital audio, with bandwidth to spare to
accommodate future enhancements or requirements.
HDMI
Flash Memory Slot
Normally an external memory card reader must be purchased separately in order to use
memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.
This Notebook PC has a built-in high-speed memory card reader that can conveniently read
from and write to many ash memory cards as mentioned later in this manual.
7
8

20
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
1
2
3
4
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output
signals from audio devices. Using this jack automatically disables the built-in microphone. Use
this feature for video conferencing, voice narrations, or simple audio recordings.
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many
devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or
disconnected without restarting the computer.
2Knowing the Parts
1 2 3 4536
E-SATA Port
External SATA or eSATA allows external connection of Serial-ATA devices originally
designed for use inside the computer. It is up to six times faster than existing USB 2.0,
& 1394 for external storage solutions and is also hot pluggable using shielded cables
and connectors up to two meters.
E-SATA
Other manuals for U50F
1
Table of contents
Other Asus Laptop manuals

Asus
Asus Eee PC 1001HT User manual

Asus
Asus BT-183 User manual

Asus
Asus ROG Zephyrus M G Series User manual

Asus
Asus NX90JQ User manual

Asus
Asus L403S Guide

Asus
Asus 1008HA - Eee PC Seashell User manual

Asus
Asus N71JQ User manual

Asus
Asus Transformer Book T100T User manual

Asus
Asus K95VM User manual

Asus
Asus F5Z Instructions for use

Asus
Asus Z61A Instructions for use

Asus
Asus UX301 Series Guide

Asus
Asus E10295 User manual

Asus
Asus Eee PC 4G (701) User manual

Asus
Asus S1A User manual

Asus
Asus B53E User manual

Asus
Asus Eee PC 1215B User manual

Asus
Asus S96S Series Installation guide

Asus
Asus Eee PC 2G Series Operating manual

Asus
Asus Z62F Instructions for use
