Asus Clique R100 User manual

Clique R100
Wireless Music Streamer
User Guide
WARNING! This product may contain chemicals known to the State
of California to cause cancer, birth defects, or other reproductive harm.
Wash hands after handling.
FCC ID: PPD-CUS227
XXX-
XXXXXXX
CCAI13LP1670T4
IC: 4104A-CUS227
E10724 / First Edition / August 2015

2 Clique R100 User Guide
Contents
Safety information .................................................................... 3
Product features ....................................................................... 3
Specications............................................................................. 4
Package contents....................................................................... 4
System requirements ................................................................ 4
I/O description ........................................................................... 5
Connecting speakers/ audio System........................................ 6
Connecting to Wi-Fi home network ......................................... 6
Playing music on your mobile device ...................................... 8
Streaming music from your home network .......................... 11
Playing music from music services ........................................ 12
Connecting to Spotify ............................................................ 13
Multi-zones .............................................................................. 14
Multi-room (Party mode) ........................................................ 14
Settings .................................................................................... 15
Firmware upgrade ................................................................... 16

3 Clique R100 User Guide
Safety information
1. Read and keep these instructions for future reference.
2. Follow all instructions and take note of all warnings.
3. Do not use this apparatus near water or expose the device to moisture.
4. Clean machine surface with a cloth. Avoid using detergent or cleaning
uid.
5. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
7. The polarized or grounding-type plug is for user safety. A polarized plug
has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the outlet.
8. Protect the power cord from being stepped on or compressed particularly
at the point where it exits from the apparatus.
9. Only use attachments/accessories approved by the manufacturer.
10. Unplug this apparatus during lightning storms or when not in use for a
long period of time.
11. Refer all repairs to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
12. Do not attempt to repair or disassemble this product. Consult ASUS
Service Center (http://www.asus.com/support/) for support.
Product features
• Wirelessmusic-streamingsolutionpoweredbytheAllPlaysmartmedia
platform
• Supportshigh-denition192KHz/24-bitaudio,multipleaudioformats,and
a wide range of popular online music services including Spotify
• Exclusivesynchronizationtechnologyenablesmusictobeplayed
seamlessly across multiple rooms
NOTE: For details about multiple rooms, refer to the section Multi-room
(Party mode).

4 Clique R100 User Guide
Specications
• Wi-Fi Platform: QCA 802.11a/b/g/n AllPlay module
• Line Output: Stereo audio output with 3.5mm connector (AUX, S/PDIF)
• Supported Audio Formats*:PCM(~192K),MP3(CBR~320K,VBR~260K),
WAV(~192K),FLAC(~192K),ALAC(~192K),AIFF(~48K),AAC(~320K),AAC
HE(~48K),AAC+(~48K)
• Dimension: 90 x 59.5 x 15 mm
• Weight: 65 g
NOTE: *Ensurethatyourmobiledevicesupportstheaudioformatto
successfully stream audio les.
Package contents
This package should contain the following:
• ASUSCliqueR100WirelessMusicStreamerx1
• S/PDIFadapterx1
• Poweradapterx1
• Multi-languageQSGx1
System requirements
• Mobiledevice(oniOS6.0andAndroid2.3.3orlater)withAllPlayJukebox
app
• 802.11a/b/g/nAccessPoint(802.11nisrecommendedforbeststreaming
quality)
• WPA2andmixedmode;WPA2/WPAcompliant
• SpeakersoraudiosystemwithAUXorS/PDIFinterface

5 Clique R100 User Guide
I/O description
1. AUX/SPDIF 3.5 mm connector
2. Micro USB connector for charging (5V/1A)
3. Standby/Reset button
• Standby state: Press the button for 0.5 to 1 second, then release it. To
wake up the device, press the button again.
• Reset state: Press the button for 4 to10 seconds, then release it.
LEDindications
• Rapidly ashing blue/green: Power on
• Rapidly ashing blue:Enteringresetmode
• Slowly ashing green:Notconnectedtothehomenetwork;reset
mode*
• Solid green: Connected to the home network
• Solid blue: Reset mode
• LED o: Standby mode
NOTE:*YoucanseeR100labeledasAllplay_xxxxxx_AJonyourlistof
available Wi-Fi networks.

6 Clique R100 User Guide
Connecting to Wi-Fi home network
To connect to Wi-Fi home network:
1. Connect your R100 to your audio system and plug to a power source.
2. WaituntiltheLEDturnsintoslowlyashinggreentoindicatethatitison
setup mode.
3. On your mobile device, connect to your
R100 labeled as Allplay_xxxxxx_AJ
(xxxxxx:MAC) on your list of available
Wi-Fi networks.

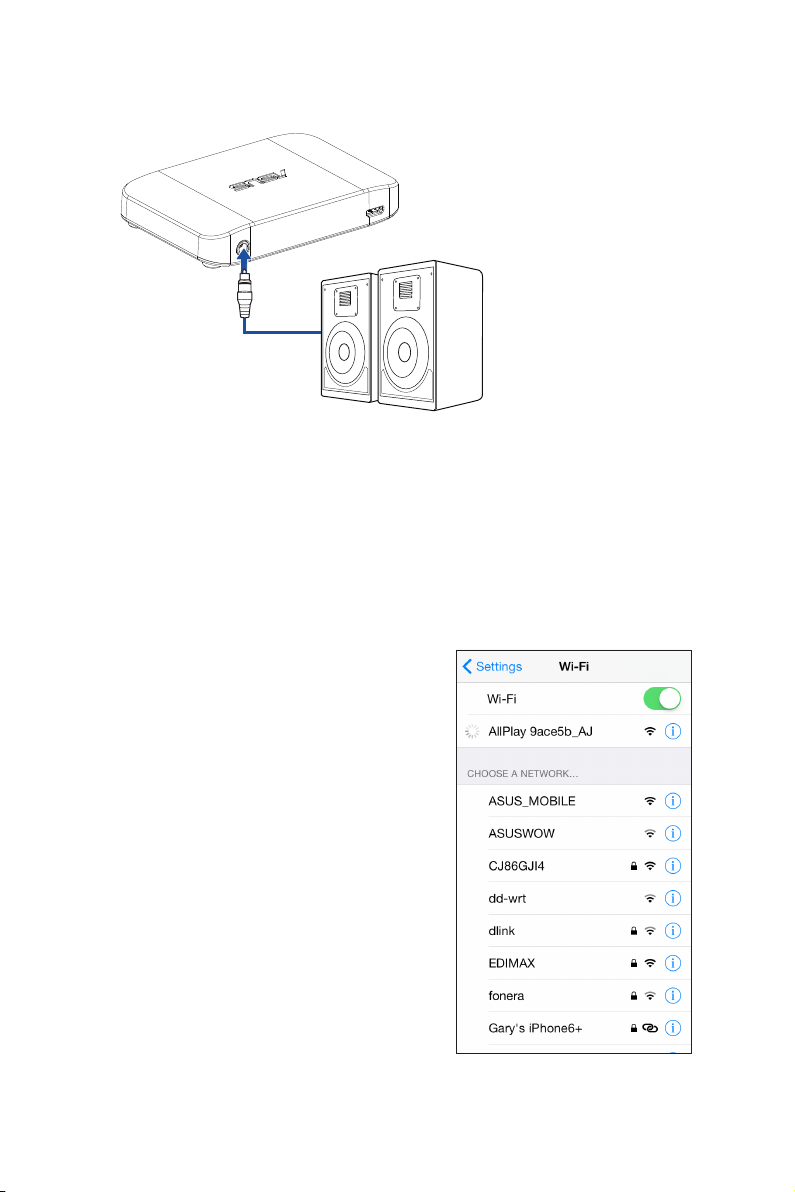

Active Speaker System
Connecting speakers/ audio System

7 Clique R100 User Guide
4. Launchawebbrowserandenterhttp://172.19.42.1
NOTE: On some mobile devices, the web browser launches
automatically.
5. Assign a unique name for your R100 to
identifyitintheAllPlayJukeboxapp.
6. Connect your R100 to your network. The
LEDturnstosolidgreentoindicatea
successful connection.
7. Ensurethatyourmobiledeviceis
connected to the same network as your
R100.

8 Clique R100 User Guide
Playing music on your mobile device
To play music on your mobile device:
1. On your mobile device, download and install the free AllPlay Jukebox
appfromGooglePlayorAppStore.
2. LaunchAllPlay Jukebox on your mobile device and wait for your R100 to
display.
NOTES:
• AlistofallavailableCliqueR100orAllPlay-compatibledevicesis
displayed.
• Dependingonthenetworkspeed,itmaytakeaboutoneminutefor
the list of available devices to display.
3. Tap the device that you want to play
music to.

9 Clique R100 User Guide

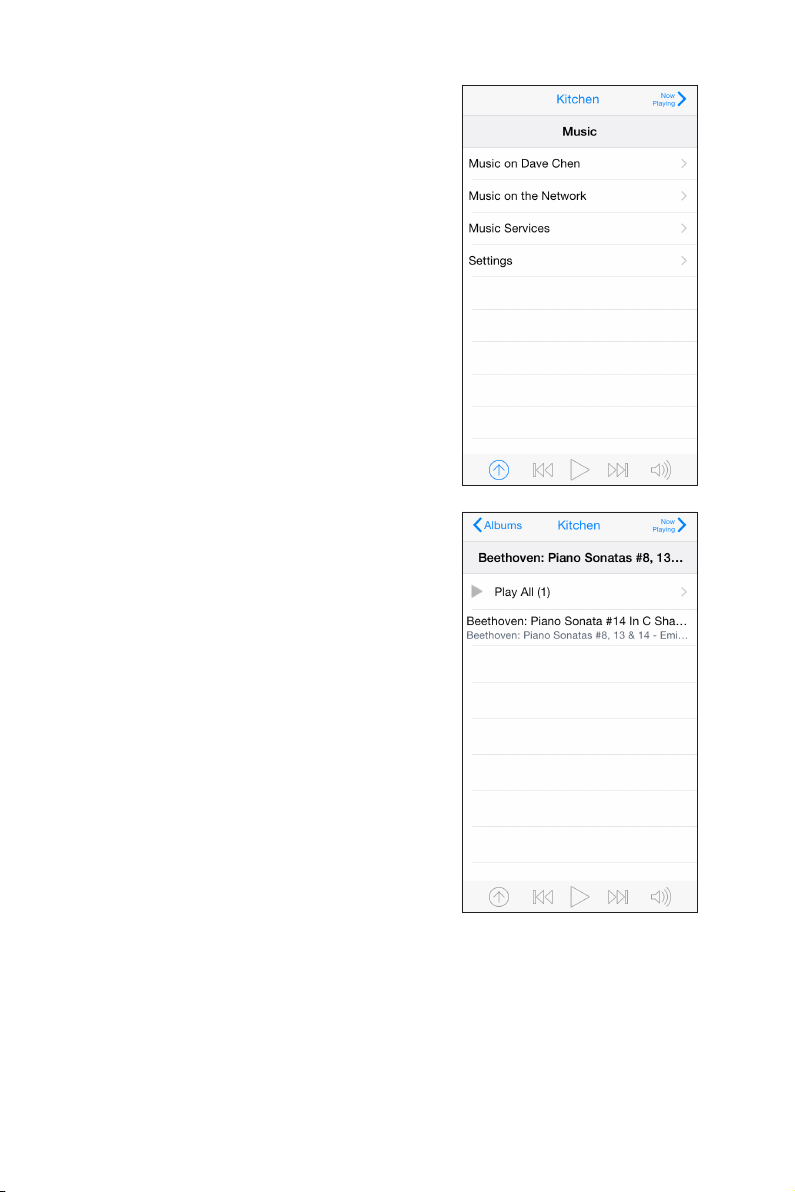

4. Tap Music on xxx (xxx stands for your
mobile device’s name). All the songs on
your mobile device are displayed.
5. Browsethelistandaddthesongsyou
want to play to your playlist.

10 Clique R100 User Guide
6. From your playlist, tap the song that
you want to stream, then tap any of
the following:
• Play Now: Plays the selected song
immediately.
• Play Next: Plays the next song after
the selected song.
• Play Last: Plays the song at the end
of the playlist.
• Cancel: Cancels playback of the
selected song.
Tap to toggle between the playlist and
the currently-playing song
Currently playing screen overview
Tap to repeat the current song
Tap to play or pause the song
Tap to play the next song
Tap to turn on/o the volume
adjustment bar
Drag to adjust the volume
Tap to enable/disable the Shue function
Drag to adjust the timeline
Tap to return to Select a player screen
Tap to return to the previous page
Tap to play the previous song

11 Clique R100 User Guide
Streaming music from your home network
With Clique R100, you can stream music from devices on your network such as
NAS devices, computers, or music servers.
To stream music from your home network:
1. Ensurethatyourcomputerorotherdevicesareconnectedtothesame
Wi-Fi network as Clique R100.
2. Tap Music on the Network, then select
the device you want to access your songs
from.
Streaming music from your
computer
To stream music from your computer:
1. LaunchWindows®MediaPlayer.
2. ClickthearrowbelowtheLibrarytab,thenclickMedia Sharing.
3. In the Media Sharing dialog box, select the Share my media check box.
NOTES:
• Whenyouareconnectedtoapublicnetwork,youmaynotbeable
to select the Share my media check box. For safety purposes, media
sharing is automatically turned o when you are connected to a
public network. When you are connected to a domain network,
your network administrator can prevent you from turning on media
sharing.
• Supportedmusicletypes:WindowsMediaAudio(.wma),MP3
(.mp3),andWAV(.wav)les.
• YoucannotstreammusicfromCDs/DVDsinsertedintoyour
computer.

12 Clique R100 User Guide
Playing music from music services
When prompted, install the app for your selected music service. Once the app
is installed, you will be able to stream the music of the selected music service
fromtheAllPlayJukeboxapp.
Supported music services:
• AllPlayRadio(poweredbyTuneIn)
• AstroPlayer(musicplayer)
• Aupeo
• Dar.fm
• Doubletwist(musicplayer)
• Napster
• Rhapsody(onlyintheUS)
• SomaFM
• Spotify(onlyinEuropeandtheUS)

13 Clique R100 User Guide
Notes:
• TheAllPlayappandCliqueR100areonlycompatiblewithmusic
services for iOS and Android platforms.
• Youcanuseanyofthesemusicserviceappsindependentlyfrom
AllPlayJukebox.AllPlayJukeboxonlyoersaviewofallthemusic
services compatible with Clique R100.
• Thegroupingandmulti-streamfeaturesarenotavailableforallmusic
services.
• Ifyouhaveanyquestionrelatedtoamusicservicefeature,please
contact the corresponding music service directly.
• VisittheCliqueR100productpageatwww.asus.com to get the latest
list of compatible music services.
Connecting to Spotify
1. Connect your Clique R100 and your
mobile device, such as mobile phone or
tablet, to the same Wi-Fi network.
2. LaunchSpotifyanddoanyofthefollowing:
 • Onyourmobilephone,tapthesongimageatthelowerleftofthe
screen.
 • Onyourtablet,tap . Select your Clique R100 from the device list. If
you cannot see it, ensure that your Clique R100 and mobile device are
connected to the same Wi-Fi network.
NOTE: Spotify is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses

14 Clique R100 User Guide
Multi-zones
You can stream music from dierent devices to other Cligue R100 or AllPlay-
compatible devices that are connected to the same Wi-Fi network.
Multi-room (Party mode)
Multi-room/ Party mode needs two or more Clique R100 connected to the same
network. It supports up to 10 Clique R100 in 300Mbps network. We recommend
that you use two (2) to four (4) Clique R100 for better performance.
Notes:
• AlldevicesmustbeconnectedtothesameWi-Finetwork.
• BeforeusingtheMulti-room/Partmode,ensurethatyouconnecttoa
5GHznetwork(5GHzrouter)forafastnetworkspeedperformance.
• Whenstreaminghigh-resolution/high-denitionmusic,we
recommend that you use only two (2) Clique R100 and connect to a
5GHznetwork.
To use multi-room:
1. Tap the device name on the top of your
screen to display the device list.
2. Tap Group beside a device name.

15 Clique R100 User Guide
3. From the next screen, select the audio devices that you want to group,
then tap Done. The device group works as a single device.
When you tap the volume control button , a screen appears allowing
you to adjust the volume for each device independently.
Settings
The settings screen provides access to various system settings.
Displays the IP address assigned to the
audio device by your router
Tap to rename your Clique R100 device,
restart AllPlay Jukebox, or the player
Tap to check for rmware updates
Displays the signal strength received by
Clique R100

16 Clique R100 User Guide

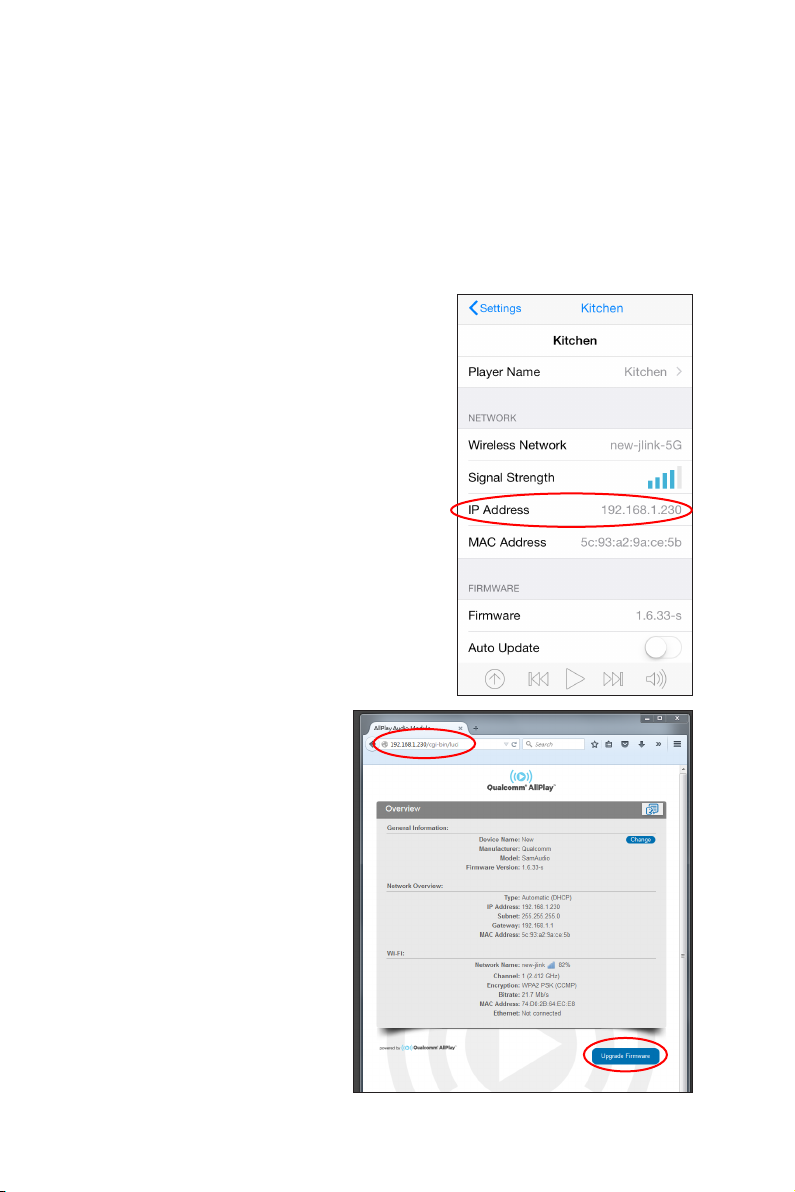

3. LaunchAllPlayJukebox’sSettingspageto
nd the IP address of Clique R100.
4. From your computer, launch
a web browser and enter
the IP address of Clique
R100.
5. Click Upgrade Firmware.
Firmware upgrade
To upgrade the rmware:
1. From your computer, go the Clique R100 product page to download the
latest rmware version.
2. Ensurethatyourcomputerisconnectedtothesamenetworkasyour
Clique R100.

17 Clique R100 User Guide

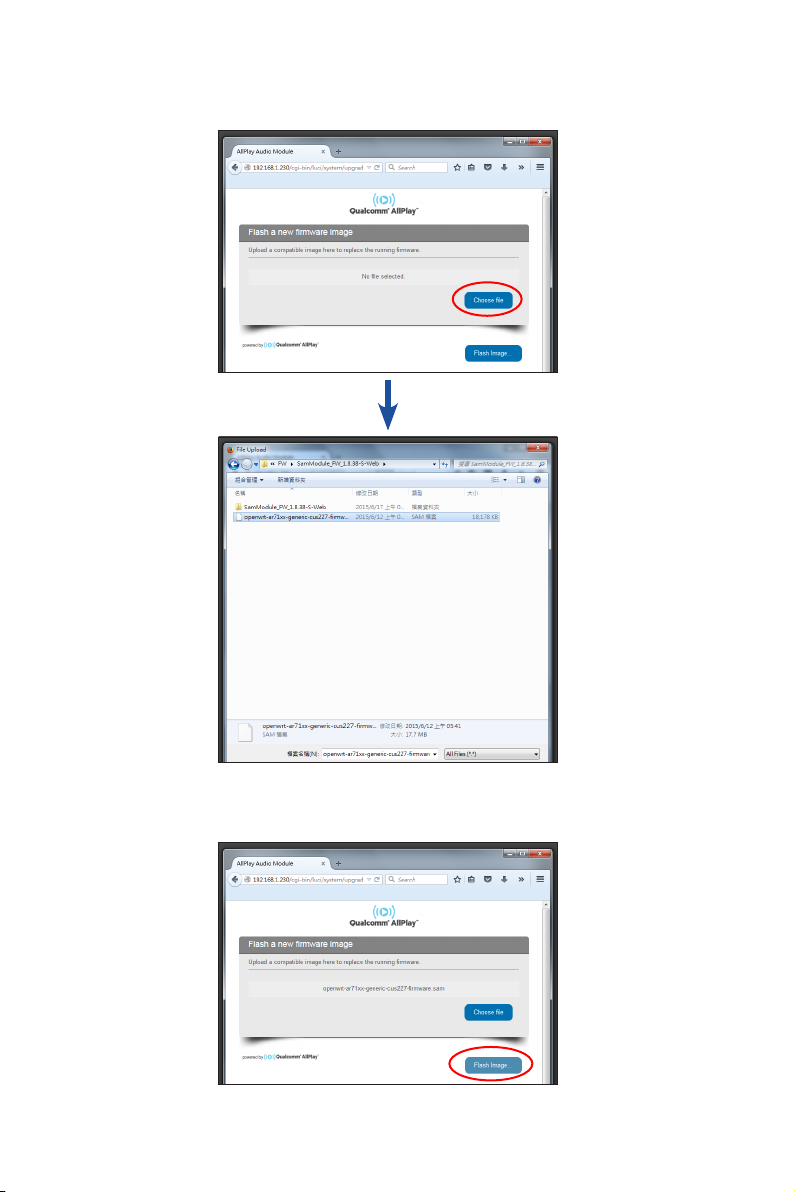

6. Click Choose le and locate the latest rmware le that you downloaded
earlier.
7. Click Flash Image and it takes about one (1) minute to upload the
rmware le to your Clique R100.

18 Clique R100 User Guide
8. Click Proceed to install the rmware.
9. When rmware upgrade is completed, Clique R100 restarts automatically.
10. LaunchawebbrowserandentertheIPaddressofCliqueR100tocheck
that the latest rmware version has been upgraded successfully.
