Asus VK221S User manual

LCD Monitor
User Guide
January 2008
E3621 V1
VK221/VK222 Series

ii
Copyright © 2008ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means,
except documentation kept by the purchaser for backup purposes, without the express written permission
of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY
OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Table of contents
Notices......................................................................................................... iii
Safety information ...................................................................................... iv
Care & Cleaning .......................................................................................... v
Chapter 1: Product introduction
1.1 Welcome! .................................................................................... 1-1
1.2 Package contents......................................................................... 1-1
1.3 Assembling the monitor base..................................................... 1-2
1.4 Monitor introduction .................................................................... 1-3
1.4.1 Front of the LCD monitor ................................................ 1-3
1.4.2 Rear of the LCD monitor ................................................ 1-5
Chapter 2: Setup
2.1
Adjusting the monitor..................................................................
2-1
2.2
Detaching the arm/stand (for VESA wall mount).......................
2-2
Chapter 3: General Instruction
3.1 OSD (On-Screen Display) menu ................................................ 3-1
3.1.1 How to recongure.......................................................... 3-1
3.1.2 OSD Function Introduction.............................................. 3-1
3.2 Specications summary.............................................................. 3-4
3.3 Troubleshooting (FAQ) ................................................................ 3-5
3.4 Supported operating modes ....................................................... 3-6

iii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’
s instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
As an Energy Star® Partner, our company has determined that this product meets
the Energy Star® guidelines for energy efciency.

iv
Safety information
• Before setting up the monitor, carefully read all the documentation that came
with the package.
• To prevent re or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the
monitor may result in serious physical injury.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or over a
radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power standard.
• Do not overload power strips and extention cords. Overloading can result in re
or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in
any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period
of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor
cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed computers
which have appropriate congured receptacles marked between 100-240V AC.
• If you encounter technical problems with the monitor, contact a qualied service
technician or your retailer.

v
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the cables
and power cord. Follow the correct lifting techniques when positioning the
monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor
surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed
with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended
for use with the LCD. Never spray cleaner directly on the screen, as it may drip
inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• The screen may icker during the initial use due to the nature of the uorescent
light. Turn off the Power Switch and turn it on again to make sure that the
icker disappears.
• You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous
screen may remain after switching the image. The screen will recover slowly or
you can turn off the Power Switch for hours.
• When the screen becomes black or ashes, or cannot work anymore, contact
your dealer or service center to x it. Do not repair the screen by yourself!
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying
to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.

vi
Where to nd more information
Refer to the following sources for additional information and for product and
software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation, such as warranty
card, that may have been added by your dealer. These documents are not
part of the standard package.

1-1
1.1 Welcome!
Thank you for purchasing the ASUS®
The latest widescreen LCD monitor from ASUS provides a crisper, broader, and
brighter display, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual
1.2 Package contents
LCD monitor
Support CD
Quick Start Guide
1 x Power cord
1 x VGA cable
1 x DVI cable (Only for some models)
1 x Audio cable (Only for some models)
If any of the above items is damaged or missing, contact your retailer
immediately.
Monitor base
1 x WebCam USB cable
VK221/VK222 Series LCD monitor!
experience that the VK221/VK222 Series brings you!
Check your VK221/VK222 Series LCD package for the following items:
ASUS LCD Monitor VK221/VK222 Series

1-2 Chapter 1: Product introduction

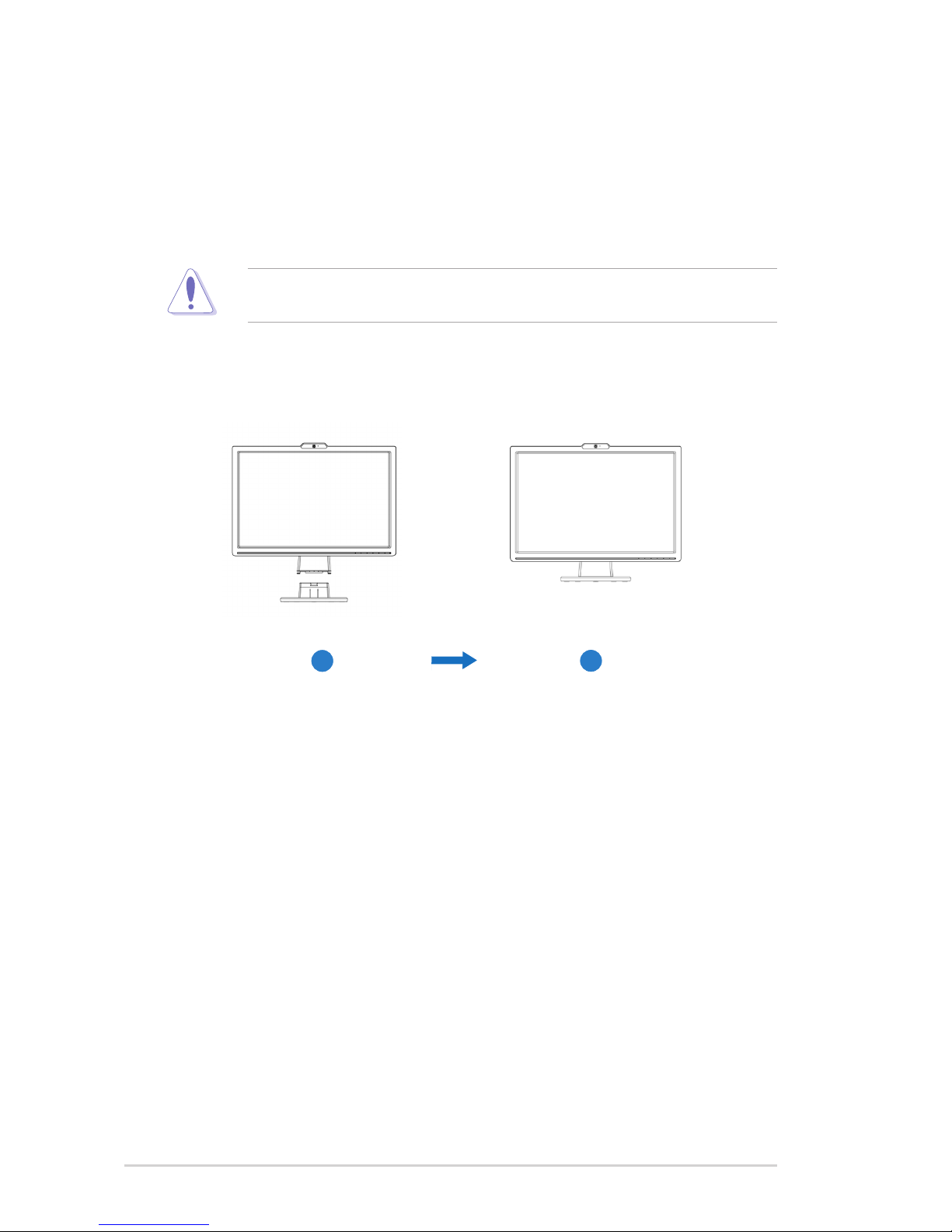

1.3 Assembling the monitor base
To assemble the monitor base:
1. Connect the base with the monitor. A click indicates that the base has been
connected successfully.
2. Adjust the monitor to the angle that is most comfortable for you.
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
2
1

1-3
1.4 Monitor introduction

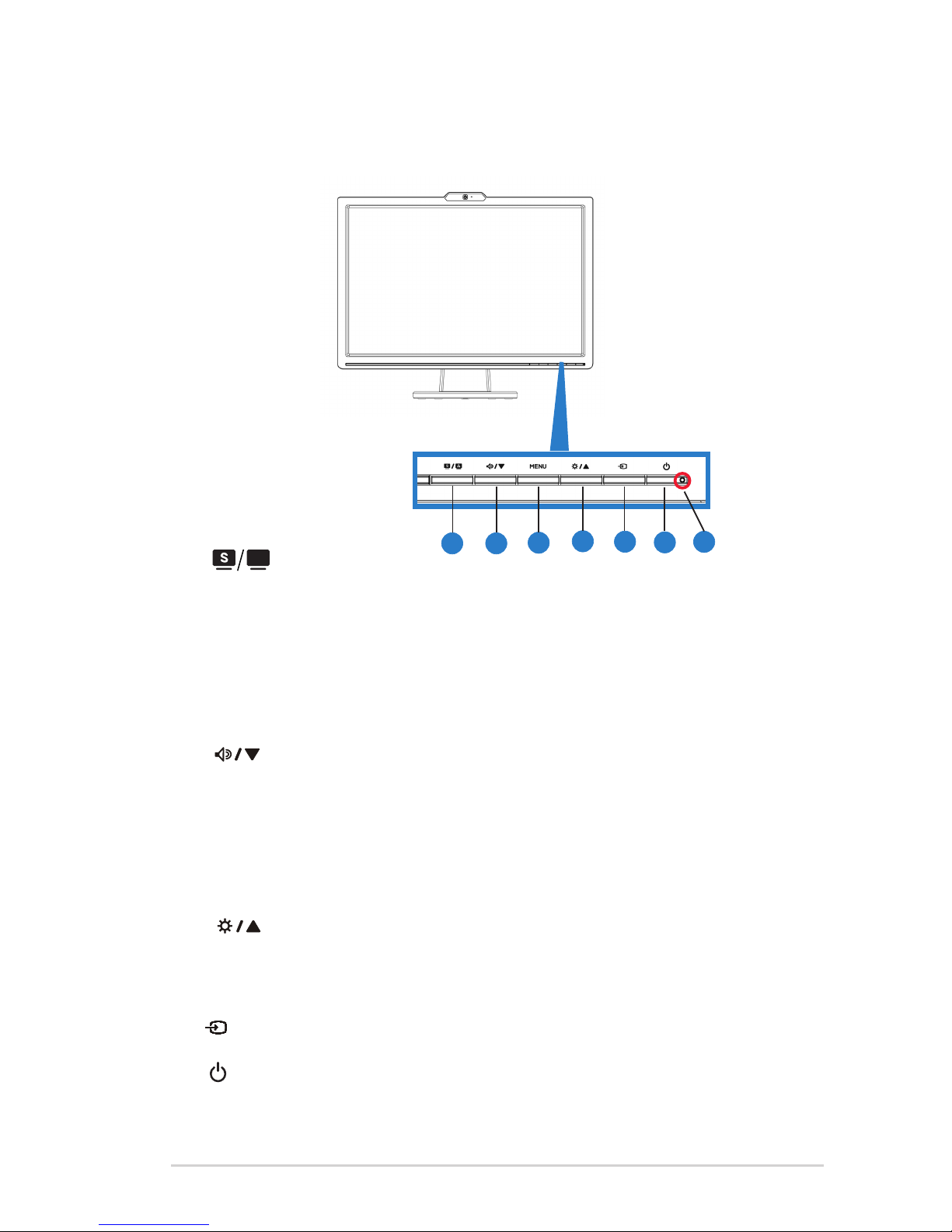

1.4.1 Front of the LCD monitor
1. button:
• Automatically adjust the image to its optimized position, clock, and phase
by long pressing this button for 2-4 seconds (for VGA mode only).

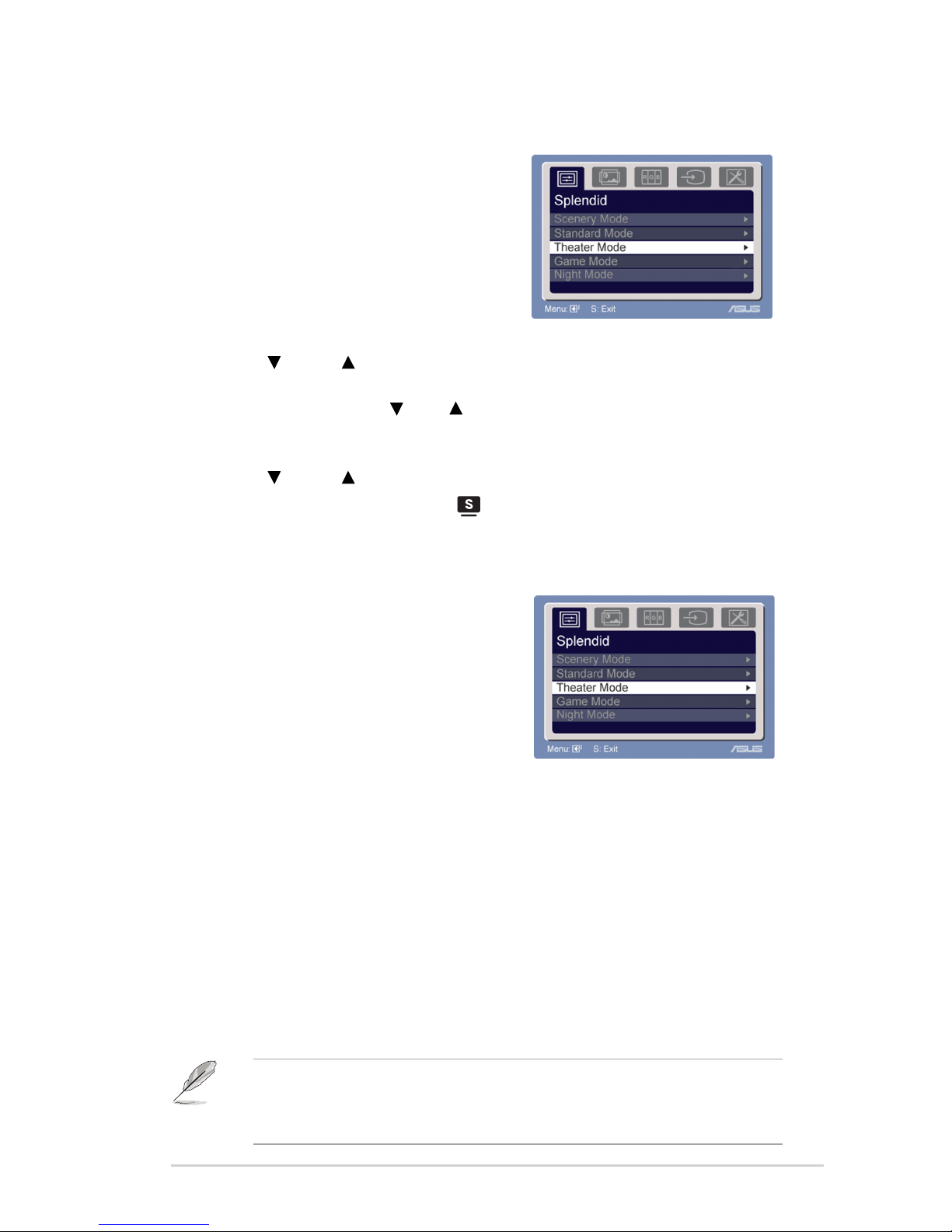

• Use this hotkey to switch from five video preset modes (Game
Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode)
with SPLENDID™ Video Enhancement Technology.
• Exit the OSD menu or go back to the previous menu as the OSD
menu is active.
2. Button:
• Press this button to decrease the value of the function selected
or move to the next fuction.
• This is also a hotkey for Volume adjustment.
3. MENU Button:
• Press this button to enter/select the icon (function) highlighted
while the OSD menu is activated.
4. Button:
• Press this button to increase the value of the function selected
or move to the previous fuction.
• This is also a hotkey for Brightness adjustment.
457
1 2 3

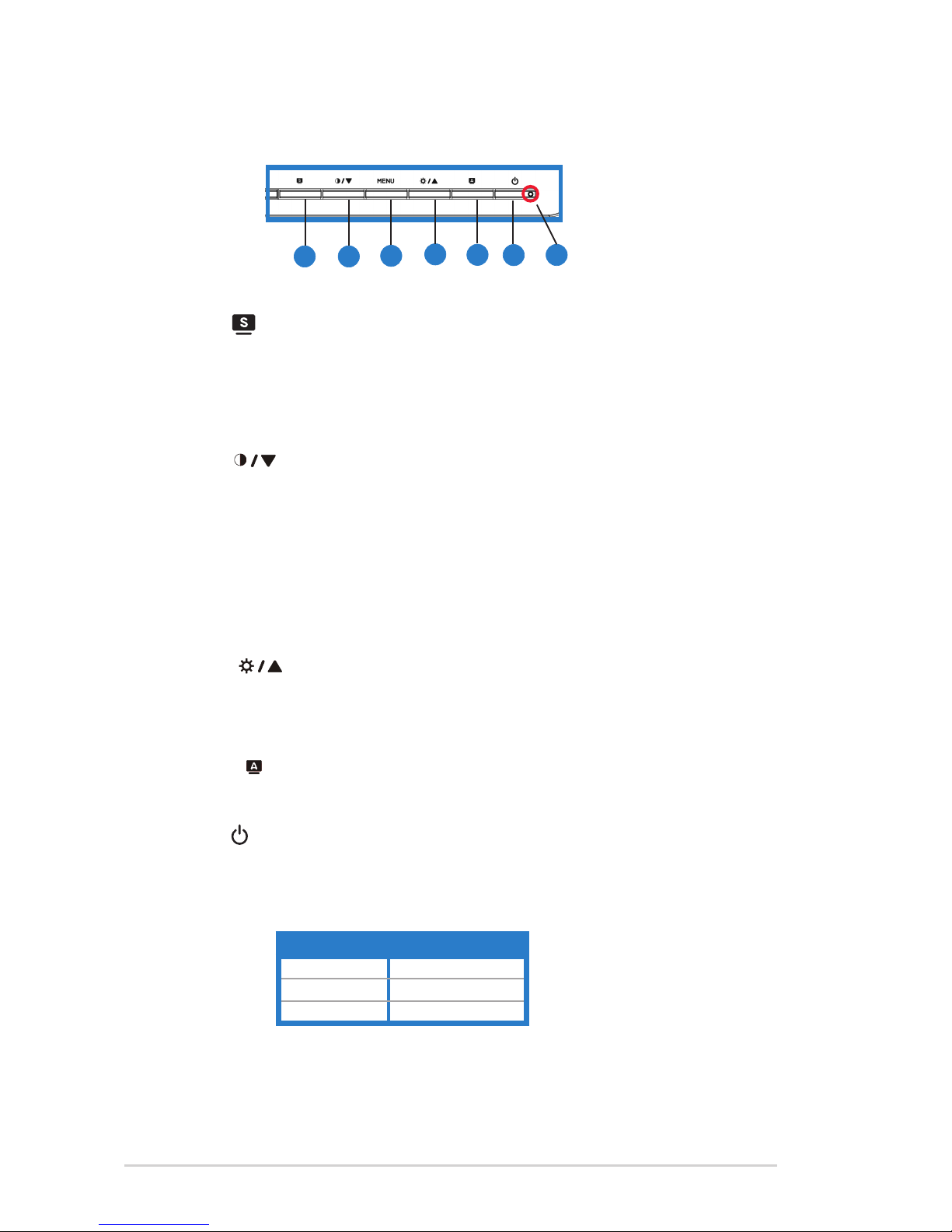

1.4.1.1 VK222H/VK222U
A
6. Power button
• Press this button to turn the monitor on/off.
(for some models)

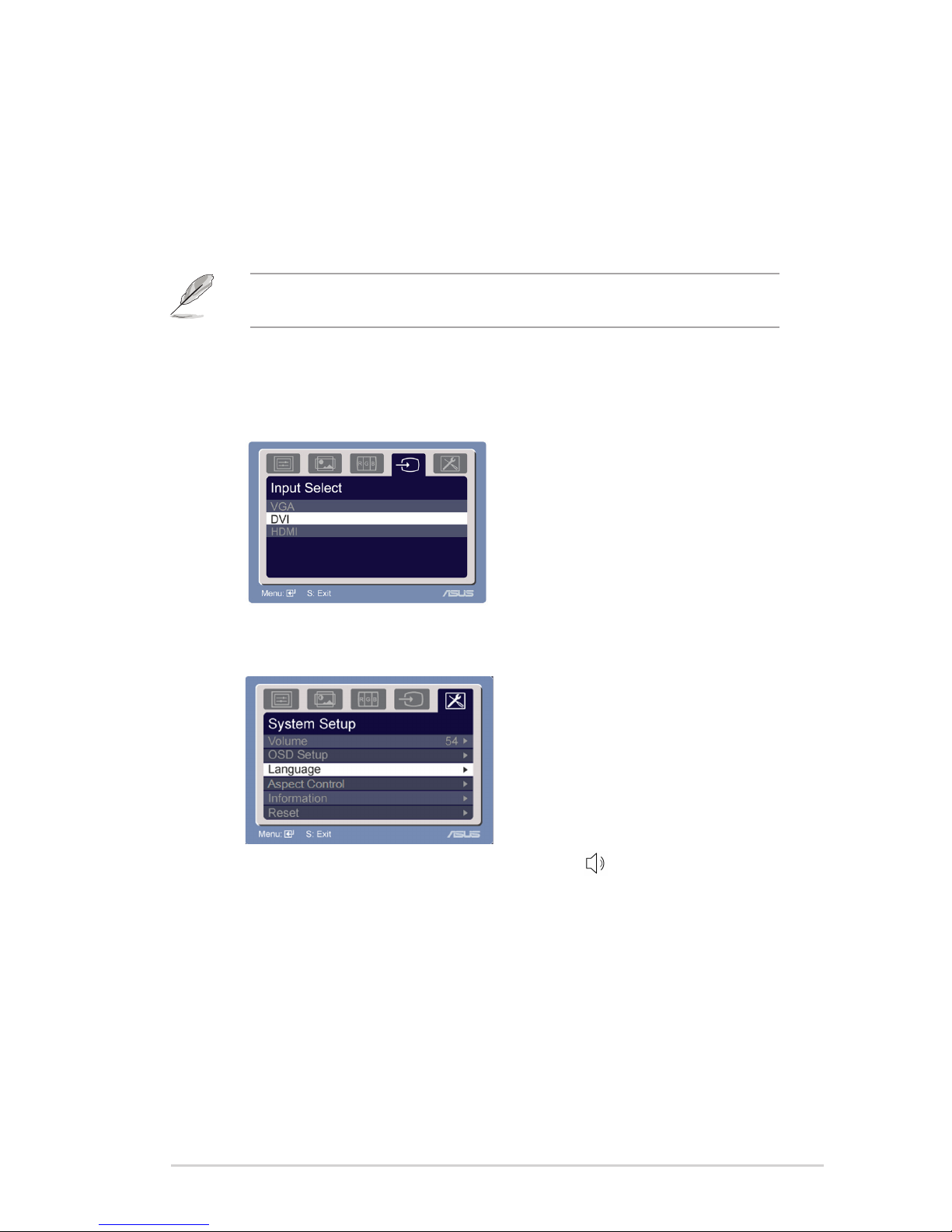

5. Input Select Button
Use this hotkey to switch from VGA,DVI,HDMI input signal.
7. Power indicator

• Thecolordenitionofthepowerindicatorisasthebelowtable.
6
ASUS LCD Monitor VK221/VK222 Series

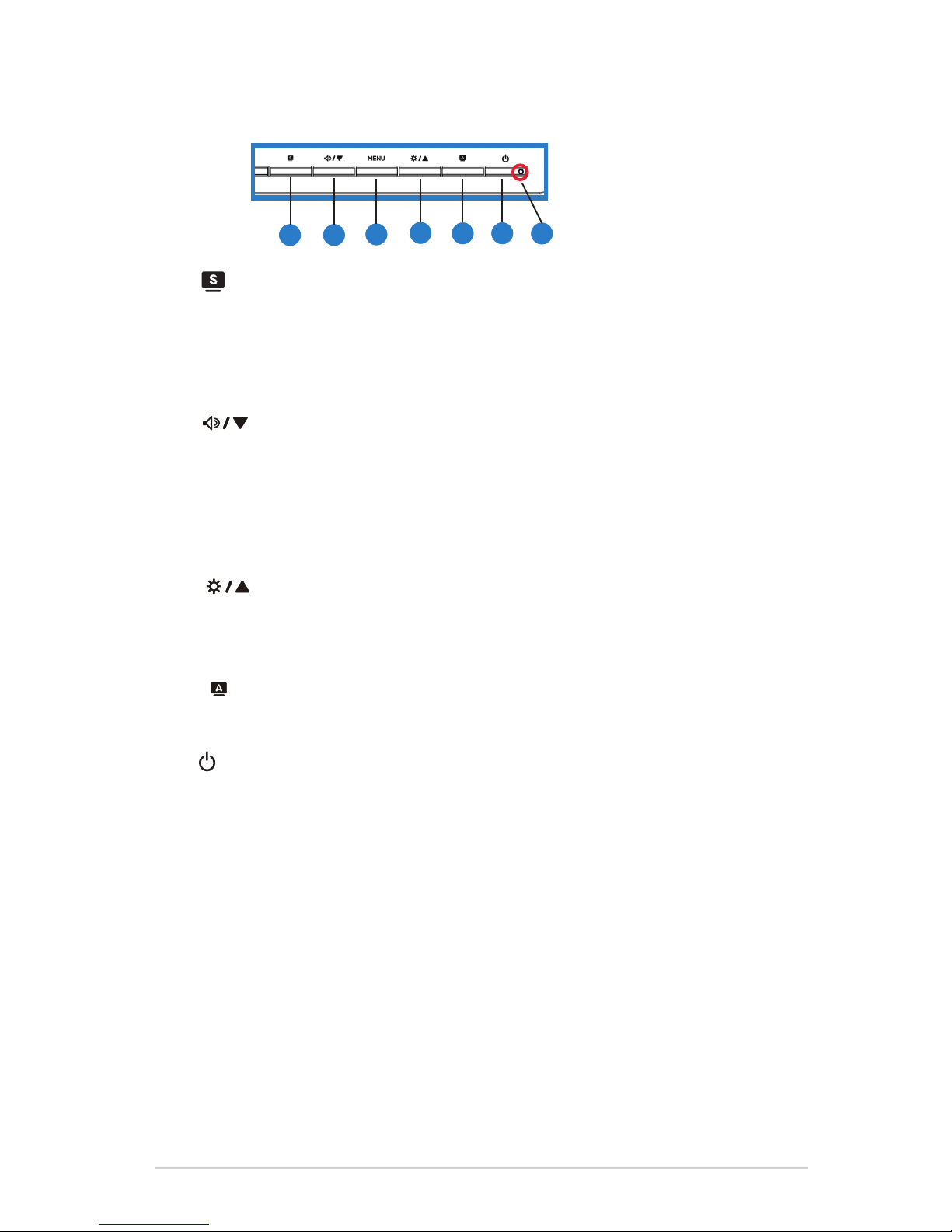

1.4.1.2
457
1 2 3
1. button:
• Use this hotkey to switch from five video preset modes (Game
Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode)
with SPLENDID™ Video Enhancement Technology.
• Exit the OSD menu or go back to the previous menu as the OSD
menu is active.
2. Button:
• Press this button to decrease the value of the function selected
or move to the next fuction.
• This is also a hotkey for Volume adjustment.
3. MENU Button:
• Press this button to enter/select the icon (function) highlighted
while the OSD menu is activated.
4. Button:
• Press this button to increase the value of the function selected
or move to the previous fuction.
• This is also a hotkey for Brightness adjustment.
6. Power button
• Press this button to turn the monitor on/off.
5.
7. Power indicator
• Thecolordenitionofthepowerindicatorisasthebelowtable.
• Automatically adjust the image to its optimized position, clock, and phase
by long pressing this button (for VGA mode only).
button:
6
1-4 Chapter 1: Product introduction
VK221S/VK222S

Status Description
Blue ON
Amber Standby mode
OFF OFF
4. Button:
• Press this button to increase the value of the function selected
or move to the previous fuction.
•
This is also a hotkey for Brightness adjustment.
6. Power button
• Press this button to turn the monitor on/off.
5.
7. Power indicator
• Thecolordenitionofthepowerindicatorisasthebelowtable.
•
Automatically adjust the image to its optimized position, clock, and phase
by long pressing this button (for VGA mode only).
button:
1-5
7
1.4.1.3 VK221D
457
1 2 3
• Use this hotkey to switch from five video preset modes (Game
Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode)
with SPLENDID™ Video Enhancement Technology.
• Exit the OSD menu or go back to the previous menu as the OSD
menu is active.
2. Button:
• Press this button to decrease the value of the function selected
or move to the next fuction.
This is also a hotkey for Contrast Ratio adjustment.
3. MENU Button:
• Press this button to enter/select the icon (function) highlighted
while the OSD menu is activated.
1. button:
•
6
ASUS LCD Monitor VK221/VK222 Series

1-6Chapter 1: Product introduction
2. Audio-in port. This port connects PC audio source by the bundled audio
cable.(Only for some models)
1.4.2.2 VK222U/VK222S/VK221S/VK221D
1. AC-IN port. This port connects the power connector from the bundled power
cord.
3. DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal
connection. (Only for some models)
4. VGA port. This 15-pin port is for PC VGA connection.
This port connects the Web-cam .
5. USB-IN port.
5
2
14
3
5
2
14
3
1.4.2 Rear of the LCD monitor
Rear connectors
Rear connectors (from left to right)
1. AC-IN port. This port connects the power connector from the bundled power
cord.
3. DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal
connection.
4. VGA port. This 15-pin port is for PC VGA connection.
Screw holes for
VESA Wall Mount
1.4.2.1 VK222H
2.HDMI-IN port.This port connects the HDMI source .
5.
7. USB-IN port.This port connects the Web-cam .
6. Earphone-out Port. This port connects earphone or stand alone speakers.
Audio-in port. This port connects PC audio source by the bundled audio
cable.
6
7

2.1Detaching the arm/stand
(for VESA wall mount)
VESA wall mount.
To detach the arm/stand:
1. Remove the arm cover.
2. Have the front of the monitor face down on a table.
3. Use a screwdriver to remove the three screws on the stand of the monitor as
the below drawing shows.
4. Detach the arm from the monitor.
• We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
• Hold the stand of the monitor when you remove the screws.
The VESA wall mount kit (100 mm x 100 mm) is purchased separately.
3 screws
2-1
The detachable stand of the VK221/VK222 Series LCD monitor is specially designed for
ASUS LCD Monitor VK221/VK222 Series

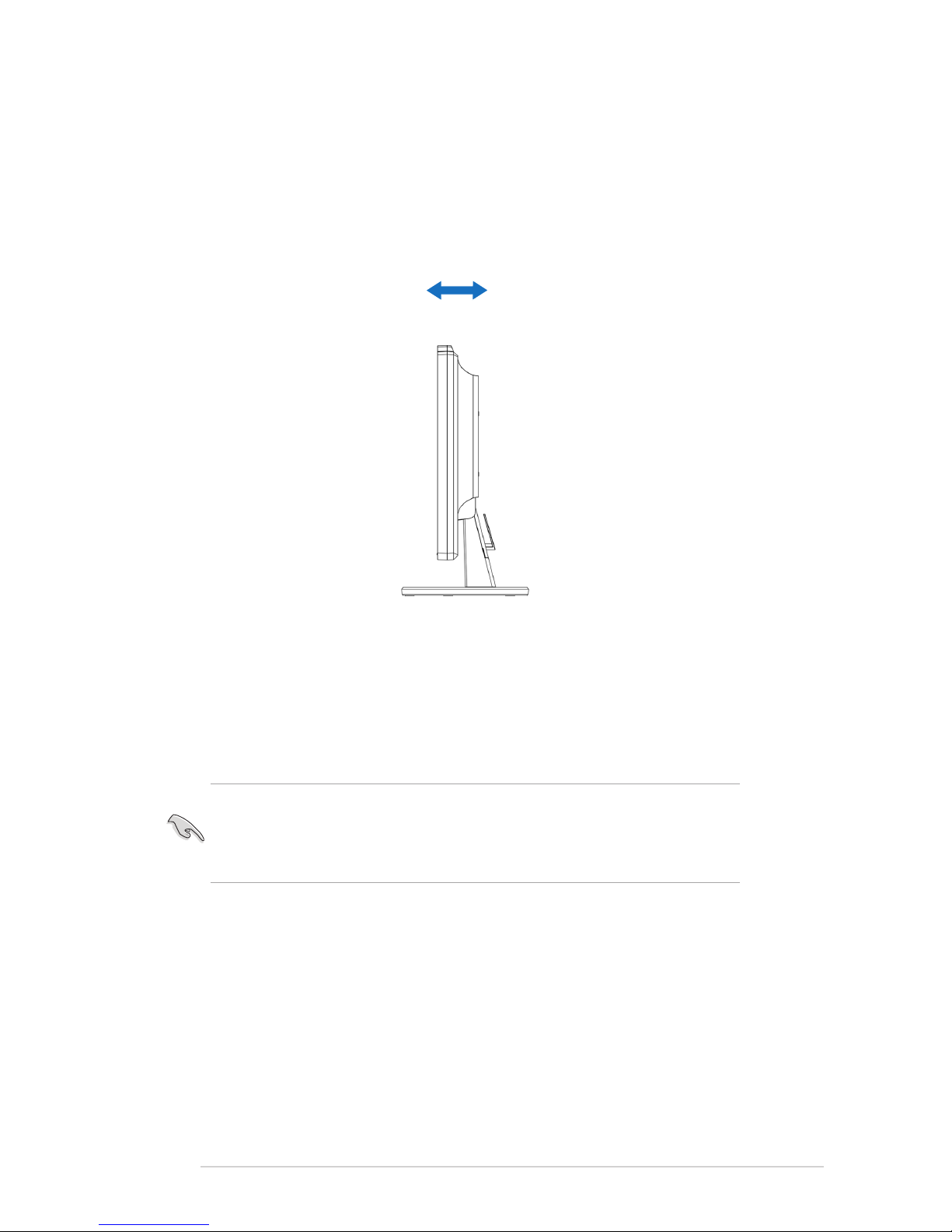

2.2Adjusting the monitor
• For optimal viewing, we recommend that you look at the full face of the monitor,
then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• You can adjust the monitor’s angle from -5º to 20º.
-5º~20º
2.3 Install Life-Frame 2 software

with the webcam,allowing users to create their own photos or video clips.
• LifeFrame 2 only supports Microsoft Windows Vista/XP Service Pack 2
operating systems.
The LifeFrame 2 software is bundled in the support CD.
•
Installation instructions
1. Close all other applications.
2. Insert the support CD into the optical drive and run the LifeFrame 2 program.
3. Follow the on-screen instructions to complete the installation.
®
®
2-2 Chapter 2: Setup
ASUS VK222/VK221 series provides the easy-to-use LifeFrame 2 software that can
work

3-1
3.1 OSD (On-Screen Display) menu
3.1.1 Howtorecongure
1. Press the MENU button to activate
the OSD menu.
2. Press and to navigate through the functions. Highlight and activate
the desired function by pressing the MENU button. If the function selected
has a sub-menu, press and again to navigate through the sub-menu
functions. Highlight and activate the desired sub-menu function by pressing
the MENU button.
3. Press and to change the settings of the selected function.
4. To exit the OSD menu, press the button. Repeat step 2 and step 3 to
adjust any other function.
3.1.2 OSDFunctionIntroduction
1. Spendid
This function contains five
sub-functions you can select
for your preference. Each mode has the
Reset selection, allowing you to maintain
your setting or return to the preset mode.
• SceneryMode: best choice for scenery photo display with SPLENDID™
Video Enhancement.
• StandardMode: best choice for document editing with SPLENDID™
Video Enhancement.
• TheaterMode: best choice for movie with SPLENDID™ Video
Enhancement.
• GameMode: best choice for game playing with SPLENDID™ Video
Enhancement.
• NightViewMode: best choice for dark-scene game or movie with
SPLENDID™ Video Enhancement.
• In the Standard Mode, the Satuation and ASCR functions are not
user-configurable.
• In the other modes, the sRGB function is not user-configurable.
ASUS LCD Monitor VK221/VK222 Series

3-2 Chapter 3: General Instruction
2. Image
You can adjust brightness, contrast, sharpness, saturation,position (VGA
only), and focus (VGA only) from this main function.
VK221-P1 VK222 -P1
•
Brightness: the adjusting range is from 0 to 100. is a hotkey to
activate this function.
•
•
Sharpness: the adjusting range is from 0 to 100.
•
Saturation: the adjusting range is from 0 to 100.
•
Position: adjusts the horizontal postition (H-Position) and the vertical
position (V-Position) of the image. The adjusting range is from 0 to 100.
•
Focus: reduces Horizonal-line noise and Vertical-line noise of the image
by adjusting (Phase) and (Clock) separately. The adjusting range is from
0 to 100.
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the screen shows horizontal disturbances.
• Clock (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image is not proportional.
3. Color
Select the image color you like
from this function.
VK221-P2 VK222 -P2
ASCR:Select YES or NO to enable or disable dynamic contrast
Contrast: the adjusting range is from 0 to 100.
ratio function.
Over Drive:To speed up the respense time by Over drive technology.
the adjusting range is from 0 to 100(Not availabe for VK221S/D)
•
•

3-3
5. SystemSetup
Allow you to adjust the system.
• Volume: the adjusting range is from 0 to 100. is a hotkey to activate
this function.
• OSD Setup: adjusts the horizontal postition (H-Position) and
the vertical position (V-Position) of the OSD. The adjusting range is
from 0 to 100. In the OSD Timeout selection, you can adjust the
OSD timeout from 10 to 120.
• Language: there are ten languages for your selection,
including English, German, Italian, French, Dutch, Spanish, Russian,
Traditional Chinese, Simplified Chinese, Japanese, and Korean.
• Aspect Controls: adjusts the aspect ratio to “Full” or “4:3”.
• Information: shows the monitor information.
• Reset: “Yes” allows you to revert to the preset mode.
4. InputSelect
In this function, you can select VGA,DVI,HDMI input source.
(Only for some models)
• Color Temp.: contains five color modes including Cool, Normal,
Warm, sRGB, and User mode.
• Skin Tone: contains three color modes including Reddish, Natural,
and Yellowish.
In the User mode, colors of R (Red), G (Green), and B (Bluee) are user-
configurable; the adjusting range is from 0-100.
ASUS LCD Monitor VK221/VK222 Series

3-4 Chapter 3: General Instruction
3.2
Specications summary
*Specicationsaresubjecttochangewithoutnotice.
For VK222 series models
For VK221 series models
Model VK222H VK222U VK222S
Panel Size 22"Wide 22"Wide 22"Wide
Max. Resolution WSXGA+ 1680 x 1050 WSXGA+ 1680 x 1050 WSXGA+ 1680 x 1050
Brightness (Typ.) 300cd/㎡300cd/㎡300cd/㎡
Contrast Ratio (Typ.) 1000:1 1000:1 1000:1
Viewing Angle (H/V, CR=10) ≧160°(V) ; ≧170°(H) ≧160°(V) ; ≧170°(H) ≧160°(V) ; ≧170°(H)
Display Colors 16.7 M 16.7 M 16.7 M
Response Time 2ms (Gray to Gray) 2ms (Gray to Gray) 2ms (Gray to Gray)
Webcam (built-in) 1.3M Pixel 1.3M Pixel 1.3M Pixel
HDMI input Yes - -
DVI input DVI with HDCP DVI with HDCP -
D-Sub input Yes Yes Yes
Satellite Speaker 2W x 2 stereo 1W x 2 stereo 1W x 2 stereo
Sound from HDMI Yes - -
Tilt
VESA Wall Mounting Yes (100mm x 100mm) Yes (100mm x 100mm) Yes (100mm x 100mm)
Phys. Dimension (WxHxD)
Box Dimension (WxHxD) 590x454x162 590x454x162 590x454x162
Net Weight (Esti.) 5.1kg 4.9kg 4.7kg
Gross Weight (Esti.) 7.1kg 6.9kg 6.7kg
Voltage Rating AC: 100~240V (Built-in) AC: 100~240V (Built-in) AC: 100~240V (Built-in)
Model VK221S VK221D
Panel Size 21.6"Wide 21.6"Wide
Max. Resolution WSXGA+ 1680 x 1050 WSXGA+ 1680 x 1050
Brightness (Typ.) 300cd/㎡300cd/㎡
Contrast Ratio (Typ.) 1000:1 1000:1
Viewing Angle (H/V, CR=10) ≧160°(V) ; ≧170°(H) ≧160°(V) ; ≧170°(H)
Display Colors 16.7 M 16.7 M
Response Time 5ms (On/Off) 5ms (On/Off)
Webcam (built-in) 1.3M Pixel 1.3M Pixel
HDMI input - -
DVI input --
D-Sub input Yes Yes
Satellite Speaker 1W x 2 stereo -
Sound from HDMI - -
Tilt
VESA Wall Mounting Yes (100mm x 100mm) Yes (100mm x 100mm)
Phys. Dimension (WxHxD)
Box Dimension (WxHxD) 590x454x162 590x454x162
Net Weight (Esti.) 5.0kg 4.9kg
Gross Weight (Esti.) 7.0kg 6.9kg
Voltage Rating AC: 100~240V (Built-in) AC: 100~240V (Built-in)
+20° ~ -5° +20° ~ -5° +20° ~ -5°
+20° ~ -5° +20° ~ -5°
513x412x210 513x412x210 513x412x210
513x412x210 513x412x210

3-5
3.3 Troubleshooting (FAQ)
Problem PossibleSolution
Power LED is not ON • Press the button to check if the monitor
is in the ON mode.
• Check if the power cord is properly
connected to the monitor and the power
outlet.
The power LED lights amber and there is no
screen image
• Check if the monitor and the computer are
in the ON mode.
• Make sure the signal cable is properly
connected the monitor and the computer.
• Inspect the signal cable and make sure
none of the pins are bent.
• Connect the computer with another
available monitor to check if the computer
is properly working.
Screen image is too light or dark • Adjust the Contrast and Brightness settings
via OSD.
Screen image is not centered or sized
properly
• Press the button for two seconds to
automatically adjust the image.
• Adjust the H-Position or V-Position settings
via OSD.
Screen image bounces or a wave pattern is
present in the image
• Make sure the signal cable is properly
connected to the monitor and the computer.
• Move electrical devices that may cause
electrical interference.
Screen image has color defects (white does
not look white)
• Inspect the signal cable and make sure that
none of the pins are bent.
• Perform Reset via OSD.
• Adjust the R/G/B color settings or select the
Color Temperature via OSD.
Screen image is blurry or fuzzy • Press the button for two seconds to
automatically adjust the image (for VGA
mode only).
• Adjust the Phase and Clock settings via
OSD.
No sound or sound is low • Ensure that the audio cable is properly
connected to the monitor and the computer
• Adjust the volume settings of both your
monitor and computer.
• Ensure that the computer sound card driver
is properly installed and activated.
A
A
Webcam is not working • Make sure that you have connected the
USB 2.0 cable securely to both the LCD
monitor and your computer.
• Make sure that you use the Microsoft
Windows Vista/XP Service Pack 2
operation systems.
®
®
ASUS LCD Monitor VK221/VK222 Series

3-6Chapter 3: General Instruction
3.4
640x480 31.469 60Hz 25.175
640x480 37.861 72Hz 31.5
640x480 37.5 75Hz 31.5
800x600 35.156 56Hz 36
800x600 37.879 60Hz 40
800x600 48.077 72Hz 50
800x600 46.875 75Hz 49.5
1024x768 48.363 60Hz 65
1024x768 56.476 70Hz 75
1024x768 60.023 75Hz 78.75
1152x864 67.5 75Hz 108
1280x960 60 60Hz 108
1280x1024 63.981 60Hz 108
1280x1024 79.976 75Hz 135
1440x900 55.935 60Hz 106.5
1440x900 70.635 75Hz 136.75
WSXGA+ 1680x1050 65.29 60Hz 146.25
DOS 640x350 31.469 70Hz 25.175
DOS 720x400 31.469 70Hz 28.322
VGA 640x480 35 67Hz 30.24
SVGA 832x624 49.725 75Hz 57.2832
Mode Resolution H(KHz) V(Hz) Pixel(MHz)
1280x720 44.772 60Hz 74.5
1280x720 56.456 75Hz 95.75
1280x768 47.776 60Hz 79.5
1280x768 60.289 75Hz 102.25
1280x800 49.702 60Hz 83.5
1280x800 62.795 75Hz 106.5
1080P 1920x1080 66.587 60Hz 138.5
WUXGA 1920x1200 74.038 60Hz 154
H(KHz) V(Hz)
Resolution H(KHz) V(Hz)
WXGA+
Mode
720P
SVGA
XGA
SXGA
Resolution H(KHz) V(Hz) Pixel(MHz)
WXGA+
VGA
Pixel(MHz)
Pixel(MHz)
Mode Resolution
VK221-VK222 Supported Timing List
Mode
IBM Modes
MAC Modes
VESA Modes
