Asus P3C-D User manual

R
P3C-D
Dual Pentium®III / II Motherboard
USER’S MANUAL

2ASUS P3C-D User’s Manual
USER'S NOTICE
Product Name: ASUS P3C-D
Manual Revision: 1.12 E445
Release Date: December 1999
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Crystal, SoundFusion, CrystalWave are trademarks of Cirrus Logic, Inc.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Rambus, Direct Rambus, and RIMM are trademarks of Rambus Inc.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORSORINACCURACIESTHATMAYAPPEARINTHIS MANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved.

ASUS P3C-D User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
BBS: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

4ASUS P3C-D User’s Manual
CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS P3C-D ....................................................................... 8
2.1.1 Specifications .................................................................. 8
2.1.2 Specifications–Optional Components ............................. 9
2.1.3 Performance................................................................... 10
2.1.4 Intelligence .................................................................... 11

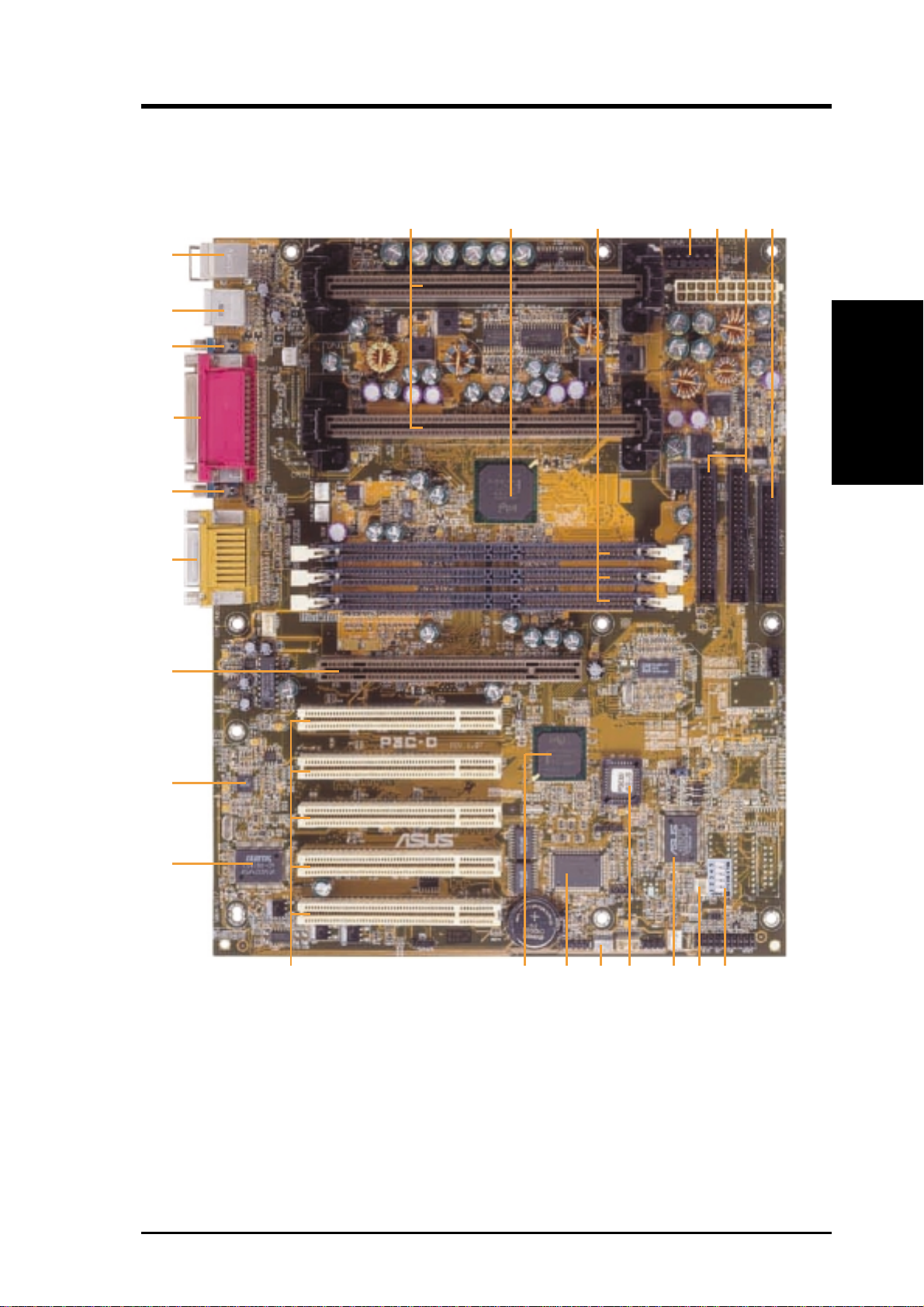

2.2 Motherboard Parts..................................................................... 12
3. HARDWARE SETUP ...................................................................... 14

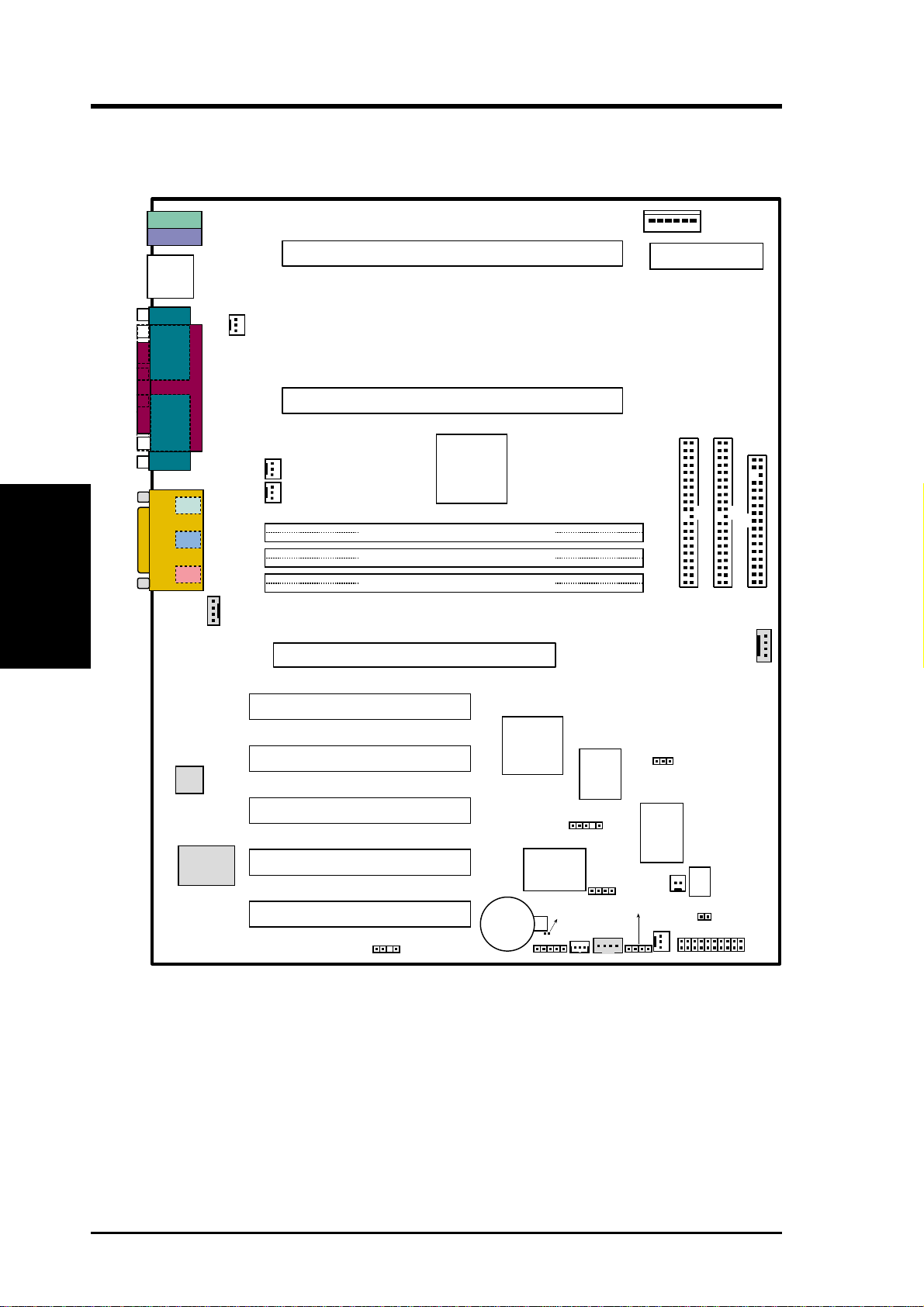

3.1 Motherboard Layout ................................................................. 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 17

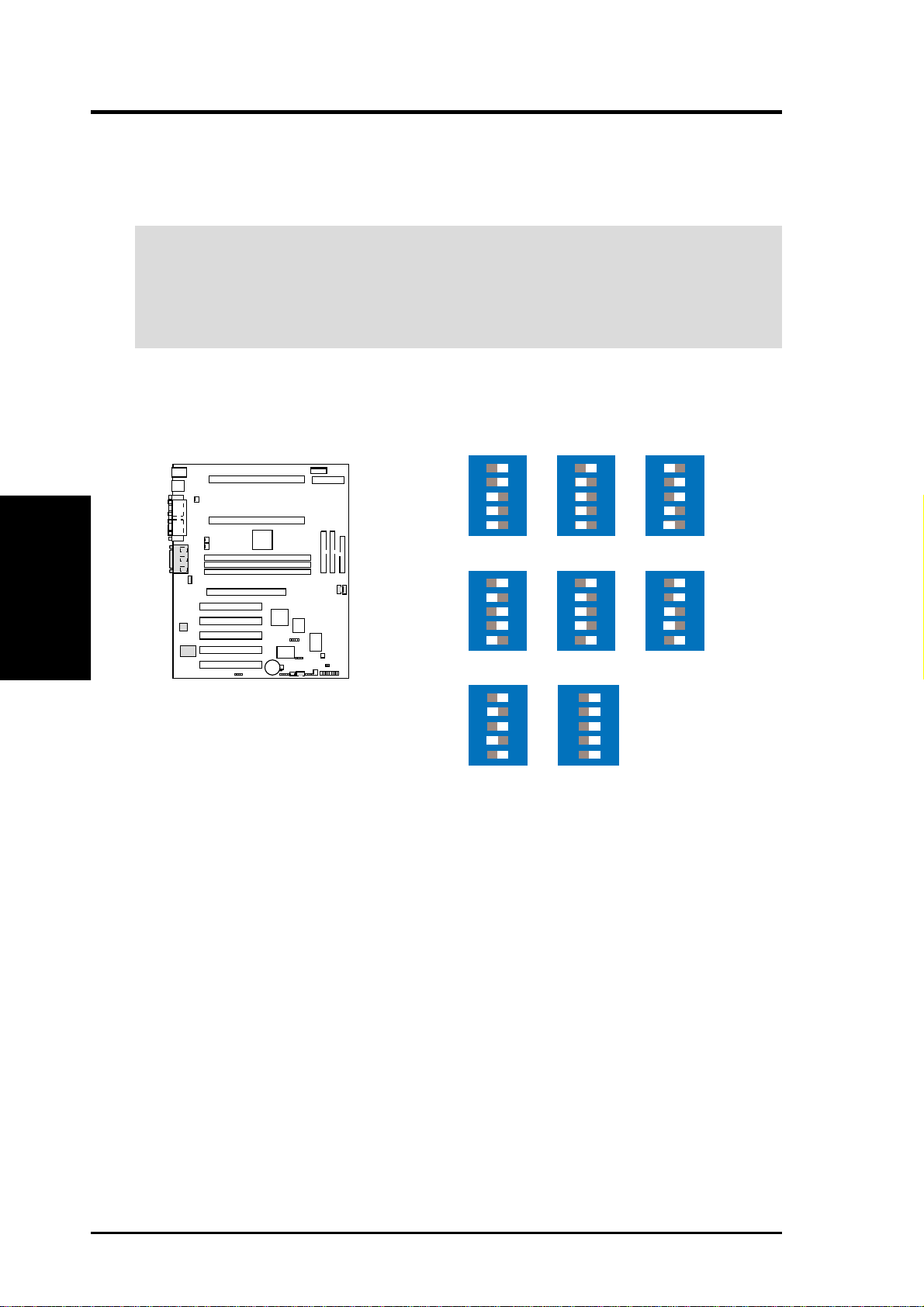

3.4 Motherboard Settings................................................................ 17
3.5 System Memory ........................................................................ 22
3.5.1 Installing Memory Using RIMM................................... 24
3.5.2 Installing Memory Using an ASUS DIMM Riser ......... 25
3.6 Central Processing Unit (CPU) ................................................. 29
3.6.1 Quick CPU Installation Procedure ................................ 29
3.6.2 Attaching the Heatsink .................................................. 30
3.6.3 Installing the Universal Retention Mechanism ............. 30
3.6.4 Installing the Processor.................................................. 32
3.6.5 Removing the Processor ................................................ 33
3.6.6 Recommended Heatsinks for Slot 1 Processors ............ 33
3.6.7 Precautions .................................................................... 34
3.7. Expansion Cards ........................................................................ 35
3.7.1 Expansion Card Installation Procedure ......................... 35
3.7.2 Assigning IRQs for Expansion Cards............................ 36
3.7.3 Accelerated Graphics Port (AGP) Pro........................... 37
3.8 External Connectors.................................................................. 38
3.9 Power Connection Procedures .................................................. 49
4. BIOS SETUP..................................................................................... 50
4.1 Managing and Updating Your BIOS ......................................... 50
4.1.1 Upon First Use of the Computer System....................... 50
4.1.2 Updating BIOS Procedures ........................................... 51
4.1.2 Managing and Updating Your BIOS ............................. 52

ASUS P3C-D User’s Manual 5
CONTENTS
4.2 BIOS Setup Program ................................................................ 53
4.2.1 BIOS Menu Bar ............................................................. 54
4.2.2 Legend Bar .................................................................... 54
4.3 Main Menu................................................................................ 56
4.3.1 Primary & Secondary Master/Slave .............................. 57
4.4 Advanced Menu ........................................................................ 62
4.4.1 CHIP Configuration....................................................... 64
4.4.2 I/O Device Configuration .............................................. 67
4.4.3 PCI Configuration ......................................................... 69
4.4.4 Shadow Configuration ................................................... 71
4.5 Power Menu .............................................................................. 72
4.5.1 Power Up Control.......................................................... 74
4.5.2 Hardware Monitor ......................................................... 76
4.6 Boot Menu ................................................................................ 77
4.7 Exit Menu ................................................................................. 79
5. SOFTWARE SETUP....................................................................... 81
5.1 Operating Systems .................................................................... 81
5.1.1 Windows 98 First Time Installation .............................. 81
5.2 P3C Series Motherboard Support CD....................................... 82
5.3 Intel LDCM Administrator Setup ............................................. 84
5.4 Intel LDCM Client Setup.......................................................... 86
5.5 INF Update Utility for Intel 820 Chipset .................................. 88
5.6 Install Crystal SoundFusion Audio
Driver (VxD) (only with onboard audio option)....................... 89
5.7 Install Crystal SoundFusion Audio
Driver (WDM) (only with onboard audio option) .................... 90
5.8 Install CrystalWave Synthesizer
(only with onboard audio option) ............................................. 91
5.9 Install ASUS PC Probe Vx.xx .................................................. 92
5.10 Install ASUS Update Vx.xx ...................................................... 93
5.11 Install PC-Cillin 98 Vx.xx ........................................................ 94
5.12 Install ADOBE AcroBat Reader Vx.x ...................................... 95
5.13 Uninstalling Programs .............................................................. 96
6. SOFTWARE REFERENCE ............................................................ 97
6.1 Intel® LANDesk® Client Manager 6.0.................................... 97
6.2 ASUS PC Probe ........................................................................ 99
6.3 ASUS LiveUpdate .................................................................. 103

6ASUS P3C-D User’s Manual
FCC & DOC COMPLIANCE
FederalCommunicationsCommissionStatement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washing-
ton DC: Office of the Federal Register, NationalArchives and RecordsAdministra-
tion, U.S. Government Printing Office.
CanadianDepartmentofCommunicationsStatement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS P3C-D User’s Manual 7
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Production information and specifications
3. HARDWARE SETUP Intructions on setting up the motherboard.
4. BIOS SETUP Intructions on setting up the BIOS
5. SOFTWARE SETUP Intructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
(1) ASUS Motherboard
(2) Universal Retention Mechanisms
(1) ASUS C-P2T PC133 Rev. 1.04 or later
(1) ASUS CTRIMM Continuity/Terminator RIMM
(1) ASUS C-RIMM Continuity RIMM
(1) Ribbon cable for master and slave UltraDMA/66 or UltraDMA/33 IDE drives
(1) Ribbon cable for (1) 5.25”and (2) 3.5”floppy disk drives
(1) Bag of spare jumpers
(1) Support drivers and utilities
(1) This Motherboard User’s Manual
ASUS DR1 DIMM Riser V2.03 or later
bundled with (1) ASUS C-RIMM Continuity RIMM (optional)
ASUS IrDA-compliant infrared module (optional)
ASUS PCI-L101 Wake-On-LAN 10/100 Ethernet Card (optional)
1. INTRODUCTION
1. INTRODUCTION
Manual / Checklist

8ASUS P3C-D User’s Manual
2.1 The ASUS P3C-D
The ASUS P3C-D motherboard is carefully designed for the demanding PC user
who wants advanced features processed by the fastest processors.
2.1.1 Specifications
•Latest Intel Processor Support
Intel Pentium
®
III 100MHz FSB, Katmai core SECC2
Intel Pentium
®
III B 133MHz FSB, Katmai core SECC2
Intel Pentium
®
III E 100MHz FSB, Coppermine core SECC2
Intel Pentium
®
III EB 133MHz FSB, Coppermine core SECC2
Intel Pentium
®
II 100MHz FSB SECC
•Intel 820 Chipset: Features the Intel
®
820 chipset (Memory Controller Hub and
I/O Controller Hub) with support for AGP 4X mode, which can transport twice
the amount of data to the current AGP standard; 100/133MHz Front Side Bus
(FSB); UltraDMA/66, which allows burst mode data transfer rates of up to
66.6MBps; and Intel Random Number Generator (RNG), which will improve
cryptography, digital signing, and other security protocols.
•PC800Memory Support: Equipped with three Rambus Inline Memory Module
(RIMM) sockets. First two sockets support Intel PC800/PC700/PC600-compli-
ant Rambus DRAMs (RDRAMs) (available in 64, 96, 128, 192, 256, 512MB
densities) up to 1GB. These RDRAMs are necessary to meet the increase in pro-
cessorperformanceand multimedia and3Dfunctions, especially wherehighband-
width and low latency are required. Third socket accepts Intel PC100-compliant
SDRAMs (16, 32, 64, 128, 256, or 512MB) up to 1GB by using anASUS DR1
DIMM Riser (available separately as an option).
•AGP Pro Slot: Supports the new Accelerated Graphics Port Pro card for high
performance, component level interconnect targeted at 3D graphical applica-
tions using a 1X, 2X, or 4X mode bus.
•UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE controller
with two connectors that support four IDE devices on two channels. Supports
UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode
2,andEnhancedIDE devices, suchasDVD-ROM,CD-ROM,CD-R/RW,LS-120,
and Tape Backup drives.
•Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring activity.
•JumperFree™Mode:Allows processor settings and easy overclocking of fre-
quency all through BIOS setup when JumperFree™mode is enabled. Easy-to-
use DIP switches instead of jumpers are included to allow manual adjustment of
the processor’s external frequency.
•Around-the-ClockIntrusionDetection:Chassisintrusioncircuitrycanlog chas-
sis panel open events into LDCM. The onboard battery supports detection even
when normal power is removed and through a new design, battery drain is even
lower than the RTC used for keeping time!
2. FEATURES
Specifications
2. FEATURES

ASUS P3C-D User’s Manual 9
2. FEATURES
2. FEATURES
Optional Components
•Firmware Hub: Provides security enhancements in computer platforms, such
as RNG.
•PC Health Monitoring: Provides an easy way to examine and manage system
status information, such as CPU and systerm voltages, temperatures, and fan
status through the onboard hardware ASUS ASIC and the bundled ASUS PC
Probe or Intel LDCM software.
•SMBus:Features the System Management Bus interface, which is used to physi-
cally transport commands and information between SMBus devices.
•PCIExpansionSlots:Provides five 32-bit PCI (Rev. 2.2) expansion slots, which
can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up
to 133MB/s maximum throughput.)
•Low Pin Count (LPC) Multi-I/O Chipset: Provides two high-speed UART
compatible serial ports and one parallel port with EPP and ECP capabilities.
UART2 can also be directed from COM2 to the Infrared Module for wireless
connections.
•Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash
EEPROM),offeringenhancedACPIforWindows 98 compatibility, built-in firm-
ware-based virus protection, and autodetection of most devices for virtually au-
tomatic setup.
•Smart BIOS: 4Mb firmware gives a new easy-to-use interface which provides
more control and protection over the motherboard. Provides CPU/RDRAM fre-
quency adjustments, boot block write protection, and HD/SCSI/MO/ZIP/CD/
Floppy boot selection. Hardware random number generator supports new secu-
rity software for data protection and secured Internet transactions.
•IrDA: Supports an optional infrared port module for wireless interface.
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
2.1.2 Specifications–Optional Components
The following onboard components are optional at the time of purchase:
•PCIAudio: Provides Crystal CS4280 PCI audio chipset. Full audio output can
be directed to the chassis’internal speaker (with 4W capability) to save space,
save money, and reduce complications associated with external speakers.
•NoMessyWires:Integrated IR supports an optional remote control package for
wireless interfacing with external peripherals, personal gadgets, or an optional
remote controller.

10 ASUS P3C-D User’s Manual
2. FEATURES
Performance
2. FEATURES
2.1.3 Performance
•UltraPerformance:OnboardIDE Bus Mastercontrollerwithtwoconnectors that
support four IDE devices in two channels. Supports UltraDMA/66, UltraDMA/33
(IDEDMAMode2),PIO Modes 3 &4,andsupportsEnhancedIDE devices, such
as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.
•Dual Speeds: CPU frequency can operate at either 133MHz or 100MHz.
•High-Speed Data Transfer Interface: IDE transfers using UltraDMA/33 Bus
Master IDE can handle rates up to 33MB/s. This motherboard with its chipset
and support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to
66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and DMA
and with existing DMA devices and systems so there is no need to upgrade
current EIDE/IDE drives and host systems. (UltraDMA/66 requires a 40-pin
80-conductor cable to be enabled and/or for UltraDMA Mode 4.)
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter buses to memory to CPU.
•RDRAM Optimized Performance: This motherboard supports the new gen-
eration memory, Rambus Dynamic RandomAccess Memory (RDRAM). While
PC100 SDRAM modules operate at 100MHz with a peak bandwidth of 0.8GB/s,
Rambus DRAMs can operate at up to 800MHz with a peak bandwidth of 1.6GB/s.
•ACPIReady:ACPI (Advanced ConfigurationandPowerInterface) is alsoimple-
mented on all ASUS smart series motherboards. ACPI provides more Energy
Saving Features for future operating systems (OS) supporting OS Direct Power
Management (OSPM) functionality. With these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows
98, must be used.
•PC 99 Compliancy: Both the BIOS and hardware levels of the motherboard
meet PC 99 System Design requirements. The PC 99 requirements for systems
and components are based on the following high-level goals: support for Plug
and Play compatibility and power management for configuring and managing
all system components, and 32-bit device drivers and installation procedures for
Windows 95/98/NT. Color-coded connectors and descriptive icons make identi-
fication easy as required by PC 99.

ASUS P3C-D User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.4 Intelligence
•Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.
•Temperature Monitoring and Alert: To prevent system overheat and system
damage, this motherboard supports processor thermal sensing and auto-protec-
tion.
•Voltage Monitoring andAlert: System voltage levels are monitored to ensure
stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
•SystemResourcesAlert:Today’s operating systems such as Windows 98, Win-
dows NT, and OS/2, require much more memory and hard drive space to present
enormous user interfaces and run large applications. The system resource moni-
tor will warn the user before the system resources are used up to prevent pos-
sible application crashes. Suggestions will give the user information on manag-
ing their limited resources more efficiently.
•Dual Function Power Button: Through BIOS, the power button can be defined
as the “Stand by”(a.k.a. Suspend or Sleep) button or as the Soft-Off (see 25)ATX
Power/Soft-OffSwitchLeadin3.8 External Connectors for more information)
button. Regardless of the setting, pushing the power button for more than 4 sec-
onds will enter the Soft-Off mode.
•Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access any information from their computers from anywhere in the world.
•Message LED (requires ACPI OS support): Message LEDs now act as infor-
mation providers. Through the way a particular LED illuminates, the user can
determine the stage the computer is in. A simple glimpse provides useful infor-
mation to the user.
•Peripheral Power Up: Keyboard or Mouse power up can be enabled or dis-
abled through BIOS setup to allow the computer to be powered ON using your
keyboard or mouse click.

12 ASUS P3C-D User’s Manual
2. FEATURES
2. FEATURES
Motherboard Parts
2.2 Motherboard Parts
See opposite page for locations.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Dual SEC CPU Slots (CPU1 & CPU2)
Intel 820 Memory Controller Hub (MCH)
RIMM Sockets
Auxiliary Power Connector
ATX Power Connector for connection to an ATX power supply
Primary and Secondary IDE Connectors
Floppy Disk Drive Connector
Feature Setting DIPSwitches
Wake-On-Ring Connector
ASUS ASIC with Hardware Monitor
Four Mbit Firmware Hub (Programmable BIOS)
Wake-On-LAN Connector
Low Pin Count (LPC) Multi-I/O Chipset
Intel I/O Controller Hub (ICH)
PCI Slots
Crystal Audio Chipset (optional)
Audio CODEC (optional)
Accelerated Graphics Port (AGP) Pro
Joystick/Midi Connector (T)(optional) /
Line Out, Line In, Microphone In Connectors (B)(optional)
Serial COM2 Port (B)
Parallel Port (T)
Serial COM1 Port (B)
USB Ports (USB1 & USB2)
PS/2 Mouse (T) / PS/2 Keyboard (B) Connector T:Top
B: Bottom

ASUS P3C-D User’s Manual 13
2. FEATURES
2. FEATURES
Motherboard Parts
2.2 Motherboard Parts...continued
42
23
21
19
18
16
20
24
11 10131415
71
17
8
5 63
22
912

14 ASUS P3C-D User’s Manual
3. HARDWARE SETUP
3.1 Motherboard Layout
Intel 820
Memory
Controller
Hub (MCH)
CPU_FAN1
WOR
WOL
CD_IN
AUX
SMB
PCI Slot 1 (PCI1)
PCI Slot 2 (PCI2)
PCI Slot 4 (PCI4)
PCI Slot 3 (PCI3)
PANEL
IDELED
FLOPPY
SECONDARYIDE
PRIMARYIDE
ATX Power Connector
CLRTC
(C191A)
Intel I/O
Controller
Hub (ICH)
CR2032 3V
Lithium Cell
CMOS Power
PCI Slot 5 (PCI5)
LPC
Super I/O
P3C-D
4Mbit
Firmware
Hub
ASUS
ASIC
with
Hardware
Monitor
CPU1 (Slot 1)
CPU2 (Slot 1)
RIMM0 (16/18 bit, 184-pin module)
RIMM1 (16/18 bit, 184-pin module)
RIMM2 (16/18 bit, 184-pin module)
Accelerated Graphics Port (AGP Pro)
32-bit PCI
Audio
Chipset
Audio
Codec
CPU_FAN2
PWR_FAN
IR
INTER_SPEAKER
CHA_FAN
SCSI
MODEM
CHASSIS
AUXPWR
PARALLEL PORT
COM2
USB
T: USB1
B:USB2
T: Mouse
B: Keyboard
COM1
PS2KBMS
DIP Switches
JEN
OPTIONAL
GAME_AUDIO
Mic
In
Line
Out
Line
In
Motherboard Layout
3. H/W SETUP
Grayed midboard items are optional at the time of purchase.

ASUS P3C-D User’s Manual 15
3. HARDWARE SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p.18 JumperFree™ Mode (Enable/Disable)
2) DSW (SW2) p.20 CPU External Clock (BUS) Frequency Setting
3) CLRTC p.59 Clear RTC RAM
Expansion Slots
1) RIMM0, RIMM1, RIMM2 p.22 184-Pin System Memory Support
2) CPU1, CPU2 p.27 Central Processing Unit (CPU)
3) PCI1, PCI2, PCI3, PCI4, PCI5 p.34 32-bit PCI Bus Expansion Slots
4) AGP Pro p.35 Accelerated Graphics Port (AGP Pro)
Connectors
1) PS2KBMS p.36 PS/2 Mouse Connector (6-pin female)
2) PS2KBMS p.36 PS/2 Keyboard Connector (6-pin female)
3) USB p.37 Universal Serial Bus Ports 1 & 2 (Two 4-pin female)
4) PARALLEL p.37 Parallel Port Connector (25-pin female)
5) COM1, COM2 p.37 SerialPort COM1/COM2 Connectosr(Two 9-pin male)
6) GAME_AUDIO p.38 Joystick/MIDI Connector (15-pin female) (optional)
7) GAME_AUDIO p.38 Audio Port Connectors (Three 1/8” female) (optional)
8) PRIMARY/SECONDARYIDE p.39 Primary/Secondary IDE Connectors (Two 40-1pins)
9) FLOPPY p.39 Floppy Disk Drive Connector (34-1pins)
10) IR p.40 Infrared Module Connector (5 pins)
11) SMB p.40 SMBus Connector (5-1 pins)
12) WOL_CON p.41 Wake-On-LAN Connector (3 pins)
13) WOR p.41 Wake-On-Ring Connector (2 pins)
14) CHASSIS p.42 Chassis Intrusion Connector (4-1 pins)
15) CPU_Fan1, CPU_Fan2, p.42 CPU, Power Supply, Chassis Fan Connectors (Four 3-pin)
PWR_FAN, CHA_FAN
16) ATXPWR, AUXPWR p.43 ATX&AuxiliaryPowerSupplyConnectors(20&6pins)
17) MODEM, CD_IN,AUX p.43 Internal Audio Connectors (Four 4-pins) (optional)
18) IDELED p.44 IDE Activity LED (2 pins)
19) SCSI p.44 SCSI Device Activity LED (4 pins)
Layout Contents
3. H/W SETUP

16 ASUS P3C-D User’s Manual
3. HARDWARE SETUP
20) SPEAKER (PANEL) p.38 System Warning Speaker Connector (4 pins)
21) KEYLOCK (PANEL) p.38 Keyboard Lock Switch Lead (2 pins)
22) PLED (PANEL) p.38 System Power LED Lead (3-1 pins)
23) RESET (PANEL) p.38 Reset Switch Lead (2 pins)
24) PWRSW (PANEL) p.38 ATX Power / Soft-Off Switch Lead (2 pins)
25) SMI (PANEL) p.38 System Management Interrupt Switch Lead (2 pins)
26) LED (PANEL) p.38 System Message LED (2 pins)
Layout Contents
3. H/W SETUP

ASUS P3C-D User’s Manual 17
3. HARDWARE SETUP
Motherboard Settings
3.H/WSETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
•Check Motherboard Settings
•Install Memory Modules
•Install the Central Processing Unit (CPU)
•Install Expansion Cards
•Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
WARNING! Computer motherboards and expansion cards contain very delicate
Integrated Circuit (IC) chips. To protect them against damage from static electric-
ity, you should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
nothave one, touch both of your hands to a safely grounded object or to a metal
object, such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or con-
nectors, or other components.
4. Placecomponentsonagrounded antistatic pad or on thebagthatcamewiththe
component whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or
remove the ATX power connector on the motherboard.
Motherboard Feature Settings
The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi-
tion. The example below shows all the switches in the OFF position.
P3C-D DIP Switches
P3C-D
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
5. Frequency Selection
OFF
ON
ON
12345
DSW
(SW2)

18 ASUS P3C-D User’s Manual
3. HARDWARE SETUP
1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™ mode, all dip switches (DSW) must be set to OFF.
Setting JEN
Disable (Jumper) [1-2]
Enable (JumperFree) [2-3] (default)
P3C-D JumperFree™ Mode Setting
P3C-D
Jumper JumperFree
123 123
JEN
Motherboard Settings
3. H/W SETUP

ASUS P3C-D User’s Manual 19
3. HARDWARE SETUP
(This page was intentionally left blank.)
Motherboard Settings
3. H/W SETUP

20 ASUS P3C-D User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
2) CPU External Frequency Setting (DSW-1, -2, -3, -4, -5)
This option tells the clock generator what frequency to send to the CPU and the
PCI bus. This allows the selection of the CPU’s External frequency.
IMPORTANT:
1. In JumperFree mode, all dip switches (DSW-1–DSW-5) must be set to OFF.
2. When JumperFree mode is enabled, use BIOS setup in place of these switches
(see CPU Speed in 4.4 Advanced Menu).
NOTE: Only selected switches are illustrated. For a complete frequency listing,
see next page.
DSW
(SW2)
CPU
PCI →
→105MHz
35MHz 112MHz 37MHz
100MHz
33MHz
ON
12345
ON
12345
CPU
PCI →
→133MHz
33MHz 142MHz 35MHz
125MHz
42MHz
ON
12345
ON
12345
ON
12345
CPU
PCI →
→150MHz
37MHz
ON
12345
ON
12345
P3C-D CPU External Clock
(BUS) Frequency Selection
P3C-D
180MHz
45MHz
(JumperFree Mode)
ON
12345
NOTE:If your processor does not have a locked Frequency Multiple, you must
use CPU Core:Bus Freq. Multiple in 4.4 Advanced Menu of the BIOS setup
to set the Frequency Multiple. If the Frequency Multiple is locked, setting the
Frequency Multiple in BIOS setup will have no effect.
