Asus K7V-T User manual

R
K7V-T
Slot A Motherboard
USER’S MANUAL

2ASUS K7V-T User’s Manual
USER'S NOTICE
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORAPAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
•AMD,Athlon™,K7,and/orcombinationsthereofaretrademarksofAdvancedMicroDevices,Inc.
• VIAis a trademark of VIATechnologies, Inc.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORSOR INACCURACIESTHATMAYAPPEAR INTHISMANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2000 ASUSTeK COMPUTER INC. All Rights Reserved.
Product Name: K7V-T
Manual Revision: 1.01 E584
Release Date: July 2000

ASUS K7V-T User’s Manual 3
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM
ASUS CONTACT INFORMATION

4ASUS K7V-T User’s Manual
CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS K7V-T Motherboard ................................................. 8
2.1.1 Specifications..................................................................... 8
2.1.1.1 Optional Components .................................................. 9
2.1.2 Performance ..................................................................... 10
2.1.3 Intelligence (only with optional hardware monitor) ........ 11
2.2 K7V-T Motherboard Components ............................................ 12
3. HARDWARE SETUP ..................................................................... 14
3.1 K7V-T Motherboard Layout ..................................................... 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 17
3.4 Motherboard Settings................................................................ 17
3.5 System Memory (DIMM) ......................................................... 22
3.5.1 General DIMM Notes ...................................................... 22
3.5.2 DIMM Memory Installation ............................................ 23
3.6 Central Processing Unit (CPU) ................................................. 25
3.6.1 Quick CPU Installation Procedure................................... 25
3.6.2 Attaching the Heatsink..................................................... 26
3.6.3 Installing the Universal Retention Mechanism................ 26
3.6.4 Installing the Processor .................................................... 26
3.6.5 Removing the Processor .................................................. 28
3.6.6 Smart Thermal Solutions ................................................. 29
3.6.7 Recommended Heatsinks for Slot A Processors .............. 30
3.7 Expansion Cards ....................................................................... 31
3.7.1 Expansion Card Installation Procedure............................ 31
3.7.2 Assigning IRQs for Expansion Cards .............................. 31
3.7.3 Accelerated Graphics Port Pro (AGP Pro)....................... 33
3.7.4 Audio Modem Riser (AMR) Slot .................................... 33
3.8 External Connectors.................................................................. 35
3.9 Starting Up the First Time ........................................................ 47
4. BIOS SETUP..................................................................................... 49
4.1 Managing and Updating Your BIOS ......................................... 49
4.1.1 Upon First Use of the Computer System ......................... 49
4.1.2 Updating BIOS Procedures.............................................. 50

ASUS K7V-T User’s Manual 5
CONTENTS
4.2 BIOS Setup Program ................................................................ 53
4.2.1 BIOS Menu Bar ............................................................... 54
4.2.2 Legend Bar....................................................................... 54
4.3 Main Menu................................................................................ 56
4.3.1 Primary & Secondary Master/Slave ................................ 57
4.3.2 Keyboard Features ........................................................... 60
4.4 Advanced Menu ........................................................................ 62
4.4.1 Chip Configuration .......................................................... 65
4.4.2 I/O Device Configuration ................................................ 67
4.4.3 PCI Configuration ............................................................ 70
4.4.4 Shadow Configuration ..................................................... 73
4.5 Power Menu .............................................................................. 74
4.5.1 Power Up Control ............................................................ 76
4.5.2 Hardware Monitor............................................................ 78
4.6 Boot Menu ................................................................................ 79
4.7 Exit Menu ................................................................................. 81
5. SOFTWARE SETUP....................................................................... 83
5.1 Operating Systems .................................................................... 83
5.1.1 Windows 98 First Time Installation................................. 83
5.2 K7V-T Series Motherboard Support CD .................................. 84
5.3 Registry patch for VIAChipset................................................. 85
5.4 VIA PCI IRQ Routing Miniport Driver .................................... 86
5.5 AUDIO Driver (only with onboard audio option) ...................... 87
5.6 PC-cillin 98 ............................................................................... 88
5.7 Acrobat Reader Vx.x ................................................................ 89
5.8 IDE Driver ................................................................................ 90
5.9 AGP Miniport Driver ................................................................ 91
5.10 ASUS PC Probe x ..................................................................... 92
5.11 YAMAHA XGStudio (only with onboard audio option) .......... 93
5.12 Uninstalling Programs .............................................................. 94
6. SOFTWARE REFERENCE ........................................................... 95
6.1 ASUS PC Probe ........................................................................ 95
6.2 YAMAHA XGStudio .............................................................. 100
7. APPENDIX...................................................................................... 103
7.1 PCI-L101 Fast Ethernet Card ................................................. 103
7.2 Modem Riser........................................................................... 105
7.3 Glossary .................................................................................. 107

6ASUS K7V-T User’s Manual
FCC & DOC COMPLIANCE
FederalCommunications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
CanadianDepartment of CommunicationsStatement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS K7V-T User’s Manual 7
1. INTRODUCTION
Sections/Checklist
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Product information and specifications
3. HARDWARE SETUP Instructions on setting up the motherboard
4. BIOS SETUP Instructions on setting up the BIOS software
5. SOFTWARE SETUP Instructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
please contact your retailer.
1.2.1 Motherboard
(1) ASUS Motherboard
(1) Universal Retention Mechanism
(1) ASUS 2-port USB Connector Set
(1) 40-pin 80-conductor ribbon cable for internal UltraDMA/66
or UltraDMA/33 IDE drives
(1) Ribbon cable for master and slave IDE drives
(1) Ribbon cable for (1) 3.5”floppy disk drive
(1) Bag of spare jumper caps
(1) Support CD with drivers and utilities
(1) This Motherboard User’s Manual
ASUS 3-port USB Connector Set
ASUS IrDA-compliant infrared module (optional)
ASUS PCI-L101 Wake-On-LAN 10/100 Fast Ethernet Card (optional)
1. INTRODUCTION
IMPORTANT: It is strongly recommended that at least a 200-watt (235W for full
configuration) ATX power supply be used for this motherboard. Make sure that
your ATX power supply can supply at least 20 amperes on the +5-volt lead and at
least 10mA(750mA recommended) onthe+5-volt standbylead(+5VSB)(see19)
ATX Power Suppy Connector in 3.8 External Connectors). Your system may
become unstable/unreliable and may experience difficulty in powering up if your
power supply is inadequate.

8ASUSK7V-TUser’sManual
2. FEATURES
Specifications
2. FEATURES
2.1 The ASUS K7V-T Motherboard
The ASUS K7V-T motherboard is carefully designed for the demanding PC user
who wants high-performance features in a small package.
2.1.1 Specifications
•AMD Athlon™Processor Support: Supports the K7, K75, and Thunderbird
cores of the AMD Athlon™processors—including 1GHz—designed for the
AMDAthlon™Processor Module (242-pin SlotA). The K7 and K75 core pro-
cessorscome with 512KB L2 cache, while theThunderbirdcoreprocessors come
with 256KB on-chip L2 cache.
•North Bridge System Chipset: VIA VT8371™system controller supports a
200MHzFrontSideBus(FSB),supportsup to 1.5GB of PC133/PC100 SDRAM/
Virtual Channel Memory (VCM) SDRAM, complies with AGP 2.0 specifica-
tions for 4X, 2X, and 1XAGPmodes and PCI 2.2. bus interface with support for
5 PCI masters. It is optimized to deliver enhanced AMD Athlon™processor
system performance.
•South Bridge System Chipset: VIA VT82C686A PCIset with PCI Super I/O
integrated peripheral controller supports UltraDMA/66, which allows burst mode
data transfer rates of up to 66.6MB/sec.
•EnhancedACPI&Anti-BootVirusBIOS:ProgrammableBIOS(FlashEEPROM),
offering enhancedACPI for Windows 98 compatibility, built-in firmware-based vi-
rus protection, and autodetection of most devices for virtually automatic setup.
•PC133/PC100 Memory Support: Equipped with three DIMM sockets to sup-
port PC133/PC100-compliant SDRAMs or VCM SDRAMs (16, 32, 64, 128,
256, 512MB) up to 1.5GB.
•JumperFree™Mode:Allows processor settings and easy overclocking of fre-
quency and Vcore voltage all through BIOS setup when JumperFree™mode is
enabled. Easy-to-use DIP switches instead of jumpers are included to allow
manual adjustment of the processor’s external frequency.
•ThermalSensorConnectorwithOptionalSensor:Accurately detects the CPU
temperature with theASUS Smart Fan when connected to anASUS P2T-Cable.
•Super Multi-I/O: Provides two high-speed UART compatible serial ports and
one parallel port with EPP and ECP capabilities.
•Expansion Slots: Provides five 32-bit PCI 2.2, one AGP, and one AMR expan-
sion slots. PCIsupports upto133MB/secmaximum throughput. Each PCI slot can
support a Bus Master PCI card, such as a SCSI card.
•Desktop Management Interface (DMI): Supports DMI through BIOS, which
allows hardware to communicate within a standard protocol creating a higher
level of compatibility. (Requires DMI-enabled components.)
•Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring.

ASUS K7V-T User’s Manual 9
2. FEATURES
2. FEATURES
Specifications
•AMR Slot: Audio Modem Riser (AMR) slot supports a very affordable audio
and/or modem riser card.
•AGP Pro Slot: Supports an Accelerated Graphics Port/AGP Pro card for high
performance component level interconnect targeted at 3D graphical display ap-
plications using 4X, 2X or 1X mode bus.
•USB: Supports up to 4 USB ports, two on the back panel and two midboard, for
more peripheral connectivity options.
•UltraDMA/66 & UltraDMA/33: Comes with an onboard PCI Bus Master IDE
controller with two connectors that support four IDE devices on two channels.
Supports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE
DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-
R/RW, LS-120, and Tape Backup drives.
•Smart BIOS: 2Mb firmware gives a new easy-to-use interface that provides
more control and protection over the motherboard. Provides CPU/SDRAM fre-
quency adjustments, and HD/SCSI/ZIP/CD/Floppy/Network boot selection.
•Color-codedConnectors:Toenhanceuseraccessibility tosystem componentsand
to meet PC 99 compliancy, major connectors in this motherboard are color-coded.
2.1.1.1 Optional Components
The following onboard components are optional at the time of purchase.
•OnboardAudio:HardwareAC’97 V2.1 CODEC compliant, 3D sound circuitry,
sample rate conversion from 7kHz to 48kHz.
•Infrared Interface: Integrated Serial Infrared interface supports an optional
remote control package for wireless interfacing with external peripherals, per-
sonal gadgets, or an optional remote controller.
•PC Health Monitoring: Provides an easy way to examine and manage system
status information, such as CPU and system voltages, temperatures, and fan
status through the onboard hardware ASIC and the bundled ASUS PC Probe.
•Additional USB Ports: For more peripheral connectivity, two additional USB
ports are supported midboard.

10 ASUSK7V-TUser’sManual
2. FEATURES
Performance
2. FEATURES
2.1.2 Performance
•200/133MHz or 200/100MHz Synchronous Host/DRAM Clock Support:
CPU frequency can operate at 200MHz while system memory operates at
133MHz or 100MHz.
•High-Speed Data Transfer Interface: This motherboard with its chipset and
support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to
66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and DMA
and with existing DMA devices and systems so there is no need to upgrade
current EIDE/IDE drives and host systems. (UltraDMA/66 requires a 40-pin
80-conductor cable to be enabled and/or for UltraDMA Mode 4.)
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter buses to memory to CPU.
•VCM/SDRAMOptimizedPerformance:This motherboardsupports a new gen-
eration memory, NEC’s 64Mb Virtual Channel Memory (VCM) Synchronous
Dynamic RandomAccess Memory(SDRAM), which is compatible to the indus-
try standard SDRAM. The VCM’s core design provides up to 50% higher
SDRAM speed at reduced power consumption of about 30%. This motherboard
also supports standard SDRAM, which increases the data transfer rate (1.064GB/s
max using PC133-compliant SDRAMs and 800MB/s max using PC100-compli-
ant SDRAMs).
•ACPI Ready: ACPI (Advanced Configuration and Power Interface) provides
more Energy Saving Features for future operating systems (OS) supporting OS
Direct Power Management (OSPM) functionality. With these features imple-
mented in the OS, PCs can be ready around the clock, yet satisfy all the energy
saving standards. To fully utilize the benefits of ACPI, an ACPI-supported OS,
such as Windows 98, must be used.
•New Compliancy: Both the BIOS and hardware levels of the motherboard meets
PC 99 compliancy. The new PC 99 requirements for systems and components are
based on the following high-level goals: Support for Plug and Play compatibility
and power management for configuring and managing all system components,
and 32-bit device drivers and installation procedures for Windows 95/98/NT.

ASUS K7V-T User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.3 Intelligence (only with optional hardware monitor)
•Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.
•Voltage Monitoring andAlert: Processor and system voltage levels are moni-
tored to ensure stable current to critical motherboard components. Voltage speci-
fications are more critical for future processors, so monitoring is necessary to
ensure proper system configuration and management.
•Auto Fan Off: The system fans will power off automatically even in sleep
mode. This function reduces both energy consumption and system noise, and is
an important feature to implement silent PC systems.
•Remote Ring On (requires modem): This allows a computer with this
motherboard to be turned on remotely through an internal or external modem.
With this feature, users can access their computer from anywhere in the world!

12 ASUSK7V-TUser’sManual
2. FEATURES
Components
2. FEATURES
2.2 K7V-T Motherboard Components
See opposite page for locations. Location
Processor Support Slot A for AMD Athlon™Processors ...................................... 1
Frequency Selection DIP Switches .......................................... 5
Chipsets/Chips North Bridge: VIA VT8371™
(System Controller) .................................................................. 2
South Bridge/Super I/O: VIAVT82C686A™
(PCI-to-ISA Bridge) ............................................................... 12
2Mb Programmable Flash EEPROM ....................................... 9
Main Memory Maximum 1.5GB support
3 DIMM Sockets ...................................................................... 3
PC133 SDRAM / VC133 VCM support
Expansion Slots 5 PCI Slots .............................................................................. 18
1 AGP Pro Slot ....................................................................... 20
1 Audio Modem Riser (AMR) Slot ........................................ 16
System I/O 2 IDE Connectors (UltraDMA33/66 Support) ......................... 6
1 Floppy Disk Driver Connector .............................................. 7
1 Serial COM1 Connector ...................................... (Bottom) 24
1 Serial COM2 Connector ...................................... (Bottom) 22
1 Parallel Port Connector ............................................. (Top) 23
USB Connectors (Port 0 & Port 1) ......................................... 25
USB Connectors (Ports 2–3; Ports 4–6 optional)................... 10
1 PS/2 Mouse Connector .............................................. (Top) 26
1 PS/2 Keyboard Connector ................................... (Bottom) 26
Audio AC’97 V2.1 Audio Codec (optional)...................................... 17
Aureal PCI Audio Controller (optional) ................................. 14
Digital Audio Interface Header (optional).............................. 15
1 Joystick/MIDI Connector (on audio model only) .... (Top ) 21
1 Line Out Connector (on audio model only) ........ (Bottom) 21
1 Line In Connector (on audio model only) ........... (Bottom) 21
1 Microphone Connector (on audio model only) ... (Bottom) 21
Network Features Wake-On-LAN Connector........................................................ 8
Wake-On-Ring Connector ...................................................... 13
Hardware Monitoring Hardware Monitor Chip ......................................................... 11
3 Fan Power and Speed Monitoring Connectors
Power ATX Power Supply Connector ................................................. 4
Special Feature Onboard LED (Standby Power Warning)............................... 19
Form Factor ATX, 305mm x 244mm (12”x 9.6”)

ASUS K7V-T User’s Manual 13
2. FEATURES
2. FEATURES
Component Locations

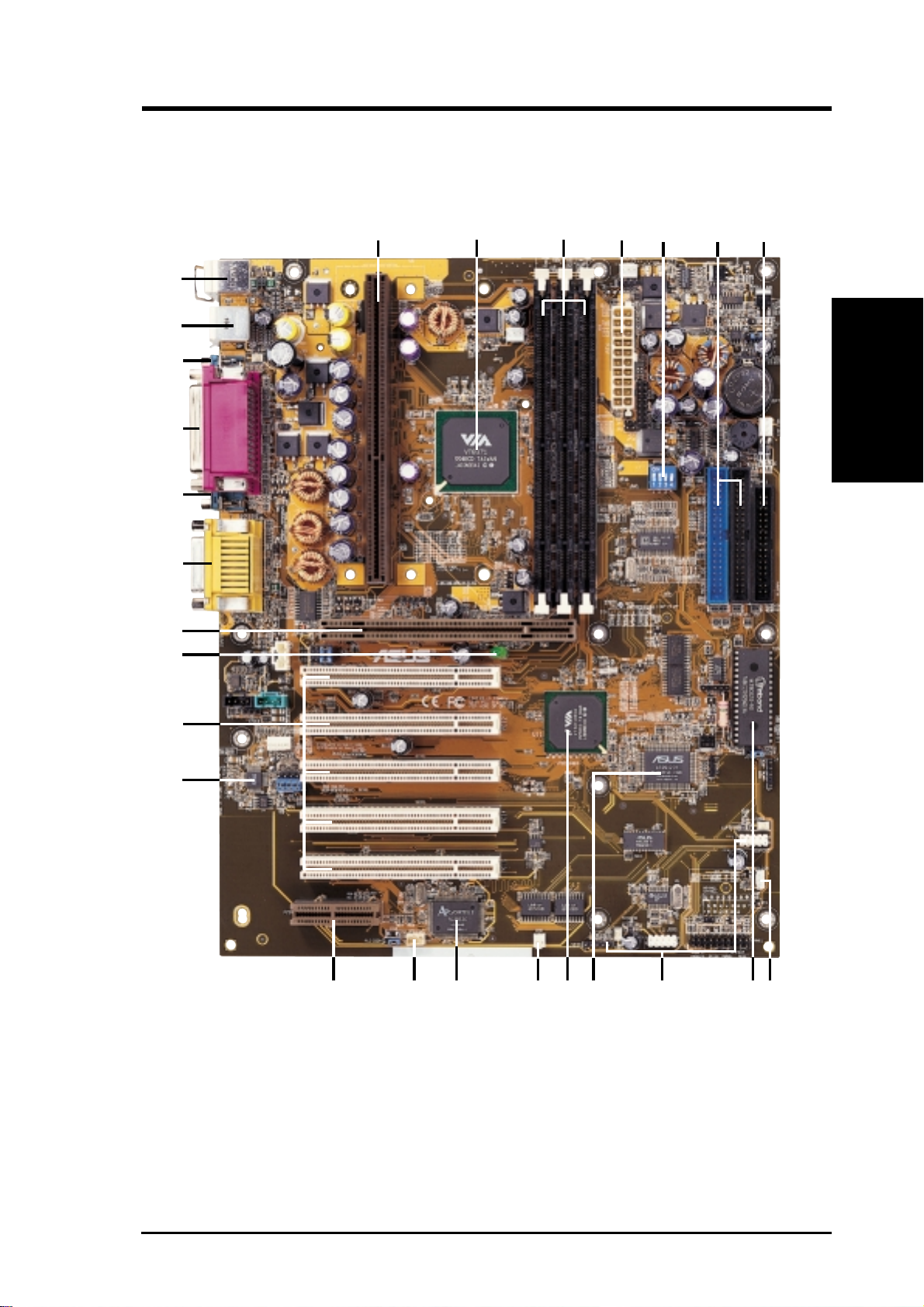

K7V-T Motherboard Component Locations
6324
25
21
24
26
9
7
14
1
12
5
22
23
17
10
18
13 8
20
1116 15
19

14 ASUSK7V-TUser’sManual
3. HARDWARE SETUP
Motherboard Layout
3. H/W SETUP
24.5cm (9.64in)
30.6cm (12in)
USB Hub
Au9254
CPU_FAN
01
DIMM3 (64/72 bit, 168-pin module)
5 4
PWR_FAN
WOR
SPDIFOUT
CD
MODEM
AUX
VIDEO
Accelerated Graphic Port (AGP PRO)
PCI Slot 1
PCI Slot 3
PCI Slot 2
PANEL
FLOPPY
SECONDARY
IDE
ATX Power Connector
IR
VIA
VT82C686A
PCIset
01
DIMM2 (64/72 bit, 168-pin module)
3 2
01
DIMM1 (64/72 bit, 168-pin module)
1 0
Row
USB3
HPHONE
Audio Modem Riser
(AMR)
K7V-T
Audio
Codec
Audio Codec
Setting
(SPK, ADN#,
AUD_EN2, AUD_EN1)
SMB
CPU S2K-SLOT-A
2Mbit Flash EEPROM
(Programmable BIOS)
CHA_FAN
DSW
DIP Switches
CPU Core Voltage
Setting (VID)
3VSBSLT
JTCPU
PRIMARY IDE
IDELED
CLRTC
®
PS/2
T: Mouse
B: Keyboard
USB
T: Port0
B: Port1
JEN
JTPWR
CHASSIS
PCI Slot 5
PCI Slot 4
COM1
COM2
PARALLEL PORT
GAME_AUDIO
Mic
In
Line
Out
Line
In
VIA
VT8371
AGP4X &
PC133 Memory
Controller
CR2032 3V
Lithium Cell
CMOS Power
ASUS
ASIC
with Hardware
Monitor
AUDIOEN
USB3A
WOLCON
USBPORT
Aureal
Audio
Chipset
MIC2
PLED
VIO
F_FAN
3.1 K7V-T Motherboard Layout
Grayed items are optional at the time of purchase.

ASUS K7V-T User’s Manual 15
3. HARDWARE SETUP
Layout Contents
3. H/W SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p.18 JumperFree™Mode (JEN)
2) 3VSBSLT p.18 Vaux Setting (+3V/+3VSB)
3) AUDIO_CODEC p.19 Onboard Audio Setting (Enable.../Disable...)
4) VIO p.19 I/O Voltage Setting (VIO)
5) DSW p.20 CPU External Frequency Setting
6) VID1, VID2, VID3 p.21 Voltage Regulator Output Setting
Expansion Slots
1) DIMM1, DIMM2, DIMM3 p.23 168-Pin DIMM Memory Support
2) Slot A p.25 Central Processing Unit (CPU)
3) PCI1, PCI2, PCI3, PCI4, PCI5 p.31 32-bit PCI Bus Expansion Slots
4) AGP p.33 Accelerated Graphics Port
5) AMR p.33 Audio Modem Riser Slot
Connectors
1) PS2KBMS p.35 PS/2 Mouse Connector (6-pin female)
2) PS2KBMS p.35 PS/2 Keyboard Connector (6-pin female)
3) USB p.36 Universal Serial Bus Ports 0 & 1 (Two 4-pin female)
4) PRINTER p.36 Parallel Port Connector (25-pin female)
5) COM1, COM2 p.36 Serial Port Connectors (Two 9-pin male)
6) GAME_AUDIO p.37 Joystick/MIDI Connector (15-pin female) (optional)
7) GAME_AUDIO p.37 Audio Port Connectors (Three 1/8”female) (optional)
8) PRIMARY/SECONDARYIDE p.38 Primary/Secondary IDE Connectors (Two 40-1pins)
9) FLOPPY p.38 Floppy Disk Drive Connector (34-1pins)
10) WOL_CON p.39 Wake-On-LAN Connector (3 pins)
11) WOR p.39 Wake-On-Ring Connector (2 pins)
12) IDELED p.40 IDE Activity LED (2 pins)
13) PWR_, CPU_, CHA_, F_FAN p.40 PowerSupply, CPU, Chassis FanConnectors(Three3-pin)
14) CD,AUX, VIDEO, MODEM p.41 Internal Audio Connectors (Four 4 pins) (optional)
15) HPHONE p.41 HeadphoneTrue-LevelLineOutHeader(3 pins)(optional)
16) IR p.42 Serial Infrared Module Connector (5-1 pins)
17) SMB p.42 SMBus Connector (5-1 pins)
18) CHASSIS p.43 Chassis Intrusion Alarm Lead (4-1 pins)
19) ATXPWR p.43 ATX Power Supply Connector (20 pins)
20) USBPORT p.44 USB Connector Set (10-1 pins)
21) SPDIFOUT p.44 Digital Audio Interface Connector (3 pins)

16 ASUS K7V-T User’s Manual
3. HARDWARE SETUP
Layout Contents
3. H/W SETUP
22) SPEAKER (PANEL) p.46 System Warning Speaker Connector (4 pins)
23) PWRLED (PANEL) p.46 System Power LED Lead (3-1 pins)
24) MSGLED (PANEL) p.46 System MessageLED Lead (2 pins)
25) RESET (PANEL) p.46 Reset Switch Lead (2 pins)
26) PWRSW (PANEL) p.46 ATX Power / Soft-Off Switch Lead (2 pins)
27) SMI (PANEL) p.46 System Management Interrupt Switch Lead (2 pins)

ASUS K7V-T User’s Manual 17
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
•Check Motherboard Settings
•Install Memory Modules
•Install the Central Processing Unit (CPU)
•Install Expansion Cards
•Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
This section explains in detail how to change your motherboard’s function settings
through the use of switches and/or jumpers.
WARNING! Computer motherboards and expansion cards contain very delicate Inte-
grated Circuit (IC) chips. To protect them against damage from static electricity, you
should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the compo-
nent whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the
ATX power connector on the motherboard.
Motherboard Feature Settings (DSW)
Besides jumper settings, some of the motherboard’s onboard functions are adjusted
through the DIP switches. The white block represents the switch’s position. The
example below shows all the switches in the OFF position.
0 1
0 1
0 1
K7V-T
®
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
K7V-T DIP Switches
DSW
ON
OFF
ON
1234

18 ASUS K7V-T User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
2) PCI 3Volt Setting (3VSBSLT)
This jumper allows you to select the voltage supplied to PCI devices. If you
have PCI devices that require auxiliary power, set this jumper to 3 VSB.
Setting 3VSBSLT
3 Volt [1-2]
3 VSB [2-3] (default)
0 1
0 1
0 1
K7V-T
®
K7V-T PCI 3Volt Selection
Add 3 Volt Add 3 VSB
(Default)
1223
3VSBSLT
1) JumperFree™Mode (JEN)
This jumper allows you to enable or disable the JumperFree™mode. The
JumperFree™mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
IMPORTANT: In JumperFree™mode, all DIP switches (DSW) must be set to
OFF and VID1, VID2, and VID3 (see 6) Voltage Regulator Output Setting)
must be set to [3-4].
Setting JEN
Enable (JumperFree) [2-3] (default)
Disable (Jumper) [1-2]
0 1
0 1
0 1
K7V-T
®
K7V-T Jumper Mode Setting
Jumper Mode Jumper Free
(Default)
12 23
JEN
34
VID2
VID3
VID1
ON
1234
DSW
OFF

ASUS K7V-T User’s Manual 19
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3) Onboard Audio Setting (available on audio model only)
The onboard audio CODEC may be enabled or disabled using all of these jump-
ers. Disable the onboard audio CODEC if you are using an PCI audio card on any
of the expansion slots or a primaryAMR on theAMR slot (see AMR Slot later in
this section). If using an PCI audio expansion card, OnboardAC’97Audio Con-
trollerin 4.4.2 I/O Device Configuration | Onboard Peripheral Resource Con-
trol must also be disabled.
Setting AUDIO CODEC
Enable [1-2] [1-2] [1-2] [1-2] (default)
Disable [2-3] [2-3] [2-3] [2-3]
0 1
0 1
0 1
K7V-T
®
K7V-T Audio Codec Setting
Enable
Onboard
Audio Codec
(Default)
1
22
3
SPK
ADN#
AUD_EN2
AUD_EN1
SPK AUD_EN2
Disable
Onboard
Audio Codec
ADN# AUD_EN1
4) I/O Voltage Setting (VIO)
VIO allows you to select the voltage supplied to the DRAM, chipset,AGP, PCI,
and the CPU’s I/O buffer. The default voltage (3.31V) should be used unless
processor overclocking requires a higher voltage.
0 1
0 1
0 1
K7V-T
®
K7V-T VIO Setting
3.30 Volt 3.40 Volt
12 23
VIO
3.56 Volt
34
WARNING! Using a higher voltage may help when overclocking but may re-
sult in the shortening of your computer component’s life. It is strongly recom-
mended that you leave this setting on its default.

20 ASUS K7V-T User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP

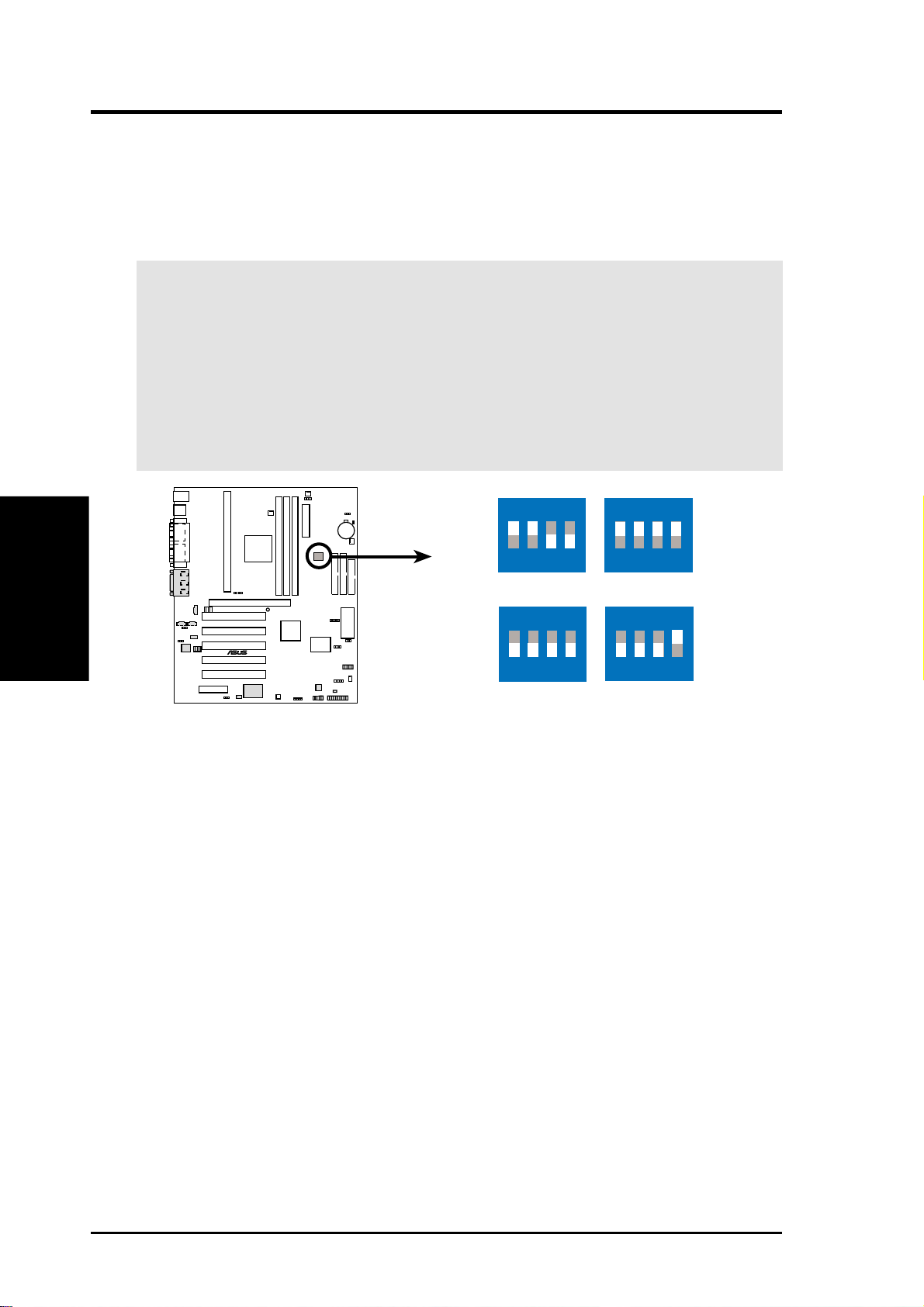

5) CPU External Frequency Setting (DSW)
Thisoption tells the clockgeneratorwhat frequency to send totheCPU, SDRAM,
and the chipset. This allows the selection of the CPU’s External frequency. The
CPUExternalFrequencymultipliedbytheFrequencyMultipleequalstheCPU’s
Internal frequency (the advertised CPU speed).
IMPORTANT:
1. To use this feature, JEN [see 1) JumperFree™ Mode (JEN) in 3. HARD-
WARE SETUP] must be set to Jumper mode or Disable [1-2].
2. In JumperFree mode, all dip switches (DSW-1–DSW-4) must be set to OFF.
3. When JumperFree mode isenabled,useBIOS setup in place of these switches
(set OperatingFrequencySettingto User Define under 4.4Advanced Menu
in BIOS Setup so you can set the CPU Frequency).
0 1
0 1
0 1
K7V-T
®
K7V-T CPU External Frequency Selection
CPU
PCI
DSW
100.00MHz
33.33MHz 103.00MHz 34.33MHz
105MHz
35MHz 110.00MHz 36.67MHz
ON
1234
ON
1234
ON
1234
ON
1234
CPU
PCI
NOTE: Frequency Multiple settings are not available here because AMD
Athlon™processors have locked Frequency Multiples.
NOTE:Themotherboard supports PC100 / PC133DIMMsorVCSDRAMsfor
system memory. Registered DIMMs are not supported (see 3.5 System
Memory (DIMM).
