P4SD-LA specifications summary
CPU
Chipset
Front Side Bus (FSB)
Memory
Expansion slots
VGA
Serial ATA
IDE
Audio
LAN
Special features
Rear panel I/O
Internal I/O
BIOS features
Industry standard
Manageability
Form factor
Socket 478 for Intel
® Pentium ® 4 Northwood/Prescott
On-die 512KB/256KB L2 cache with full speed
Intel
®
Hyper-Threading technology ready
New power design for up to 3.4+ GHz or faster speed
Intel
®
Breeds Hill MCH(848P)
Intel
®
ICH5
800/533/400 MHz
2x 184-pin DDR DIMM sockets for up to 2GB memory
Supports PC3200/PC2700/PC2100 unbuffered
non-ECC DDR DIMMs
1 x AGP 4X/8X
3 x PCI
No support for on-board VGA
Intel ICH5 supports two UltraDMA/150 SATA connectors
2 x UltraDMA 100/66/33 connectors
RealTek ALC650 6-channel audio CODEC
Realtek 8101L 10/100 Mbps Fast Ethernet controller
Power Loss Restart
ASUS EZ Flash
1 x Parallel port
1 x Serial port
1 x Video port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0/USB 1.1 ports
1 x RJ-45 port
1 x IEEE 1394 port
Line In/Line Out/Microphone ports
2 x USB 2.0/1.1 connector for 4 additional USB ports
CPU/Chassis fan connectors
20-pin/4-pin ATX 12V power connectors
S/PDIF connector
Speaker Out connector
CD/AUX audio connectors
Front HP-OUT connector
4Mb Flash ROM, AMI BIOS with enhancedACPI, PnP,
DMI2.0, Green features
PCI 2.2, USB 2.0
WfM 2.0. DMI 2.0, WOL/WOR by PME
Micro-ATX form factor: 9.6 in x 9.6 in (24.5 cm x 24.5 cm)

iv

ASUS P4SD-LA motherboard 1

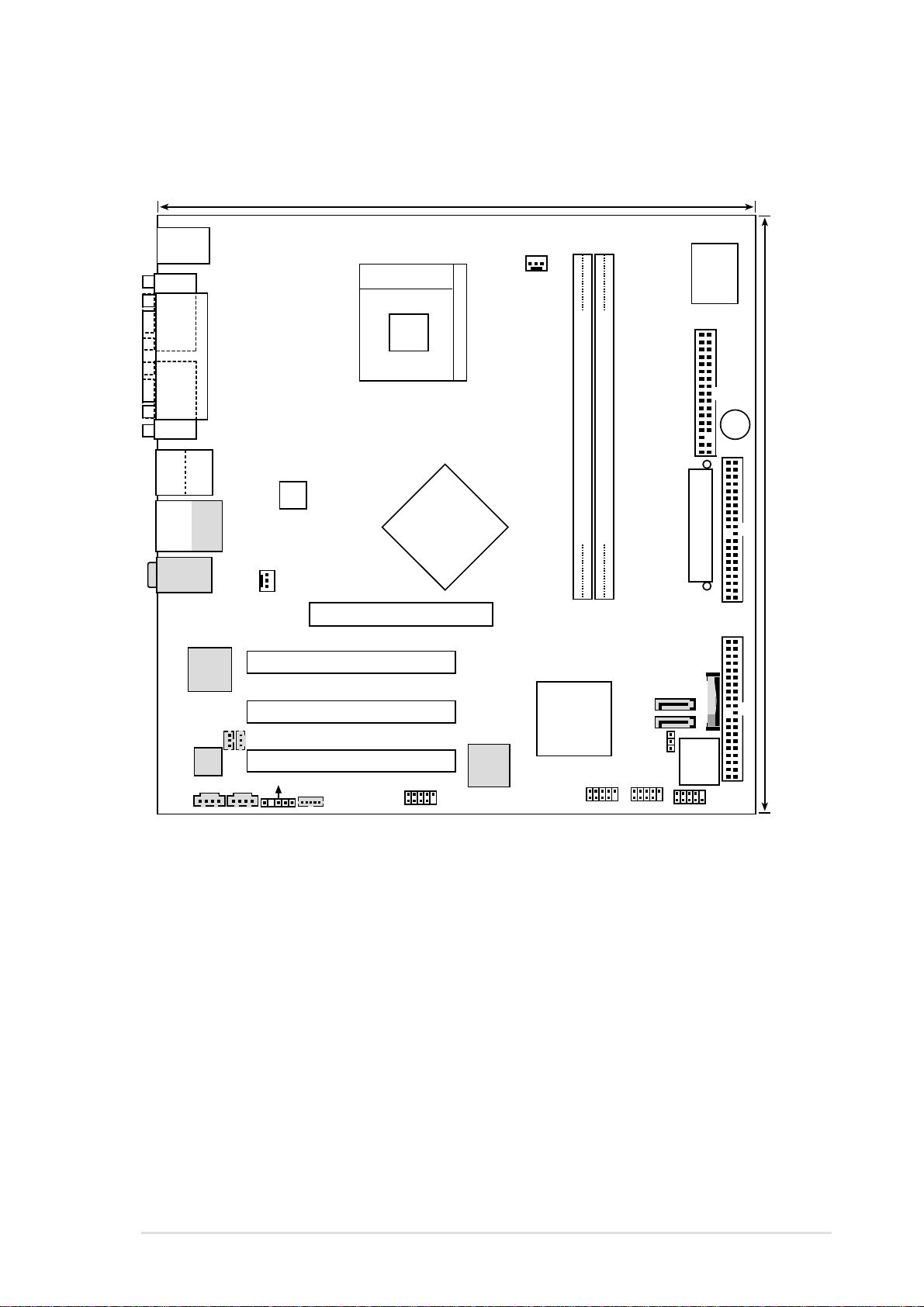

1. Motherboard layout
ATX12V1
24.5cm (9.64in)
SECONDARY IDE
FLOPPY1
P4SD-LA
Intel
ICH5
Chipset
Accelerated Graphics Port (AGP8X1)
Intel
Breeds Hill
MCH
Chipset
Super
I/O
4Mb
BIOS
PCI 1
PS/2
T: Mouse
B: Keyboard
Realtek
RTL8101L
CHA_FAN1
Audio
Codec
Below:Mic In
Center:Line Out
Top:Line In
DDR DIMM1 (64/72 bit, 184-pin module)
01
PCI 2
PCI 3
24.5cm (9.64in)
CPU_FAN1
COM1
PARALLEL PORT
VGA
RJ-45
Top:
USB1
USB2
Bottom:
1394
Top:
USB1
USB2
Bottom:
BUZZER
BATTERY1
USB1 HPANEL
1394
CD_IN AUX SPEAKER OUT
FRONT MICIN
ATX Power Connector
DDR DIMM2 (64/72 bit, 184-pin module)
23
Socket 478
USB2
P30
TI43AB22A
1394
PHY
FRONT HP-OUT
PRIMARY IDE
P31
J19
SPDI/F

2 ASUS P4SD-LA motherboard

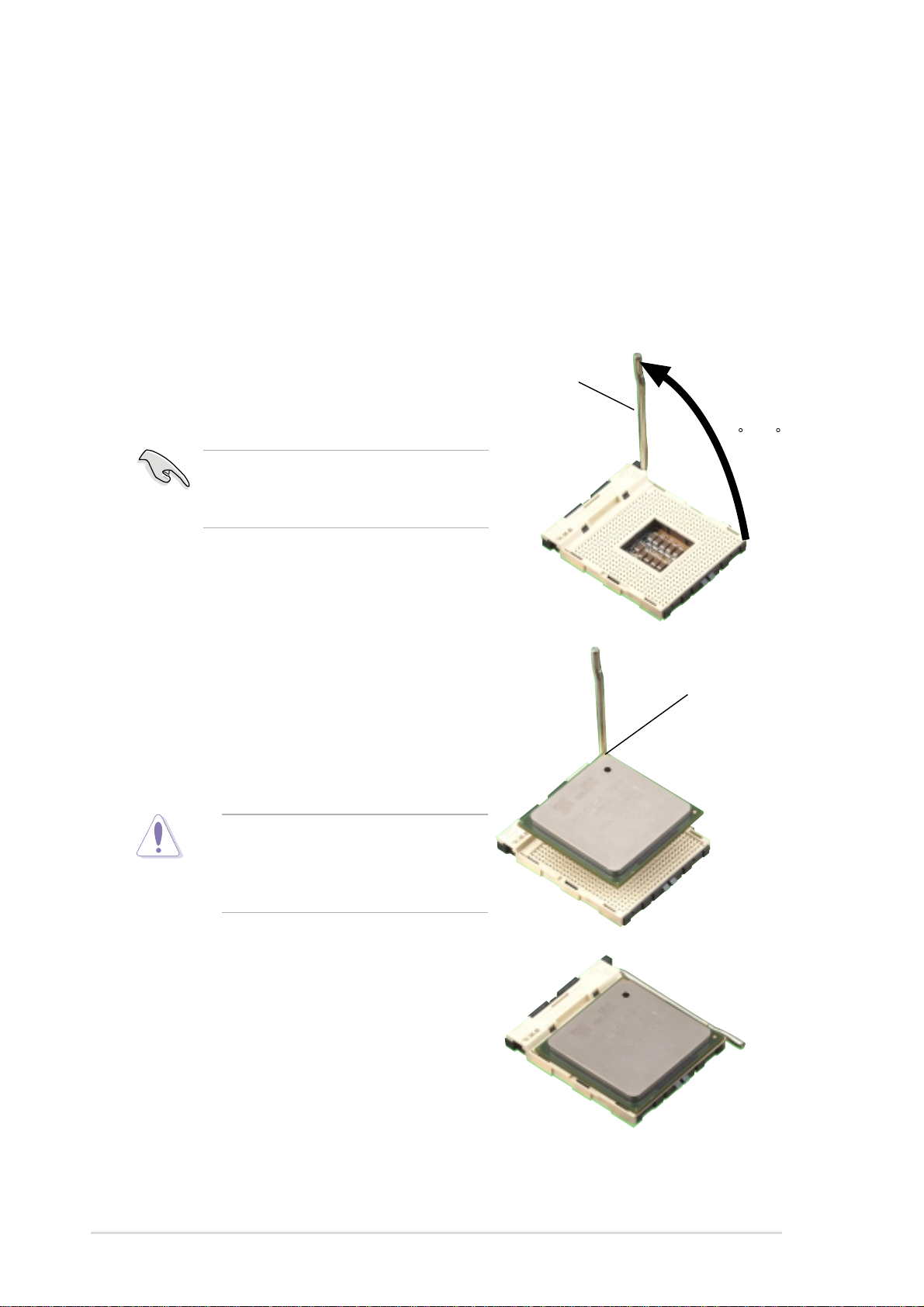

2. Unlock the socket by pressing the
lever sideways, then lift it up to a 90°-
100°angle.
3. Position the CPU above the socket
such that its marked corner matches
the base of the socket lever.
4. Carefully insert the CPU into the
socket until it fits in place.
5. When the CPU is in place, push
down the socket lever to secure the
CPU. The lever clicks on the side tab
to indicate that it is locked.
6. Install a CPU heatsink and fan
following the instructions that came
with the heatsink package.
7. Connect the CPU fan cable to the
CPU_FAN1 connector on the
motherboard.
Gold Mark
2. Central Processin Unit (CPU)
The motherboard comes with a surface mount 478-pin Zero Insertion Force (ZIF)
socket. The socket is designed for the Intel
® Pentium ® 4 Northwood/Prescott
processor in the 478-pin package with 512KB L2 cache. This processor supports
800/533/400MHz front side bus (FSB), and allows data transfer rates of 3.2GB/s,
2.1GB/s, and 1.6GB/s.
Follow these steps to install a CPU.
1. Locate the 478-pin ZIF socket on the motherboard.
Make sure that the socket lever is lifted
up to 90°-100°angle, otherwise the
CPU does not fit in completely.
Socket Lever
90 -100
The CPU fits only in one correct
orientation. DO NOT force the CPU
into the socket to prevent bending
the pins and damaging the CPU!

ASUS P4SD-LA motherboard 3
3. System memory
The motherboard comes with two Double Data Rate (DDR) Dual Inline Memory
Module (DIMM) sockets. These sockets support up to 2GB system memory using
184-pin unbuffered non-ECC PC3200/PC2700/PC2100 DDR DIMMs.
The following figure illustrates the location of the DDR DIMM sockets.
P4SD-LA
P4SD-LA 184-Pin DDR
DIMM Sockets
80 Pins
104 Pins
DIMM1 DIMM2
Memory configurations
You may install 64MB, 128MB, 256MB, 512MB, and 1GB DDR DIMMs into the
DIMM sockets using the memory configurations in this section.
Important notes on memory configurations
1. Installing DDR DIMMs other than the recommended configurations may
cause memory sizing error or system boot failure. Use any of the
recommended configurations in Table 1.
2. Install only identical (the same type and size) DDR DIMM pairs using the
recommended configurations.
3. Make sure that the memory frequency matches the CPU FSB (Front Side
Bus). Refer to Table 2 below.
4. Double-sided 16-bit DDR DIMMs are not supported on this motherboard.

4 ASUS P4SD-LA motherboard
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to both
the motherboard and the components.

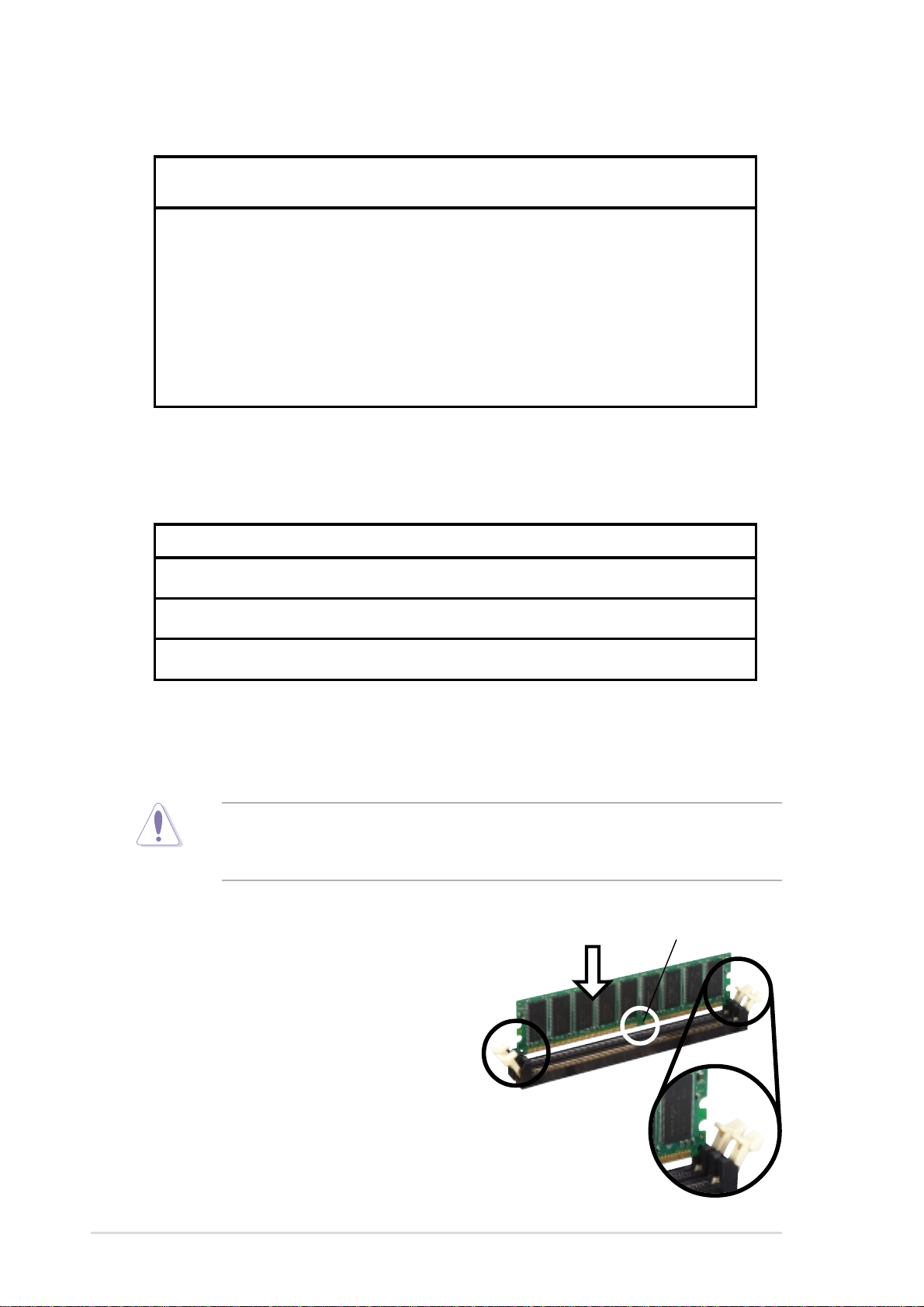

Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing
the retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in
place and the DIMM is properly
seated. Unlocked Retaining Clip
DDR DIMM notch
Table 1 Recommended memory configurations
Table 2 Memory frequency/CPU FSB synchronization
Sockets
Mode DIMM1 DIMM2
Single-channel (1) Installed —
(2) —Installed
(3) Installed Inst alled
CPU FSB DDR DIMM Type Memory Frequency
800 MHz PC3200/PC2700/PC2100 400/333/266 MHz
533 MHz PC2700/PC2100 333/266 MHz
400 MHz PC2100 266 MHz
Installing a DIMM

ASUS P4SD-LA motherboard 5
4. Expansion slots
The motherboard has three PCI slots and one Accelerated Graphics Port (AGP) slot.
To install and configure an expansion card:
1. Install an expansion card following the instructions that came with the chassis.
NOTE: The AGP slot supports only +0.8V and +1.5V AGP cards.
2. Turn on the system and change the necessary BIOS settings, if any. See
Chapter 2 for BIOS information.
3. Assign an IRQ to the card. Refer to the tables below.
4. Install the drivers and/or software applications for the expansion card
according to the card documentation.
Standard interrupt assignments
IRQ Priority Standard Function
0 1 System Timer
1 2 Keyboard Controller
2 N/A Programmable Interrupt
3* 11 Communications Port (COM2)
4* 12 Communications Port (COM1)
5* 13 IRQ holder for PCI steering
6 14 Floppy Disk Controller
7* 15 Printer Port (LPT1)
8 3 System CMOS/Real Time Clock
9* 4 IRQ holder for PCI steering
10* 5 Advance AC’97 CODEC
11* 6 Standard PCI Graphics Adapter (VGA)
12* 7 PS/2 Compatible Mouse Port
13 8 Numeric Data Processor
14* 9 Primary IDE Channel
15* 10 Secondary IDE Channel
*These IRQs are usually available for ISA or PCI devices.
IRQ assignments for this motherboard
ABCDEFGH
PCI slot 1 —————shared ——
PCI slot 2 ——————used —
PCI slot 3 ———————shared
AGP slot shared ———————
Onboard USB controller 1 shared ———————
Onboard USB controller 2 ———shared ————
Onboard USB controller 3 ——used —————
Onboard USB controller 4 shared ———————
Onboard USB 2.0 controller ———————shared
Onboard LAN ———shared ————
Onboard audio —used ——————
Onboard 1394 controller —————shared ——

6 ASUS P4SD-LA motherboard
Install only +0.8V/+1.5V AGP cards on this motherboard!
PCI slots
There are three 32-bit PCI slots on this motherboard. The slots support PCI cards
such as a LAN card, SCSI card, USB card, and other cards that comply with PCI
specifications.

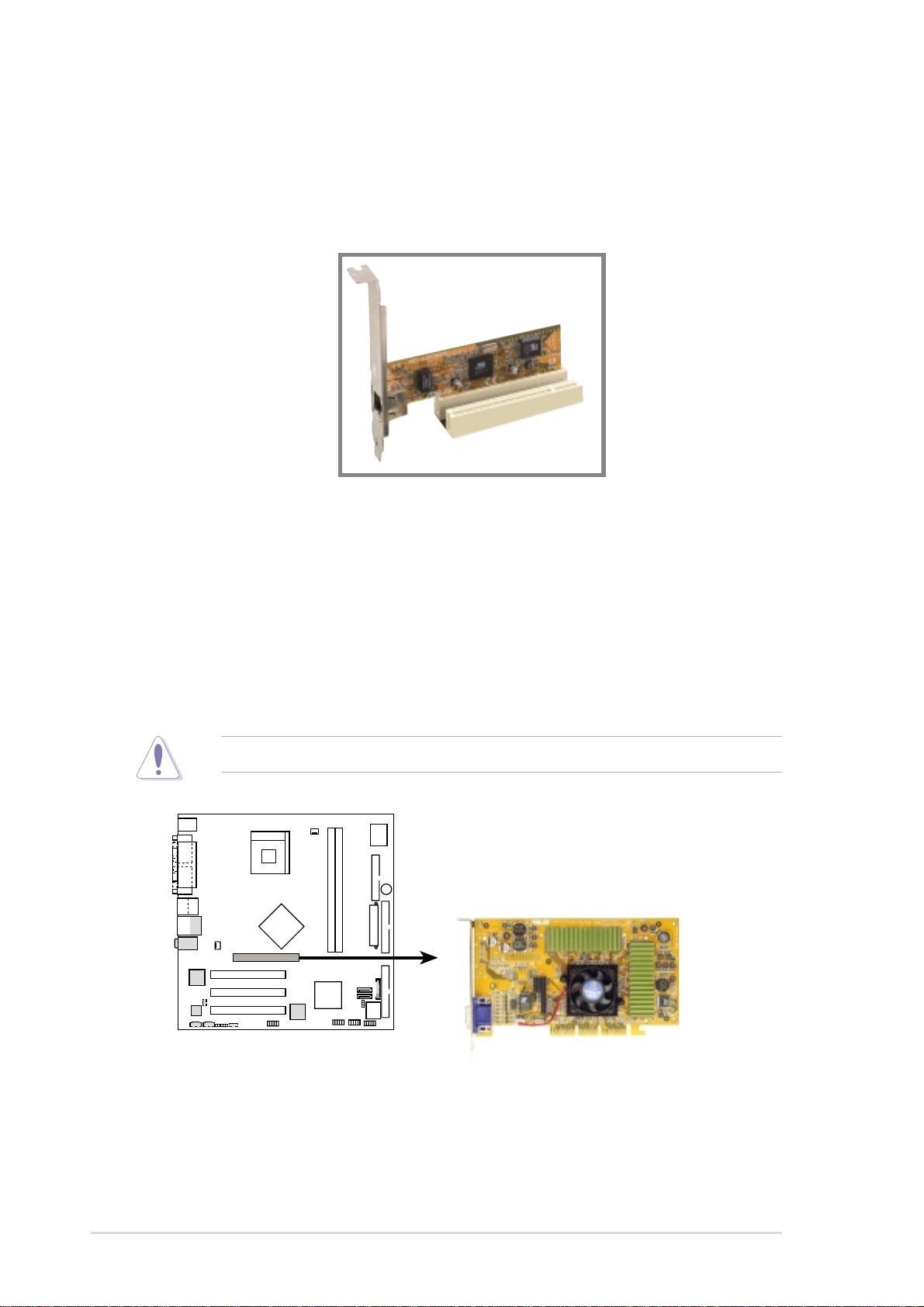

AGP slot
This motherboard has an Accelerated Graphics Port (AGP) slot that supports
+0.8V AGP 8X and +1.5V AGP 4X cards. When you buy an AGP card, make sure
that you ask for one with +0.8V+1.5V specification.
Note the notches on the card golden fingers to ensure that they fit the AGP slot on
your motherboard.
P4SD-LA
P4SD-LA Accelerated
Graphics Port (AGP8X)
AGP Card without Retention Notch

ASUS P4SD-LA motherboard 7
5. Jumper

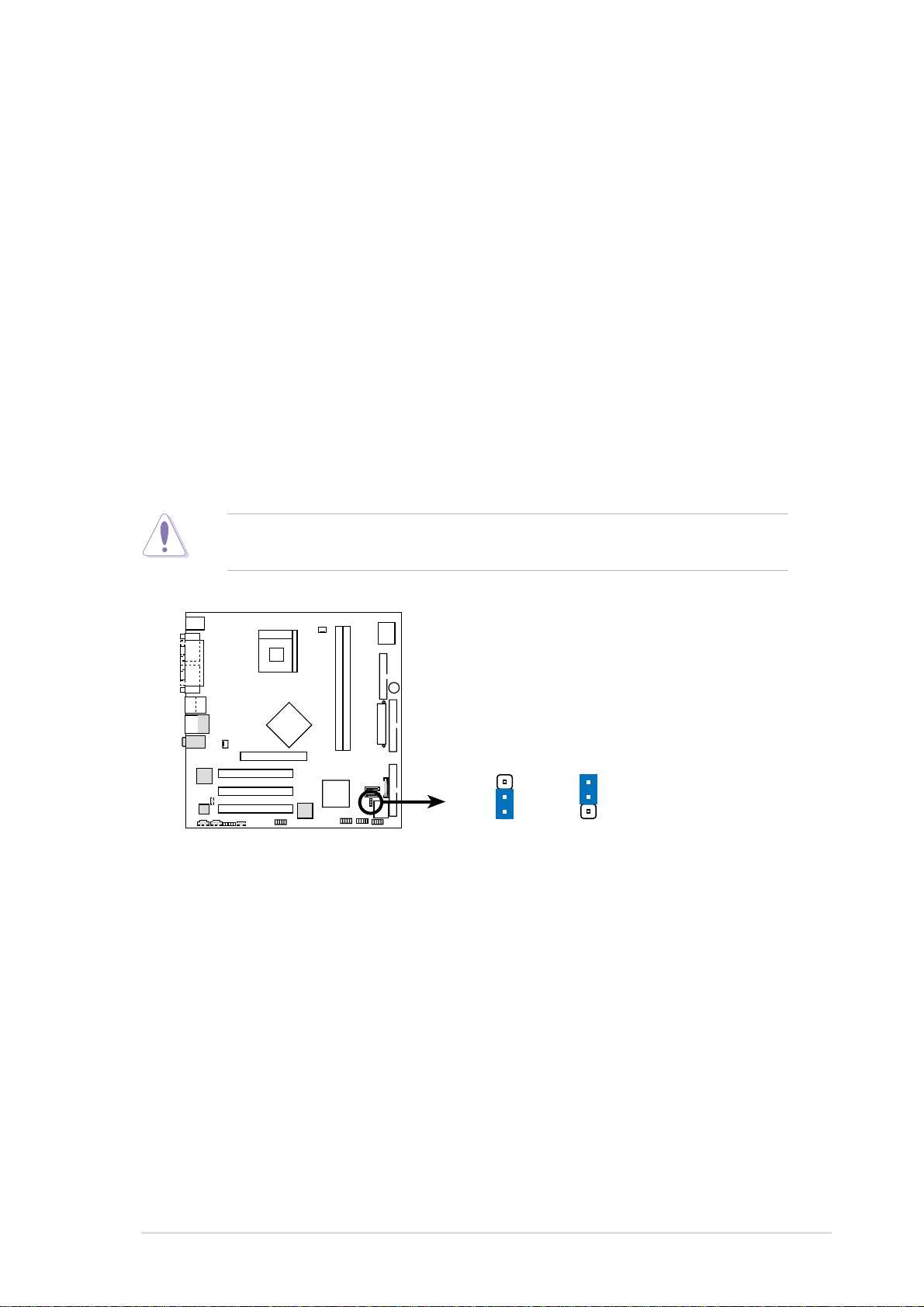

Clear RTC RAM (3-pin J19)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS.
You can clear the CMOS memory of date, time, and system setup parameters
by erasing the CMOS RTC RAM data. The RAM data in CMOS, that include
system setup information such as system passwords, is powered by the
onboard button cell battery.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 2-3 (Normal) to pins 1-2 (Clear CMOS).
Keep the cap on pins 2-3 for about 5~10 seconds, then move the cap
back to pins 2-3.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup
to re-enter data.
Except when clearing the RTC RAM, never remove the cap on jumper J19
default position. Removing the cap will cause system boot failure!
P4SD-LA
P4SD-LA Clear RTC RAM
J19
NormalClear CMOS (Default)
1
23
2
1
3

8 ASUS P4SD-LA motherboard
6. Connectors
This section describes and illustrates the internal connectors on the motherboard.

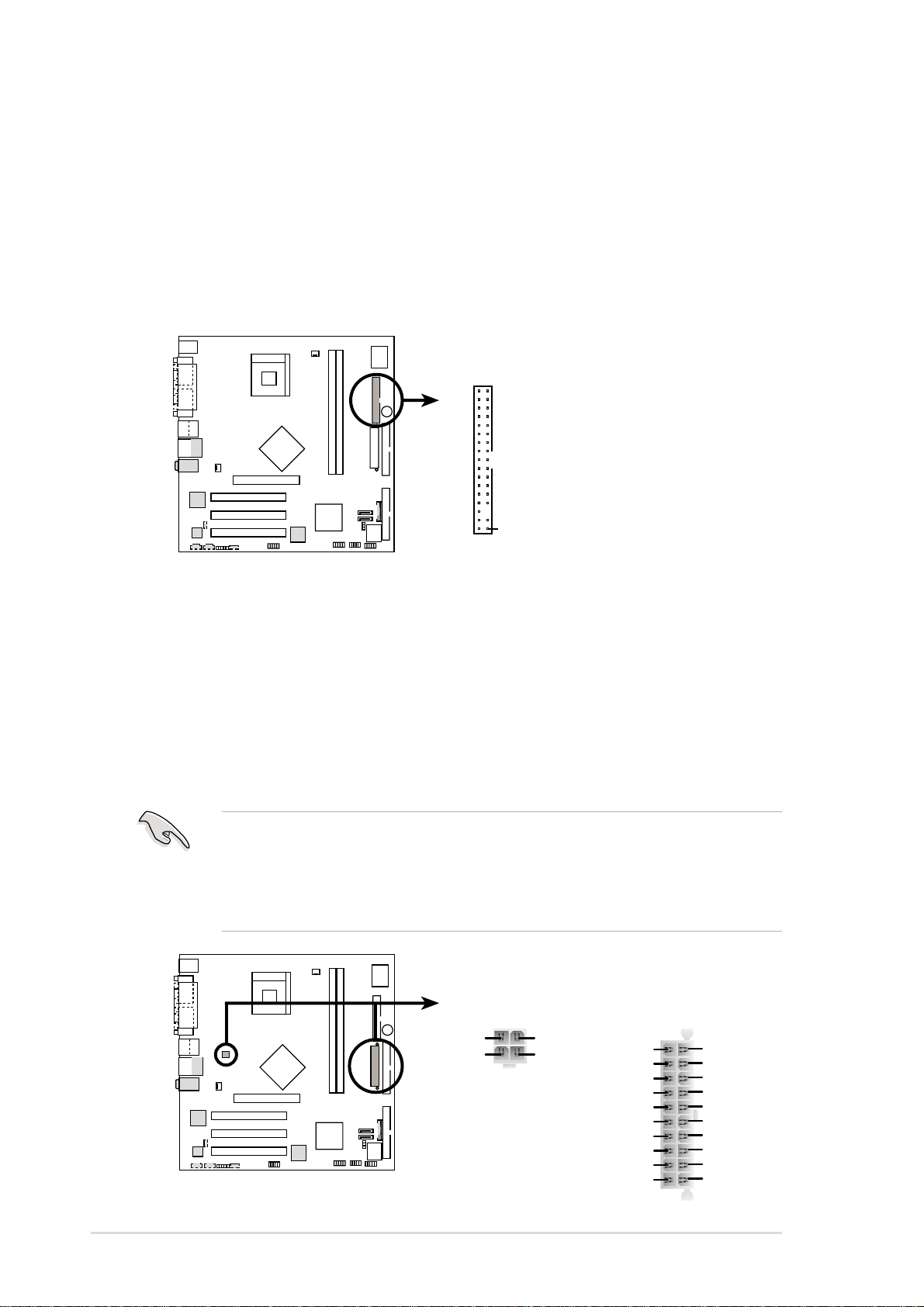

1. Floppy disk drive connector (34-1 pin FLOPPY1)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the floppy
drive. (Pin 5 is removed to prevent incorrect insertion when using ribbon cables
with pin 5 plug).
P4SD-LA
NOTE: Orient the red markings on
the floppy ribbon cable to
PIN 1
P4SD-LA Floppy Disk Drive Connector
PIN 1
FLOPPY1
2. ATX power connectors (20-pin ATX_POWER1, 4-pin ATX12V)
These connectors connect to an ATX 12V power supply. The plugs from the
power supply are designed to fit these connectors in only one orientation. Find
the proper orientation and push down firmly until the connectors completely fit.
In addition to the 20-pin ATXPWR connector, this motherboard requires that
you connect the 4-pin ATX +12V power plug to provide sufficient power to the
CPU.
Make sure that your ATX 12V power supply can provide 8A on the +12V lead
and at least 1A on the +5-volt standby lead (+5VSB). The minimum
recommended wattage is 230W, or 300W for a fully configured system. The
system may become unstable and may experience difficulty powering up if the
power supply is inadequate.
P4SD-LA
P4SD-LA ATX Power Connector
ATXPWR1
+3.3VDC
-12.0VDC
COM
PS_ON#
COM
COM
COM
-5.0VDC
+5.0VDC
+5.0VDC
PWR_OK
+12.0VDC
+3.3VDC
+3.3VDC
COM
+5.0VDC
COM
+5.0VDC
COM
+5VSB
ATX12V1
GND
+12V DC
GND +12V DC

ASUS P4SD-LA motherboard 9
3. IDE connectors (40-1 pin PRI_IDE, SEC_IDE)
This connector supports the provided UltraDMA/100/66 IDE hard disk ribbon
cable. Connect the cable’s blue connector to the primary (recommended) or
secondary IDE connector, then connect the gray connector to the
UltraDMA/100/66 slave device (hard disk drive) and the black connector to the
UltraDMA/100/66 master device. It is recommended that you connect non-
UltraDMA/100/66 devices to the secondary IDE connector. If you install two hard
disks, you must configure the second drive as a slave device by setting its
jumper accordingly. Refer to the hard disk documentation for the jumper settings.
BIOS supports specific device bootup. If you have more than two
UltraDMA/100/66 devices, purchase another UltraDMA/100/66 cable. You may
configure two hard disks to be both master devices with two ribbon cables –one
for the primary IDE connector and another for the secondary IDE connector.
1. Pin 20 on each IDE connector is removed to match the covered hole on the
UltraDMAcable connector. This prevents incorrect orientation when you
connect the cables.
2. The hole near the blue connector on the UltraDMA/100/66 cable is intentional.

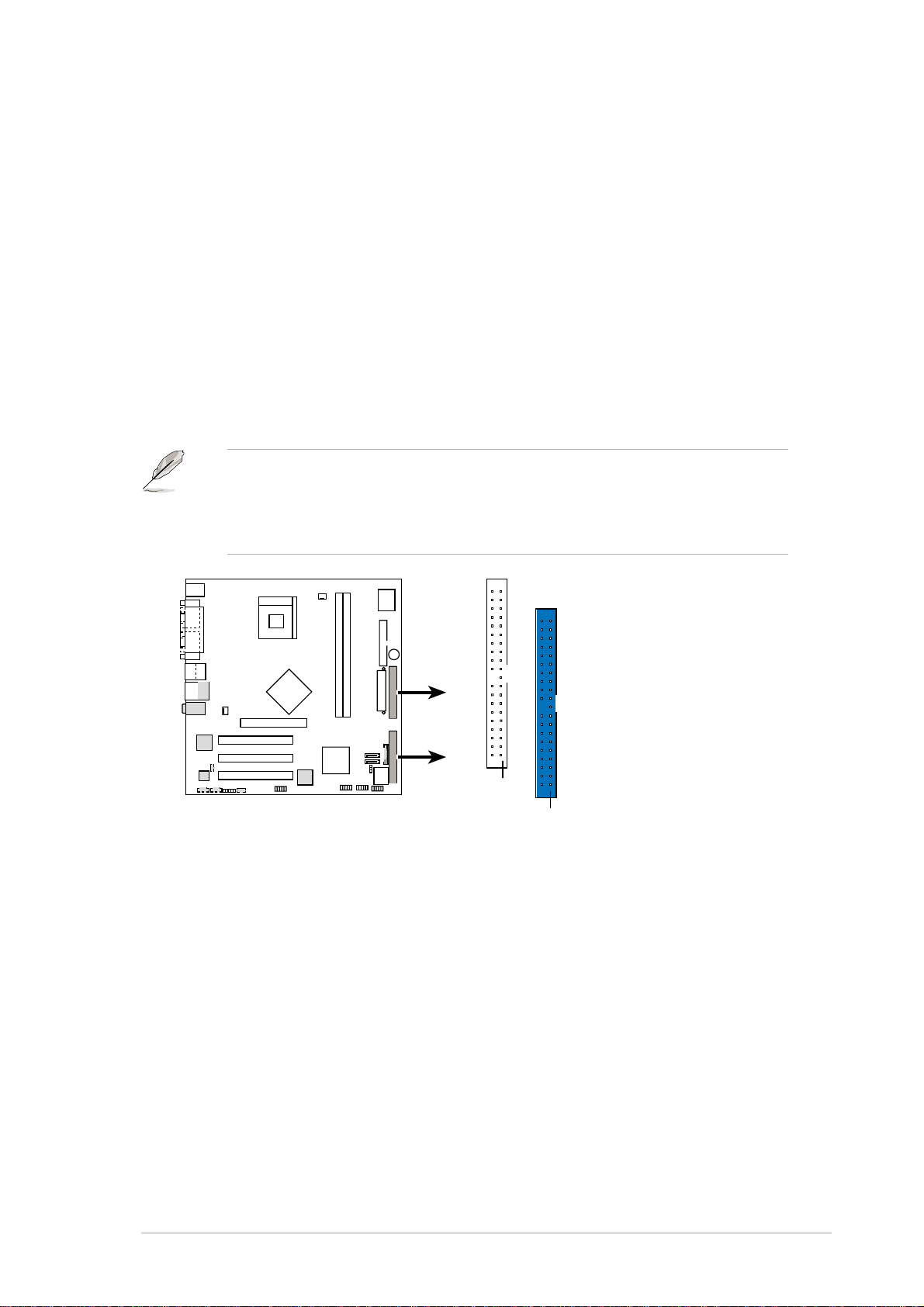

P4SD-LA
P4SD-LA IDE Connectors
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
SECONDARY IDE
PIN 1
PRIMARY IDE
PIN 1

10 ASUS P4SD-LA motherboard
P4SD-LA
P4SD-LA SATA Connectors
SATA1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
P4SD-LA
P4SD-LA IEEE-1394 Connectors
1394 1
TPA- GND TPB- +12V GND
TPA+
GND
TPB+
+12V
4. Serial ATA connectors (7-pin SATA1, SATA2)
These next generation connectors support the thin Serial ATA cables
for Serial ATA hard disks. The current Serial ATAinterface allows up to
150 MB/s data transfer rate, faster than the standard parallel ATA with
133 MB/s (Ultra ATA/133).
5. IEEE 1394 connector (10-1 pin 1394)
This connector is for a 10-to-6-pin 1394 serial connector cable that
connects to a 1394 module. Attach the 10-1 pin cable plug to this
connector, and the 6-pin cable plug to the 1394 module. You may also
connect a 1394-compliant internal hard disk to this connector.

ASUS P4SD-LA motherboard 11
6. USB headers (10-1 pin USB1, USB2)
If the USB ports on the rear panel are inadequate, two USB headers are
available for additional USB ports. The USB headers comply with USB 2.0
specification that supports up to 480 Mbps connection speed. This speed
advantage over the conventional 12 Mbps on USB 1.1 allows faster Internet
connection, interactive gaming, and simultaneous running of high-speed
peripherals. You may connect a USB module to any of the USB headers.
The USB module is purchased separately.

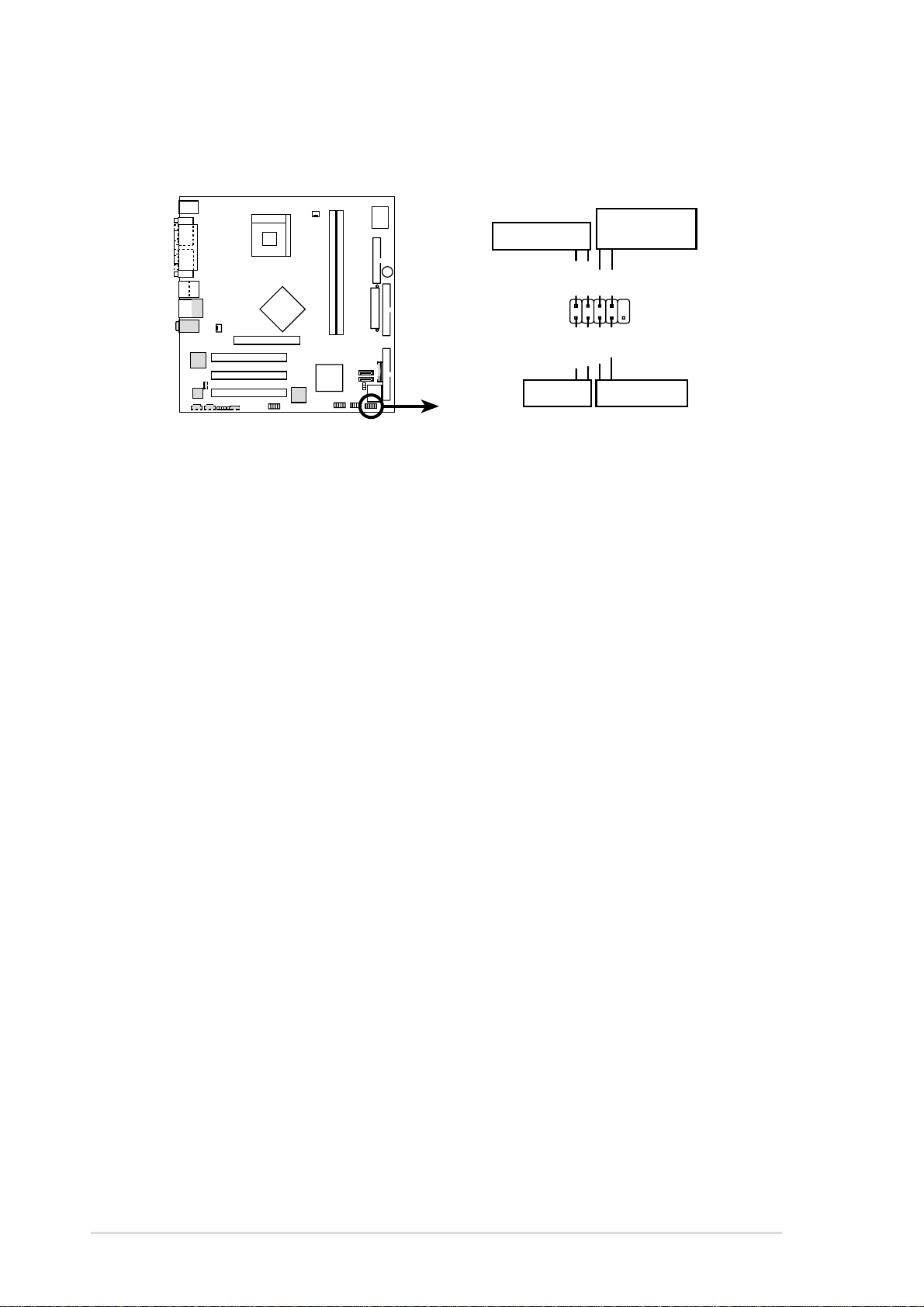

P4SD-LA
P4SD-LA USB 2.0 Header
USB1USB2
USB+5V LDM1 LDP1 GND NC
USB+5V
LDM2
LDP2
GND
15
610
USB+5V LDM3 LDP3 GND NC
USB+5V
LDM4
LDP4
GND
15
610
7. Speaker out connector (5-1 pin SPEAKER OUT)
This connector is for an optional audio module. Connect one end of the audio
cable to this connector and the other end to the audio module.

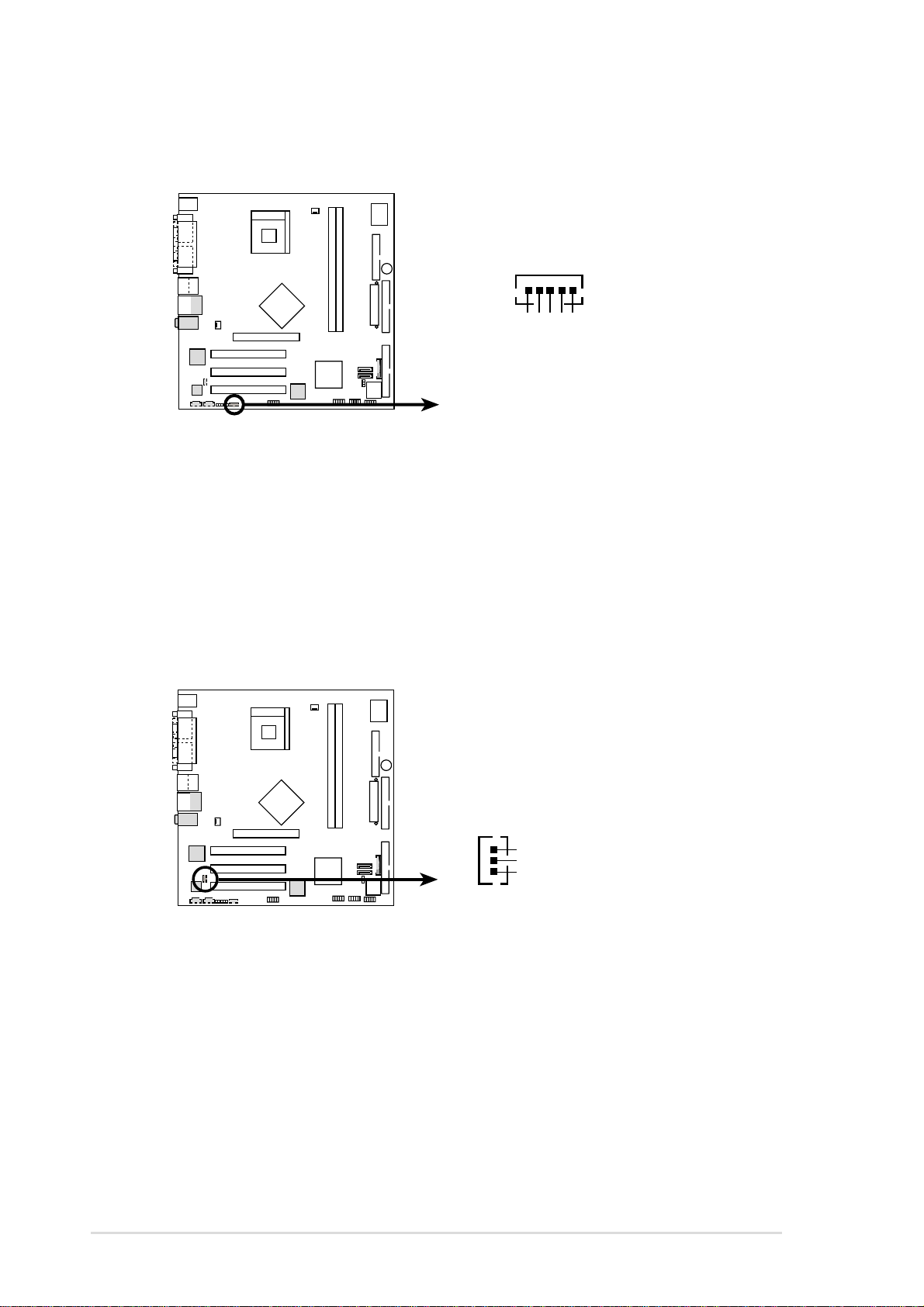

P4SD-LA
P4SD-LA Speaker Out Connector
+12V
1
SPEAKER OUT
Speak Out-R signal
Ground
Speak Out-L signal

12 ASUS P4SD-LA motherboard
9. Microphone connector (3-pin FRONT MICIN)
This connector is for a chassis-mounted front panel microphone jack. Use a
3-pin audio cable to connect the microphone jack to this connector.
P4SD-LA
P4SD-LA ront Microphone Connector
FRONT MICIN
MIC Power
MIC Input
Ground
8. Front headphone connector (5-pin FRONT_HP-OUT)
This connector is for a chassis-mounted front panel headphone jack.
P4SD-LA
P4SD-LA
Front HeadPhone Header Connector
FRONT HP-OUT
Analog Ground
HP-L Signal
FRONT OUT-L Signal
HP-R Signal
FRONT OUT-R Signal
1

ASUS P4SD-LA motherboard 13
10. Internal audio connectors (4-pin CD, AUX)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P4SD-LA
P4SD-LA Internal Audio Connectors
AUX(White)CD-IN (Black)
Right Audio Channel
Left Audio Channel
Ground
Right Audio Channel
Left Audio Channel
Ground
11. Digital audio connector (3-pin SPDI/F)
This connector is for an S/PDIF audio module that allows digital instead of
analog sound output. Connect one end of the audio cable to this connector and
the other end to the S/PDIF module.
P4SD-LA
P4SD-LA Digital Audio Interface
SPDI/F
SPDIFOUT
+5V
Ground

14 ASUS P4SD-LA motherboard
12. System panel connector (20-pin HPANEL1)
This connector accommodates several system front panel functions.
• System Power LED Lead (3-1 pin PLED)
This 3-1 pin connector connects to the system power LED. The LED lights up
when you turn on the system power, and blinks when the system is in sleep
mode.
• Hard Disk Activity LED Lead (2-pin HDLED)
This 2-pin connector is for the HDD LED cable. The read or write activities of
the device connected to the any of IDE connectors cause the IDE LED to light
up.
• ATX Power Switch / Soft-Off Switch Lead (2-pin PWRBTN)
This connector connects a switch that controls the system power. Pressing the
power switch turns the system between ON and SLEEP, or ON and SOFT
OFF, depending on the BIOS or OS settings. Pressing the power switch while
in the ON mode for more than 4 seconds turns the system OFF.
• Reset Switch Lead (2-pin RESET)
This 2-pin connector connects to the case-mounted reset switch for rebooting
the system without turning off the system power.
P4SD-LA
P4SD-LA Front Panel Audio Connector
HPANEL
PLED- PWR PLED+
Ground GNDReset
HDLED+
HDLED-
Power LED
Reset SW
ATX Power
Switch*
HDLED
