Contents
Safety information...................................................................................................... iv
About this guide.......................................................................................................... v
Package contents....................................................................................................... vi
PRIME B760M-A AX specications summary ......................................................... vi
Chapter 1: Product Introduction
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview ................................................................................. 1-2
1.3 Central Processing Unit (CPU).................................................................... 1-9
1.4 System memory.......................................................................................... 1-11
1.5 M.2 installation............................................................................................ 1-13
Chapter 2: BIOS and RAID Support
2.1 Knowing BIOS............................................................................................... 2-1
2.2 BIOS Setup program .................................................................................... 2-2
2.3 ASUS EZ Flash 3........................................................................................... 2-3
2.4 ASUS CrashFree BIOS 3.............................................................................. 2-4
2.5 RAID congurations..................................................................................... 2-5
Appendix
Notices ..................................................................................................................... A-1
Warranty................................................................................................................... A-8
ASUS contact information.................................................................................... A-10
Service and Support ............................................................................................. A-10

iv
Button/Coin Batteries Safety Information
WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical burns,
perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion.
Seek medical attention immediately.
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.

v
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS and RAID Support
This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility
and support on RAID.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website (www.asus.com) provides updated information on ASUS hardware
and software products.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to yourself when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
PRIME B760M-A AX specications summary
CPU
Intel®Socket LGA1700 for 13th Gen Intel®Core™ & 12th Gen Intel®Core™,
Pentium®Gold and Celeron®Processors*
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Prole (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary
depending on the CPU and memory conguration, for more information please
refer to CPU/Memory Support under the Support tab of product information site or
visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
2 x HDMI®ports***
* Graphics specications may vary between CPU types. Please refer to
www.intel.com for any updates.
** Supports max. 4K@60Hz as specied in DisplayPort 1.4.
*** Support 4K@60Hz as specied in HDMI
®
2.1.
Expansion Slots
Intel®13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel®B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Note: To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard 1 x PRIME B760M-A AX motherboard
Cables 2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation 1 x User guide
If any of the above items is damaged or missing, contact your retailer.

vii
PRIME B760M-A AX specications summary
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel®13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel®Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth®
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth®v5.2*
* The Bluetooth version may vary, please refer to the Wi-Fi module
manufacturer’s website for the latest specications.
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Denition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support
7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI®ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
(continued on the next page)

viii
PRIME B760M-A AX specications summary
Internal I/O
Connectors
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 connectors (support USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
(continued on the next page)

ix
PRIME B760M-A AX specications summary
Software Features
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating System Windows®11, Windows®10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
• Specifications are subject to change without notice. Please refer to the ASUS website
for the latest specifications.
• MyASUS offers a variety of support features such as helping to troubleshoot issues,
optimizing product performance, integrating ASUS software, and recovery drive
creation. Please scan the QR Code for installation guide and FAQ.
• For more information on downloading and installing drivers and utilities for your
motherboard, please scan the QR code below:

x

1-1
1
PRIME B760M-A AX
Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Chapter 1: Product Introduction
• The pin definitions in this chapter are for reference only. The pin names depend on
the location of the header/jumper/connector.
• For more information on installing your motherboard, please scan the QR code
below:

1-2
1.2.1 Layout contents
1. CPU socket
The motherboard comes with a LGA1700 socket designed for 13th Gen Intel®Core™ & 12th
Gen Intel®Core™, Pentium®Gold and Celeron®Processors.
For more details, refer to Central Processing Unit (CPU).
2. DDR5 DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR5
(Double Data Rate 5) memory modules.
For more details, refer to System memory.
3. Expansion slots
This motherboard supports one PCIe x16 graphics card, one PCIe x16 (supporting x4 mode)
and two PCIe x16 (supporting x1 mode) network cards, SCSI cards and other cards that
comply with the PCI Express specication.
Chapter 1: Product Introduction
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.
1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
DDR5 DIMM_A1 (64bit, 288-pin module) DDR5 DIMM_A2 (64bit, 288-pin module) DDR5 DIMM_B1 (64bit, 288-pin module) DDR5 DIMM_B2 (64bit, 288-pin module)
1st
CPU_OPTCPU_FAN
CLRTC
M.2_2(SOCKET3)
TPM
M.2_1(SOCKET3)
M.2_1(SOCKET3)
AAFP
ATX_PWR
CHA_FAN2
U32G1_E12
U32G1_34
CHA_FAN1
M.2(WIFI)
Super
I/O
2242 2260 2280
128Mb
BIOS
22602280 2242
PCIEX16(G4)_4
PCIEX16(G4)_3
PCIEX16(G4)_2
PCIEX16(G4)_1
RGB_HEADER
ADD_GEN 2_1
M.2_2(SOCKET3)
LAN_USB_E12
U32G2_12
DIGI
+VRM
LGA1700
U32G1_C10 U32G1_EC3
SATA6G_34 SATA6G_E12
ATX_12V
LPT USB_56USB_7E5 PANEL
COM_DEBUG
SATA6G_1 SATA6G_2
COM
SPDIF_OUT
Intel®
B760
X
PCIE SATA
4.0 X4
X
PCIE SATA
4.0 X4
ADD_GEN 2_2 ADD_GEN 2_3
24.4cm(9.6in)
24.4cm(9.6in)
HDMI2
HDMI1_DP
KBMS_USB_E34
Audio
Codec
Ethernet
AUDIO
BATT_CON
5
8
9
11
7
6
4
13
3
5 16 4 42
71110141516 17
18
129
19
20

1-3

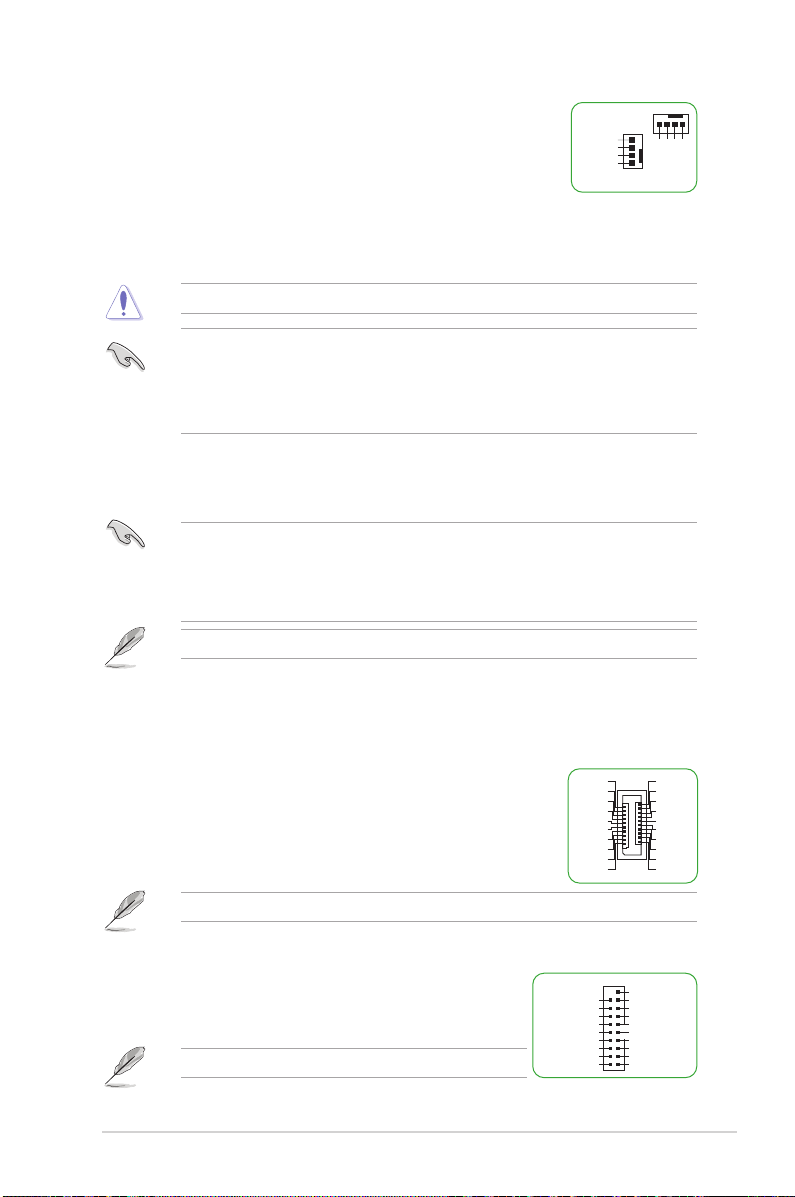

4. Fan headers
The Fan headers allow you to connect fans to cool the system.
5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply. The
power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.
Ensure to connect the 8-pin power plug.
• We recommend that you use a PSU with a higher power output when conguring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with
1000W power or above to ensure the system stability.
6. M.2 slots (Key M)
The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.
• Intel®13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
The M.2 SSD module is purchased separately.
7. SATA 6Gb/s ports
The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives and
hard disk drives via a SATA cable.
8. USB 3.2 Gen 1 Type-C®Front Panel connectors
The USB 3.2 Gen 1 Type-C®connectors allow you to connect USB 3.2
Gen 1 Type-C®modules for additional USB 3.2 Gen 1 Type-C®ports on
the front panel. The USB 3.2 Gen 1 Type-C®connectors provide data
transfer speeds of up to 5 Gb/s.
The USB 3.2 Gen 1 Type-C®module is purchased separately.
9. USB 3.2 Gen 1 headers
The USB 3.2 Gen 1 headers allow you to connect USB 3.2 Gen 1
modules for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1
headers provide data transfer speeds of up to 5 Gb/s.
The USB 3.2 Gen 1 module is purchased separately.
GND FAN PWR FAN IN FAN PWM
FAN PWM
FAN IN
FAN PWR
GND
FAN PWM
FAN IN
FAN PWR
GND
NC
NC
CC1
VBUS
RX1-
RX1+
GND
TX1-
TX1+
VBUS
VBUS
TX2+
TX2-
GND
RX2+
RX2-
GND
D-
D+
CC2
USB3+5V
IntA_P1_SSRX-
IntA_P1_SSRX+
GND
IntA_P1_SSTX-
IntA_P1_SSTX+
GND
IntA_P1_D-
IntA_P1_D+
GND
PIN 1
USB3+5V
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
PRIME B760M-A AX

1-4
10. USB 2.0 headers
The USB 2.0 headers allow you to connect USB modules for additional USB 2.0
ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.
DO NOT connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
The USB 2.0 module is purchased separately.
11. Addressable Gen 2 headers
The Addressable Gen 2 headers allow you to connect individually addressable
RGB WS2812B LED strips or WS2812B based LED strips.
The Addressable Gen 2 headers support WS2812B addressable RGB LED strips (5V/Data/
Ground), with a maximum power rating of 3A (5V), and the addressable headers on this
board can handle a combined maximum of 500 LEDs.
Before you install or remove any component, ensure that the power supply is switched off
or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the addressable RGB LED strip is
connected in the correct orientation, and the 5V connector is aligned with the 5V
header on the motherboard.
• The addressable RGB LED strip will only light up when the system is powered on.
• The addressable RGB LED strip is purchased separately.
12. Aura RGB header
The Aura RGB header allows you to connect RGB LED strips.
The Aura RGB header supports a 5050 RGB multi-color LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V).
Before you install or remove any component, ensure that the ATX power supply is switched
off or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip are connected in the correct orientation, and the 12V connector is
aligned with the 12V header on the motherboard.
• The LED strip will only light up when the system is powered on.
• The LED strip is purchased separately.
PIN 1
USB+5V USB_P1- USB_P1+ GND NC
USB+5V
USB_P2-
USB_P2+
GND
ADD_GEN 2
+5V
Data
Ground
PIN 1
Chapter 1: Product Introduction

1-5
13. RTC Battery header
The RTC Battery header allows you to connect the lithium CMOS battery.
14. Clear CMOS header
The Clear CMOS header allows you to clear the Real Time Clock (RTC) RAM in
the CMOS, which contains the date, time, system passwords, and system setup
parameters.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about 5-10 seconds.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to
re-enter data.
DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or
placing a jumper cap will cause system boot failure!
If the steps above do not help, remove the onboard button cell battery and short the two
pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button
cell battery.
15. COM Port header
The COM (Serial) Port header allows you to connect a COM port module.
Connect the COM port module cable to this header, then install the module to a
slot opening on the system chassis.
The COM port module is purchased separately.
16. Front Panel Audio header
The Front Panel Audio header is for a chassis-mounted front panel audio
I/O module that supports HD Audio. Connect one end of the front panel
audio I/O module cable to this header.
We recommend that you connect a high-denition front panel audio
module to this header to avail of the motherboard’s high-denition
audio capability.
PIN 1
VBAT GND
BATT_CON
CLRTC
+3V_BAT GND
PIN 1
PIN 1
COM
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
PORT1L
PORT1R PORT2R
SENSE_SEND
PORT2L
AGND NC SENSE1_RETUR SENSE2_RETUR
AAFP
PIN 1
HD-audio-compliant
pin definition
PRIME B760M-A AX

1-6
17. LPT header
The LPT (Line Printing Terminal) header supports devices such as
a printer. LPT standardizes as IEEE 1284, which is the parallel port
interface on IBM PC-compatible computers.
18. S/PDIF Out header
The S/PDIF Out header allows you to connect the Sony/Philips Digital Interface
(S/PDIF) Out module.
The S/PDIF module is purchased separately.
19. SPI TPM header
This header supports a Trusted Platform Module (TPM)
system with a Serial Peripheral Interface (SPI), allowing you
to securely store keys, digital certicates, passwords, and
data. A TPM system also helps enhance network security,
protects digital identities, and ensures platform integrity.
The TPM module is purchased separately.
20. System Panel header
The System Panel header supports several chassis-mounted
functions.
• System Power LED header (PLED)
The 2-pin and/or 3-1 pin headers allow you to connect the
System Power LED. The System Power LED lights up when
the system is connected to a power source, or when you
turn on the system power, and blinks when the system is in
sleep mode.
• Storage Device Activity LED header (HDD_LED)
The 2-pin header allows you to connect the Storage Device Activity LED. The Storage
Device Activity LED lights up or blinks when data is read from or written to the storage
device or storage device add-on card.
• System Warning Speaker header (SPEAKER)
The 4-pin header allows you to connect the chassis-mounted system warning speaker.
The speaker allows you to hear system beeps and warnings.
PIN 1
O_LPT_XSTB#_R
O_LPT_XPD0_R O_LPT_XPD1_R O_LPT_XPD2_R O_LPT_XPD3_R O_LPT_XPD4_R O_LPT_XPD5_R O_LPT_XPD6_R O_LPT_XPD7_R O_LPT_ACK#_R
O_LPT_BUSY_R
O_LPT_PE_R
O_LPT_SLCT_R
O_LPT_XAFD#_R O_LPT_ERROR#_R O_LPT_XINIT#_R O_LPT_XSLIN#_R GND GND GND GND GND GND GND GND
SPDIF_OUT
+5V SPDIFOUT GND
TPM
PIN 1
VCCSPI
S_PLTRST#
NC
F_SPI_PWR
F_SPI_CZS0#_R
T_SPI_MISO
F_SPI_HOLD#_R
S_SPI_TPM_IRQ#
S_SPI_TPM_CS2#
TPM_DETECT_L
GND
T_SPI_CLK
T_SPI_MOSI
Chapter 1: Product Introduction

1-7
1.2.2 Rear panel connectors
21
7 7 10
3 4 5
6 8 9

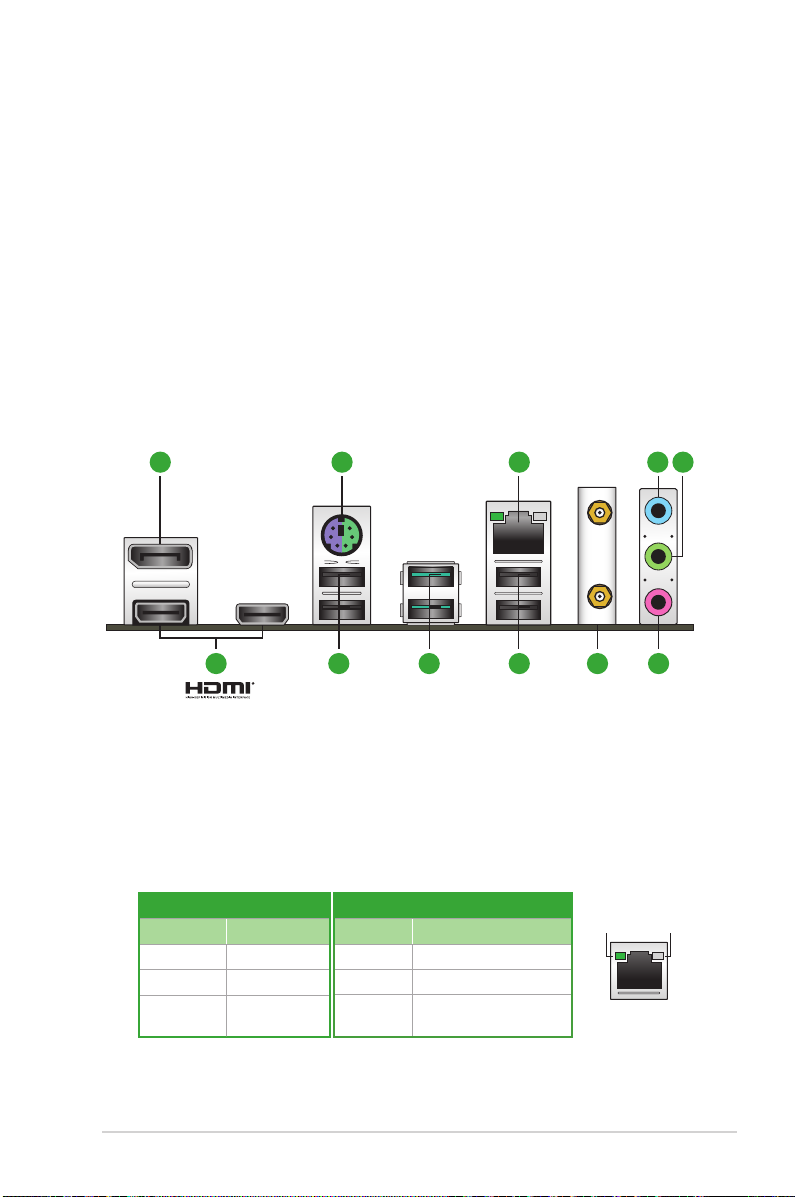

1. DisplayPort. This port is for a DisplayPort-compatible device.
2. PS/2 Mouse/Keyboard combo port. This port connects to a PS/2 mouse or PS/2
keyboard.
3. Realtek 2.5Gb Ethernet port. This port allows 2.5Gbps Ethernet connection to a Local
Area Network (LAN) through a network hub. Refer to the table below for the Ethernet
port LED indications.
Speed LED
Status Description
OFF No link
GREEN 2.5 Gbps connection
ORANGE 1 Gbps / 100 Mbps /
10 Mbps connection
Activity Link LED
Status Description
OFF No link
GREEN Linked
BLINKING Data activity
ACT/LINK
LED
SPEED
LED
LAN port
Realtek 2.5Gb Ethernet port LED indications
• Power Button/Soft-off Button header (PWRSW)
The 3-1 pin header allows you to connect the system power button. Press the
power button to power up the system, or put the system into sleep or soft-off mode
(depending on the operating system settings).
• Reset button header (RESET)
The 2-pin header allows you to connect the chassis-mounted reset button. Press the
reset button to reboot the system.
• Chassis intrusion header (CHASSIS)
The 2-pin header allows you to connect the chassis-mounted intrusion detection
sensor or switch. The chassis intrusion sensor or switch sends a high-level signal
to the header when a chassis component is removed or replaced, the signal is then
generated as a chassis intrusion event.
PRIME B760M-A AX

1-8
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel,
5.1-channel, and 7.1-channel congurations, the function of this port becomes Front
Speaker Out.
6. HDMI®ports. These ports are for High-Denition Multimedia Interface (HDMI®)
connectors, and are HDCP compliant allowing playback of HD DVD, Blu-ray, and other
protected content.
7. USB 2.0 ports. These Universal Serial Bus (USB) ports are for USB 2.0 devices.
8. USB 3.2 Gen 2 (up to 10Gbps) ports (teal blue, Type A). These Universal Serial Bus
(USB) ports connect to USB 3.2 Gen 2 devices.
9. Wi-Fi 6 ports. These ports connect to Wi-Fi antennas.
• Ensure that the Wi-Fi moving antenna is securely installed to the Wi-Fi ports.
• Ensure that the antenna is at least 20 cm away from all persons.
10. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table for the function of the audio ports in 2, 4, 5.1, or
7.1-channel conguration.
Audio 2, 4, 5.1 or 7.1-channel conguration
Port 2-channel 4-channel 5.1-channel 7.1-channel
Light Blue
(Rear panel) -Rear Speaker Out
Rear Speaker
Out
Rear Speaker
Out
Lime
(Rear panel)
Front Speaker
Out
Front Speaker
Out
Front Speaker
Out
Front Speaker
Out
Pink
(Rear panel) - - Center/Subwoofer Center/Subwoofer
Lime
(Front panel) - - - Side Speaker Out
Pink
(Front panel) ----
To configure a 7.1-channel audio output:
Use a chassis with HD audio module in the front panel to support a 7.1-channel audio
output.
Chapter 1: Product Introduction

1-9
1.3 Central Processing Unit (CPU)
The motherboard comes with a LGA1700 socket designed for 13th Gen
Intel®Core™ & 12th Gen Intel®Core™, Pentium®Gold and Celeron®
Processors.
Unplug all power cables before installing the CPU.
• Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT
install a CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on
the LGA1700 socket.
• ASUS will not cover damages resulting from incorrect CPU installation/removal,
incorrect CPU orientation/placement, or other damages resulting from negligence by
the user.

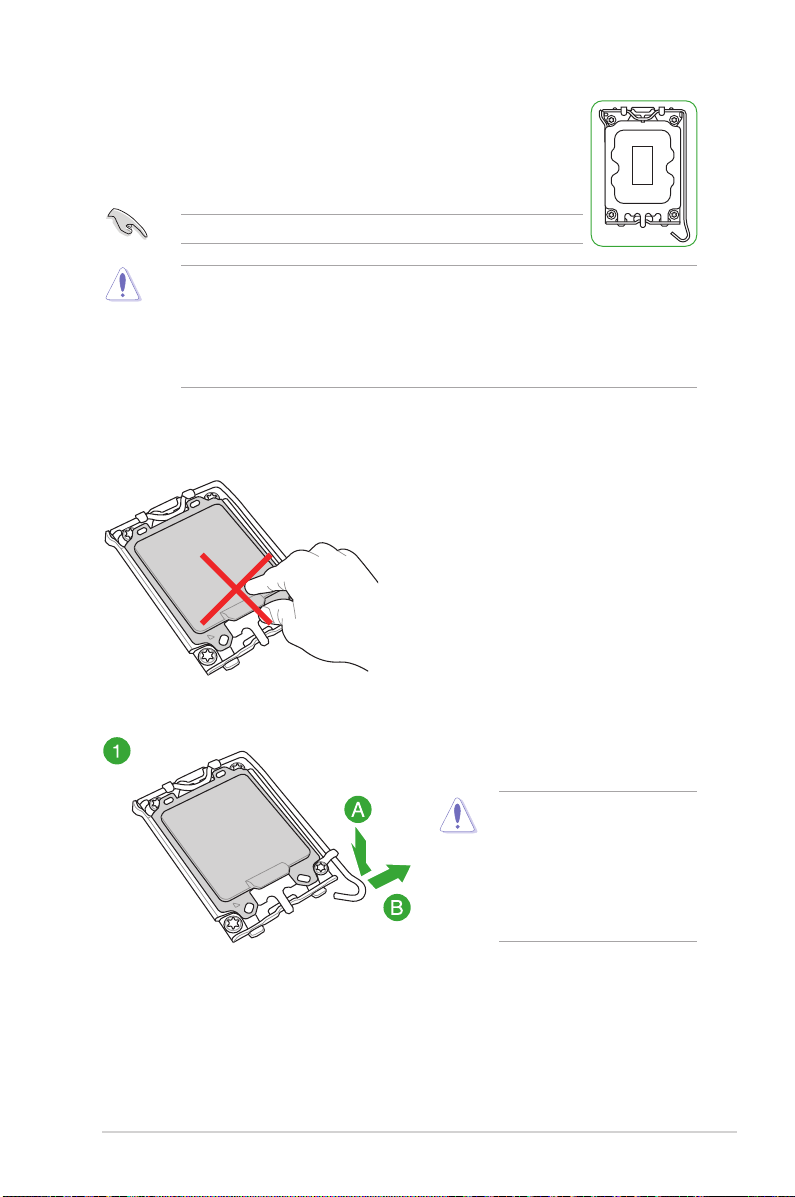

Installing the CPU
Take caution when lifting the load
lever, ensure to hold onto the load
lever when releasing the load
lever. Letting go of the load lever
immediately after releasing it may
cause the load lever to spring
back and cause damage to your
motherboard.
PRIME B760M-A AX

1-10 Chapter 1: Product Introduction
