Asus PRINE H570M-PLUS User manual

Motherboard
PRIME H570M-PLUS

ii
E17785
First Edition
January 2021
Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Safety information...................................................................................................... iv
About this guide.......................................................................................................... v
Package contents....................................................................................................... vi
PRIME H570M-PLUS specications summary ........................................................ vi
Connectors with shared bandwidth .......................................................................... x
Chapter 1 Product Introduction
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview ................................................................................. 1-1
1.3 Central Processing Unit (CPU).................................................................... 1-8
1.4 System memory............................................................................................ 1-9
Chapter 2 BIOS and RAID Support
2.1 Knowing BIOS............................................................................................... 2-1
2.2 BIOS Setup program .................................................................................... 2-2
2.3 ASUS EZ Flash 3........................................................................................... 2-3
2.4 ASUS CrashFree BIOS 3.............................................................................. 2-4
2.5 RAID congurations..................................................................................... 2-5
Appendix
Notices ..................................................................................................................... A-1
Warranty................................................................................................................... A-8
ASUS contact information.................................................................................... A-10

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.

v
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS and RAID Support
This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility
and support on RAID.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to yourself when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
PRIME H570M-PLUS specications summary
CPU
Intel®Socket LGA1200 for 11th Gen Intel®Core™ Processors & 10th Gen
Intel®Core™, Pentium®Gold and Celeron®Processors*
Supports Intel®14 nm CPU
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®H570 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/
4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/
3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered
memory**
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Prole (XMP)
OptiMem
* 10th Gen Intel®Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel®processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and
memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.4**
1 x DVI-D
1 x HDMI™ 1.4/2.0***
* Graphics specifications may vary between CPU types.
** Intel®11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of
4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
***Only Intel®11th Gen processors support HDMI™ 2.0 with max. resolution of
4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.
Please refer to www.intel.com for any updates.
Expansion Slots
Intel®11th &10th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
- Intel®11th Gen processors support PCIe 4.0 x16 mode
- Intel®10th Gen processors support PCIe 3.0 x16 mode
Intel®H570 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard 1 x PRIME H570M-PLUS motherboard
Cables 2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Application DVD 1 x Support DVD
Documentation 1 x User manual
If any of the above items is damaged or missing, contact your retailer.

vii
PRIME H570M-PLUS specications summary
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel®11th Gen processors support PCIe 4.0 x4 mode, this slot will be
disabled for other CPUs.
Intel®H570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA
modes)
6 x SATA 6Gb/s ports
Raid function in Intel®Rapid Storage Technology is available with either 1.
Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any
other 3rd party SSDs installed in PCH-attached slots.
To enable Intel®Optane™ Memory (Hybrid Storage device), it must be
installed in PCH-attached slots with Intel®Rapid Storage Technology.
* When a device in SATA mode is installed on the M.2_2 socket, the SATA6G_2
port cannot be used.
Ethernet 1 x Intel® I219-V 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 8 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC897 7.1 Surround Sound High Denition Audio CODEC*
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1
Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
(continued on the next page)

viii
PRIME H570M-PLUS specications summary
Internal I/O
Connectors
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software
Features
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
(continued on the next page)

ix
PRIME H570M-PLUS specications summary
Software
Features
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Operating
System Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Specications are subject to change without notice. Please refer to the ASUS website for
the latest specications.

x
Connectors with shared bandwidth
PCIEX16_1
PCIEX16_2
PCIEX1
USBE12 USBE34
TPM
AAFP
SPDIF_OUT CLRTC
ATX_PWR
BATTERY
Super
I/O
2280
ASM
1442K
22602242
2280 2260 2242
DDR4 DIMM_B1 (64bit, 288-pin module) DDR4 DIMM_B2* (64bit, 288-pin module) DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2* (64bit, 288-pin module)
SATA6G_1 SATA6G_2SATA6G_4
SATA6G_3
CPU_FAN
CPU_OPT
AIO_PUMP
LGA1200
DIGI+
VRM
COM
ATX_12V
CHA_FAN2
CHA_FAN1
RGB_HEADER1
U32G1_78 U32G1_56
Intel®
H570
PANEL
SATA6G_5SATA6G_6
COM_DEBUG
128Mb
BIOS
64Mb
BIOS
M.2_2(SOCKET3)
M.2_2(SOCKET3)
PCIE SATA IRST
3.0 X4 PCH-attachedV
M.2_1(SOCKET3)
AUDIO
KBMS_USB910
LAN_U32G1_34
U32G2_C2
U32G2_1
HDMI
DVI
DP
TB_HEADER
Ethernet
Audio
CODEC
ADD_GEN 2_1
RGB_HEADER2
ADD_GEN 2_2
M.2_1(SOCKET3)
PCIE SATA IRST
4.0 X4 CPU-attachedX
A
A
2230
M.2(WIFI)
Conguration 1 2
AM.2_2 PCIe x4 SATA
SATA6G_2 V -
• The M.2_2 slot shares bandwidth with the SATA6G_2 port.
• When a device in SATA mode is installed on the M.2_2 socket, the SATA6G_2 port
cannot be used.

1-1
Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.

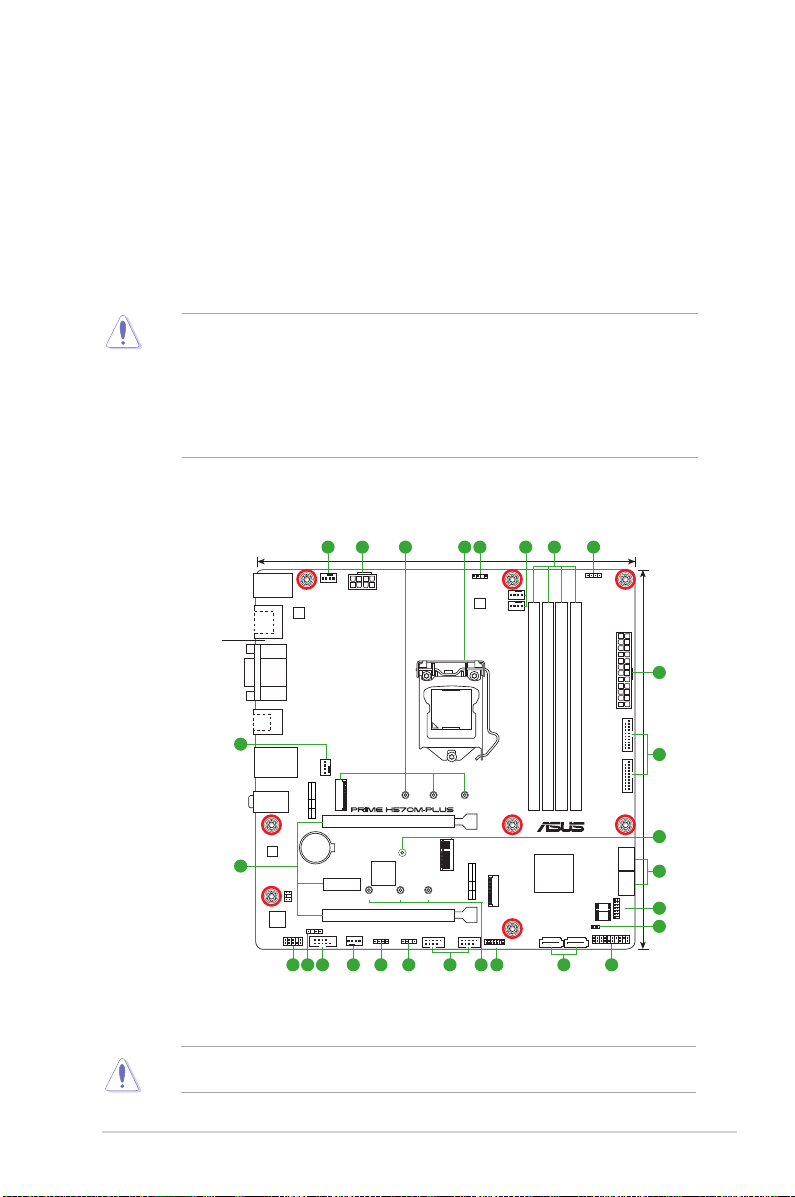

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
PCIEX16_1
PCIEX16_2
PCIEX1
USBE12 USBE34
TPM
AAFP
SPDIF_OUT CLRTC
ATX_PWR
BATTERY
Super
I/O
2280
ASM
1442K
22602242
2280 2260 2242
24.4cm(9.6in)
24.4cm(9.6in)
DDR4 DIMM_B1 (64bit, 288-pin module) DDR4 DIMM_B2* (64bit, 288-pin module) DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2* (64bit, 288-pin module)
SATA6G_1 SATA6G_2SATA6G_4
SATA6G_3
CPU_FAN
CPU_OPT
AIO_PUMP
LGA1200
DIGI+
VRM
COM
ATX_12V
CHA_FAN2
CHA_FAN1
RGB_HEADER1
U32G1_78 U32G1_56
Intel®
H570
PANEL
SATA6G_5SATA6G_6
COM_DEBUG
128Mb
BIOS
64Mb
BIOS
M.2_2(SOCKET3)
M.2_2(SOCKET3)
PCIE SATA IRST
3.0 X4 PCH-attachedV
M.2_1(SOCKET3)
AUDIO
KBMS_USB910
LAN_U32G1_34
U32G2_C2
U32G2_1
HDMI
DVI
DP
TB_HEADER
Ethernet
Audio
CODEC
ADD_GEN 2_1
RGB_HEADER2
ADD_GEN 2_2
M.2_1(SOCKET3)
PCIE SATA IRST
4.0 X4 CPU-attachedX
2230
654 1 10 1124
187199 64 11 101314 16
5
7
15
8
17
12
3
4
M.2(WIFI)
1
ASUS PRIME H570M-PLUS
Chapter 1: Product Introduction

1-2
1.2.1 Layout contents
1. CPU socket
The motherboard comes with a LGA1200 socket designed for 11th Gen Intel®Core™
Processors & 10th Gen Intel® CoreTM, Pentium®Gold and Celeron®Processors.
For more details, refer to Central Processing Unit (CPU).
2. DDR4 DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.
For more details, refer to System memory.
3. Expansion slots
This motherboard supports two PCIe x16 graphics cards and one PCIe 3.0 x1 network card,
SCSI card or other cards that comply with the PCI Express specication.
4. Fan headers
The Fan headers allow you to connect fans to cool the system.
5. Power connectors
These Power connectors allow you to connect your motherboard to a power supply. The
power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.
Ensure to connect the 8-pin power plug.
• For a fully congured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12V Specication 2.0 (or later version) and provides a
minimum power of 350W.
• We recommend that you use a PSU with a higher power output when conguring a
system with more power-consuming devices. The system may become unstable or
may not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system, we
recommend you to refer to online resources for Power Supply Wattage Calculator.
6. M.2 slots (Key M)
The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.
GND FAN PWR FAN IN FAN PWM
FAN PWM
FAN IN
FAN PWR
GND
FAN PWM
FAN IN
FAN PWR
GND
Chapter 1: Product Introduction

1-3
• Intel®11th Gen processors:
- M.2_1 supports PCIe 4.0 x4 mode M Key design and type 2242/2260/2280 PCIe
storage devices.
- Only Intel®11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled
for other CPUs.
• Intel®H570 Chipset :
- M.2_2 supports PCIe 3.0 x4 and SATA modes M Key design and type
2242/2260/2280 storage devices.
• When a device in SATA mode is installed on the M.2_2 slot, the SATA6G_2 port
cannot be used.
7. SATA 6Gb/s connectors
The SATA 6Gb/s connectors allow you to connect SATA devices such as optical disc drives
and hard disk drives via SATA cables.
8. USB 3.2 Gen 1 headers
The USB 3.2 Gen 1 headers allow you to connect USB 3.2 Gen 1
modules for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1
headers provide data transfer speeds of up to 5 Gb/s.
The USB 3.2 Gen 1 module is purchased separately.
9. USB 2.0 headers
The two USB 2.0 headers allow you to connect USB modules for additional four USB 2.0
ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.
DO NOT connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
The USB 2.0 module is purchased separately.
10. Aura Addressable Gen 2 headers
The Addressable Gen 2 headers allow you to connect individually addressable RGB
WS2812B LED strips or WS2812B based LED strips.
The Addressable Gen 2 header supports WS2812B addressable RGB
LED strips (5V/Data/Ground), with a maximum power rating of 3A (5V),
and the addressable headers on this board can handle a combined
maximum of 500 LEDs.
Before you install or remove any component, ensure that the power supply is switched off
or the power cord is detached from the power supply. Failure to do so may cause severe
damage to the motherboard, peripherals, or components.
USB3+5V
IntA_P1_SSRX-
IntA_P1_SSRX+
GND
IntA_P1_SSTX-
IntA_P1_SSTX+
GND
IntA_P1_D-
IntA_P1_D+
GND
PIN 1
USB3+5V
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
ADD_GEN 2
PIN 1
USB+5V
USB_P5- USB_P5+
GND NC
USB+5V
USB_P6-
USB_P6+
GND
ASUS PRIME H570M-PLUS

1-4
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the addressable RGB LED strip is
connected in the correct orientation, and the 5V connector is aligned with the 5V
header on the motherboard.
• The addressable RGB LED strip will only light up when the system is powered on.
• The addressable RGB LED strip is purchased separately.

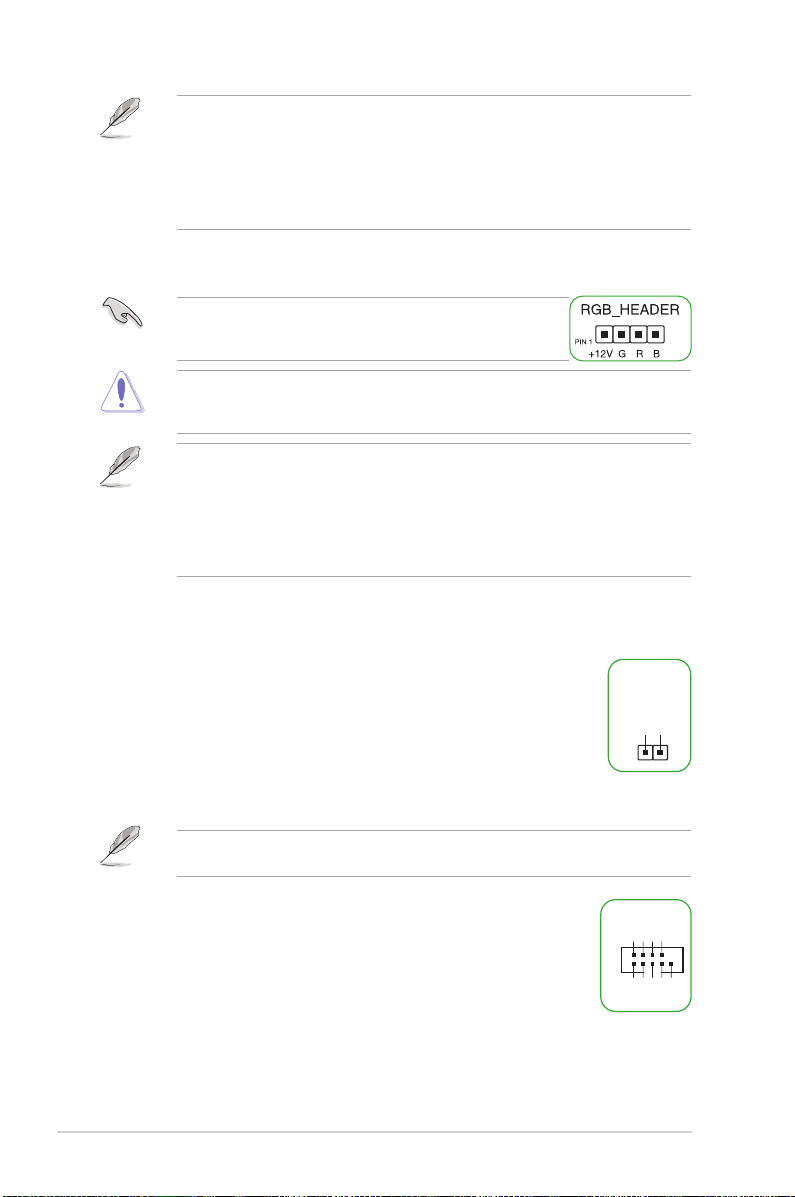

11. AURA RGB headers
The RGB headers allow you to connect RGB LED strips.
The RGB headers support 5050 RGB multi-color LED strips
(12V/G/R/B), with a maximum power rating of 3A (12V), and no
longer than 3m.
Before you install or remove any component, ensure that the ATX power supply is switched
off or the power cord is detached from the power supply. Failure to do so may cause
severe damage to the motherboard, peripherals, or components.
• Actual lighting and color will vary with LED strip.
• If your LED strip does not light up, check if the RGB LED extension cable and the
RGB LED strip are connected in the correct orientation, and the 12V connector is
aligned with the 12V header on the motherboard.
• The LED strip will only light up when the system is powered on.
• The LED strip is purchased separately.
12. Clear CMOS header
This header allows you to clear the CMOS RTC RAM data of the system setup information
such as date, time, and system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to re-
enter data.
If the steps above do not help, remove the onboard battery and short the two pins again to
clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
13. COM Port header
This header is for a serial (COM) port. Connect the serial port module cable to
this header, then install the module to a slot opening at the back of the system
chassis.
PIN 1
COM
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
CLRTC
+3V_BAT GND
PIN 1
Chapter 1: Product Introduction

1-5
AAFP
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
SPDIF_OUT
+5V SPDIFOUT GND
14. Front panel audio header
This header is for a chassis-mounted front panel audio I/O module that
supports HD audio standard. Connect one end of the front panel audio
I/O module cable to this header.
• We recommend that you connect a high-denition front panel
audio module to this header to avail of the motherboard’s high-
denition audio capability.
• If you want to connect a high-denition front panel audio
module to this header, set the Front Panel Type item in the
BIOS setup to [HD Audio]. By default, this header is set to [HD
Audio].
15. M.2 slot (Key E)
The M.2(WIFI) slot allows you to install an M.2 Wi-Fi module (E-key, type 2230).
16. S/PDIF Out header
This header is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Connect the S/PDIF Out module cable to this header, then install the module to a
slot opening at the back of the system chassis.
17. SPI TPM header
This header supports a Trusted Platform Module (TPM) system with a Serial
Peripheral Interface (SPI), allowing you to securely store keys, digital
certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
The SPI TPM module is purchased separately.

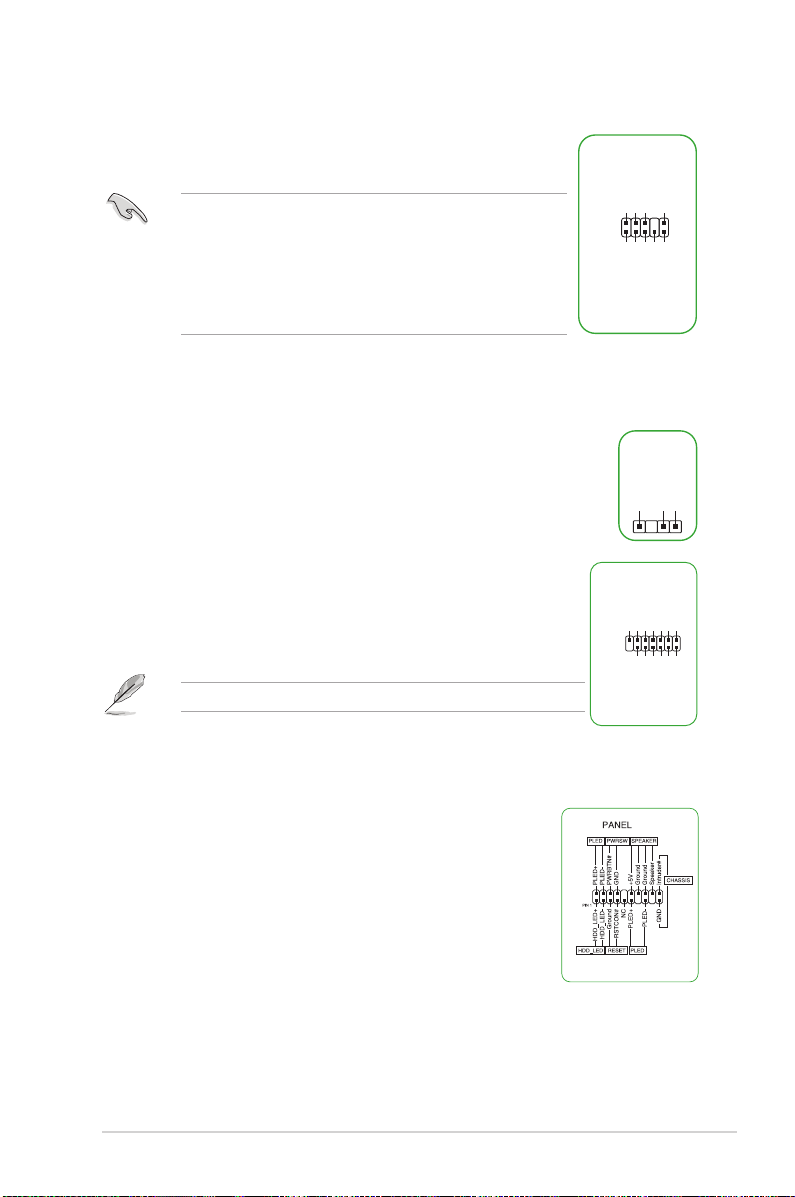

18. 20-3 pin System Panel header
This header supports several chassis-mounted functions.
• System Power LED header (PLED)
The 2-pin header allows you to connect the System Power LED.
The System Power LED lights up when the system is connected
to a power source, or when you turn on the system power, and
blinks when the system is in sleep mode.
• Storage Device Activity LED header (HDD_LED)
The 2-pin header allows you to connect the Storage Device
Activity LED. The Storage Device Activity LED lights up or blinks
when data is read from or written to the storage device or storage
device add-on card.
TPM
PIN 1
T_SPI_MOSI
T_SPI_CLK
GND
F_BIOS_WP#_R
S_SPI_TPM_CS2#
S_SPI_TPM_IRQ#
F_SPI_HOLD#_R T_SPI_MISO F_SPI_CS0#_R +3V_SPI F2_SPI_CS1#_R S_PLTRST# VCCSPI
* Requires an ATX power supply
ASUS PRIME H570M-PLUS

1-6
• System Warning Speaker header (SPEAKER)
The 4-pin header allows you to connect the chassis-mounted system warning speaker.
The speaker allows you to hear system beeps and warnings.
• Power Button/Soft-off Button header (PWRSW)
The 3-1 pin header allows you to connect the system power button. Press the
power button to power up the system, or put the system into sleep or soft-off mode
(depending on the operating system settings).
• Reset button header (RESET)
The 2-pin header allows you to connect the chassis-mounted reset button. Press the
reset button to reboot the system.
• Chassis intrusion connector (CHASSIS)
The 2-pin connector allows you to connect the chassis-mounted intrusion detection
sensor or switch. The chassis intrusion sensor or switch sends a high-level signal to
the connector when a chassis component is removed or replaced, the signal is then
generated as a chassis intrusion event.
19. Thunderbolt™header
The Thunderbolt™ header allows you to connect an add-on
Thunderbolt™ I/O card that supports Intel®’s Thunderbolt™
Technology, allowing you to connect Thunderbolt™-enabled
devices and DisplayPort-enabled devices to form a daisy chain-
configuration.
• The add-on Thunderbolt™ I/O card and Thunderbolt™
cables are purchased separately.
• Please visit the official website of your purchased
Thunderbolt™ card for more details on compatibility.
PIN 1
FORCE_PWR
TB_CIO_PLUG_EVENT
SLP_S3# SLP_S5#
GND
RTD3_SW
I2C_SCL I2C_SDA I2C_IRQ# RTD3_POWER_EN S_SLP_S0#_IDLE PERST_N WAKE#
TB_HEADER
Chapter 1: Product Introduction

1-7
Ethernet port LED indications
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection Ethernet port
4. Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the Ethernet port LED indications.
1.2.2 Rear panel connectors
1. PS/2 Keyboard/Mouse combo port. This port is for a PS/2 keyboard or mouse.
2. DisplayPort. This port is for a DisplayPort-compatible device.
3. USB 3.2 Gen 2 (up to 10Gbps) port. This 9-pin Universal Serial Bus (USB) port
connects to a USB 3.2 Gen 2 device.
1 2
7 10 11 12
3 4 5 6
98
ACT/LINK
LED
SPEED
LED
5. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
6. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel,
5.1-channel, and 7.1-channel congurations, the function of this port becomes Front
Speaker Out.
7. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0 devices.
8. HDMI™port. This port is for a High-Denition Multimedia Interface (HDMI™) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
9. DVI-D port. This port is for any DVI-D compatible device.
DVI-D can not be converted to output from RGB Signal to CRT and is not compatible with
DVI-I.
10. USB 3.2 Gen 2 (Type-C®) port. This Universal Serial Bus (USB) Type-C®port
connects to a USB 3.2 Gen 2 Type-C®device.
11. USB 3.2 Gen 1 (up to 5Gbps) ports. These 9-pin Universal Serial Bus (USB) ports
connect to USB 3.2 Gen 1 devices.
ASUS PRIME H570M-PLUS

1-8
12. Microphone port (pink). This port connects a microphone.
Refer to the audio conguration table for the function of the audio ports in 2, 4, 5.1, or
7.1-channel conguration.
Audio 2, 4, 5.1 or 7.1-channel conguration
Port Headset
2-channel 4-channel 5.1-channel 7.1-channel
Light Blue
(Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) — — — Side Speaker Out*/
Headphone
Pink (Front panel) — — — Mic In* / Side
Speaker Out
* Multi-streaming is disabled by default, and the Lime (front panel) jack may be used as Side Speaker Out. If multi-
streaming is enabled, the Lime (front panel) jack will support headphone, and the Pink (front panel) jack will
support Side Speaker Out.
To congure a 7.1-channel audio output:
Use a chassis with HD audio module in the front panel to support a 7.1-channel audio
output.
Chapter 1: Product Introduction

1-9
Installing the CPU
1
4
Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5

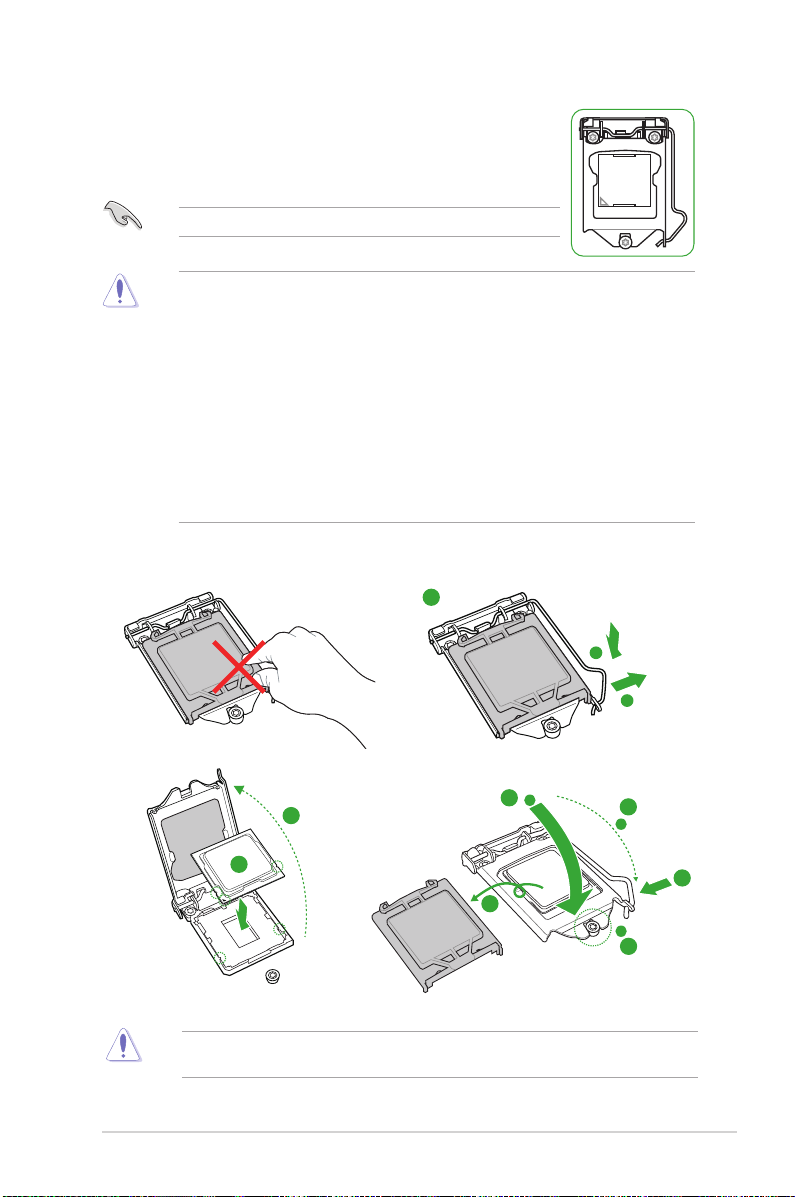

1.3 Central Processing Unit (CPU)
This motherboard comes with a LGA1200 socket designed for 11th Gen
Intel®Core™ Processors & 10th Gen Intel® CoreTM, Pentium®Gold and
Celeron®Processors.
Unplug all power cables before installing the CPU.
• Ensure that you install the correct CPU designed for the LGA1200 socket only. DO
NOT install a CPU designed for LGA1150, LGA1151, LGA1155 and LGA1156 sockets
on the LGA1200 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1200 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
ASUS PRIME H570M-PLUS

1-10
1.4 System memory
This motherboard comes with four Double Data Rate 4 (DDR4) Dual Inline Memory Module
(DIMM) sockets. The gure illustrates the location of the DDR4 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 & DIMM_A2*
Channel B DIMM_B1 & DIMM_B2*
• You may install varying memory sizes in Channel A and Channel B. The system
maps the total size of the lower-sized channel for the dual-channel conguration. Any
excess memory from the higher-sized channel is then mapped for single-channel
operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
• A DDR4 memory module is notched differently from a DDR, DDR2, or DDR3 module.
DO NOT install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.
• For system stability, use a more efcient memory cooling system to support a full
memory load.
• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors Lists)，and
memory frequency support depends on the CPU types.
Recommended memory congurations
DIMM_A1
DIMM_A2*DIMM_A2*
DIMM_B2*
DIMM_A2*
DIMM_B1
DIMM_B2*
DIMM_A2*
DIMM_A1
DIMM_B2*
DIMM_B1
Chapter 1: Product Introduction
