Asus VANGUARD B85 User manual

Motherboard
VANGUARD B85

ii
E8519
First Edition V1
August 2013
Copyright © 2013 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).


product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or


Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
[email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

iii
Contents
Safety information ...................................................................................... iv
About this guide ......................................................................................... iv
Package contents ....................................................................................... vi
................................................ vi
Chapter 1 Product introduction
1.1 Before you proceed ..................................................................... 1-1
1.2 Motherboard overview................................................................. 1-1
1.3 Central Processing Unit (CPU) ................................................... 1-3
1.4 System memory ........................................................................... 1-7
1.5 Expansion slots.......................................................................... 1-14
1.6 Jumpers ...................................................................................... 1-16
1.7 Connectors ................................................................................. 1-17
1.8 Onboard LED.............................................................................. 1-26
1.9 Software support........................................................................ 1-27
Chapter 2 BIOS information
2.1 Managing and updating your BIOS ............................................ 2-1
2.2 BIOS setup program .................................................................... 2-6
2.3 My Favorites ............................................................................... 2-10
2.4 Main menu .................................................................................. 2-11
2.5 Ai Tweaker menu........................................................................ 2-13
2.6 Advanced menu ......................................................................... 2-25
2.7 Monitor menu ............................................................................. 2-34
2.8 Boot menu .................................................................................. 2-37
2.9 Tools menu ................................................................................. 2-43
2.10 Exit menu.................................................................................... 2-44
Appendices
Notices.......................................................................................................A-1
ASUS contact information .......................................................................A-3

iv
Safety information
Electrical safety

before relocating the system.
When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.

technician or your retailer.
Operation safety
Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
Place the product on a stable surface.

technician or your retailer.
About this guide

motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS information
This chapter discusses changing system settings through the BIOS Setup menus.
Detailed descriptions fo the BIOS parameters are also provided.
•
•
•
•
•
•
•
•
•
•
•
•

v

Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation

that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics 
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).

vi

(continued on the next page)
CPU LGA1150 socket for 4th Generation Intel®CoreTM i7/i5/i3, Pentium®/Celeron®
Processors
Supports Intel®22nm CPU
Supports Intel®Turbo Boost Technology 2.0
* The Intel®Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for CPU support list.
Chipset Intel®B85 Express Chipset
Memory 
Dual-channel memory architecture
Supports Intel®
* Due to chipset limitation, memory modules higher than 1600MHz will run at 1600MHz
frequency for better stability.
** Refer to www.asus.com
List).
Expansion
Slots
1 x PCI Express 3.0/2.0 x16 slot
1 x PCI Express 2.0 x16 slot [black] (max. at x4 mode, compatible with PCIe x1 and
x4 devices)
1 x PCI Express 2.0 x1 slot
1 x PCI slot
Package contents
Check your motherboard package for the following items.
User Manual
ASUS VANGUARD B85 motherboard Technical documentations,
 Support DVD
2 x Serial ATA 6.0 Gb/s cables 1 x 2-in-1 ASUS Q-Connector kit 1 x ASUS Q-Shield
• If any of the above items is damaged or missing, contact your retailer.
 
vary with different models.

vii

VGA Integrated graphics processor - Intel®HD Graphics support
Multi-VGA output support: DP/HDMI/DVI/D-sub port
- Supports DisplayPort 1.2* with max. resolution of 4096 x 2160

 

 
 
Supports Intel®InTruTM 3D/Quick sync Video/Clear Video HD Technology/
InsiderTM
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up
to 3 displays
Multi-GPU support Supports AMD®Quad-GPU CrossFireXTM Technology
Storage Intel®B85 Express Chipset:
- 4 x Serial ATA 6.0 Gb/s connectors (brown)
- 2 x Serial ATA 3.0 Gb/s connectors (black)
- Support Intel®Rapid Start Technology, Intel®Smart Connect
Technology*
* These functions will work depending on the CPU installed
LAN Intel® I217V Gigabit LAN controller
Audio Realtek®
- Supports Jack-Detection, Multi-streaming and Front Panel Jack-
Retasking
USB Intel®B85 Express Chipset - supports ASUS USB 3.0 Boost
- 2 x USB3.0/2.0 ports at mid-board for front panel support
- 4 x USB3.0/2.0 ports at back panel (blue)
- 8 x USB2.0/1.1 ports (6 ports at mid-board, 2 ports at back panel)
Exclusive TUF
Features
“Ultimate COOL!” Thermal Solution:
- TUF Thermal Radar Core
“TUF ENGINE!” Power Design:
- 4+1 Digital Phase Power Design
 
military-standard)
- ASUS DIGI+ VRM
“Safe & Stable!” Guardian Angel:
- ESD Guards
(continued on the next page)

viii
(continued on the next page)

Other Special
Features
- USB 3.0 Boost featuring speedy USB3.0 transmission
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- AI Suite 3
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

- ASUS CrashFree BIOS 3
- EZ Update
- Disk Unlocker
- ASUS EZ Flash 2
- Multi-language BIOS
- Intel®Small Business Advantage
Back Panel I/O Ports 1 x PS/2 keyboard/mouse combo port
1 x DisplayPort
1 x HDMI port
1 x DVI-D port
1 x D-sub port
1 x LAN (RJ45) port
4 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
8-channel audio I/O ports
Internal I/O
Connectors
1 x USB 3.0/2.0 connector supports additional 2 USB 3.0/2.0 ports (19-
pin, moss green)
3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1 ports
4 x SATA 6Gb/s connectors (brown)
2 x SATA 3Gb/s connectors (black)
1 x CPU fan connector (4-pin black) for both 4-pin (PWM mode) and 3-pin
(DC mode) CPU coolers control
4 x Chassis fan connectors (4-pin black)
Front panel audio connector (AAFP)
24-pin EATX power connector
8-pin EATX 12V power connector
System panel connector (Q-Connector)
1 x S/PDIF Out header
1 x TPM Header
1 x Clear CMOS jumper
1 x COM port
1 x chassis intrusion jumper

ix


BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM2.0, SM
BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS

PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial
Presence Detect) memory information
Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE
Support DVD Drivers
Anti-virus software (OEM version)
ASUS/TUF CPU-Z
ASUS utilities
Network iControl
Operating System
Support
Windows®8
Windows®7
Form Factor uATX Form Factor: 9.6”x 9.6” (24.4cm x 24.4cm)

x

ASUS VANGUARD B85 1-1
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
1.2 Motherboard overview


Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
When installing the motherboard, place it into the chassis in the correct orientation. The edge
with external ports goes to the rear part of the chassis as indicated in the image.
1.2.2 Screw holes
Place eight screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not overtighten the screws! Doing so can damage the motherboard.

1-2 Chapter 1: Product introduction
Place this side
towards the rear
of the chassis
1.2.3 Motherboard layout
PCIEX16_1
PCIEX16_2
PCIEX1_1
VGA_LED
DRAM_LED
BOOT_DEVICE_LED
PCI1
Intel
I217 V
USB1112 USB1314USB910
AAFP
EATXPWR
TPU
CPU_FAN
BATTERY
ASM
1083
Super
I/O
ALC
887
16Mb
BIOS
SB_PWR
CLRTC CHASSIS
SPIDF_OUT
PANEL
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
CHA_FAN2
CHA_FAN1
CHA_FAN4
CHA_FAN3
24.4cm(9.6in)
24.4cm(9.6in)
LGA1150
DIGI+
VRM
COM
EATX12V
USB3_12
SATA6G_4
SATA6G_3
SATA6G_12SATA3G_56
Intel®
B85
TPM
KBMS_USB34
DVI_VGA
AUDIO
LAN_USB3_5E2
USB3_E34
DP_HDMI
CPU_LED
21 343
3121314 11 91031618 15
1
3
5
6
7
8
6

ASUS VANGUARD B85 1-3
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 8-pin ATX12V) 1-19
2. Intel®LGA1150 CPU socket 1-3
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1~4) 1-21
4. DDR3 DIMM slots 1-7
5. USB 3.0 connector (20-1 pin USB3_12) 1-24
6. Onboard LED (SB_PWR) 1-26
7. Intel®B85 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4 [brown]) 1-22
8. Intel®B85 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~2 [black]) 1-23
9. Chassis intrusion jumper (4-1 pin CHASSIS) 1-22
10. Clear RTC RAM (3-pin CLRTC) 1-16
11. System panel connector (20-8 pin F_PANEL) 1-25
12. USB 2.0 connectors (10-1 pin USB910, USB1112, USB1314) 1-26
13. Serial port connectors (10-1 pin COM) 1-24
14. TPM connector (20-1 pin TPM) 1-20
15. Front panel audio connector (10-1 pin AAFP) 1-20
16. Digital audio connector (4-1 pin SPDIF_OUT) 1-19
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel®4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium® , Celeron®processors.
VANGUARD B85 CPU socket LGA1150

1-4 Chapter 1: Product introduction

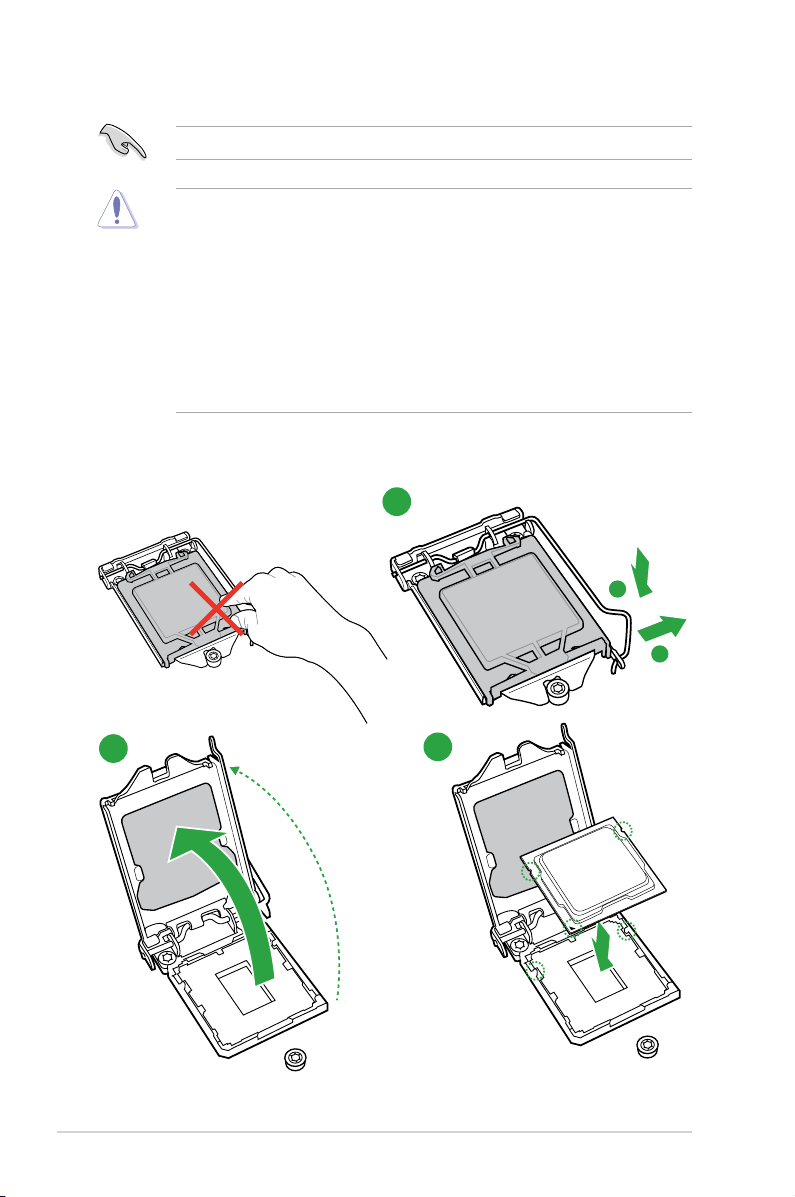

1.3.1 Installing the CPU
1
23
A
B
Unplug all power cables before installing the CPU.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

LGA1150 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.

ASUS VANGUARD B85 1-5
A
B
C
5
4

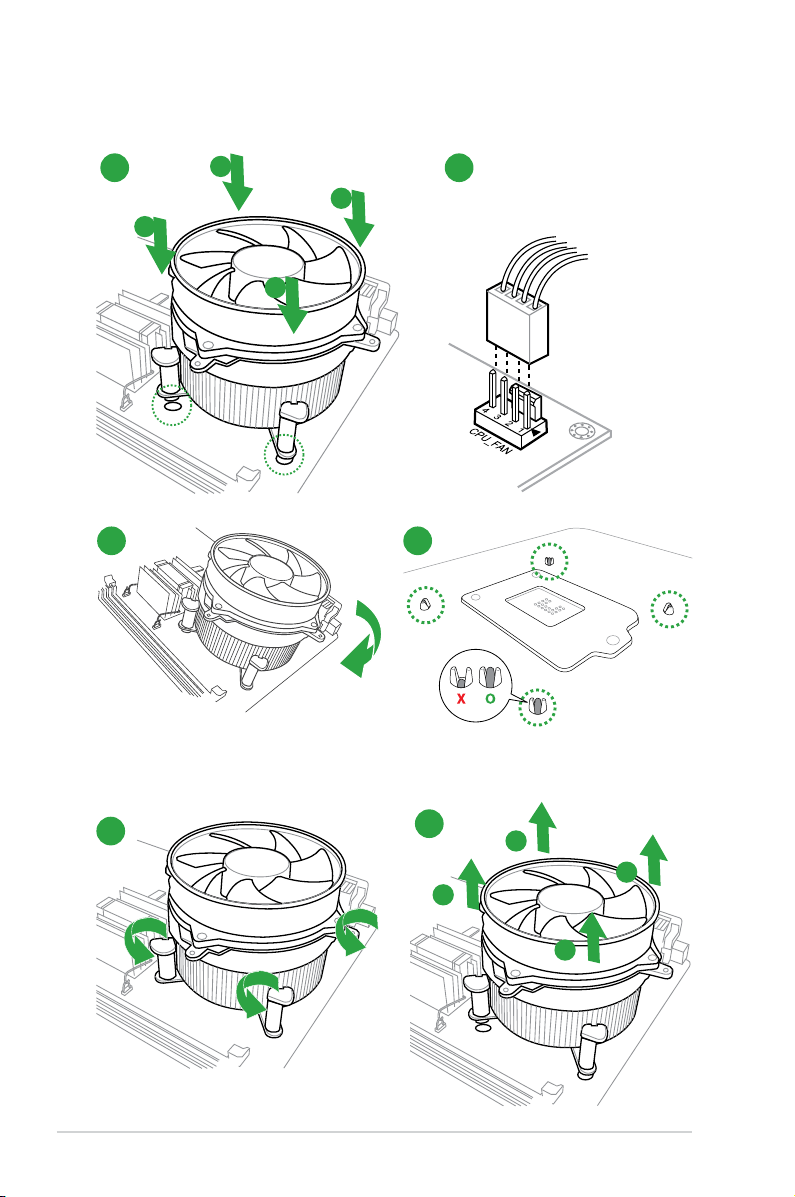

1.3.2 CPU heatsink and fan assembly installation
Apply the Thermal Interface Material
to the CPU heatsink and CPU
before you install the heatsink and
fan if necessary.

1-6 Chapter 1: Product introduction
3 4
A
B
B
A
To uninstall the CPU heatsink and fan assembly
2
1
To install the CPU heatsink and fan assembly
2
B
A
A
B
1

ASUS VANGUARD B85 1-7

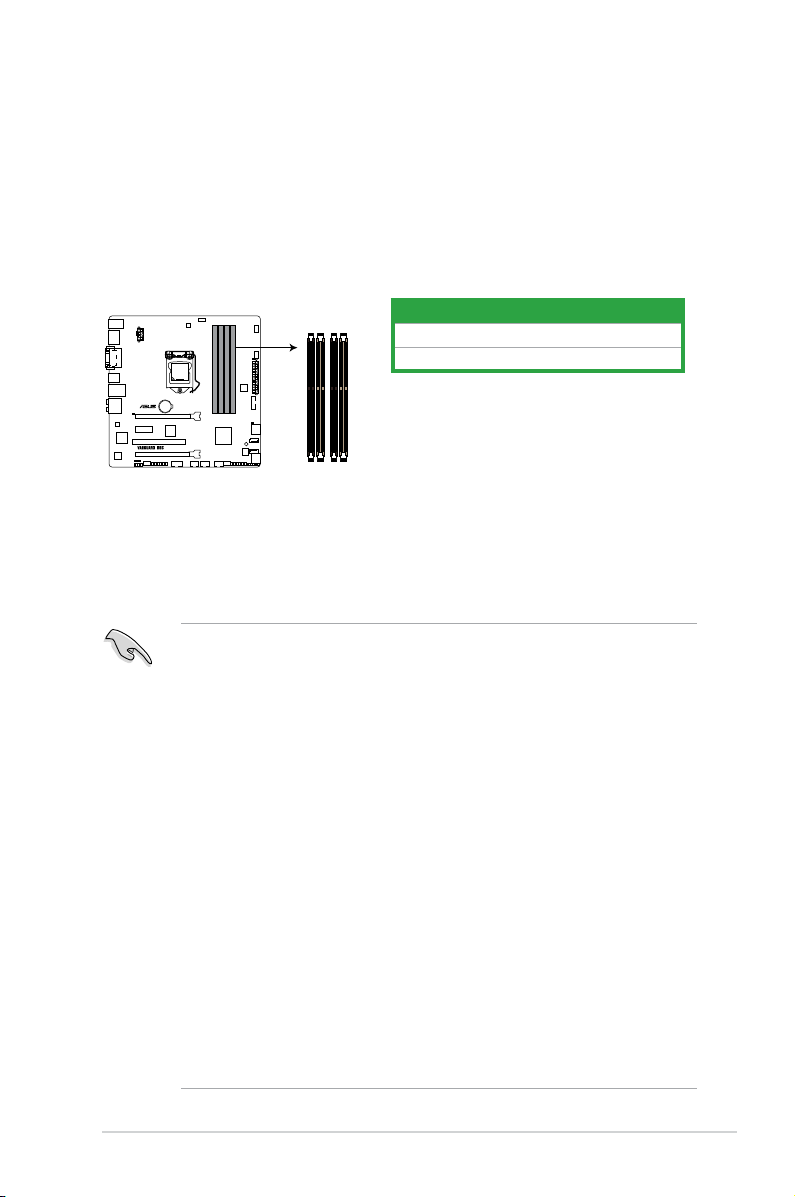

1.4 System memory
1.4.1 Overview
This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Module
(DIMM) sockets. A DDR3 module has the same physical dimensions as a DDR2 DIMM but
is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are

location of the DDR3 DIMM sockets:
Channel Sockets
Channel A DIMM_A1 & DIMM_A2
Channel B DIMM_B1 & DIMM_B2
VANGUARD B85 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
 
You may install 2GB, 4GB, and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM
sockets.
 


• Due to Intel®

• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
• Due to the memory address limitation on 32-bit Windows®OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
- Use a maximum of 3GB system memory if you are using a 32-bit Windows®OS.
- Install a 64-bit Windows®OS if you want to install 4GB or more on the
motherboard.
• This motherboard does not support DIMMs made up of 512 megabits (Mb) chips or
less.
 


other installed devices.
• The maximum 32GB memory capacity can be supported with 8GB or above DIMMs.
ASUS will update the memory QVL once the DIMMs are available in the market.

1-8 Chapter 1: Product introduction
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value. To operate at the vendor-marked
or at a higher frequency, refer to section 2.5 Ai Tweaker menu for manual memory
frequency adjustment.
 
memory load (4 DIMMs) or overclocking condition.
• Visit the ASUS website at: www.asus.com for the latest QVL.

DDR3 2666 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
No. Timing Voltage DIMM socket support (Optional)
2 DIMMs 4 DIMMs
Apacer 78.BAGFF.AFC0C(XMP) 8GB ( 2x 4GB ) DS - - 12-13-13-35 - • •
Apacer 78.BAGFR.AFD0C(XMP) 8GB ( 2x 4GB ) DS - - 12-13-13-35 - • •
Apacer 78.CAGFF.AFD0C(XMP) 16GB ( 2x 8GB ) DS - - 12-13-13-35 - • •
CORSAIR CMD16GX3M4A2666C10
(Ver4.13)(XMP) 16GB ( 4x 4GB ) DS - - 10-12-12-31 1.65 • •
CORSAIR CMD16GX3M4A2666C11
(Ver5.12)(XMP) 16GB ( 4x 4GB ) DS - - 11-13-13-35 1.65 • •
G.SKILL F3-2666C11Q-32GTXD(XMP) 32GB ( 4x 8GB ) DS - - 11-13-13-35 1.65 • •
G.SKILL F3-2666CL10Q-
16GBZHD(XMP) 16GB ( 4x 4GB ) DS - - 10-12-12-31 1.65 • •
GEIL GOC332GB2666C11QC(XMP) 32GB ( 4x 8GB ) DS - - 11-13-13-32 1.65 • •
Team TXD38G2666HC11CBK(XMP) 16GB ( 2x 8GB ) DS - - 11-13-13-35 1.65 • •
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
No. Timing Voltage
DIMM socket support
(Optional)
2 DIMMs 4 DIMMs
A-DATA AX3U2400GC4G10(XMP) 4GB DS - - 10-12-12-31 1.65 • •
Apacer 783BAGF3.AFD0C(XMP) 8GB ( 2x 4GB ) DS - - 11-11-11-30 - • •
CORSAIR CMY16GX3M2A2400C10A
(Ver4.21)(XMP) 16GB ( 8x 2GB ) DS - - 10-12-12-31 1.65 • •
CORSAIR CMY16GX3M2A2400C10R
(Ver4.21)(XMP) 16GB ( 2x 8GB ) DS - - 10-12-12-31 1.65 • •
G.SKIIL F3-2400C11Q-32GXM(XMP) 32GB ( 4x 8GB ) DS - - 11-13-13-31 1.65 • •
G.SKILL F3-19200CL9Q-
16GBZMD(XMP) 16GB ( 4x 4GB ) DS - - 9-11-11-31 1.65 • •
GEIL GOC316GB2400C11QC(XMP) 16GB ( 4x 4GB ) DS - - 11-11-11-30 1.65 • •
KINGSTON KHX24C11T3K4/32X(XMP) 32GB ( 4x 8GB ) DS - - 9-9-9-24 1.65 • •
Patriot PXD38G2400C11K(XMP) 8GB ( 2x 4GB ) DS - - 2400 11-11-11-30 1.65 • •
Team TXD38G2400HC10QBK(XMP) 16GB ( 2x 8GB ) DS - - 10-12-12-31 1.65 • •
DDR3 2400 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand
Chip
No. Timing Voltage
DIMM socket support
(Optional)
2 DIMMs 4 DIMMs
A-DATA AX3U2133XW8G10(XMP) 8GB DS - - 10-11-11-30 1.65 • •
Apacer AHU04GFB33CAQ3R(XMP) 4GB DS - - 11-13-13-31 - • •
CORSAIR CMD32GX3M4A2133C9
(Ver4.21)(XMP) 32GB ( 4x 8GB ) DS - - 9-11-11-31 1.65 • •
CORSAIR CMZ8GX3M2A2133C11R
(Ver4.21)(XMP) 8GB ( 2x 4GB ) DS - - 11-11-11-27 1.5 • •
G.SKILL F3-2133C10Q-32GSR(XMP) 32GB ( 4x 8GB ) DS - - 10-12-12-31 1.5 • •
G.SKILL F3-2133C11Q-32GZL(XMP) 32GB ( 4x 8GB ) DS - - 11-11-11-31 1.5 • •
KINGSTON KHX2133C11D3K4/
16GX(XMP) 16GB ( 4x 4GB ) DS - - 11-12-11-30 1.65 • •
KINGSTON KHX21C11T3FK8/64X(XMP) 64GB ( 8x 8GB ) DS - - 9-9-9-24 1.5 • •
Patriot PXD38G2133C11K(XMP) 8GB ( 2x 4GB ) DS - - 2133 11-11-11-27 1.5 • •
Team TLD38G2133HC11ABK(XMP) 16GB ( 2x 8GB ) DS - - 11-11-11-31 1.65 • •
DDR3 2133 MHz capability

ASUS VANGUARD B85 1-9
DDR3 1866 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand Chip No. Timing Voltage
DIMM socket
support (Optional)
2 DIMMs 4 DIMMs
A-DATA AX3U1866XW8G10(XMP) 16GB ( 2x 8GB ) DS - - 10-11-10-30 1.5 • •
CORSAIR CMY16GX3M2A1866C9 (Ver
4.21)(XMP) 16GB ( 2x 8GB ) DS - - 9-10-9-27 1.5 • •
CORSAIR CMY8GX3M2A1866C9
(Ver3.24)(XMP) 8GB ( 2x 4GB ) DS - - 9-10-9-27 1.5 • •
CORSAIR CMZ8GX3M2A1866C9(XMP) 8GB ( 2x 4GB ) DS - - 9-10-9-27 1.5 •
G.SKILL F3-14900CL10Q-
32GBZL(XMP) 32GB ( 4x 8GB ) DS - - 10-11-10-30 1.5 • •
G.SKILL F3-14900CL9Q-16GBZL(XMP) 16GB ( 4x 4GB ) DS - - 9-10-9-28 1.5 • •
KINGSTON KHX1866C9D3K2/8GX(XMP) 8GB ( 2x 4GB ) DS - - - 1.65 • •
Patriot PXD38G1866ELK(XMP) 8GB ( 2x 4GB ) DS - - 1866 9-10-9-27 1.5 • •
Team TED38GM1866C13BK 8GB DS Hynix H5TQ4G83AFR 13-13-13-32 1.5 • •
Team TLD38G1866HC10SBK(XMP) 16GB ( 2x 8GB ) DS - - 10-11-10-30 1.5 • •
DDR3 1600 MHz capability
Vendors Part No. Size SS/
DS
Chip
Brand Chip No. Timing Voltage
DIMM socket
support (Optional)
2 DIMMs 4 DIMMs
A-DATA AD3U1600C2G11 2GB SS MIC
RON D9PFJ 11-11-11-28 - • •
A-DATA AD3U1600C4G11 4GB DS MIC
RON D9PFJ 11-11-11-28 - • •
A-DATA AD3U1600W4G11 4GB SS
A-D
ATA
3WCD-1211A 11-11-11-28 - • •
A-DATA AD3U1600W8G11 8GB DS A-D
ATA 3WCD-1211A 11-11-11-28 - • •
A-DATA AX3U1600GW8G9(XMP) 16GB(2x 8GB ) DS - - 9-9-9-24 1.5 • •
A-DATA AX3U1600W8G11 16GB(2x 8GB ) DS - - 9-11-9-27 1.5 • •
A-DATA AXDU1600GW8G9B(XMP) 16GB(2x 8GB ) DS - - 9-11-9-27 1.65 • •
AMD AE32G1609U1-U 2GB SS AMD 23EY4587MB6H - 1.5 • •
AMD AE34G1609U2-U 4GB DS AMD 23EY4587MB6H - 1.5 • •
AMD AP38G1608U2K(XMP) 8GB(2x 4GB ) DS - - 9-9-9-28 1.65 • •
Apacer 78.B1GE3.9L10C 4GB DS Apa
cer
AM5D5908D
EQSCK - 1.65 • •
Apacer 78.B1GET.9K00C 4GB SS Apa
cer
AM5D6008B
QQSCK 11-11-11-28 - • •
Apacer 78.C1GET.9K10C 8GB DS Apa
cer
AM5D6008B
QQSCK 11-11-11-31 - • •
Apacer AHU04GFA60C9Q1D(XMP) 4GB DS - - 9-9-9-27 1.65 •
Apacer AHU04GFA60C9Q3R(XMP) 4GB DS - - 11-11-11-28 - • •
Apacer AHU08GFA60CBT3R(XMP) 8GB DS - - 9-9-9-24 - • •
Asint SLA302G08-EGG1C(XMP) 4GB DS Asint 302G08-GG1C 9-9-9-27 - • •
Asint SLA302G08-EGJ1C(XMP) 4GB DS Asint 302G08-GJ1C 9-9-9-27 - • •
Asint SLA302G08-EGN1C 4GB DS ASint 302G08-GN1C - - • •
Asint SLA304G08-ENG1B 4GB SS Asint 304G08-GN1B 9-11-11-28 - • •
Asint SLB304G08-EGJ1B(XMP) 8GB DS - - 9-9-9-27 - • •
Asint SLB304G08-EGN1B 8GB DS ASint 304G08-GN1B - - • •
Asint SLZ302G08-EGN1C 2GB SS ASint 302G08-GN1C - - • •
AVEXIR AVD3U16000904G-2CW(XMP) 8GB(2x 4GB ) DS - - 11-11-11-28 1.5 • •
CORSAIR CMD16GX3M2A1600C9
(Ver8.21)(XMP) 16GB(2x 8GB ) DS - - 9-9-9-24 1.5 •
CORSAIR CMD8GX3M2A1600C8
(Ver5.12)(XMP) 8GB(2x 4GB ) DS - - 1600 8-8- 8-24 1.5 • •
CORSAIR CMD8GX3M2A1600C9
(Ver2.12)(XMP) 8GB(2x 4GB ) DS - - 9-9-9-24 1.5 • •
CORSAIR CML16GX3M2A1600C10
(Ver2.21)(XMP) 16GB(2x 8GB ) DS - - 10-10-10-27 1.5 • •
CORSAIR CML16GX3M4X1600C8
(Ver 2.12)(XMP) 16GB(4x 4GB ) DS - - Heat-Sink Package 1.5 • •
CORSAIR CML8GX3M2A1600C9
(Ver7.12)(XMP) 8GB(2x 4GB ) DS - - 9-9-9- 24 1.5 • •
CORSAIR CMV8GX3M1A1600C11 8GB DS - - 11-11-11-30 - • •
CORSAIR CMX8GX3M2A1600C9
(Ver3.19)(XMP) 8GB(2x 4GB ) SS - - 9-9-9-24 1.65 • •
CORSAIR CMZ16GX3M2A1600C10
(Ver.3.24)(XMP) 16GB(2x 8GB ) DS - - 10-10-10-27 1.5 • •
CORSAIR CMZ16GX3M4A1600C9(XMP) 16GB(4x 4GB ) DS - - 9-9-9-24 1.5 • •
continued on the next page

1-10 Chapter 1: Product introduction
Vendors Part No. Size SS/
DS
Chip
Brand Chip No. Timing Voltage
DIMM socket
support (Optional)
2 DIMMs 4 DIMMs
CORSAIR CMZ32GX3M4X1600C10
(Ver2.2)(XMP) 32GB ( 4x 8GB ) DS - - 10-10-10-27 1.5 • •
CORSAIR CMZ4GX3M1A1600C9 (
Ver8.16)(XMP) 4GB ( 1x 4GB ) DS - - 9-9-9-24 1.5 •
CORSAIR CMZ8GX3M1A1600C10
(Ver3.23)(XMP) 8GB ( 1x 8GB ) DS - - 10-10-10-27 1.5 •
CORSAIR CMZ8GX3M1A1600C10
(Ver8.21)(XMP) 8GB ( 1x 8GB ) DS - - 10-10-10-27 1.5 •
CORSAIR CMZ8GX3M2A1600C8(XMP) 8GB ( 2x 4GB ) DS - - 8-8-8-24 1.5 • •
CORSAIR CMZ8GX3M2A1600C9
(Ver8.16)(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.5 •
CORSAIR CMZ8GX3M2A1600C9(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.5 •
Crucial BLT4G3D1608DT1
TX0.16FM(XMP) 4GB DS - - 8-8-8-24 1.5 • •
Elixir M2X2G64CB88G7N-DG(XMP) 2GB SS Elixir N2CB2G80
GN-DG 9-9-9-28 - • •
Elixir M2X4G64CB8HG5N-DG(XMP) 4GB DS Elixir N2CB2G8
0GN-DG 9-9-9-28 - • •
G.SKILL F3-12800CL9D-8GBSR2(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.25 • •
G.SKILL F3-12800CL9Q-16GBXL(XMP) 16GB ( 4x 4GB ) DS - - 9-9-9-24 1.5 • •
G.Skill F3-12800CL9Q-16GBZL(XMP) 16GB ( 4x 4GB ) DS - - 9-9-9-24 1.5 • •
G.SKILL F3-1600C9Q-32GXM(XMP) 32GB ( 4x 8GB ) DS - - - 1.5 • •
GEIL GUP34GB1600C7DC(XMP) 4GB ( 2x 2GB ) DS - - 7-7-7-24 1.6 • •
GEIL GVP38GB1600C8QC(XMP) 8GB ( 4x 2GB ) DS - - 8-8-8-28 1.6 •
Hynix HMT351U6CFR8C-PB 4GB DS Hynix H5TQ2G83CFR - - •
Hynix HMT41GU6MFR8C-PB 8GB DS Hynix H5TQ4G83MFR - - •
KINGMAX FLGE85F-C8KL9A(XMP) 2GB SS KING
MAX N/A 9-9-9-28 - • •
KINGMAX FLGF65F-C8KL9A(XMP) 4GB DS KING
MAX N/A 9-9-9-28 - • •
KINGSTON KHX16009CD3K2/8GX(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-27 1.65 • •
KINGSTON KHX1600C9D3B1/4G(XMP) 4GB SS - - 9-9-9-27 1.65 • •
KINGSTON KHX1600C9D3K3/12GX(XMP) 12GB ( 3x 4GB ) DS - - 9 1.65 •
KINGSTON KHX1600C9D3K3/6GX(XMP) 6GB ( 3x 2GB ) DS - - 9 1.65 • •
KINGSTON KHX1600C9D3K3/6GX(XMP) 6GB ( 3x 2GB ) DS - - 9 1.65 • •
KINGSTON KHX1600C9D3K4/16GX(XMP) 16GB ( 4x 4GB ) DS - - 9-9-9-24 1.65 • •
KINGSTON KHX1600C9D3K6/24GX(XMP) 24GB ( 6x 4GB ) DS - - 9 1.65 • •
KINGSTON KHX1600C9D3K8/32GX(XMP) 32GB ( 8x 4GB ) DS - - 9-9-9-27 1.65 • •
KINGSTON KHX1600C9D3LK2/8GX(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.35 • •
KINGSTON KHX1600C9D3P1K2/8G 8GB ( 2x 4GB ) DS - - 9 1.5 • •
KINGSTON KHX16C10B1K2/16X(XMP) 16GB ( 2x 8GB ) DS - - - 1.5 • •
KINGSTON KHX16C9K2/16 16GB ( 2x 8GB ) DS - - 1333-9-
9-9-24 1.5 • •
KINGSTON KHX16C9P1K2/16 16GB ( 2x 8GB ) DS - - - 1.5 • •
KINGSTON KVR16N11/4 4GB DS KINGS
TON
D2568JPU
CPGGBU
11-11-11
-28-1 - • •
KINGSTON KVR16N11/4 4G DS Hynix H5TQ2G83
CFRPBC - 1.5 • •
MICRON MT16JTF1G64AZ-1G6D1 8GB DS MIC
RON D9PBC - 1.5 • •
Micron MT16JTF1G64AZ-1G6E1 8GB DS Micron D9QBJ - - • •
MICRON MT16KTF51264AZ-1G6M1 4GB DS MIC
RON D9PFJ 11-11-11-28 - •
MICRON MT16KTF51264AZ-1G6M1 4GB DS MIC
RON D9PFJ - - • •
Micron MT8JTF51264AZ-1G6E1 4GB SS Micron D9QBJ - - • •
MICRON MT8KTF25664AZ-1G6M1 2GB SS MICR
ON D9PFJ - - • •
Patriot PGD316G1600ELK(XMP) 16GB ( 2x 8GB ) DS - - - 1.65 • •
Patriot PGD316G1600ELK(XMP) 16GB ( 2x 8GB ) DS - - 9-9-9-24 1.5 •
Patriot PGD38G1600ELK(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.65 • •
Patriot PGD38G1600ELK(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.5 •
Patriot PV316G160C9QKRD(XMP) 16GB ( 4x 4GB ) DS - - 9-9-9-24 1.5 •
Patriot PV38G160C9KRD(XMP) 8GB ( 2x 4GB ) DS - - 9-9-9-24 1.5 • •
Patriot PVV38G1600LLK(XMP) 8GB ( 2x 4GB ) DS - - 8-9-8-24 1.65 • •
Patriot PX538G1600LLK(XMP) 8GB ( 2x 4GB ) DS - - 8-9-8-24 1.65 •
Patriot PX7312G1600LLK(XMP) 12GB ( 3x 4GB ) DS - - 8-9-8-24 1.65 • •
Patriot PXD38G1600LLK(XMP) 8GB ( 2x 4GB ) DS - - 1600 8-
9-8-24 1.65 • •
PSC AL9F8L93B-GN2E 4GB SS PSC A3P4GF3BLF - - • •
PSC ALAF8L93B-GN2E 8GB DS PSC A3P4GF3BLF - - • •
DDR3 1600 MHz capability
continued on the next page
