Asus RS100-E7 User manual

RS100-E7/PI2
Conguration Guide
12

II
Copyright © 2011 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means,
except documentation kept by the purchaser for backup purposes, without the express written permission
of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not
limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no
event shall ASUS, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental,
or consequential damages (including damages for loss of prots, loss of business, loss of use or data,
interruption of business and the like), even if ASUS has been advised of the possibility of such damages
arising from any defect or error in this manual or product.
Specications and information contained in this manual ae furnished for informational use only, and are
subject to change at any time without notice, and should not be construed as a commitment by ASUS.
ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,
including the products and software described in it.
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
E6721
First Edition V1
July 2011

III
Contents
Revision history
Revision Revision history Date
V1 First release of RS100-E7/PI2 conguration guide July 2011
Revision history.......................................................................................... III
Safety information ...................................................................................... IV
Chapter 1: Product introduction
1.1 Key features.................................................................................. 1-2
1.2 System overview.......................................................................... 1-3
1.3 Front panel features..................................................................... 1-4
1.4 Rear panel features...................................................................... 1-4
1.5 Systemspecications ................................................................. 1-5
Chapter 2: Components
2.1 Upgrading CPU and CPU heatsink............................................. 2-2
2.2 Upgrading system memory......................................................... 2-3
2.3 Upgrading hard disk drives......................................................... 2-4
2.4 Installing ASUS Server Management Board.............................. 2-6
2.5 Rackmount rail kit........................................................................ 2-8
2.6 OS support list ............................................................................. 2-9

IV
Safety information
Electrical Safety
• Before installing or removing signal cables, ensure that the power cables for
the system unit and all attached devices are unplugged.
• To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
• When adding or removing any additional devices to or from the system, contact
a qualied service technician or your dealer. Ensure that the power cables for
the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you service.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your dealer.
Operation Safety
• Servicing of this product or units is to be performed by trained service
personnel only.
• Before operating the server, carefully read all the manuals included with the
server package.
• Before using the server, ensure all cables are correctly connected and the
power cables are not damaged. If any damage is detected, contact your dealer
as soon as possible.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Place the server on a stable
surface.
This product is equipped with a three-wire power cable and plug for the user’s
safety. Use the power cable with a properly grounded electrical outlet to avoid
electrical shock.
Lithium-Ion Battery Warning
CAUTION! Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
CD-ROM Drive Safety Warning
CLASS 1 LASER PRODUCT
Heavy System
CAUTION! This server system is heavy. Ask for assistance when moving or
carrying the system.

1-
This chapter describes the key
features of RS100-E7/PI2. It includes
the product overview and general
specications.
Chapter 1
Product introduction

Chapter 1: Product introduction1-2
1.1 Key features
Ultra-Quiet Rack Server
• Provides excellent acoustic control (under 29dBA), which is even lower than a
projector.
• Facilitate customers with quiet working environment.
Excellent Thermal Design
• Heat-pipe for cooing efciency.
• Lower acoustic level and power saving.
Maximin Storage
• Highly compacted size of 15” depth for space saving.
• Two 3.5 HDD Supported with RAID.
Flexible Rack Selections
• Short Chassis Can Widen Your Selections on Rack and Cabinet.
• More Capacity in Data Center with Short Rack.
• Not only save your cabinet space, but increase density on cabinet
Remote Management Solution
• Easy maintenance, friendly GUI, 7x24 real time management.
Energy saving
• 80Plus PSU for optimal power efciency.
• High power efciency fan.
• Intelligent fan control technology.
• ASUS proprietary CPU heat-pipe.

ASUS RS100-E7/PI2 1-3

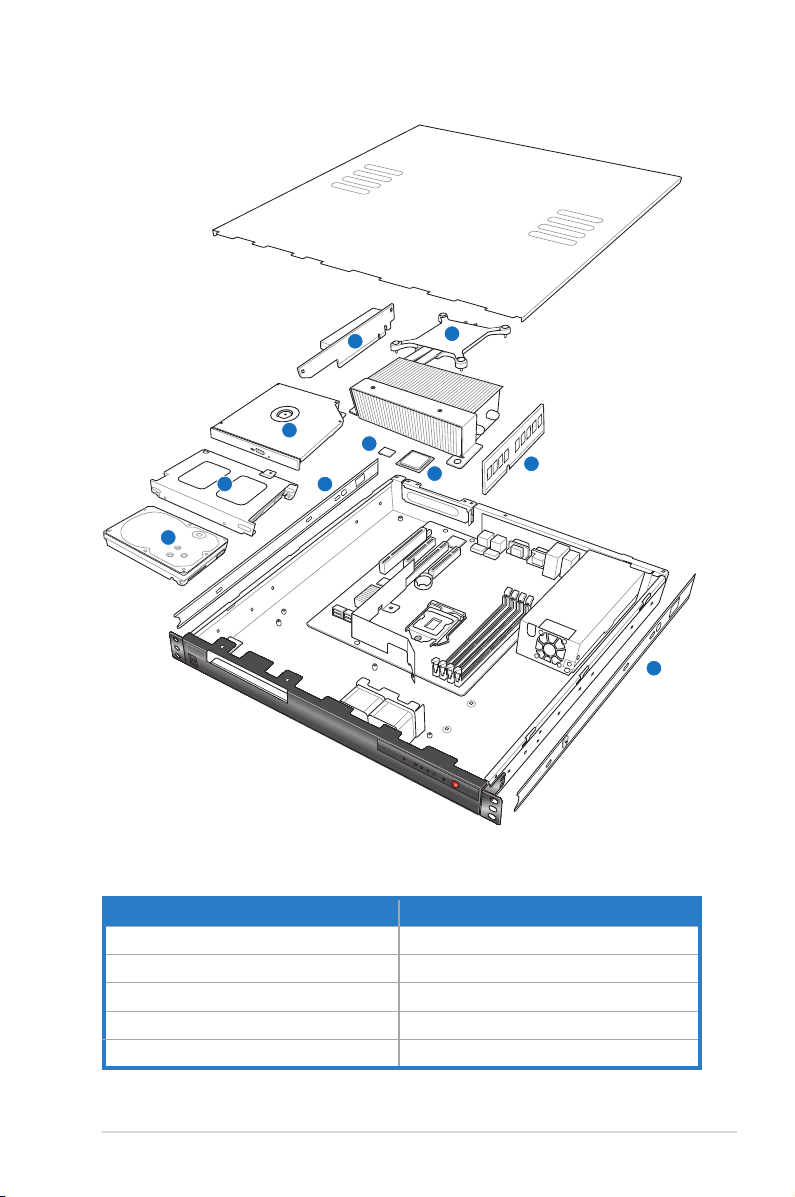

1.2 System overview
Items Items
1. Central processing unit (CPU) 6. Optical disk drive
2. CPU heatsink 7. Riser card
3. System memory 8. ASUS Server management board (optional)
4. Hard disk drivesHard disk drives 9. Rackmount rail kit (optional)
5. HDD bracketHDD bracket
4
5
6
8
1
2
7
3
9
9

Chapter 1: Product introduction1-4

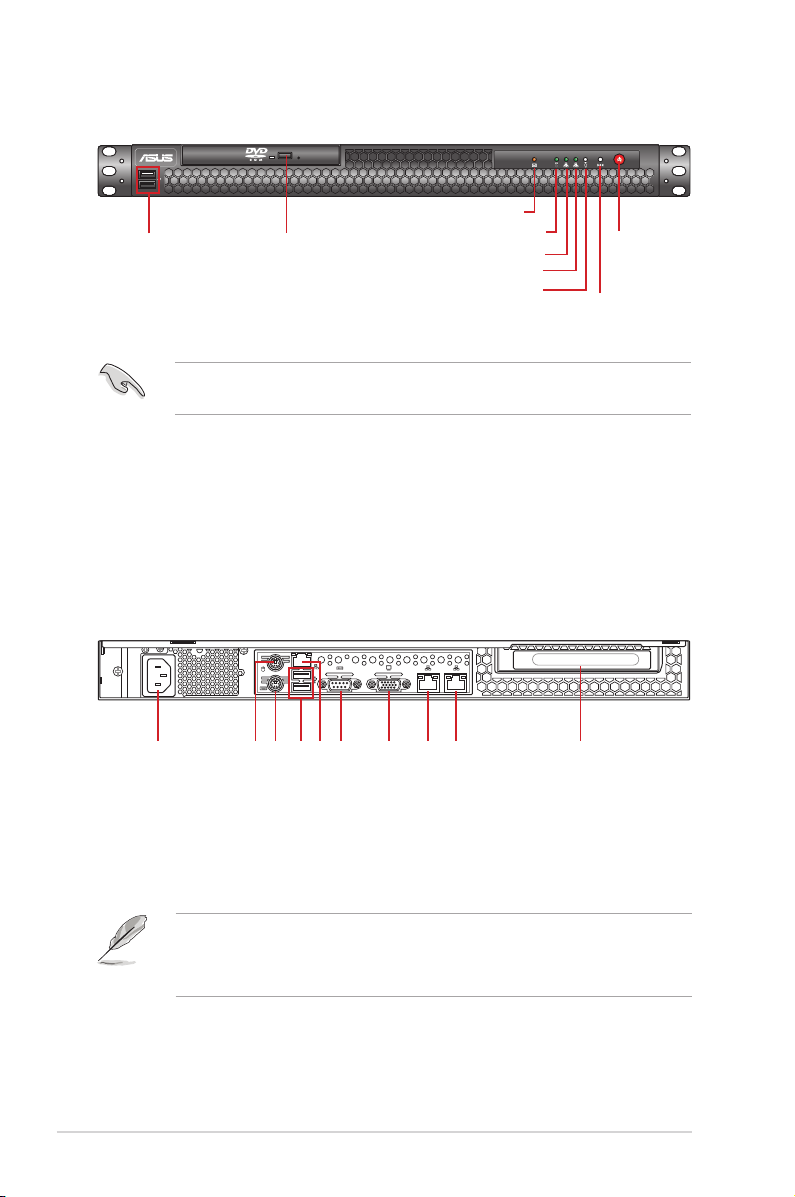

1.3 Front panel features
1.4 Rear panel features
• The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN
do not appear on the rear panel if motherboard is not present.
• *The port is for ASUS ASMB4-iKVM controller card only.
Turn off the system power and detach the power supply before removing or
replacing any system component.
AC power socket USB 2.0 ports PS/2 mouse port PS/2 keyboard port Serial port VGA port LAN port 1 LAN port 2 Expansion slot LAN port 3*
12
Optical drive
USB 2.0 ports HDD Access LED
LAN2 LED
LAN1 LED
Power LED Reset button
Power button
Message LED

ASUS RS100-E7/PI2 1-5
1.5 Systemspecications
Model Name RS100-E7/PI2
Processor / System Bus
1 x Socket LGA1155
Intel® Xeon® E3-1200 Processor Family
Intel® CoreTM i3-2100 Processor Family
Core Logic Intel® C204 Chipset
ASUS Features Smart Fan √
ASWM2.0 √
Memory
Total Slots 4 (2 Channels)
Capacity Maximum up to 32GB
Do not support R-DIMM and non ECC U-DIMM
Memory Type DDR3 1333 / 1066 Unbuffered DIMM with ECC
Memory Size 1 GB, 2GB, 4GB, 8GB
Expansion
Slots
Total PCI/PCI-X/
PCI-E Slots 1
Slot Type 1 x PCI-E 2.0 x16 slot (x16 link) (Full-Height/HL)
Storage
2 x SATA3 6Gb/s
Intel® C204 (for Windows only)
- Supports software RAID 0 & 1
HDD Bays
I = internal
A or S = hot-
swappable
2 x Internal 3.5” SATA2 HDD Bays
Networking LAN 2 x Intel®82574L + 1 x Mgmt LAN
Graphic VGA Aspeed® AST2050 16MB
Auxiliary Storage FDD / CD / DVD 1 x Slim-type Optical Device Bay
(Options: No ODD / DVD-ROM / DVD-RW)
Onboard I/O
1 x External Serial Port
3 x RJ-45 ports (1 for ASMB5-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
(continued on the next page)

Chapter 1: Product introduction1-6
*Specicationsaresubjecttochangewithoutnotice.
OS Support
Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
Windows® Server 2003 R2 Enterprise 32/64-bit
RedHat® Enterprise Linux AS5.5/6.0 32/64-bit
SuSE® Linux Enterprise Server 10 SP3/11 32/64-bit
(Subject to change without any notice)
Anti-virus Software Optional anti-virus CD Pack
Management
Solution
Out of Band
Remote
Hardware
Optional ASMB5-iKVM for KVM-over-IP support
Software ASUS ASWM Enterprise®
Net Weight Kg (CPU, DRAM &
HDD not inclu ded) 6.5 Kg
Dimension (DD x WW x HH) 380mm x 429.6mm x 43.2mm
Power Supply 220W Single Power Supply
Power Rating Input: 100-240Vac, 4-2A, 50-60Hz, Class I
Environment
Operation temperature: 10°C–35°C / Non operation
temperature: -40°C–70°C
Non operation humidity: 20%–90%
( Non-condensing)

1-
This chapter lists the key components
and optional accessories for the server
system.
Chapter 2
Components

Chapter 2: Components2-2
2.1 Upgrading CPU and CPU heatsink
The ASUS RS100-E7/PI2 supports one Dual-core / Quad-core Intel® LGA1155
Xeon®series processor.
1
2
3
4
5
7
6
7
6
Order P/N Description
90-S000U09Y1T (single pack) Quad Core Intel Xeon E3-1220 3.1G
90-S000U0A21T (single pack) Quad Core Intel Xeon E3-1230 3.1G
90-S000U0A41T (single pack) Quad Core Intel Xeon E3-1240 3.1G
90-S000U0A71T (single pack) Quad Core Intel Xeon E3-1270 3.1G
90-S000U0A91T (single pack) Quad Core Intel Xeon E3-1280 3.1G

ASUS RS100-E7/PI2 2-3
2.2 Upgrading system memory
The motherboard comes with four (4) Double Data Rate 3 (DDR3) Dual Inline
Memory Modules (DIMM) slots.
Recommendedmemorycongurations
1
2
3
4
1234
DIMM_A2
DIMM_A1
DIMM_B2
DIMM_B1
UDIMM
DIMM Slot
Per Channel
DIMM Populated
per Channel DIMM Type Speed Rank per DIMM
21 Unbuffered DDR3 ECC 1066/1333 Single Rank,
Dual Rank
2 2 Unbuffered DDR3 ECC 1066/1333 Single Rank,
Dual Rank
Order P/N Description
90-S000I05L0T DDR3 1333 ECC UNB 1G Single Pack
90-S000I05M0T DDR3 1333 ECC UNB 2G Single Pack
90-S000I0570T DDR3 1333 ECC UNB 4G Single Pack

Chapter 2: Components2-4
2.3 Upgrading hard disk drives
The system supports two SATAII/SAS hard disk drives.
We recommend that you install identical drives of the same model and capacity
for RAID conguration.

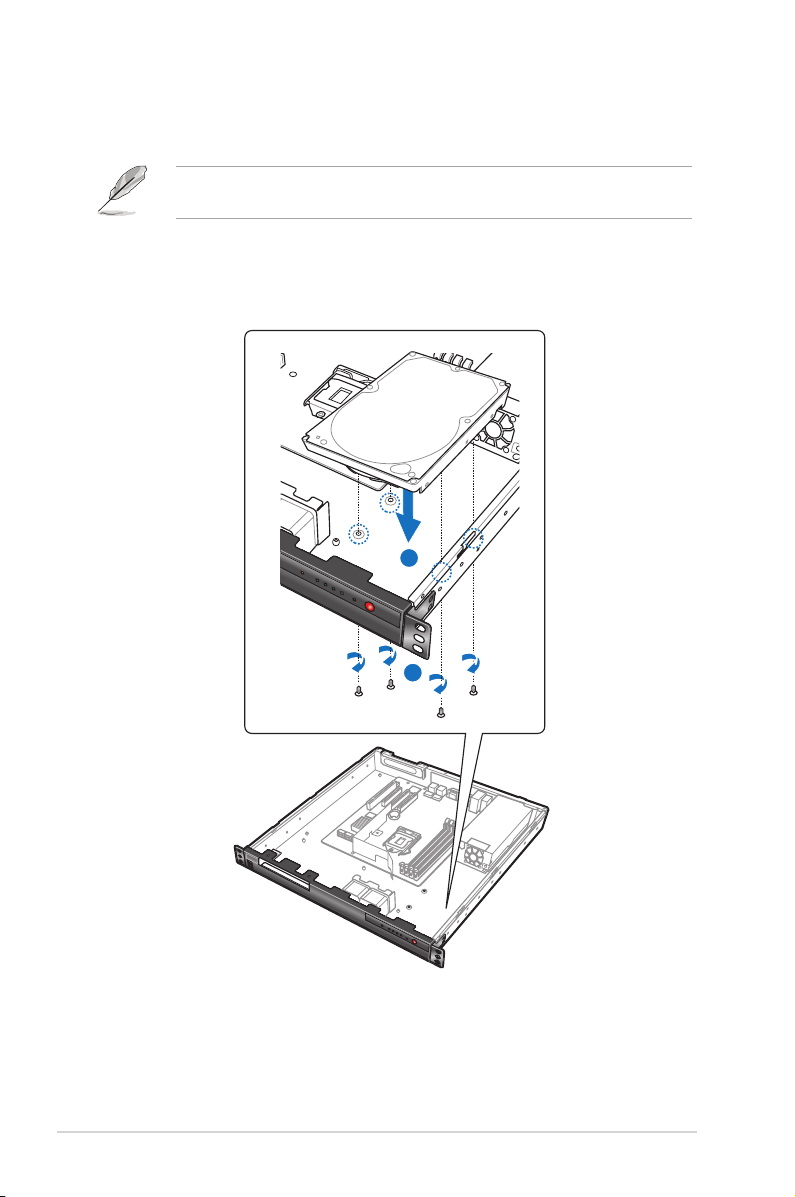

Installing a hard disk drive to the HDD tray 1
1
2

ASUS RS100-E7/PI2 2-5
Installing a hard disk drive to the HDD tray 2
2
1
3
Order P/N Description
90-S000H6560T SATA2 500G 7200rpm with tray (single pack)
90-S000H6570T SATA2 1TB 7200rpm with tray (single pack)
90-S000H65D1T SATA3 500G 7200rpm with tray (single pack)
90-S000H65C1T SATA3 750G 7200rpm with tray (single pack)
90-S000H65B1T SATA3 1TB 7200rpm with tray (single pack)
90-S000H64R0T SAS 6G 300G 15Krpm with tray (single pack)
90-S000H64S0T SAS 6G 450G 15Krpm with tray (single pack)
90-S000H64T0T SAS 6G 600G 15Krpm with tray (single pack)

Chapter 2: Components2-6
2.4 Installing ASUS Server Management
Board
ASUS Server Management Board is an Intelligent Platform Management Interface
(IPMI) 2.0-compliant board that allows users to monitor, control and manage a
remote server from the local or central server in local area network (LAN).
Baseboard Management
Controller (BMC) connector
(14-pin BMC_FW1)
ASUS Server Management Board

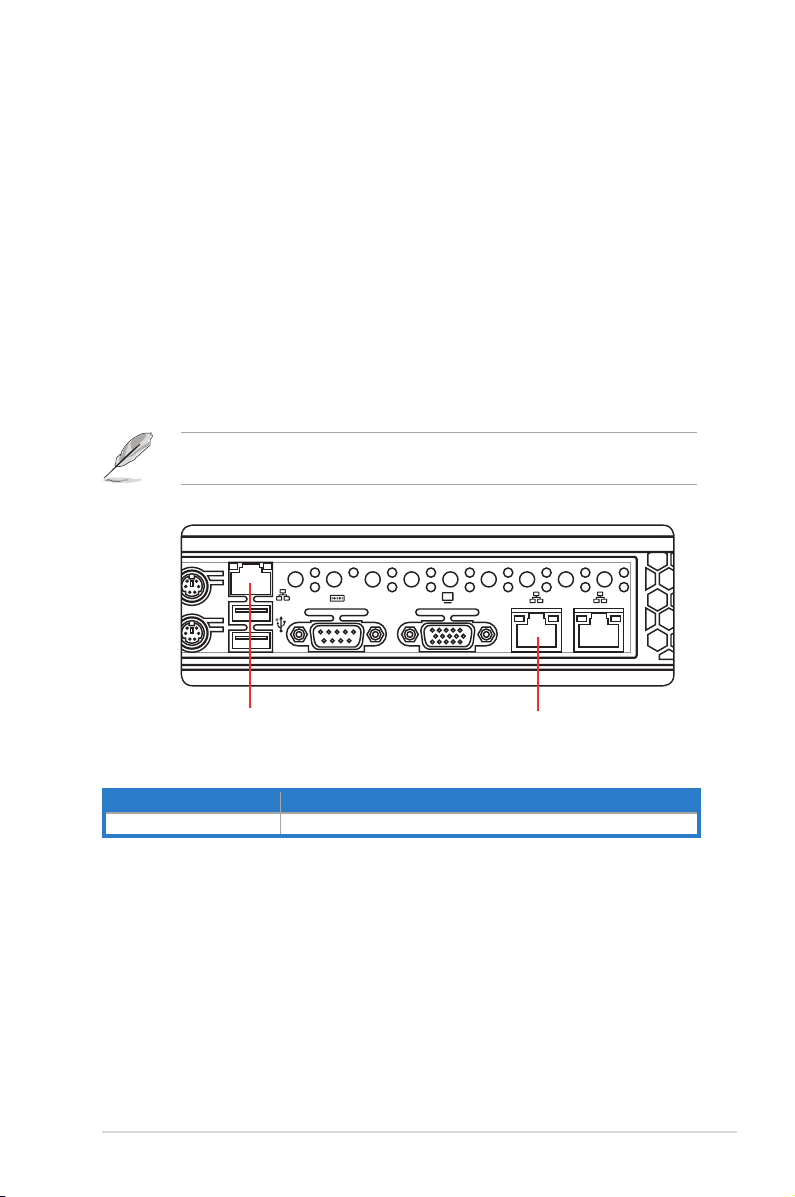

ASUS RS100-E7/PI2 2-7
ASMB5-iKVM
• Remote real-time access to servers with full control by keyboard, video monitor
and mouse (KVM) of a single local computer from anywhere at any time. In
addition, KVM function is based on BIOS-level access, therefore, even the server
OS is down, the KVM module can still work to provide around-the-clock remote
monitor and diagnosis through GUI (Web-based Graphical User Interface).
• Advanced server management functions including “remote power on/off/reset”,
“remote hardware health monitoring” and “system event log”.
• Allows administrators to share the date saved in a local drive (oppy, CD/
DVD-ROM, ash device, HDD) to target servers, which makes data-sharing
convenient.
We recommend to use LAN port 3 (dedicated LAN) or LAN port 1 (shared LAN)
for server management.
LAN port 3 LAN port 1
Order P/N Description
90-C1SD80-00UAN00Z ASMB5-iKVM Module (6 in 1)

Chapter 2: Components2-8
2.5 Rackmount rail kit

ASUS RS100-E7/PI2 2-9
2.6 OS support list
Order P/N Description
90-S00SW7140T Windows® Server 2008 STD 64-bit ENG
90-S00SW7150T Windows® Server 2008 STD 64-bit TCH
Operating System Version
Microsoft Windows
Windows Server 2003 Standard/Enterprise 32/64 Edition
SP2
Windows Server 2008 Standard/enterprise 32/64 Edition
Windows Server 2008 Foundation 32/64
Windows Vista SP1 (Installation Only)
Windows XP Professional SP3 (Installation Only)
Red Hat Enterprise Linux RHEL AS 4.0 UP7 32/64 bit
RHEL AS 5.0 UP3 32/64 bit
SuSE Linux Enterprise Server SLES 10 SP3 32/64 bit
SLES 11 32/64 bit
Linux Fedora Core 10 (Installation Only)
Free BSD 7.1 (Installation Only)
Virtualization VMWare ESX4.0
VMWare ESX4.0i

Chapter 2: Components2-10
