Asus ZenWiFi AX Series User manual

Quick Start Guide

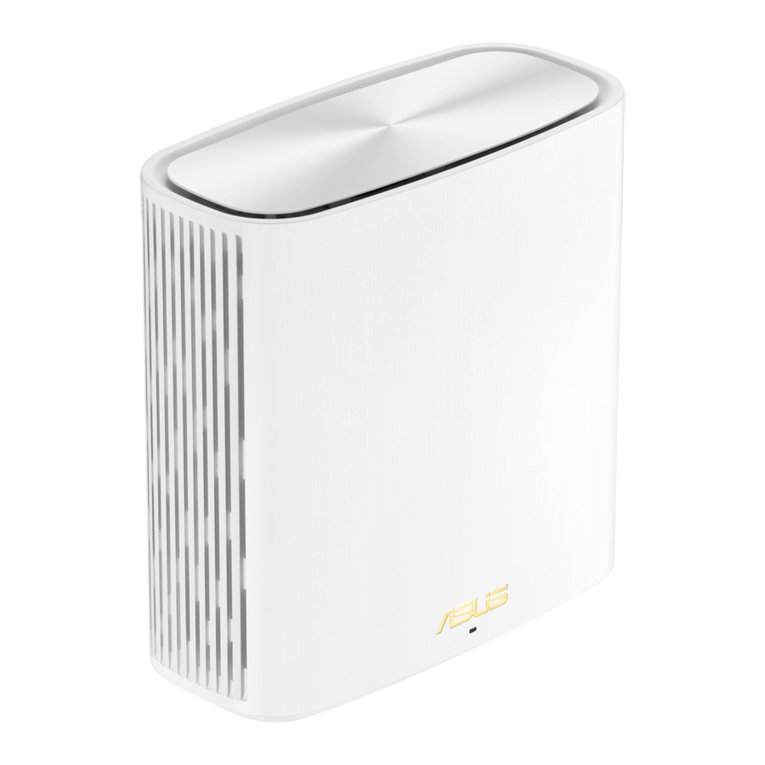

ASUS ZenWiFi AX
AX6600 Tri Band WiFi Router
Model: XT8
A16443 / Revised Edition V3 / April 2020

Table of Contents
English.............................................................................................................................................3
繁體中文 ..........................................................................................................................................8
Bahasa Indonesia..........................................................................................................................13
日本語 ............................................................................................................................................18
한국어..................................................................................................................................................................................45
Bahasa Melayu..............................................................................................................................50
ไทย ................................................................................................................................................55
Tiếng Việt........................................................................................................................................60

3
English
1
Plug the adapter into the DC-IN port, and press the power button.
2
The power LED will light up when your hardware is ready.
Hardware Explanations
Button and Port Explanations
2.5G / 1G WAN port
Connect your optical modem to this port with a network cable.
LAN ports 1-3
Connect your PC to a LAN port with a network cable.
Power buttonDC-IN port
2.5G / 1G
WAN port
LAN ports 1-3 USB 3.0/2.0 port
DC Power adapter DC Output: +19V with max 1.75A current
Operating Temperature 0~40oC Storage 0~70oC
Operating Humidity 50~90% Storage 20~90%
Specications:

4
English
Preparing to set up an AiMesh WiFi system
Before Setup
1
Find two ZenWiFi AX, and power both on.
2
Use a network cable to connect your optical modem to the WAN port of either ZenWiFi AX.
This ZenWiFi AX will be the AiMesh router, and the other ZenWiFi AX will be the AiMesh
node.
3
The LED turns solid blue to indicate that ZenWiFi AX is ready for setup.
AiMesh Setup Steps
AiMesh routerAiMesh node
ASUS ROUTER APP
Download free ASUS Router APP to set up and manage your router(s).

5
English
AiMesh Setup Steps
Prepare
01
Place your AiMesh router and node within 3 meters of each other during the setup
process.
AiMesh node
02
Keep your AiMesh node powered on and standby for AiMesh system settings.
Enable Bluetooth on your phone.
Launch ASUS Router APP, and then follow the on-screen instructions to finish the
AiMesh setup.
Enabling Bluetooth
Launching ASUS Router APP
03
04
within
3 meters
AiMesh router AiMesh node
NOTE: When you’re using a wireless backhaul to connect your router and AiMesh
node, the WAN port on your AiMesh node can be used as a LAN port providing
up to 2.5G transmission speed.

6
English
Troubleshooting
If your AiMesh router cannot find any AiMesh node nearby or synchronization fails,
please check the following and try again.
a
Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 3
meters.
b
Your AiMesh node is powered on.
Relocation
Locate the AiMesh router and node at the best place.
Solid white: Good signal
Solid yellow: Weak signal
Solid red: No signal
THE BEST PERFORMANCE
NOTES: To minimize interference, keep the routers away from devices like cordless phones,
Bluetooth devices and microwave ovens.
We recommend that you place the routers in an open or spacious location.
ZenWiFi AX LED indications

7
English
FAQ FREQUENTLY ASKED QUESTIONS
Q1:
Does the AiMesh router support Access Point mode?
A: Yes. You can choose to set the AiMesh router as router mode or access
point mode. Please go to web GUI (http://router.asus.com), and go to the
page Administration > Operation Mode.
Could I setup wired connection between AiMesh routers (Ethernet backhaul)?
Q2:
A: Yes. AiMesh system supports both wireless and wired connection
between AiMesh router and node to maximize throughput and stability.
AiMesh analyzes the wireless signal strength for each frequency band
available, and then determines automatically whether a wireless or wired
connection is best to serve as the inter-router connection backbone.
1
Follow the setup steps to establish a connection between the AiMesh
router and node via WiFi first.
2
Place the node in the ideal locations for best coverage. Run an Ethernet
cable from the LAN port of the AiMesh router to the WAN port of AiMesh
node.
3
AiMesh system will auto-select the best path for data transmission,
whether wired or wireless.
LAN-WAN
Modem

8
繁體中文
1 將電源變壓器插入無線路由器的電源插孔（DC-IN），並按下電源按鈕。
2 當您的路由器準備就緒後，電源指示燈將會亮起。
硬體說明
按鈕及插孔說明
2.5G / 1G WAN 連接埠
請使用網路線將您的數據機連接至此連接埠。
LAN 1-3 連接埠
請使用網路線將您的電腦連接至LAN連接埠。
直流電源變壓器 DC輸出：+19V，最大電流1.75A
運作溫度 0~40°C 儲存溫度 0~70°C
運作濕度 50~90% 儲存濕度 20~90%
規格：
電源按鈕
電源插孔
（DC-IN）
2.5G/1G
WAN連接埠
LAN1-3連接埠 USB3.0/2.0連接埠

9
繁體中文
準備設定 AiMesh WiFi 系統
開始設定前
1 準備兩台ZenWiFiAX並連接電源。
2 將網路線的一端插入數據機，另一端插入其中一台ZenWiFiAX的WAN連接埠。此ZenWiFi
AX即為AiMesh路由器，另一台ZenWiFiAX即為AiMesh節點。
3 LED指示燈變為藍色常亮說明ZenWiFiAX已準備就緒。
AiMesh 設定步驟
AiMesh路由器AiMesh節點
ASUS Router App
下載免費的 ASUS Router APP 設定和管理您的路由器。

10
繁體中文
AiMesh 設定步驟
準備
01
設定過程中，請將AiMesh節點距離AiMesh路由器3公尺放置。
AiMesh 節點
02
設定AiMesh系統時，請保持路由器處於通電及運作狀態。
請開啟手機藍牙。
開啟ASUSRouterApp，並依照螢幕指示完成AiMesh設定。
開啟手機藍牙
開啟 ASUS Router App
03
04
3公尺內
AiMesh路由器AiMesh節點
注意：若您是以無線方式連結AiMesh 路由器及節點，AiMesh節點上的 WAN連接埠可作為LAN連接
埠使用，為您提供高達2.5G傳輸速度。
