Introduction
Product manuals are intended to help customers understand the workings of the hardware devices. This
product manual provides overview information of the streaming device and remote control and addresses
specic functions of the devices. It is posted online at att.com/userguides for customer access.
For information on setting up and operating your equipment, the following URLs may be helpful:
att.com/atttvsetup
att.com/atttvremote
att.com/atttvreconnect
att.com/atttvquickstart

3
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
TABLE OF CONTENTS
I. OVERVIEW ................................................................................................................................... 05
II. HARDWARE INFORMATION .............................................................................................06
A. Specications.............................................................................................................................................................................................................06
B. Client Hardware........................................................................................................................................................................................................07
1. Front Panel.............................................................................................................................................................................................................07
2. Side Panel...............................................................................................................................................................................................................07
3. Rear Panel............................................................................................................................................................................................................... 07
C. Other Associated Hardware.........................................................................................................................................................................08
1. Mounting Cables...............................................................................................................................................................................................08
2. Power Supply.......................................................................................................................................................................................................08
3. Remote Control ................................................................................................................................................................................................08
III. FEATURES ...................................................................................................................................10
A. Audio & Video.............................................................................................................................................................................................................10
1. Hardware Features.........................................................................................................................................................................................10
2. Soware Features............................................................................................................................................................................................11
IV. APPENDIX...................................................................................................................................12
A. LED States ....................................................................................................................................................................................................................12
B. Federal Communications Commission Interference Statement ................................................................................13
FIGURES
Figure 1: Streaming Device—Front Panel................................................................................................................................................ 07
Figure 2: Streaming Device—Side Panel..................................................................................................................................................07
Figure 3: Streaming Device—Rear Panel View with New Logo............................................................................................07
Figure 4: Streaming Device—Wall Mounting........................................................................................................................................08
Figure 5: Remote control showing button with descriptions................................................................................................09

4
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
Terminology
Term Description
DHN DIRECTV Home Network
High Value Content e.g., in-theater PPV movies
OTT Over-the-Top, the delivery of video via the Internet directly into user-connected
devices, allowing access to services anywhere, anytime and on any device
PiP Picture-in-Picture
RF4CE Radio frequency for consumer electronics
RUI Remote User Interface, the UI of which is accessed and manipulated directly
through the client
STB Set-top box or receiver
ODU Outdoor dish unit
MDU
Multi-dwelling unit. Usually refers to a hotel, apartment complex or any structure
that uses one or several ODUs and a head-end to service multiple customers within
the dwelling

5
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
I. OVERVIEW
The streaming device is a game-changing, proprietary "Over-the-Top" (OTT) streaming device that delivers
video and integrated content to your TV over the internet. It enables you to watch DIRECTV NOW and
online videos, listen to music, use thousands of third-party apps (such as Netix® or Instagram®)and play
games—all on your TV.
It comes preloaded with some Google apps, but thousands of others are available at the Google Play Store.
The streaming device is used on its own as a standalone device so you don't need any other
DIRECTV set-top boxes or servers. (It's not compatible with any DIRECTV set-top boxes or existing
Genie®Servers.)
It comes with a remote control oering many features, including the convenience of voice control.

6
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
II. HARDWARE INFORMATION
A. Specications
Streaming Device Specications
Size and Weight (not including feet)
• Height: 19 mm
• Width: 158.6 mm
• Depth: 158.6 mm
• Feet: 1 mm
• Weight: 402 g
Packaging
• Carton
• Height: 228 mm
• Width: 505 mm
• Depth: 404 mm
• Weight: 28.8 lb
Environmental Requirements
• Operating temperature: 0° C to 122° F
(0° to 50° C)
• Storage temperature (no damage):
0° C to 150° F (0° to 66° C)
• Relative humidity: 5-85% noncondensing
Remote Control Support (Built-In
Capability)
• IR Remote Control Interface
• RF Remote Control Interface
• Dual Mode Bluetooth Interface
(Bluetooth 4.1 Legacy & Bluetooth Low Energy)
XMP2 Ports and Interfaces
• OTT Mode - 802.11ac 204 GHz or 5 GHz Wi-Fi
(Home Gateway)
• DC Power Input
• HDMI 2.0b / HDCP 2.2 and 1.4
• 1x USB 2.0 Port
• Optical S/PDIF Output Connector
• 10/100 Ethernet port
Power
• EPS10 External PSU
• AC External PSU -120v~60 HZ, 18W
• Input: 12V DC 1.5A
• Active Power Consumption below 15W
Processor
• BRCM7271
Memory
• 2GB DDR memory
• 64 bit DDR3/DDR4 interface
• 16GB eMMC
Video and Audio Formats
• MPEG2
• Dolby Audio
• MPEG-4 AVC single, dual or quad display up to
1080i60/1080p30 or UHD/4K
• HEVC / VP9 display
• HDR10 SMPTE ST 2084, ST 2086 “Blu-Ray”
standard and HLG support
TV Compatibility
• Compatible with HD and 4K TVs with HDMI 2.0
& 1.4, HDCP 2.2, 60 Hz and capable of 4K, 1080p
and 3D

7
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
B. Client Hardware
1. Front Panel

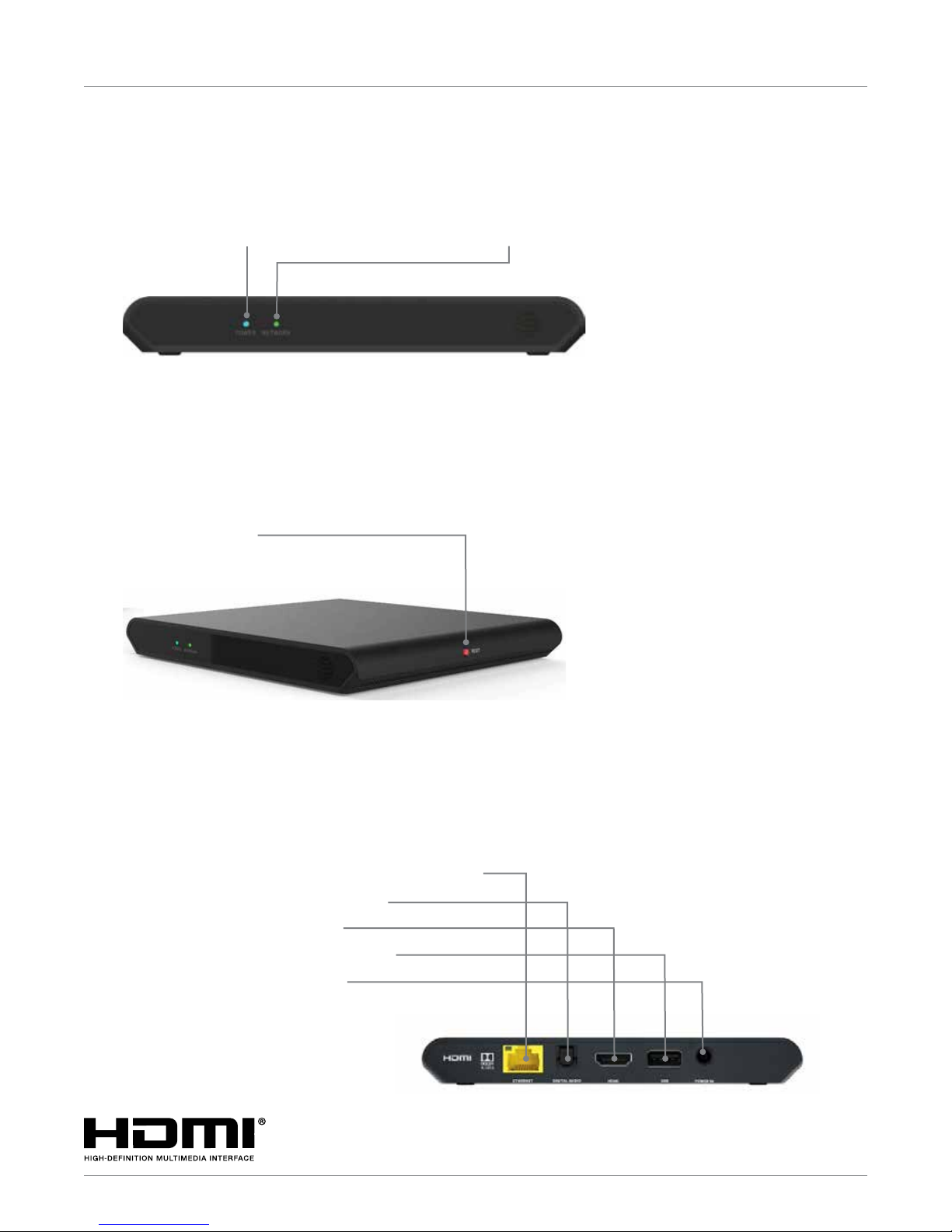

• Blue Power Status Indicator LED • Green / Yellow / Red Network Status Indicator
FIGURE 1: STREAMING DEVICE—FRONT PANEL
2. Side Panel
• Red Reset Button
FIGURE 2: STREAMING DEVICE—SIDE PANEL
3. Rear Panel
• 10/100 Ethernet Connector with Indicator LED
• S/PDIF Optical Audio Connector
• HDMI Connector (Type A)
• USB 2.0 Port (Type A Connector)
• DC Power Inlet Connector
(for EPS10 External Power Supply)
with Power Indicator LED
FIGURE 3: STREAMING DEVICE—REAR PANEL

8
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
C. Other Associated Hardware
1. Mounting Cables
The streaming device (C71KW) can be set on a tabletop or mounted
to a wall by attaching a cable tie to the recess in the bottom cover.
2. Power Supply
The streaming device (C71KW) uses the DIRECTV® EPS10 power supply.
See the DECA II Technical Communications document D-00026 for
detailed information.
3. Remote Control
The streaming device (C71KW) works with the RC81V Remote Control.
(The box and remote control are not compatible with any older
DIRECTV or AT&T U-verse® equipment.) Like other DIRECTV remote
controls, the RC81V can be programmed to operate some features on
TVs or audio/video equipment. The key features of the RC81V Remote
Control are:

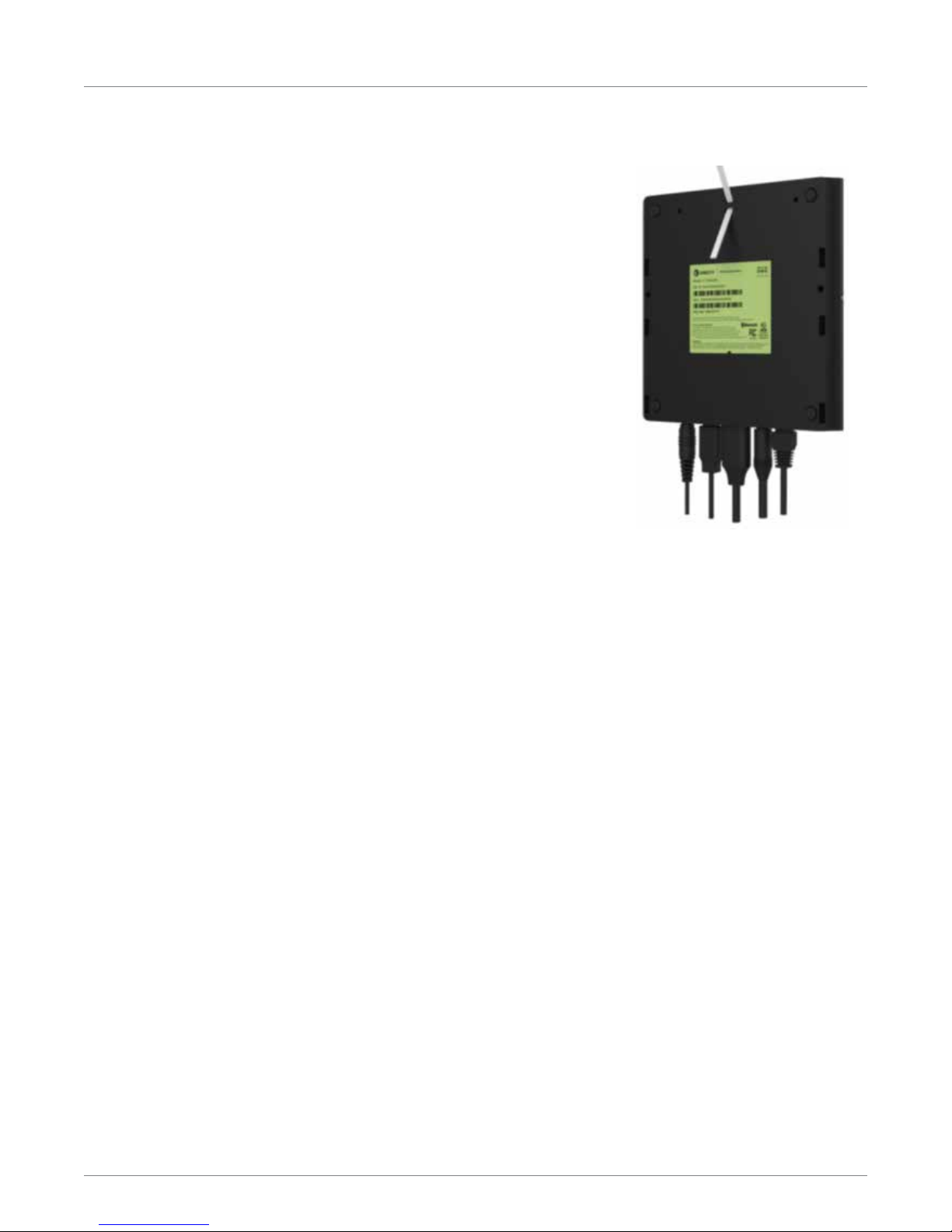

FIGURE 4: STREAMING DEVICE—
WALL MOUNTING
• The RC81V Remote Control works in IR, RF and BLE (Bluetooth Low Energy Mode).
• Basic remote operations can be performed in the IR mode.
• The remote uses Bluetooth for two-way communication to the streaming device.
• Like RF mode, Bluetooth eliminates the need for the remote and the paired devices to be in line of
sight to each other.
• The RC81V Remote Control has a touchpad. Basic operations and functions can be made by sliding and
pressing the touchpad.
• If the remote is not paired to a streaming device, the touchpad can be used for functions like Up, Down,
Le, Right and Select.
• Once the remote is paired to a streaming device, the touchpad will function as a track pad so you can
navigate horizontally (le to right) and vertically (up and down) in the screens. You can perform both
Slow Swipe (precise movement) and Fast Swipe (quick scan across multiple pages).
• Once paired, Voice recognition is also available with the RC81V Remote Control so you can use voice search.

9
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
ON
MIC / STATUS LED
OFF
INPUT
MUTE VOL + / VOL -
BACK EXIT
DIRECTIONAL BUTTONS
HOME
UP OR DOWN BUTTONS
GO
MENU RECORD
Turns both streaming device and TV ON
at the same time Turns both streaming device and TV
OFF at the same time
Cycle through and select the
equipment connected to your TV
MUTE the sound Increase or decrease the volume level
Press to go BACK within menus EXIT the menu and return to previous
channel viewed
Stop playback while viewing on-demand
or recorded content
Press to move up, down, le or right
within a menu Display the HOME screen
To access the mini-guide when watching
content, press up or down buttons SELECT item highlighted on screen
Display the menu RECORD content now playing or
highlighted in the on-screen guide
Push and hold to talk. Discover content
by channel, program or key words
REWIND
REWIND at increasing speeds—
press up to four times
FAST-FORWARD
FAST-FORWARD at increasing
speeds—press up to four times
PLAY / PAUSE
PLAY current content
Press once while program is playing to PAUSE
VOICE / SEARCH CONTENT

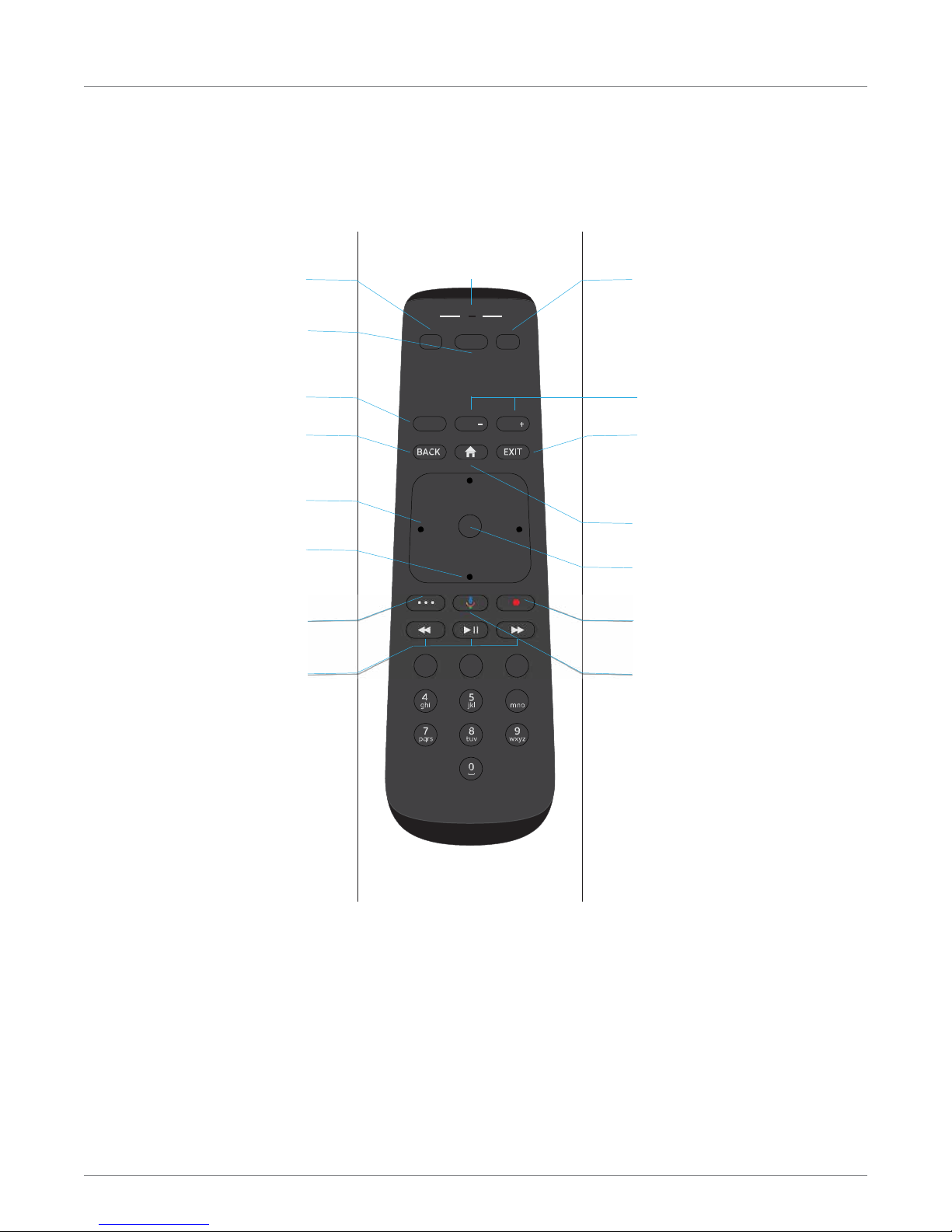

FIGURE 5: RC81V — REMOTE
6
321
abc def
OFF
ON INPUT
VOL
MUTE VOL

10
Version 1.0 11/2018
User Manual—Streaming Device and Remote Control
III. FEATURES
A. Audio & Video
Hardware Features
Feature Streaming Device
SWiM/Multi-Switch capable
Ethernet 
MoCA
Wireless  (802.11ac)
Digital Audio Output 
HEVC 
DIRECTV WPS Button
RC7x RF remote
BLE Remote 
Front Touch Panel / Resolution LED
Power Button
Menu/Guide/Arrows/Select/Res buttons
Recording LED
Reset Button 
Smart Card
USB 2.0 
eSATA
External Power Supply  (EPS10)
HDD Size
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio,
and the double-D symbol are trademarks of Dolby Laboratories.
