Atdec AD-TVAC-SH User manual

AD-TVAC-SH Page 1 of 2
Installation Guide
AD-TVAC-SH
TV Cart Shelf
COMPONENT CHECKLIST
B
Screw
M8x14mm
(x2)
C
6mm
allen key
(x1)
A

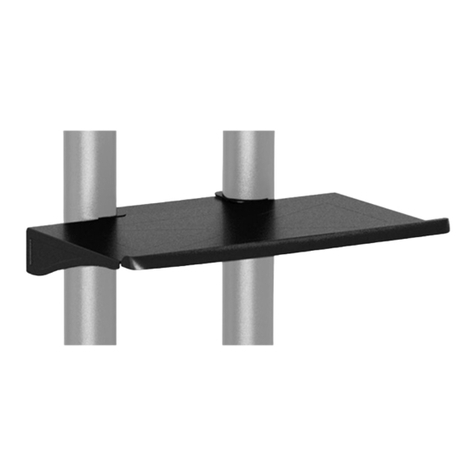

Shelf
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! The maximum load to be applied to the shelf is 5kg (11lbs)
! When more than one shelf is installed on a single cart the combined load across all shelves is 5kg (11lb).
! This product is compatible with TV Cart AD-TVC.
WEIGHT RANGE
0 - 5kg
(0 - 11lbs)

AD-TVAC-SH Page 2 of 2atdec.com | atdec.co.uk | atdec.com.au
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specifications without notice. ©20190913
1. Attach shelf assembly. Note: The shelf can be installed at one of three heights from the oor:
578mm (22.76”), 791mm (31.14”) or 921mm (36.26”).
A
C
B
500mm
(19.69”)
400mm
(15.75”)
245mm
(9.65”)
15mm
(0.59”)
40mm
(1.57”)
ASSEMBLY INSTRUCTIONS
DIMENSIONS
