ATEMPOWER AP100MS User manual

USER MANUAL

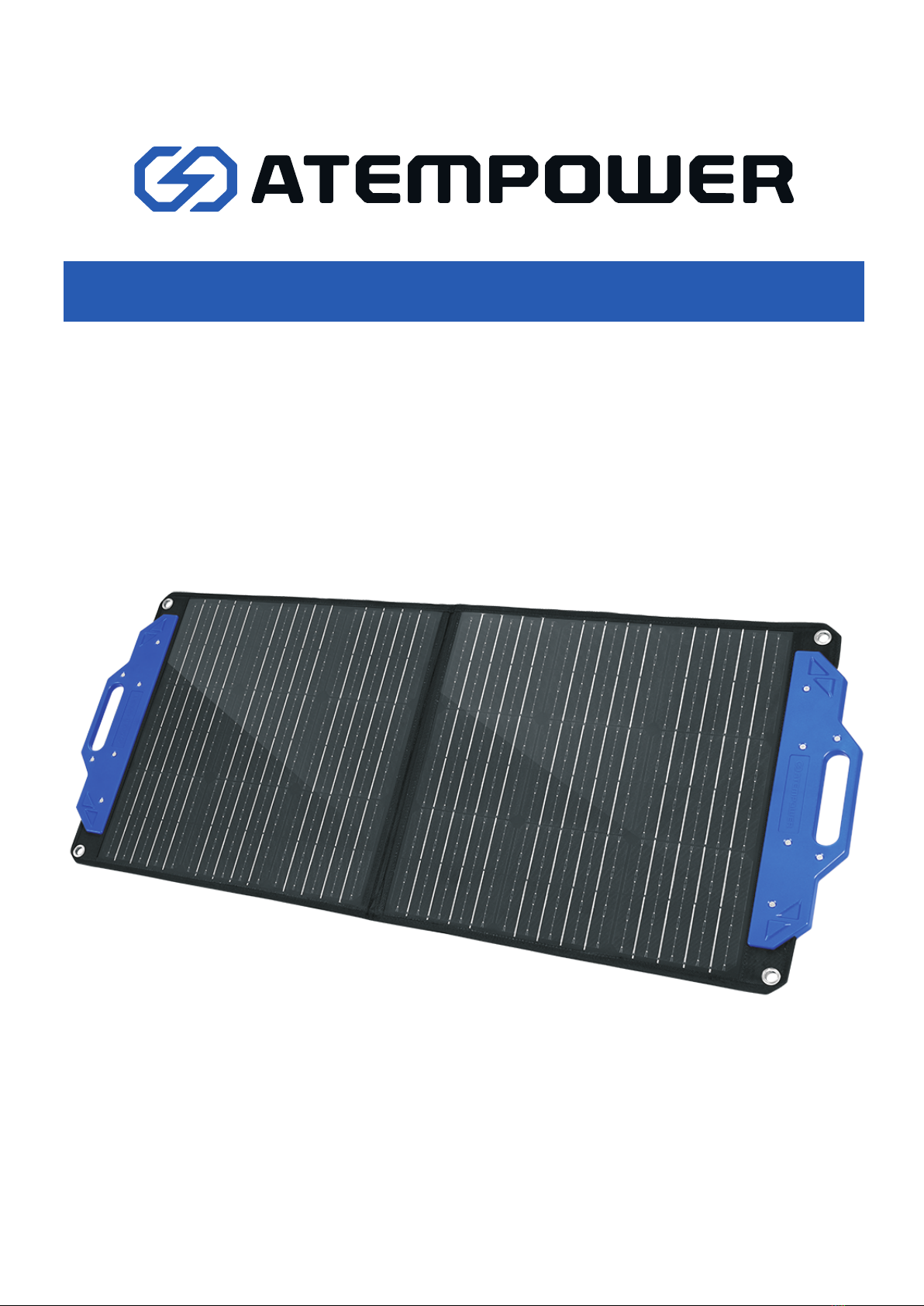

100W Foldable Solar Panel AP100MS

1
ABOUT US
ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian
company with dedication and passion for the R&D of high quality products in the field of renewable
energy products, batteries and related accessories.
Since the company was founded, we have committed to innovation that aims to make your life
infinitely more convenient. And the belief in our conviction for quality and commitment allows us to
innovate in developing products that are optimally tailored to the needs of our amazing customers.
We engineer and supply solar products for homes, 4x4s, recreational vehicles and virtually any
application you can think of. And we also develop reliable, high performing deep-cycled batteries
and lithium batteries for standby or daily power needs. Accessories include battery chargers and
inverters that are ideal for RV's, commercial vehicles, boats, yachts and many more applications!
At ATEM POWER, we stay true to our DNA by prioritizing technological innovation designed to
improve our products and striving to provide excellent customer care. Because we are motivated to
explore the limits of solar power!

WARNINGS & SAFETY INFORMATION
DO NOT operate monocrystalline solar panels UNLESS YOU HAVE READ AND UNDERSTOOD THIS MANUAL and
the panel should be installed as per these installation instructions. ATEM POWER recommends that the panel be
installed by a suitably qualified person.
Please note that this solar panel is designed to charge a power station with input voltage ≥20V and input current ≥5A.
Using this solar panel to charge an incompatible power station will cause low power output.
Please bear in mind that the solar panel should be kept away from liquids and chemical solvents.
Never place your solar panel near fire or flammable materials.
Do not immerse the solar panel in water or wet it.
Any modifications to the product will void the warranty.
You should never disassemble, bend, hit or step on your solar panel. Handle and install your solar panel with care,
otherwise cells and wiring may be damaged, which can cause short circuit, local overheating and decrease in efficiency.
Ensure nothing sharp or heavy could potentially break or damage the solar panel during transport or storage.
Do NOT connect the solar panel directly to a battery.
An unconnected panel exposed to light may generate voltages greater than 20V on their leads. Completely cover all
panels with an opaque material during installation, and when connecting or disconnecting to reduce the chance of an
electrical spark.
Never touch terminals when the panel is exposed to light or during the installation. Use insulating gloves and properly
isolated tools.
Do not use mirrors or other devices to artificially concentrate sunlight on the panel.
Remove any shades (such as shades from weeds, trees, buildings, etc.) which cover your solar panel while it is working.
You must not use fabrics or other stuff to directly cover the whole or part of the surface of the product while it is working.
PACKAGE LIST
1 PC(s) ATEM POWER Foldable Monocrystalline Solar Panel
1 PC(s) 50A Anderson to 30A Anderson Solar Adapter
2

OPERATION
Find a dry and flat location with good ventilation where your solar panel will enjoy the most sunlight and longest sun
hours to generate solar power. Open the solar panel and unfold the kickstands. Fix the kickstands with the holes on them.
Note: When setting up your system, the panel should be out of the sun or covered for safety reasons.
Fix your solar panel with its four holes if you mount it onto the roof, the back, or the side of your vehicle.
Take out the Anderson plug from the accessory bag and connect it to ATEM POWER portable power station.
Note:Please make sure connection is tight.
When uninstalling, you are required to repeat the steps from last to first.
3
45
1. 2.
3. 4.
TIP
Solar panels should be installed in a location where there is no constant shading. In the northern hemisphere, panels
should ideally face south, and in the southern hemisphere, panels should ideally face north.
1.
2.
3.
4.

TECHNICAL SPECIFICATION
4
MODEL NO.:
Unfolded Size (With Handle):
Folded Size (With Handle):
Net Weight:
Cell Type:
Number of Cells:
Cell Efficiency:
Film Material:
Maximum Power (PM):
Open-Circuit Voltage (VOC):
Short-Circuit Current (ISC):
Maximum Power Voltage (VMP):
Maximum Power Current (IMP):
Maximum System Voltage:
Operating Temperature Range:
Temperature Coefficient of Pmax:
Temperature Coefficient of Voc:
Temperature Coefficient of Isc:
AP100MS
20.47"L (52cm) x 48.43"W (123cm) x 0.87"H (2.2cm)
20.47"L (52cm) x 24.21"W (61.5cm) x 1.77"H (4.5cm)
9.04lbs (4.1kg)
A Grade Monocrystalline
18 (3 x 6)
24%
PET
100W
22.6V
5.83A
18.36V
5.45A
600V
-40°C ~ +85°C
-0.35%/ºC
-1.84mV/ºC
2.6mA/ºC
Junction Box
Wire Size: 16 AWG (3m Long)
50A Anderson to 30A Anderson Solar Adapter
Wire Size: 16AWG

TROUBLESHOOTING:
Solar panel doesn't work
despite sufficient sunlight
5
Power station fault (power station
cannot be charged through wall
outlet/from vehicle battery)
Loose connection
Change the power station
Bad soldering of wires inside the
junction box
Solar panel malfunction (power
station can be charged through
wall outlet/from vehicle battery
but cannot be charged with the
solar panel)
Reconnect
Contact us
Contact us
The power station has a low
voltage or current limit threshold
Loose connection
Large current of solar panels in
parallel exceeds the current limit
threshold of the power station
Wrong tilt angle
Shadow
Accumulation of dust
High operating temperature
Only use the solar panel to charge
a power station with input voltage
≥20V and input current ≥5A
Reconnect
Only use one solar panel to charge
the power station.
Adjust the angle to capture direct
sunlight.
Remove any shadow covering the
panel
Clean, best on a regular basis
Ensure sufficient air circulation
beneath the panel
Low power output
PROBLEM CAUSE SOLUTION

WARRANTY 12
MONTH
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
Any defect in design or manufacture which results in its failure to perform correctly as described.
Damage or loss incurred in transit.
We will either replace the product or provide you with a refund at our discretion provided that the
fault is found to have been caused by a design or manufacturing defect and not misuse or
tampering.
Shipping costs of returning the product for a proven defect.
The limited warranty is the only one that applies to this unit, and it sets forth all the responsibilities
of ATEM POWER.
THE WARRANTY DOES NOT COVER:
Travel and /or other expenses due to customer's location.
Damage caused by mould, adverse weather, extreme temperature, accidents and daily wear and
tear.
This unit is not intended for commercial use.
Non-observance of any of the instructions supplied by ATEM POWER, including instructions
concerning safety and operation of the product, including without limitation placing your solar
panel near fire or flammable materials or connecting the solar panel directly to a battery.
For more information, please visit https://atempower.com/
