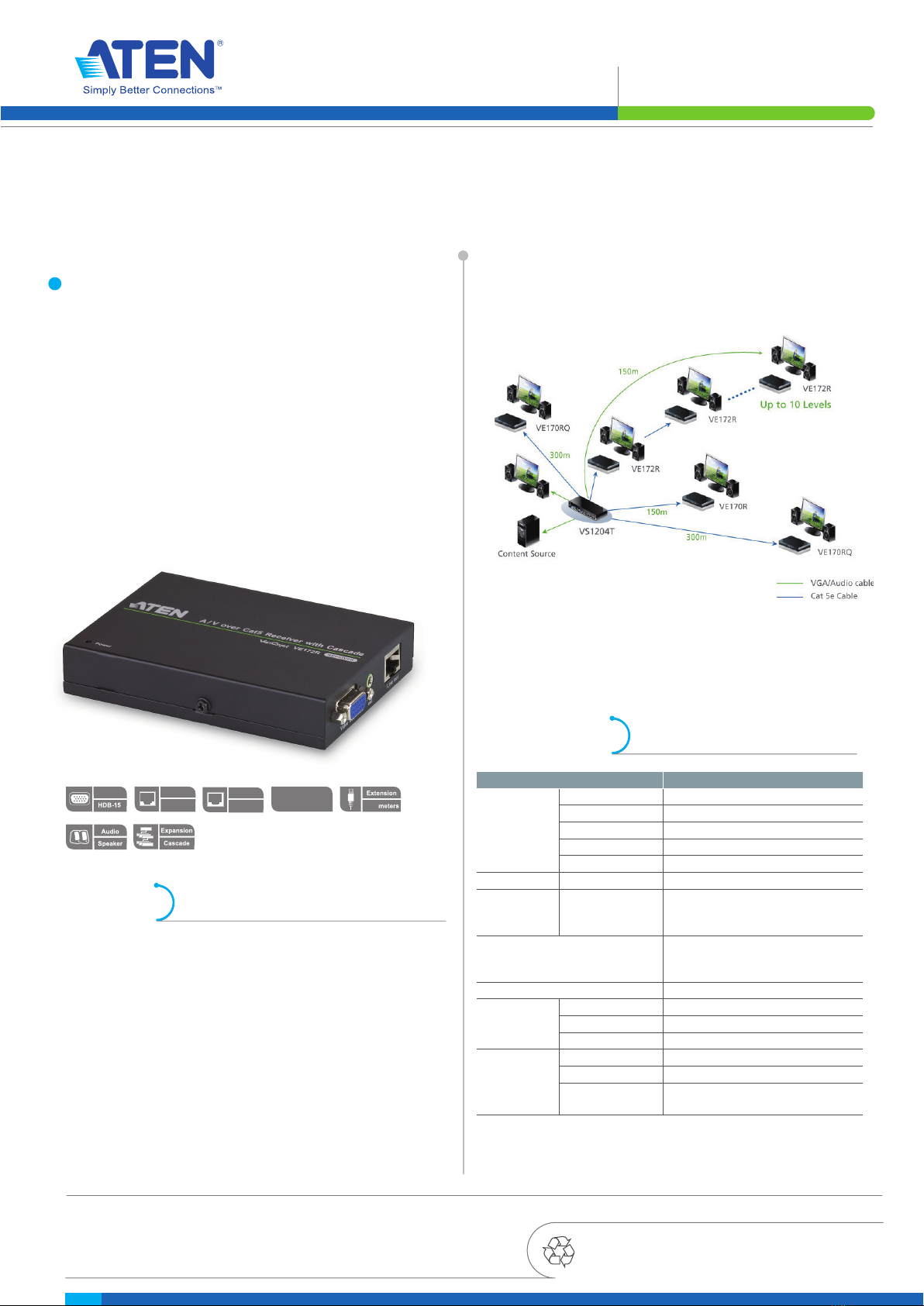

VE172R
A/V Over Cat 5 Receiver with Cascade
Specification
Features
VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS
Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/
VE170RQ). It can cascade up to 10 levels make long distance
transmissions up to 150m.
Compatible Transmitter Units:
VE170T A/V Over Cat 5 Transmitter,
VS1204T A/V Over Cat 5 Transmitter,
VS1208T A/V Over Cat 5 Transmitter
Compatible Receiver Units:
VE172R A/V Over Cat 5 Receiver with Cascade
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
• Uses Cat 5e cable to connect the transmitter and receiver
uints
• Cascadable up to 10 levels
• Long distance transmission up to 150m
• Superior video quality – 1920x1200 @ 60Hz (30
m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
• Audio enabled (mono)
• Adjustable gain/compensation control – manually adjusts
signal strength to compensate for distance
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• Complies with VESA FDMI mount standard
Function VE172R
Connectors
Video Out 1 x HDB-15 Female (Blue)
Audio Out 1 x Mini Stereo Jack Female (Green)
Line Input 1 x RJ-45 Female
Line Output 1 x RJ-45 Female
Power 1 x DC Jack
LEDs Power 1 (Green)
Switch
Manual Gain/
Compensations
Control
2 x Knob
Video
1920 x 1200 @60Hz (30m),
1600 x 1200 @60Hz (100m),
1280 x 1024 @60Hz (150m)
Power Consumption DC5.3V, 2.3W
Environment
Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 242g
Dimensions
(L x W x H) 11.95 x 8.56 x 2.26 cm
Line In
RJ-45
Line Out
RJ-45
Video Out Resolution
1920 x 1200 150
