ATEN VanCryst VC882 User manual

VC882
True 4K HDMI Repeater with Audio
Embedder and De-Embedder
User Manual

VC882 User Manual
ii
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC ules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Warning
Operation of this equipment in a residential environment could cause radio
interference.
Achtung
Der Gebrauch dieses Geräts in Wohnumgebung kann Funkstörungen
verursachen.
KCC Statement

VC882 User Manual
iii
HDMI Trademar Statement
The terms HDMI, HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
RoHS
This product is oHS compliant.

VC882 User Manual
iv
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VE IFY THAT THE VOLTAGE SETTING IS
CO ECT BEFO E USE.
International http://eservice.aten.com
International 886-2-8692-6959
China 86-4 -81 - -81
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111

VC882 User Manual
v
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
eseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com

VC882 User Manual
vi
Package Contents
Check to make sure that all the components are in working order. If you
encounter any problem, please contact your dealer.
1 VC882 True 4K HDMI epeater with Audio Embedder and De-
Embedder
1 3-pin terminal block
1 power adapter
1 user instructions

VC882 User Manual
vii
Table of Contents
Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
1. Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Planning the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. Hardware Setup
Connecting the VC882 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Operation
Audio Embedder Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mode 1 PIN 1 Switch Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mode 1 PIN 2 Switch Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Audio Extractor Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Mode 2 PIN 1 Switch Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Mode 2 PIN 2 Switch Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Mode 2 PIN 3 and PIN 4 Switch Operation. . . . . . . . . . . . . . . . . . . . . 1
Audio Extraction Without An HDMI Monitor . . . . . . . . . . . . . . . . . . . . 11
Appendix
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

VC882 User Manual
viii
About this Manual
This user manual is provided to help you get the most from the VC882 unit. It
covers all aspects of installation, configuration, and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction introduces you to the True 4K HDMI epeater
with Audio Embedder and De-Embedder. Its purpose, features, installation
considerations, and panel components are presented and described.
Chapter , Hardware Setup describes the steps that are necessary to
quickly and safely set up your installation.
Chapter 3, Operation explains the source input operation using the source
switch pushbutton and S-232 commands and its limitations.
Appendix, provides a list of safety instructions and precautions, contact
information for ATEN technical support, product specifications, and other
technical information.
Note:
ead this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit or any connected
devices.
This product may be updated, with features and functions added, improved
or removed since the release of this manual. For an up-to-date user
manual, visit http://www.aten.com/global/en/

VC882 User Manual
ix
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
>Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start > Run means to
open the Start menu, and then select Run.
Indicates critical information.

VC882 User Manual
x
This Page Intentionally Left Blank

1
Chapter 1
Introduction
Overview
The VC882 is a True 4K HDMI epeater with Audio Embedder and De-
Embedder capable of embedding or de-embedding the HDMI audio signal,
while supporting the HDMI signal transmission distance up to 5 meters with
True 4K resolution. Apart from embedding a separate audio to an outgoing
HDMI signal, the VC882 also allows audio extraction from the HDMI signal,
and outputs the extracted signal through an alternative audio system.
In terms of the audio aspect, the VC882 works with versatile pass-through of
HDMI audio formats LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS
Digital 5.1. The VC882 also supports A C function which eliminates the need
of bulky cable setups when connecting an AV receiver, or a home theater
system to a TV. When it comes to the video aspect, the VC882 supports True
4K (4096 x 2160 @ 60Hz 4:4:4) in HD 10, HD 10+, Dolby Vision and
Hybrid Log-Gamma (HLG) formats to provide staggeringly crisp images. It is
HDCP 2.2-compliant for content protection. The compact enclosure design,
True 4K signal transmission, and embedding / de-embedding capability have
made the VC882 ideal for training and conference rooms, video production,
and home theater installations.

Chapter 1. Introduction
2
Features
Embeds audio to the HDMI output or de-embeds audio from the HDMI
signal and outputs the extracted signal through an alternative audio system
Easy embedding / de-embedding mode selection via 2 / 4-pin DIP
switches
HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
True 4K video quality — supports resolutions up to 4096 x 2160 @ 60Hz
(4:4:4)
Supports True 4K / HD formats — HD 10, HD 10+, Dolby Vision and
Hybrid Log-Gamma (HLG)
Supports HDMI audio formats — LPCM 2.0, Dolby Digital 2.0, Dolby
Digital and DTS Digital 5.1 channels
Compact, portable metal enclosure designed for HDMI Lock-pro
Firmware upgradable

VC882 User Manual
3
Planning the Installation
Requirements
Prepare the following before installing the VC882 unit:
1 HDMI source device
1 HDMI display
2 HDMI cable
1 audio source device (e.g., audio mixer)
1 audio output device (e.g., audio amplifier)
2 CA cable
2 3-pin terminal block
Considerations
The maximum transmission distance varies at different parts of the
transmission:
Connection Interface Distance
HDMI source to the VC882 HDMI 5 m
VC882 to the HDMI display HDMI 5 m

Chapter 1. Introduction
4
Components

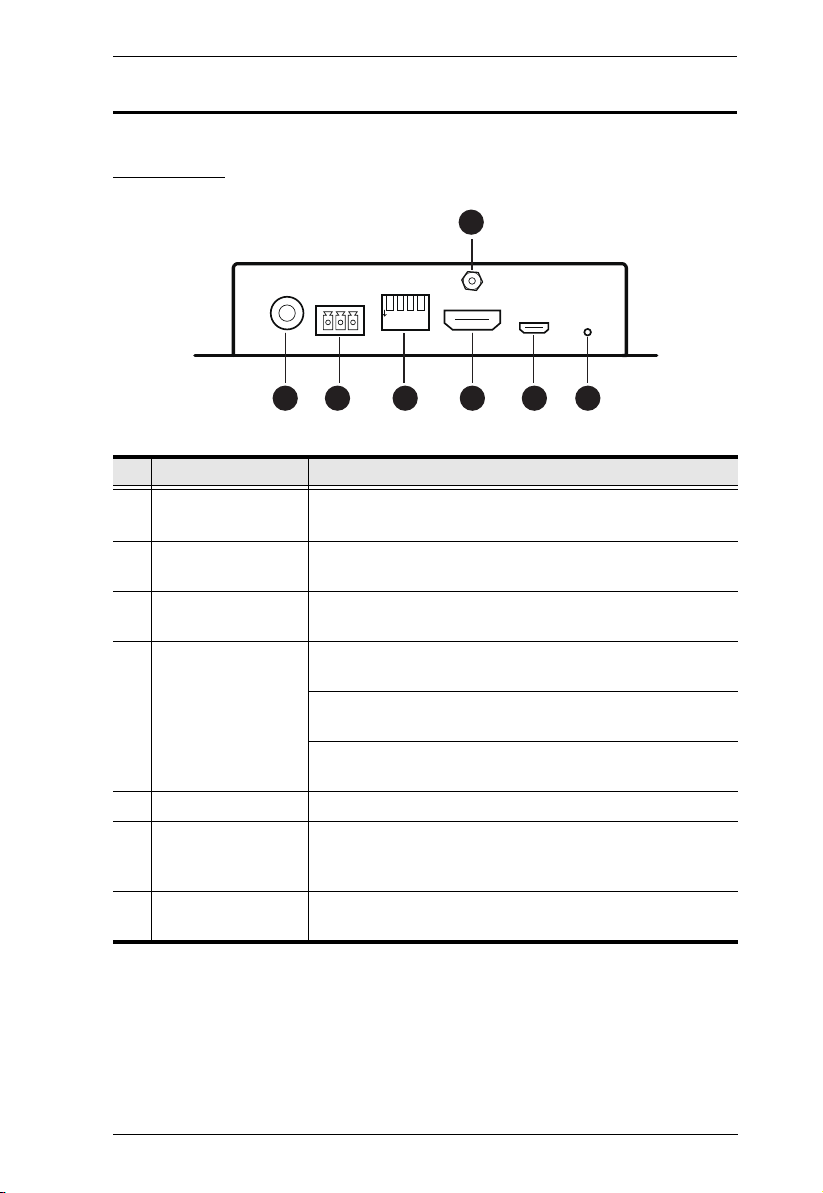

Front View
No. Component Description
1 cable lock screw for
ATEN LockPro
™
Universal HDMI cable lock that provides the easiest way to
secure an HDMI cable to most HDMI devices.
2 audio out port
(coaxial)
Connects to an audio output device (e.g., speakers).
3 audio out port (3-pin
terminal block)
Connects to an audio output device (e.g., audio amplifier).
4 audio extractor
switches (mode 2)
Sets PIN 1 switch to enable or disable audio extractor
function. See Mode 2 PIN 1 Switch Operation, page 1 .
Sets PIN 2 switch to enable or disable ARC function. See
Mode 2 PIN 2 Switch Operation, page 1 .
Set PIN 3 and PIN 4 switches to set EDID modes. See
Mode 2 PIN 3 and PIN 4 Switch Operation, page 1 .
5 HDMI output port Connects to an HDMI-enabled display device.
6 firmware upgrade
port
The firmware upgrade port is reserved for ATEN Technical
Support. If you would like to do a firmware upgrade
yourself, please contact the ATEN Technical Support.
7 power LED When LED lights green, it means the VC882 is receiving
power.
1
234567

VC882 User Manual
5

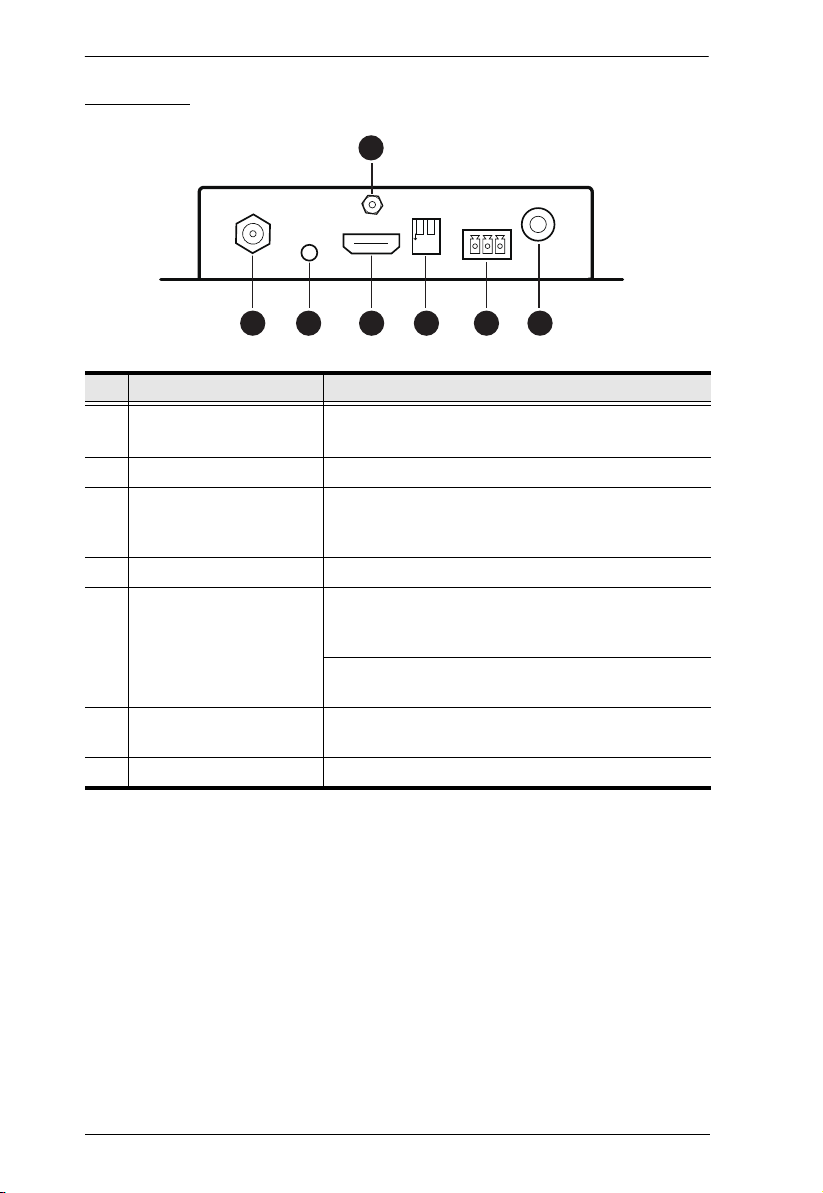

Rear View
No. Component Description
1 cable lock screw for
ATEN LockPro
™
Universal HDMI cable lock that provides the easiest
way to secure an HDMI cable to most HDMI devices.
2 power jack Connects to the power adapter.
3 reset button Press this reset button to reread signals every time
you configure mode 1 and mode 2 switches, or
change AV inputs and outputs.
4 HDMI input port Connects to an HDMI source device.
5 audio embedder switches
(mode 1)
Sets PIN 1 switch to enable or disable audio
embedder function. See Mode 1 PIN 1 Switch
Operation, page 9.
Sets PIN 2 switch to set the audio embed source.
See Mode 1 PIN 2 Switch Operation, page 9.
6 audio in port (3-pin
terminal block)
Connects to an audio input device (e.g., audio mixer).
7 audio in port (coaxial) Connects to an audio input device.
234567
1

Chapter 1. Introduction
6
This Page Intentionally Left Blank

7
Chapter
Hardware Setup
Connecting the VC88 Unit
Follow the steps below to connect the VC882 to an HDMI source device, an
HDMI-enabled display device, an audio input device, and an audio output
device.
1. Please review the safety information regarding the placement of
this device in Safety Instructions, page 13.
2. Do not power on the VC882 until all the necessary hardware is
connected.
VC882 (Rear)
VC882 (Front)
Power HDMI
HDMI
Audio
Audio
or
Laptop Audio Mixer
Speakers Audio
Amplifier
Monitor
DVD /
Media Player
513
2
4
Power Adapter

Chapter 2. Hardware Setup
8
1. Connect an HDMI video source to the unit’s HDMI input port. Optionally
secure the HDMI cable with the corresponding cable lock screw for ATEN
LockPro™.
2. Connect an HDMI display to the unit’s HDMI output port. Optionally
secure the HDMI cable with the corresponding cable lock screw for ATEN
LockPro™.
3. Connect an audio mixer to the unit's audio in ports using the 3-pin terminal
block provided. Optionally, use the audio embedder switches (mode 1) to
enable or disable audio embedding for the connected audio inputs.
4. Connect an audio amplifier or a set of speakers to the unit's audio out
ports. Optionally, use the audio extractor switches (mode 2) to enable or
disable audio extraction for the connected audio inputs.
5. Plug one end of the power adapter into the unit’s power jack, and the other
end to an AC power source. The power LED shall be lit in blue.
6. Power on all connected equipment.

9
Chapter 3
Operation
Audio Embedder Switches
Sets the audio embedder switches (mode 1) to enable or disable the audio
embedder function, and set the audio embed source.
Note: emember to press the reset button to reread signals every time you
configure mode 1 and mode 2 switches, or change AV inputs and
outputs.
Mode 1 PIN 1 Switch Operation
Mode 1 PIN Switch Operation
DPI Switch Position Description
PIN 1 ON ↓ Enables audio embedder function.
OFF↑ Disables audio embedder function.
DPI Switch Position Description
PIN 2 ON ↓ Switches audio embedder to the audio in port
(coaxial).
OFF↑ Switches audio embedder to the audio in port (3-pin
terminal block).
Audio Embedder Switches (Mode 1)

Chapter 3. Operation
1
Audio Extractor Switches
Sets the audio extractor switches (mode 2) to enable or disable the audio
extractor and A C functions, or set EDID modes.
Note: emember to press the reset button to reread signals every time you
configure mode 1 and mode 2 switches, or change AV inputs and
outputs.
Mode PIN 1 Switch Operation
Mode PIN Switch Operation
Mode PIN 3 and PIN 4 Switch Operation
DPI Switch Position Description
PIN 1 ON ↓ Enables audio extractor function via coaxial and 3-pin
terminal block.
OFF↑ Disables audio extractor function via coaxial and 3-pin
terminal block.
DPI Switch Position Description
PIN 2 ON ↓ Enables ARC function.
OFF↑ Disables ARC function.
DPI Switch Position PIN 3 PIN 4 Description
PIN 3 + PIN 4 ON ↓ ON ↓ Sets to EDID Bypass Mode (default).
OFF↑ ON ↓ Sets to EDID 5.1 CH Mode.
ON ↓ OFF↑ Sets to EDID 2 CH Mode.
OFF↑ OFF↑ Sets to EDID Learn Mode.
Audio Extractor Switches (Mode 2)
