Athletic 500E User manual

Instruction Manual / Manual de Instrucciones / Manual de Instruções
Elliptical
Elíptico
Elpítico

MAX
110kg
242lbs
It is with great pleasure that we offer you the opportunity, guidance and encouragement to practice aerobic
and muscular exercises, getting like this, the physical preparation needed to feel good.
We guarantee a reliable and modern product, produced with high technology for people who care about their
well-being.
This manual covers the main information, the basic structure and the main operation and preventive
maintenance. It will help you familiarize yourself with all the equipment functions, for you enjoy it for a long time.
Es con gran placer que le ofrecemos, orientación, estímulo y oportunidad de practicar ejercicio aeróbico y
muscular, ganando la preparación física necesaria para sentirse bien.
Nosotros garantizamos un producto confiable y moderno, producido con alta tecnología por personas que se
preocupan por su bienestar.
Este manual cubre los datos clave, la estructura básica y principales procedimientos de operación y
mantenimiento preventivo. Te ayudará a familiarizarse con todas las funciones del equipo para asegurar que usted
disfrute de su producto por mucho tiempo.
ATTENTION / ATENCIÓN/ ATENÇÃO
Carefully read the safety and usage guidelines contained herein. Follow the guidelines for correct assembly of the product.
Caution: Do not push any objects into the openings of the product. Stay clear of moving parts.
Safety and security: it is the owner's responsibility to ensure that all users are properly informed about safety precautions, use, maintenance
and care of the product.
Lea cuidadosamente las instrucciones de seguridad y uso contenidas en el presente documento. Siga las instrucciones para el correcto montaje
del producto.
Precaución: No introduzca ningún objeto en las aberturas del producto. Manténgase alejado de las piezas móviles.
Protección y seguridad: es responsabilidad del propietario asegurarse de que todos los usuarios estén bien informados sobre las precauciones
de seguridad, uso, mantenimiento y cuidado del producto.
Leia atentamente as instruções de segurança e uso contidas neste documento. Siga as instruções para a correta montagem do produto.
Cuidado: Não insira nenhum objeto nas aberturas do produto. Fique longe de peças móveis.
Proteção e Segurança: É responsabilidade do proprietário garantir que todos os usuários estejam bem informados sobre as precauções de
segurança, uso, manutenção e cuidados com o produto.
Inappropriate use for children and animals.
El uso inapropiado para los niños y los animales.
Uso impróprio para crianças e animais.
É com grande prazer que oferecemos a você orientações, incentivos e a oportunidade de praticar exercícios
aeróbicos e musculares, obtendo o preparo físico necessário para se sentir bem.
Garantimos um produto confiável e moderno, produzido com alta tecnologia por pessoas que se preocupam
com o seu bem-estar.
Este manual cobre os principais dados, estrutura básica e principais procedimentos de manutenção
preventiva e operação. Isso o ajudará a se familiarizar com todas as funções do equipamento para garantir que
você aproveite seu produto por um longo tempo.

CONTENTS
SUMARIO
english
español
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
COMPONENTS AND TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PREVENTIVE MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
INFORMACIÓN DE SEGURIDAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
COMPONENTES Y ESPECIFICACIONES TÉCNICAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
MONTAJE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
MANTENIMIENTO PREVENTIVO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
GARANTÍA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
INFORMAÇÕES DE SEGURANÇA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
COMPONENTES E ESPECIFICAÇÕES TÉCNICAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
MONTAGEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
MANUTENÇÃO PREVENTIVA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
GARANTIA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
portugues

SAFETY INFORMATION
55
Please read this manual before using the product and
retain it for future reference to avoid the risk of heating,
fire, electric shock, or injury.
It is the owner's responsibility to ensure that all users of
the equipment are adequately informed of the safety
precautions.
If the equipment is not in perfect condition, call a
technical assistant.
- Place the elliptical on a flat surface at least 30cm away
from any wall, keeping the lower part free from any
obstacles.
- Never allow more than one person to use the elliptical
at the same time.
- Consult your doctor before starting and during any
exercise program. Special attention should be given to
children, pregnant women, the elderly, people with
heart problems and people with disabilities.
- The values indicated on the monitor are reference
points, they cannot be considered with sufficient
precision for clinical evaluation.
- Keep away from equipment, children and pets,
especially during use and do not insert objects into the
holes in the equipment.
- Use suitable sportswear. Do not wear loose clothing
that can get caught in the equipment. To exercise,
always wear shoes, do not walk barefoot or with
sandals.
- This device is not intended to be used by people
whose physical or mental capacities are reduced or
inexperienced, unless they are supervised by a
responsible person.
- Children must be supervised to ensure that they do
not play with the appliance.
A. Manufacturer / Distributor is not responsible for
accidents and their consequences arising from the
violation of the original characteristics or assembly
outside the factory settings of their products.
B. Reseller or Authorized Technical Assistance is
authorized to change these Terms or make
commitments on behalf of the Manufacturer /
Distributor.
C. Customer is responsible for unfounded technical call
costs.
NOTE: Figures and photos in this manual are for
illustrative purposes only. The Manufacturer /
Distributor reserves the right to make changes to the
product without prior notice. This manual may illustrate
options that are not part of the purchased equipment.
General Considerations
Observations

1
2
4
5
7
6
10
8
3
Product Packaged
Net weight (approximate)
Maximum width
Maximum length
Maximum height
40,30 kg
370 mm
550 mm
1110 mm
Gross weight
Width (carton box)
Height (carton box)
Lenght (carton box)

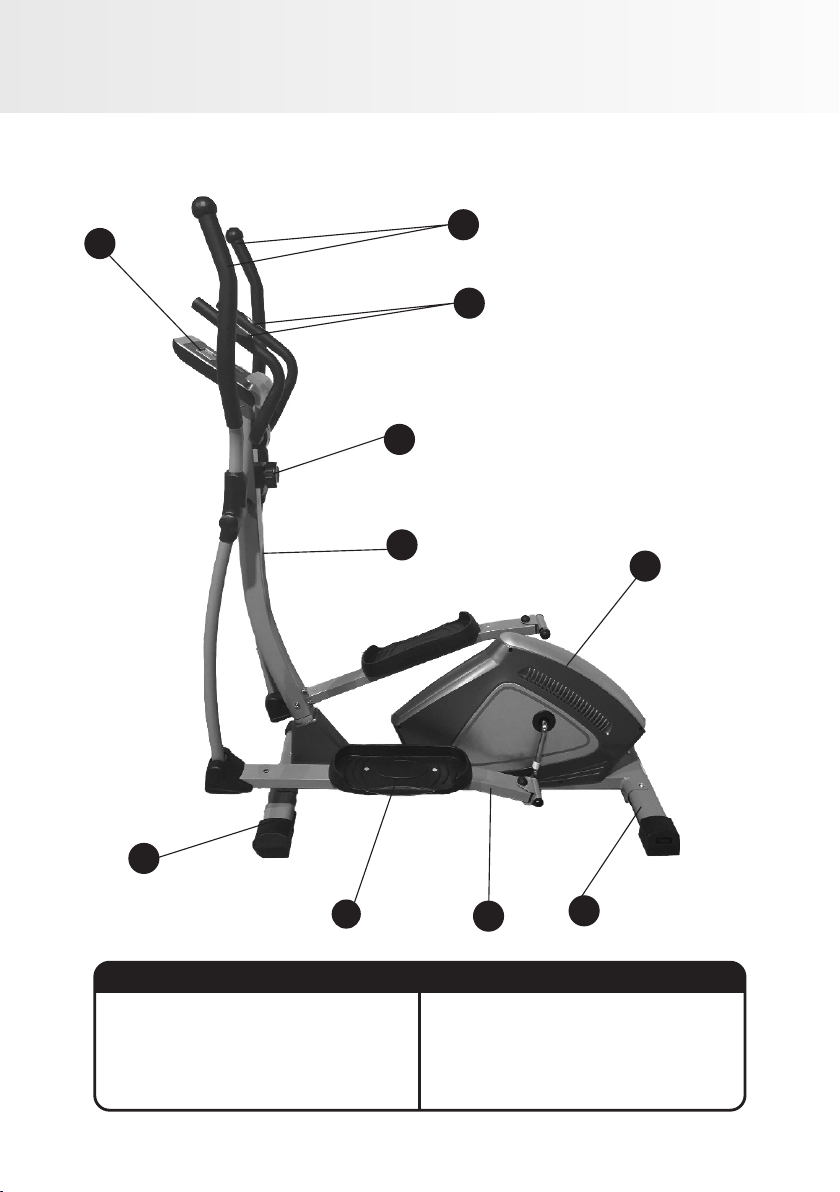

COMPONENTS AND
TECHNICAL SPECIFICATIONS
1. Monitor
2. Hand Grip
3. Handlebar
4. Tension control
5. Tower
6. Main frame
7. Front feet
8. Pedal
9. Suport pedal
10. Rear feet
6
35,20 kg
620 mm
1290 mm
1550 mm
9

STEP 1
ASSEMBLY
NOTE: Place the packaging with the equipment on a level surface. It is recommended that you place a
protective cover for your floor. Exercise caution when you are loading and transporting equipment.
Unpack and assemble the equipment where it will be used.
If necessary, ask the help of someone else.
7
39# M8*50 4PCS
34# d8*Φ20*1.5*R30 4PCS
S6

STEP 2
8
32
36
35# M8*16 4PCS
34# d8*Φ20*1.5*R30 4PCS
S6

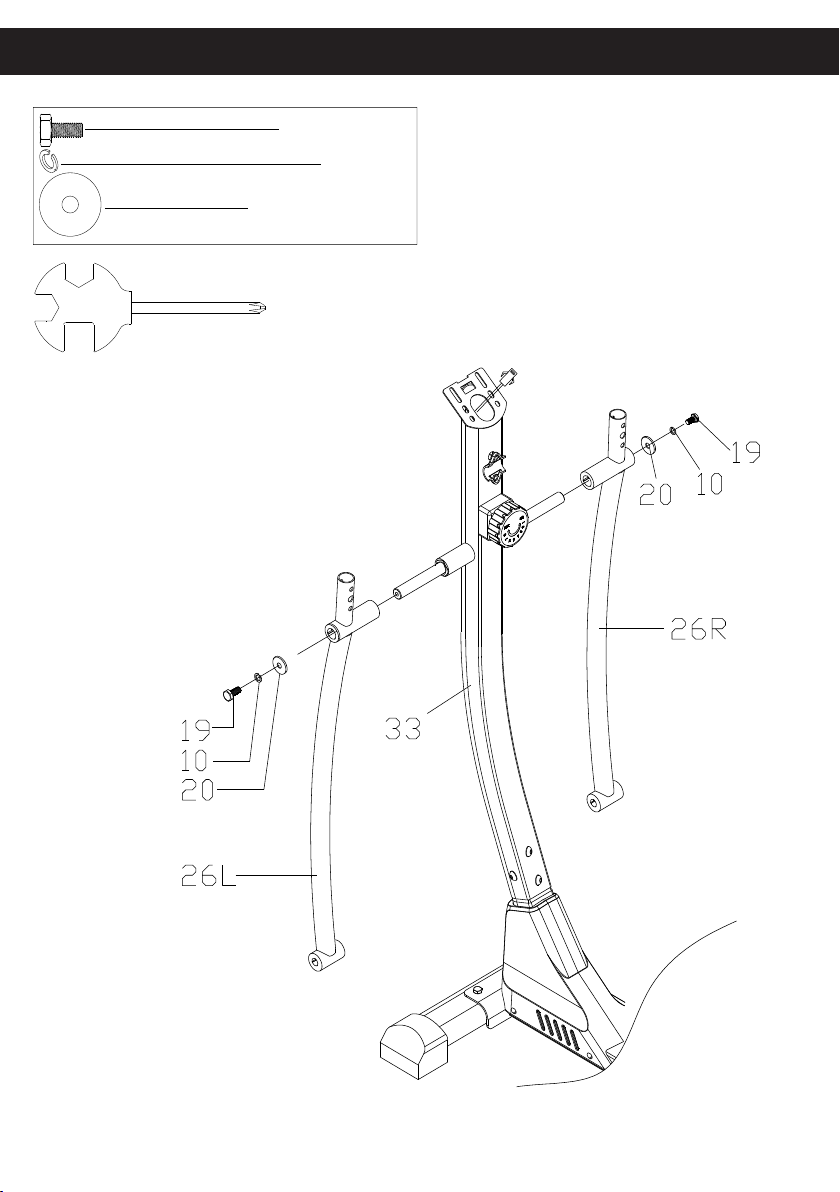

STEP 3
9
19# M8*20 2PCS
10# d8 2PCS
20# d8*Φ32*2 2PCS
S13-14-15

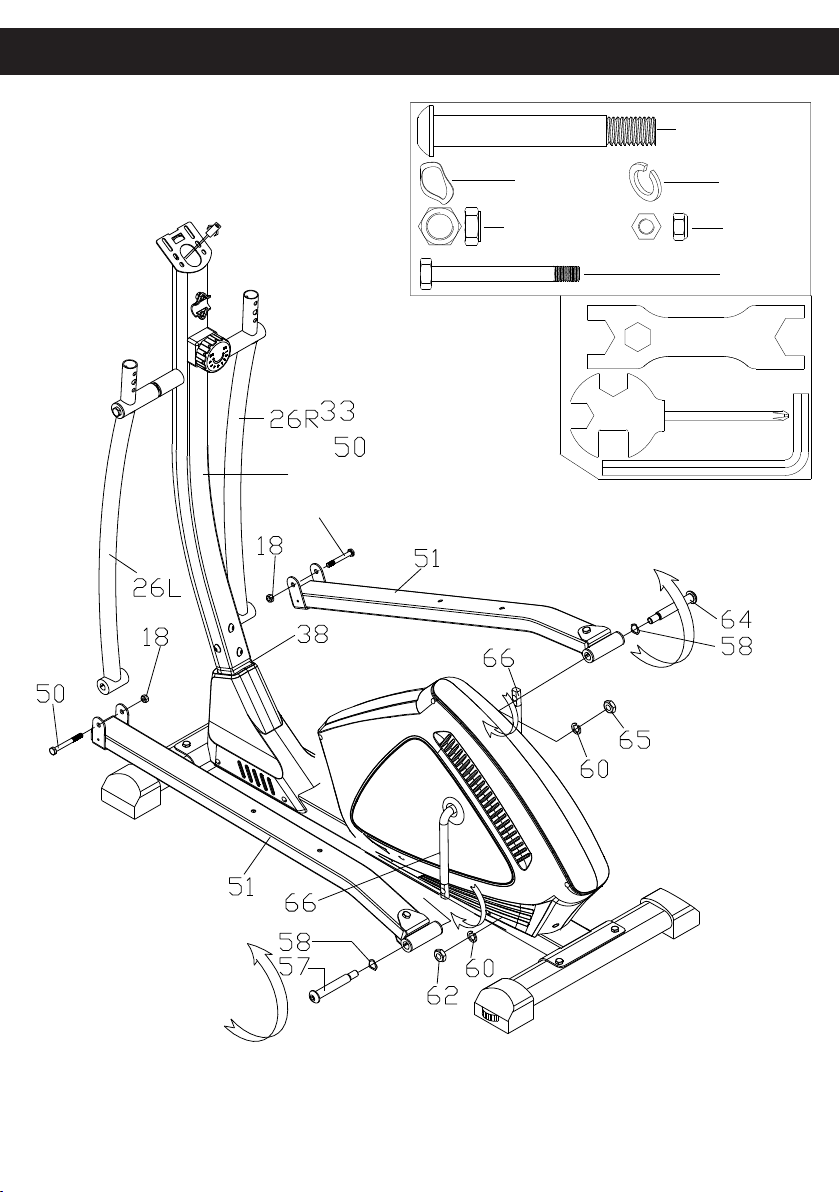

STEP 4
10
57/64# L/R 1/2" 2PCS
58# d17 2PCS 60# 1/2" 2PCS
62/65# L/R 1/2" 2PCS
S13-14-15
S17-19
S8
18# M8 2PCS
50# M8*75 2PCS

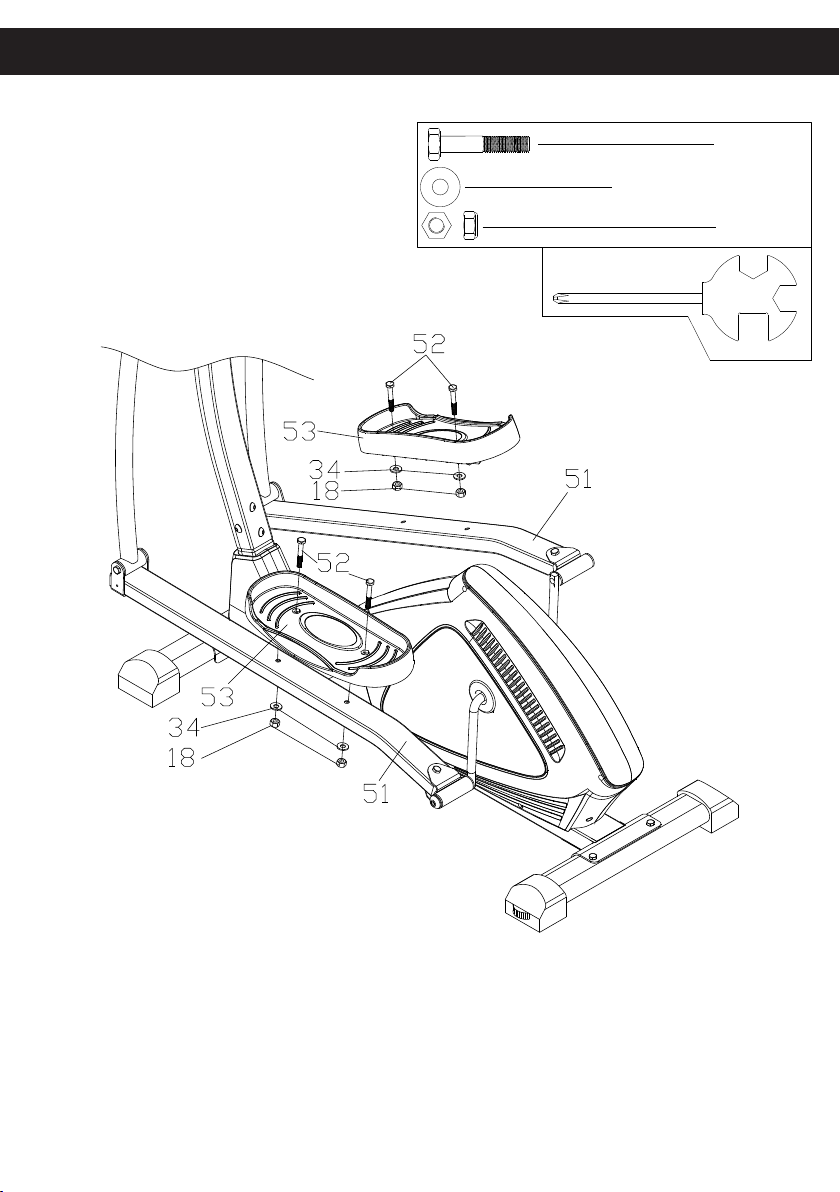

STEP 5
11
52# M8*45 4PCS
18# M8 4PCS
34# d8*Φ20*1.5*R30 4PCS
S13-14-15

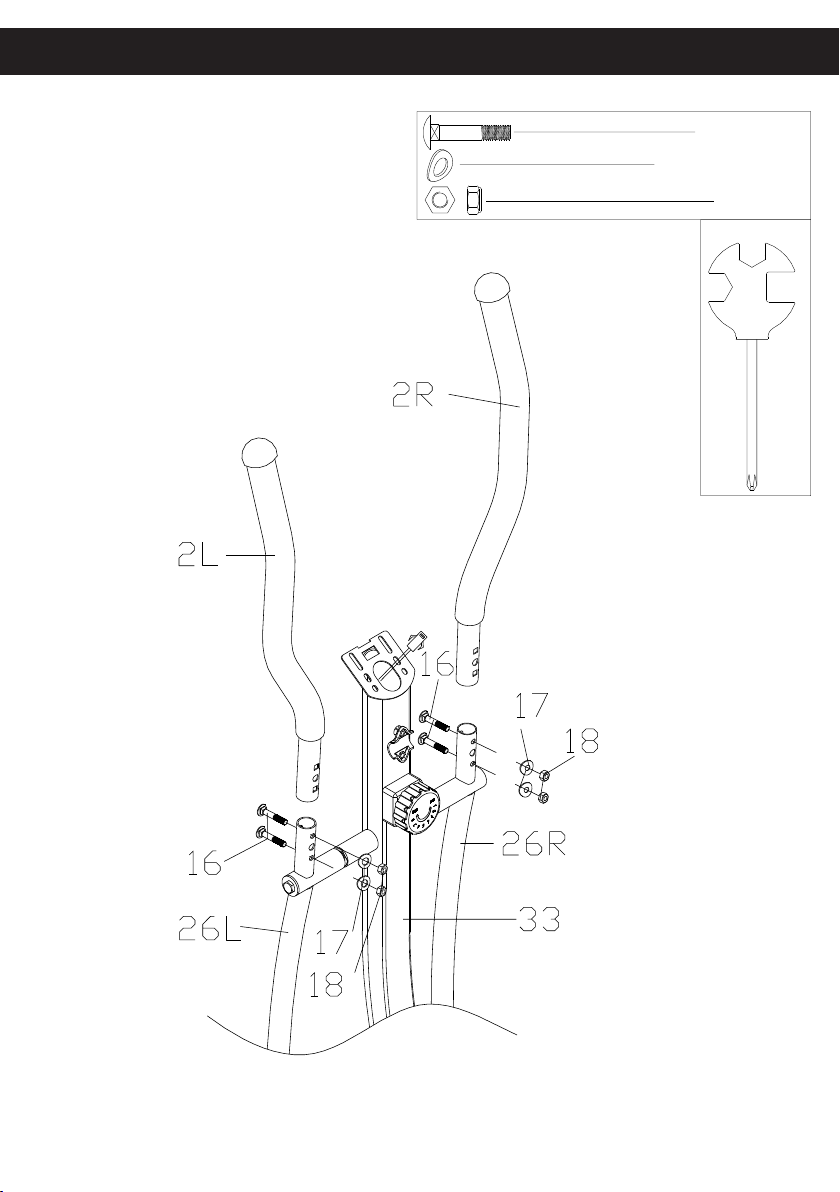

STEP 6
12
18# M8 4PCS
16# M8*40 4PCS
17# d8*Φ16*1.5*R30 4PCS
S13-14-15

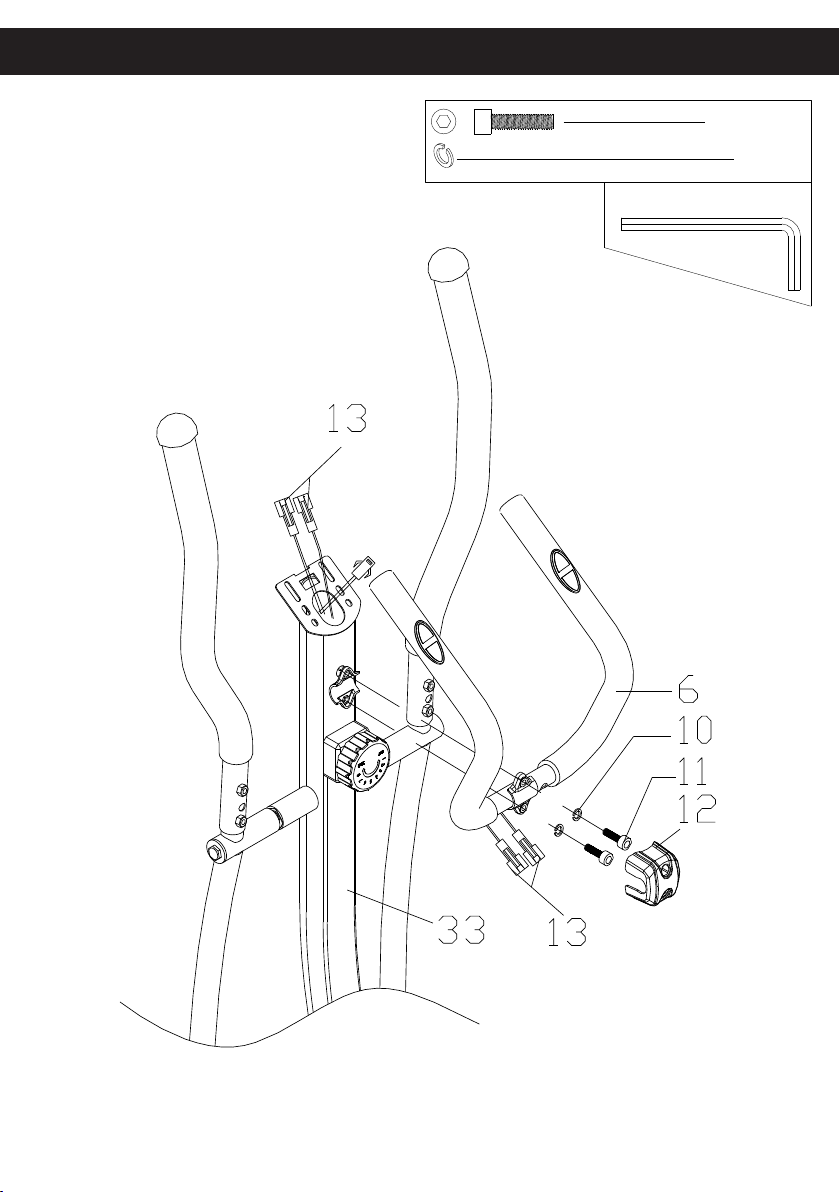

STEP 7
13
11# M8*30 2PCS
10# d8 2PCS
S6

S13-14-15
14# ST3*15 6PCS
69# S17 2PCS
63# S19 2PCS
47# M5*15 4PCS
STEP 8
14

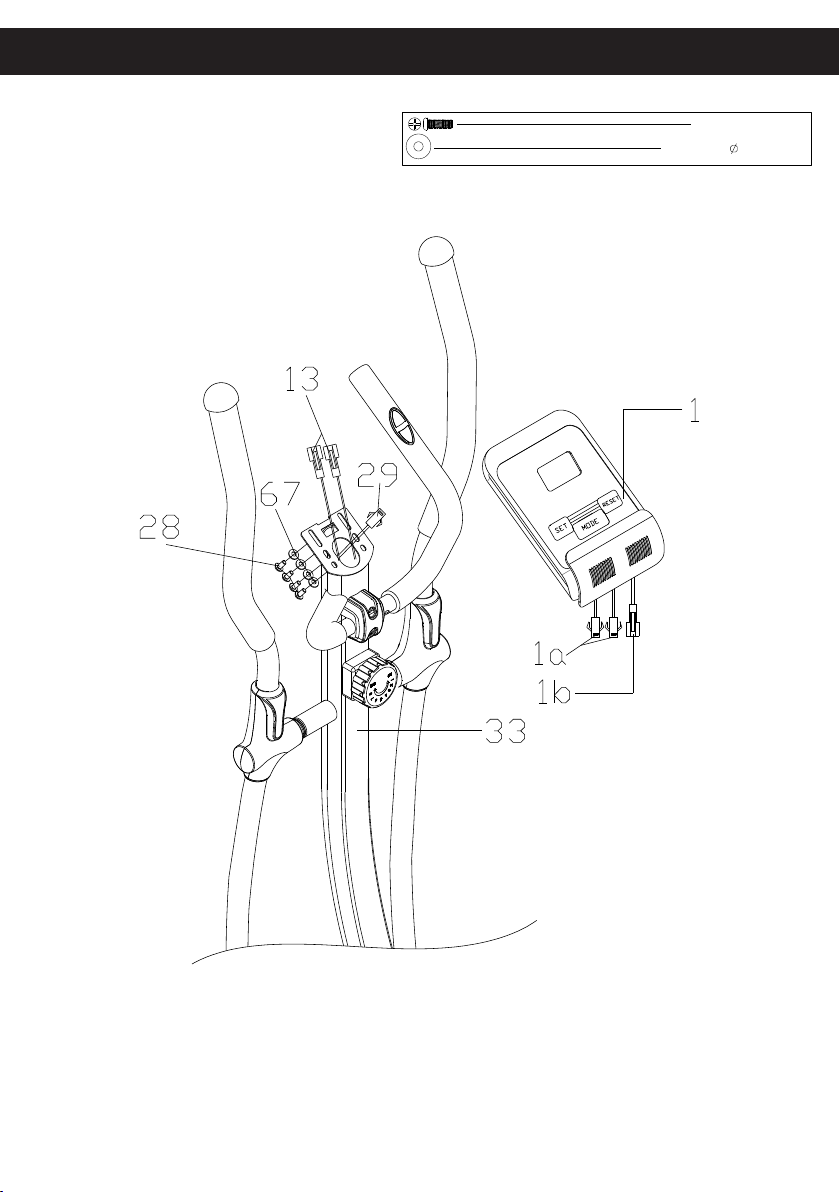

STEP 9
15
28# M4*12 4PCS
67# d4.5* 12*1 4PCS

MONITOR
16
FUNCTIONAL BUTTON:
MODE: Press MODE to select functions.
SET: To set value of time, distance and calories when not in scan mode.
RESET: Press to reset time, distance and calories.
Hold it for 3 seconds to reset time, distance and calories.
FUNCTION AND OPERATIONS:
1. SCAN: Press MODE button until “SCAN” appears, monitor will rotate through the following functions: time,
calories, speed, distance and total distance. Each display will be hold 4 seconds.
2. TIME (TMR): Count the total time from exercise.
3. SPEED (SPD): Display current speed.
4. DISTANCE (DST): Count the distance from exercise.
5. CALORIES (CAL): Count the total calories from exercise.
6. TOTAL DISTANCE (ODO): Count the total distance. This value is reset to zero, after installing the batteries.
7. PULSE RATE: Press MODE button until ”©” appears. Before measuring your pulse rate, please place both your
palms on the contact pads and the monitor will show your current heart beat rate in beats per minute(BPM) on the
LCD after 3~4 seconds.
Remark: During the process of pulse measurement, because of the contact jamming, the measurement value may
be higher than the virtual pulse rate during the first 2~3 seconds, then it will return to normal level. The
measurement value is not valid as a medical information.
8. AUTO ON/OFF & AUTO START/STOP: Without any signal for 4 minutes, the power will turn off automatically.
When return the movement of the product or pressing the button, the monitor turn on again.
9. ALARM: The monitor will sound an alarm for 5 seconds if any value be above than value selected. Press MODE
to select the funtions and SET to adjust the value.
SPECIFICATIONS:
FUNCTION
AUTO SCAN
Every 4 seconds
TIME (TMR)
0:00 ~ 99:59 (minutes:seconds)
CURRENT SPEED (SPD)
The maximum pick-up signal is 999.9 km/h
TRIP DISTANCE (DST)
0 ~ 999.99 km
CALORIES (CAL)
0 ~ 9999 kcal
TOTAL DISTANCE (ODO)
0 ~ 999.9 km
PULSE RATE (©)
40 ~ 240 BPM (beat per minute)
BATTERY TYPE
2pcs AAA
OPERATING TEMPERATURE
0ºV ~ +40ºC
STORAGE TEMPERATURE
-10ºC ~ +60ºC

17
For more breath, control your Target Heartbeat Range (THR) via the monitor's Hand Pulse system.
Procedure: This function allows the monitoring of your heart, counting in heartbeats per minute (BPM). To view
your heart rate reading on the monitor, follow the instructions:
1: Place your hands on the heart rate reading sensors, Hand Grip, located on the monitor;
2: Keep your hands stable and centered on the sensors. Keep your arm, forearm and elbow as relaxed as you can.
This will help you to keep your hands steady on the Hand Grip during the measurement;
3: In a few seconds the heart symbol starts to flash and the value of your heartbeat appears;
4: Wait at least 10s until your pulse, indicated on the monitor, stabilizes;
5: Keep your hand on the sensors while you want to view your heart rate reading.
BEFORE STARTING ANY PHYSICAL ACTIVITY, CONSULT A DOCTOR

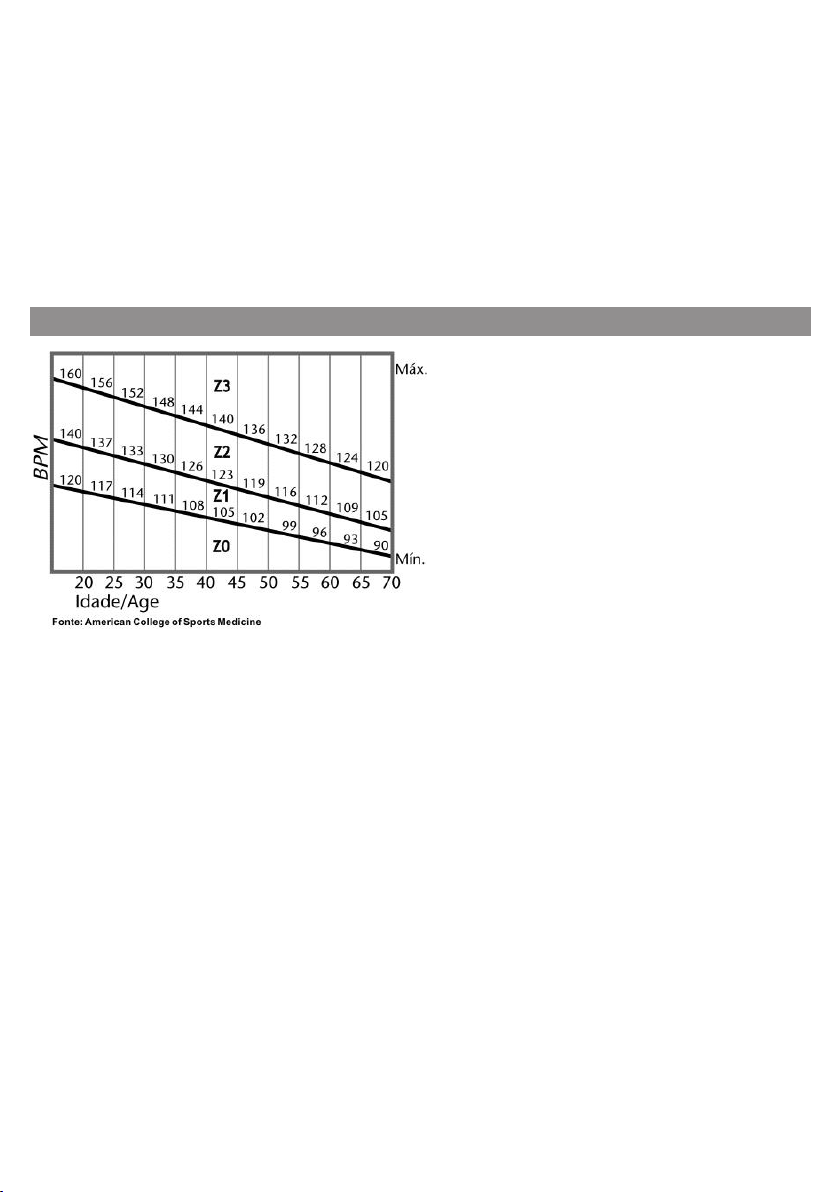

Z3 - Risk Zone
It is not recommended to train above 80% of the
maximum heart rate, as it is in the heart risk zone.
Z2 - Aerobic Zone
Cardio-respiratory training zone, between 70% and
80% of the maximum heart rate.
Z1 - Weight Loss Zone
Training zone for weight loss, cardio-respiratory,
between 60% and 70% of the maximum heart rate.
Z0 - Moderate Activity Zone
Be l ow 6 0% o f t he m ax im u m h e ar t r a te .
Recommended for people who are inactive, who
have special conditions or need rehabilitation for a
medical problem.
ATTENTION
A - The measurement is affected by movements, exercises, hand position, pressure exerted, oiliness on the skin,
emotions and other factors.
B - Heart rate variations of up to 10% BPM up or down can be considered normal. In this case, use the average or
central value as a reference. To get a more accurate measurement of your heart rate, we suggest using wristbands or
a chest band or a medical device.
C - If you notice large and sudden variations (for example: from 85 BPM it drops to 40 and then goes up to 230) this
means that you are not holding the Hand Grip correctly.
D - Sliding your hand over the Hand Grip or squeezing and relieving it also impairs reading.
E - Using the Hand Grip sensor correctly requires some training. Try several positions and adopt the one that gives
the best result for your case.
F - Interruptions in the heart's blinks indicate that your hands are not well positioned or that the pressure exerted is
inadequate.
G - Do not use the Hand Grip as support, as it may damage it.
H - Hold the Hand Grip only long enough to take the readings, according to the desired periodicity.
I - To support the entry and exit of the equipment, during exercise or in case of imbalance or emergency, use the
handlebars.
Observations: The values in this monitor inform reference values, and cannot be considered with sufcient
accuracy for clinical evaluation.
Hand Pulse (if available)

PREVENTIVE MAINTENANCE
18
Before you use your equipment make sure it is in good condition. Check the general condition of the equipment, as
described in "Safety Information". If the equipment is not in perfect condition, contact an Authorized Technical
Assistant.
CLEANING:
- Never use abrasive or solvents for cleaning.
- Do not leave the equipment exposed to natural agents such as sunlight, rain, dew, dust, salt spray etc.
- Do not put the treadmill in dusty environments, wet, saunas or anywhere unventilated.
- Always use original spare parts. Improper maintenance can cause damage to the product and loss of warranty.
- If you prefer, this cleaning can be done by a Technical Assistant (see values).
WARNING: This equipment is designed for residential use. We assume no responsibility when it is used by gyms,
clubs, clinics or condos.

Terms of Guarantee
A. The warranty procedures will be carried out only upon
presentation of the note / original coupon tax of Sale and limitations
laid down by these Terms. The guarantee shall be provided by the
Authorized Technical Assistance Network.
B. The conditions set out in this Agreement are guaranteed to the
first user purchaser of this product for a period of 6 (six) months
(including the legal guarantee period - first 90 (ninety) days,
counted from the date of issuance of the note / tax Coupon sale, in
the event of exclusively residential use.
C. Warranty and coverage terms start to count from the date of issue
of the sales invoice / coupon, including the legal term of 90 (ninety)
days.
D. Parts repaired or replaced under this warranty does not stop nor
extend the warranty period originally stipulated.
E. To be used by this warranty, the equipment must have been
installed by authorized technical assistant, except for residential
products.
F. Warranty does not cover the installation and preventive
maintenance services such as cleaning, lubrication and adjustment
of the product.
G. No dealer is authorized to receive client product to refer you local
dealer or this take it to return to it and to provide information on
behalf of the Manufacturer / Supplier of the progress of the service.
The manufacturer / supplier or consumer support are not
responsible for any damage or delay due to this non-compliance.
H. The Manufacturer / Supplier keep available spare parts until they
cease the manufacture or import the equipment. If it ceased the
production or import of equipment Manufacturer / Supplier keep
the spare supply its line of equipment for a reasonable period of
time, according to the law.
I. Within the period of thirty (30) days if the equipment presents
some malfunction, the customer may choose to take the product to
an authorized posts or requesting service in your home without
travel expenses in those counties covered by the Network
Authorized Service. After the period of thirty (30) days or in
municipalities not covered by the Technical Assistance Network
Authorized expenses resulting from any transport of the equipment
to a freight service, removal or technical visit by tecnical assistent,
WARRANTY
6 months
6 months
6 months
6 months
6 months
TIME
PARTS AND
COMPONENTS
Structure
Painting (oxidation)
Auxiliary plate
Monitor
Manpower
occur by the customer, whether or not this equipment covered by
this warranty.
J. Lubricants, silicones for treadmills, vaseline to the guide weights
and micro oil to the joints of weight stations, should be exclusively
recommended by the manufacturer, available at Authorized
Technical Assistance Network.
K. Components that wear out with regular use of equipment such as
motor brushes, belts, pads, brake bands, felt, steel chains and cables,
when this equipment will have warranty for a period of 90 days from
the invoice or manufacturing defect found by the Authorized
Technical Assistance Network.
Extinction Assurance
This warranty will be considered void when:
A. Expiry of the warranty term.
B.Equipment repaired by a person not authorized by the
Manufacturer / Supplier, if signs of violation of its original
characteristics or non-factory assembly are found.
C. Damage suffered by the equipment due to improper use, use of
inappropriate cleaning products, oxidation from external agents,
wear, neglect, modification, use of accessories not recommended,
inadequate design for the intended application, falls, perforations,
use and opposite installation to the operating instructions,
inadequate wiring in the electrical network, lack of grounding in
badly sized grids and / or excessive fluctuations and overloads.
D. For residential line is prohibited any type of user equipment
maintenance or a third party other than the technical assistance
network.
E. The product is used in gyms, condominiums, clinics, clubs, sauna,
submerged in water or use so that it resembles other than for
residential purpose or the application of the purpose intended.
Comments:
A. cables, carabiners, pedals when existing in the product should be
replaced once a year.
B. The Manufacturer / Supplier is not responsible for any accidents
and their consequences, arising from breach of the original features
or assembly out of their equipment factory default.
C. Customer's responsibility are those resulting from unfounded
judged answering calls.
Note: Manufacturer / Supplier reserves the right to make changes
without notice this.
19

INFORMACIÓN DE SEGURIDAD
20
Consideraciones Generales
Observaciones
Lea este manual antes de usar el producto y consérvelo
para consultarlo en el futuro para evitar el riesgo de
calentamiento, incendio, descarga eléctrica o lesiones.
Es responsabilidad del propietario asegurarse de que
todos los usuarios del equipo estén adecuadamente
informados sobre las precauciones de seguridad.
Si el equipo no está en perfectas condiciones, llamar a
un asistente técnico.
- Coloque la elíptica en una superficie plana al menos
30cm de distancia de cualquier pared, manteniendo la
parte inferior, libre de cualquier obstáculo.
- Nunca permita que más de una persona use la
bicicleta al mismo tiempo.
- Consulte a su médico antes de iniciar y durante
cualquier programa de ejercicios. Debe ser dada
especial atención a los niños, mujeres embarazadas,
ancianos, personas con problemas de corazón y las
personas con discapacidad.
- Los valores indicados en el monitor son puntos de
referencia, no puede ser considerado con suficiente
precisión para la evaluación clínica.
- Mantener alejado de los equipos, los niños y los
animales domésticos, sobre todo durante el uso y no
introduzca objetos en los orificios del equipo.
- Utilizar ropa deportiva adecuada. No use ropa suelta
que pueda quedar atrapado en el equipo. Para
ejercitarse, siempre use zapato, no camine descalzo o
con sandalias.
- Este aparato no está destinado para ser usado por
personas cuyas capacidades físicas o mentales estén
reducidas o sin experiencia, salvo se tienen supervisión
por persona responsable.
- Los niños deben ser supervisados para asegurar que
no juegan con el aparato.
A. El Fabricante/Distribuidor no es responsable de los
accidentes y sus consecuencias derivadas de la
violación de las características originales o montaje
fuera de los ajustes de fábricas de sus productos.
B. Ningún Revendedor o Asistencia Técnica Autorizada
está autorizado a cambiar estos Términos o asumir
compromisos en nombre del Fabricante/Distribuidor.
C. El cliente es responsable pelos costos de llamada
técnicas infundadas.
NOTA: figuras y fotos en este manual son meramente
ilustrativas. El Fabricante/Distribuidor se reserva el
derecho de realizar cambios en el producto sin previo
aviso. Este manual puede ilustrar opcionales que no
forman parte del equipo adquirido.
