Athletic W9 Series User manual

W9-MF/W9-LF
W9-MT/W9-LT
Medium/Large
W9 Series
Fixed & Tilt Flat Screen Mounts

42” 45 kg
100 lbs
W9-MF/W9-MT
63” 68 kg
150 lbs
W9-LF/W9-LT
*Recommended use with Wood Stud & Concrete Wall

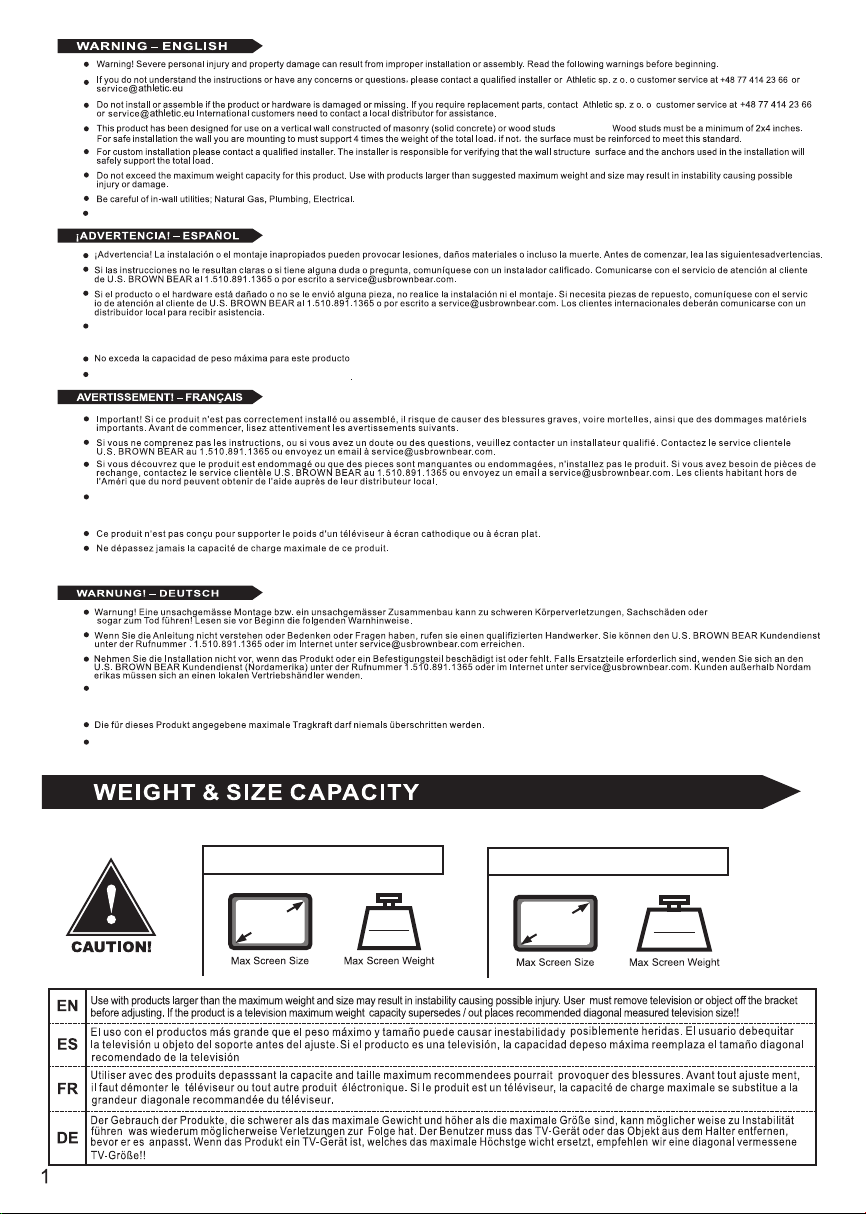

CAUTION:The maximum loading weight is 100lbs /150lbs, Use heavier than that may cause injury see apparatus instructions.
ATTENTION: Le poids de chargement maximal est de £ 100 / £ 150, plus lourd que l'utilisation qui peut causer des blessures voir les instructions appareil.
PRECAUCIÓN: El peso máximo de carga es £ 100/ £ 150, más pesado que el uso que pueden causar lesiones vea las instrucciones de un aparato.
ACHTUNG: Die maximale Ladegewicht ist 100lbs /150lbs,Verwendung schwerer als die Verletzungen verursachen können sehen Apparat Anweisungen.
or brick wall.
Ce produit a été conçu pour une utilisation sur un mur vertical interprété de maçonnerie (béton plein) ou des poteaux en bois ou en brique du mur. Poteaux en bois doivent être
d'un minimum de 2x4 pouces.Pour une installation sûre au mur vous montez doit prendre en charge quatre fois le poids de la charge totale, sinon, la surface doit être renforcée
pour répondre à cette norme.
Este producto ha sido diseñado para su uso en una pared vertical interpretarse de albañilería (cemento sólido) o vigas de madera o pared de ladrillo. Los postes de madera deben
tener un mínimo de 2x4 pulgadas.Para una instalación segura en la pared se va a instalar debe ser compatible con 4 veces el peso de la carga total, si no, la superficie debe ser
reforzada para cumplir con esta norma.
Dieses Produkt wurde für den Einsatz an einer senkrechten Wand aus Mauerwerk (festen Beton) oder Holzständer-oder Ziegelwand ausgelegt konzipiert. Holzpfosten muss
mindestens 2x4 Zoll.Für eine sichere Installation der Wand sind Sie Montage an muss der 4-fachen Gewicht der gesamten Last tragen, wenn nicht, muss die Oberfläche verstärkt,
um diesen Standard zu erfüllen.

W9-MF/W9-LF
Flat Screen Fixed Bracket X2
W9-MF/W9-LF
W9-MT/W9-LT
W9-MF/W9-LF/W9-MT/W9-LT
Wall Bracket X1
Flat Screen Tilt Bracket X2
W9-MT/W9-LT
W9-MF/W9-LF/W9-MT/W9-LT
Safety Latch Rod X1
B
A
C
A
Philips Screwdriver HammerSocket Wrench PencilDrill Stud Finder
22
3 3
W9-MF / W9-MT
W9-LF / W9-LT
Wall Anchors
Lag Bolts ST6.3x50mm
M4x15mm
Screws
M4x35mm
Screws
M5x15mm
Screws
M5x35mm
Screws
M6x15mm
Screws
M6x35mm
Screws
M8x15mm
Screws
M8x35mm
Screws
Round
Washers
Round
Spacers
3/4”

Wall Bracket Installation Steps for Wood Studs
StudStud
Select desired height. Use Wall Bracket as template to
mark drilling locations with pencil.
Use level to ensure proper alignment.
Locate studs with stud finder. Mark stud
edge and center location with pencil.
Drill
Stud
Drill pilot holes at marked locations. Secure Wall Bracket with Screws and Washers .
Socket Wrench
Stud
2 3/4”(70 mm)
1/8”(3 mm)
Pilot Hole Size
Pilot Hole Depth
W9-LF / W9-LT mark drilling locations X3
W9-LF / W9-LT drill pilot holes X3
W9-LF / W9-LT secure screws and washers X3

W9-MF / W9-MT drill pilot holes X2
W9-MF / W9-MT drill pilot holes X2
W9-MF / W9-MT secure screws and washers X2

Wall Bracket Installation Steps for Concrete
Drill
Select desired height. Use Wall Bracket as template
to mark drilling locations with pencil.
Use level to ensure proper alignment.
Drill pilot holes at marked locations.
Use a socket wrench to tighten screws
with washers to fix the wall plate on the wall.
X
Gently hammer Wall Anchors into
pilot holes.
Socket Wrench
2 3/4”(70 mm)
3/8”(10 mm)
Pilot Hole Size
Pilot Hole Depth
W9-LF / W9-LT mark drilling locations X3
W9-LF / W9-LT drill pilot holes X3
W9-LF / W9-LT secure screws and washers X3
W9-LF / W9-LT wall anchors X3
W9-MF / W9-MT wall anchors X2 W9-MF / W9-MT secure screws and washers X2
W9-MF / W9-MT mark drilling locations X2
W9-MF / W9-MT drill pilot holes X2

Assistance may be the required to lift your flat screen into position.
Lift and hook flat screen with attached brackets (A) to the wall bracket (B).
Be sure to carefully align the holes of the brackets with the mounting holes on the flat screen
Proper Screws
from Monitor Kit
Round Washers M-J
Adjust flat screen angle with Tool-Free Tilt Adjustment Lever.
Turn counter-clockwise to loosen and adjust, then clockwise to tighten and lock into place.
Flat Screen Bracket Attachment Steps
Align Flat Screen Bracket with VESA hole pattern on back of Flat Screen.
Secure with appropriate screw size and washers from Monitor Kit as illustrated.
Optional
Spacers M-I
Need Spacers M-I
No need Spacers M-I
Options

6
Align Safety Latch Rod (C), with holes in Wall Bracket (B)
and Flat Screen Brackets (A). Slide rod completely in and turn clockwise to secure
bracket into place.
Use Tool-Free Adjustment lever to tilt and lock Flat Screen into place.
a.
b.
a.Turn lever counter
clockwise to adjust angle.
b.Select desired angle,
turn lever clockwise to
secure into place.
-3 ~10

THANK YOU FOR PURCHASING ATHLETIC PRODUCTS.
GRACIAS POR ADQUIRIR UN PRODUCTO ATHLETIC
