Atid AT380 Specification sheet

ATID Co., Ltd
Product User’s Guide
Model : AT380
Ver. 1.0

User’s Guide
2
Disclaimer
ATID is registered trade mark of ATID Co., Ltd.
Si303, Si203, AT880, AT280, AT980 and AT380 is registered trade mark of ATID Co., Ltd.
All other trademarks and trade names referred to herein are property of their respective
owners.
Microsoft Windows®, Windows® 2000, Windows® CE .NET, Windows® NT, Windows®
XP, Windows® and Embedded Handheld are registered trademarks of Microsoft
Corporation.
ATID Co., Ltd.
#1205, Byuksan/Gyungln Digital Valley II, #481-10,
Gasan-Dong, Gumchon-Gu, Seoul, Korea
Tel: [phone]
Fax: [phone]
www.atid1.com

User’s Guide
3
Table of Contents
Table of Contents.............................................................................................................................................3
Chapter1. Caution when using ATID PDA Product.................................................................................6
1. How to use the battery correctly....................................................................................................6
2. Caution when using ATID PDA Product....................................................................................... 6
Chapter2. Products compositions................................................................................................................. 7
1. Package components......................................................................................................................... 7
2. Each Part Name & Function........................................................................................................... 8
Chapter3. Basic Functions...........................................................................................................................10
1. Power and Battery........................................................................................................................... 10
1.1 Power On and Off (All Products are common).........................................................10
1.2 Checking Battery Gauge.................................................................................................. 12
1.3 Backup Battery................................................................................................................... 13
1.4 Dispose of Battery.............................................................................................................13
2. System Reset.................................................................................................................................... 14
2.1 Soft Reset(Warm Reset/Warm Boot)............................................................................ 14
2.2 Hard Reset(Cold Reset/Cold Boot)............................................................................... 14
2.3 Initializing System.............................................................................................................. 15
3. Using Micro SD Card......................................................................................................................16
4. System Settings................................................................................................................................ 17
4.1 Setting Brightness.............................................................................................................. 17
4.2 Screen Calibration..............................................................................................................17
4.3 Setting Volume and Sounds........................................................................................... 18
4.4 Setting Data and Time..................................................................................................... 18
5. Using keypad.....................................................................................................................................20
5.1 Using keypad...................................................................................................................... 20
5.2 Inputting Data......................................................................................................................20
5.3 Using <Blue> Button......................................................................................................... 20
6. Using stylus........................................................................................................................................21
7. Using ActiveSync Program.............................................................................................................22
7.1 Installing Microsoft ActiveSync Program...................................................................... 22
7.2 Connecting PC to PDA.................................................................................................... 23
7.3 Transmitting Data............................................................................................................... 24
8. Firmware Upgrade............................................................................................................................ 26
Chapter4. Optional Module..........................................................................................................................27
1. 1D or 2D Barcode Scanner.......................................................................................................... 28
1.1 Scanning Barcode.................................................................................................................. 28
1.2 Setting Barcode Emulator.................................................................................................... 28
1.3 Setting Barcode Symbology.................................................................................................31
1.4 Barcode Scanning Beam Position..................................................................................... 32
2. Using Wireless Lan..........................................................................................................................34
2.1 Connecting to Wlan............................................................................................................... 34
2.2 Setting Wlan Manually.......................................................................................................... 34
2.3 Checking WLAN Information................................................................................................35
3. Using Bluetooth.................................................................................................................................36
3.1 Bluetooth Beginning and Closing....................................................................................... 36

User’s Guide
4
3.2 Bluetooth Pairing.................................................................................................................... 39
3.3 Bixolon SPP-R200 Printer Demo....................................................................................... 42
Chaptor5. Appendix....................................................................................................................................... 44
Specification with AT380...................................................................................................................... 44

User’s Guide
5
Copyright and Agreement
-This manual is subject to copyright protection along with all relevant rights.
-No part of this document or the procedures described therein can be copied, reprodu
ced, changed, translated or transmitted in any form or by any means without prior w
ritten permission of ATID Co., Ltd. or its wholly owned subsidiaries.
-ATID reserves the right to change any contents of this manual at anytime without prior
notice.
-There are maybe some differences between the contents of this manual and the actual
behavior of product.
This manual is written for the person who is responsible for installing, configuring, and maint
aining the AT380 PDA. Read and follow all warnings and cautions in this document before y
ou handle and operate ATID equipment
Safety Information
Read and follow all warnings and cautions in this manual before you handle and operate ATI
D equipment. If you do not follow the safety warnings and cautions, you might be seriously i
njured, and the equipment and data are also might be damaged.
Warnings!
A warning requires you must pay attention to the operating procedures, practices, co
nditions, and statements strictly, or might be injured seriously.
Cautions
A caution alerts you that you must be observe strictly when you operating procedure,
practicing, configuring, for preventing from damage and destruction of equipment, an
d loss of data.
Note
A note provides you the information which you must needs while you using Si303

User’s Guide
6
Chapter1. Caution when using ATID PDA
Product
Before you handle and operate your AT280 and other ATID PDA Products, Please read throu
gh and familiar with the contents of this manual.
1. How to use the battery correctly
When you dropped the main body or battery in water, please do not put it on the stov
e or heater for drying. Just keep it in natural temperature or contact with purchase pl
ace.
Please do not take the metal object to approach to the terminal of battery
If you do not use the battery for a long time after charging, please keep it at room te
mperature.
According to the life of battery and the processing time of its using, the buffering time
can be shortened. In this case, please contact your dealer.
You have to charging the device with the provided adaptor from factory.
2. Caution when using ATID PDA Product
User careless or products repair may would damage the stored data. Manufacture is n
ot responsible for this damage, so important data should be kept separately
If your AT280 has problem, do not try to repair or disassemble the product arbitrarily,
please contact customer service center.
Do not use your AT280 where have electromagnetic wave or the risk may occur such
as hospital, plane so on.
A high temperature or high humidity environment will causes trouble, Please note that.
Please do not using other sharp object to touch the screen, otherwise it might be get
damaged or not working properly.
Please be careful not to touch the metal paper cutting saw tooth, so as not to get inju
red
If smell odors, occurs smoke or noise during use product, immediately disconnect the
charger and off the power, then Please contact with customer service center
If you have any other questions during use, please contact the customer service center

User’s Guide
7
Chapter2. Products compositions
AT280 mobile computer is a small, ergonomically designed PDA, which built on the Microsoft
window CE 5.0 Operating System. The PDA could equip with Barcode Scanner and so on devices as
optional items. Its various function applied to Industry, Enterprise, Logistics and so on, can be used
extensively in many fields.
1. Package components
After opening the product packaging box, check the items listed as below:
MODEL : AT380
*If there is missing or defective products on the above, please contact the customer support center or your place of
purchase.
1. AT380 Body
2. Adaptor and AC Cable
3. Main Battery
4. USB Sync Cable
6. Stylus
7. Hand Strap
5. Protective Fil
m

User’s Guide
8
2. Each Part Name & Function
MODEL : AT380
1D/2D Scanner Window
Touch Screen
Ear Jack
Battery Latch
Main Battery
Speaker
UHF Module Port
Hand Strap Hol
Function Button
Microphone
Cradle Connector
Adaptor Connecting Jack
& Sync Cable Connecto

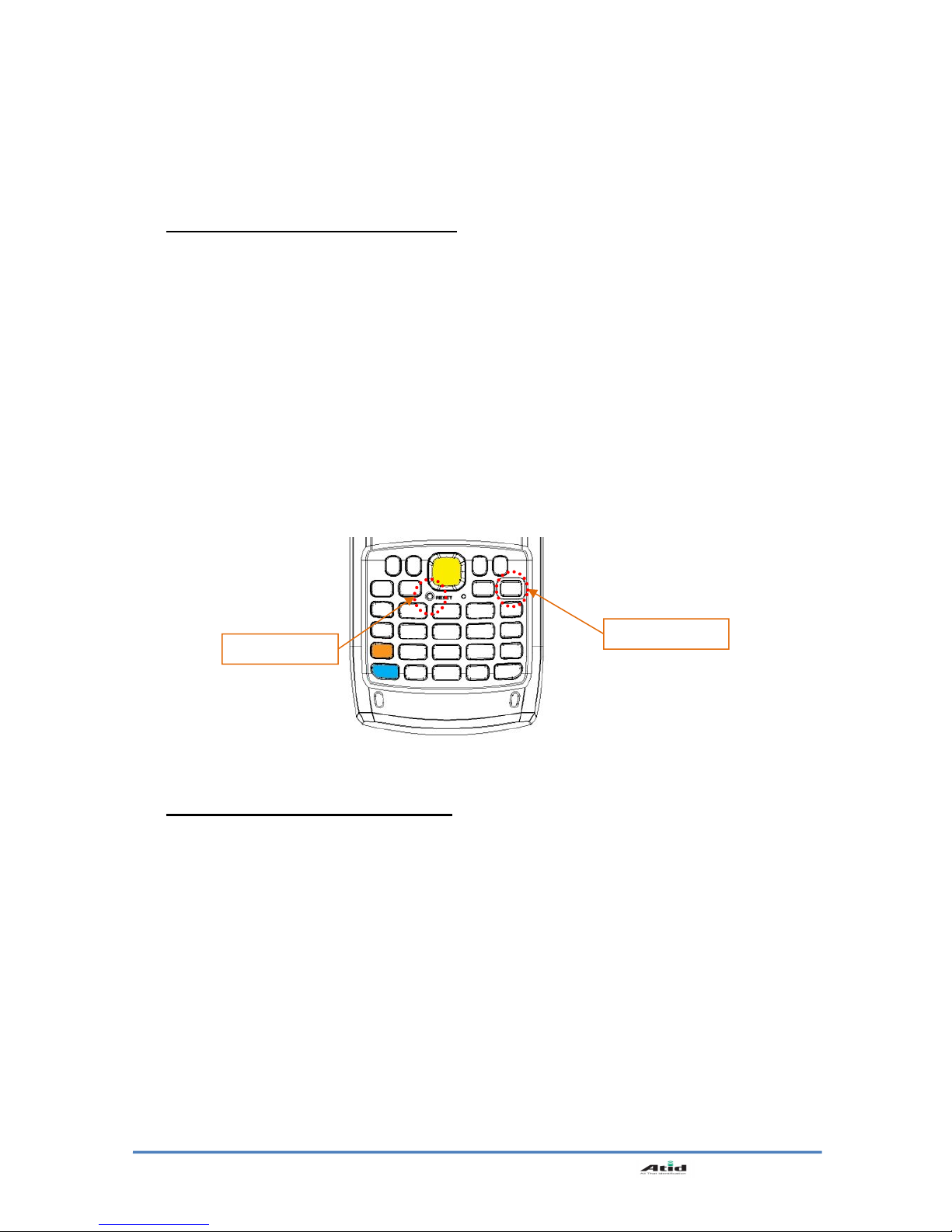

Reset Button
Keypad
Charge LED(RED) &
WLAN/BlueTooth LED
Camera & Flash
SIM Slot
SD card Slo
t

User’s Guide
9
Part Descriptions
1D/2D Scanner Window
(Option)
Laser beam emitted through this window. Please be careful the foreign substances
and preventing from the damage. Warning! Do not look at the laser beam direc
tly.
UHF Module Port Enable you to install a UHF 900Mhz tag reader module.
Reset Button
Enable you to perform a Warm Reset, Press <Power>button simultaneously, enable you to
perform a Hard Reset.
Microphone Enable you to conduct communication.
WLAN/Bluetooth LED Indicates WLAN & Bluetooth power on-off status.(Blue)
Battery Latch Enable you to detaching and attaching the main battery.
Main Battery Enable to supply the power to the product.
Speaker Build-in speaker, which could emit various sound effects.
Sync Cable Connector Enable you to connect and send data to PC via USB sync cable.
Ear Jack Enable you to connect to earphone.
Charge LED
Charge LED will be Red or Orange color when the battery is charging, or will be green
when it is charged completely.
Adaptor Connecting Jack
& Sync Cable Conector Enable you to connect to adaptor which provided from factory.
Cradle Connector Enable you to connect to PC or charging the battery while using cradle.
Key Pad
Enable you to input key value (number, alphabets, symbol), or executing assigned
programs.
Touch Screen
Display running programs, and could execute, use, and exit programs via using stylus to
touch the screen.
Hand Strap Hole
Enable you to attach a hand strap or a stylus for the convenience of using, while need to
use the device for a long period time.

User’s Guide
10
Chapter3. Basic Functions
1. Power and Battery
AT380 battery is composed of main battery and backup battery. A main battery supplies the power to
the system and RAM which could keep save the data. A backup battery could keep save the data of
RAM when the main battery discharged completely.
Main Battery: 3.7V 5,200mA Lithium –ion
Backup Battery: 3.7V 80mA Lithium – ion polymer
Connecting adaptor to the PDA adaptor connecting jack, and check if the “Power LED” is Red, and
then charging the power completely until it get into Green.
1.1 Power On and Off (All Products are common)
Press <Power> button one time, the device will enter low-Power mode (Sleep Mode) under t
he system is started and the following window is displayed on the desktop or other programs
is running in the system. Press <Power> button once again could activate the system.
Taskbar: Display the currently running programs.
Start button: Activates the start menu and then execute a program.
Start button
Taskbar

User’s Guide
11
Power off automatically
The device has been powered but has not been used for a period of time, then the system will enter
low-power mode (sleep mode) automatically. You could set the sleep mode time at the power
management so that could save power and prolog the battery life.
[Start Button] -> [Setting] -> [Control Panel] -> [Power Management] -> [Power Off]
Battery Discharging
If the main battery discharge completely, the system will not turned on, the device will get into
low-power mode (sleep mode) automatically, and even press the <Power> button, the system will
not be turned on. In this case, you should charge the main battery or connect the adaptor to the
adaptor connecting jack of main body, then press the <Power> button to turn on the system.
Power Icon
You can also double click <Power> Icon to enter this
interface.
You can also press the <Power> button to
activate the system, when the device turned off
cause get into the sleep mode.

User’s Guide
12
1.2 Checking Battery Gauge
Note:
Battery life is largely affected from the user using method and surrounding environments.
A 5,200mA battery is usually needs 8 ~ 12 hours to get charged completely.
Checking Battery Gauge
[Start Button] -> [Setting] -> [Control Panel] -> [Power Management] -> [Battery]
Low Battery Warning
If the remaining battery gauge cannot support the system running any more, a low power warning
message window will be popped up on the screen. In this case, you need to press the <Power>
button to turn off the power, and to charge the battery as soon as possible.

User’s Guide
13
1.3 Backup Battery
A backup battery could safely keep the RAM data, even the main battery discharged complet
ely.
1.4 Dispose of Battery
You need to purchase a new one if the battery damaged or reached its end of life.
Warning!
Please dispose the used batteries in a designated place.
Caution:
If the main battery and the backup battery are both discharged, the RAM date will disapp
ear.
Among the running programs, the RAM data will disappear in which are using, and the sy
stem

User’s Guide
14
2. System Reset
If there is no response from the system or an application is locked up and stops responding,
and when you want to upgrade the firmware, reset the system is maybe necessary.
2.1 Soft Reset(Warm Reset/Warm Boot)
When do you need to perform Soft Reset?
If there is no response for your command from the system, it calls (Hang-up). In this case, y
ou need to perform a soft reset. Soft reset will end programs and the user memory region
will be deleted, but installed programs and data, and so on, are not affected.
[Soft Reset Procedure]
Using the stylus pen to press <Reset> button briefly, the system will restarting again, after t
he screen turns off shortly.
[Soft Reset Result]
System will be restarting.
Operating System will be restarting (Windows CE).
Desktop will appear in about ten seconds.
User’s changed registry information, copied files and
Installed programs will be restored.
Reset Butto
Power Butto
2.2 Hard Reset(Cold Reset/Cold Boot)
When do you need to perform Hard Reset?
Hard Reset, which is also called Cold Reset, enables to initialize hardware completely. User’
s installed programs, copied files and registry values will keep remained even AT380 perform
ed Hard Reset, but the real time and date will be initialized. So you need to reset the time
and date after performed Hard Reset.
You need perform Hard Reset when the Soft Reset cannot restore the system.
[Hard Reset Procedure]
Using stylus pen to Press <Power> Button and <Reset> Button simultaneously, the system w
ill restarting again after the screen turns off shortly.
[Hard Reset Result]
System will be restarting.
Operating System (Windows CE or Mobile) will be loading and restarting.

User’s Guide
15
Desktop will appear in about ten seconds.
Time and date window will be popped up and need to reset it.
2.3 Initializing System
Enter [Boot Menu] and do what you want, when in the situations as below:
1. When you need to restore the original registry information, which has been changed.
2. When you need to initialize “My device” storage spaces.
3. When you need to initialize “Flash Disk” storage spaces.
4. When you need to initialize system to factory default settings.
You can also press <Power> button and <Fun> button simultaneously, and then press <Rese
t> button to perform Hard Reset.
[Boot Menu] window would appear in a couple of seconds.
Warning!
Except for [C l e a n ( W i t h o u t F l a s h ) ] , please do not use other functions.
The system might be work not properly if you use other functions on the [Boot
Menu].
[Boot Menu]
0 . F i r m w a r e U p g r a d e
1 . C l e a n ( W i t h o u t F l a s h )
2 . C l e a n ( W i t h F l a s h )
3 . E x i t
Menu Select : Enter NO.
[Boot Menu]
* * * * WA R N N I N G * * * *
Y o u r I n f o r m a t i o n
W i l l b e e r a s e d !
Back : <- BKS
Erase : Enter
Using<1>, <2> buttons to select Clean System, then press <Enter> button.
0 . Fi r m w a r e Up g r a d e – OS Update
1. Clean (Without Flash) – Initializing “Mydevice” region.
2. Clean (With Flash) – Initializing to factory default settings.
3. Exit

User’s Guide
16
3. Using Micro SD Card
The image as below is battery compartment of AT380, and there are 1EA SIM Card Slot an
d 1EA Micro SD Card Slot.
1 Micro SD Card Slot
You can find the Micro SD Memory Card icon when executing the file explorer, after the Micro
SD

User’s Guide
17
4. System Settings
4.1 Setting Brightness
Brightness is already set 80% at the factory, and brightness is the biggest consume part of the
power, so you might need to adjust it to your actual need.
[Setting Brightness]
1. [Start Button] -> [Setting] -> [Control Panel] -> [Brightn
ess]
2. [MyDevice] -> [Control Panel] -> [Brightness]
밝기:Enable you to adjust brightness.
끄기:Enable you to adjust the timing of turning off brightness.
키램프:Enable you to adjust the timing of turning off key lam
p.
4.2 Screen Calibration
At first beginning of using the device after purchasing or need to use the device for a long period time,
if you cannot select the place where you touched with stylus, you need to reset the coordinate
calibration values.
Touch screen calibration
[Start Button] -> [Setting] -> [Control Panel] -> [Stylus] -> [Calibration] -> [Recalibratio
n]
Press and hold stylus pen briefly on the center of cross symbol, and repeat 5 times as

User’s Guide
18
it moves around the screen. The screen counts 30 seconds after calibrating, and you ca
n finish the recalibration to touch screen wherever you want, if you do not any action, t
he screen will automatically finish the recalibration of itself.
4.3 Setting Volume and Sounds
Volumes is already set 80% at the factory, and you can readjust you need volume at control
panel ->”Volume and Sounds”
Setting Volume and Sounds
[Start Button] –> [Setting] -> [Control Panel] -> [Volume and Sounds]
4.4 Setting Data and Time
[Start Button] -> [Setting] -> [Control Panel] -> [Date and Time]
Setting Year:
Double Click the year, and
click the up and down ar
row button to set year.

User’s Guide
19
Setting Month:
Double Click the Month or
Click L/R arrow button to
set Month.
Setting Day:
Click the day directly to s
et day.
Setting Time:
Click AM/PM, Time area dir
ectly, using up and down
arrow button to set Time.
Setting Time Zone:
Click up and down arrow d
irection to select time zon
e and click apply button.

User’s Guide
20
5. Using keypad
Keypad enables you to input numbers, alphabets and special symbols. And can also execute other
set function with <Blue> and <Orange>buttons.
5.1 Using keypad
If you’d like to change the current input language, can press <Orange> button as below ste
ps:
[Numeric] -> [Lowercase] –> [Uppercase]
5.2 Inputting Data
Numeric Keypad Mode: Press<Orange> button or keypad icon on the taskbar to change to the
numeric mode and directly press number on the keypad.
Alphabet Keypad Mode: Press <Orange> button or keypad icon on the taskbar to change to the
Lowercase or Uppercase and directly press alphabets or special symbols on
the keypad. Each button has 2 ~ 3 letters or symbols. Press the button once,
the first letter or symbol will be inputted, press twice continuously, then the
second letter or symbol will be inputted, and the third letter or symbol need to
press button three times continuously.
5.3 Using <Blue> Button
Press <Blue> button and other buttons simultaneously can activate functions as below:
Blue + button Descriptions
<1> ~ <9> Enable you to input <F1>~<F9> Functions Keys.
<.>, <0>, <_> Enable you to input <+>, <000>, <–> symbols.
Click the input language icon
on the taskbar is also can chan
ge
