Atlantic Ultraviolet AeroLogic AERO-8 User manual

ultraviolet.com
375 Marcus Boulevard •Hauppauge, NY 11788 •USA
631.273.0500 •Fax: [phone]
e-mail: [email protected]
Extensive Product Information Available at:
Document No. 98-1389B1 • February 2011 • ©2009-2011 Atlantic Ultraviolet Corporation®

2
TABLE OF CONTENTS
SAFETY WARNINGS.....................................................................................................................................................3
SAFETY INSTRUCTIONS............................................................................................................................................3
PRODUCT APPLICATION...........................................................................................................................................4
CONSTRUCTION ............................................................................................................................................................4
PRINCIPLE OF OPERATION.............................................................................................................................................4
LIMITATIONS.................................................................................................................................................................4
UNPACKING...................................................................................................................................................................5
INSTALLATION .............................................................................................................................................................6
UNIT PLACEMENT.........................................................................................................................................................6
DIMENSIONAL DATA ..................................................................................................................................................7-8
AERO UNIT............................................................................................................................................................7
SIGHT GLASS..........................................................................................................................................................8
SIGHT GLASS LOCATION & INSTALLATION....................................................................................................................8
MOUNTING TEMPLATES - FULL SCALE..........................................................................................................................9
UNIT, LAMP AND QUARTZ SLEEVE INSTALLATION, REPLACEMENT ORCLEANING .......................................................11
PRECAUTIONS.............................................................................................................................................................12
MAINTENANCE...........................................................................................................................................................12
BREAKAGE .................................................................................................................................................................12
DISPOSAL OF MERCURY ADDED LAMP........................................................................................................................12
OPTIONALACCESSORIES.......................................................................................................................................12
TROUBLESHOOTING ...............................................................................................................................................13
TECHNICAL SPECIFICATIONS...............................................................................................................................13
REPLACEMENT PARTS.......................................................................................................................................14-15
USER ASSISTANCE.....................................................................................................................................................16
WARRANTY..................................................................................................................................................................16
PATENT NOTICE...........................................................................................................................................................16
The information and recommendations contained in this publication are based upon data collected by
the Atlantic Ultraviolet Corporation® and are believed to be correct. However, no guarantee or warranty
of any kind, expressed or implied, is made with respect to the information contained herein.
Specifications and information are subject to change without notice.
These instructions generally describe the installation, operation and maintenance of the AeroLogic®Air Duct
Disinfection Units . Questions that are not specifically answerable by these instructions should be directed to the factory.
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage.
Carefully inspect and report all damages. Do not install damaged equipment.
Follow all instructions on any labels or tags. Carefully inspect all packing materials before discarding to prevent
the loss of accessories, mounting hardware, spare parts or instructions.

3
SAFETY INSTRUCTIONS
WARNING: To guard against injury, basic safety precautions should be observed, including the following:
1. Read and follow ALL safety instructions.
WARNING: Avoid exposure to direct or strongly reflected germicidal ultraviolet rays.
Germicidal ultraviolet rays are harmful to the eyes and skin.
2. Intended for indoor use only.
3. Do not alter the construction or design.
4. Do not use this unit for other than its intended purpose, as described in this manual.
5. Do not mount under any source of moisture or condensation, such as humidifiers, cooling coils, etc.
6. Do not mount this unit so that ultraviolet light is visible after installation.
7. CAUTION: Germicidal ultraviolet rays may break down plastic, rubber or other non-metallic materials,
with inadequate resistance to ultraviolet. Shield all plastic, rubber or other non-metallic parts such as; plastic
drain pans, wire insulation, flex ducts, humidifiers, filters, etc. which may be exposed to direct or reflected
germicidal ultraviolet rays.
8. Do not remove any labels or devices.
9. CAUTION: Do not operate without proper electrical ground.
10. Do not operate the unit if there is visible or suspected damage to the unit or, if applicable, there is damage to
power cord and/or plug.
11. Utility power supplied, to the unit, MUST match power requirements listed on the unit label.
12. WARNING:Always disconnect power to the unit before performing any service or maintenance.
13. Read and follow all notices and warnings on the unit.
14. SAVE THESE INSTRUCTIONS.
!
!
!
!

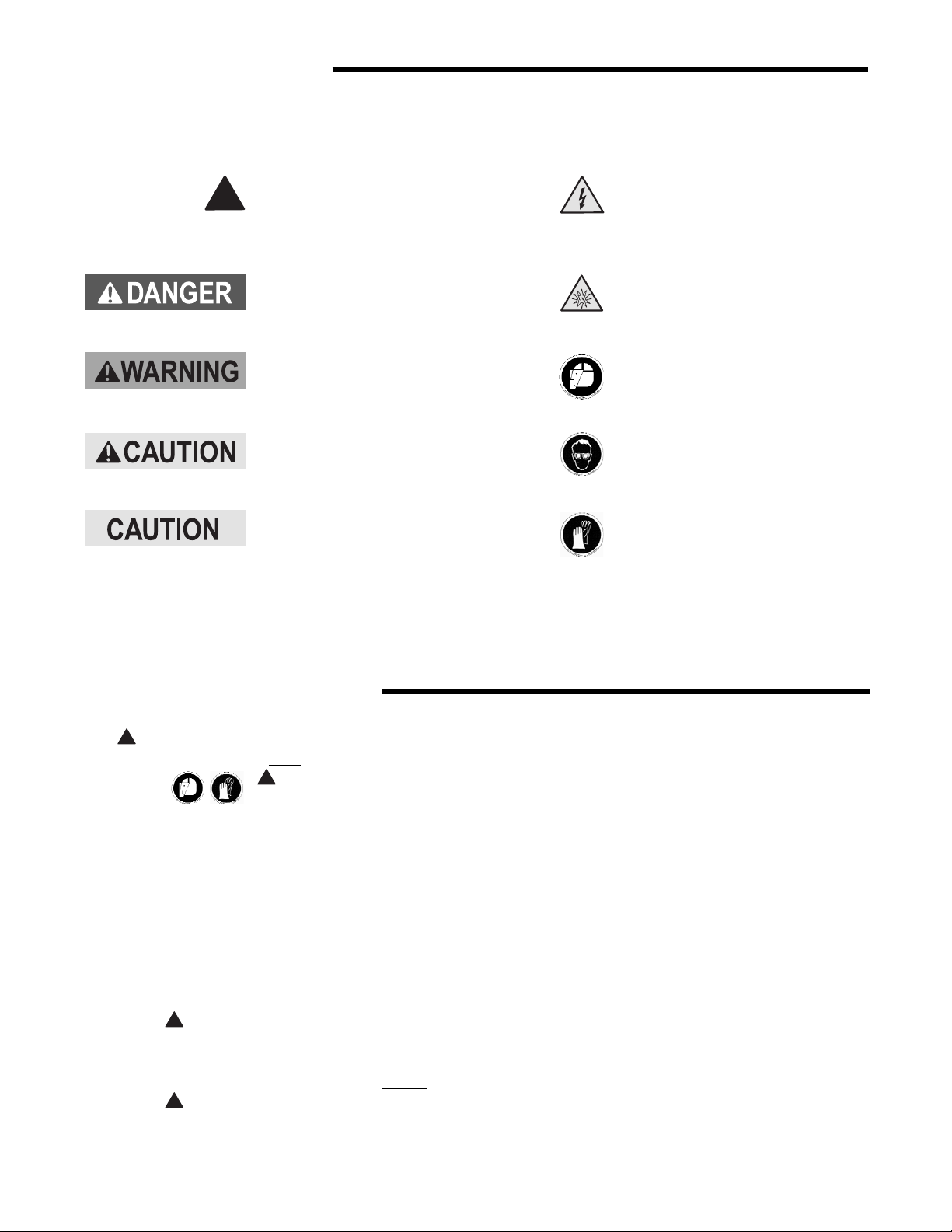

SAFETY WARNINGS
• All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit.
• The following conventions are used to indicate and classify precautions in this manual and on product safety
labeling. Failure to observe precautions could result in injury to people or damage to property.
!
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Danger indicates an IMMINENTLY
hazardous situation, which, if not avoided,
WILL result in death or serious injury.
Warning indicates a POTENTIALLY
hazardous situation, which, if not avoided,
COULD result in death or serious injury.
Caution indicates a POTENTIALLY
hazardous situation, which, if not avoided,
MAY result in minor or moderate injury.
Caution used without the safety alert
symbol indicates a potentially hazardous
situation, which, if not avoided, may result
in property damage.
This symbol/pictorial is used to identify
an ELECTRICAL SHOCK or
ELECTROCUTION hazard.
• Product safety labels should be periodically inspected and cleaned, as necessary, to maintain good legibility.
Always replace illegible safety labels. Contact factory to obtain replacement safety labels.
This symbol/pictorial is used to identify
an ULTRAVIOLET LIGHT hazard.
This symbol/pictorial is used to identify
the need to wear approved ultraviolet
resistant face shield.
This symbol/pictorial is used to identify
the need to wear approved ultraviolet
resistant eyewear.
This symbol/pictorial is used to identify
the need to wear protective gloves.

4
PRODUCT APPLICATION
CONSTRUCTION
The AeroLogic®Air Duct Disinfection Unit consists of:
• Quartz sleeve to protect and insulate the germicidal ultraviolet lamp. The quartz sleeve protects the ultraviolet
lamp from deposits of dirt and/or dust while insulating it from low air temperatures and the cooling affects of high
air velocities in the air duct.
• Germicidal ultraviolet lamp, which delivers ultraviolet energy at the specific wavelength of 254 nanometers (nm).
This wavelength is highly effective against microbes including: virus, bacteria, and mold spores.
• Electronic ballast (120v 50/60Hz or 220v 50/60Hz version available).
• All electronics and wiring are housed in an enclosure constructed of lightweight, anodized aluminum alloy. The
hard coat anodize offers an increased surface hardness, for durability, and corrosion resistance similar to that of
stainless steel.
• Water resistant power cord, rated for indoor/outdoor use (on 120v units)
• Liquid-tight cord grip form a “drip-proof” assembly.
PRINCIPLE OF OPERATION
The AeroLogic®line of Air Duct Disinfection Units have been carefully conceived to provide germicidal ultravio-
let exposure for air stream and surface disinfection. The dosage, as it applies to ultraviolet disinfection, is a function of
time, and the intensity, of ultraviolet radiation, to which the air stream and surface is exposed. The exposure time, in
seconds, is the total time it takes the air to move through the ultraviolet field, produced by the germicidal lamp(s).
Exposure time is related to the airflow rate; the higher the airflow, the lower the exposure time or the lower the airflow,
the higher the exposure time. The UV intensity is the amount of energy, per unit time, emitted by the germicidal lamp.
LIMITATIONS
• The AeroLogic®requires professional installation so all wiring complies with applicable state, local and
national electrical and mechanical codes.
•AeroLogic®requires knowledgeable planning for: location, installation, and supervision to prevent ultraviolet
exposure of personnel.
• Overexposure to germicidal ultraviolet rays will result in the irritation of the eyes and reddening of the skin. For
that reason, it is of the utmost importance that your ultraviolet application be carefully planned and implemented
so as to avoid exposure, of personnel, to direct or reflected ultraviolet rays.
• The American Conference of Governmental Industrial Hygienists (ACGIH) has established a Threshold Limit
Value (TLV) for occupational exposure to radiant ultraviolet energy.
• Currently the ultraviolet radiant exposure incident for unprotected eyes or skin should not exceed 0.2 microwatts
per square centimeter (µW/cm2)at 254 nanometers (nm) for an eight (8) hour period.
• Safety and maintenance procedures should be implemented to prevent accidental exposure of personnel, who
maintain the HVAC system. All work performed on the HVAC system must be monitored to insure that it does not
adversely impact the safety or effectiveness of the installation

5
UNPACKING
• Remove the AeroLogic®Air Duct Disinfection Unit from its shipping carton.
• Atlantic Ultraviolet Corporation takes all possible precautions when packaging this unit to prevent damage.
Carefully inspect the unit, power cord and plug for damage, report all damage immediately. Do not assemble or
operate if there is any damage, visible or suspected.
• The germicidal lamp and quartz sleeve, o-ring and Teflon®washer are packed separately, to ensure maximum
protection. Keep these items aside until ready for installation.
• Carefully inspect all packing materials to prevent the loss of accessories, mounting hardware, spare parts or
instructions.
• Do not discard packing materials until unit is assembled and check out is complete.
AeroLogic®AERO Kit includes:
• 1 - AERO Unit with Attached Line Cord
• 1 - Duct Mounting Hub with Gasket
• 4 - No. 8-18 x 3/4" Self-Drilling Screws
• 1 - Germicidal Ultraviolet Lamp
• 1 - Quartz Sleeve, O-ring and Teflon®Washer
• 1 - 1 inch Sight Glass Assembly
with 4 - No. 8-18 x 3/8" Self-Drilling Screws
• 1 - Operating Instructions
• 2 - Duct Warning Labels
Duct Warning Label (2 - supplied)

6
INSTALLATION
UNIT PLACEMENT
Proper unit placement is essential. To ensure safe and effective operation, the location should:
• Have enough duct width to mount unit with lamp perpendicular to airflow, with the longest duct length for
increased exposure time.
• Be on the supply air plenum, LOCATION A (preferred), or on the return air plenum, LOCATION B (alternate).
See Figure 1- Unit Replacement.
• Be able to support the weight of the AeroLogic®unit. If the duct construction does seem capable of supporting
the weight, the duct must be re-enforced, to support the weight, before installing.
• Have a properly grounded, electrical outlet within reach of the unit’s power supply cord.
• Not be mounted under any source of moisture or condensation, such as humidifiers, cooling coils, etc.
• Not be mounted near any duct openings, joints, seams, etc. If necessary, seal all openings, joints, seams, etc. using
aluminum tape or equivalent ultraviolet resistant material.
• Prevent exposure of any plastic, rubber or other non-metallic materials, with inadequate resistance to ultraviolet,
such as; plastic drain pans, wiring insulation, flex ducts, humidifiers, filters etc. If necessary, shield all plastic,
rubber or other non-metallic parts using aluminum tape, conduit, sheet metal or equivalent ultraviolet resistant
material.
• Be free of any components that would be damaged by or interfere with the installation.
• Be easily accessible for viewing lamp operation through the sight glass assembly.
• Be easily accessible and allow enough clearance for routine cleaning or maintenance.
• Be downstream from air filters. Dust particles will reduce the effectiveness of the unit.
Figure 1 - Unit Placement

7
DIMENSIONAL DATA - AERO
Figure 2 - Dimensional Data AERO

8
SIGHT GLASS LOCATION & INSTALLATION
The AeroLogic®Air Duct Disinfection Unit comes standard with a 1-inch Sight Glass Assembly, which is installed
separately. The ultraviolet blocking, sight glass allows for visual inspection of the lamps, without the need to remove
the unit from the duct.
1. Select a suitable location near the AeroLogic®installation.
2. Using the Sight Glass Mounting Cutout (See Figure 6 on page 9) mark the centers of the mounting holes and
clearance hole for the sight glass.
CAUTION: Mechanical hazard. Duct sheet metal has sharp edges.
Wear protective gloves when working on or around duct sheet metal.
3. Cut out the opening for the sight glass. Remove burrs and sharp edges where possible.
4. Using the supplied No. 8-18 x 3/8" long hardware, mount the sight glass assembly to the duct.
!
DIMENSIONAL DATA - SIGHT GLASS
Figure 3 - Sight Glass Dimensional Data

9
Figure 6 - Sight Glass Mounting Template - Full Scale
MOUNTING TEMPLATES
Figure 5 - AERO Mounting Template - Full Scale

10
(This page is intentionally blank)

11
UNIT, LAMP AND QUARTZ SLEEVE INSTALLATION, REPLACEMENT ORCLEANING
WARNING:Always disconnect power to the unit before performing any service or maintenance.
CAUTION: Ultraviolet lamp and quartz sleeve are easily damaged and may cause injury if broken.
Exercise care when handling.
1. Disconnect power to the HVAC system.
2. Using mounting hub, mark the centers (locations) of the four (4) 3/32" pilot holes and the 1 1/4" center hole.
Also see “Figure 5 - AERO Mounting Cutout” on page 9.
CAUTION: Mechanical hazard. Duct sheet metal has sharp edges.
Wear protective gloves when working on or around duct sheet metal.
3. Drill the appropriate holes as indicated on the mounting pattern. Remove burrs and sharp edges where possible.
4. Install the gasket and mounting hub to the duct using the supplied No. 8-18 x 3/4" mounting hardware.
5. Install lamp. The lamp socket is located inside the threaded end of the AeroLogic®base. To install; line up lamp
pins with lamp socket. Carefully press lamp pins into the socket until lamp is seated against the socket.
6. Moisten a clean, lint-free cloth with denatured alcohol and wipe the lamp.
Figure 4 - Lamp & Quartz Sleeve Installation
7. Install quartz sleeve.
a. Place o-ring approximately 3/4" to 1” from the open end of the quartz sleeve.
b. Carefully slide the quartz sleeve over the lamp, into the threaded base. The quartz sleeve will rest against
a shoulder in the mounting base. Slide the o-ring down until it is seated against the angled face of the base.
c. Slide the Teflon®washer over the quartz sleeve until it is resting against the o-ring.
d. Slide the nut over the quartz sleeve and tighten firmly (by hand only). Do not use hand tools! Tightening with
hand tools is likely to cause quartz sleeve to break.
8. Moisten a clean, lint-free cloth with denatured alcohol and wipe the quartz sleeve.
9. Fit AeroLogic®to the mounting hub, and tighten until secure.
10. Plug AeroLogic®into properly grounded, electrical outlet.
11. Restore power to the HVAC system.
WARNING: Avoid exposure to direct or strongly reflected germicidal ultraviolet rays.
Germicidal ultraviolet rays are harmful to the eyes and skin.
12. Verify operation by viewing lamp, use of personal protection equipment is required. If the unit is not operating
properly, go to “Troubleshooting” section on page 13.
13. While wearing protective eye wear, inspect HVAC system for any ultraviolet light leakage. No ultraviolet light
should be visible from any duct opening, joint, seam, etc. The installation can also be inspected using a sensitive
ultraviolet meter, to insure that the ultraviolet radiant exposure of personnel is within acceptable limits. If
necessary, seal any openings, joints, seams, etc. using aluminum tape or equivalent ultraviolet resistant material.
(See “Zenith™ Ultraviolet Meter” in the “Optional Accessories” section on page 12.)
!
!
!
!

12
OPTIONAL ACCESSORIES
1. The ZenithTM Ultraviolet Meter is a sensitive, hand-held, ultraviolet meter that can be used to:
• Survey installations to ensure that the germicidal ultraviolet radiant exposure, of personnel within the treated
area, is within acceptable limits. The ZenithTM Ultraviolet Meter provides accurate and easy-to-read levels of
intensity that may be interpreted by anyone - not just engineers.
• Check the intensity of aging ultraviolet lamps
The ZenithTM Part No. 30-0081-R is the recommended meter for this application.
2. Observation Port Sight Glass Assembly - Additional
A Sight Glass Assembly allows for visual inspection of the lamp, without the need to remove the unit from the duct.
1 - 1 inch Sight Glass Assembly is included with each unit. If needed, additional Sight Glass Assemblies are
available in 1 and 2 inch diameters.
MAINTENANCE
• The AeroLogic®is designed to operate with a minimal amount of maintenance.
• A regular cleaning cycle of the germicidal lamp and sight glass should be established, and carefully maintained,
based on inspection and experience. The frequency of cleaning will vary with the conditions surrounding each
installation. It is recommended that the ultraviolet lamp(s) be cleaned at least once every three (3) months.
• The germicidal ultraviolet lamp used in the AeroLogic®have a manufacturer's rated average effective life of
10,000 hours. Lamps may operate longer than their rated effective life, but the reduction in ultraviolet output will
make it impractical to use past the manufacturer's rated life. For maximum efficiency lamp replacement is
recommended every 10,000 hours of operation or about one (1) year of continuous use.
• Unless lamp replacement is due to failure or breakage, it is recommended that all lamps be replaced at the same time.
• For proper germicidal lamp and/or quartz sleeve replacement and cleaning procedure see “Lamp Installation,
Replacement Or Cleaning” on page 11.
WARNING:Always disconnect power to the unit before performing any service or maintenance.
BREAKAGE
CAUTION: Broken Quartz is SHARP.
Wear protective gloves when handling broken ultraviolet lamps or quartz sleeves.
In the event of breakage, DO NOT use a household vacuum cleaner to pick up quartz fragments.
Sweep up debris into a plastic bag and dispose of properly.
DISPOSAL OF MERCURY ADDED LAMPS
Germicidal ultraviolet lamps, like standard fluorescent lamps contain small amounts of mercury. Mercury
added lamps should not be placed in the trash. Dispose of properly.
For further information regarding the disposal and recycling of lamps containing mercury, along with
Federal and State requirements visit http://www.lamprecycle.org. Product Data Sheets for germicidal
ultraviolet lamps can be found in the “PDF Library for STER-L-RAY® Germicidal Ultraviolet Lamps” section
of http://www.ultraviolet.com.
!
!
PRECAUTIONS
• The AeroLogic®must be disconnected from power whenever anyone works on the HVAC system. Anyone
who works in and around the system should be briefed on the precautions to be observed.
• The HVAC system should be re-inspected for any ultraviolet light leakage whenever any maintenance or
modifications are performed.
• If there are any doubts or concerns about the safety or the effectiveness of the installation, or if a sensitive
ultraviolet meter is required, please contact our application specialists.

13
TECHNICAL SPECIFICATIONS
Current (A) Lamp Ultraviolet Length:
Model No: 120v 220v Lamp Model: Power Output: (into duct)
AERO-8 .12A .10A 05-1119-R 10W 2.3W 7 5/32-in.
AERO-12 .16A .16A 05-1366-R 14W 3.7W 10 7/64-in.
AERO-14 .21A .17A 05-0218-R 17W 5.8W 14-in.
AERO-16 .22A .19A 05-1370-R 21W 6.4W 15 31/32-in.
AERO-18 .23A .20A 05-1523-R 22W 6.9W 17 1/32-in.
AERO-20 .25A .23A 05-0117-R 25W 8.5W 20-in.
AERO-24 .27A .26A 05-0097-R 29W 9.7W 23 7/32-in.
AERO-26 .30A .29A 05-0219-R 32W 11.2W 26-in.
AERO-32 .32A .36A 05-1382-R 39W 13.8W 32-in.
AERO-44 .50A .46A 05-0197-R 50W 19.3W 44-in.
cUltraviolet output at 254nm at 100 hours and 80°F (approximate).
c
Table 2 - Technical Specifications
All specifications, dimensional data, etc. are approximate and subject to change without notice.
TROUBLESHOOTING
WARNING: Always disconnect power to the unit before performing any service or maintenance.
•IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel.
Table 1 - Troubleshooting
!
Use personal protection equipment, such as gloves; long sleeves with no gaps between cuffs
and gloves, and ultraviolet resistant face shield, if troubleshooting AeroLogic®.
Problem Possible Cause Corrective Action
No electrical power… Verify that the unit is connected to a live power source.
Germicidal lamp not Confirm connection of lamp and lamp socket, make sure
properly seated… connection is tight and lamp is making full contact with
lamp socket.
Germicidal lamp faulty… Replace lamp.
Ballast not functioning… Replace ballast.
Unit not operating.
Germicidal lamp not
operating.

14
REPLACEMENT PARTS

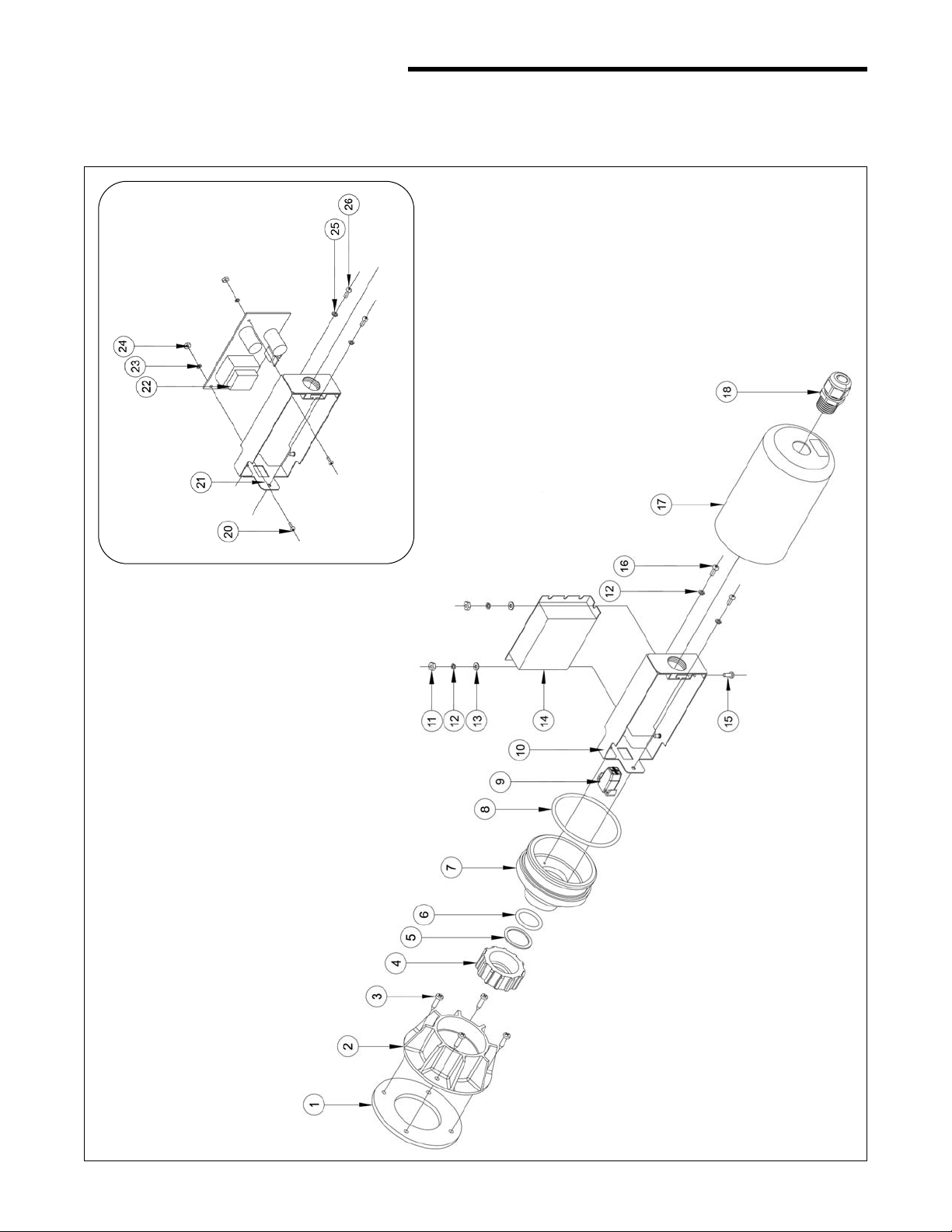

Figure 7 - Exploded View
220v
120v

15
ITEM NO. DESCRIPTION QTY PART NO.
1 Gasket - Mounting Hub 1 40-6018A
2 Mounting Hub: 1 40-6005A
3 Screw: 8-18x3/4" Pan Head 4 50-0400
4 Nut: AeroLogic®Mini 1 40-6002A2
5 Teflon®Washer 1 00-0229A
6 O-Ring 1 00-0116
7 Base: AeroLogic®Mini 1 40-6001A2
8 O-Ring 1 00-2233
9 Lamp Socket: 4 Pin Snap-In 1 35-1124A
10 Chassis Assembly: 120v 1 40-6028A
11 Nut: 6-32 Finish Hex 2 50-1178
12 Washer: No. 6 Lock 4 50-1393
13 Washer: No. 6 Flat 2 50-1402
14 Ballast: 120v 1 10-0150
15 Screw: 6-32 x 1/2" Philips 1 50-0155
16 Screw: 6-32 x 3/8" Philips 2 50-0061
17 Cover AeroLogic®Mini 1 40-6015
18 Strain Relief: Liquid Tight 1 35-0052
19 Line Cord: 120v 1 35-1046
Line Cord: 220-240v 1 35-1452
20 Screw: 4-40 x 1/4" Philips 2 50-1006
21 Chassis Assembly: 220v 1 40-6042A
22 Ballast: 220v 1 35-0219A-R
23 Washer: No. 4 Lock 2 50-0017
24 Nut: 4-40 Finish Hex 2 50-1186
25 Washer: No. 6 Lock 2 50-1393
26 Screw: 6-32 x 3/8" Philips 2 50-0061
REPLACEMENT PARTS
Table 3 - Replacement Parts
Other replacement parts are available. Consult the factory with specific requirements.
GERMICIDAL QUARTZ
MODEL LAMP SLEEVE
AERO-8 05-1119-R 15-6101A
AERO-12 05-1366-R 15-6102A
AERO-14 05-0218-R 15-6103A
AERO-16 05-1370-R 15-6104A
AERO-18 05-1523-R 15-6105A
AERO-20 05-0117-R 15-6106A
AERO-24 05-0097-R 15-6107A
AERO-26 05-0219-R 15-6108A
AERO-32 05-1382-R 15-6109A
AERO-44 05-0197-R 15-6110A
Table 4 - Replacement - Lamps - Quartz Sleeves

16
WARRANTY
We warrant that this product will be free from defects in material and workmanship for a period of one year
from the date of shipment thereof or the product’s total rated life, whichever first occurs. Within the warranty
period we shall repair or replace such products, which are returned to us with shipping charges prepaid, and
which are determined by us to be defective. This warranty will not apply to any product, which has been sub-
jected to misuse, negligence, or accident; or misapplied; or modified; or repaired by unauthorized persons; or
improperly installed.
The Buyer shall inspect the product promptly after receipt and shall notify us at our main office in writing of
claims, including claims of breach of warranty, within thirty (30) days after the Buyer discovers or should have
discovered the facts upon which the claim is based. Failure of the Buyer to give written notice of a claim within
the time period shall be deemed to be a waiver of such claim.
The provisions of the above warranty are our sole obligation and exclude all other remedies or warranties,
expressed or implied, including warranties of merchantability and fitness for a particular purpose, whether or not
purposes or specifications are described herein. We further disclaim any responsibility whatsoever to the cus-
tomer, or to any person, for injury to person, damage to, or loss of property or value caused by any product
which has been subjected to misuse, negligence, accident; or modified or repaired by unauthorized persons; or
improperly installed.
Under no circumstances shall the Company be liable for any incidental, consequential or special damages,
losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use,
our product for any purpose whatsoever.
PATENT NOTICE
No attempt has been made to determine the patent status of applications illustrated or described in this publi-
cation. Inclusion in this publication of any design or method of use, which may be patented, is not to be con-
strued as promoting or sanctioning unauthorized use.
USER ASSISTANCE
Purchased From: Date:
Model: Serial No.:
Atlantic Ultraviolet Corporation
makes every effort to ensure that
the AeroLogic®Air Duct
Disinfection Units are products of
superior quality and workmanship.
This manual describes the installa-
tion, operation and maintenance of
the AeroLogic®Air Duct
Disinfection Units.
Please read and become familiar
with the contents of this manual
before installing or using the
AeroLogic®. If after reading the
manual you still have questions, or
concerns, regarding the installation
or use of this system, contact our
offices, weekdays between 8:30 am
and 5:00 pm Eastern time, at:
Atlantic Ultraviolet Corporation
375 Marcus Boulevard
Hauppauge, New York, 11788
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.ultraviolet.com
Please REGISTER your product immediately - you can do this in a number of ways. Go online to
Ultraviolet.com and on the bottom left of each page either click on “Fill out Warranty Reg. Form on-line!” com-
plete and hit submit or click on “Download a PDF of the Warranty Reg. card” which you can print, fill out and
mail in. If you prefer to register over the telephone please call 631-273-0500.
Atlantic Ultraviolet Corporation takes considerable care when packaging equipment to prevent damage.
Carefully inspect and report all damage. Do not install damaged equipment. Follow all instructions in this
manual and on any labels or tags. Carefully inspect all packing materials before discarding to prevent the loss
of accessories, mounting hardware, spare parts or instructions.
For your convenience, record the following information below. The model and serial number can be found
on a label located on the AeroLogic®Air Duct Disinfection Unit. Keep this manual, along with proof of
purchase, handy when contacting our offices.
