Atlantic Ultraviolet MIN-1 User manual

375 Marcus Boulevard •Hauppauge, NY 11788 •USA
631.273.0500 •Fax: [phone]
e-mail: [email protected]
Extensive Product Information Available at:
www.ultraviolet.com
Document No. 98-1140A4 • Revised February 2007 • ©1994-2007 Atlantic Ultraviolet Corporation

2
TABLE OF CONTENTS
SAFETY WARNINGS.....................................................................................................................................................3
SAFETY INSTRUCTIONS............................................................................................................................................3
PRODUCT APPLICATION...........................................................................................................................................4
CONSTRUCTION ............................................................................................................................................................4
PRINCIPLE OF OPERATION.............................................................................................................................................4
LIMITATION OF USE......................................................................................................................................................4
WATER QUALITY ..........................................................................................................................................................4
INSTALLATION .............................................................................................................................................................5
LOCATION.....................................................................................................................................................................5
DIMENSIONAL DATA .....................................................................................................................................................5
INSTALLATION...............................................................................................................................................................6
RECOMMENDED OPTIONS..............................................................................................................................................7
MAINTENANCE.............................................................................................................................................................7
INSPECTION ..................................................................................................................................................................7

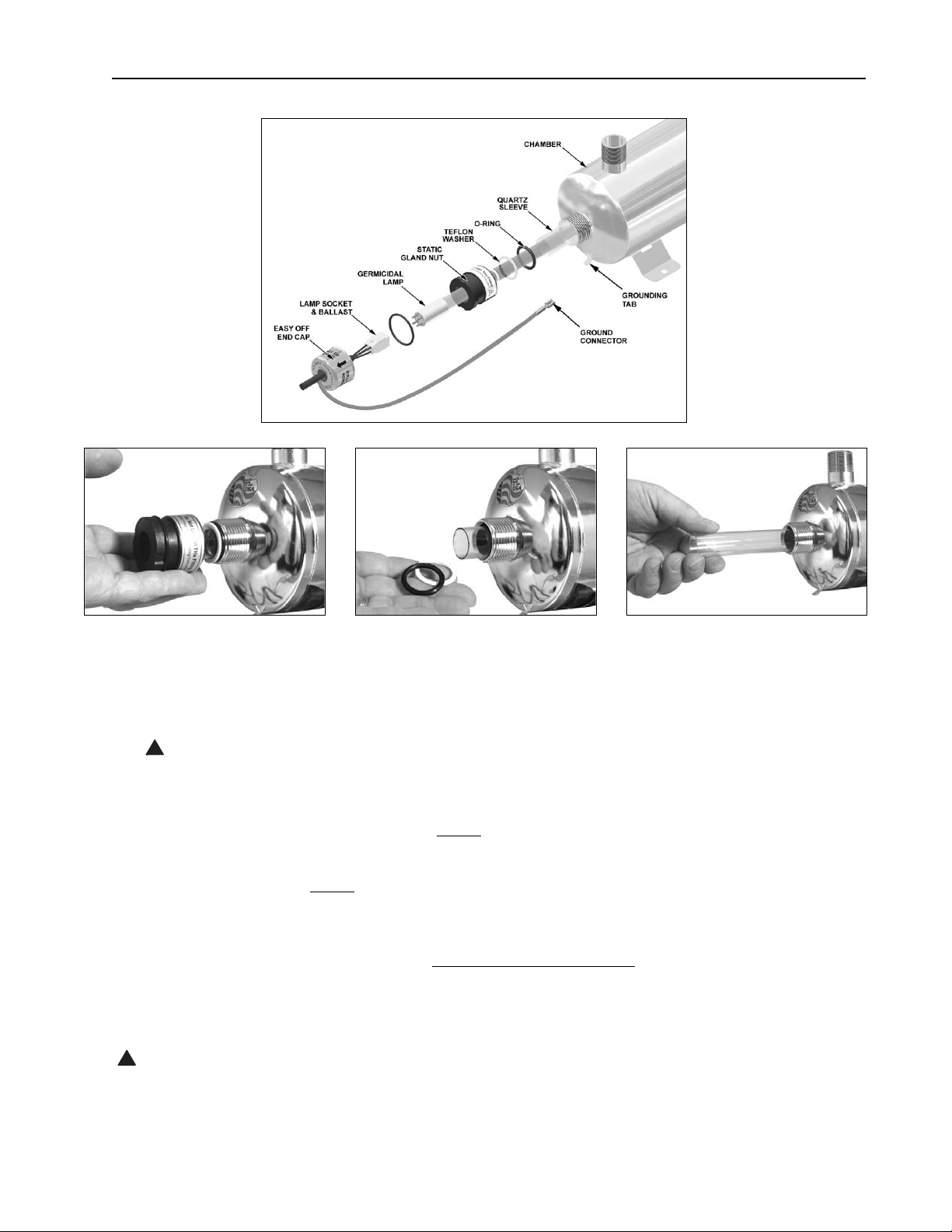

LAMP INSTALLATION ORREPLACEMENT .......................................................................................................................8
QUARTZ SLEEVE CLEANING OR REPLACEMENT.............................................................................................................9
REPLACEMENT OF BROKEN QUARTZ SLEEVE ..............................................................................................................10
DISPOSAL OF MERCURY ADDED LAMP........................................................................................................................10
LAMP-OUT PROTECTION.............................................................................................................................................10
TROUBLESHOOTING................................................................................................................................................11
TECHNICAL SPECIFICATIONS...............................................................................................................................12
OPTIONALACCESSORIES.......................................................................................................................................13

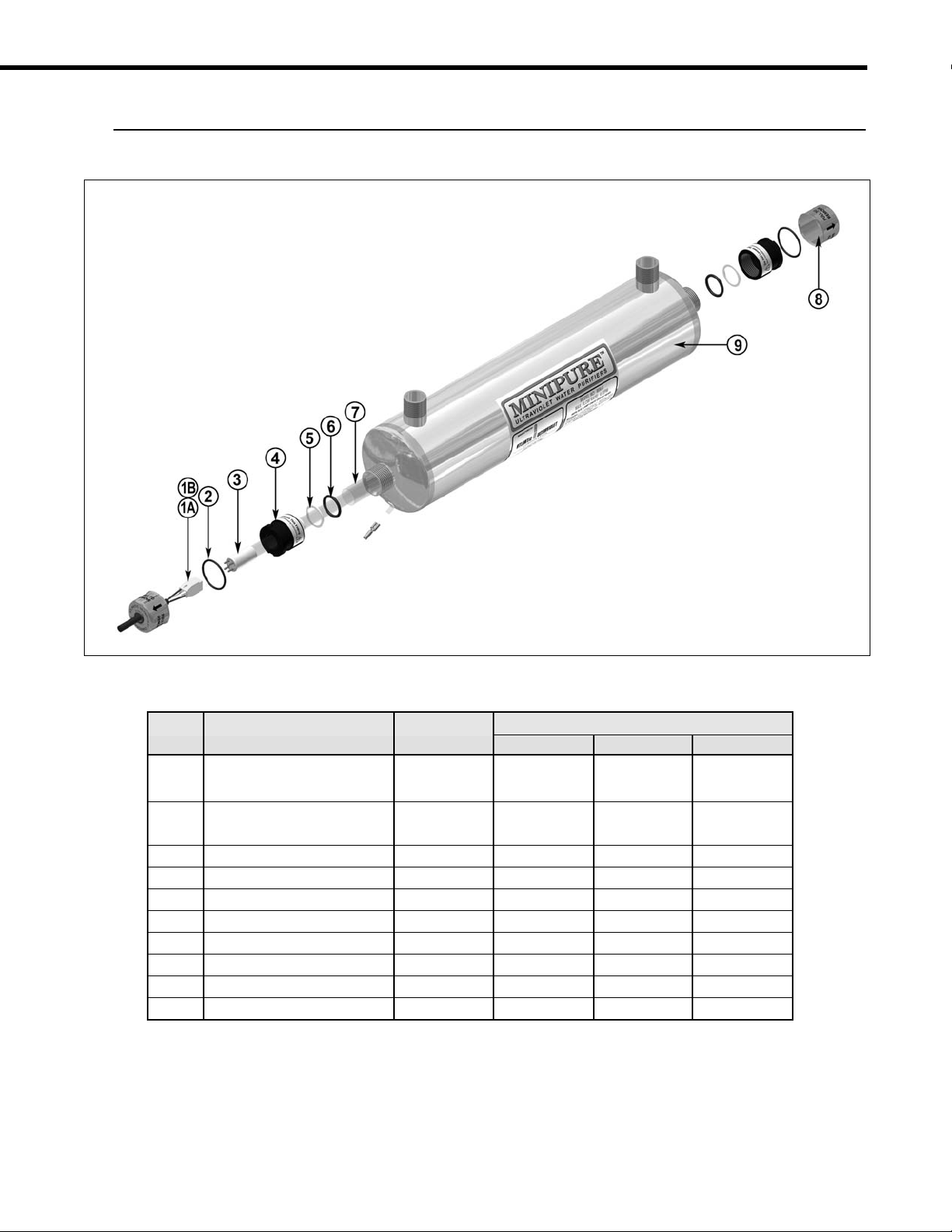

REPLACEMENT PARTS.......................................................................................................................................14-15
MINIPURE™MODELS MIN-1, MIN-1.5..............................................................................................................14
MINIPURE™MODELS MIN-3, MIN-6 & MIN-9.................................................................................................15
USER ASSISTANCE.....................................................................................................................................................16
WARRANTY..................................................................................................................................................................16
PATENT NOTICE...........................................................................................................................................................16
These instructions generally describe the installation, operation and maintenance of the
MINIPURE™line of water purifiers, Models MIN-1, MIN-1.5, MIN-3, MIN-6 and MIN-9.
Questions that are not specifically answered by these instructions should be directed to the Factory.
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to
prevent damage. Carefully inspect and report all damage upon receipt of product. Do not install
damaged equipment.
Follow all instructions on all labels and tags. Carefully inspect all packing materials before
discarding to prevent the loss of accessories, mounting hardware, spare parts or instructions.

3
SAFETY INSTRUCTIONS
WARNING: To guard against injury, basic safety precautions should be observed, including the following:
1. Read and follow ALL safety instructions.
2. Do not use this water purifier for other than its intended purpose as described in this manual.
3. Do not alter design or construction.
4. DANGER: To prevent the risk of severe or fatal electrical shock, special precautions must be
taken since water is present near electrical equipment.Always disconnect power before performing
any maintenance.
5. WARNING: Avoid exposure to direct or strongly reflected germicidal ultraviolet rays.
Germicidal ultraviolet rays are harmful to the eyes and skin.
6. Intended for indoor use only. The water purifier should be protected from the elements and from
temperatures below freezing.
7. Do not operate water purifier if power cord or plug is damaged.
8. Electrical power supplied, to the water purifier, MUST match power requirements listed on the
water purifier.
9. Plug the water purifier into an approved ground fault circuit interrupt (GFCI) receptacle.
10. CAUTION: Do not operate without proper electrical ground.
11. Do not exceed water purifier’s maximum rated flow capacity.
12. Do not exceed maximum operating pressure of 100 PSI.
13. Read and follow all notices and warnings on the water purifier.
14. SAVE THESE INSTRUCTIONS.
!
!
!
!
SAFETY WARNINGS
• All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit.
• The following conventions are used to indicate and classify precautions in this manual and on product safety
labeling. Failure to observe precautions could result in injury to people or damage to property.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Danger indicates an IMMINENTLY hazardous situation, which, if not avoided,
WILL result in death or serious injury.
Warning indicates a POTENTIALLY hazardous situation, which, if not avoided,
COULD result in death or serious injury.
Caution indicates a POTENTIALLY hazardous situation, which, if not avoided,
MAY result in minor or moderate injury.
Caution used without the safety alert symbol indicates a potentially hazardous
situation, which, if not avoided, may result in property damage.
This symbol/pictorial is used to identify an ELECTRICAL SHOCK or
ELECTROCUTION hazard.
This symbol/pictorial is used to identify an ULTRAVIOLET LIGHT hazard.
• Product safety labels should be periodically inspected and cleaned, as necessary, to maintain good legibility.
Always replace illegible safety labels. Contact factory to obtain replacement safety labels.
!

4
PRODUCT APPLICATION
CONSTRUCTION
• The water purifier is designed to mount horizontally.
• The water purifier chamber is passivated and electropolished Stainless Steel Type 304.
• Easy-off end caps allow for quick and easy lamp change, without disconnecting from the water supply or draining
the purifier. No tools are required.
PRINCIPLE OF OPERATION
The MINIPURE™design has been carefully conceived to provide adequate germicidal dosage throughout the
disinfection chamber. The dosage, as it applies to ultraviolet disinfection, is a function of time and the intensity of
ultraviolet radiation to which the water is exposed. The exposure time, in seconds, is the total time it takes the water to
flow through the disinfection chamber exposing it to the germicidal lamp. Exposure time is related to the flow rate; the
higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The
ultraviolet intensity is the amount of energy, per unit time, emitted by the germicidal lamp. The Dosage is the product
of ultraviolet intensity and the exposure time. The operation of the MINIPURE™is as follows:
1. Water enters the purifier and flows into the annular space between the quartz sleeve and the chamber wall.
2. Suspended microorganisms are exposed to the ultraviolet rays emitted by the germicidal lamp.
3. The LED indicator light, located on the ballast, provides visual indication of germicidal lamp operation.
4. Water leaving the purifier is instantly ready for use, no further contact time is required.
LIMITATION OF USE
The water purifier is intended for the use with visually clear water, not colored, cloudy or turbid.
See “Water Quality” section below.
The water purifier is NOT intended for the treatment of water that has an obvious contamination or intentional source,
such as raw sewage; nor is the unit intended to convert wastewater to microbiologically safe drinking water.
WATER QUALITY
Water quality plays a major role in the transmission of germicidal ultraviolet rays. It is recommended that the water
does not exceed the following maximum concentration levels:
Table 1 - Maximum Concentration Levels
Effectively treating water with higher concentration levels than listed above can be accomplished, but may require
added measures to improve water quality to treatable levels. If, for any reason, it is believed the ultraviolet transmission
is not satisfactory, contact the factory.
Turbidity: 5 NTU
Manganese: 0.05mg/l
Total Suspended Solids: 10 mg/l
pH: 6.5 - 9.5
Color: None
Hardness: 6 GPG or 102.6 PPM
Iron: 0.3 mg/l

5
Table 2 - MINIPURE™ Dimensional Data
Model: A B C D E F Inlet/Outlet
MIN-1 7-1/8" 10-7/8"3-
1/8"2- 1/2" 10-3/8"3- 5/8"1/4"F NPT
MIN-1.5 10-1/8" 15-13/32"3-
1/8"2- 1/2" 14-15/16"3- 5/8"1/4"F NPT
MIN-3 8-3/4" 13-3/8"5-
3/4"4- 1/4" 12-7/8"5- 3/8"3/4"m NPT
MIN-6 14-3/4" 22-17/32"5-
3/4"4- 1/4" 22" 5-3/8"3/4"m NPT
MIN-9 21-7/8" 29-17/32"5-
3/4"4- 1/4" 29" 5-3/8"3/4"m NPT
Figure 2 - MIN-3, MIN-6 & MIN-9 Dimensional Drawing
INSTALLATION
LOCATION
1. The water purifier is intended for indoor use only. The water purifier should be protected from the elements and
from temperatures below freezing. The ambient temperature, in the area surrounding the water purifier, should be
between 33F and 100F.
2. Electrical power supplied to the water purifier MUST match power requirements listed on the water purifier. Use
of a voltage surge protector is recommended.
3. The water purifier should be located in a dry, well-lit area, which provides enough room to perform routine
maintenance. This includes a minimum distance of one chamber length from the chamber end, to allow for
cleaning and/or the changing of the lamp and quartz sleeve as well as a minimum of 6" on the opposite end of the
water purifier.
4. The water purifier should always be located closest to the point of use. This reduces the chance of the purified
water being re-contaminated by bacteria in the water distribution system after the water purifier.
5. CAUTION: As with any water handling device, the water purifier should be located in an area where any possible
condensation or leakage from the water purifier, any purifier accessory and/or plumbing will not result in damage
to the area surrounding the water purifier. For added protection, it is recommended that a suitable drain pan be
installed under the purifier. The drain pan must be plumbed to an adequate, free flowing, drain to prevent water
damage in the event of a leak. There are numerous leak detection/flood stop devices, available on the market today,
designed to stop the flow of water, reducing the chance of water damage due to leakage. For more details regard-
ing leak prevention and/or limiting damages due to leaks, please contact the factory.
6. The water purifier should be located after all other water devices, such as De-ionizers, Water Softeners, Carbon
Filters, Pre-Filters, Reverse Osmosis, Pressure Tanks, and Pumps. This reduces the chance of the purified water
being re-contaminated by bacteria in any of these units.
DIMENSIONAL DATA
Figure 1 - MIN-1 & MIN-1.5 Dimensional Drawing

66
INSTALLATION
1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if
there is any damage to the purifier, power cord or plug. All models, of the MINIPURETM line of water purifiers, are
shipped with the lamps packed separately. Keep the lamp aside for installation once the purifier has been properly installed.
2. Units occasionally experience damage in shipment due to the fragility of the quartz sleeve. It is therefore
recommended to inspect the water purifier for damage to the quartz sleeve after it has been removed from the
shipping carton. Each end of the unit as well as the inlet and outlet should be viewed to see if the quartz sleeve has
experienced damage. If the quartz sleeve shows signs of damage it should be replaced before the purifier is
pressurized. See “QUARTZ SLEEVE CLEANING OR REPLACEMENT” in the “MAINTENANCE” section for the
proper method of replacing the quartz sleeve in your water purifier.
Figure 1 - Recommended Installation
3. The water purifier should be mounted horizontally on a flat dry surface. The purifier should not be solely supported by its
plumbing connections. Securing the water purifier using the optional wall universal bracket kit is recommended.
4. The water purifier must be connected to the cold water line only.
5. It is recommended that a 5-micron sediment filter be installed, in line, prior to the water purifier. The sediment filter will
stop or trap any particulates from entering the water purifier. Particulates may cause damage to the quartz sleeve, as well
as interfere with the purifier’s ability to disinfect the water. The sediment filter may also help to reduce the amount of
routine cleaning of the quartz sleeve.
6. Shut off valves should be installed on both the inlet and outlet sides of the water purifier. The use of bypass valves is not
recommended. The shut off valves allow the purifier to be isolated from the water supply, which is required when
removing the quartz sleeve.
7. Unions should be installed on both the inlet and outlet of the water purifier; this will allow easy removal of the water
purifier from the plumbing, if required. Apply Teflon®tape to threads of inlet and outlet ports to ensure a tight seal.
8. When all plumbing connections are complete, allow water to enter the water purifier at a low flow rate, until the purifier is
pressurized. With the purifier pressurized, it should be checked for leaks. Once it is determined that there are no leaks, the
inlet valve can be fully opened.
9. Unpack the lamp and ballast. While holding lamp end, carefully push lamp socket on. Carefully slide lamp straight into
the quartz sleeve, without angling. Push the end cap on, over the static gland nut. Attach the ground connector to the
grounding tab of the chamber.
CAUTION: Lamp and quartz sleeve are easily damaged. Exercise care when installing lamp.
10. Plug ballast into an approved Ground Fault Circuit Interrupt (GFCI) receptacle. Where a 2-prong or unprotected 3-prong
receptacle is encountered, it must be replaced by a properly grounded Ground Fault Circuit Interrupt (GFCI) receptacle.
Installation must be in accordance with the National Electrical Code and any local codes and ordinances by a qualified
Electrician.
11. Once the plumbing hook ups are made, it is a good practice to disinfect the “downstream” plumbing. This is done by
introducing chlorine or other disinfectant solution directly into the purifier chamber, a 100-ppm of chlorine is suggested.
With the disinfectant solution in the purifier chamber, turn the ultraviolet purifier on. Open the “downstream” outlet until a
chlorine odor is noticed. Close the outlet and allow the disinfectant to remain in the plumbing for at least three (3) hours.
Flush the plumbing with ultraviolet purified water; allow the water to run for several minutes before use, this will allow
the ultraviolet lamp to reach its full germicidal output.
!
°
Incoming
Water
Supply
COMMON
PRE-TREATMENT or
PUMPING DEVICES
1. Deionizer
2. Water Softener
3. Carbon Filters (GAC)
4. Pressure Tank
5. Pump
6. Reverse Osmosis
7. Prefilters
Cold Water Line
Ultraviolet Water Purifiers
should be installed closest
to the point of use. (POU)
5 Micron
Filter
Valve
Union
Elbow
Elbow
OPTIONAL EQUIPMENT
Flow Control Valve POINT OF USE (POU)
Ultraviolet Water Purifiers
should be installed closest
to the point of use.
Ultraviolet
Water Purifier
Outlet Line to point of use
to be as short as possible
Recommended Minimum
Clearance for Lamp or
Quartz Sleeve Removal
W
W
W
W
Union
W
W
"X"
W
W
W
W
W
W
Valve
OPTIONAL EQUIPMENT
Mounting Kit
W
W

7
RECOMMENDED OPTIONS
1. Sentry™Safety Sensor: Pilot lamps provide constant visual monitoring of normal operation. In the event of
power or lamp failure the safety sensor indicates an alarm condition. The safety sensor is capable of operating an
optional audio alarm and/or solenoid valve.
2. Audio Alarm: Activated by the Safety Sensor, alerts the user to any malfunction detected.
3. Time Delay Mechanism: Provides a 2-minute warm up period during which the ultraviolet lamp achieves its full
germicidal output before the water is allowed to flow through the water purifier. The time delay mechanism is used
in conjunction with, and is electrically connected to the Solenoid Valve.
4. Solenoid Valve: Operated in conjunction with the Safety Sensor or Time Delay Mechanism, this valve prevents
water flow through the water purifier when an abnormal condition is detected or in the event of power failure.
5. SureFLO™:Flow Control Valve, limits water flow to the rated capacity of the purifier. The flow control valve is
located in line prior to the water purifier, and should be protected from ultraviolet exposure by the use of a 90-
degree elbow fitting between the flow control valve and the water purifier.
6. Elapsed Time Indicator: A non-resettable display of the water purifier operating hours. Useful for scheduling and
recording maintenance and lamp replacement.
MAINTENANCE
The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not
exceed maximum concentration levels, see “WATER QUALITY” in the “PRODUCT APPLICATION” section.
Ordinary maintenance consists of;
• Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service.
• Cleaning of the quartz sleeve, when conditions warrant.
• Always disconnect the water supply and completely drain the water purifier if it will be subjected to
temperatures below freezing, for extended periods of time.
INSPECTION
1. Regularly inspect the water purifier to ensure that the germicidal lamp is still in operation.
• An LED indicator light, located on the ballast, provides visual indication of germicidal lamp operation.
This provides an indication of lamp operation and does not indicate the level of ultraviolet intensity or
transmission through the water.
• On purifiers so equipped, the Sentry™Safety Sensor provides visual indication of ballast and ultraviolet
lamp operation.
2. To ensure proper operation of the water purifier, regular biological testing should be performed on a schedule
recommended by local public health authorities, or at minimum; at installation, quarterly for the first year of
service and annually, at lamp replacement, for the life of the water purifier.

8
LAMP INSTALLATION OR REPLACEMENT
Figure 2 - Lamp Replacement
1. Disconnect power to water purifier, and remove ground connector from the chamber.
2. Remove easy-off end cap by pulling cap off static gland nut.
3. Carefully withdraw lamp approximately 2 inches from chamber. While holding lamp end, remove lamp socket
from exposed lamp end.
4. Carefully withdraw lamp from chamber. Be sure to withdraw lamp straight out without angling until completely
clear of quartz sleeve.
CAUTION: Lamp and quartz sleeve are easily damaged. Exercise care when removing or
replacing lamp.
5. Reinstall lamp in reverse order.
WARNING: Germicidal ultraviolet rays are harmful to eyes and skin. Do not restore power to
water purifier until lamp and easy-off end caps have been properly reinstalled.
!
!
Step 1 - Remove Ground Connector Step 2 - Remove End-Cap
Step 3 - Remove Socket Step 4 - Remove Lamp

9
1. Disconnect power to water purifier, and remove ground connector from the chamber.
2. Shut off water supply to water purifier via inlet and outlet shut off valves and drain chamber, if possible.
3. Follow the steps in “LAMP INSTALLATION OR REPLACEMENT” to remove lamp.
CAUTION: Lamp and quartz sleeve are easily damaged. Exercise care when removing or replacing lamp.
4. Unscrew static gland nuts from each end of the chamber. Avoid striking quartz sleeve with static gland nut.
5. Remove Teflon®washer and o-ring from both ends of quartz sleeve. Teflon®washer will sometimes remain
within the static gland nut. If so, remove Teflon®washer from static gland nut before proceeding.
6. Carefully remove quartz sleeve from chamber. NOTE: It is advisable to support the quartz sleeve on the backside
with your finger so that it does not drop to the bottom of the chamber as it slides into the chamber.
7. Once the quartz sleeve is removed, clean with alcohol or a detergent. Stubborn stains usually can be removed with
a dilute hydrochloric acid. NOTE:Follow all manufacturer's instructions and precautions when handling
chemicals.
8. Reassemble in reverse order. Make sure the quartz sleeve protrudes an equal distance past each threaded nipple.
Be sure O-rings are placed on quartz sleeve before Teflon®washer.
9. Tighten static gland nuts firmly by hand only, DO NOT USE HAND TOOLS. Tightening with hand tools is likely
to cause quartz sleeve to break.
10. When all connections are complete allow water to enter the water purifier at a low flow rate until the purifier is
pressurized. With the purifier pressurized, it should be checked for leaks.
11. If no leaks occur, reinstall lamp, following the steps in “LAMP INSTALLATION OR REPLACEMENT” section.
WARNING: Germicidal ultraviolet rays are harmful to eyes and skin. Do not restore power to
water purifier until lamp and both easy-off end caps have been properly reinstalled.
!
!
QUARTZ SLEEVE CLEANING OR REPLACEMENT
Figure 3 - Quartz Sleeve Cleaning or Replacement
Step 4 - Remove Gland Nuts Step 6 - Remove Quartz Sleeve
Step 5 - Remove Washer & O-Ring

10
REPLACEMENT OF BROKEN QUARTZ SLEEVE
CAUTION: Broken Quartz is SHARP. It is recommended that protective goggles and gloves
are worn when handling broken quartz sleeves.
1. Disconnect power to water purifier, and remove ground connector from the chamber.
2. Shut off water supply to water purifier via inlet and outlet shut off valves and drain chamber, if possible.
3. Follow the steps in “LAMP INSTALLATION OR REPLACEMENT” to remove lamp.
4. Unscrew static gland nuts from each end of the chamber. Avoid striking quartz sleeve with static gland nut.
5. Remove Teflon®washer and o-ring from both ends of quartz sleeve. Teflon®washer will some times remain
within the static gland nut. If so, remove Teflon®washer from static gland nut before proceeding.
6. Carefully remove as much of the broken quartz sleeve as possible, from each end of the chamber.
7. To remove fragments of quartz sleeving, hold the purifier vertically and shake. The quartz fragments will
break and drop out of the purifier through the gland fitting. Flush water through chamber being careful to
remove all quartz fragments from the interior of the chamber.
8. Carefully discard all pieces of the broken quartz sleeve.
9. Align the end of the quartz sleeve with the gland fitting of the chamber.
10. Carefully slide the quartz sleeve into the chamber, guiding it through the gland fitting. NOTE: Use care to
keep the quartz sleeve parallel to the chamber, angling the quartz sleeve in any direction could result in the
breakage of the quartz sleeve.
11. As the quartz sleeve nears the far end of the chamber, support the quartz sleeve by inserting your finger
through the far end gland fitting and into the quartz sleeve. This will minimize the possibility of breaking the
quartz sleeve as it passes through the gland fitting.
12. Center the quartz sleeve in the chamber, making sure the quartz sleeve protrudes an equal distance past each
threaded gland fitting, of the chamber.
13. Re-install o-rings, Teflon®washers, and static gland nuts. Be sure O-rings are placed on quartz sleeve before
Teflon®washer. Tighten static gland nuts firmly by hand only, DO NOT USE HAND TOOLS. Tightening
with hand tools is likely to cause quartz sleeve to break.
14. When all connections are complete allow water to enter the water purifier at a low flow rate until the purifier
is pressurized. With the purifier pressurized, it should be checked for leaks.
15. If no leaks occur, reinstall lamp.
DISPOSAL OF MERCURY ADDED LAMPS
Germicidal ultraviolet lamps, like standard fluorescent lamps contain small amounts of mercury. Mercury added
lamps should not be placed in the trash. Dispose of properly.
For further information regarding the disposal and recycling of lamps containing mercury, along with Federal and State
requirements visit http://www.lamprecycle.org. Product Data Sheets for germicidal ultraviolet lamps can be found in the
“PDF Library for Ster-L-RayTM Germicidal Ultraviolet Lamps” section of http://www.ultraviolet.com.
LAMP-OUT PROTECTION
If the ballast is plugged-in without a lamp or if the lamp fails, the ballast's lamp-out protection will prevent the ballast
from operating.
To reset: unplug the ballast and replace the lamp. The ballast must remain unplugged for two (2) minutes to reset.
After 2 minutes, plug the ballast back into the outlet receptacle it should resume proper operation.
!

11
Problem Possible Cause Corrective Action
No electrical power… Verify that the purifier is connected to a
live power source.
Purifier not operating. Ballast Lamp-out Disconnect the purifier from utility power. Replace lamp.
Protection . . . The purifier must remain disconnected from power for
two (2) minutes to reset.
Cracked or broken Shut down purifier, drain, and replace quartz sleeve.
quartz sleeve… See “Quartz Sleeve Cleaning or Replacement” in the
“Maintenance” section.
Water leaking into/from Quartz sleeve sealing Shut down purifier, drain, and remove static gland nut,
purifier. o-ring (s) worn, damaged… replace sealing o-ring. See “Quartz Sleeve Cleaning or
Replacement” in the “Maintenance” section.
Poor, or loose, connections Tighten suspect connection or fitting; or shut down
or fittings… purifier, drain, and remove fitting or connection.
Clean threads; reapply thread sealing tape and reinstall.
Quartz sleeve fouled… Clean quartz sleeve, see “Quartz Sleeve Cleaning
or Replacement” in the “Maintenance” section.
Germicidal lamp output Replace lamp, as it nears its end of life (EOL). See
depreciating… “Lamp Replacement” in the “Maintenance” section.
Poor purifier performance Germicidal lamp not Replace lamp. See “Lamp Replacement” in the
functioning… “Maintenance” section.
Low input voltage… Verify input voltage to purifier.
Change in water quality… Have water tested to confirm that it does not exceed
maximum recommended concentration levels for use
with this purifier.
TROUBLESHOOTING
CAUTION: Always disconnect power to the water purifier, before performing any service.
IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel.
Table 2 - Troubleshooting
!

12
TECHNICAL SPECIFICATIONS
Table 3 - Technical Specifications
MODEL: MIN-1 MIN-1.5 MIN-3 MIN-6 MIN-9
Flow Rate (GPM): 1 1.5 3 6 9
Inlet\Outlet Size: 1/4"f NPT 1/4"f NPT 3 /4"m NPT 3 /4"m NPT 3 /4"m NPT
Number of Lamps: 11111
Lamp Model No.: GPH212T5L/4 GPH287T5L/4 GPH287T5L/4 GPH436T5L/4 GPH620T5L/4
Length: 10 7/8" 15 13 /32" 13 3 /8" 22 17 /32" 29 17 /32"
Width: 2 1 /2"2
1 /2"4 1 /4"4 1 /4"4 1 /4"
Height: 3 5/8"3
5/8"5 3 /8"5 3 /8"5 3 /8"
Chamber Diameter: 2 1 /2"2
1 /2"4 1 /4"4 1 /4"4 1 /4"
Shipping Weight: 7 Lbs 8 Lbs 9 Lbs 14 Lbs 18 Lbs
Voltage:c120V 50/60Hz 120V 50/60Hz 120V 50/60Hz 120V 50/60Hz 120V 50/60Hz
Power Consumption:d10 Watts 14 Watts 14 Watts 21 Watts 29 Watts
Max Operating Pressure: 100 PSI 100 PSI 100 PSI 100 PSI 100 PSI
Ambient Temperature: 33° F - 100° F 33° F - 100° F 33° F - 100° F 33° F - 100° F 33° F - 100° F
Quartz Sleeve: 11111
Sentry™Safety Sensor Optional Optional Optional Optional Optional
Audio Alarm: Optional Optional Optional Optional Optional
Time Delay Mechanism: Optional Optional Optional Optional Optional
Elapsed Time Indicator, Universal Input Optional Optional Optional Optional Optional
Solenoid Valve: Optional Optional Optional Optional Optional
Flow Control: Optional Optional Optional Optional Optional
c220V 50Hz, 220V 60Hz, 12V, or 24V DC units are also available. Consult Factory for specific voltage requirements.
dTotal power consumption, including ballast loss.

13
OPTIONAL ACCESSORIES
Optional accessories are available for operation at 120v 60Hz or 220v 50Hz, when available.
Please specify. Consult Factory for 12v DC or other special input power requirements.
Table 6 - Optional Accessories
cValve requires 10-PSI pressure drop for satisfactory operation.
dUnless otherwise specified PVC flow control valves are supplied.
Stainless Steel Flow Control Valves are available for certain models.
All PVC and Stainless Steel flow control valves are male NPT.
Consult Factory for other flow control valves.
Optional Accessories Available for:
Sentry™Safety Sensor Min-1 through Min-9
Audio Alarm Min-1 through Min-9
Universal Bracket Kit Min-1 through Min-9
Time Delay Mechanism Min-1 through Min-9
Elapsed Time Indicator, Universal Input Min-1 through Min-9
Solenoid Valve - Nylon 3/4" NPT cMin-1 through Min-9
Solenoid Valve - Brass 3/4" NPT Min-1 through Min-9
SureFLO™ Flow Control Valve dMin-1 through Min-9

14
ITEM MODEL
NO. DESCRIPTION QUANTITY MIN-1 MIN-1.5
1 Rubber O-ring, Static Gland 2 00-1108B 00-1108B
2A Lamp Socket & Ballast, 120v 60Hz 1 10-0010B 10-0010B
2B Lamp Socket & Ballast, 220-240v 50/60Hz 1 10-0019B 10-0019B
3 Lamp 1 05-1119 05-1366
4 Static Gland Nut 2 25-1492D 25-1492D
5Teflon®Washer 2 25-1235A 25-1235A
6 Rubber O-ring, Quartz Sleeve 2 00-1238A 00-1238A
7 Quartz Sleeve 1 15-1006A1 15-1006A2
8 Easy-Off End Cap (no hole) 1 25-1493A 25-1493A
9 Chamber 1 25-0445 25-0446
REPLACEMENT PARTS
MINIPURE™MODELS MIN-1 & MIN-1.5
Figure 5 - Exploded View MIN-1 & MIN-1.5
Table 4 - Replacement Parts MIN-1 & MIN-1.5

15
MINIPURE™MODELS MIN-3, MIN-6 & MIN-9
Figure 6 - Exploded View MIN-3, MIN-6 & MIN-9
Table 5 - Replacement Parts MIN-3, MIN-6 & MIN-9
ITEM MODEL
NO. DESCRIPTION QUANTITY MIN-3 MIN-6 MIN-9
1A Lamp Socket & Ballast, 1 10-0010B 10-0015B 10-0092B
120v 60Hz
1B Lamp Socket & Ballast, 1 10-0019B 10-0019B 10-0019B
220-240v 50/60Hz
2 Rubber O-ring, Static Gland 2 00-1108B 00-1108B 00-1108B
3 Lamp 1 05-1366 05-1370 05-0097A
4 Static Gland Nut 2 25-1492D 25-1492D 25-1492D
5Teflon®Washer 2 25-1235A 25-1235A 25-1235A
6 Rubber O-ring, Quartz Sleeve 2 00-1238A 00-1238A 00-1238A
7 Quartz Sleeve 1 15-1111A 15-1112A 15-1006A3
8 Easy-Off End Cap (no hole) 1 25-1493A 25-1493A 25-1493A
9 Chamber 1 25-0447 25-0448 25-0449

16
WARRANTY
We warrant that this product will be free from defects in material and workmanship for a period of one year
from the date of shipment thereof or the product’s total rated life, whichever first occurs. Within the warranty
period we shall repair or replace such products, which are returned to us with shipping charges prepaid, and
which are determined by us to be defective. This warranty will not apply to any product, which has been sub-
jected to misuse, negligence, or accident; or misapplied; or modified; or repaired by unauthorized persons; or
improperly installed.
The Buyer shall inspect the product promptly after receipt and shall notify us at our main office in writing of
claims, including claims of breach of warranty, within thirty (30) days after the Buyer discovers or should have
discovered the facts upon which the claim is based. Failure of the Buyer to give written notice of a claim within
the time period shall be deemed to be a waiver of such claim.
The provisions of the above warranty are our sole obligation and exclude all other remedies or warranties,
expressed or implied, including warranties of merchantability and fitness for a particular purpose, whether or not
purposes or specifications are described herein. We further disclaim any responsibility whatsoever to the cus-
tomer, or to any person, for injury to person, damage to, or loss of property or value caused by any product
which has been subjected to misuse, negligence, accident; or modified or repaired by unauthorized persons; or
improperly installed.
Under no circumstances shall the Company be liable for any incidental, consequential or special damages,
losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use,
our product for any purpose whatsoever.
PATENT NOTICE
No attempt has been made to determine the patent status of applications illustrated or described in this publi-
cation. Inclusion in this publication of any design or method of use, which may be patented, is not to be con-
strued as promoting or sanctioning unauthorized use.
USER ASSISTANCE
Purchased From: Date:
Model: Serial No.:
Atlantic Ultraviolet Corporation
makes every effort to ensure that
the MINIPURE™ Ultraviolet
Water Purifiers are products of
superior quality and workmanship.
This manual describes the installa-
tion, operation and maintenance of
the MINIPURE™ Ultraviolet
Water Purifiers.
Please read and become familiar
with the contents of this manual
before installing or using this unit.
If after reading the manual you still
have questions, or concerns,
regarding the installation or use of
this unit, contact our offices, week-
days between 8:30 am and 5:00 pm
Eastern time, at:
Atlantic Ultraviolet Corporation
375 Marcus Boulevard
Hauppauge, New York, 11788
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.ultraviolet.com
Please fill out and return the Owner Registration card immediately. If the card is missing from this manual,
please contact any of our application specialists to obtain one.
Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage.
Carefully inspect and report all damage. Do not install damaged equipment. Follow all instructions on any labels
or tags. Carefully inspect all packing materials before discarding to prevent the loss of accessories, mounting
hardware, spare parts or instructions.
For your convenience, record the following information below. The model and serial number can be found on
a label located on the MINIPURE™ Ultraviolet Water Purifiers. Keep this manual, along with proof of
purchase, handy when contacting our offices.
