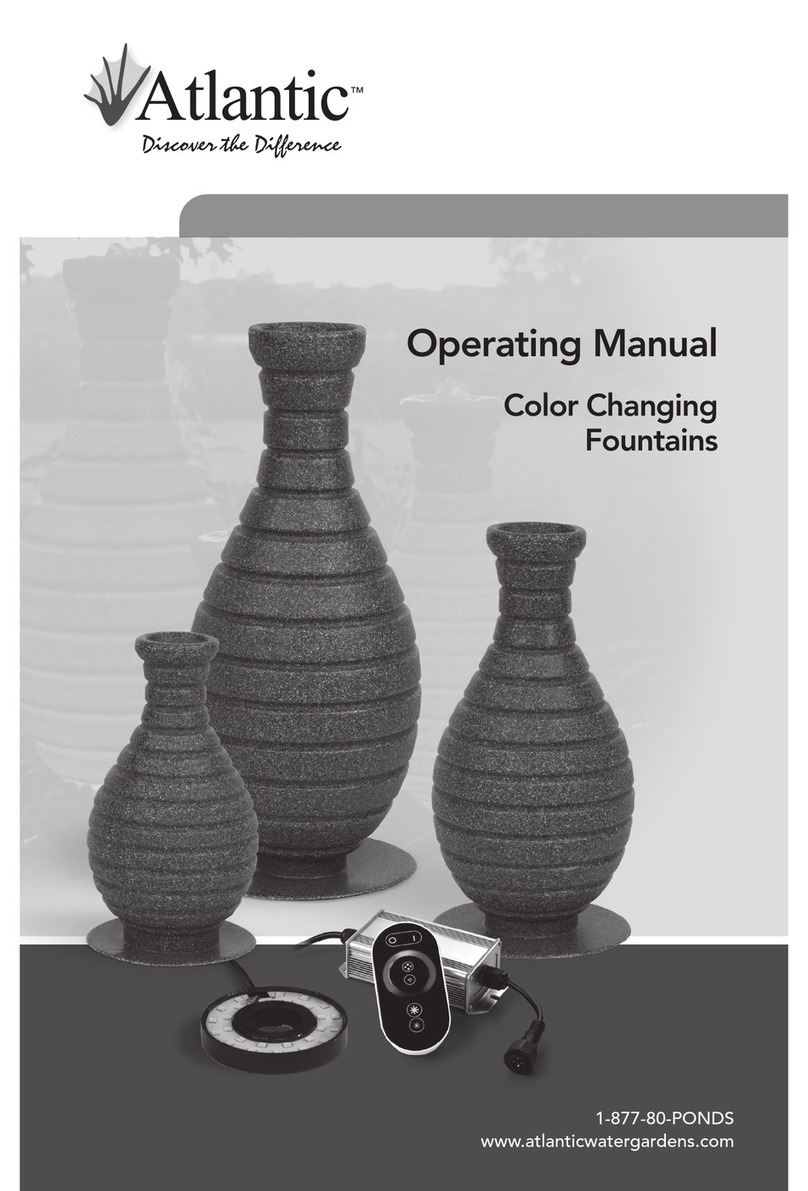

Atlantic FTN CCV18 User manual

FTN CCV18 / FTN CCV24 / FTN CCV32 / FTN CCVX3
Product Manual | Manuel du Produit | Manual del Producto
1.330.274.8317
www.ATLANTICWATERGARDENS.com
F

Introduction
Thank you for purchasing Atlantic’s Color Changing Fountains – overflowing features that glow
from within. During the day these fountains create the welcome sights and sounds of dancing
water, bubbling up and cascading down their sides – but in the dark, they come alive with
light. A totally new concept, our fountains radiate in 48 dierent colors, or in 16 dierent pre-
programmed patterns with speed and intensity regulated by remote control.
Prior to Operation and Installation
Caution:
• DO NOT operate this product under any condition other than those for which it is
specified. Failure to observe these precautions can lead to electrical shock, product failure,
or other problems.
• Follow all aspects of electrical codes when installing a Color Changing Fountain.
• To reduce the risk of electrical shock, connect only to a 110 volt receptacle protected by a
ground fault circuit interrupter (GFCI).
• The input power to the Color Changing Control Module is 12 volt AC. The Control
Module can be connected to a larger outdoor lighting transformer; however this must be
done between the Control Module and the transformer. Removing the Control Module or
tampering with the cord between the Control Module and the Color Changing Fountain will
damage the light ring and void warranty.
• The Control Module is weather resistant with an IP54 rating. Do not submerse the Control
Module or expose it to heavy rainfall. It must be mounted o the ground close to the power
source. Failure to do so will void the warranty.
Installation
Fountain Installation
• Atlantic Color Changing Fountains have been designed to work in conjunction with Atlantic
Fountain Basins, Fountain Plumbing Kits and Mag-Drive Series pumps. Please review the
instructions included with these products before you begin installation to ensure that all
components of your project are installed correctly.
• Begin installation by connecting the ¾” standpipe to the Spinweld® fitting on the top of
the fountain. Insert the threaded end of the standpipe into the bottom of the fountain. Align
the threads on the standpipe with the Spinweld® fitting and tighten by turning in a
clockwise direction.
• Slide the light ring over the standpipe so that the LEDs are facing upward into the fountain.
Install the ¾” insert x ¾” socket elbow on the bottom of the standpipe. Do not use glue
when making this connection so that the fountain and light ring can be easily removed for
cleaning or winterization.
Note: ¾” insert x ¾” socket elbow is
included in all Fountain Plumbing Kits.
• Connect the feed line to standpipe
and stand the fountain up in the
desired location on the fountain
basin. Utilize the recessed plumbing
channels to route the tubing to the
pump chamber. Once all plumbing
is completed, cover the Fountain
Basin with decorative material
(ex. decorative gravel, polished
stones, glass beads, etc.) of your
choosing to complete installation.
2

3
Control Module Installation
• The Control Module is weather resistant with an IP54 rating. Do not submerse
it or expose it to heavy rainfall. It must be mounted o the ground close to the
power source. Failure to do so will void the warranty.
• Ensure that all cable connections are secure.
• Install the control box in a well-ventilated area to ensure that the module
operates in within its working temperature specified above.
• Verify that the control module input voltage is 12 volt AC. We recommend that
you use the transformer provided with this unit.
• Do not connect the power before the cord connections are finished.
• Do not cut or alter the cord between the SOL Light Ring and the Control Module.
• The remote control requires three (3) AAA batteries (not included).
Connecting the Light Ring
Follow the connecting chart below to connect all cables. Ensure that the unit is not
plugged in while connecting.
Operation
Technical Data (Control Module)
Working Temperature:
0°F -140°F (-20°C - 60°C)
Output: 3 circuits (R/G/B)
Color Changing
Light Ring
Control ModuleTransformer 3-way
Splitter
Color Changing
Light Ring
Control ModuleTransformer
Input Power: AC12V
Output Power: DC12V
Output Current: 5A /circuit

Remote Control Functions
Preset Light Changing Modes
Mode Selection
• To switch to the Color Wheel: hold the B button for three seconds or until the light changes
to Crystal White. Hold down the B button again, and the light will return to the last color
displayed while in the Color Wheel mode. Run your finger around the color wheel to select a
new color.
• To switch to the Preset Light Changing Modes: hold the B button for three seconds or until
the light changes to Crystal White. Hold down the B button again, and the light will return to
the last preset mode displayed while in the Light Changing Modes. Press the D and E button
to switch between the dierent preset modes.
Changing the Brightness and Speed
In Modes 1-8 and 14-16, you can use the F and G keys to change the brightness of the light. In
Modes 9-13 and 17, you can use the F and G keys to change the speed of the light transitions.
There are 8 levels for each.
Synchronizing the Remote to the Control Unit
If the remote control stops working properly, please install fresh batteries. If problems persist,
the remote may need to be re-synced to the control module. Follow the instructions below to
re-sync the remote control.
4
AOn/O Button
Touch for one second to turn on or o.
BMode Selection Touch to switch between Color Wheel and Preset
Light Changing Mode
CColor Wheel
DPreset Light Changing Mode Selection (Forward)
EPreset Light Changing Mode Selection (Backward)
FBrightness / Speed (Up)
GBrightness / Speed (Down)
A
C
D
E
F
G
B
Indicator Lamp
1Solid Crystal White
2Continuous full spectrum fade change
3Solid Red
4Solid Green
5Solid Blue
6Solid Aqua
7Solid Purple
8Solid Yellow
9Red-Green-Blue jump change
10 7 color jump change
11 Red-Green-Blue dimmer change
12 7 color dimmer change
13 7 color dimmer then
7 color jump change
14 Flashing Red
15 Flashing Green
16 Flashing Blue
17 Flashing Red and Blue

1. Unplug the transformer
2. Hold the F button down (The red indicator lamp on the remote will be blinking)
3. While still holding the F button down, plug in the transformer. The lights will start blinking.
• If the light ring blinks three times and stops, the remote and control unit are synchronized.
• If the light ring blinks six or more times, it is clearing all codes. Repeat steps 1-3.
Warranty
Color Changing Fountains and all their components carry a one-year limited
warranty. This limited warranty is extended solely to the original purchaser
commencing from the date of the original purchase receipt and is void if any of
the following apply:
• The cord has been cut or altered between the Light Ring and the Control Module.
• The Color Changing Fountain components have been misused or abused.
• The Color Changing Fountain components have been disassembled or modified other than
as described in this manual.
The Control Module and/or Remote Control have not been adequately protected from moisture.
Troubleshooting Guide
Always turn o power before inspecting the Color Changing Fountains. Failure to observe this
precaution can result in a serious accident. Before ordering repairs, carefully read through this
instruction booklet. If the problem persists, contact your dealer.
5
Problem Possible Cause Possible Solution
Remote is not working
(no indicator light) No batteries / batteries dead Put in new batteries.
Remote is not working
(indicator light is on)
Remote is not synced with
Control Module
Refer to synchronizing the re-
mote instructions on page 5
Light Ring will
not illuminate
No power to outlet Confirm power to outlet.
No power to Control Module Check all connections, ensure
cord is not cut or damaged.
No Power to Light Ring Check all connections, ensure
cord is not cut or damaged.
Light Ring color
diers from
remote control
Improper connection
between Light Ring and
control module
Inspect connection/ align
arrow on plugs
Controller failure Contact Dealer for repair/
replacement
Multiple Light
Rings display
dierent colors
Improper connection
between Light Ring and
3-way splitter
Inspect connection/ align
arrow on plugs
Controller failure Contact Dealer for repair/
replacement
