Atlantis Land A02-RA144-W300N User manual

Where solutions begin
Company certified ISO 9001:2000
WebShare 144WN
Wireless N ADSL2+ Router
A02-RA144-W300N
USER’S MANUAL
A02-RA144-W300N _ME01

Where solutions begin
Company certified ISO 9001:2000

WebShare 144WN
INDEX
CHAPTER 1: INTRODUCTION 1
1.1 An Overview of WebShare Wireless ADSL2+ Router 1
1.2 Package Contents 1
1.3 WebShare Wireless Router ADSL2+ Features 2

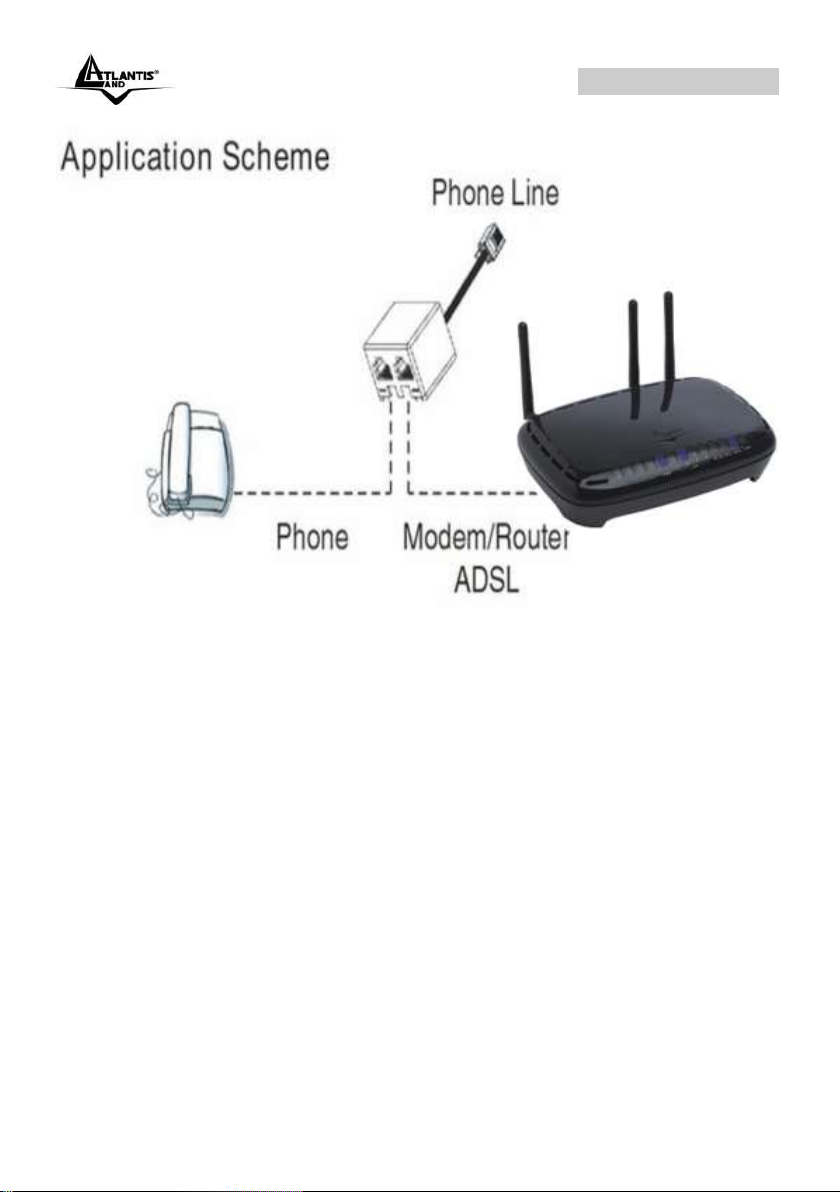

1.4 WebShare Wireless Router ADSL2+ Application 4
CHAPTER 2: USING WEBSHARE WIRELESS ADSL2+ ROUTER
6
2.1 Cautions for using the WebShare Wireless ADSL2+ Router 6
2.2 The Front LEDs 6
2.3 The Rear Ports 7
2.4 Cabling 8
CHAPTER 3: CONFIGURATION 10
3.1 Before Configuration 10
3.1.1 Configuring PC for Windows 95/98/ME 11
3.1.2 Configuring PC for Windows NT4.0 13
3.1.3 Configuring PC for Windows 2000 14
3.1.4 Configuring PC for Windows XP 16
3.1.5 Configuring for MAC 19
3.1.6 Verification of Configuration 20
3.1.7 Browser Configuration 20
3.2 Factory Default Setting 21
3.2.1 Password 21
3.2.2 LAN and WAN Port Addresses 22
3.3 Reset of WebShare Wireless Router ADSL2+ 22
3.4 Informations from the ISP 22
3.5 Browser Configuration 23
3.6 Surfing in Web GUI Configuration 23
3.7 Configuring Password 24
3.8 Resetting the ADSL Router 25
3.8.1 Using The Reset Button 25

WebShare 144WN
CHAPTER 4: QUICK START 26
4.1 Wizard Setup Introduction 26
4.2 Encapsulation 26
4.2.1 PPP over Ethernet 26
4.2.2 PPPoA 26
4.2.3 RFC 1483 26
4.3 Multiplexing 27
4.3.1 VC-based Multiplexing 27
4.3.2 LLC-based Multiplexing 27
4.4 VPI and VCI 27
4.5 Quick Start 27
4.6 Wizard Setup Configuration: Connection Tests 30
CHAPTER 5: LAN SETUP 31
5.1 LAN Overview 31
5.1.1 LANs, WANs and the ADSL Router 31
5.2 DNS Server Address 32
5.3 DNS Server Address Assignment 33
5.4 LAN TCP/IP 33
5.4.1 Factory LAN Defaults 34
5.4.2 IP Address and Subnet Mask 34
5.4.3 RIP Setup 34
5.4.4 Multicast 34
5.5 Configuring LAN 36
5.6 Wireless 38
CHAPTER 6: WAN SETUP 43
6.1 WAN Overview 43
6.2 PPPoE Encapsulation 43
6.3 PPTP Encapsulation 43
6.4 Traffic Shaping 43
6.5 Configuring WAN Setup 45
CHAPTER 7: NETWORK ADDRESS TRANSLATION (NAT) 49
7.1 NAT Overview 49
7.1.1 NAT Definitions 49
7.1.2 What NAT Does 49
7.1.3 How NAT Works 50
7.1.4 NAT Application 51

WebShare 144WN
7.1.5 NAT Mapping Types 51
7.2 SUA (Single User Account) Versus NAT 52
7.3 Virtual Server and DMZ 52
7.3.1 Port Forwarding: Services and Port Numbers 53
7.3.2 Virtual Server 54
Click on Advanced Setup then NAT. 54
7.4 Selecting the NAT Mode 57
CHAPTER 8: ACCESS MANAGEMENT 59
8.1 ACL 59
8.2 IP Filter 60
8.3 SNMP 62
8.4 UPnP 62
8.5 DDNS 63
CHAPTER 9: ADVANCED SETUP 65
9.1 Routing 65
9.1.1 Add Route 66
9.2 NAT 67
9.2.2 DMZ 67
9.2.3 Virtual Server 68
9.2.4 IP Address Mapping 69
9.3 ADSL 73
CHAPTER 10: MAINTENANCE 74
10.1 Administration 74
10.2 Time Zone 74
10.3 Firmware 75
10.4 SysRestart 77
10.5 Diagnostic 77
CHAPTER 11: STATUS 79
11.1 Device Info 79
11.2 System Log 80
11.3 Statistics 80
APPENDIX A: TROUBLESHOOTING 83
A.1 Using LEDs to Diagnose Problems 83

WebShare 144WN
A.1.1 Power LED 83
A.1.2 LAN LED 83
A.1.3 DSL LED 83
A.2 Telnet 84
A.3 Web Configurator 84
A.4 Login Username and Password 85
A.5 LAN Interface 85
A.6 WAN Interface 86
A.7 Internet Access 86
A.8 Remote Management 87
A.9 Remote Node Connection 87
A.10 FAQ 88
APPENDIX B: TECHNICAL FEATURES 91
APPENDIX C:SUPPORT 93
A02-RA144-W300N_ME01 (V1.0 February 2008)

WebShare 144WN

WebShare 144WN
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, whether electronic, mechanical,
photocopying, recording or otherwise without the prior writing of the publisher.
Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is
trademark of Intel. All copyright reserved.
The Atlantis Land logo is a registered trademark of Atlantis Land. All other names
mentioned mat be trademarks or registered trademarks of their respective
owners. Subject to change without notice. No liability for technical errors and/or
omissions.
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices.
The energy levels of these emissions however are far much less than the
electromagnetic energy emissions from wireless devices like for example mobile
phones. Wireless LAN devices are safe for use frequency safety standards and
recommendations. The use of Wireless LAN devices may be restricted in some
situations or environments for example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or identified
as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial
plants, private buildings etc.) is not clear, please ask for authorization to use
these devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with
the instructions included in the user documentation provided with the product. Any
changes or modifications made to this device that are not expressly approved by
the manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, of the substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failing to comply
with these guidelines.

WebShare 144WN
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
CE in which Countries where the product may be used freely:
Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,
Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
France: except the channel 10 through 13, law prohibits the use of other
channels.
CE/EMC Restriction of Liability
The product described in this handbook was designed, produced and approved
according to the EMC-regulations and is certified to be within EMC limitations.
If the product is used in an uncertified PC, the manufacturer undertakes no
warranty in respect to the EMC limits. The described product in this handbook
was constructed, produced and certified so that the measured values are within
EMC limitations. In practice and under special circumstances, it may be possible,
that the product may be outside of the given limits if it is used in a PC that is not
produced under EMC certification. It is also possible in certain cases and under
special circumstances, which the given EMC peak values will become out of
tolerance. In these cases, the user himself is responsible for compliance with the
EMC limits.
Declaration of Conformity
This equipment has been tested and found to comply with Directive 1999/5/CE of
the European Parliament and of the Council on radio equipment and
telecommunications terminal equipment and the mutual recognition of their
conformity. After assessment, the equipment has been found to comply with the
following standards: EN 300.328 (radio), EN 301 489-1, EN 301 489-17
(electromagnetic compatibility) and EN 60950 (safety). This equipment may be
used in all European Union contries and in all countries applying Directive
1999/5/CE, without restriction, with the exception of the following countries:
France:When this equipment is used outdoors, output power is limited to within
the frequency bans listed on the chart. For more info, consult the website
www.art-telecom.fr.
Location
Frequency Band
(MHz)
Power (EIRP)
Indoor (no restriction)
2400-2483,5
100mW(20dBm)
Outdoor
2400-2454
2454-2483,5
100mW(20dBm)
10mW(10dBm)
Italy: For more info, consult the website www.comunicazioni.it

WebShare 144WN

WebShare 144WN
A02-RA144-W300N Pag. 1
CHAPTER 1: Introduction
1.1 An Overview of WebShare Wireless N ADSL2+ Router
Broadband Sharing and IP sharing
The Wireless N ADSL2+ Router supports 4 x 10/100 Mbps auto-negotiating Fast
Ethernet ports for connection to your PC or LAN and downstream (with built-in
ADSL2+ modem) rate up to 24Mbps. Power by NAT technology, dozens of
network users can surf on the Internet and share the ADSL connection
simultaneously by using one ISP account and one single IP address.
Wireless
With integrated IEEE802.11n Wireless Access Point (up to 300Mbps), the device
offers quick and easy access among wired network and wireless network. The
Wireless Router also supports WPA/WPA2-PSK security, it increases the level of
data protection and access control for Wireless LAN.
Wireless N and 3* 2.2 dBi Antennas provide extended coverage and low
throughput fluctuations. Last but not least Wireless N technology offers an high
throughput (up to 300Mbps) for HD Video Streaming.
Security: Firewall
This product also serves as an Internet firewall, protecting your network from
being accessed by outside users. Not only provide the natural firewall function
(Network Address Translation, NAT), it also provides rich firewall features to
secure user's network.
Quality of Service (QoS)
QoS gives you full control over which types of outgoing data traffic should be
given priority by the router, ensuring important data like gaming packets move
through the router at lightning speed, even under heavy load. Using IP Throttling,
bandwidth limits can be enforced on any system within your LAN, or even on a
particular application.
Easy Configuration and Management
Support web based GUI and Telnet for configuration and management. Also
supports remote management (Web and telnet) capability for remote user to
configure and manage this product. It incorporates besides a client Dynamic
DNS.
1.2 Package Contents
The package contains:
WebShare Wireless N ADSL2+ Router
Vera (Multilanguage Interactive Tutorial)
CD-Rom containing the online manual
RJ-11 ADSL/telephone Cable
Ethernet (CAT-5 LAN) Cable

WebShare 144WN
A02-RA144-W300N Pag. 2
AC-DC power adapter
1.3 WebShare Wireless N Router ADSL2+ Features
Technical charateristics of WebShare Wireless N Router ADSL2+:
ADSL Multi-Mode Standard:supports downstream rates of up to 24 Mbps and
upstream rates of up to 1 Mbps. It also supports rate management that allows
ADSL subscribers to select an Internet access speed suiting their needs and
budgets. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2;
G.dmt(G.992.1); G.lite(G992.2)), G.hs (G994.1), G.dmt.bis (G.992.3),
G.dmt.bisplus (G.992.5)). The Annex A and B are supported in different H/W
platforms.
Multi-Protocol to Establish A Connection: Supports PPPoA (RFC 2364 - PPP
over ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or
routed), PPP over Ethernet (RFC 2516) and IPoA (RFC1577) to establish a
connection with the ISP. The product also supports VC-based and LLC-based
multiplexing.
Fast Ethernet Switch: A 10/100Mbps fast Ethernet switch is built in with
automatic switching between MDI and MDI-X for 10Base-T and 100Base-TX
ports. An Ethernet straight or cross-over cable can be used directly for auto
detection.
Wireless Ethernet 802.11g:With built-in 802.11g access point for extending the
communication media to WLAN while providing the WEP and WPA for securing
your wireless networks.
Network Address Translation (NAT): Allows multi-users to access outside
resources such as the Internet simultaneously with one IP address/one Internet
access account. Many application layer gateway (ALG) are supported such as
web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP
phone and others.
Frewall:Supports simple firewall with NAT technology and provides option for
blocking access from Internet, like Telnet, FTP, TFTP, WEB, SNMP and IGMP.
Domain Name System (DNS) relay:Provides an easy way to map the domain
name (a friendly name for users such as www.yahoo.com) and IP address. When
a local machine sets its DNS server with this router’s IP address, every DNS
conversion request packet from the PC to this router will be forwarded to the real
DNS in the outside network.
PPP over Ethernet (PPPoE):Provides embedded PPPoE client function to
establish a connection. Users can get greater access speed without changing the

WebShare 144WN
A02-RA144-W300N Pag. 3
operation concept, sharing the same ISP account and paying for one access
account. No PPPoE client software is required for local computer. The Automatic
Reconnect and Disconnect Timeout (Idle Timer) functions are provided, too.
Dynamic Host Control Protocol (DHCP) client and server:In the WAN site,
the DHCP client can get an IP address from the Internet Service Provider (ISP)
automatically. In the LAN site, the DHCP server can allocate a range of client IP
addresses and distribute them including IP address, subnet mask as well as DNS
IP address to local computers. It provides an easy way to manage the local IP
network.
RIP1/2 Routing:Supports RIP1/2 routing protocol for routing capability.
Web based GUI:Supports web based GUI for configuration and management. It
is user-friendly and comes with on-line help. It also supports remote management
capability for remote users to configure and manage this product.
Quick Installation Wizard: Supports a WEB GUI page to install this device
quickly. With this wizard, end users can enter the information easily which they
get from their ISP, then surf the Internet immediately.
Packet Filtering: Up to 72 rules.
Universal Plug and Play (UPnP) e UPnP NAT Traversal: This protocol is used
to enable simple and robust connectivity among stand-alone devices and PCs
from many different vendors. It makes network simple and affordable for users.
UPnP architecture leverages TCP/IP and the Web to enable seamless proximity
networking in addition to control and data transfer among networked devices.
With this feature enabled, users can now connect to Net meeting or MSN
Messenger seamlessly.
Virtual Server: User can specify some services to be visible from outside users.
The router can detect incoming service request and forward it to the specific local
computer to handle it. For example, user can assign a PC in LAN acting as WEB
server inside and expose it to the outside network. Outside user can browse
inside web server directly while it is protected by NAT. A DMZ host setting is also
provided to a local computer exposed to the outside network, Internet.

WebShare 144WN
A02-RA144-W300N Pag. 4
1.4 WebShare Wireless N Router ADSL2+ Application
Follow the followings steps to cabling the device:
Connect WAN Port to the telephone line throught RJ-11 cable (contained in
package).
WebShare Wireless N ADSL2+ Router can be connect in the following
configuration:
Directly at 4 PC, throught CAT5 cables (one is contained in
package)
To an Hub/Switch throught UPLINK Port thought CAT 5 cable
(contained in package).
Connect AC-DC Adapter on AC and on device (POWER jack) in the reat r of
the product.

WebShare 144WN
A02-RA144-W300N Pag. 5

WebShare 144WN
A02-RA144-W300N Pag. 6
CHAPTER 2: Using WebShare Wireless N
ADSL2+ Router
2.1 Cautions for using the WebShare Wireless N ADSL2+
Router
Do not place the Wireless N ADSL2+ Router under high humidity and high
temperature.
Do not use the same power source for Wireless N ADSL2+ Router with other
equipment.
Do not open or repair the case yourself.
If the Wireless N ADSL2+ Router is too hot, turn off the power immediately
and have a qualified serviceman repair it.
Place the Wireless N ADSL2+ Router on a stable surface.
Only use the power adapter that comes with the package.
Do NOT upgrade firmware on any Atlantis Land product over a wireless
connection.
2.2 The Front LEDs
In the front of WebShare Wireless N ADSL2+ Router, you can see a LED series
that show status of some functionality of product.
Following table contains meaning of front LEDs:
LED
Meaning
PWR
Lit when power is ON.
LAN
Lit when connected to Ethernet device.
Blue for 100Mbps; Orange for 10Mbps.
Blinking when data transmit/received.

WebShare 144WN
A02-RA144-W300N Pag. 7
WLAN
Flashes green when the wireless connection is established.
Flashes when sending/receiving data.
WPS
Lit when WPS is ON.
ADSL
Lit when successfully connected to an ADSL DSLAM
(“linesync”).
PPP
Lit red when WAN port fails to get IP address.
Lit blue when WAN port gets IP address successfully.
2.3 The Rear Ports
Ports
Meaning
ADSL(Line)
Connect the supplied RJ-11 (“telephone”) cable to this
port when connecting to the ADSL/telephone network.
LAN
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one
of the four LAN ports when connecting to a PC or an
office/home network of 10Mbps or 100Mbps.
Reset
After the device is powered on, press it to reset the
device or restore to factory default settings.
0-3 seconds: reset the device
3-5 seconds: no action
Over 10 seconds: restore to factory default
settings (this is used when you can not login to
the router, e.g. forgot the password).
WPS
Push the WPS button to trigger the Wi-Fi Protected
Setup function.
POWER (jack)
Connect the supplied power adapter to this jack.

WebShare 144WN
A02-RA144-W300N Pag. 8
2.4 Cabling
The most common problem is bad cabling or ADSL line. Make sure that all
connected devices are turned on. On the front of the product is a bank of LEDs.
As a first check, verify that the LAN Link, ADSL, PWR, SYS LEDs are lit.
If they are not, verify that you are using the proper cables.
Ensure that all other devices connected to the same telephone line as your router
(e.g. telephones, fax machines, analog modems) have a line filter (A01-AF2)
connected between them and the wall socket (unless you are using a Central
Splitter or Central Filter installed by a qualified and licensed electrician), and
ensure that all line filters are correctly installed and the right way around.

WebShare 144WN
A02-RA144-W300N Pag. 9

WebShare 144WN
A02-RA144-W300N Pag. 10
CHAPTER 3: Configuration
WebShare Wireless N ADSL2+ Router can be configured with your web browser.
A web browser is included as a standard application in the following operating
systems: Windows 98/NT/2000/XP/Me, MAC, Linux, etc. The product provides a
very easy and user-friendly interface for configuration.
3.1 Before Configuration
PCs must have an Ethernet interface installed properly and be connected to the
router either directly or through an external repeater hub, and have TCP/IP
installed and configured to obtain an IP address through a DHCP server or a fixed
IP address that must be in the same subnet as the router. The default IP address
of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet, and have an IP address in the range of
192.168.1.1 to 192.168.1.253). The best and easiest way is to configure the PC to
get an IP address automatically from the router using DHCP. If you encounter any
problems accessing the router’s web interface it may also be advisable to
uninstall any kind of software firewall on your PCs, as they can cause problems
accessing the 192.168.1.254 IP address of the router. Users should make their
own decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First
of all, please check your PC’s network components. The TCP/IP protocol stack
and Ethernet network adapter must be installed. If not, please refer to your
Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate
with or through the WebShare Wireless N ADSL2+ Router. To
configure other types of workstations, please consult the
manufacturer’s documentation.
