Atlas Copco C9C Compact User manual

Unity Bulk Feeder
C9C Compact
Issue 1
Original instructions for operation and
maintenance of compact bulk rivet
feeder. Patents granted and pending.

Copyright © 2022 Atlas Copco IAS
Intellectual property of
Atlas Copco Industrial Assembly Solutions
part of Atlas Copco Group.
All rights reserved.
No part of this publication may be reproduced,
distributed, or transmitted without the express
written permission of the publisher, except in the
case of work instruction documents.

Page 3
Unity Bulk Feeder C9C Compact, Issue 1
Contents
1 Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1. 1 Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1. 2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1. 3 Scope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1. 4 Intended Use of the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1. 5 Intended Use of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1. 6 Retention of Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1. 7 Warnings, Cautions and Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. 1 BASE Model - Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. 1 Bulkhead Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. 2 Base Model Cover and Plate Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4. 3 Hopper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. 4 Vibrating Bowl and Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. 5 Standard Escapement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4. 6 Vibration Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4. 7 Standard Control Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4. 8 Main Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4. 9 The Vibrating Unit Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4. 10 Main Regulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4. 11 Manifold and Solenoid Valves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4. 12 Main Blow In-line Regulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4. 13 Main Blow and T-Tube Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4. 14 Continuous Bleed and Blow Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5. 1 T-Tube Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5. 2 T-Tube Dressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5. 3 Electrical Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Page 4
Unity Bulk Feeder C9C Compact, Issue 1
Contents
5. 4 Ethernet Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5. 5 Programmable PLC Node Address Setup . . . . . . . . . . . . . . . . . . . . . . . . . 28
5. 6 System Pre-Startup Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6. 1 Vibration Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7. 1 Opening the Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7. 2 Side Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7. 3 Top Cover Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7. 4 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7. 5 Linear Track/Escapement Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7. 6 Removing a Rivet That Fails Rivet Length Check. . . . . . . . . . . . . . . . . . . . . 35
8 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8. 1 Cleaning Inside the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8. 2 T-Tube Wear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9. 1 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9. 2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10 User Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Page 5
Unity Bulk Feeder C9C Compact, Issue 1
1 Equipment
1. 1 Types
This book contains original instructions for following part numbers:
4222628193 Compact Bulk Rivet Feeder, Standard Model,
5mm rivet, 24V
Patents granted and pending.
Whilst every eort is made to ensure all information is correct, Atlas Copco IAS cannot be held
liable for misprints or inaccuracies.
Atlas Copco IAS reserves the right to change the specications of any product to improve its
function without prior notice.

Atlas Copco IAS UK Limited
Second Avenue, Deeside Industrial Park, Flintshire CH5 2NX, UK
atlascopco.com
Atlas Copco IAS
Declaration of Incorporation
On behalf of Manufacturer
Atlas Copco IAS UK Limited, Parkway One, Flintshire, CH5 2NS, United Kingdom
Authorised Representative
Thomas Schaumann, Vice President R&D IAS
Atlas Copco IAS Division, Gewerbestrasse 52, Bretten-Goelshausen, 75015, Germany
Declares by signing below that the product described
Product name C9C Compact Bulk Rivet Feeder
Product number 4222628193
The following essential requirements of 2006/42/EC have been applied and fullled and the
relevant technical documentation is compiled in accordance with part B of Annex VII:
1.1.2, 1.1.3, 1.1.5,
1.2.1, 1.2.3, 1.2.4.3, 1.2.4.4, 1.2.5, 1.2.6,
1.3.1, 1.3.2, 1.3.3, 1.3.4, 1.3.7, 1.3.8,
1.4.1, 1.4.2.1,
1.5.1, 1.5.2, 1.5.3, 1.5.4, 1.5.6, 1.5.8, 1.5.9, 1.5.11,
1.6.1, 1.6.2, 1.6.4,
1.7.1, 1.7.1.1, 1.7.3, 1.7.4.1, 1.7.4.2, 1.7.4.3,
4.1.2.1 & 4.1.2.3
The manufacturer commits, in response to a reasoned request, to supply relevant
information on the partly completed machinery to the national authorities.
This partly completed machinery must not be put into service until the nal machinery into
which it is to be incorporated has been declared in conformity with the provisions of the
directive, where appropriate.
The following person is empowered to compile the technical le
Thomas Schaumann
Vice President R&D IAS
22/10/2021

Page 7
Unity Bulk Feeder C9C Compact, Issue 1
1. 2 Introduction
1. 3 Scope
This manual will guide the user during set-up, operation and maintenance of the Henrob Self
Pierce Riveting (SPR) equipment. An overview of assembly component parts is provided. System
requirements are detailed in this manual as well as instructions which reference safety and
installation factors of the equipment functionality.
Application of the equipment provided, including the accessories and documentation, is restricted
to use by duly authorised personnel.
All reassembly tasks shall be conducted with due reference to the appropriate manufacturing and
assembly drawings, paying particular attention to fastener torque values and the application of
consumables such as lubricants, sealants and thread-locking compounds.
The illustrations and procedures contained within this document are correct at the date of issue.
1. 4 Intended Use of the Equipment
Atlas Copco IAS UK Limited warrants the supplied equipment to be correct and t for purpose as
described, declared and agreed in the quotation/sales order or supervening contract.
Atlas Copco IAS UK Limited accepts no liability for damages arising in whole or in part from:
Non-observance of the supplied instructions.
Any use outside of the declared operating envelope.
Use for a purpose other than the original design intent.
Connection to electrical and pneumatic supplies which do not conform to the
specied ratings of the equipment.
Undeclared use in adverse environmental conditions.
Lack of due care and/or maintenance of the equipment.
Damage arising from external inuences, such as re, ood etc.
Use by unauthorised or untrained personnel.
Arbitrary dismantling and reassembly or unauthorised technical modications.
Use of incorrect rivets or unlicensed replacement parts.
Use of incorrect or unlicensed software.

Page 8
Unity Bulk Feeder C9C Compact, Issue 1
1. 5 Intended Use of this Manual
This manual is intended to be used by trained operators of the equipment and Atlas Copco IAS
UK Limited personnel when operating or maintaining the Self Pierce Riveting (SPR) equipment
described.
The information contained within this manual is provided as a guide for the intended use of the
C9 Compact Bulk Rivet Feeder only. The information contained within this manual does not relate
to any other equipment or its usage.
All users of the Henrob Self Pierce Riveting (SPR) equipment must read and understand the
information contained in this manual.
The safety warnings, cautions and notes should be adhered to at all times when carrying out any
of the procedures in this manual.
1. 6 Retention of Rights
Atlas Copco IAS retains the right to withdraw or change the information within this document, at
any time, without prior notication.
Atlas Copco IAS retains the rights to patents and patents pending, at all times, for this equipment.
1. 7 Warnings, Cautions and Notes
Warnings, cautions and notes appear throughout this document, at the point at which they are
relevant.
WARNING
This Warning symbol identies a potential hazard which may cause
fatal or serious injury to operating and maintenance personnel.
CAUTION
Cautions are intended to prevent possible damage to the component
parts of the equipment.
NOTE
Notes provide important/supporting information. A note is inserted to
aid personnel when working on the equipment.

Page 9
Unity Bulk Feeder C9C Compact, Issue 1
2 Safety
It is important that the following safety precautions are observed:
Only trained and authorised operators shall use this equipment. Contact Atlas
Copco IAS or an approved engineer for help if you are in any doubt of your
ability to operate or maintain the equipment.
With Compact Bulk Rivet Feeder systems, the rivets can travel through the
T-Tube at very high speed. Do not operate the system without the end of
the T-Tube being restrained and with the intended equipment or a suitable
container in place.
Ear protection should be worn if operating the Compact Bulk Rivet Feeder with
the lid open, as noise levels can be high.
Always wear approved safety glasses when operating the equipment with the
lid open. Other PPE may be required for various operations and maintenance
tasks.
Refer to the manuals for the other Self Pierce Riveting System components
for safety precautions relating specically to these items - Tool, Selector, Die
Changer and Controller.
Follow safe lifting/handling guidelines if moving the Compact Bulk Rivet
Feeder.
Do not t worn or broken parts to the Compact Bulk Rivet Feeder.
While every eort has been made to ensure this equipment is safe, a
comprehensive assessment is not possible before the equipment is installed and
commissioned in its ultimate environment. It is therefore, responsibility of the
end user of this equipment, to conduct a nal risk assessment of the equipment
when installed and to implement any additional preventative measures.

Page 10
Unity Bulk Feeder C9C Compact, Issue 1

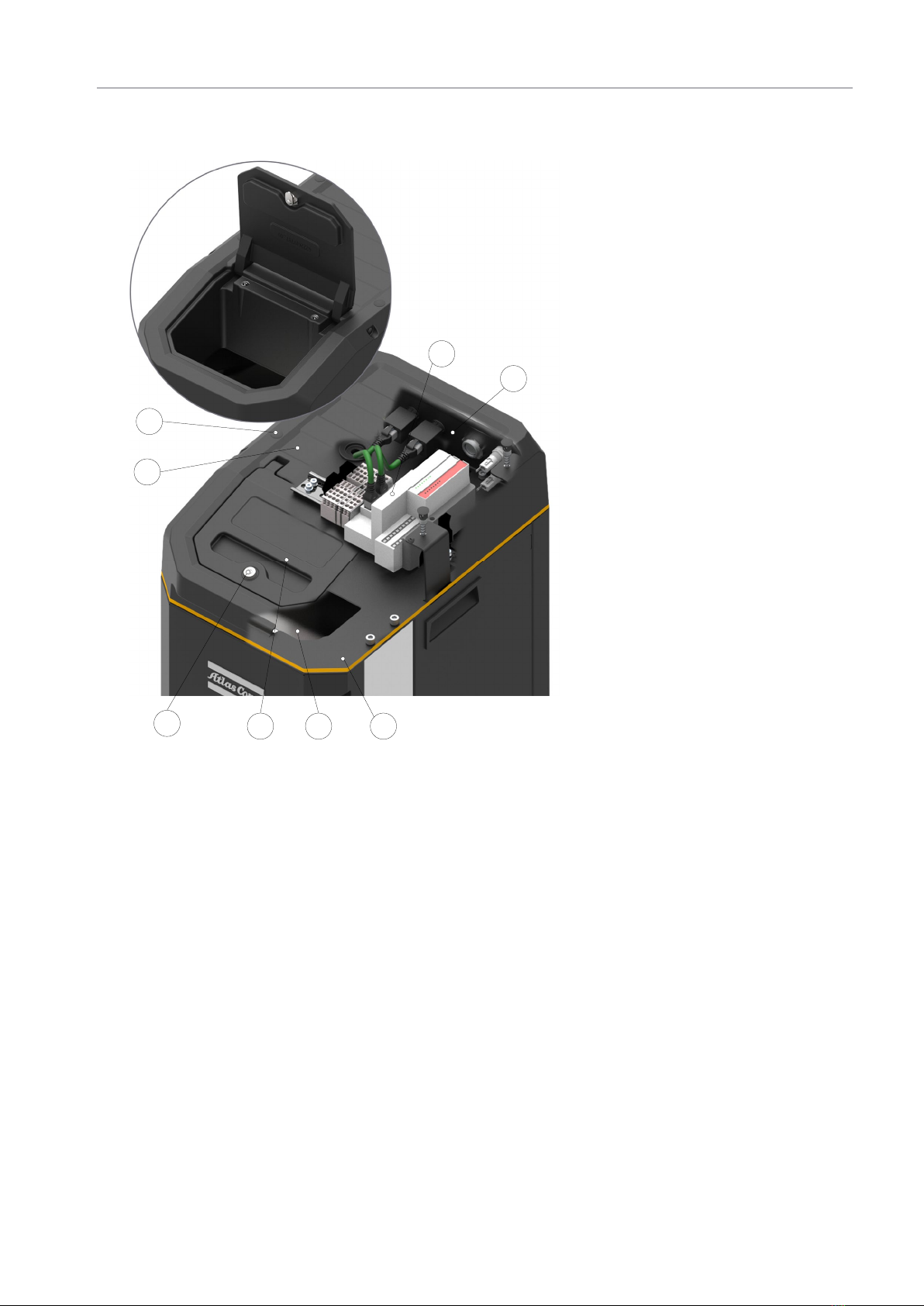

3 System Overview
1
2
3
4
5
6
7
8
11
12
1 - Hinged lid
2 - Lid key-lock
3 - Top cover
4 - Door
5 - Door handle
6 - Stud lock
7 - Side panel
8 - Lifting handle
9 - Rear panel
10 - Bulk head plate
11 - T-Tube
12 - Main Air inlet Hose
12
3
12
11
8
7
9
10

Page 11
Unity Bulk Feeder C9C Compact, Issue 1
3. 1 BASE Model - Internal Components
2
1
3
4
5
9
10
11
12
13 15
7
8
14
1 - Control module
2 - Hopper assembly
3 - Dispenser unit
4 - Bowl assembly
5 - Vibration unit
6 - Escapement assembly
7 - Main blow
8 - Bulk head plate
9 - T-Tube
10 - Main Air inlet Hose
11 - Main lter unit
12 - Main regulator unit
13 - Vibration unit regulator
14 - Main solenoid valve
15 - Main blow regulator
16 - Manifold
17 - Radial blow & blow
back solenoid valve
18 - Escapement advance
solenoid valve
19 - Dispensing cylinder
solenoid valve
8
12
34
6 9
10
11
16
14
19
18 17

Page 12
Unity Bulk Feeder C9C Compact, Issue 1
4 Components
NOTE
The compact bulk feeder is tted to a stand, there are various options
available, refer to the marketing information or brochure for more
details.
This manual will not cover or make reference to the type of stand tted
4. 1 Bulkhead Plate
12
3
4
5
6
1 - Earth stud
2 - XF2 Ethernet in
3 - XF1Ethernet out
4 - XD1 24V main electrical
supply
5 - F2 Fuse 24V switched
(0.5A)
6 - F1 Fuse +24V (0.5A)
At the rear of the unit is the bulkhead plate which contains the main 24V DC electrical supply
(⁄” UNC 4 pin connector) and Ethernet in/out connectors (not supplied - cable Ethernet, M12
D-Code).
There are two fuses (0.5A) for the +24V and 24V switched lines.

Page 13
Unity Bulk Feeder C9C Compact, Issue 1
4. 2 Base Model Cover and Plate Assembly
1
2
4
3
56
7
8
1 - Hinged lid
2 - Lid key-lock
3 - Top cover
4 - Hole plugs
5 - Plate assembly
6 - Inclined hopper
assembly
7 - Control module
8 - Bulk head plate
At the top of the unit is the cover and plate assembly. The metal cover is tted with a plastic
lid and a key lock. The hinged lid is opened to load the rivets onto the inclined hopper
assembly.
Fitted under the cover is a plate assembly which houses the control modular I/O system
(BL20) which incorporates the digital input and output modules and electrical terminal
blocks.
The plate assembly seals the top of the unit and prevents stray rivets from entering the unit.
The cover is secured to brackets on the plate assembly by four cap screws tted with hole
plugs. The top cover will need to be slid rearwards to separate the top cover and plate
assembly.

Page 14
Unity Bulk Feeder C9C Compact, Issue 1
4. 3 Hopper Assembly
1
2
3
4
9
8
4
5
6
7
1 - Hopper chute
2 - Dispensing section
3 - Bae
4 - Dispensing platform
5 - Pneumatic cylinder
6 - Piston
7 - Bumper
8 - Bowl
9 - Rivets
The hopper assembly is located under the plate assembly and there is a cut-out in the plate
for the rivets to enter the hopper chute.
The hopper chute is angled to feed the rivets to the dispensing section of the hopper and
stopped by a bae. The rivets are collected onto the dispensing platform ready for controlled
transfer to the bowl.
The dispenser unit is agitated by a pneumatic cylinder and piston located under the chute for
a xed period and is triggered by the bowl low level sensor.
CAUTION
Always check that the rivet type and size is correct before adding rivets
to the hopper.
Do not ll the bowl directly. Only ll via the hopper

Page 15
Unity Bulk Feeder C9C Compact, Issue 1
4. 4 Vibrating Bowl and Track
1
2
3
4
5
6
7
7
8
9
10
1 - Bowl
2 - Spiral track
3 - Bowl base
4 - Covered section
5 - Escapement track full
sensor
6 - Recovery airline (red)
7 - Side blow air lines (blue)
8 - Bowl full sensor
9 - Rivet
The Vibrating Bowl
aligns the loose
rivets ready to feed
down the track to the
escapement.
The escapement track
sensor detects the
presence of rivets in the
track. When no rivets
are detected the bowl is
activated.
The vibrating bowl runs
until rivets are again
detected by the track
sensor.
The bowl consists of spiral tracks that convey the rivets from the base of the bowl to the slot
in the exit section of the bowl. The exit section of the bowl is covered where the rivets enter
the track. This is to prevent stray or rivets from entering the escapement.
An inductive sensor tted above the track will identify when the track is full of rivets and
stop the bowl vibrating. These airline help the orientation of rivets entering the track (radial
blows) and prevent blockages in the track (recovery blow).
Fitted underneath the base section of the bowl is an inductive sensor which is the bowl full
sensor. When the bowl is low of rivets the hopper dispenser is agitated to replenish the bowl
with rivets.
CAUTION
Each Compact Bulk Rivet Feeder is programmed to work with a specic
rivet. Caution should be exercised to ensure that only the correct rivet is
loaded. The part number is on the rivet pack and this should match the
rivet type for the machine.

Page 16
Unity Bulk Feeder C9C Compact, Issue 1
4. 5 Standard Escapement
1
2
5
3
4
6
7
7
8810
9
11
1 - Escapement chute
2 - Double acting cylinder
3 - Gate
4 - Escapement cover
5 - Gate position sensor
6 - Clamping post
7 - Base panel
8 - Knobs
9 - Main blow tting
10 - T-Tube
11 - Rivet
The escapement takes a
single rivet and presents
it in front of the T-Tube
from where it is blown
along the T-Tube to the
Magazine Stand, Tool
or Selector System. The
rivet exit sensor detects
that the rivet has left
the gate and entered
the T-Tube. The gate
position sensors detect
that the gate cylinder is
in the correct position
to feed the rivet along
the T-Tube.
The rivets from the bowl are fed serially down a vertical chute to the gate. The gate is
actuated by a double acting cylinder, the rst rivet in the escapement rests against the edge
of the gate, the cylinder is actuated and the rivet falls in a slot in the gate, the gate is retracted
and the rivet falls into the main blow section where the T-Tube is tted. A clear plastic window
allows in front of the gate allows visual viewing of the gate action and the transfer of rivets.
A micro-switch tted to the escapement cylinder detects it at the retracted position. The
escapement cylinder is actuated by a pneumatic solenoid valve. The clamp post has an
eccentric mounting so can be rotated to adjust the alignment of the escapement and then
slid forwards/back in a slot. The escapement height it adjusted using the knob on the
escapement.
WARNING
The escapement gate moves quickly when actuated and may create a
trapping point. Do not operate the equipment with the escapement
clear cover removed.

Page 17
Unity Bulk Feeder C9C Compact, Issue 1
4. 6 Vibration Unit
1
2
3
3
3
3
5
4
6
7
6
6
6
1 - Pneumatic vibration unit
2 - Bowl bracket (4 o)
3 - Bowl spring (4 o)
4 - Spring mounts (4 o)
5 - Bowl base plate
6 - Rubber anti-vibration
mounts (4 o)
7 - Base panel
The pneumatic
vibration unit and
bowl spring are
mounted on a bracket
on the underside of
the bowl. There are
three additional bowl
springs mounted to the
underside brackets of
the bowl.
Each spring is secured
to the bowl base plate.
The base plate is tted
with four rubber spring
mounts that prevent
vibration resonating
throughout the unit.
The vibration unit is a pneumatic piston vibrator. The vibration will increase as the pressure
increases. An in-line regulator adjusts the pressure and hence vibration frequency of the Bowl.
During installation the vibration frequency is adjusted to match the rivet size and type.
The vibration unit regulator can be adjusted to optimise rivet ow.
CAUTION
A poorly set vibratory unit can seriously impact rivet feed reliability.
The vibration intensity setting however, should be individually
established and match-marked for each Bulk Feeder

Page 18
Unity Bulk Feeder C9C Compact, Issue 1
4. 7 Standard Control Module
The control module is located under the cover
and tted to a rail on the plate assembly.
It consists of a programmable PLC with an
associated digital input card for the sensors
and digital output card for the solenoid
valves and prime track button. There is also a
terminal blocks for the associated electrical
wiring. The programmable PLC has two
Ethernet ports which connect to the bulk
plate at the rear of the unit.
It needs to receive signals from a Unity panel
or Robot Controller to feed rivets to any other
piece of equipment.
Communication between the Controller and Bulk Rivet Feeder is made via the control module
using Ethernet.
Each Compact Bulk Rivet Feeder system BL20 module is assigned a unique node address
which is set by dials on the unit.
4. 8 Main Air Filter
1
2
3
4
1 - Main air inlet hose
2 - Filter unit
3 - Filtered air mains supply
4 - Bracket
Fitted to the left side mounting via bracket is the main lter. The incoming mains air supply hose (6
bar) is ltered before transfer into the system.
NOTE
This lter is a particulate lter. The customer needs to ensure their air
inlet to the unit is free from contaminants such as oil and water.

Page 19
Unity Bulk Feeder C9C Compact, Issue 1
4. 9 The Vibrating Unit Regulator
5
2
1
3
4
6
1 - Solenoid valve
2 - Vibration unit
3 - Main ltered air inlet
hose
4 - Main ltered air to
regulator
5 - Regulator
6 - Regulated air hose to
vibration unit
The main ltered air is fed to solenoid valve at the rear which actuates the vibration unit airline.
The vibrating unit airline from the valve is fed to a regulator tted to a bracket at the front of the
unit. This regulator control the frequency of the vibration unit and also adjustment of the speed at
which rivets move around the bowl.
4. 10 Main Regulator
1
2
3
4
5
6
1 - Main ltered air inlet hose
2 - T-piece connector
3 - Main regulator
4 - Main regulator hose (4 bar)
to manifold
5 - Mounting plate
6 - Manifold
The ltered mains air supply is fed to the main regulator tted to a bracket at the front of the unit.
This regulator needs to be set to 6 bar. The airline from the main regulator connects to a manifold
located on a mounting plate at the rear of the unit.

Page 20
Unity Bulk Feeder C9C Compact, Issue 1
4. 11 Manifold and Solenoid Valves
3
21
444
5 6 7
5
6
7
1
1 - Mounting plate
2 - Main ltered air inlet hose
to manifold
3 - Manifold
4 - Output ports (3 o)
5 - Bottom solenoid valve
6 - Middle solenoid valve
7 - Top solenoid valve
The manifold is located on a mounting plate at the rear of the unit. The manifold has three outlet
ports which connect to three solenoid valves.
The bottom solenoid valve actuates the bowl radial blow and blow back
The middle solenoid valve actuates the escapement cylinder
The top solenoid valve actuates the hopper dispensing cylinder
