Atlas Copco ACTA 4000 User manual

User Guide
ACTA 4000
Also valid for ACTA 3000
Atlas Copco Tools and Assembly Systems
9836 4171 01
2008-12

Copyright Atlas Copco Tools and Assembly Systems
Note! This manual can be altered without further notice.
For further information log in to Atlas Copco www.atlascopco.com

ACTA 4000 User Guide Contents
9836 4171 01 2008-12 3 (136)
Contents
Contents.........................................................................................................................3
1System overview ...................................................................................................7
1.1 ACTA functionality ....................................................................................................................7
1.1.1 ACTA Basic............................................................................................................................ 8
1.1.2 ACTA Quality Control ............................................................................................................. 8
1.1.3 ACTA Advanced Analysis ...................................................................................................... 8
1.2 ToolsTalk QAT ..........................................................................................................................8
1.3 How to use this guide................................................................................................................9
1.3.1 Revision History ................................................................................................................... 10
2Interface ...............................................................................................................11
2.1 Front panel..............................................................................................................................11
2.1.1 Display ................................................................................................................................. 12
2.1.2 Menu Blocks......................................................................................................................... 13
2.1.3 Pull-up menus ...................................................................................................................... 13
2.1.4 Input dialog boxes ................................................................................................................ 14
3Getting started.....................................................................................................17
3.1 Out of the Box .........................................................................................................................17
3.2 Installation ...............................................................................................................................17

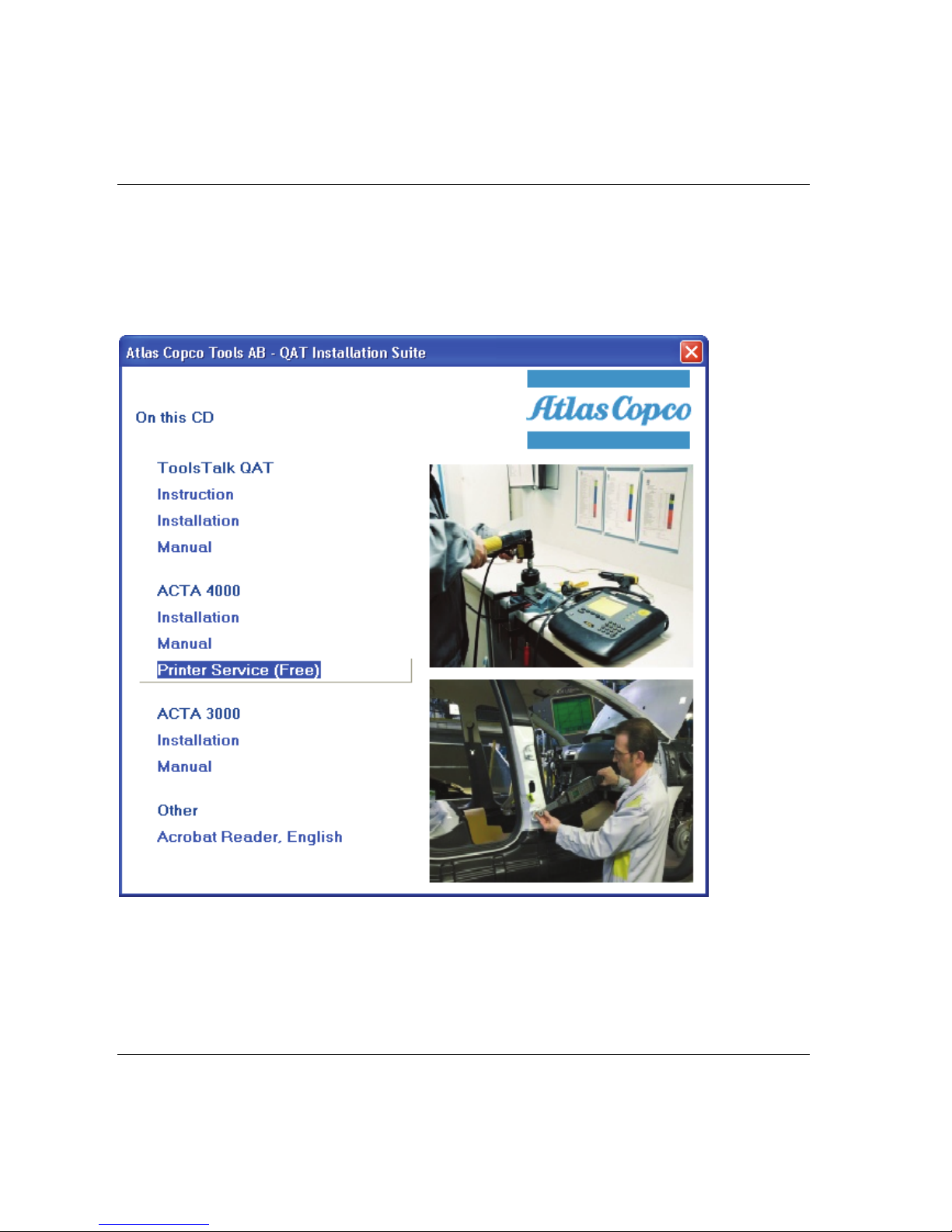

3.2.1 Installing software ................................................................................................................ 18
3.3 Startup.....................................................................................................................................19
3.4 Using Quick programming ......................................................................................................19
3.4.1 Measuring tools.................................................................................................................... 20
3.4.2 Measuring controlled tools with synchronization .................................................................. 20
3.5 Connecting ToolsTalk QAT.....................................................................................................22
4Programming ACTA............................................................................................23
4.1 View ........................................................................................................................................25
4.2 Print menu...............................................................................................................................26
4.3 Quick Programming (Q.Prog.) ................................................................................................29
4.3.1 Quick programming tools ..................................................................................................... 30
4.3.2 Synchronize ......................................................................................................................... 30
4.3.3 ISO 5393.............................................................................................................................. 31
4.3.4 Measuring tools according to ISO 5393 ............................................................................... 31
4.4 Statistics (Stat.) .......................................................................................................................34
4.4.1 All tightening......................................................................................................................... 35
4.4.2 Statistics torque, Statistics angle and Statistics pulse.......................................................... 36
4.4.3 History.................................................................................................................................. 37
4.4.4 Manual Input ........................................................................................................................ 39
4.5 Configuration (Conf.)...............................................................................................................40
4.5.1 Interface ............................................................................................................................... 41
4.5.2 Calibration ............................................................................................................................ 47
4.5.3 Diagnostics........................................................................................................................... 47
4.5.4 Transducer memory ............................................................................................................. 51
4.5.5 Communication .................................................................................................................... 52
4.5.6 Product information .............................................................................................................. 53
4.5.7 Options................................................................................................................................. 53
4.6 Database (Datab)....................................................................................................................54
4.6.1 New tool ............................................................................................................................... 54

Contents ACTA 4000 User Guide
4 (136) 2008-12 9836 4171 01
4.6.2 Select Tool............................................................................................................................54
4.6.3 Delete Tool ...........................................................................................................................55
4.6.4 Clear all measurements ........................................................................................................55
4.6.5 Backup tool ...........................................................................................................................55
4.6.6 Information............................................................................................................................56
4.7 Program (Prog.) ..................................................................................................................... 57
4.7.1 Application Data Setup .........................................................................................................57
4.7.2 Tooltype setup ......................................................................................................................58
4.7.3 Measurement setup ..............................................................................................................59
4.7.4 Ext. Measurement Setup ......................................................................................................60
4.7.5 Statistical setup.....................................................................................................................61
4.7.6 Display setup ........................................................................................................................65
4.8 Analyse (A.lyse) ..................................................................................................................... 67
4.8.1 Zoom in and zoom out ..........................................................................................................68
4.8.2 Adjust position.......................................................................................................................68
4.8.3 Save trace.............................................................................................................................68
4.8.4 Parameter .............................................................................................................................69
5Measuring strategies ..........................................................................................71
5.1 Measure strategy parameters ................................................................................................ 71
5.2 Available measuring strategies .............................................................................................. 72
5.2.1 Peak(DD) ..............................................................................................................................73
5.2.2 Static installed torque............................................................................................................75
5.2.3 Multistage .............................................................................................................................76
5.2.4 Break away ...........................................................................................................................77
5.2.5 Peak (Pulse) .........................................................................................................................78
6Measurement results ..........................................................................................79
6.1 Common parameters ............................................................................................................. 79
6.2 The Measurement dialog boxes............................................................................................. 80
6.2.1 Basic Measurement dialog box.............................................................................................81
6.2.2 Custom Measurement dialog box .........................................................................................82
6.2.3 Trace Measurement dialog box.............................................................................................83
6.3 Batch Result window.............................................................................................................. 84
6.4 Zone result window ................................................................................................................ 86
7Calibrating tools and equipment .......................................................................87
7.1 Tool calibration....................................................................................................................... 87
7.1.1 Setting up ACTA ...................................................................................................................87
7.1.2 Evaluating and adjusting.......................................................................................................88
7.1.3 Automatic tool calibration......................................................................................................88
7.1.4 Calibration dialog boxes........................................................................................................89
7.2 Calibrating Transducers with ACTA ....................................................................................... 94
7.2.1 Calibration.............................................................................................................................95
7.2.2 Linearity check ......................................................................................................................96
7.2.3 Saving and printing the new calibration value .......................................................................97
7.3 Calibrating ACTA ................................................................................................................... 98
8Printouts from ACTA...........................................................................................99
8.1 Continuous report................................................................................................................. 100
8.2 Rundown report.................................................................................................................... 101
8.3 Transducer Memory Report ................................................................................................. 102
8.4 Tool Setup............................................................................................................................ 103
8.5 Tool Statistics....................................................................................................................... 104

ACTA 4000 User Guide Contents
9836 4171 01 2008-12 5 (136)
8.5.1 All Tool Rundowns ............................................................................................................. 105
8.5.2 All Tool Set-ups.................................................................................................................. 105
8.5.3 All Tool Statistics................................................................................................................ 105
8.6 Tool calibration......................................................................................................................106
8.7 Database Summary ..............................................................................................................107
8.8 Trace .....................................................................................................................................108
8.9 Transducer calibration report ................................................................................................109
8.10 ACTA Calibration report........................................................................................................110
8.11 ISO 5393 Calibration report ..................................................................................................111
9Guide to statistics .............................................................................................112
9.1 Principal definitions ...............................................................................................................113
9.2 Control charts........................................................................................................................114
9.2.1 Control charts example ...................................................................................................... 115
9.2.2 X-bar and Range coefficients table .................................................................................... 120
9.3 Capability studies..................................................................................................................121
9.4 ISO 5393 calculations ...........................................................................................................122
10 Technical specifications................................................................................... 123
10.1 Back panel connectors, ACTA 4000.....................................................................................123
10.1.1 Transducer Pin Description ................................................................................................ 123
10.1.2 Barcode Reader ................................................................................................................. 124
10.2 Default Setups.......................................................................................................................125
10.2.1 ACTA ................................................................................................................................. 125
10.2.2 Q-prog................................................................................................................................ 125
10.2.3 Synchronize ....................................................................................................................... 127
11 Maintenance ......................................................................................................133
11.1 Cleaning ................................................................................................................................133
11.2 Service & Calibration ............................................................................................................133
11.3 Software Upgrade .................................................................................................................133

ACTA 4000 User Guide System overview
9836 4171 01 2008-12 7 (136)
1 System overview
Introducing ACTA, combining tightening analysis functionality with integrated tools management and
statistic process control (SPC).
This user guide describes the ACTA 4000 and ACTA 3000, revision 3.x functionality. When referring to
ACTA only, the functionality is valid for both versions. Other versions of ACTA are not covered in this
user guide.
1.1 ACTA functionality
ACTA is available in three different versions to cover all needs:
Basic
Quality Control (QC)
Advanced Analysis (AA).
The following functionality is available in all versions of ACTA:
Function ACTA 4000 ACTA 3000
PC connection allowing quick upgrades and PC
integration through ToolsTalk QAT
USB, RS 232 and Ethernet RS 232
Printer Port Not available, printing capability
through Report Viewer
application (not yet implemented)
Yes
Analogue output for quality analysis with oscilloscope Yes Yes
An integrated battery 7 hours 3,5 hours
Automatic communication of calibration data from
transducers at start-up
Strain-gage and amplified
transducers supported
Strain-gage transducers
supported
Display Color display Black and white display
Quick programming function for simple torque checks Yes Yes
Flash memory for easy upgrading Yes Yes
Memory 6000 tools, 48000 tool tightening
operations
500 tools, 6000 tool
tightening operations
ToolsTalk QAT-compatible Yes Yes

System overview ACTA 4000 User Guide
8 (136) 2008-12 9836 4171 01
1.1.1 ACTA Basic
ACTA Basic is the entry level version designed for simple torque checking in a repair shop or directly on
the line. ACTA Basic includes the following functionality:
Measures torque and angle on direct driven, residual torque and pulse tools and counts the number
of pulses on pulse tools
Calculates mean values and 3σ
Single Memory Position, i.e. only one tool
Auto calibration and self test
Auto set-up on Atlas Copco memory transducers
Transducer database for non-Atlas Copco transducers
1.1.2 ACTA Quality Control
Quality Control is the next step up from Basic. It includes a database for organization and storage of tools
and tool tightening operations. It also includes advanced statistical functions. In addition to the Basic
features, the following is included:
Process capability index (CM) and modified process capability index (CMK)
Real time statistic process control (SPC)
Databases for Tools, Measurements and History
Print SPC for a tool or a tool tightening database
Tool calibration
1.1.3 ACTA Advanced Analysis
Advanced Analysis is the most advanced version for graphical analysis of the tightening characteristics of
various tools or joints. In addition to the Basic and Quality Control features, the following is included:
Tightening traces with zoom-in
Print traces, for ACTA 4000 through ToolsTalk QAT
Trace transfer to ToolsTalk QAT
1.2 ToolsTalk QAT
With ToolsTalk QAT software you have a complete tool database, tightening database and supplier
database for easy storage and access to all the information you might need about your tools along with
traces and detailed statistical data. In addition, you have a complete application database for handling of
tools and joints. You are also able to attach maintenance and service instructions for all your tools and

ACTA 4000 User Guide System overview
9836 4171 01 2008-12 9 (136)
keep a record of work in progress. ToolsTalk QAT can even keep track and remind you of maintenance
and service intervals.
Use ACTA with ToolsTalk QAT software to have a complete quality management tool at your service or
your complete ISO 9000 under one icon in your PC.
The CD supplied with your ACTA includes ToolsTalk QAT software that is possible to use for 60 days
without a license. For more information, see the ToolsTalk QAT User Guide.
1.3 How to use this guide
This user guide describes how to use ACTA in conjunction with the following hardware and software.
Transducer
Tool
Controller
ToolsTalk QAT
ACTA 4000 Printer Service
Deadweight equipment, ISO 5393 test joints
Cables
For more information, see the applicable User Guide or Product Information.
The following main tasks are handled in this user guide:
Tool measurement The tool is connected to the transducer and to ACTA, and tightening operations
are done. The result is displayed and stored in ACTA.
For Quick programming instructions, see sections Measuring tools.
Tool measurement
with synchronization
Tool measurement when tool and controller are connected and the tightening
operations are done using the configuration in the controller.
The results from the controller and from the transducer are both displayed in
ACTA (if RS232 or Ethernet connection is used). If using a controller-tool
combination that is not connected or not compatible with ACTA, a manual
synchronization is done where the configuration and the results from the
controller are entered manually.
For Quick programming instructions, see section Measuring controlled tools
with synchronization.
Tool measurement
according to ISO 5393
Standardized measurement according to ISO 5393. See section Measuring tools
according to ISO 5393.

System overview ACTA 4000 User Guide
10 (136) 2008-12 9836 4171 01
Tool calibration If the tool needs adjustment, this is normally done through the ACTA
calibration procedure where the tool software is updated. A calibration can also
be done manually (screw adjustment on tool).
The tool calibration can be done with or without a synchronized controller. For
instructions, see section Calibrating tools and equipment.
Tool data handling Tool data and the results of the measurements from the tightening operations
are stored in ACTA.
The data can be stored and handled in a number of ways. Printouts through a
PC or data handling in ToolsTalk QAT can be made.
ACTA calibration ACTA needs to be calibrated once a year. This is done in a licensed laboratory.
Transducer calibration To calibrate a transducer, deadweight equipment is used.
1.3.1 Revision History
The release of this user guide describes:


ACTA 4000 User Guide Interface
9836 4171 01 2008-12 11 (136)
2 Interface
This section describes how to operate and interpret the display. For information on back panel connectors,
see section Back panel connectors, ACTA 4000.
2.1 Front panel
This figure shows ACTA 4000 front panel. ACTA 3000 has the same buttons and functionality, with
minor differences in keyboard and led arrangement.
1 Display
2 Soft keys
3 On/Off button
4-7 Status (LED)
indicators
8 SHIFT
9 Numeric keypad
10-12 Function buttons
The front panel layout is the same for all versions of ACTA 4000 or ACTA 3000. Apart from the display,
it features LED indicators, soft keys and an alpha-numeric keypad.
No Name Description
1 Display See section below
2 Display Soft
keys (Blank)
Each key corresponds to various blocks of soft key text (programming tree menus) or arrows in
the display. To configure the soft keys, see section User defined soft keys.
4-7
8
9
10-12
1
2
3

Interface ACTA 4000 User Guide
12 (136) 2008-12 9836 4171 01
3
On/Off
To start or shut down ACTA, press the button and hold down for one second
4 OK Lights up when the result of a tightening operation falls within all the specified limits. The signal
is active for 10 seconds or until the next tightening operation is initiated.
5 NOK Lights up when the result of a tightening operation falls outside any of the specified limits. The
signal is active for 10 seconds or until the next tightening operation is initiated.
6 n x OK Flashes three times when the number of tightening operations corresponds to the present number
of tightening operations programmed in ACTA (Batch size)
7
Battery
Red ACTA requires charging.
Flashing green Charging just started, 110 / 220 V on but battery not connected or
something wrong with charging circuits.
Constant green ACTA charging
Off If 110 / 220 V connected, battery fully charged
If 110 / 220 V not connected, ACTA will use the battery.
8 SHIFT Pressing the shift button activates the alphabetical signs above each numeric key. Keep pressing
the numeric key to find the desired alphabetical sign
9 Keypad Numeric keypad. Use SHIFT to activate alphabetical signs
10 OK OK is used to activate inputs in the programming blocks
11 Cl The clear button is used to erase old values in the programming blocks or to delete the latest result
of the current tightening measurement.
SHIFT,Cl Pressed in succession (but not at the same time), one of the following occurs:
All results of the current tightening torque measurements are erased
When editing data, all data is removed from an input dialog box
12 ENTER ENTER is used to select an option and verify inputs in the programming blocks
2.1.1 Display
ACTA features a large back-lit 72 x 96 mm display with a dialog box-like interface to allow accurate
measurement readings and simple usage. ACTA 4000 has a color display, ACTA 3000 has a black and
white display.
ACTA also features a power-save function that deactivates the back-lighting on the display if it is not used
for 30 seconds. This is to save the battery and works only when ACTA is powered from the battery.
The display normally shows the Measurement dialog box. Depending on the current task, the following
displays are available:
Measurement dialog boxes
Calibration dialog boxes
Pull-up menus
Input dialog boxes
Result windows

ACTA 4000 User Guide Interface
9836 4171 01 2008-12 13 (136)
Result header with battery
status, communication symbol,
tool or application name, and
number of tightenings (in
batch)
Measurement dialog box with
torque and angle results,
statistical results and last five
tightenings. This figure shows
the basic view
Menu blocks representing
programming tree functions,
arrows, or user defined options.
Controlled by the soft keys
2.1.2 Menu Blocks
The Menu blocks are located at the bottom of the display.
Each soft key is used to select a menu block. The arrows are used to scroll through the menus.
2.1.3 Pull-up menus
When selecting a menu block with more than one function, a dialog box appears on the display.
A pull-up menu lists the options under a specific
menu block. The figure shows the pull-up menu
from the Programming menu block.
To select an option, do one of the following:
Highlight it by scrolling up or down using
the soft keys under the arrows. Then press
ENTER.
Press the digit on the numeric keypad that
corresponds to the desired menu option.

Interface ACTA 4000 User Guide
14 (136) 2008-12 9836 4171 01
2.1.4 Input dialog boxes
An input dialog box appears if the option you have selected requires specific parameters to be set.
Opening data boxes
To access the data boxes, do
one of the following:
Highlight it by
scrolling up or down
using the soft keys
under the arrows.
Then press ENTER.
Press the digit on the
numeric keypad that
corresponds to the
field.
The box opens.
Entering data
To enter data, do the following:
If the data field is editable, use the numeric keypad. For alpha character signs, press and release SHIFT
prior to the numerical key representing the desired letter or symbol. Pressing and releasing associated
numeric button will cycle through applicable range of alpha characters. First lowercase and then upper
case. Press ENTER to confirm and exit the data field. If the data field has a selection list, do one of the
following:
Use the soft keys under the arrows to highlight the desired parameter. Press ENTER to confirm and
exit the data field.
Press the digit on the numeric keypad that corresponds to the desired parameter to confirm and exit
the data field.

ACTA 4000 User Guide Interface
9836 4171 01 2008-12 15 (136)
When all data in the dialog box is correctly filled in, do one of the following:
Highlight OK on the display and press ENTER to confirm and exit the dialog box
Press OK on the numeric keypad to confirm and exit the dialog box
To exit a dialog box without making any changes, do one of the following:
Highlight Cancel in the display and press ENTER
Press the Cancel soft key
The changes are discarded and the Measurement (or other default) dialog box is displayed again.
Navigating in the dialog boxes
The Next and Prev. choices, when present, let you navigate to the next dialog box in the current pull-up
menu without returning to the Measurement dialog box. When leaving the dialog box using Next or Prev.,
ACTA asks if you want the changes to be saved or not.

ACTA 4000 User Guide Getting started
9836 4171 01 2008-12 17 (136)
3 Getting started
This section describes how to get started and configure ACTA.
3.1 Out of the Box
When purchasing ACTA 4000, any version, the following is included:
Mains AC power supply cable
User guide and Product Information
Calibration certificate
USB cable
CD with ACTA software, ToolsTalk QAT software, and ACTA 4000 Printer Service
The calibration certificate must be stored in a safe place.
To access the functionality described in this user guide when using an ACTA 3000, an upgrade package is
required. Contact your Atlas Copco representative for details.
3.2 Installation
ACTA is a standalone portable product. No particular installation is necessary. Simply follow the safety
instructions and observe the following recommendations:
1. Place ACTA on a firm and flat surface or hold it securely in your hand.
2. Connect your Atlas Copco torque transducer.
3. Connect the power supply cable.
4. Start ACTA by pressing On button until the buzzer beeps.
The first time you charge the battery, charge it for 12 hours and then use ACTA on
battery mode until the battery is completely discharged.

Getting started ACTA 4000 User Guide
18 (136) 2008-12 9836 4171 01
3.2.1 Installing software
To install the software from the CD, do the following:
1. Insert the CD into your PC.
2. Install the Printer Service and ToolsTalk QAT. Printer Service is free of charge and ToolsTalk QAT is
possible to use for 60 days without a license.

ACTA 4000 User Guide Getting started
9836 4171 01 2008-12 19 (136)
3.3 Startup
No torque must be applied to the transducer at start-up.
When you start ACTA, the following appear in the display:
1. Atlas Copco logo flashes up briefly.
2. The Measurement dialog box appears.
3. The Calibration dialog box flashes up briefly (if an Atlas Copco torque transducer is connected).
4. The Measurement dialog box resumes.
ACTA initializes and performs a self-test. The Calibration dialog box appears to indicate that ACTA is
communicating with the Atlas Copco torque transducer and performing an automatic setup. It reads the
transducer’s serial number and calibration data, which it stores in its memory.
ACTA can work with most major transducer types. If you use an Atlas Copco non-
memory transducer or a different brand, see section Technical specifications on how to set
up your transducer before continuing.
3.4 Using Quick programming
This section focuses on how you can start measuring in minutes with the Quick Programming function
using Atlas Copco Torque/Angle transducers. The quick programming functions automatically make
advanced programming for you.
All versions of ACTA feature a Quick Programming function that allows you to set up a measurement
session without extensive programming knowledge. The ACTA performs the programming operations for
you. It is ideal with ACTA Basic or for quick and simple torque checks.
For information on the settings used by Q.prog see section Default Setup, Q-prog.
The quick programming menu has three basic options:
Tool measurement programming, four different tool types
Synchronization with controller
Tool measurement according to standard ISO 5393
This section describes how to get started and perform Tool measurement without and with
synchronization. For information on tool measurement using synchronization, according to standard ISO
5393 standard, and for complete description of the menu items, selections and views, see the
corresponding section in this User Guide.

Getting started ACTA 4000 User Guide
20 (136) 2008-12 9836 4171 01
3.4.1 Measuring tools
To measure a tool using quick programming, do the following:
1. Ensure that the transducer and tool are connected. To view tool/Pset in the Result header, open
Conf>Interface>User and set Show Pset to On.
2 Select menu block
Q.prog
3. Select the correct tool and press ENTER.
1 Direct driven Used when testing direct driven tools dynamically.
2 Pulse Used when testing pulse tools dynamically.
3 Wrench Used when checking installed torque in an already tightened joint.
4 Click wrench Used when checking the release torque on a click wrench.
4. Select
OK to use default programming.
If Pulse is selected, type the filter frequency in the dialog box.
If Wrench is selected, select Peak (DD) or Static installed torque in the dialog box.
For more information about strategies, see section Measuring strategies.
For more information about filter frequency, contact Atlas Copco.
5. Do the tightening operations.
The result is displayed in the Measurement dialog box after each tightening.
6. Save and print the result.
Evaluate, and if applicable, calibrate the tool. See section Calibrating tools and equipment.
3.4.2 Measuring controlled tools with synchronization
When using Synchronize, the ACTA is configured to measure the torque in the same way as the controller.
After each tightening operation, ACTA reads the tightening values directly from the controller and from
the transducer, and stores them in the ACTA’s memory.
1. Connect ACTA and controller. To view tool/Pset in the Result header, open Conf>Interface>User and
set Show Pset to On.
Note! Depending on controller, a gender converter can be needed to connect to
the RS 232 connector on ACTA.
