Teledyne WIRELESS GROUNDLINK WQAR User manual

WQAR
WIRELESS GROUNDLINK® - QUICK ACCESS RECORDER
PART NUMBER
2243800-460 2243800-462 2243800-464
USER’S GUIDE
501 Continental Blvd. UG2243800-4XX
El Segundo, CA 90245 USA May –28, 2019

P a g e | 1
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
© Copyright 2014–2019 Teledyne Controls, LLC. All rights reserved.
Printed in the U.S.A.
No part of this document may be transmitted, reproduced, or copied in any form
or by any means without the prior written consent of Teledyne Controls, LLC. Due
to Teledyne Controls, LLC’s commitment to constantly improve the quality and
performance of our products, information contained in this document is subject to
change without notice.
Teledyne Controls, LLC
501 Continental Boulevard
El Segundo, CA 90245
PROPRIETARY INFORMATION NOTICE: This document, including the
information contained within, is the property of Teledyne Controls, LLC. It
may not be used, modified, reproduced, released, performed, displayed,
disclosed, published or distributed, in whole or in part, except as expressly
permitted in writing by an authorized representative of Teledyne Controls,
LLC. Any permitted use, modification, reproduction, performance, display,
disclosure, publication or distribution must also exactly reproduce and
clearly and conspicuously display this notice unless otherwise instructed in
writing by Teledyne Controls, LLC.
DESTINATIONCONTROL STATEMENT(DCS): Thesecommodities,technology,
or software were exported from the United States in accordance with
the Export Administration Regulations. Diversion contrary to U.S. law is
prohibited. U.S. law prohibits disposition of these commodities to any end
user for any end use related to the design, development, production,
stockpiling or use of chemical, biological or nuclear weapons, or missiles,
without the prior approval of the U.S. Government.

P a g e | 2
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
US Federal Communication Commission (FCC) and
Industry Canada (IC) User Notifications.
NOTICE 1:
This device complies with Part 15 of the FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
NOTICE 2:
Changes or modifications made to this equipment not expressly approved by
(manufacturer name) may void the FCC authorization to operate this equipment.

P a g e | 3
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Contents
Table of Figures.................................................................................... 5
Definitions ........................................................................................... 6
Section 1 –General .............................................................................. 8
Introduction .............................................................................................. 8
Scope of this document.............................................................................. 9
WQAR Operation Overview ....................................................................... 9
Features ...................................................................................................10
Aircraft Signaling.................................................................................................... 10
ACMS Reporting .................................................................................................... 11
RF Interlocks .......................................................................................................... 11
Removable SIM Module (RSM).............................................................................. 11
Mobile Networks ................................................................................................... 12
Transmission Restriction........................................................................................ 12
Radio Frequency Radiation Exposure Information ................................................ 12
Section 2 –System Overview .............................................................. 13
Boot up and Pre-Flight Operations ............................................................13
In-FlightOperations ..................................................................................13
Post Flight Operations...............................................................................13
Part Number Discussion ............................................................................14
Software Part Number........................................................................................... 15
Configuring Your WQAR (OPC) ..................................................................16
Using the Front Panel ............................................................................................ 16
Upgrading the WQAR Operational Software (OPS).....................................16

P a g e | 4
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Section 3 –WQAR Operations ............................................................ 17
Front Panel ...............................................................................................17
Front Panel Display ...................................................................................18
FAILIndicator............................................................................................20
Front Panel Buttons ..................................................................................21
Access Door ..............................................................................................21
Antennas..................................................................................................22
Date/Time................................................................................................22
System Menus ..........................................................................................23
MenuDescriptions....................................................................................23
SYSTEM STATE....................................................................................................... 23
UNIT INFO.............................................................................................................. 23
STATUS .................................................................................................................. 25
DIAGNOSTICS......................................................................................................... 28

P a g e | 5
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Table of Figures
Figure 1 –Wireless GroundLink Quick Access Recorder (WQAR)..................... 8
Figure 2 –Wireless GroundLink Communication Diagram............................... 9

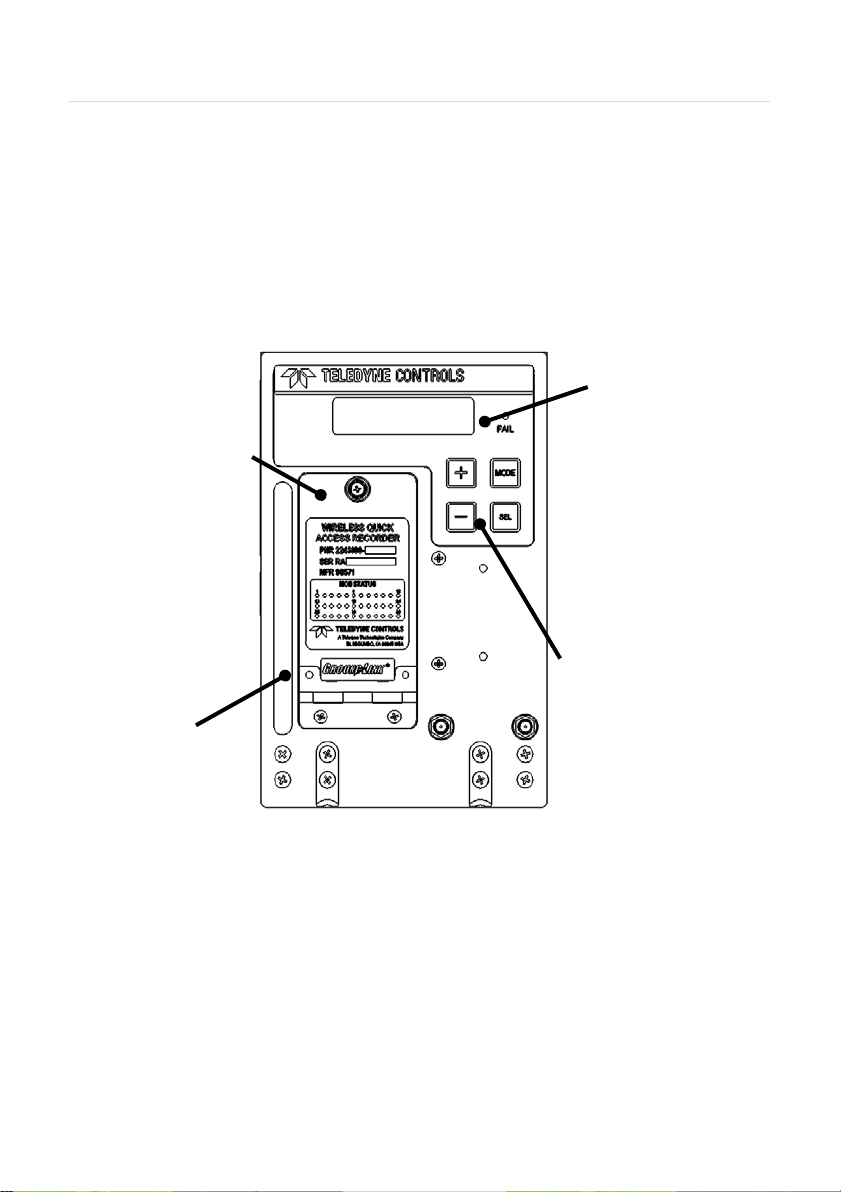

Figure 3 –WQAR Front Panel ......................................................................... 17
Figure 4 –Typical WQAR Display (Run Control Feature in Use) ..................... 18
Figure 5 –Typical WQAR Display (Run Control Feature not in Use)............... 18
Figure 6 –WQAR Display (Data out of Sync)................................................... 18
Figure 7 –WQAR Display (Data in Sync) ......................................................... 19
Figure 8 –Behind the Access Door ................................................................. 22

P a g e | 6
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Definitions
3G 3rd Generation Cellular Protocol
A/C Aircraft
ACARS Aircraft Communication Addressing and Reporting System
ACMS Aircraft ConditionMonitoring System
AIDS Aircraft Integrated Data System
AII Aircraft Interface Items
AMA Airline Modifiable AID+ (Items)
AMI Airline Modifiable Items
ARINC Aeronautical Radio Incorporated
ATE Automated Test Equipment
ATP Acceptance Test Procedure
BIT Built in Test
BITE Built in Test Equipment
COTS Commercial Off The Shelf
DFDAU Digital Flight Data Acquisition Unit
DFDMU Digital Flight Data Management Unit
DOD Download On Demand
eADL enhanced Airborne Data Loader
EDGE Enhanced Data Rates for GSM Evolution
FDIU Flight Data Interface Unit
FDIMU Flight Data Interface Management Unit
GSM Global System for Mobile Communication
GPRS General Packet Radio Service
HRFIL High reliability RF Interlock
IMEI International Mobile (station) Equipment Identity
ISO International Organization for Standardization
LED Light Emitting Diode
MAC Media Access Control
OQAR Optical Quick Access Recorder
OPC Operational Program Configuration
OPS Operational Program Software
PQAR PCMCIA Card Quick Access Recorder

P a g e | 7
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
QAR Quick Access Recorder
RCD Recording Completion Delay
RF Radio Frequency
TMI Teledyne Modifiable Items
UMTS Universal Mobile Telecommunications System
UTC Universal Time, Coordinated
WGBS Wireless GroundLink® Base Station
WGCM Wireless GroundLink® Ground Communication Manager
WGL Wireless GroundLink®
WPS Words per Second
WQAR Wireless GroundLink® -- Quick Access Recorder
WAPU Wireless AMI/AMA Preparation Utility
WCCU WGL Comm+ Conversion Utility
WDCU Wireless Data Conversion Utility
WMPU Wireless Media Preparation Utility

P a g e | 8
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Section 1 –General
Introduction
The Teledyne Controls new Wireless GroundLink® Quick Access Recorder,
also known as the WQAR, is the latest addition to the QAR family of products
(Figure 1). This compatible replacement for any QAR provides convenient
access to airborne data by transmitting it over a high-speed cellular
connection. It can receive flight data from any acquisition unit that is ARINC
717 compliant. The front panel display gives status while the buttons allow
the operator to perform testing as well as view the configuration of the unit.
Figure 1 –Wireless GroundLink Quick Access Recorder (WQAR)

P a g e | 9
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Scope of this document
This operations guide describes the functions of the WQAR (P/N 2243800-
46X) using the OPS software (P/N 711745), all versions. Sections in this guide
include System Overview, Operations, Common Procedures, Fault
Procedures, and other reference information.

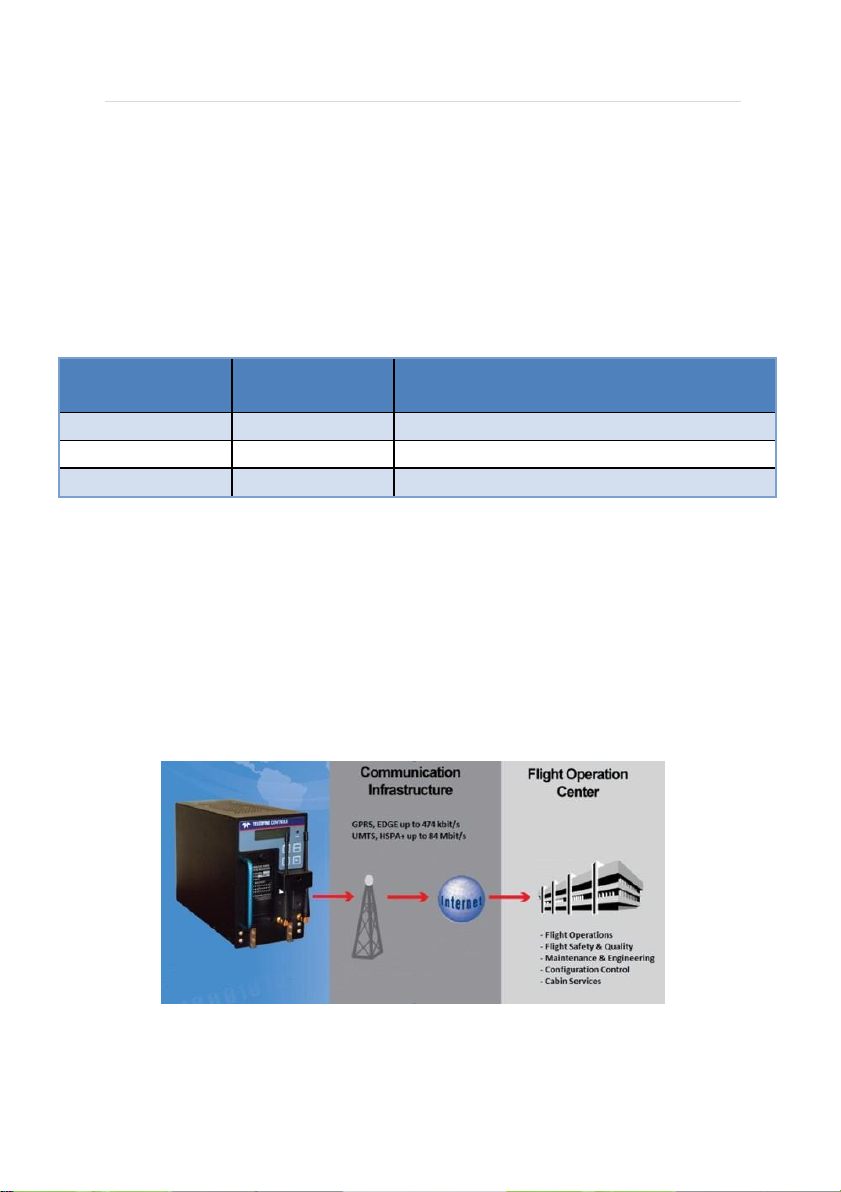

The hardware variants in this WQAR family are listed below:
Part Number
Connector
Type
Radio Complement
2243800-460
ARINC600
No Radios installed
2243800-462
ARINC600
Two radios with two antennas
2243800-464
ARINC600
Four radios with two antennas
For information on Teledyne Controls’ WQAR (P/N 2243800-XX), refer to UG2243800.
WQAR Operation Overview
The primary purpose of the WQAR is to record and store flight data provided
to it by a data acquisition unit such as a DFDAU or FDIMU. Then, while the
aircraft is on the ground, it wirelessly transmits that data to a base station
using high-speed 3G/4G-like cellular technology (where available). If unable
to transmit, a backup encrypted copy of your data is stored on the removable
Compact Flash (CF) card.
Figure 2 –Wireless GroundLink Communication Diagram

P a g e | 10
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Features
The Wireless GroundLink Quick Access Recorder has many features which
enable it to fit into almost any aircraft infrastructure.
Aircraft Signaling
The WQAR can support two different aircraft signaling types: Bi-Polar and
Harvard Bi-Phase. Either one of these signal types can be entered in the
configuration. However, if the WQAR is moved between multiple aircraft
where both BI-PHASE and BI-POLAR are used alternatively, the unit can be
put into signal DISCRETE mode where, during bootup, it monitors the BI-
PHASE SELECT discrete. If this discrete is active, the WQAR will set itself to BI-
PHASE. If this discrete is not active or not present in the aircraft, the WQAR
will set itself to BI-POLAR. After determining the signal, it will determine the
speed of the signal using the methods described below:
❖ The standard hard-coded 64, 128, 256, 384,512, 1024, and
2048 WPS rates can be configured.
❖AUTO speed mode where it dynamically determines the
WPS rate of the signal as it is coming in.
❖Speed DISCRETE mode where, during WQAR bootup, it
determines the speed by monitoring speed discretes
activated by the acquisition unit. These discretes are
generally known as the X2, X4, X8, X16, and X32 discretes.
The aircraft wiring of these discretes varies by aircraft type.
The acquisition unit may activate any one of these to
indicate the speed of the ARINC717 data stream.

P a g e | 11
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
ACMS Reporting
In addition to the standard ARINC717 flight data, the WQAR can also record
ARINC429 data (ACMS reports) if the acquisition unit sends such reports.
When enabled, upon landing, the WQAR will power up the radios but wait a
fixed amount of time before sending any data to allow for these reports to
come in. This delay is referred to as the Recording Completion Delay (RCD).
The typical setting is five minutes. Once the RCD has elapsed, the WQAR will
transmit both the ARINC717 and ARINC429 data in a single (WGL) file. Each
flight is compartmentalized into distinct compressed files.
RF Interlocks
Aircraft regulations prohibit the WQAR radios from transmitting while the
aircraft is in the air. To comply with this regulation, Teledyne Controls has
incorporated hardware, referred to as High Reliable RF Interlocks, which
provides strict controls to allow power to be applied to the radios only while
the aircraft is on the ground.
Removable SIM Module (RSM)
This WQAR is equipped with a Removable SIM Module (RSM) which located
behind the front Access Door. After WQAR power is removed, the RSM can
be removed by the operator using the procedure in section 4, View/Replace
Removable SIM Module (RSM) or Individual SIM Card. When replacing or
installing the individual SIM cards (mini-SIM cards) into the RSM, the WQAR
may require a new OPC file for proper operation.

P a g e | 12
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Mobile Networks
The WQAR transmits data utilizing the 3G/4G networks all over the world, by
dynamically determining the cellular frequencies wherever the aircraft is
located. The operator can selectively limit where the WQAR transmits by
utilizing the roaming zones set by the mobile provider or by use of Network
Identification numbers (NetIDs). All transmissions are subject to charges by
the SIM mobile provider(s).
Transmission Restriction
The WQAR is restricted to a maximum of 3 radios simultaneously transmitting
on band 30. To facilitate this restriction, the user must not utilize a SIM card
combination or transmission rules that allows access to more than 3 radios on
band 30 at a time.
Contact Teledyne Controls Customer Services for more information.
Radio Frequency Radiation Exposure Information
The WQAR complies with the FCC RF exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20cm between the radiator (antenna) and your
body.

P a g e | 13
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
Section 2 –System Overview
Boot up and Pre-Flight Operations
Upon cold start, the WQAR FAIL light will blink slowly while it initializes the
hardware. The FAIL light will blink quickly as the OPS software boots,
determines the signal and speed of the incoming flight data, and adapts itself
to the aircraft. During this time, the output FAIL discrete will not be set. After
boot up is complete, the FAIL light will extinguish and the LCD display will
momentarily show STARTUP BIT COMPLETE followed by the normal SYSTEM
STATE display as shown in Section 3 which indicates the WQAR is ready for
operation. On LRUs without MOD DOT 3 status, the LCD display may be
dimmed during the boot up process which takes approximately two minutes.
In-FlightOperations
When the aircraft is ready, the WQAR will begin recording all incoming ARINC
717 and report data from the acquisition unit. During flight, the data will be
periodically compressed to ready it for transmission. An encrypted copy is
also saved onto an accessible removable CF card (P/N 2234641-008).
Post Flight Operations
After landing, the RF Interlocks will disengage and the radio(s) will power on
and make contact with the Wireless Ground Communication Manager
(WGCM). However, if the optional Recording Completion Delay (RCD) is
enabled, flight data will not transmit until the RCD has expired (See Section 1,
ACMS Reporting, for RCD details). During this delay, the WQAR will continue
to receive final airborne data and ACMS reports (if present). If the WQAR
determines that it has recorded the minimum amount of data, it will
compress this remaining data and close the file. Finally, it will send the flight
data to the WGCM if it is permitted to transmit at the current destination
(e.g. not roaming, etc).

P a g e | 14
Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
If it does not transmit, it will make the determination again at the next
destination. It will continue to do all of the above at every destination until
the aircraft arrives in a permitted cellular network where it will transmit all
accumulated data. If a transmission is interrupted for any reason, the WQAR
does not need to re-transmit from the beginning. It has the ability to resume
from the point of interruption. The radios will remain powered on while the
aircraft is on the ground whether transmissions occur or not. If the Download
on Demand (DOD) feature is enabled, the WQAR will accept any DOD
messages if they are sent. (See Section 1, Download on Demand, for details).
Contact Teledyne Controls Customer Services for more information.
If the cellular radios cannot transmit for any reason, data can still be
retrieved by ejecting the compact flash (CF) card using the procedure in
Section 4. After the card is ejected and files copied, the raw flight data files
need to be decrypted using Teledyne Controls WCCU. Compressed Flight data
(WGL files) are processed using Teledyne Controls’ WDCU. See Section 5 for
specific details about viewing the log file on the card.
The WQAR can transmit up to two WGL files while receiving one file, all
simultaneously.
Part Number Discussion
In general, there are two software components in the WQAR: The OPS
(operational software) and OPC files (configuration files). The OPS and OPC
files are ARINC 665 Loadable Software Parts (LSPs). Depending on the
context, the OPS and OPC LSP are referred to using different part numbers.

Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
P a g e | 15
Software Part Number
Teledyne Controls primarily assigns this part number to the software. This
part number typically is a 6-digit number and begins with a 7 and usually
ends with a version letter. Example: The software part number of the OPS
software, version G, is 711745 G.

Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
P a g e | 16
Configuring Your WQAR (OPC)
The WQAR has configuration settings which configure it to adapt it to your
aircraft and cellular environment. There are varying methods to change the
WQAR configuration.
Using the Front Panel
Some WQAR settings can be changed through the front panel. These changes
will persist through power cycling. Refer to the following procedures in
Section 4:
•Set Tail Number
•View and Set Date/Time
•Disable Radios
•Enable Radios
•Override Run Control
Upgrading the WQAR Operational Software (OPS)
The WQAR operational software (OPS) is available as an LSP and can be
requested from Teledyne Controls. The OPS is installed using the same
methods described above.

Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
P a g e | 17
Section 3 –WQAR Operations
Front Panel
The WQAR (Figure 3) has a front panel interface to allow the operator to
check status as well as perform diagnostics and other maintenance activity.
Antennas have been removed for clarity.
Figure 3 –WQAR Front Panel
Front Panel
Display
Access Door
Front Panel
Buttons
Handle

Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
P a g e | 18
Front Panel Display
The blue backlit front panel display has two lines with 16 characters each and
shows the operational status of the unit. Figures 4 and 5 show normal post-
boot-up status when Run-Control is in use and when not in use.
Figure 4 –Typical WQAR Display (Run Control Feature in Use)
Figure 5 –Typical WQAR Display (Run Control Feature not in Use)
Figures 6 shows a display example of flight data is coming in when it is out-of-
sync (NoSync). When the WQAR is configured properly, the NoSync condition
is temporary and, after a few seconds, will display what is shown in Figure 7.
During this time, data is recorded but it will appear invalid during analysis.
Figure 6 –WQAR Display (Data out of Sync)
RawIn:NoSync
R_On :
:IOff
R_On
:
:IOff
RUN DISABLED
R_On :
:IOff

Use and disclosure shall be in accordance with the proprietary information notice and DCS on page i.
UG2243800-4XX
May 28, 2019
P a g e | 19
Figure 7 indicates the data is now in-sync and will be recorded as valid data.
Figure 7 also shows that the WQAR has recorded ACMS report(s) by
displaying “MS”. When data stops coming in, the top line will display
“RawStp” (not shown).
Figure 7 –WQAR Display (Data in Sync)
The bottom line has three sections separated by colons (:) which indicate the
other WQAR status:
❖Left Section: Displays the cellular radio power status and
connection status.
➢R_On: Radio(s) are powered on. Figures 4 thru 7 show
an example of this.
➢R_Off: Radio(s) are powered off.
➢CON: Connected. The WQAR has achieved a connection
with the WGCM.
➢NO_CON: Displayed if a connection attempt fails.
➢DN: Downloading. The WQAR is currently downloading
data to the base station.
➢UP: Uploading. The WQAR is currently uploading data
from the base station.
RawIn:SyncIn:MS
R_On :
:IOff
