Atlas Equipment 12ASL User manual

Replace This With Cover PDF

Revised: 01/28/2020
Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation

Contents
General Information. . . . . . . . . . 5
Product Identification . . . . . . . . . 8
Packing, Transport, Storage . . . . . . 10
Product Description . . . . . . . . . . 12
Technical Specification. . . . . . . . . 14
Safety . . . . . . . . . . . . . . . . 22
Installation . . . . . . . . . . . . . . 26
Operation And Use . . . . . . . . . . 36
Maintenance . . . . . . . . . . . . . 43
Troubleshooting. . . . . . . . . . . . 45
Parts List . . . . . . . . . . . . . . . 48
Warranty . . . . . . . . . . . . . . . 71

4
12ASL
PRINTING CHARACTERS AND SYMBOLS
Throughout this manual, the following symbols and printing characters are used
to facilitate reading:
Indicates the operations which need proper care
Indicates prohibition
Indicates a possibility of danger for the operators
Indicates the direction of access for motor vehicles to the lift
BOLD
TYPE Important information
WARNING: before operating the lift and carrying out any
adjustments, read chapter 7 “installation” where all proper
operations for a better functioning lift are shown.

General Information 5
12ASL
General Information
This chapter contains warning instructions to operate the lift properly and
prevent injury to operators or objects.
This manual has been written to be used by shop technicians in charge of the lift
(operator) and routine maintenance (maintenance operator).
The operating instructions are considered to be an integral part of the lift and
must remain with it for its whole useful life.
Read every section of this manual carefully before operating the lift and
unpacking it since it gives helpful information about:
• Safety Of People
• Safety Of The Lift
• Safety Of Lifted Vehicles
The company is not liable for possible problems, damage, accidents, etc.
resulting from failure to follow the instructions contained in this manual.
Only skilled technicians of AUTHORIZED DEALERS or SERVICE CENTERS
AUTHORIZED by the manufacturer shall be allowed to carry out lifting, transport,
assembling, installation, adjustment, calibration, settings, extraordinary
maintenance, repairs, overhauling and dismantling of the lift.
THE MANUFACTURER IS NOT RESPONSIBLE FOR POSSIBLE DAMAGE TO
PEOPLE, VEHICLES OR OBJECTS IF SAID OPERATIONS ARE CARRIED OUT
BY UNAUTHORIZED PERSONNEL OR THE LIFT IS IMPROPERLY USED.
Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.

General Information 6
12ASL
1.1 Manual Keeping
For proper use of this manual, the following is recommended:
• Keep the manual near the lift, in an easily accessible place.
• Keep the manual in an area protected from moisture.
• Use this manual properly without damaging it.
• Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.
This manual is an integral part of the lift: it shall be given to the new owner if
and when the lift is resold.
1.2 Obligation In Case Of Malfunction
In case of machine malfunction, follow the instructions
contained in the following chapters.
1.3 Cautions For The Safety Of The Operator
Operators must not be under the influence of sedatives, drugs or alcohol when
operating the machine.
Before operating the lift, operators must be familiar with
the position and function of all controls, as well as with the
machine features shown in the chapter “Operation and use”

General Information 7
12ASL
1.4 Warnings
Unauthorized changes and/or modifications to the machine
relieve the manufacturer of any liability for possible damages to
objects or people. Do not remove or make inoperative the safety
devices, this would cause a violation of safety at work laws and
regulations.
Any other use which differs from that provided for by the
manufacturer of the machine is strictly forbidden.
The use of non genuine parts may cause damage to people or
objects
1.5 Scrapping
When your machine’s working life is over and it can no longer be used, it must
be made inoperative by removing any connection to power sources. These
units are considered as special waste material, and should be broken down into
uniform parts and disposed of in compliance with current laws and regulations. If
the packing are not polluting or non-biodegradable, deliver them to appropriate
handling station.
DECLARATION OF WARRANTY
AND LIMITATION OF LIABILITY
The manufacturer has paid proper attention to the preparation of this manual.
However, nothing contained herein modifies or alters, in any way, the terms
and conditions of manufacturer agreement by which this lift was acquired, nor
increase, in any way, manufacturer’s liability to the customer.
TO THE READER
Every effort has been made to ensure that the information contained in this
manual is correct, complete and up-to date. The manufacturer is not liable for
any mistakes made when drawing up this manual and reserves the right to make
any changes due the development of the product, at any time.

Product Identification 8
12ASL
Product Identification
The identification data of the machine are shown in the label placed on the
control unit.
LOGO
Type: ……………
Model: ……………
Serial Number: ……………
Year of manufacturing: ……………
Capacity: ……………
Voltage: ……………
Power: ……………
Use the above data both to order spare parts and when getting
in touch with the manufacturer (inquiry). The removal of this
label is strictly forbidden.
Machines may be updated or slightly modified from an aesthetic point of view
and, as a consequence, they may present different features from these shown,
this without prejudicing what has been described herein.
2.1 Warranty Certificate
The warranty is valid for a period of 2 years on structural components, 1 year
on hydraulic components and 90 days on wear parts starting from the date
of purchase. This warranty does not include labor or shipping. The warranty
consists of parts only. The warranty will come immediately to an end when
unauthorized modifications, faulty assembly and improper use to the lift or parts
of it are carried out. The presence of defects in workmanship must be verified by
Greg Smith Equipment Sales.

Product Identification 9
12ASL
2.2 Technical Servicing
For all servicing and maintenance operations not specified or shown in these
instructions, contact your Dealer where the machine has been bought or the
Manufacturer’s Commercial Department.
Only skilled personnel who are familiar with the lift and this manual shall
be allowed to carry out packing, lifting, handling, transport and unpacking
operations.

Packing, Transport, Storage 10
12ASL
Packing, Transport, Storage
3.1 Packing
The packing of the lift is delivered in following components:
• No. 2 base units, each one with a runway equipped with 2 hydraulic
cylinders.
• No. 1 rolling jack with an air/hydraulic pump.
• No. 1 control unit and containing hydraulic unit, hydraulic hoses, air hoses,
anchor bolts, rubber blocks and the technical files.
• No. 2 turntable recess covers.
• No. 2 drive-on ramps, 2 front wheel stops and 4 hose protective covers if
the lift is ordered for on-floor installation.
(If requested, optional accessories are available to satisfy each customer’s
requirements).
3.2 Lifting And Handling
When loading/unloading or transporting the equipment to the site, be sure to
use suitable loading (e.g. cranes, trucks) and hoisting means. Be sure to hoist
and transport the components securely so that they cannot drop, taking into
consideration the package’s size, weight and center of gravity and it’s fragile
parts.
Hoist and handle only one package at a time.

Packing, Transport, Storage 11
12ASL

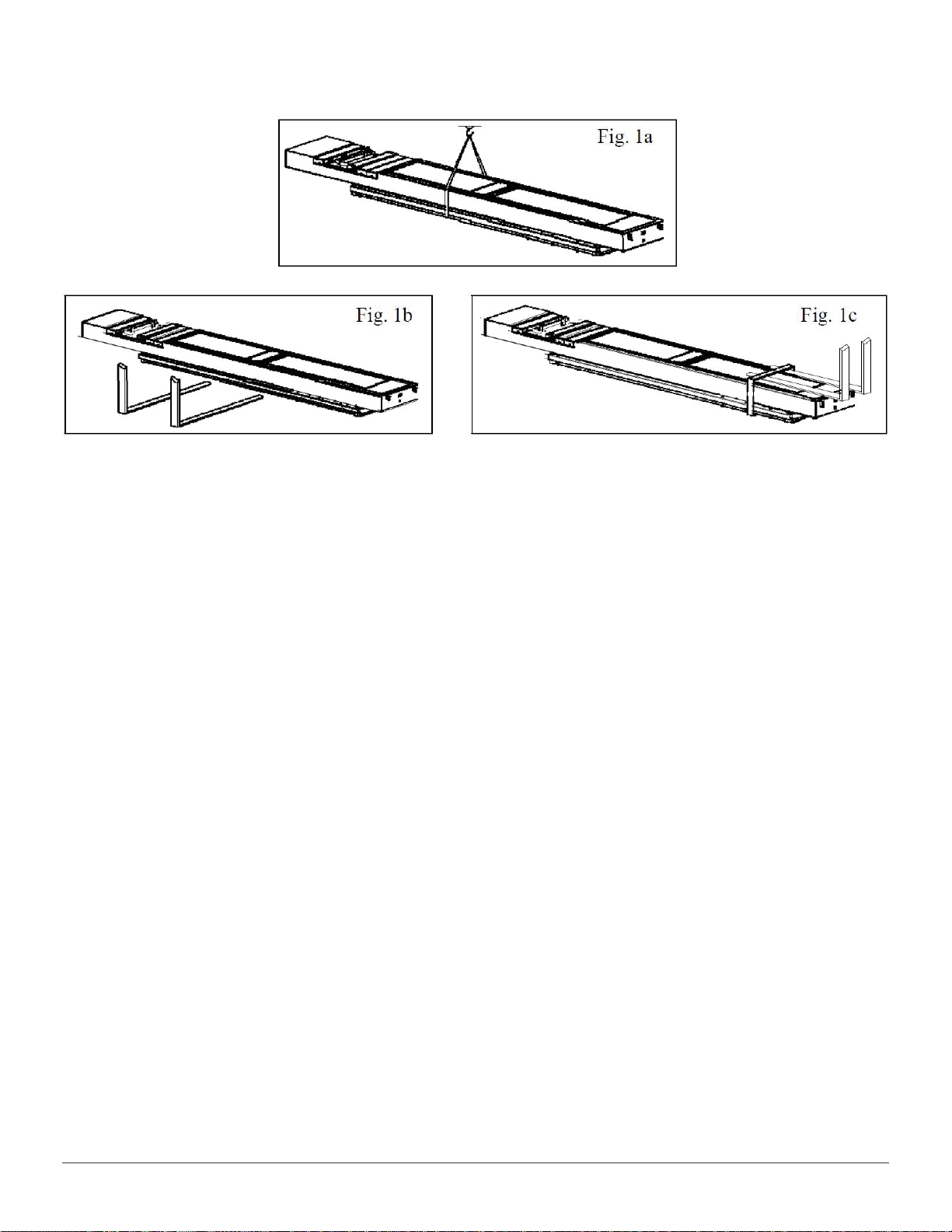

In Figure 1 there are the correct indications for the lifting of the runways:
Figure 1 – Loading/Unloading Runway
3.3 Storage And Stacking Of Packages
Packages must be stored in a covered place, out of direct sunlight and in low
humidity, at a temperature between 14°F and 104°F.
Stacking is not recommended: the package’s narrow base, as well as its
considerable weight and size make it difficult and hazardous.
3.4 Delivery And Check Of Packages
When the lift is delivered, check for possible damages due to transport and
storage; verify that what is specified in the manufacturer’s order confirmation is
included. In case of damage in transit, the customer must immediately
inform the carrier of the problem.
Packages must be opened paying attention not to cause damage to people (keep
a safe distance when opening straps) and parts of the lift (be careful the objects
do not drop from the package when opening).

Product Description 12
12ASL
Product Description
4.1 Lift Description (Ref. Figure 2)
This lift has been designed for the lifting of motor-vehicles for wheel alignment
and maintenance. The lift can be mounted either on a concrete surface or in a
recessed pit. The maximum lifting weight is as specified on the serial plate. All
mechanical frames, such as platforms, extensions, base frames and arms have
been built of steel plate to make the frame stiff and strong while keeping a low
weight. The electro hydraulic operation is described in detail in chapter 8.
This chapter describes the lift’s principal elements, allowing the user to be
familiar with the lift. As shown in figure 2, the lift is composed of two runways
P1 (1) and P2 (2) with two rolling jacks (3), anchored onto the floor by means
of two bases (4). Runways are linked to the base by means of a scissors lifting
system.
The lifting system of each runway is composed of scissor arms (5) and a
hydraulic cylinder (6). Turntable recess covers (7) are supplied with the lift in
case for non-alignment purposes. The lifting and lowering motion of lift and
wheel free jacks is carried out by operation of a control unit (8) placed next to
the lift.

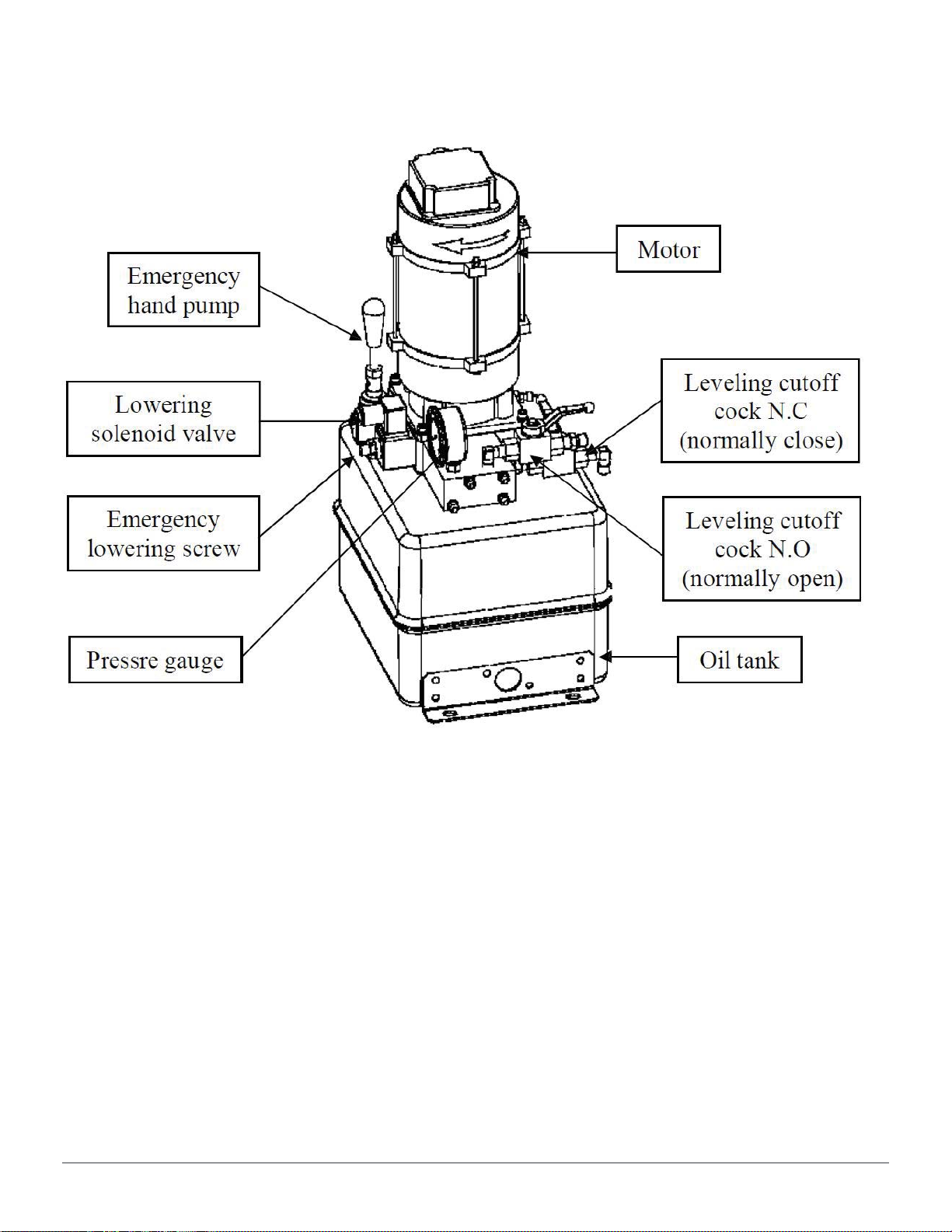

The leveling system of the lift is carried out manually by operation of the leveling
cocks in the power unit. The mechanical safety operating by a pneumatic
cylinder (9) is built under each runway and wheel free jack for engagement and
release. Two limit switches are installed in the P1 base: for top position limit and
for the safety height limit.

Product Description 13
12ASL

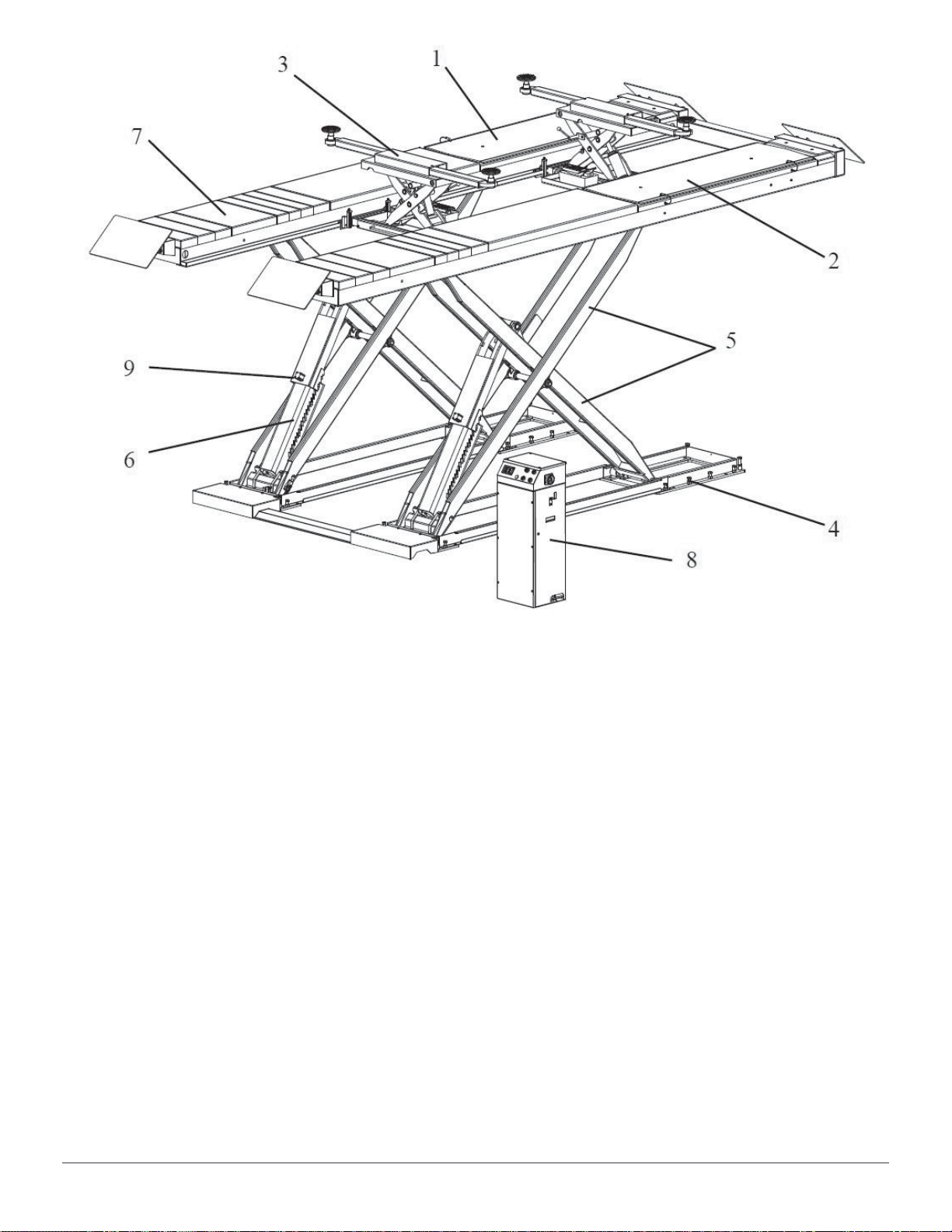

Figure 2 – Lift
4.2 Operation
Lifting is carried out by the hydraulic unit which activates the cylinders. The
platforms are raised simultaneously by cross fed lines to the hydraulic cylinders.
Lowering, even though electrically controlled, is carried out by the weight of
both the platforms and the load lifted. Lowering motion of the wheel free jacks
with load less can be sped up by means of pneumatic action in the chamber of
its slave cylinder. The hydraulic system is protected by a max pressure valve
thus preventing pressure from exceeding the maximum fixed safety limit. The
synchronization of the platforms is carried out by a master/slave circuit.
Lifting and lowering motion on the lift is controlled by the push buttons on
the control panel. Whenever the lift has to be lowered to the ground and the
lowering button is pressed, the lift will stop about 18in. from the ground. This
way, the operator must verify that neither persons nor objects are within the
safety area. If clear, the final lowering button can be pressed and the lift fully
lowered. A beeping sound is heard during the last travel.

Technical Specification 14
12ASL
Technical Specification

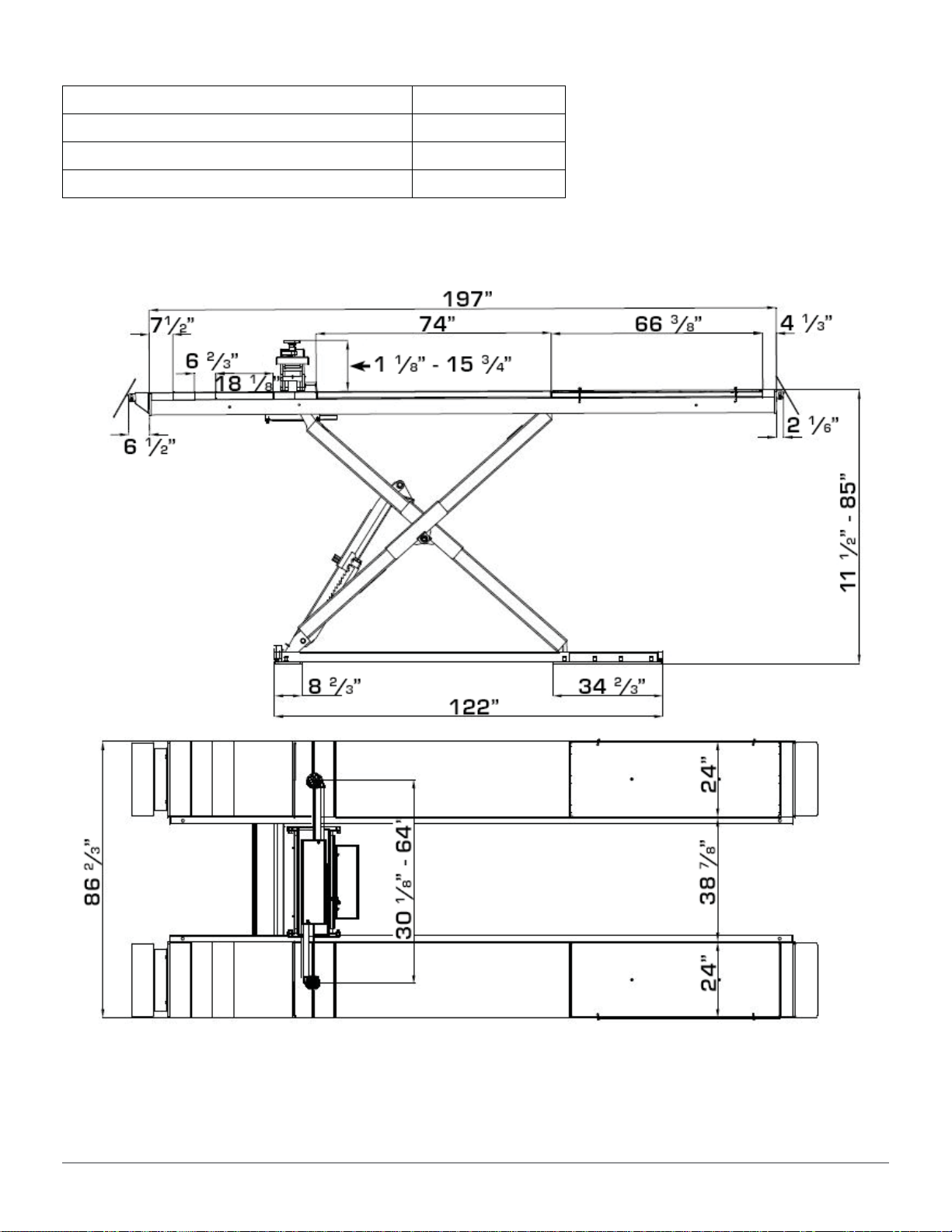

5.1 Size And Main Features
Capacity 12000 LBS (5000KG)
Jack Beam Capacity 6000 lbs (2500kg)
Max. Primary Lifting Height 84-1/4”
Min. Lowered Height 11-1/2”
Rolling Jack Lifting Height With No Extension 1-1/4” to 15-3/4”
Length Of The Runway 197”
Width Of Runway 23 3/4”
Adjusted Length On The Rolling Jack Arm 30” to 64”
Suggested Free Width Between Runways 39”
Lifting Time 70 s
Lowering Time 60 s
Compressed Air Pressure 90psi – 120psi
Noise Level 80 dB(A)/1m
Working Temperature 14 °F - 104 °F
Average Weight Of Package 5000lbs
5.2 Electric Motor
Type ML90L2
Specification 220V-1Ph
Power 2.2 KW
N° Poles 2
Speed 2800 rpm
Motor enclosure type B14
Insulation class IP 54
Motor connection must be carried out referring to the attached wiring diagrams
(Fig. 6). The motor rotation is shown by the label placed on the motor cover.
Before using the lift, make sure to check if the motor specification shown on the
nameplate of the motor conforms to the local electric supply. If there is over
10% fluctuation on the electrical power supply, use a voltage stabilizer to protect
the electrical components from overloading.

Technical Specification 15
12ASL
5.3 Pump
Type Gear
Flow rate 1.3 cm3/g
Continuous working pressure 3770psi
Peak pressure 4060psi
Figure 3A – Layout For In-Ground Installation

Technical Specification 16
12ASL
Figure 3B – Layout For On-Ground Installation

Technical Specification 17
12ASL
5.4 Hydraulic Unit
The power unit is equipped with
Figure 4 – Hydraulic Power Unit

Technical Specification 18
12ASL
5.5 Oil
Use wear proof oil for hydraulic drive, in conformity with ISO 6743/4 rules (HM
class). Use hydraulic AW46 series.
TEST STANDARDS FEATURES VALUE
ASTM D 1298 Density 20°C 0.8 kg/l
ASTM D 445 Viscosity 40°C 32 cSt
ASTM D 445 Viscosity 100°C 5.43 cSt
ASTM D 2270 Viscosity index 104 N°
ASTM D 97 Pour point ~ 30 °C
ASTM D 92 Flash point 215 °C
ASTM D 644 Neutralization number 0.5 mg KOH/g
CHANGE HYDRAULIC OIL AT A HALF YEAR INTERVALS. FOR
THE FIRST TIME USE, CHANGE THE OIL IN THREE MONTHS.

Technical Specification 19
12ASL

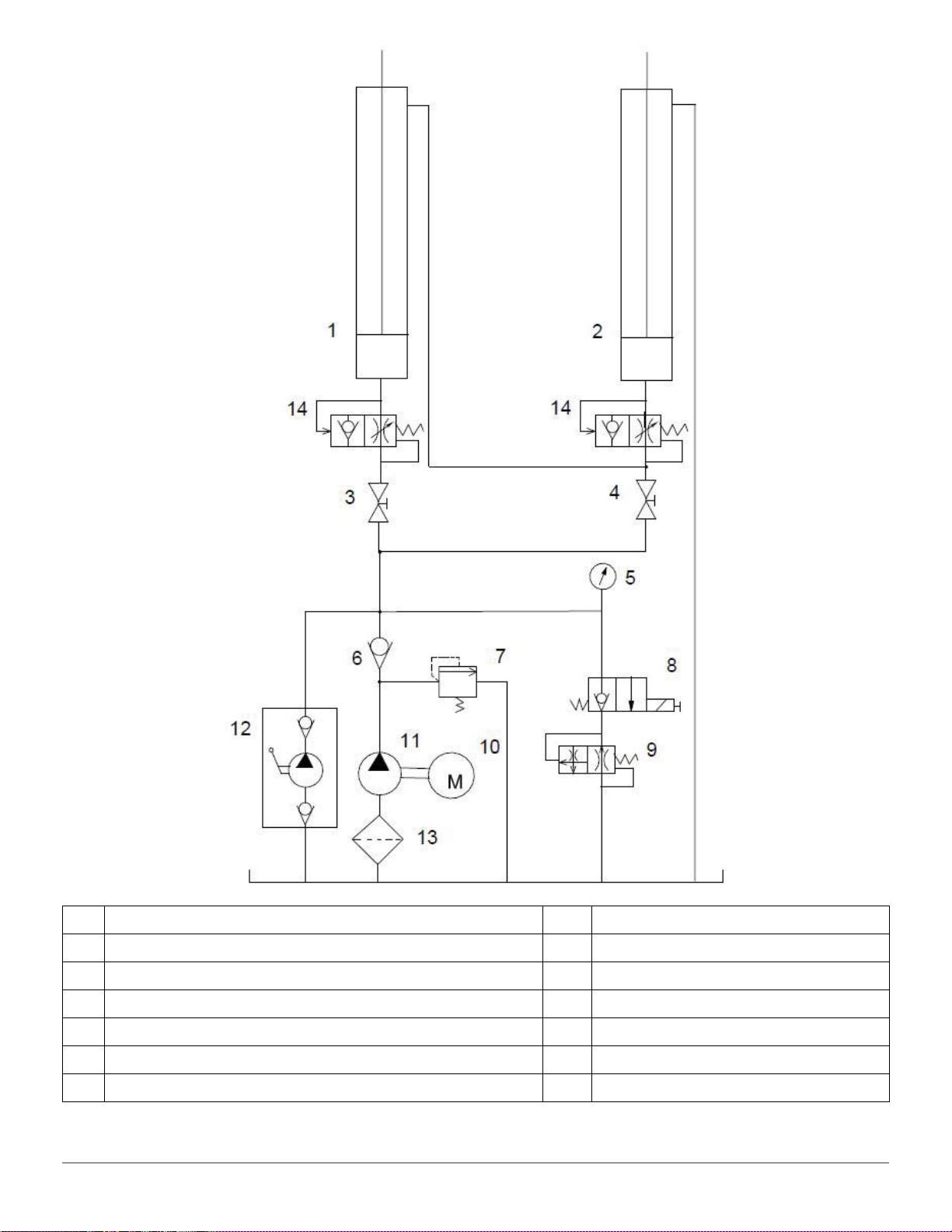

1 Master platform cylinder P1 8 Lowering solenoid valve
2 Slave platform cylinder P2 9 Lowering speed control
3 Leveling cock N.O (normally open) 10 Motor
4 Leveling cock N.C (normally close) 11 Gear pump
5 Pressure gauge 12 Emergency hand pump
6 Non return valve 13 Oil filter
7 Pressure overload valve 14 Parachute valve (optional)
Figure 5 – Hydraulic Plan

Technical Specification 20
12ASL
QF1 Power switch JD Beeper
QF2 Breaker SB1 Lifting button
MMotor 2.2KW 1PH SB2 Lowering/final lowering button
ST Thermal relay SB3 Safety engaging button
KM Contactor AC (220V) SQ1 Top limit switch
YV1 Lowering solenoid valve (220V) SQ2 Safety height limit switch
QV1 Safety air valve (220V)
Figure 6 – Electrical Diagram (220V – 1PH)
