Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation

Contents
Product Features . . . . . . . . . . . 4
Installation Requirement . . . . . . . 5

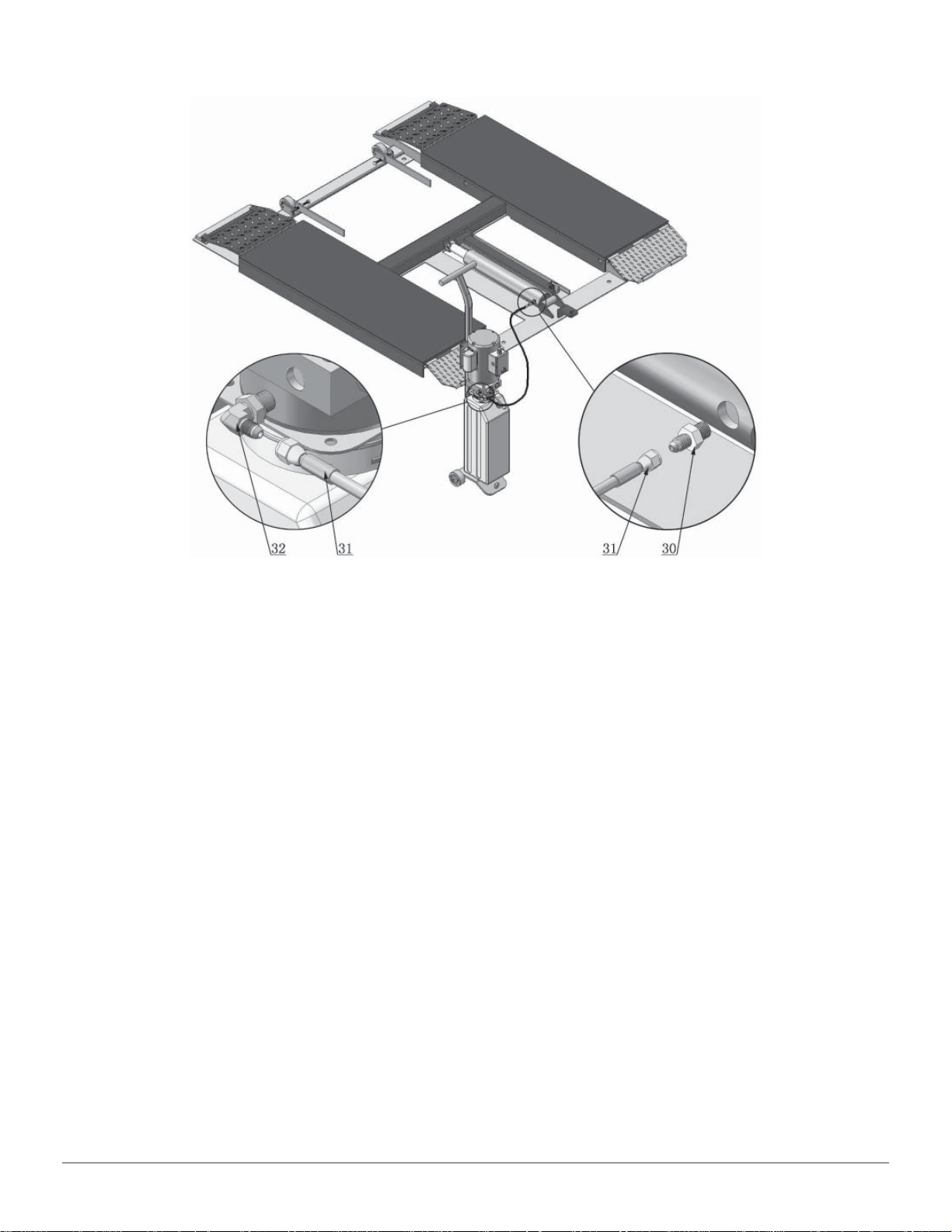

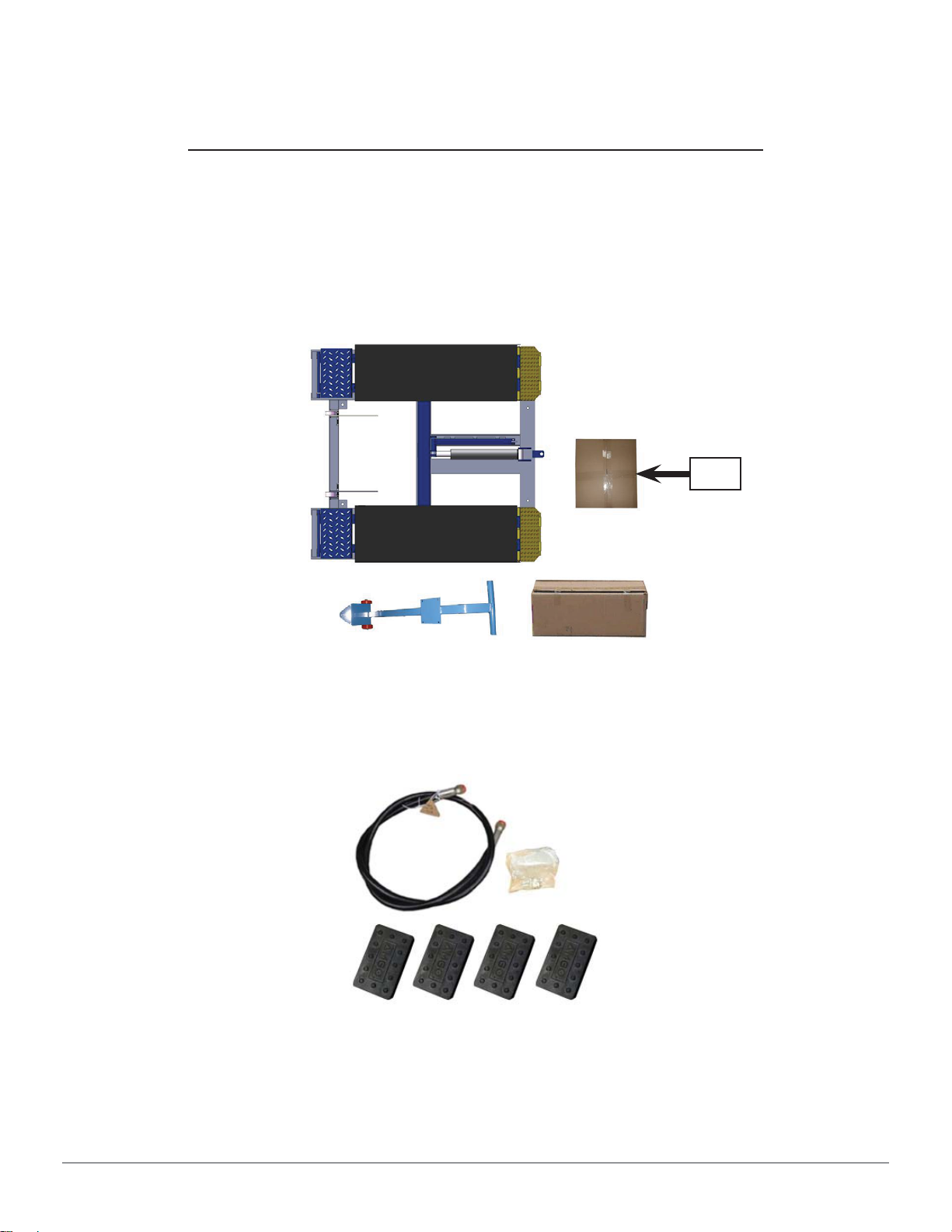

Steps Of Installation . . . . . . . . . 6

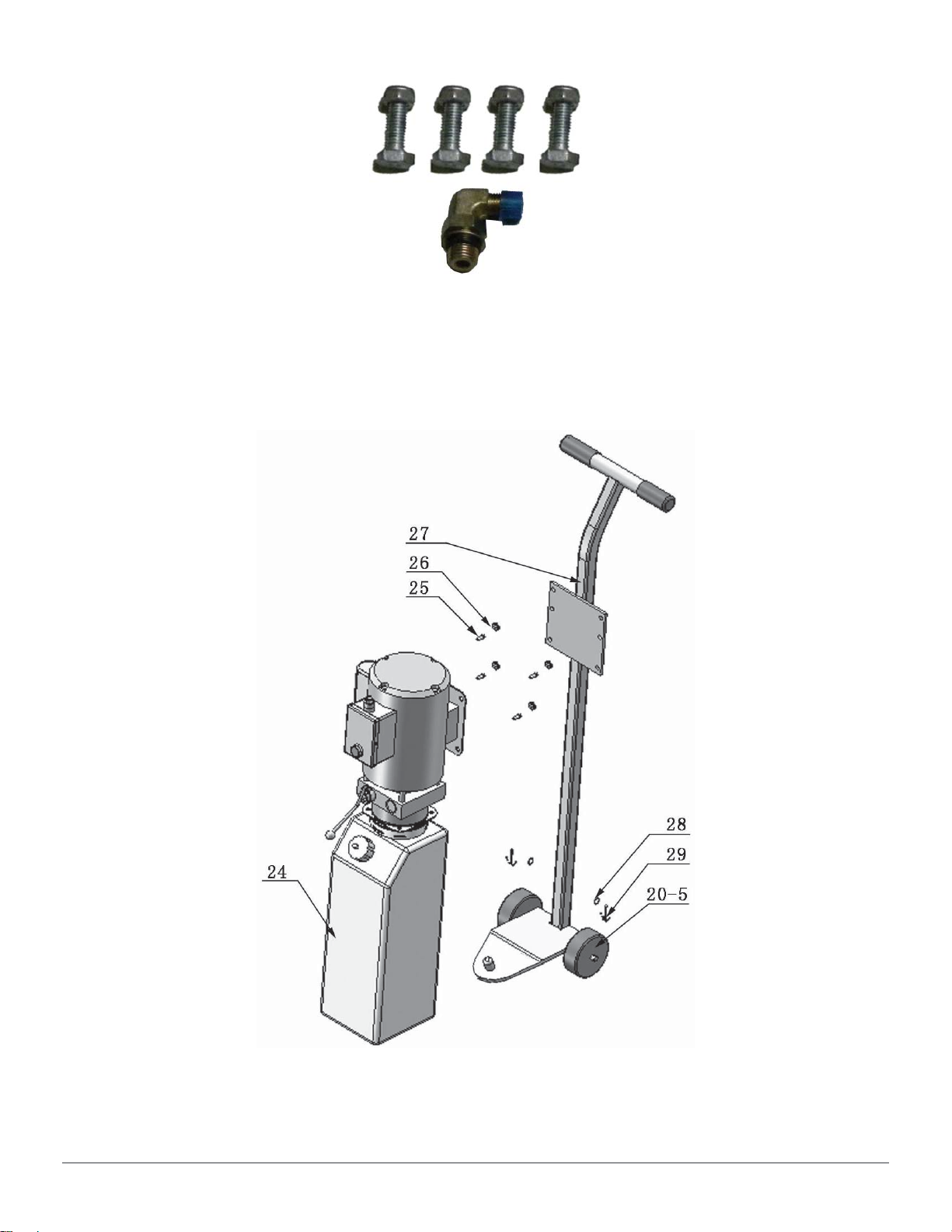

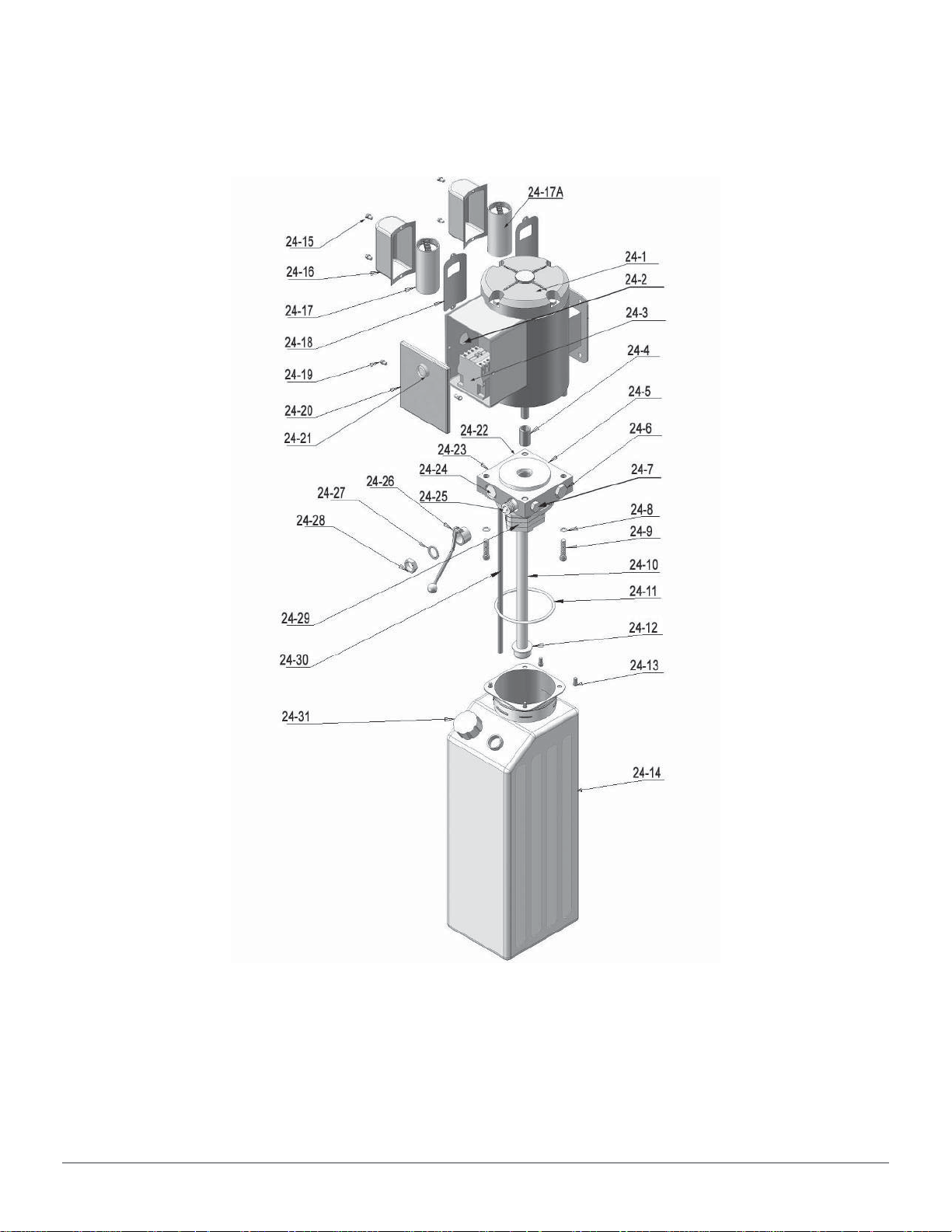

Exploded View . . . . . . . . . . . . 10
Operation Instructions. . . . . . . . . 14
Maintenance Schedule. . . . . . . . . 16
Trouble Shooting . . . . . . . . . . . 17

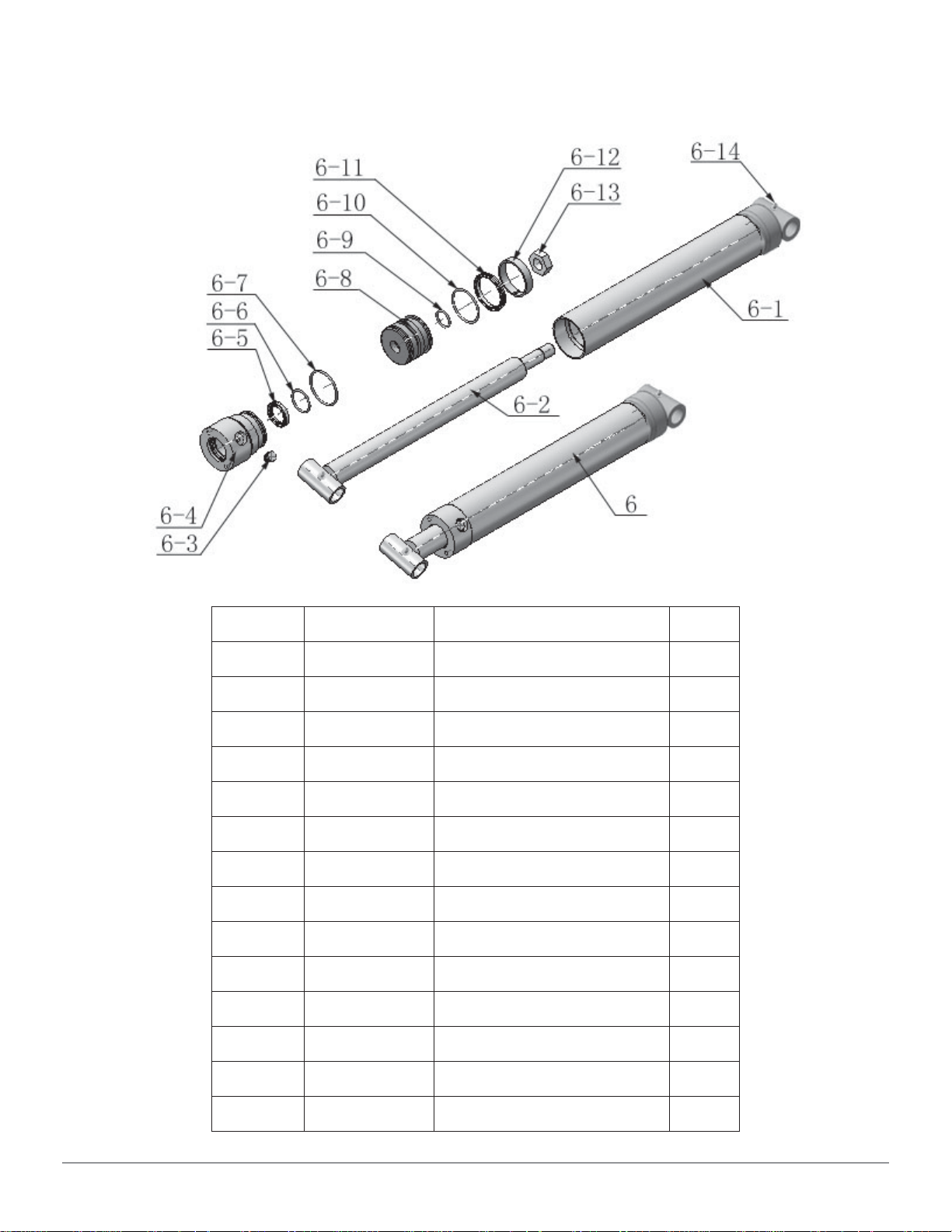

Parts List . . . . . . . . . . . . . . . 18
Warranty . . . . . . . . . . . . . . . 24

Product Features 4
LR-06P
Product Features

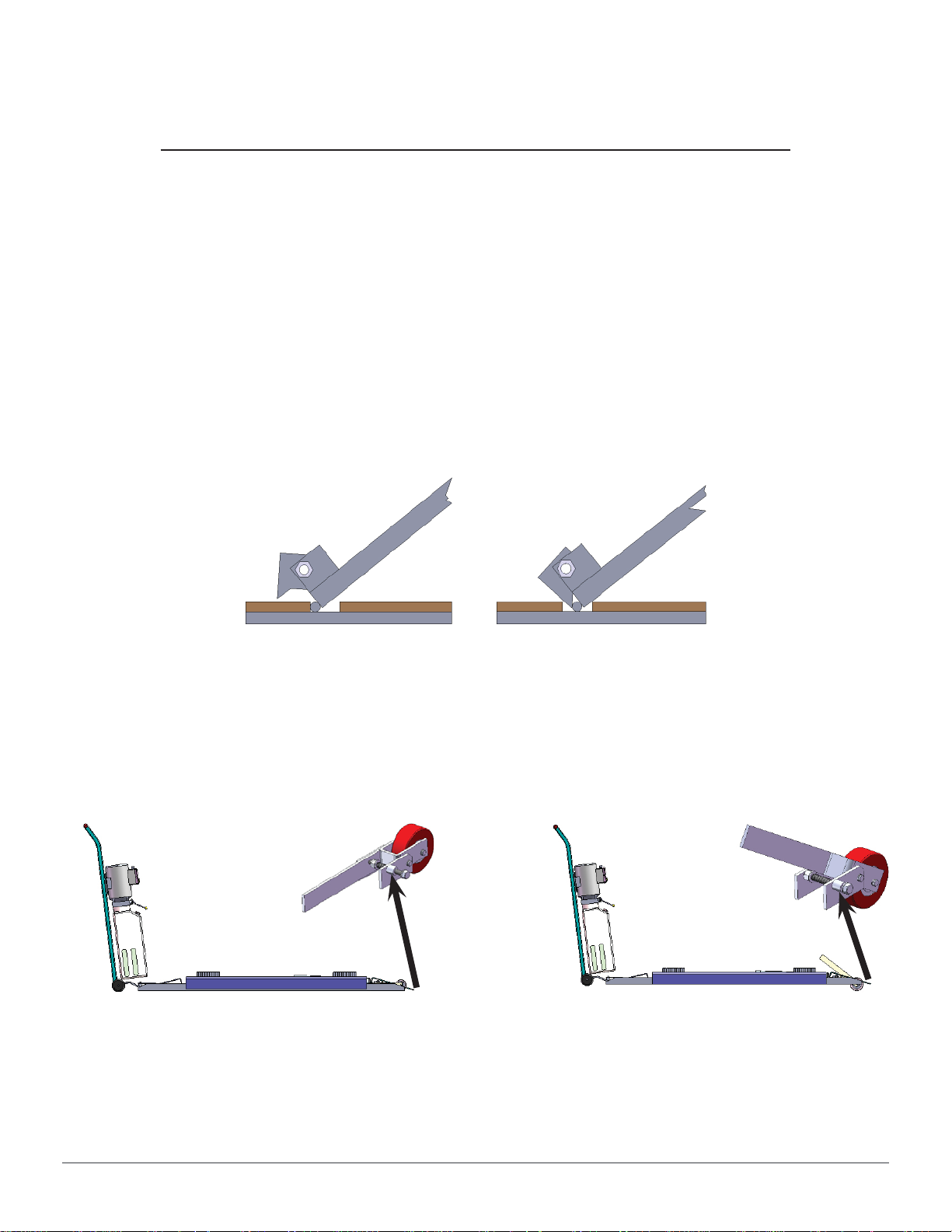

• Automatic safety lock: 3 position safety lock
• Automatic safety lock release
• Portable unit is easy to move with the power unit stand
• High speed: From 0-600mm (23 5/8”) in just 38 seconds
• Standard rubber pads included
Fig. 1
Specifications
Model Lifting
Capacity Lifting Time Raised Height Lowered Height Overall Width Overall Length Runway Width Gross Weight Motor
LR06 2.8T
6,000 lbs 38S 600mm 23 5/8”
105mm
4 1/8”
1780mm
70”
1938mm
76 1/4”
456mm
18”
350Kg
800 lbs
1.5HP
/110V

Installation Requirement 5
LR-06P

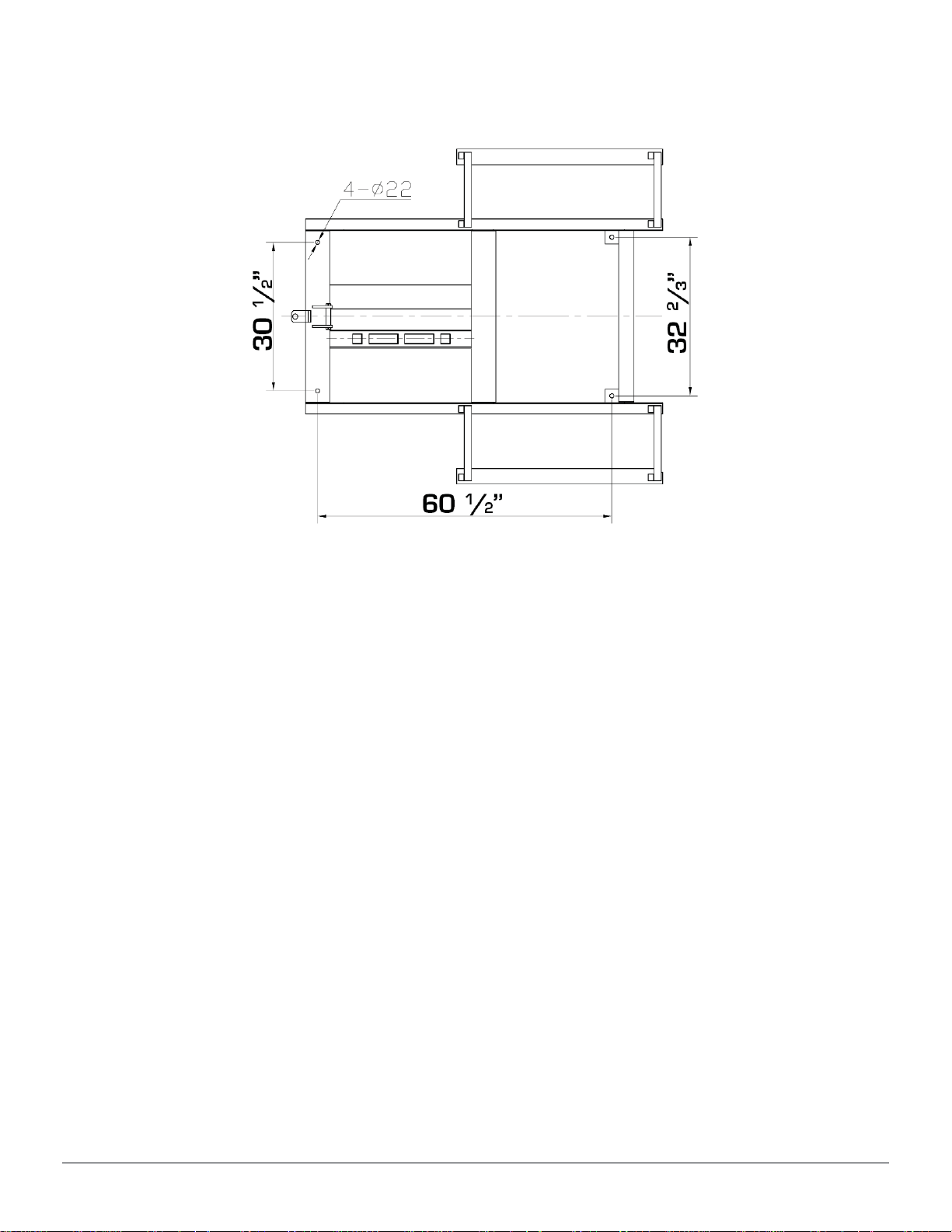

Installation Requirement

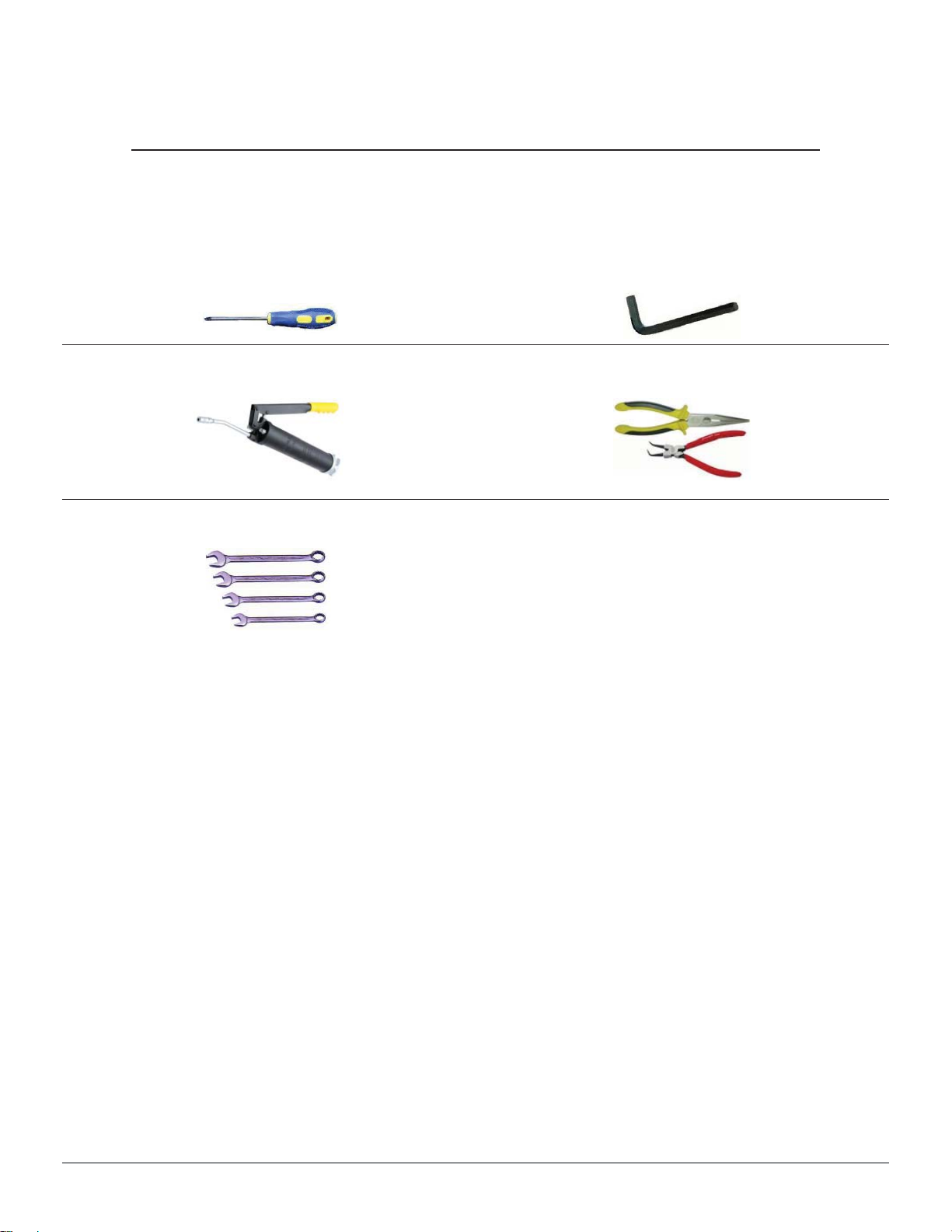

Tools Requirement
Screw Set Socket Head Wrench (8″)
Grease Gun Pliers
Wrench sets (13#, 15#, 17#, 19#)
Fig. 2

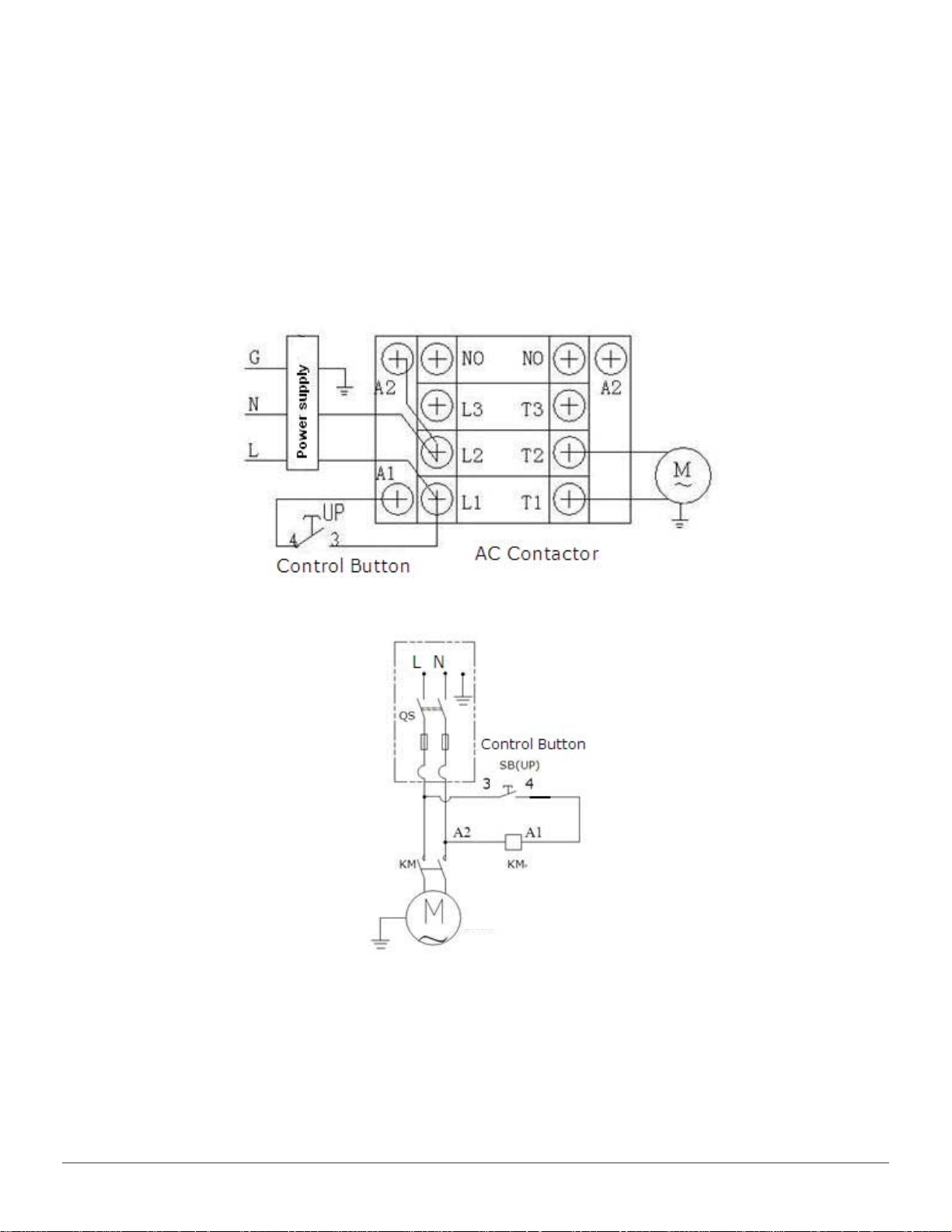

Power Requirement
The electrical source must be 2.2KW minimum. The source cable size must be
2.5mm² and in good condition of contacting with floor.
