Atlas Equipment LR-06P User manual

Replace This With Cover PDF

Revised: 9/04/2020
Read this entire manual before operation begins.
Record below the following information which is located on the serial number
data plate.
Serial No.
Model No.
Date of Installation

Contents
General Information. . . . . . . . . . 5
Product Identification . . . . . . . . . 8
Packing, Transport, Storage . . . . . . 9
Product Description . . . . . . . . . .10
Technical Specification. . . . . . . . .11
Safety . . . . . . . . . . . . . . . .16
Installation . . . . . . . . . . . . . .20
Operation And Use . . . . . . . . . .23
Maintenance . . . . . . . . . . . . .25
Troubleshooting. . . . . . . . . . . .27
Parts List . . . . . . . . . . . . . . .28
Warranty . . . . . . . . . . . . . . .33

4
LR-06P
PRINTING CHARACTERS AND SYMBOLS
Throughout this manual, the following symbols and
printing characters are used to facilitate reading:
Indicates the operations which
need proper care
Indicates prohibition
Indicates a possibility of danger
for the operators
Indicates the direction of access
for motor vehicles to the lift
BOLD
TYPE Important information
WARNING: before operating the lift and carrying
out any adjustment, read carefully chapter 7
“installation” where all proper operations for a
better functioning of the lift are shown.

General Information 5
LR-06P
General Information
This chapter contains warning instructions to operate the lift properly and
prevent injury to operators or objects. This manual has been written to be used
by shop technicians in charge of the lift (operator) and routine maintenance
technician (maintenance operator). The operating instructions are considered to
be an integral part of the machine and must remain with it for its whole useful
life. Read every section of this manual carefully before operating the lift and
unpacking it since it gives helpful information about:
• Safety Of People
• Safety Of The Lift
• Safety Of Lifted Vehicles
The company is not liable for possible problems, damage, accidents, etc.
resulting from failure to follow the instructions contained in this manual. Only
skilled technicians of AUTHORISED DEALERS or SERVICE CENTERS AUTHORISED
by the manufacturer shall be allowed to carry out lifting, transport, assembling,
installation, adjustment, calibration, settings, extraordinary maintenance,
repairs, overhauling and dismantling of the lift.
The manufacturer is not responsible for possible damage to people,
vehicles or objects if said operations are carried out by unauthorized
personnel or the lift is improperly used.
Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.
1.1 Manual Keeping
For a proper use of this manual, the following is recommended:
• keep the manual near the lift, in an easily accessible place.
• keep the manual in an area protected from the damp.
• use this manual properly without damaging it.
• Any use of the machine made by operators who are not familiar with the
instructions and procedures contained herein shall be forbidden.
This manual is an integral part of the lift: it shall be given to the new owner if
and when the lift is resold.

General Information 6
LR-06P
1.2 Obligation In Case Of Malfunction
In case of machine malfunction, follow the instructions
contained in the following chapters.
1.3 Cautions For The Safety Of The Operator
Operators must not be under the influence of sedatives, drugs or alcohol when
operating the machine.
Before operating the lift, operators must be familiar with
the position and function of all controls, as well as with the
machine features shown in the chapter “Operation and use”
1.4 Warnings
Unauthorized changes and/or modifications to the machine
relieve the manufacturer of any liability for possible damages
to objects or people. Do not remove or make inoperative the
safety devices, this would cause a violation of safety at work
laws and regulations.
Any other use which differs from that provided for by the
manufacturer of the machine is strictly forbidden.
The use of non genuine parts may cause damage to people or
objects
1.5 Scrapping
When your machine’s working life is over and it can no longer be used, it must
be made inoperative by removing any connection to power sources. These
units are considered as special waste material and should be broken down into
uniform parts and disposed of in compliance with current laws and regulations.
If the packing is not polluting or non-biodegradable, deliver them to appropriate
handling station.

General Information 7
LR-06P
Declaration Of Warranty And Limitation Of Liability
The manufacturer has paid proper attention to the preparation of this manual.
However, nothing contained herein modifies or alters, in any way, the terms
and conditions of manufacturer agreement by which this lift was acquired, nor
increase, in any way, manufacturer’s liability to the customer.
To The Reader
Every effort has been made to ensure that the information contained in this
manual is correct, complete and up-to date. The manufacturer is not liable for
any mistakes made when drawing up this manual and reserves the right to make
any changes due the development of the product, at any time.

Product Identification 8
LR-06P
Product Identification
The identification data of the machine are shown in the serial plate placed on the
power side column.
The removal of this serial plate is strictly forbidden.
Machines may be updated or slightly modified from an aesthetic point of view
and, as a consequence, they may present different features from these shown,
this without prejudicing what has been described herein.
2.1 Warranty Certificate
The warranty is valid for a period of 12 months starting from the date of
the purchase invoice. The warranty will come immediately to an end when
unauthorized modifications to the machine or parts of it are carried out. The
presence of defects in workmanship must be verified by the Manufacturer’s
personnel in charge.
2.2 Technical Servicing
For all servicing and maintenance operations not specified or shown in these
instructions, contact your Dealer where the machine has been bought or the
Manufacturer’s Commercial Department. Only skilled personnel who are familiar
with the lift and this manual shall be allowed to carry out packing, lifting,
handling, transport and unpacking operations.

Packing, Transport, Storage 9
LR-06P
Packing, Transport, Storage
3.1 Packing
The packing of the lift is delivered in following components:
• 1 base unit packed in a steel frame, wrapped up in non-scratch material
• 1 portable power unit packed in a plywood box
• 1 trolley packed in air bubble film
The average weight of the package is 770 lbs (350kg).
3.2 Lifting And Handling
When loading/unloading or transporting the equipment to the site, be sure to use
suitable loading (e.g. cranes, trucks) and hoisting means. Be sure also to hoist
and transport the components securely so that they cannot drop, taking into
consideration the package’s size, weight and center of gravity and it’s fragile parts.
Hoist and handle only one package at a time.
3.3 Storage And Stacking Of Packages
Packages must be stored in a covered place, out of direct sunlight and in
low humidity, at a temperature between 14°F and 104°F. Stacking is not
recommended: the package’s narrow base, as well as its considerable weight
and size make it difficult and hazardous.
3.4 Delivery And Check Of Packages
When the lift is delivered, check for possible damages due to transport and
storage; verify that what is specified in the manufacturer’s confirmation of order
is included. In case of damage in transit, the customer must immediately inform
the carrier of the problem. Packages must be opened paying attention not to
cause damage to people (keep a safe distance when opening straps) and parts
of the lift (be careful the objects do not drop from the package when opening).

Product Description 10
LR-06P
Product Description
This portable lift has been designed for the lifting of motor-vehicles for
maintenance. The maximum lifting weight is as specified on the serial plate. All
mechanical frames, such as platforms, base frames and arms have been built
in steel plate to make the frame stiff and strong while keeping a low weight The
electro hydraulic operation is described in detail in chapter 8.
This chapter describes the lift’s principal elements, allowing the user to be
familiar with the machine.
As shown in figure 1, the lift is composed of the platform (1) with the rubber pad
(2), 2 ramps (3), lifting system (4), the hydraulic cylinders (5) and base (6).
The lifting and lowering motion is carried out by operation of the lifting button
and the lowering lever on the control unit (7).
The mechanical safety (8) can be engaged and released automatically according
to the lock in different position.
Figure 1 – Lift

Technical Specification 11
LR-06P
Technical Specification
5.1 Size And Main Features
Capacity 6000lbs (2800kgs)
Max. lifting height without rubber pad 23 7/8” (606mm)
Min. lowered height without rubber pad 4” (102mm)
Overall length 79 3/4” (2026mm)
Overall width 70” (1780mm)
Platform width 18” (456mm)
Lifting time 38 s
Lowering time 25 s
Noise level 80 dB(A)/1m
Working temperature -10 °C ¸ 40 °C
Average weight of package 350kgs
5.2 Electric Motor
Voltage 110V/60Hz/1Ph
Power 1.1 KW
N° Poles 2
Speed 3450 rpm
Insulation class IP 54
Motor connection must be carried out referring to the attached wiring diagrams
(figure 5). The motor direction of rotation is shown in the label placed on the
motor.
Before use of the lift, make sure to check if the motor specification shown in the
nameplate of the motor conforms to the local electric supply.
If there is over 10% fluctuation on the electrical power supply, it is suggested to
use the voltage stabilizer to protect the electrical components and system from
overloading.

Technical Specification 12
LR-06P
5.3 Pump
Type Gear
Flow rate 0.89 cm3/g
Continuous working pressure 200 bar – 220bar
Figure 2 - Layout

Technical Specification 13
LR-06P
5.4 Hydraulic Power Unit
Figure 3 – Hydraulic Power Unit

Technical Specification 14
LR-06P
Figure 4 – Hydraulic Plan
1 Hydraulic cylinder 6 Oil filter
2 Flow restrictor 7 Motor
3 Non return valve 8 Manual lowering valve
4 Maximum pressure valve 9 Starting valve
5 Gear pump

Technical Specification 15
LR-06P

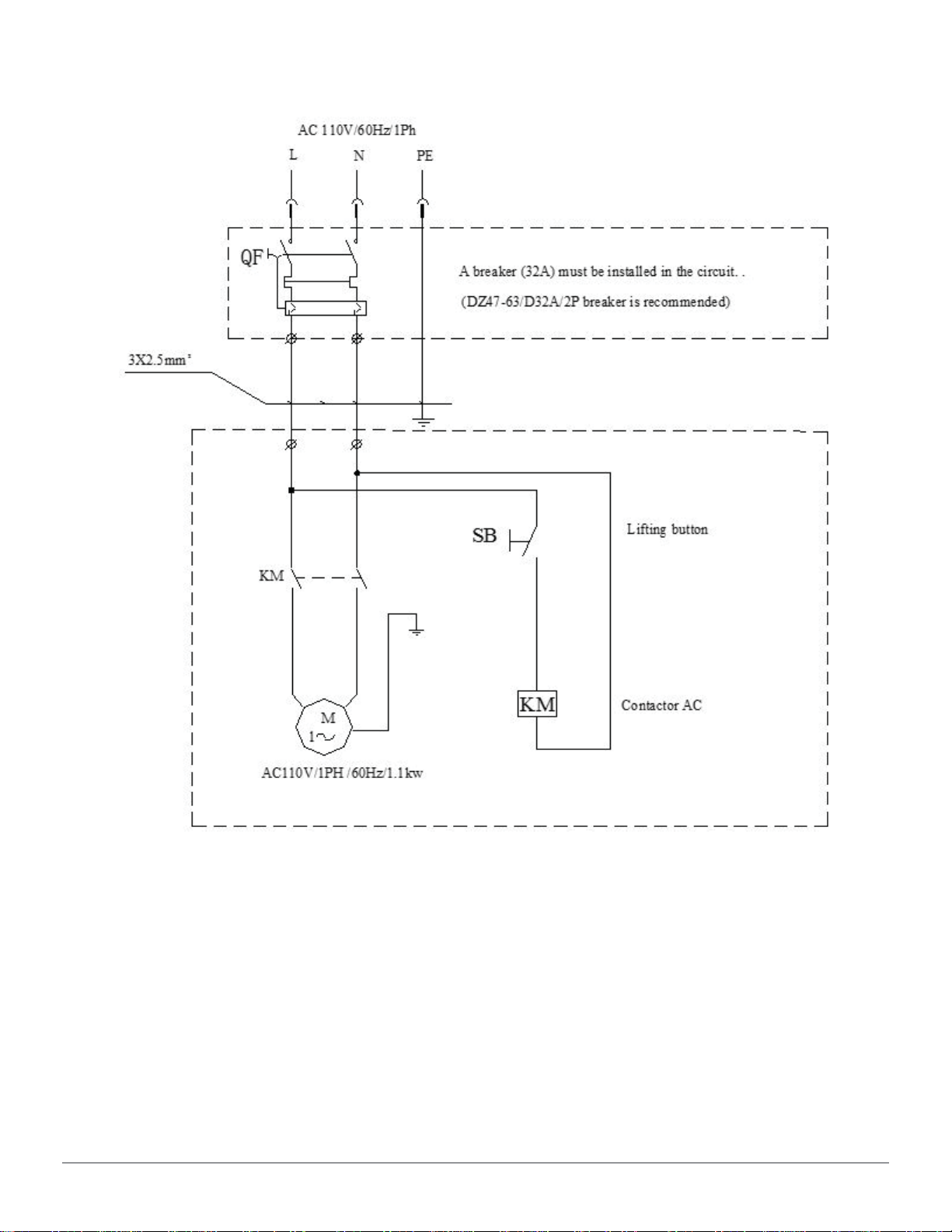

Figure 5 – Electrical Wiring Diagram (110V/60Hz/1PH)

Safety 16
LR-06P
Safety
Read this chapter carefully and completely because it contains important infor-
mation for the safety of the operator and the person in charge of maintenance.
The lift has been designed and built for lifting vehicles and
making them stand above level in a closed area. Any other use
is forbidden.
The manufacturer is not liable for possible damages to people,
vehicles or objects resulting from an improper or unauthorized
use of the lift.

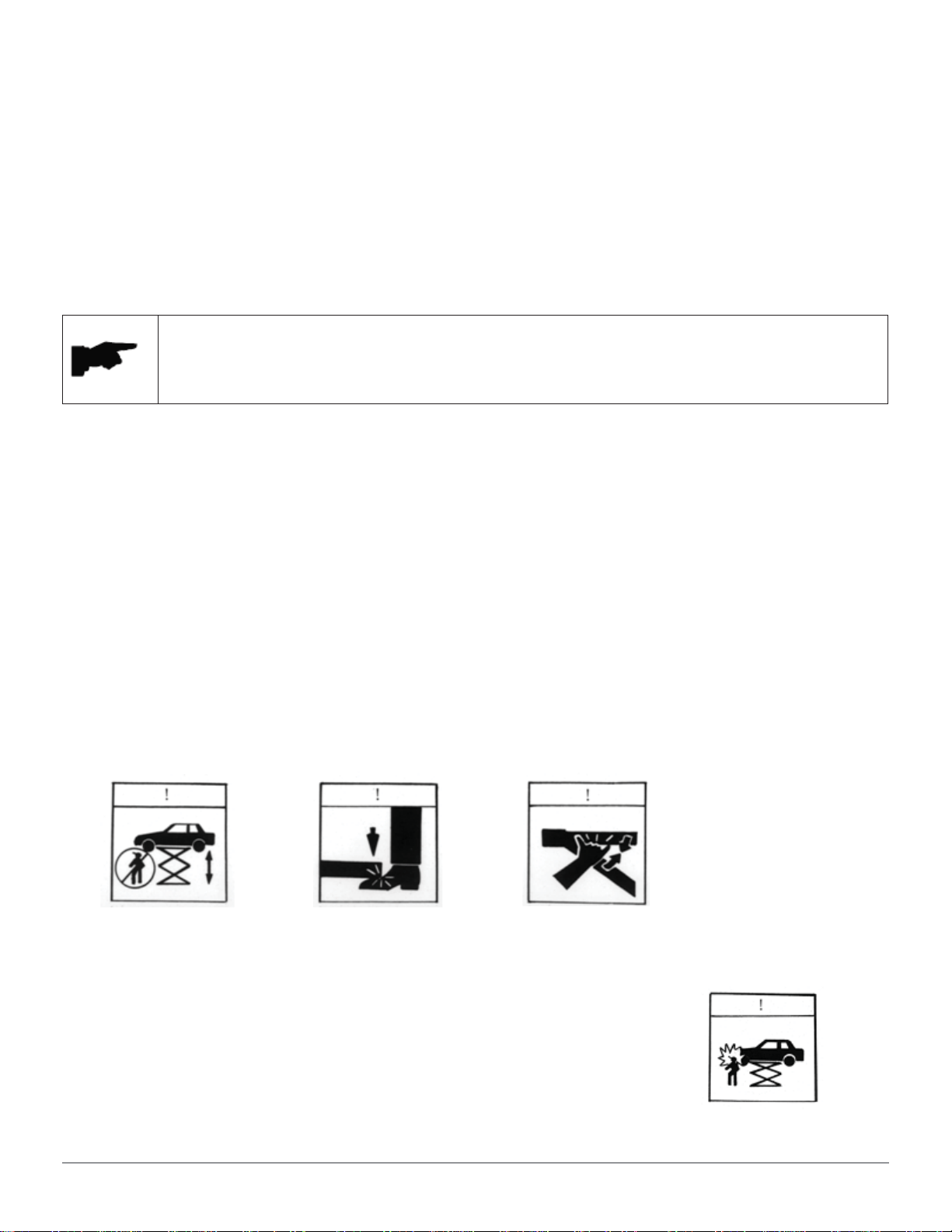

For operator and people safety, a safety area at least 3 feet away from the lift
must be vacated during lifting and lowering. The lift must be operated only from
the operator’s control site in this safety area. Operator’s presence under the
vehicle, during working, is only admitted when the vehicle is lifted and platforms
are not running.
Never use the lift when safety devices are off-line. People, the
lift and the vehicles lifted can be seriously damaged if these
instructions are not followed.
6.1 General Warnings
The operator and the person in charge of maintenance must follow accident-
prevention laws and rules in force in the country where the lift is installed
They also must carry out the following:
• Neither remove nor disconnect hydraulic, electric or other safety devices;
• Carefully follow the safety indications applied on the machine and included
in the manual;
• Observe the safety area during lifting;
• Be sure the motor of the vehicle is off, the gear engaged and the parking
brake put on;
• Be sure only authorized vehicles are lifted without exceeding the maximum
lifting capacity;
• Verify that no one is on the platforms during lifting or standing.

Safety 17
LR-06P
6.2 Risks During Vehicle Lifting
To avoid overloading and possible breaking, the following safety devices have
been used:
• a maximum pressure valve placed inside the hydraulic unit to prevent
excessive weight.
• a special design of the hydraulic system, in case of pipeline failure, to
prevent sudden lift lowering.
The maximum pressure valve has been preset by the
manufacturer to a proper pressure. DO NOT try to adjust it to
overrun the rated lifting capacity.
6.3 Risks For People
All risks the personnel could run, due to an improper use of the lift, are
described in this section.
6.4 Personnel Crushing Risks
During lowering of runways and vehicles, personnel must not be within the
area covered by the lowering trajectory. The operator must be sure no one is in
danger before operating the lift.
Fig. 6a Fig. 6b Fig. 6c
6.5 Bumping Risk
When the lift is stopped at relatively low height for working,
the risk of bumping against projecting parts occurs. Fig. 7

Safety 18
LR-06P
6.6 Risk Of The Vehicle Falling From The Lift
Vehicle falling from the lift can be caused when the vehicle is improperly placed
on platforms, and when its dimensions are incompatible with the lift or by
excessive movement of the vehicle.
In this case, keep immediately away from the working area.
Fig. 8a Fig. 8b Fig. 8c
6.7 Slipping Risks
The risk of slipping can be caused by oil or dirt on the floor near
the lift.
Keep the area under and around the lift clean.
Remove all oil spills.
6.8 Electrocution Risks
Avoid use of water, steam, and solvent, varnish jets in the lift area where electric
cables are placed and, in particular, next to the electric panel.
6.9 Risks Resulting From Improper Lighting
Make sure all areas next to the lift are well and uniformly lit, according to local
regulations.
Fig. 9

Safety 19
LR-06P
6.10 Risks Of Breaking Component During Operation
Materials and procedures, suitable for the designed parameters
of the lift, have been used by the manufacturer to build a safe
and reliable product. Operate the lift only for the use it has been
designed for and follow the maintenance schedule shown in the
chapter “Maintenance”.
6.11 Risks For Unauthorized Uses
The presence of unauthorized persons next to the lift and on the
platforms is strictly forbidden during lifting as well as when the
vehicle has been already lifted
Any use of the lift other than that herein specified can cause
serious accidents to people in close proximity of the machine.
Fig. 10
Fig. 11

Installation 20
LR-06P
Installation
Only skilled technicians, appointed by the manufacturer, or by
authorized dealers, must be allowed to carry out installation.
Serious damage to people and to the lift can be caused if
installations are made by unskilled personnel.
7.1 Checking For Place Suitability
The lift has been designed to be used in covered and sheltered places free of
overhead obstructions.
The working place must not be next to washing areas, painting workbenches,
solvent or varnish deposits. The relevant standards of the local Health and
Safety at Work regulations, for instance, with respect to minimum distance to
wall or other equipment, escapes and the like, must be observed.
All areas next to the lift must be well and uniformly lit.
7.2 Concrete Surface
The lift must be placed on the concrete surface sufficiently resistant.
The surface must be suitable for bearing maximum stress values,
also in unfavorable working conditions. The surface must be
perfectly leveled.

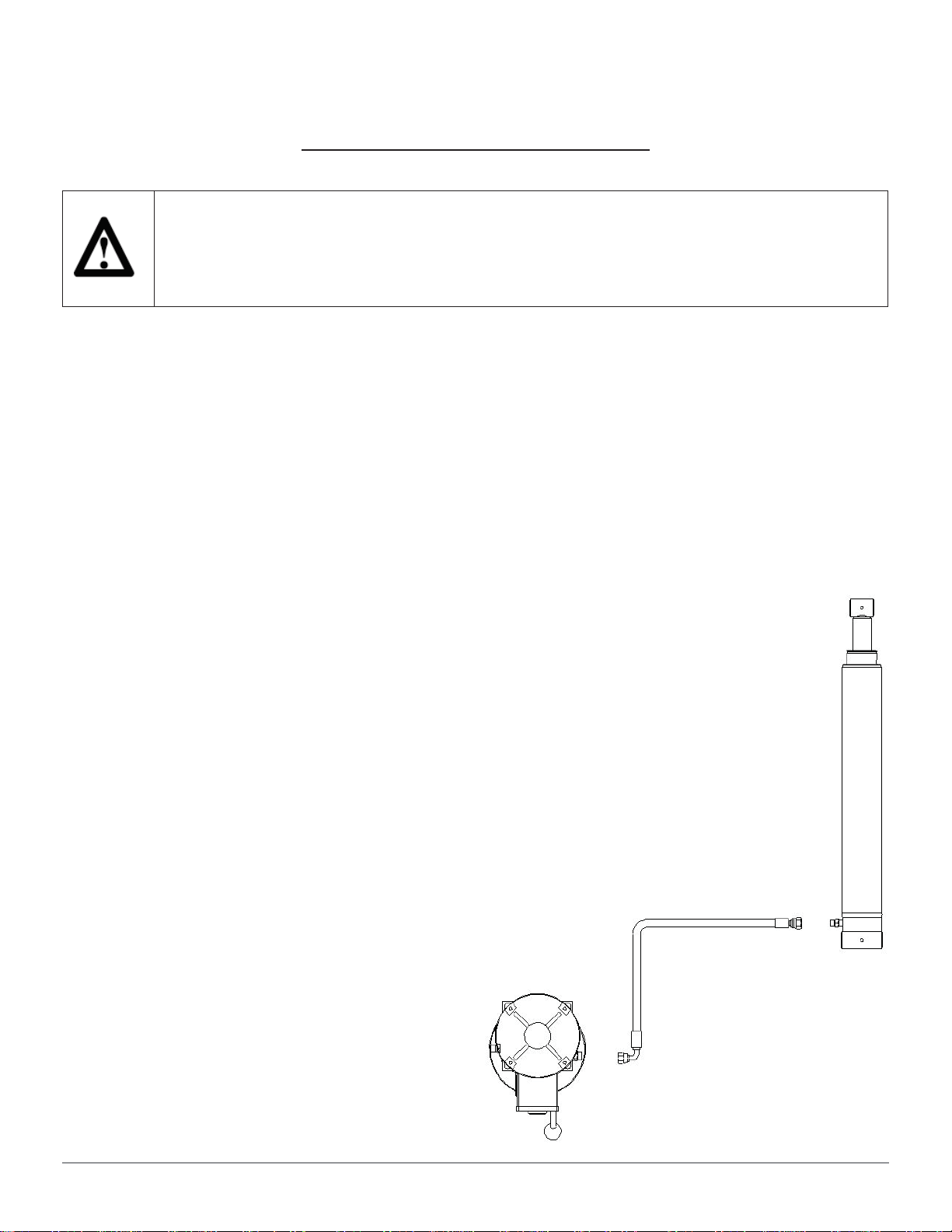

7.3 Hydraulic System Connection
• Connect hydraulic hoses referring to
the figure 12;
• Tighten fittings thoroughly.
Fig. 12
Hydraulic
Connections
