Strategy Series®II In-Ceiling 6" Coaxial Speaker System
FAP62T
Specifications
Power Rating 50 Watts
Transformer Taps 2, 4, 8, 16, & 32 Watts & 8ΩBypass
Frequency Response 63Hz – 20kHz (±7dB)
Sensitivity (1W / 1M) 88dB
Woofer 6" Poly Cone Butyl Rubber Surround
Woofer Magnet Weight 14 oz (398g)
HF Driver 19mm Coaxially Mounted PEI Dome Tweeter
Diameter 121⁄2" (318mm)
Overall Height 8.48" (215mm)
Enclosure Volume 475 in3
Cut-out Dimensions 11" (279mm)
Features
UÊ ÊÝÌi`i`ÊÜÊÀiµÕiVÞÊ,iëÃiÊvÀÊÌiÊ{ÇxÊ3Optimally Tuned
and Ported Deep Drawn Galvanized Steel Enclosure
UÊ Ê>ÃÞÊÃÌ>>ÌÊÊÀ«Ê/iÊÀÊ-iiÌÀVÊi}ÃÊ6>Ê,}É6,>Ê
/iÊÀ`}iÊ>`ʺ}Êi}»ÊÕÌ}Ê-ÞÃÌiÊVÕ`i`®Ê
UÊ ÊÀÌÊÕÌi`Ê/>«Ê-iiVÌÀÊ-ÜÌVÊvÀÊ>ÃÞÊ-ÞÃÌiÊ/Õ}Ê
Adjustments Include Transformer Bypass Setting for 8ΩDirect
Coupled Operation
UÊ Ê1µÕiʺ/À>«ÊÀ»Ê«ÕÌÊ-iVÌÊÜÃÊvÀÊ/ÀÕ}Ê`ÕÌÊ,ÕÃÊ
with Rigid or Flex Conduit
UÊ Ê{Ê*iÊiÌ>V>Liʺ*iÝ»Ê-ÌÞiÊiVÌÀÊÜÃÊ>ÃÞÊ*Ài7À}Ê
and Is Convenient for Daisy Chaining Additional Strategy Series Full
Range Speakers or Subwoofers
UÊ Êº*ÀiÃÃÊÌ»ÊÀiÃÊi`ÊiÌÌiÀÊÌÊÌi«À>ÀÞÊÀVÌiVÌÕÀi
UÊ Ê>Vi`Ê+Õ>ÌÞÊÇä°Ç6ÊÉÊ£ää6ÊÌiÀ>Ê/À>ÃvÀiÀÃÊâiÊ
ÃiÀÌÊÃÃÊ>`Ê>Ì>ÊÜÊÀiµÕiVÞÊ,iëÃiÊ7iÊ
*ÀÛ`}ÊVÀi>Ãi`Ê"ÕÌ«ÕÌÊvÀÊ}iÀÊ-*Ê««V>ÌÃ
UÊ Ê1ÊÃÌi`Ê£{nä
Applications
Atlas Sound’s FAP62T combines superior coaxial loudspeaker perfor-
mance with even dispersion and easy installation. A low profile enclosure
and wide coverage make the FAP62T a perfect choice for low ceilings.
The FAP62T will satisfy the needs of owners, architects, contractors,
and consultants by delivering true, high fidelity sound reproduction
in an attractive and easy-to-install system. The FAP62T is ideal for
high-intelligibility voice, music, and signal reproduction in commercial,
industrial, and institutional applications.
General Description
The FAP62T's 110° dispersion angle can reduce the number of
loudspeakers necessary to achieve coverage in distributed systems with
low ceilings.
The loudspeaker component matches the performance of the legendary
Atlas Sound FA136 driver. High quality construction 6" coaxial cone type
`ÀÛiÀÊVÕ`iÃÊ>Ê£»ÊÛViÊVÊ>`Ê«Þ«À«ÞiiÊViÊÜÌÊ>ÊLÕÌÞÊÀÕLLiÀÊ
surround. The 19mm coaxially mounted tweeter is constructed of PEI. A
high sensitivity of 88dB average (92dB peak) means less power may be
ÀiµÕÀi`ÊÌÊ>ViÛiÊÌiÊ`iÃÀi`Ê-*°Ê/ÃÊÕ`ëi>iÀÊÃÊv>VÌÀÞÊ>ÃÃi-
bled in an optimally tuned and ported deep drawn enclosure and includes
a specially designed 32 watt low saturation 70.7V / 100V transformer.
A convenient front mounted selector switch allows tap selection with-
out the need to remove the speaker from the ceiling. This switch also
includes a transformer bypass setting for 8Ωdirect coupled operation.
FAP62T

AtlasSound.com 2/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone]
FAX [phone]
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS001372 RevF 8/11
Mounting Accessories
Mounting is simplified with Strategy Series®ÊÃÌÞiʺ}Êi}»ÊÌ>LÃÊÌ>ÌÊ
allow easy installation into drop tile or drywall ceilings with provided tile
LÀ`}iÊ>ÃÃiLÞ°Ê/iÊÌiÊLÀ`}iÊVÃÃÌÃÊvÊÌÜʺ6»ÊÃ>«i`ÊvÀi`Ê
mounting rails and a C-Ring assembly. The C-Ring can be attached to the
rails with the screws provided to extend support to the T-bar grid in sus-
pended ceiling applications. Multiple hole locations are provided to allow
the C-Ring to be positioned to the outer edge of the tile if necessary.
For existing dry-wall applications the tile bridge C-Ring and support rails
can be inserted into the hole cut for the FAP62T. For easy positioning
Ìiʺ6»ÊÃ>«i`ÊÃÕ««ÀÌÊÀ>ÃÊ>ÌVÊÌiÊÃ>«iÊvÊÌiÊ,}ÊÌ>LÃÊvÀÊ
easy maneuvering and location when working “blindly" above the deck.
A uniquely designed “easy access" input panel on the side of the enclo-
sure allows for “thru" conduit runs using flexible or rigid conduit. Below
this cover resides a detachable Phoenix / Euro style locking four-pole
connector, which provides for easy daisy chain wiring to other full range
Çä°Ç6ÊÕ`ëi>iÀÃÊÀÊÌ>ÃÊ-Õ`Ê*-1ÊÃÕLÜviÀðÊ/iÊ«>V>}iÊ
includes an attractive press-fit grille, which nicely matches contemporary
architecture.
For new construction drywall ceiling applications, the optional FAP62-TR
trim ring is available. This unit provides a marked location for drywall
installers to cut around essentially reserving the desired location in the
ceiling until final installation of FAP62T. Mounting holes are provided to
accommodate 16" or 24" OC stud / joist mounting.
A support ring is also provided on the top of the FAP62T enclosure to
facilitate an auxiliary support cable.
NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT
BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC
CONSIDERATIONS.
Architect & Engineer Specifications
The loudspeaker system shall be Atlas Sound FAP62T. System shall
include a high performance 6" coaxial loudspeaker, ported bass reflex
enclosure and press-fit grille for conventional ceiling installation.
Frequency response for the system shall be 63Hz – 20kHz (±7dB).
Sensitivity shall be 88dB average.
Õ`ëi>iÀÊÃ>ÊLiÊV«ÀÃi`ÊvÊ>ÊȸÊV>Ý>ÊViÊÌÞ«iÊ`ÀÛiÀ°ÊiÊ
shall be constructed of polypropylene with a butyl rubber surround. The
19 mm tweeter shall be constructed of PEI. Magnet shall be a minimum
of 10 oz (264 g) and the voice coil diameter shall be 1" (25 mm).
Transformer shall be a 70.7V / 100V type with 2, 4, 8, 16, and 32 watt
primary taps (@70.7V) with a front mounted tap selector switch to include
transformer bypass setting for 8Ωdirect coupled operation.
Enclosure shall be a deep drawn steel enclosure design. Internal volume
shall be 475 in3. To facilitate connection in conduit systems, enclosure
shall be equipped with an access panel covering a recessed terminal cup.
This cover shall provide a combination 3⁄4" (19mm inside diameter) / 1"
(25mm inside diameter) knock-out on the side access and a top access
compression fitting / strain relief to facilitate flexible conduit up to 22mm
outside diameter or 1" (25mm inside diameter) conduit when the com-
pression fitting is removed.
External wiring shall be accomplished via a removable lockable wir-
ing connector with screw-down terminals to provide both secure wire
termination and pre-wiring capability before loudspeaker installation. The
4 pole locking connector shall facilitate in/out connections and shall be
located in the recessed area behind the conduit access panel.
Seismic support eye shall be provided on top of enclosure for additional
suspension point when used in drop tile ceilings. Construction of enclo-
sure shall be a minimum of 18-gauge deep drawn galvanized metal.
The system shall include a support backing plate to reinforce the ceil-
ing material and tile support rails for use on either 2' x 4' (609mm x
1219mm) or 2' x 2' (609mm x 609mm) suspended ceiling tiles. This
assembly can all be installed from beneath the ceiling tile.
Overall front face diameter shall not exceed 121⁄2" (318mm); overall depth
from the bottom of the ceiling shall not exceed 8.48" (215mm).
Grilles shall be press-fit, manufactured from 24-gauge perforated steel
mesh and finished in white epoxy. Round grill shall be 10.48" (266mm)
diameter.
The loudspeaker shall be the Atlas Sound FAP62T.
C-Ring / V-Rails
FAP62-TR

AtlasSound.com 3/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone]
FAX [phone]
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS001372 RevF 8/11

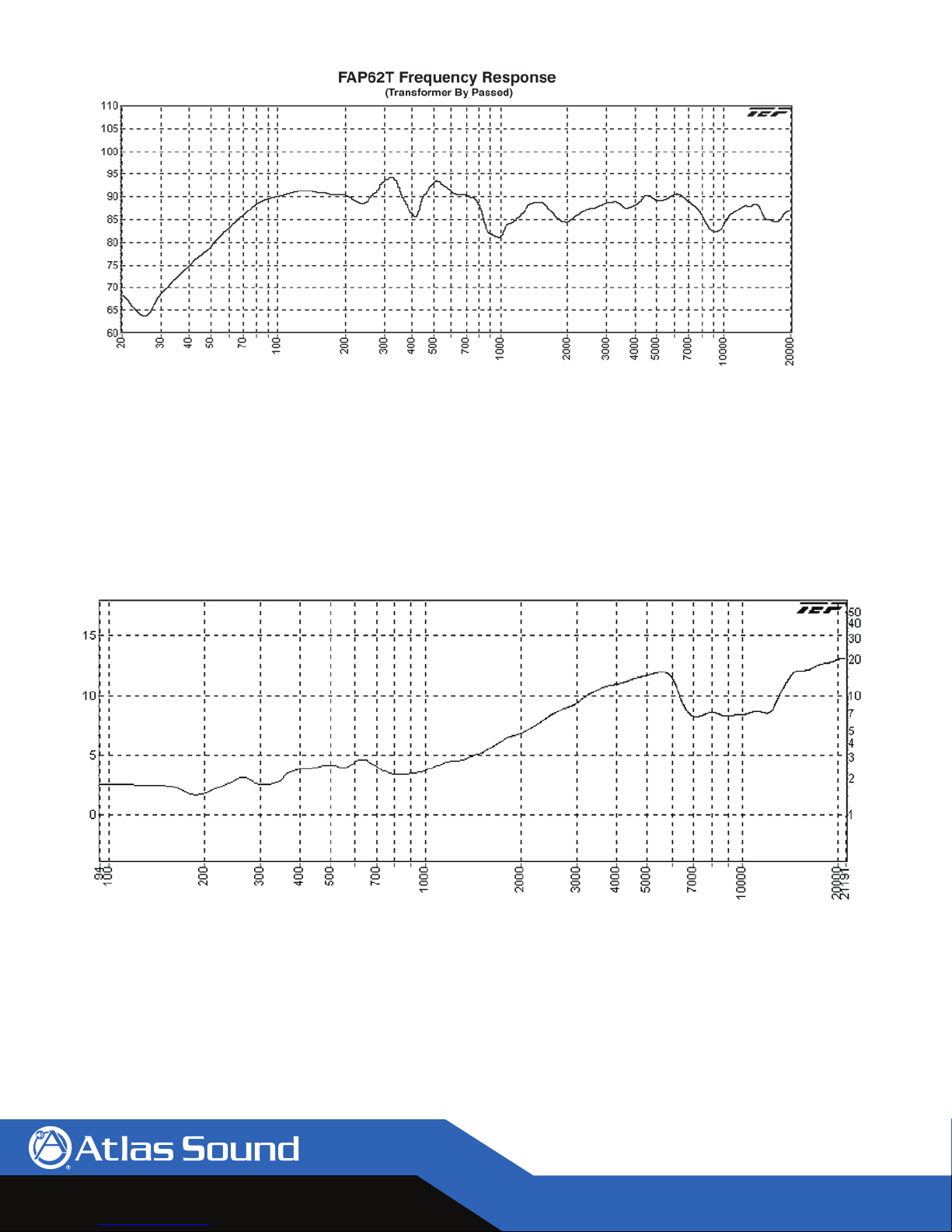

Frequency (Hz)
SPL in dB
FAP62T Directivity vs Frequency

AtlasSound.com 4/4
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: [phone]
FAX [phone]
©2011 Atlas Sound L.P. All rights reserved. Atlas Sound and Strategy Series are trademarks of Atlas Sound L.P. All other trademarks are the property of their respective owners. ATS001372 RevF 8/11

Ceiling Material up to 2"
Tile Bridge
Auxiliary Suspension Point
Dogleg In Inverted Position
FAP62T
Installation Instructions
ATS001131 RevF12/08
FAP62T
Installation Instructions
Mounting Template
11" Diameter
The Atlas Sound Strategy Series®II assembly mounts easily into existing
construction drop ceiling or drywall materials.
Painting Shield
101⁄2" Diameter
Drop Tile Ceiling
Installation
1. Remove 2' x 2' or 2' x 4' tile.
2. Align adjustable dual rail & C-ring assembly on rear of tile in desired position.
3. Using the template provided, mark cut out circle with marker and cut hole.
(11" FAP62T)
4. Affix C-ring assembly to rails using screws provided and position assembly on rear of ceiling tile.
Replace tile into grid. Be sure formed ends of tile bridge rails engage T-bar tile support rails.
5. Bring service loop from rear of tile, through the tile bridge/C-ring to the access panel located on side of enclosure.
Terminate the service loop to Phoenix style connector provided (please note polarity).
Combination knockouts are provided to facilitate conduit.
6. Insert enclosure through front of tile. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies
until they engage the C-ring assembly. DO NOT OVER-TIGHTEN DOGLEG SCREWS!
7. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See important note regarding 8Ωoperation)
8. Install press-fit grille into front bezel ring. Push baffle upwards until it is flush with the bezel ring.
9. For safety and seismic considerations a suspension ring is integrated into the input panel section of unit.
Atlas Sound strongly suggests that a support wire be installed from this support point to a suitable anchor point above ceiling grid.
In drop tile applications, this wire can usually be installed from an adjacent tile access near speaker location.
Dry Wall ("Hard Deck") Installation
1. Using the template provided, mark cut out circle in desired mounting location and cut hole. (11" FAP62T)
2. Place tile bridge rails and C-ring through hole. Use V-shaped edge of C-ring to align tile bridge assembly above ceiling
(alignment screws provided are not required for this type of installation)
3. Bring service loop from rear of tile, through the tile bridge / C-ring to access panel located on the side of the enclosure. Terminate service loop to Phoenix style
connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.
4. Insert enclosure into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies until they engage the C-ring assembly.
DO NOT OVER-TIGHTEN DOGLEG SCREWS!
5. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See important note regarding 8Ωoperation)
6. Install press-fit grille into front bezel ring. Push baffle upwards until it is flush with the bezel ring.
New Construction (Drywall Ceilings)
Use of optional FAP62-TR1(for use with FAP62T) new construction bracket essentially reserves a speaker mounting location prior to drywall installation
in new construction. Bracket mounts between 16" or 24" OC studs and includes a 3⁄8" downward lip to provide a template for drywall installers to cut
around. For final installation, please follow these instructions:
Note: Tile bridge components are not used in new construction applications where new construction bracket is utilized.
1. Bring service loop through hole in ceiling provided by pre-construction bracket to access panel located on side of the enclosure. Terminate service
loop to Phoenix style connector provided (please note polarity). Combination knockouts are provided to facilitate conduit.
2. Insert speaker assembly into hole. Using standard #2 Phillips screwdriver or screw-gun, tighten four dogleg assemblies until they engage the ring provided
on the new construction bracket. DO NOT OVER-TIGHTEN DOGLEG SCREWS!
3. Adjust front mounted switch to desired wattage tap setting or 8Ω* (See important note regarding 8Ωoperation)
4. Install press-fit grille into front bezel ring. Push baffle upwards until it is flush with the bezel ring.
1FAP62-TR has not been evaluated by UL Laboratories
NOTE: Doglegs will accommodate ceiling material thickness up to 11⁄4" as shipped from factory. For thicker ceiling materials (up to 2") simply unscrew and flip doglegs
as shown. DO NOT OVER-TIGHTEN DOGLEGS IN EITHER CONFIGURATION!
NOTE: UL recognized conduit clamp must be used for conduit connections. Cable connection cavity is not intended to be used as a junction box.
NOTE: *DO NOT USE 8ΩSETTING WITH 70.7V / 100V SYSTEMS! *DO NOT OVERPOWER IN 8ΩCONFIGURATION!
AMPLIFIER OUTPUT SHOULD NOT EXCEED 32 W RMS @ 8ΩPER SPEAKER
FREQUENCY RESPONSE: 90Hz - 20kHz SENSITIVITY: 88dB (1W / 1M)
16W @ 70.7V
FAP62T-B
Full Range
16W @ 70.7V
FAP62T-B
Full Range
16W @ 70.7V
FAP62T-B
Full Range
16W @ 70.7V
FAP62T-B
Full Range
Tap Wattage Total:64 Watts
Typical 120 Watt 70.7V Output
Typical Parallel Hookup of Full Range 70.7/100V Speakers
Amplifier
Input
-
+
-
+- +- +- +
Ceiling Material up to 1-1/4"
Auxiliary Suspension Point
Tile Bridge
Dogleg In Normal Position
ATS001131 RevD 5/08
