Two
APX40TN
APX40TN Conservatively rated 40 watts, constant-directivity paging loudspeaker for use in public address or paging appli-
cations. Environment-resistant units feature a 60˚ x 40˚ (±10˚) constant-dispersion pattern across the controlled frequency
band of 1.25 kHz –10 kHz. The rotating bell pivots in precise 15° increments for exact on-site positioning of projection
angles. A triple lock security mounting method saves installation time and provides long-term stability. APX models are
equipped with an internal 25V / 70.7V / 100V transformer with screw terminal connections made beneath the rear cap.
Rear cap will facilitate armored cable. Power stripe code around the driver assembly provides identification of power rating
from a distance. Loudspeaker mounts to die-cast zinc base. Pre-mount the base to a standard 1-gang, 2-gang, or 4" square
E.O. box. If replacing AP Series speakers, simply remove the APX base and mount to the Omni-Purpose® bracket. Finish is
neutral. Optional Replacement Bracket, APXBK-N, is also available.
Model Power
Rating
Nominal
Freq.
Rated
Power
/ 1 M
Sensitivity
1W / 1M
Dispersion** Impedance Dimensions
APX40TN 40 watts 400 Hz – 7.5
kHz
120 dB 107 dB
500 Hz – 5.5 kHz
±5 dB
60˚ x 40˚ *** Width: 141⁄2"
Height: 101⁄4" H x 131⁄4" D
(368 mm x 260 mm x 337 mm)
* Measured at Rated Power, 1 Meter (avg)
** Angle shown for -6 dB, 2 kHz Octave Band
*** 40 watt Transformer. Power Taps: 25V: .63, 1.25, 2.5, 3.75, 5, 10, 20, 40; 70.7V: 2.5, 10, 20, 30, 40; 100V: 5, 10, 20, 40
"X"-tra Value Features
• Rotating Bell
• Triple Lock Security
• "Power Stripe" Code
• Quality Materials
"X"-tra Easy Installation
• Universal base mounts 1-gang, 2-gang or 4" sq. E.O. boxes.
• Includes 30 watts tap @ 70.7V.
"X"-tra Predictability
• Clear Messaging and Music Consistent Beamwidth Control
• Fewer Speakers to Provide Quality Communications
Constant-Directivity Loudspeaker
Triple-lock horn-to-base
mounting
Bell rotates in 15° increments
APX40TN
 
 
 
 
 
 
 
 

 
 
 
 
 
 
 
 

APX Beamwidth
Controlled Coverage Across
a Wide Frequency Range
Conventional Beamwidth
Collapsing Coverage Across
a Wide Frequency Range
APXBK-N
Optional Replacement Bracket

AtlasSound.com
28
AtlasSound.com
The AH Series Stadium Loudspeakers offer the most often requested coverage patterns while providing excellent
intelligibility for the most challenging environments including large auditoriums, sport fields.
With a complete family of 8", 12", and 15" 2-way systems, designers and specifiers can select models for whatever
SPL is required with the peace of mind that all units will provide outstanding pattern control.
90° H X 90° V models (8" and 12" models only) are suggested for shorter loudspeaker to listener distances and/or
wider coverage requirements such as bleacher seating where the speaker may be in close proximity to the crowd.
65° H X 65° V (8", 12" and 15" models) square coverage pattern models are perfect for down-firing applications includ-
ing convention centers.
90° H X 40° V patterns (8", 12" and 15" models) work well when longer speaker to listener distances require a tighter
vertical coverage pattern. 15" AH series models offer an even slightly tighter pattern of 50° H X 40° V. This device
is often mounted atop football field press boxes with the device aimed at the visitor side in conjunction with wider
coverage pattern models to cover the home side bleachers.
Common Design Features:
Multiple stainless steel mesh screens protect internal drivers from weather and pest damage. A primary rodent
screen provides protection for all components, a secondary screen resides between the high frequency horn and the
driver, and a third perforated screen protects the woofer.
Heavy-duty stainless steel mounting brackets are included with all models and three dropforge eyebolts are also
included for overhead suspension (use only load-rated & approved hardware). For light pole mounting Atlas Sound
also distributes matching mounting accessories from Allen Products. (see next page).
15" models AH9040S, AH6565S and AH5040S feature impressive, full range sound reproduction via a high excur-
sion low frequency woofer and a concentrically mounted 1" exit compression driver. A well-designed, highly efficient
internal passive crossover network ensures proper transition between the two drivers, which collectively provide
frequency response from 75 Hz – 14.5 kHz (±5 dB).
With an efficiency rating in excess of 102 dB (1 W / 1 M), the 15" AH Series is a perfect choice for high-energy music
playback at sporting events and extended range speech reinforcement for large venue emergency notification. The
8 Ω rating allows maximum low frequency response and is a good match with Atlas Sound model CP700 amplifier. If
transformer operation is required for long runs of smaller gauge cable please contact tech support for proper configu-
ration and use of model AF140 auto-former. Termination is via rear mounted terminal block with a Plexiglas cover for
weather resistance.
The 8" & 12" 2-way models are perfect for applications where space considerations will not allow installation of the
larger 15" 2-way models. All 8" & 12" models include a 60 watt, 70.7V / 100V internal transformer which is accessed
via terminal block connector sealed by a weather resistant cover. Transformer may also be bypassed for direct coupled
8 Ω operation.
12" AH models feature a version of the popular 12CXT60 compression driver coaxial loudspeaker.
8" 2-way AH models feature a version of the popular 8CXT60 compression driver coaxial loudspeaker.
Model Power Handling Impedance Sensitivity Frequency Response Dispersion Dimensions
AH5040S 250 watts 8 Ω nominal
5.6 Ω @ 9 kHz
minimum
104 dB 75 Hz – 14.5 kHz 50° Horizontal x
40° Vertical
Height: 20.5" (521 mm)
Width: 20.5" (521 mm)
Depth: 32" (813 mm)
AH6565S 250 watts 8 Ω nominal
5.6 Ω @ 9 kHz
minimum
102 dB 75 Hz – 14.5 kHz 65° Horizontal x
65° Vertical
Height: 20.5" (521 mm)
Width: 20.5" (521 mm)
Depth: 32" (813 mm)
AH9040S 250 watts 8 Ω nominal
5.6 Ω @ 9 kHz
minimum
102.5 dB 75 Hz – 14.5 kHz 90° Horizontal x
40° Vertical
Height: 22.5" (572 mm)
Width: 30" (762 mm)
Depth: 31" (787 mm)
Model Power Handling Transformer
Taps
Sensitivity Frequency Response Dispersion Dimensions
AH99-12ST 200 watts 7.5, 15, 30,
& 60 watts
103 dB 80 Hz – 10 kHz 90° Horizontal x
90° Vertical
Height: 25.65" (652 mm)
Width: 22.06" (560 mm)
Depth: 21.25" (540 mm)
AH94-12ST 250 watts 7.5, 15, 30,
& 60 watts
103 dB 80 Hz – 10 kHz 90° Horizontal x
40° Vertical
Height: 25.65" (652 mm)
Width: 22.06" (560 mm)
Depth: 21.25" (540 mm)
AH66-12ST 250 watts 7.5, 15, 30,
& 60 watts
102 dB 80 Hz – 10 kHz 65° Horizontal x
65° Vertical
Height: 23.86" (606 mm)
Width: 21.41" (544 mm)
Depth: 21.25" (540 mm)
AH99-8ST 100 watts 7.5, 15, 30,
& 60 watts
101 dB 90 Hz – 10 kHz 90° Horizontal x
90° Vertical
Height: 23.86" (606 mm)
Width: 21.41" (544 mm)
Depth: 21.25" (540 mm)
AH94-8ST 100 watts 7.5, 15, 30,
& 60 watts
101 dB 90 Hz – 10 kHz 90° Horizontal x
40° Vertical
Height: 21.83" (554 mm)
Width: 19.66" (499 mm)
Depth: 18.41" (468 mm)
AH66-8ST 100 watts 7.5, 15, 30,
& 60 watts
100 dB 90 Hz – 10 kHz 65° Horizontal x
65° Vertical
Height: 20.91 (531 mm)
Width: 17.91" (455 mm)
Depth: 19.66" (499 mm)
AH66-8ST
AH94-8ST
AH99-8ST
AH66-12ST
AH94-12ST
AH99-12ST
AH Series Stadium Loudspeakers

AtlasSound.com
AtlasSound.com 800.876.3333 29
Two

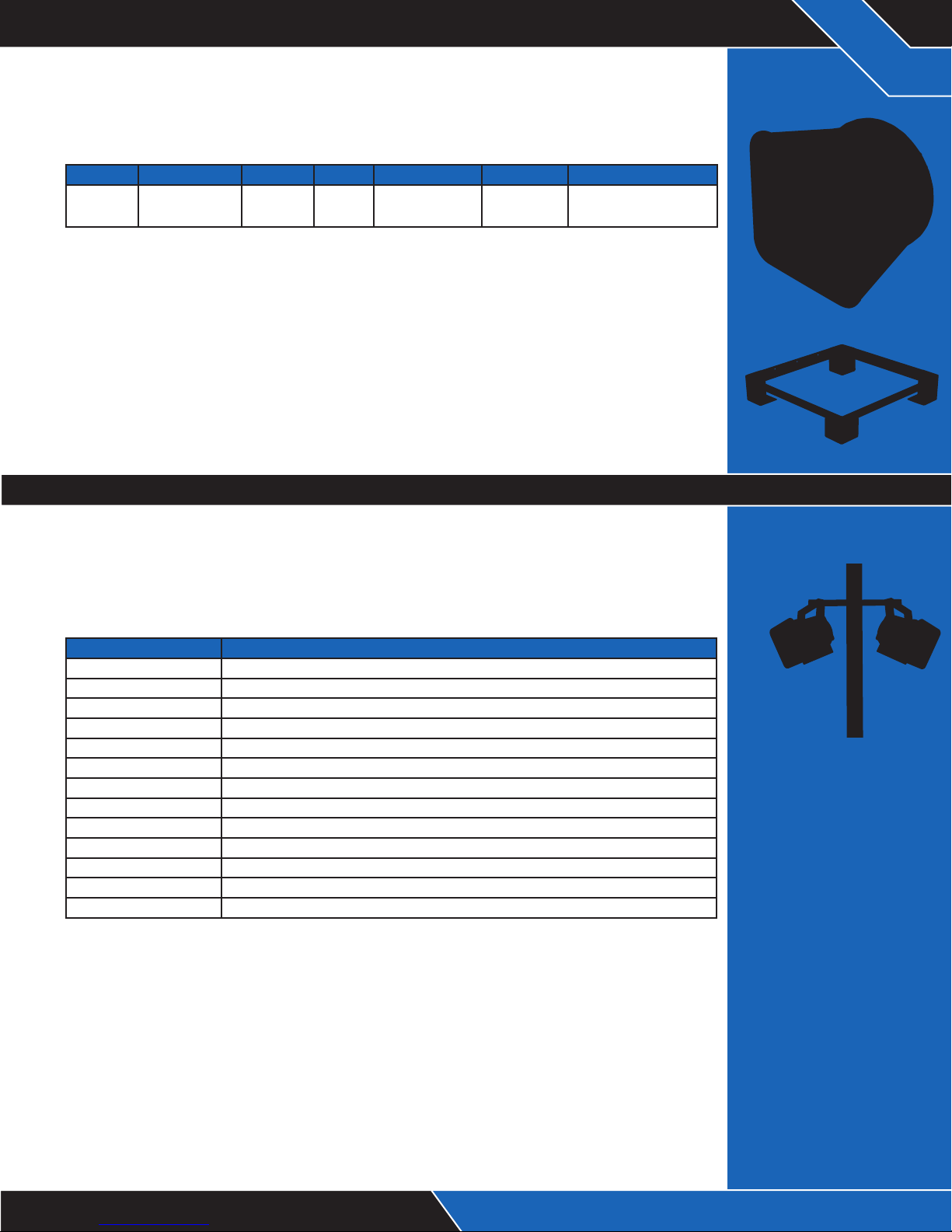

A perfect complement to any AH Series full range device, the AHSUB15S will provide extended low frequency
response to add presence to any high energy music playback system. A specially designed, rear firing 15" cast frame
woofer is mounted into a high volume chamber for optimum loading and output. These design elements provide an
impressive frequency response down to 55 Hz (-5 dB) for accurate bass response. The AHSUB15S is capable of han-
dling up to 250 watts RMS providing output in excess of 126 dB (Rated power @ 1 Meter). Three eyebolt suspension
points are provided along with mounting locations to allow stacked installation of other AH models.
Model Power Handling Impedance Sensitivity Frequency Response Dispersion Dimensions
AHSUB15S 250 watts 8 Ω nominal 103 dB 55 Hz – 120 Hz Omni Height: 30.56" (776 mm)
Width: 30" (762 mm)
Depth: 28.10" (714 mm)
AHSUBSTAND
AHSUBSTAND allows the easy installation of the AHSUB15S under bleacher seating or other areas where concrete
slab mounting is possible. Stand provides secure mounting of the AHSUB15S in a down firing configuration to
maximize output performance while helping to prevent theft and weather damage.
Holes are provided on the bracket feet for anchor points when mounting on concrete slab and additional holes are
located on the frame to allow the AHSUB15S to be attached to the frame via chain or cable (Not Included) for optimal
security.
Allen Pole Mount – Mounting Accessories
As a convenience to our dealers Atlas Sound is proud to provide quality mounting solutions from Allen Products to
facilitate pole mounting of the Atlas Sound AH series stadium horns. Please call Atlas Sound customer service at
800.876.3333 for assistance in choosing the correct hardware for your installation.
Model Description
AH-PM-BAND-20S 20" SS Strap for 2" to 6" Diameter Pole
AH-PM-BAND-30 30" SS Strap for 7" to 9" Diameter Pole
AH-PM-BAND-60 60 SS Strap for 10" to 19" Diameter Pole
AH-PM-BAND-90 90 SS Strap for 20" to 28" Diameter Pole
AH-PM-DA-24 Pole Mount Dual Adapter 24" SS
AH-PM-DA-36 Pole Mount Dual Adapter 36" SS
AH-PM-DA-48 Pole Mount Dual Adapter 48" SS
AH-PM-MOUNT-6DOWN Adapter Bracket SS for 2" to 6" Diameter Pole
AH-PM-MOUNT-6UP Adapter Bracket SS for 6" + Diameter Pole
AH-PM-SAFETY-6DOWN Safety Pole Anchor Bracket
AH-CC-096-S Adjustable Safety Cable 96"
AH-PM-SA-12 Pole Mount Support Arm 12" SS
AH-PM-SA-18 Pole Mount Support Arm 18" SS
AH Series Subwoofer
AH15SUBS
AHSUBSTAND
Allen Pole Mount – Mounting Accessories

AtlasSound.com
30
AtlasSound.com

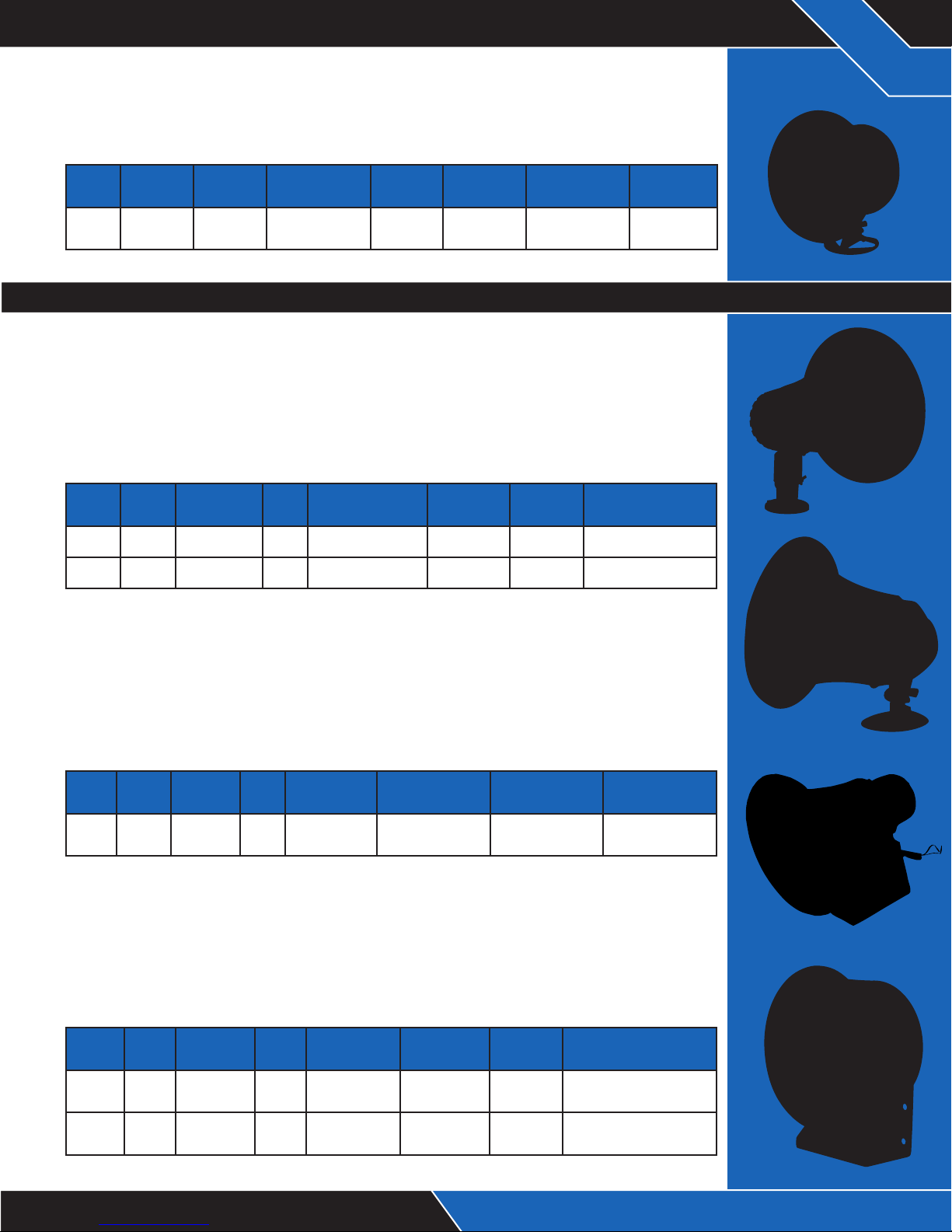

AP Series environment-resistant loudspeakers are the world standard for voice, music, and signal transmission
in indoor and outdoor public address, intercom, security, and industrial signal system applications. Cost-effective,
all-purpose units incorporate high-effi ciency compression drivers to project through high ambient sound levels and to
cover long distances at minimum installed cost. U.S. made models assure superior intelligibility and service reliability.
Units are metal and plastic construction. AP Series transformer-equipped models include a 3-way 25V / 70.7V / 100V
transformer.
Industry Standard Omni-Purpose Loudspeakers
AP-15 / AP-30 Series Patented environment-resistant, double re-entrant loudspeakers are available in 15 and 30 watt
versions for medium and high-powered sound distribution. Selection includes 8 Ω models for auxiliary and mobile
loudspeaker use and 70.7V / 100V transformer models with screwdriver-adjust power tap selection for a variety of
sound and signaling applications. All include the Omni-Purpose® bracket for vertical/horizontal positioning and have
provisions for surface/strap mounting to pillars and I-beams. gray baked epoxy fi nish. Model AP-30TC also available in
Beige fi nish.
Recessed Flange-Mounting Loudspeakers
APF Series High-effi ciency, 15 watt loudspeakers are designed for recessed installation in sound and alarm system
applications. Flange mounting units may be installed fl ush to a panel or recessed into wall or ceiling surfaces. For
aesthetic consideration and retrofi t convenience of existing cone loudspeaker installations, models will accept any
6" or 8" diameter recessed mounting baffl e (Note: 8" baffl e mounting requires model FAMT-6 mounting fl ange. See
APF Series accessories, this section.) The APF-15 installs inside a 4" deep opening. The APF-15T fi ts inside a 51⁄2"
deep minimum opening and includes combination 25V / 70.7V / 100V transformer with screwdriver-adjust power tap
selection. Finished in gray baked epoxy.
Exponential Loudspeaker
APC-30T High-power 30 watt loudspeaker with extended low frequency response is equipped with a wide-angle
molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 Ω tap
for intercom and talk-back use. It also features the Omni-Purpose® bracket for vertical/horizontal positioning and have
provisions for surface/strap mounting to pillars and I-beams. Finished in gray baked epoxy. For constant directivity
performance, see APX Series.
Radial Loudspeaker for Suspension Mounting
APR-30AT 30 watt loudspeaker with 40˚ circular sound dispersion is designed for overhead installation in industrial,
transportation, manufacturing, service, recreation and sports centers. Equipped with a combination 25V / 70.7V / 100V
transformer with screwdriver-adjust power selection including a 45 Ω tap. Provision for suspended ceiling installation
is included. Finished in gray baked epoxy. Includes conduit adapter.
Bi-Directional Twin Horn
APT-34AT Surface-mounting loudspeaker with bi-directional sound dispersion provides concentrated coverage in
corridors, stairwells and walkways in commercial, institutional and industrial applications. Twin horn assembly delivers
30 watts of power with a single compression driver and provides 100˚ sound dispersion in each direction. Includes
the Omni-Purpose® bracket and provisions for surface / strap mounting. Equipped with a combination 25V / 70.7V /
100V transformer with screwdriver-adjust power selection including a 45 Ω tap. Finished in gray baked epoxy. Includes
conduit adapter.
Model UL Power
Rating
Nominal
Frequency
Rated
Power /
1 M
Sensitivity Dispersion** Imped-
ance
Dimensions
AP-15 1480 15 watts 400 Hz – 14 kHz 116 dB 106 dB
500 Hz – 6 kHz±5 dB
70˚ 8ΩHeight: 83⁄4"
Width: 77⁄8"
Depth: 95⁄16"
AP-15T(C) 1480 ***
APF-15 1480 15 watts 600 Hz – 14 kHz 114 dB 104 dB
700 Hz – 5.5 kHz
±5 dB
95˚ 8Ω7" Diameter x 37⁄16" Height
7" Diameter x 53⁄16" Height
APF-15T 1480 ***
AP-30 30 watts 300 Hz – 12 kHz 121 dB 108 dB
500 Hz – 4.5 kHz
±5 dB
60˚ 8ΩHeight: 10"
Width: 10"
Depth: 101⁄2"
AP-30T(C) ****
APC-30T 30 watts 300 Hz – 12 kHz 119 dB 109 dB
400 Hz – 3 kHz±5 dB
70˚ x 95˚ **** Height: 81⁄4"
Width: 143⁄8"
Depth: 127⁄8"
APR-30AT 30 watts 300 Hz – 12 kHz 120 dB 110 dB
500 Hz – 4 kHz±5 dB
40˚ **** Height: 101⁄2"
Diameter: 91⁄4"
APT-34AT 30 watts 400 Hz – 12.5
kHz
112 dB 101 dB
450 Hz – 12.5 kHz
±5 dB
175˚ **** Length: 161⁄2"
Diameter: 93⁄4"
* Measured at Rated Power, 1 Meter (avg)
** Angle Shown for -6 dB, 2 kHz Octave Band
*** 15 watts Transformer Power Taps: 25V: .48, .94, 1.8, 7.5, 15;
70.7V: 1, 2, 3.8, 7.5, 15; 100V: 2, 4, 7.7, 15, X
**** 30 watts Transformer Power Taps: 25V: 0.9, 1.8,
3.7, 7.5, 15; 70.7V: 2, 3.8, 7.5, 15, 30; 100V: 4, 1.7,
15, 30, X
***** AP-30T-25 Transformer Power Taps: 25V: 1.2, 2.5,
5, 7.5, 15, 30
AP-15/AP-30
APF-15
APC-30T
APR-30AT
APT-34AT
Professional Omni-Purpose Loudspeakers

AtlasSound.com
AtlasSound.com 800.876.3333 31
Two
7.5 Watt Loudspeaker
WR-5AT Environment-resistant loudspeaker provides the advantages of music reproduction, high-effi ciency voice
/ signal transmission and long-lasting service reliability. Rec om mend ed for background / foreground installations in
hotels, schools, pools and recreational facilities. Assemblies are housed within a metal, weather-resistant enclosure.
Finished in gray epoxy.
Model Power
Rating
Transformer
Taps
Nominal
Frequency
Rated Power
@ 1 M
Sensitivity
1 W / 1 M
Dispersion
(-6 dB, 2 kHz Octave
Band)
Dimensions
WR-5AT 7.5 watts .65, 1.25,
2.5, 5.0, &
7.5 watts
375 Hz – 10 kHz 105 dB 97 dB
400 Hz – 7.8 kHz
±5 dB
95˚ 6" Diameter
4" Depth
Utility Paging Re-Entrant Horn Loudspeakers
GA Series Double Re-Entrant 15 and 30 watt utility horns offer economical and sound performance for general
paging, music, and intercom use. Models GA-15T and GA-30T feature a combination 25V / 70.7V line transformer
with multi-position knob for selecting power taps. In addition, loudspeakers include wiring for an 8 Ω connection.
Units are ideally suited for installations in commercial buildings, sports facilities and any applications where direct
sound coverage is desired. GA Series models are constructed of weather resistant, high-impact plastic for indoor /
outdoor installations and feature an adjustable surface mounting bracket to allow for multiple vertical and horizontal
positioning. Loudspeakers are fi nished in gray epoxy.
Model Power
Rating
Nominal
Frequency
Rated
Power
@ 1 M
Sensitivity
1 W / 1 M
Dispersion** Impedance Dimensions
GA-15T 15 watts 400 Hz –6 kHz 112 dB 103 dB
500 Hz – 3 kHz ±5 dB
80˚ *** 71⁄2" Diameter
93⁄8" Depth
GA-30T 30 watts 350 Hz – 7.5 kHz 118 dB 106 dB
500 Hz – 3 kHz ±5 dB
60˚ **** 10" Diameter
12" Depth
* Measured at Rated Power, 1 Meter (avg)
** Angle Shown for -6 dB, 2 kHz Octave Band
*** 15 watts Transformer Power Taps: 25V: 0.5, 1, 2, 4, 8; 70.7V: 1, 2, 4, 8, 15
**** 30 watts Transformer Power Taps: 25V: 1, 2, 4, 8, 15; 70.7V: 2, 4, 8, 15, 30
Compact, High-Effi ciency Loudspeakers
SC Series Cost-effective series with versatile application provides directional sound projection and spot coverage
in indoor and outdoor intercom and paging systems or functions as an extension loudspeaker to alarm systems and
communication receivers. The Standard Model SC-15 is an 8 Ω speaker and may be used with an external 25V / 70.7V
transformer (order separately). Includes detachable swivel bracket. Weather-resistant construction. Finished in light
beige epoxy. Also available SC-15-45 (45 Ω) version
Model Power
Rating
Nominal
Frequency
Rated
Power
@ 1 M
Sensitivity
1 W / 1 M
Dispersion** Impedance Dimensions
SC-15 15 watts 600 Hz –6
kHz
114 dB 103 dB
600 Hz – 6 kHz
±5 dB
95˚ 8 Ω61⁄4" Diameter
61⁄2" Depth
* Measured at Rated Power, 1 Meter (avg) * Angle Shown for -6 dB, 2 kHz Octave Band
Utility and Mobile Communications Loudspeakers
RCMR-15 Accessory loudspeaker enhances voice intelligibility-range for communications, radio-telephone, electronic
hailer and alarm system installations in marine and vehicular applications. The Series meets the element and vibration
resistance requirements of industrial, service and utility vehicles and is recommended for area paging, intercom and
low-power siren applications. Voice coil impedance is 8 Ω. The RCMR-15 has a round projector and includes the
Omni-Purpose® mounting bracket for vertical and horizontal positioning plus a rigid 90˚ angle platform-mount.
MO-2. Compact, 8 Ω unit is designed for signal transmission in vehicular alarm, CB, marine radio, and transceiver
installations where concealed mounting or minimum aerodynamic obstruction is desired.
Model Power
Rating
Nominal
Frequency
Rated
Power
@ 1 M
Sensitivity
1 W / 1 M
Dispersion** Impedance Dimensions
RCMR-15 15 watts 350 Hz – 13
kHz
106 dB 105 dB
700 Hz – 5.8 kHz
±5 dB
120˚ 8 ΩDiameter: 71⁄2"
Depth: 71⁄4"
MO-2 25 watts 4 kHz – 15 kHz 106 dB 105 dB
550 Hz– 13.5 kHz
±5 dB
85˚ 8 ΩHeight: 8"
Width: 65⁄8"
Depth: 43⁄16"
* Measured at Rated Power, 1 Meter (avg) ** Angle Shown for -6 dB, 2 kHz Octave Band
WR-5AT
GA-30T
MO-2
SC-15
RCMR-15
Intercom, Paging & Alarm Loudspeakers
Indoor / Outdoor Music Loudspeaker

AtlasSound.com
32
AtlasSound.com
High-Power Re-Entrant Loudspeakers
AP-15TU / APF-15TU Series 15 watt surface and fl ange mounting loudspeakers for life safety and communication
system applications are designed for use with compatible control equipment to provide high-intelligibility voice and
signal transmission in emergency alarm, protective signaling, sound and intercom system installations.
AP-15TU(C) / AP-15TUCR Series are surface mounting units with Omni-Purpose® mounting bracket for vertical and
horizontal positioning. The Series also includes provisions for surface or strap mounting to pillars and I-beams.
APF-15TU(C) Series are fl ange mounting units for recessed installation.
All models include 25V / 70.7V Vari-Tap®transformer. Units with (C) suffi x include 5-mfd capacitor for line supervi-
sion. Weatherproof construction. Finished in gray baked epoxy or red (R) as noted. Models comply with UL Standard
1480—Speakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19). Models with special
modifi cations to meet New York City MEA (Calendar no. 57-74-SA) and UL Canada are also available as standard
product. Contact factory.
Model Power
Rating
Nominal
Frequency
Rated
Power
@ 1 M
Sensitivity
1 W / 1 M
Dispersion** Impedance Dimensions
AP-15TU(C) 15 watts 400 Hz – 4 kHz 116 dB 106 dB
500 Hz – 6 kHz ±5 dB
70˚ *** Width: 77⁄8"
Height: 83⁄4"
Depth: 95⁄16"
AP-15TUCR
APF-15TU(C) 15 watts 400 Hz – 4 kHz 114 dB 104 dB
700 Hz – 5.5 kHz ±5 dB
95˚ **** Diameter: 7"
Height: 53⁄16"
* Measured at Rated Power, 1 Meter (avg)
** Angle Shown for -6 dB, 2 kHz Octave Band
*** 15 watts Transformer Power Taps: 25V: .48, .94,
1.8, 7.5, 15; 70.7V: 1, 2, 3.8, 7.5, 15
**** UL Rating at 15 watts, 10 ft. (3 dB increment
rating)
Bi-Axial Horn with Gimbal Mount
BIA-100 Features a twin refl ex air column for controlled directivity and an exponential bell for constant sound disper-
sion and linear frequency response emphasis. Unit is designed for use with compression driver units in high-power
voice, music, and signaling systems including service and mass transit centers, industry and commerce, educational,
and institutional applications. Patented gimbal mount for surface or fl ange mounting provides labor-saving installation
and horizontal/vertical positioning adjustment. Non-resonant foam construction is suitable for indoor and outdoor
application. Finished in non-glare matte black.
Horn for Exponential Sound Dispersion
CJ-46 All-purpose unit is a low silhouette, directional horn for sound and signaling installations where wide-area
dispersion and maximum sound and audibility are required. Recommended for use with compression driver units in
indoor and outdoor applications including community warning systems, sports, and leisure facilities, industry, and
commerce. Mounting bracket for vertical, horizontal, or stacked positioning is heavy-duty steel with positive lock.
Weatherproof bell is all-fi berglass construction fi nished in black.
Horns for Uniform Directional Sound Projection
DR Series Circular horns offer clean and uniform refl ex sound path for high-effi ciency penetration of voice or music
over distance and ambient noise. Designed for use with compression drivers in sound and signaling installations
including industrial plants, retail service establishments, sports facilities, church towers, amusement parks, and mass
transit terminals. Includes heavy duty "U" shaped mounting bracket. All-metal construction. Finished in gray baked
epoxy.
Model Dispersion Low End
Cutoff
Bell Size Length With PD-30T With PD-VH /
PD-SVT
With PD-60 /
PD-60T
BIA-100 130 x 60 180 Hz Height: 101⁄4"
Width: 21"
Depth: 103⁄4
191⁄4" 125 dB 126 dB 128 dB
CJ-46 120 x 60 115 Hz 22" x 12" 17" 125 dB 128 dB 129 dB
DR-32 95 190 Hz Diameter: 161⁄2" 121⁄2" 124 dB 124 dB 130 dB
DR-42 85 140 Hz Diameter: 20" 16" 125 dB 125 dB 131 dB
DR-54 75 115 Hz Diameter: 26" 19" 125 dB 127 dB 132 dB
DR-72 65 85 Hz Diameter: 31" 28" 127 dB 129 dB 135 dB
Reflex Sound Horns
CJ-46
DR-42
BIA-100
AP-15TUC
APF-15TUC
Voice Control™ Loudspeakers for Emergency Signaling

AtlasSound.com
AtlasSound.com 800.876.3333 33
Two
The Industry's Only Constant Directivity Re-Entrant Horn
New CD Series horns from Atlas Sound provide greatly improved uniform sound coverage compared to conical
designs. With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mount-
ing, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical
positioning in single or stacked multi-unit clusters.
Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.
Recommended Atlas Sound Drivers: PD30 Series, PD-5 Series, PD60 Series.
Beamwidth is defined as the -6 dB point(s) from center axis.
CD42
Horizontal Beamwidth: 40°, ±10°, 800 Hz – 10 kHz
Vertical Beamwidth: 20°, ±10°, 2 kHz – 10 kHz
CD46
Horizontal Beamwidth: 60°, ±10°, 600 Hz – 6 kHz
Vertical Beamwidth: 40°, ±10°, 1000 Hz – 7 kHz
CD94
Horizontal Beamwidth: 90°, ±10°, 900 Hz – 6 kHz
Vertical Beamwidth: 40°, ±10°, 1000 Hz – 10 kHz
Model Horizontal Beamwidth Vertical Beamwidth
CD42 40°, ±10°, 800 Hz – 10 kHz 20°, ±10°, 2 kHz – 10 kHz
CD46 60°, ±10°, 600 Hz – 6 kHz 40°, ±10°, 1000 Hz - 7 kHz
CD94 90°, ±10°, 900 Hz – 6 kHz 40°, ±10°, 1000 Hz – 10 kHz
CD Series Constant Directivity Paging Horns
CD46
CD94
CD42
  







AtlasSound.com
34
AtlasSound.com
30, 40, & 60 Watt Drivers
PD Series. Competitively priced compression drivers provide accurate sound reproduction, optimum intelligibility and
dependable performance in commercial sound, high-power music and public address loudspeaker systems. Models
are equally suited for application with Atlas Sound projector horns or as replacement drivers for use with standard 13⁄8"
- 18 male thread horns.
Model Power
Rating
Plane Wave
Frequency Response
Low Freq. Limit
@ Full Power
Sound Level
(±5db)
Impedance
PD-30 30 watts 300 Hz – 3.9 kHz ±5 dB 500 Hz 113.6 (avg) 300 Hz – 3.9 kHz 8 Ω (Nom.)
PD-30-16 16 Ω (Nom.)
PD-30T **
PD-5VH 40 watts 110 Hz – 4.1 kHz ±5 dB 250 Hz 110.7 (avg) 110 Hz – 4.1 kHz 16 Ω (Nom.)
PD-5VT 40 watts 190 Hz – 4.2 kHz ±5 dB 300 Hz 111.2 (avg) 190 Hz – 4.2 kHz ***
PD60A 60 watts 300 Hz – 3.7 kHz ±5 dB 300 Hz 112.7 (avg) 100 Hz – 3.7 kHz 16 Ω (Nom.)
PD60AT ****
* Measured on a plane wave tube at 1 mW
** 30 watts Transformer Power Taps: 70.7V:
1.8, 3.7, 7.5, 15, & 30
*** 40 watt Transformer Power Taps: 70.7V: 2.5, 5, 10, 20, & 40
**** 60 watt Transformer Power Taps: 70.7V: 2.5, 5, 10, 20, 40, & 60
Universal Driver-To-Horn Adapter
YDA-TH. Dual adapter for combining two compression drivers to one sound projector.
(Two 13⁄8"-18F thread to 13⁄8"-18M thread)
30 and 60 Watt Loudspeakers
HLE and MLE Series. These UL and CSA (HLE Models only) listed loudspeakers are specified for high-efficiency
transmission of voice and/or electronic signals within explosive or combustible atmospheres and environments.
Drivers and projector horns may be configured to comply with specific environment classification groups within Class
1 ratings. HLE Series drivers are 60 watts. MLE Series are 30 watts. Both are offered with an internally mounted line
transformer (-T) or without. To meet UL Standards for loudspeakers in distributed applications, models with factory-
mounted transformer (-T) must be specified. Projector horn Model HLE/MLE-30 is a reflex-type sound projector of
molded plastic with wide-angle dispersion. Model HLE/MLE-32 is an all-metal circular reflex horn with directional
sound distribution pattern. Drivers and projector horns are ordered and shipped separately. For performance accuracy,
specifications are listed for assembled configurations. All models are equipped with 1⁄2" conduit access and adjustable
mounting bracket.
Model HLE/MLE-30 with a mounted driver measures 14" Width x 6" Height x 171⁄2" Depth.
Model HLE/MLE-32 horn with a mounted driver is 161⁄2" Diameter x 211⁄2" Depth.
For Canadian Use: CSA listed product (HLE 2 Series) are available in both Class 2 (Explosion Proof and Dust Ignition
Proof Electrical Equipment) and Class 3 (Explosion Proof). Please call for details.
Atlas Sound explosion proof speakers meet division 2 criteria.
Model Combination UL Power
Rating
Frequency
Response
Sound
Level*
Sensitivity** Disper-
sion
Imped-
ance
Internal
Transformer
Driver Horn
HLE-1(T) HLE/MLE-30 913, 1604, 2279 60 watts
Continuous
250 Hz – 12 kHz 109 dB -18 dBm 120˚ x 60˚ 16 Ω60 watts
(Model T-18)
HLE-3(T) HLE/MLE-30 913, 1604, 2279 108 dB
MLE-1(T) HLE/MLE-30 913, 1604, 2279 30 watts
Continuous
300 Hz – 14 kHz 107 dB -21 dBm 120˚ x 60˚ 8 Ω30 watts
(Model T-20)
MLE-3(T) HLE/MLE-30 913, 1604, 2279 106 dB
HLE-1(T) HLE/MLE-32 913, 1604, 2279 60 watts
Continuous
190 Hz – 12 kHz 112 dB -18 dBm 95˚ 16 Ω60 watts
(Model T-18)
HLE-3(T) HLE/MLE-32 913, 1604, 2279 111 dB
MLE-1(T) HLE/MLE-32 913, 1604, 2279 30 watts
Continuous
200 Hz – 10 kHz 110 dB -20 dBm 95˚ 8 Ω30 watts
(Model T-20)
MLE-3(T) HLE/MLE-32 913, 1604, 2279 110 dB
* Measured at 1 watt, 1 meter. ** As microphone; re 10 dynes/cm2 *** T versions only
Underwriters' Laboratory Listings
Models Class / Group For Atmosphere Containing
HLE-1, MLE-1 Class 1 / Group C & D Gas Atmospheres (Including Ethyl, Ether, Gasoline Naptha, Alcohols, Butane, Propane)
HLE-3, MLE-3 Class 1 / Group B, C, D Gas Atmospheres (Including Ethyl, Ether, Gasoline Naptha, Alcohols, Butane, Propane), plus Hydrogen, Gas
and Vapor, (Manufactured Gas)
Explosion-Proof Loudspeakers
HLE-1 Driver
HLE-1 Driver mounted
to HLE/MLE-32 Horn
HLE-1 Driver mounted
to HLE/MLE-30 Horn
PD-30T PD-5VT
PD60AT
PD-5VH YDA-TH
High-Efficiency Compression Driver Units

AtlasSound.com
AtlasSound.com 800.876.3333 35
Two
T-18
L20-100
Shown with
APF-15T and BX-3
L20-213
L20-220
FAMT-6
L20-101
Shown with
APF-15T
BX-1A
BX-2A
BX-3A
T-10
T-20
L20-201

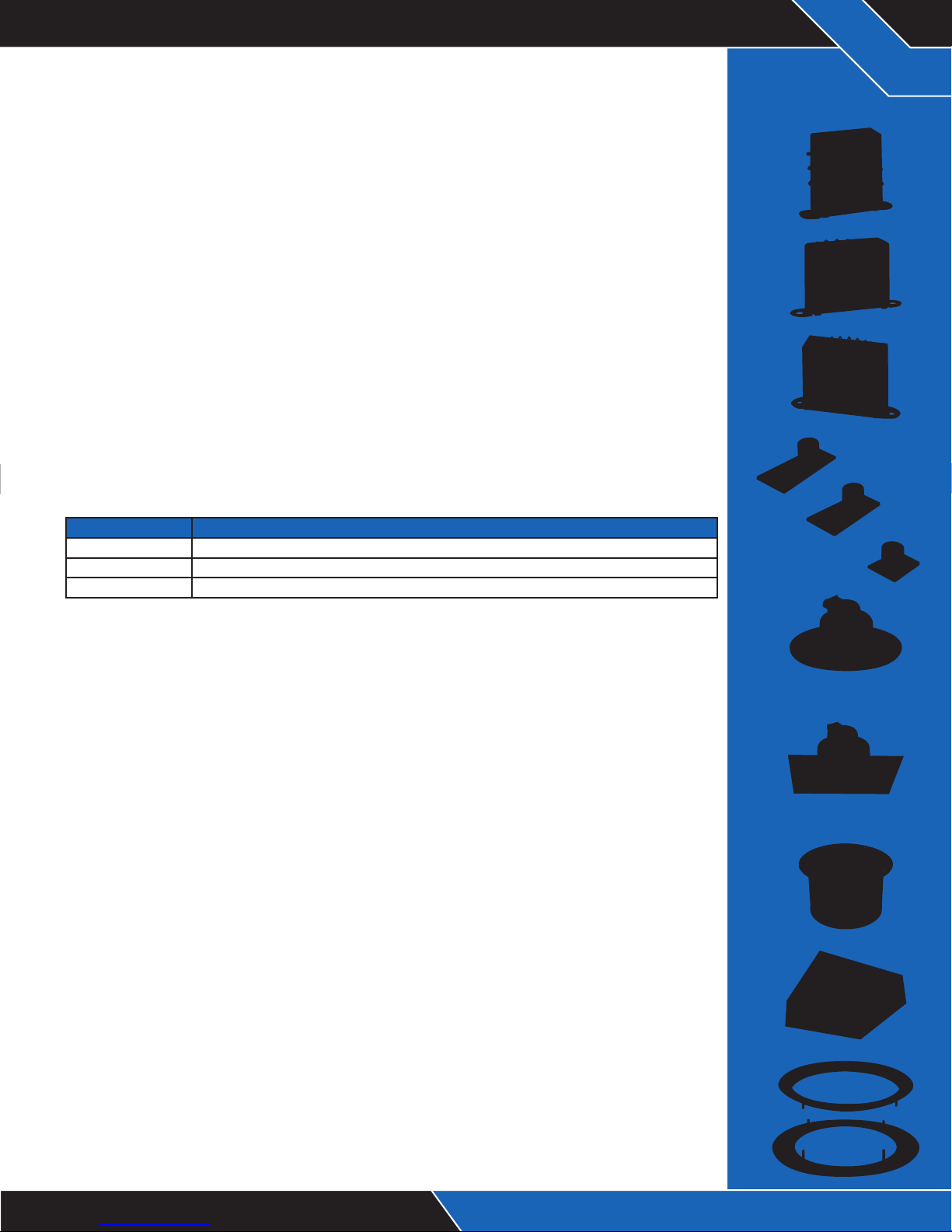

15, 30 & 60 Watt Transformers
Atlas Sound constant-voltage line-matching transformers are designed for use with compression driver type loud-
speakers. All units provide low insertion loss and cost-efficient power handling. (Transformers for cone loudspeakers
are listed in Section 1, page 21).
T10 15 watt transformer.
Primary: 8K, 4K, 2K, 1K, 670, 325, 180, 90, & 45 Ω.
25 Volt power taps: .3, .6, .9, 1.9, 3.5, 7, & 14 watts.
70.7 Volt power taps: .65, 1.25, 2.5, 5, 7.5, & 15 watts.
Secondary: 4, 8, & 16 Ω.
T20 30 watt transformer.
Primary: 2500, 1300, 666, 333, 167, 89, & 45 Ω.
25 Volt power taps: 1.89, 3.7, 7, & 15 watts.
70.7-Volt power taps: 1.8, 3.7, 7.5, 15, & 30 watts.
Secondary: 8 Ω.
T18 60 watt transformer.
Primary: 2K, 1K, 500, 250, 125, 85, and 45 Ω.
25 Volt power taps: .3, .6, 1.25, 2.5, 5, 7, & 14 watts
70.7 Volt power taps: 2.5, 5, 10, 20, 40, & 60 watts.
Secondary: 4, 8, & 16 Ω.
Cable / Conduit Adapters
Vandal-resistant cover plates for armored cable and conduit connection are designed for use with environment-
resistant, double re-entrant loudspeakers. BX Series mounts standard male threaded pipe with 14 threads per inch.
Construction is cast aluminum.
Model Mounts
BX-1A APC-30T
BX-2A AP-15, AP-15T
BX-3A APF-15, APF-15T
Mounting Accessories
APBK Replacement Omni-Purpose® swivel bracket, gray.
FAMT-6 Mounting ring/adapter allows a 6" cone or APF Series loudspeaker to mount an 8" enclosure and/or grille.
APF Series Baffles, Enclosures & Mounting Rings
L20-100 Round grille.
CRS construction with baked white epoxy finish.
Mounts APF-15 or APF-15T.
11" (279 mm) Diameter x 3⁄8" (10 mm) Deep.
L20-101 Square grille.
CRS construction with baked white epoxy finish.
Mounts APF-15 or APF-15T.
101⁄2" Square (267 mm) x 3⁄16" (5 mm) Deep.
L20-201 Recessed 20-gauge.
CRS enclosure for L20-100 grille.
Includes combination conduit knockouts for access.
Undercoated to prevent resonance.
89⁄16" (217 mm) Diameter x 6" (152 mm) Deep.
L20-213 Square surface enclosure for mounting L20-101 grille.
Conduit knockouts and mounting holes located in top.
White epoxy finish.
101⁄2" Square (270 mm) x 6" Deep (152 mm).
L20-220 Round mounting ring for L20-100 grille. 89⁄16" (217 mm) Diameter x 5⁄8" (16 mm) Deep.
L20-222 Same as L20-220 with mounting ears for 24" (610 mm) lay-in tile.
193-8(6) Cost-efficient enclosure is provided in two depths and furnished with four compound conduit knockouts for
standard screw-mount baffle installation. Construction is CRS, undercoated and finished in black epoxy.
Transformers & Accessories for Compression Drivers
