Atlas TC289 User manual

REV. 01 2 / 27
PRINTING CHARACTERS AND SYMBOLS
Throughout this manual, the following symbols and printing characters are used to facilitate reading:
Indicates the operations which need proper care
Indicates prohibition
Indicates a possibility of danger for the operators
BOLD TYPE Important information
WARNING: before operating the lift and carrying out any adjustment, read
carefully chapter 7 “installation” where all proper operations for a better
functioning of the lift are shown.

REV. 01 3 / 27
CONTENTS
1 INTRODUCTION 4
2 GENERAL INFORMATION 6
3 TRANSPORT, UNPACKING AND STORAGE 9
4 INSTALLATION 10
5 OPERATION 16
6 INFLATING 20
7 MAINTENANCE 22
8 TROUBLESHOOTING 24
9 ELECTRIC AND PNEUMATIC DIAGRAM 25

REV. 01 4 / 27
CHAPTER 1 – INTRODUCTION
1.1 INTRODUCTION
Thank you for purchasing a product from the line of tire changers. Themachine hasbeen
manufacturedin accordance with the very best quality principles. Follow the simple instructions
provided in this manual to ensure the correct operation and long life of the machine. Read the entire
manual thoroughly and make sure you understand it.
1.2 TYRE CHANGER IDENTIFICATION DATA
A complete description of the “Tire Changer Model” and the “Serial number” will make it easier for
our technical assistance to provide service and will facilitate delivery of any required spare parts. For
clarity and convenience, we have inserted the data of your tire changer in the box below. If there is
any discrepancy between the data provided in this manual and that shown on the plate fixed to the tire
changer, the latter should be taken as correct.
1.3 MANUAL KEEPING
For a proper use of this manual, the following is recommended:
xKeep the manual near the lift, in an easily accessible place.
xKeep the manual in an area protected from the damp.
xUse this manual properly without damaging it.
xAny use of the machine made by operators who are not familiar with the instructions and
procedures contained herein shall be forbidden.
This manual is an integral part of the manual: it shall be given to the new owner if and when the
machine is resold.
The illustrations have been made out of prototypes pictures. It is therefore
possible that some parts or components of standard production differ from those
represented in the pictures.
1.4 GENERAL SAFETY PRECAUTIONS
The tire changer may only be used by specially trained and authorized expert
personnel.
LOGO
Type:
Volt Amp Kw
Ph Hz
Year of manufacturing:
Air supply: 8-10 bar (115 – 145 PSI)

REV. 01 5 / 27
xAny tampering or modification to the equipment carried out without the manufacturer’s prior
authorization will free him from all responsibility for damage caused directly or indirectly by
the above actions.
xRemoving or tampering with safety devices immediately invalidates the guarantee.
xThe tire changer comes complete with instruction and warning transfers which are designed
to be long-lasting. If they should for any reason be damaged or destroyed, please ask
immediately for replacements from the manufacturer.
TO THE READER
Every effort has been made to ensure that the information contained in this manual is correct, complete
and up-to date. The manufacturer is not liable for any mistakes made when drawing up this manual and
reserves the right to make any changes due the development of the product, at any time

REV. 01 6 / 27
CHAPTER 2 – GENERAL INFORMATION
2.1 INTENDED USE
xThis Semi-automatic tire changer has been designed and manufactured exclusively for
removing and mounting tires from/onto rims from 10" to 26" and a maximum diameter of
1000 mm.
xIn particular THE MANUFACTURER cannot be held responsible for any damage caused
through the use of this tire changer for purposes other than those specified in this manual, and
therefore inappropriate, incorrect and unreasonable.

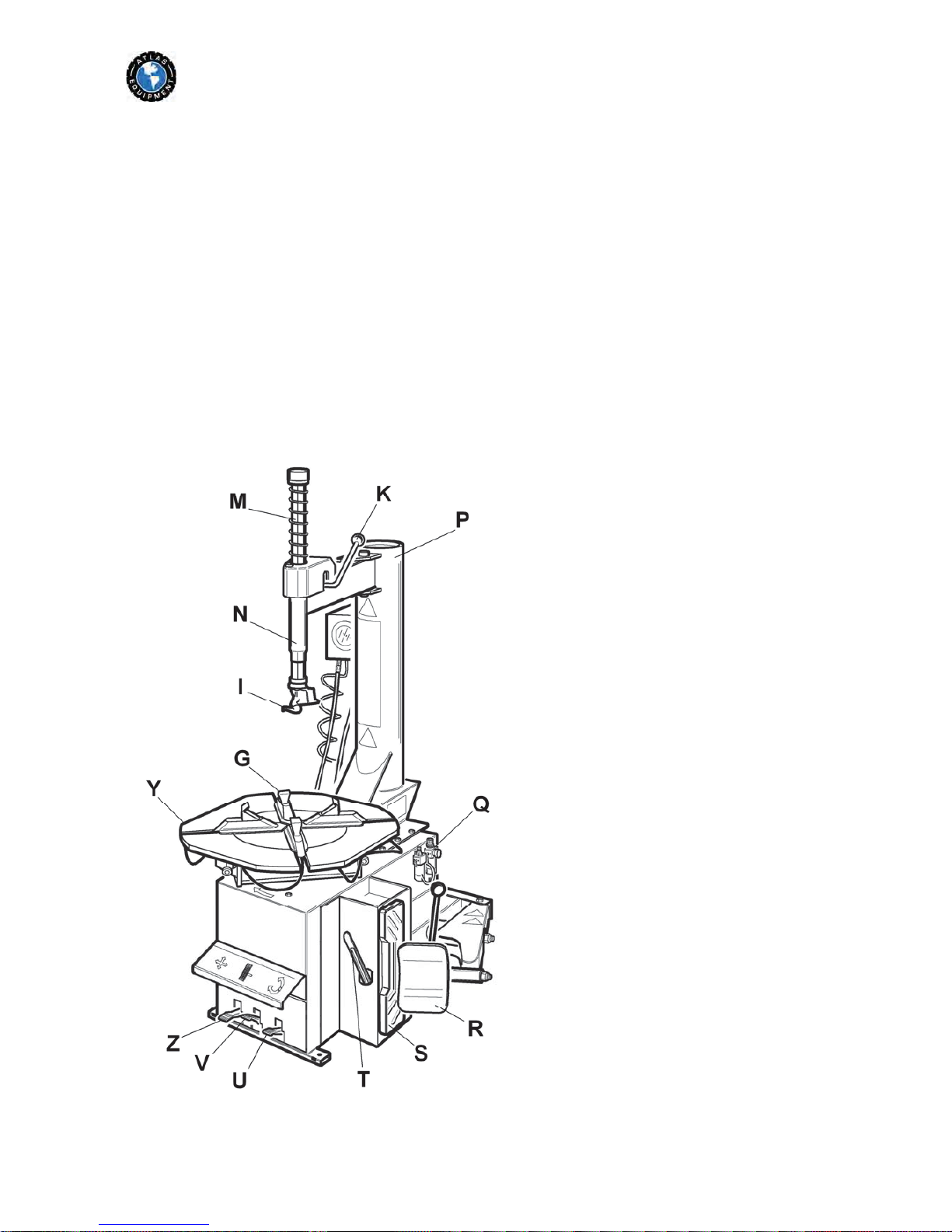

2.2 DESCRIPTION
G) Clamps
I) Mounting head
M) Mounting bar
N) Horizontal arm
P) Vertical arm
Q) Air supply
R) Bead breaker
S) Wheel support
T) Bead lifting lever
U) Clamp control pedal
V) Clamp control pedal
Z) Reverser control pedal
Y) Turntable
K) Locking lever
Fig . 1

REV. 01 7 / 27
2.3 DANGER WARNING SIGNS

REV. 01 8 / 27
2.4 TECHNICAL SPECIFICATION
External locking rim dimension
11 7/8" - 26"
12 7/8" - 27"
13 3/4" - 28"
Internal locking rim dimension
13 7/8" - 27 7/8
14 5/8" - 28 7/8"
15 5/8" - 29 7/8"
Max. tire diameter 1200mm (47.5”)
Max tire width 470mm (18.5”)
Force on bead breaker blade (10 bar) 2500 kg
Working pressure 10 bar (145 psi)
Inflating pressure device max. 3.5 bar (50 psi)
Power supply voltage 110V 1Ph
Motor power 1.1 kw (1ph)
Max spindle torch 885 ft/lbs
Dimension 1140 x 1100 x 950
Net weight 240 kg STND
Noise level in working condition < 70 dB (A)

ATTENTION!
The TC289 Tire Changer now has an improved turntable size. Please
read the information below.
Due to our continuous efforts to improve our products’ features and performance, the
published specifications of these products are sometimes updated to maintain accuracy.
Your TC289 Tire Changer has a new, larger sized turntable. The clamping ranges that are
listed on pages 8 and 15 in the TC289 Installation and Service Manual have been
changed to show this improvement. The new turntable clamping ranges are listed below:
External Clamping Range
Position 1) 11 7/8" - 26"
Position 2) 12 7/8" - 27"
Position 3) 13 3/4" - 28"
Internal Clamping Range
Position 1) 13 7/8" - 27 7/8"
Position 2) 14 5/8" - 28 7/8"
Position 3) 15 5/8" - 29 7/8"
External Locking Rim Dimension
(With Flip Adapters in the ATV Configuration)
Position 1) 4 7/8" - 19"
Position 2) 5 3/4" - 20"
Position 3) 6 3/4" - 20 7/8"
External Locking Rim Dimension
(With Flip Adapters in the Motorcycle Configuration)
Position 1) 15" - 29 1/8"
Position 2) 15 7/8" - 30"
Position 3) 16 7/8" - 31"
Note: The ranges listed above are actual measurements in inches. These do not indicate
specific wheel sizes. Most vehicle wheels are larger than their nominal size. For example,
a 16” wheel may be up to 17.5” in actual diameter.
Because of variances in wheel designs, a specific clamping range measurement does not
guarantee that a particular wheel size can always be clamped into place.

REV. 01 9 / 27
CHAPTER 3 – TRANSPORTATION, UNPACKING AND STORAGE
3.1 TRANSPORTATION
xThe tire changer must be transported in its original packaging and kept in the position shown
on the package itself.
xThe packaged machine may be moved by means of a fork lift truck of suitable capacity. Insert
the forks at the points shown in figure 3.
3.2 UNPACKING
xRemove the protective cardboard and the nylon bag.
xCheck that the equipment is in perfect condition, making sure that no parts are damaged or
missing. Use fig. 1 for reference.
If in doubt do not use the machine and contact your retailer.
3.3 STORAGE
In the event of storage for long periods of time, be sure to disconnect all sources of power and grease
the clamp sliding guides on the turntable to prevent them from oxidizing.

REV. 01 10 / 27
CHAPTER 4 – INSTALLATION
4.1 SPACE REQUIRED
When choosing the place of installation be sure that it complies with current safety
at work regulations.
xThe tire changer must be connected to the main electric power supply and the compressed air
system. It is therefore advisable to install the machine near these power sources.

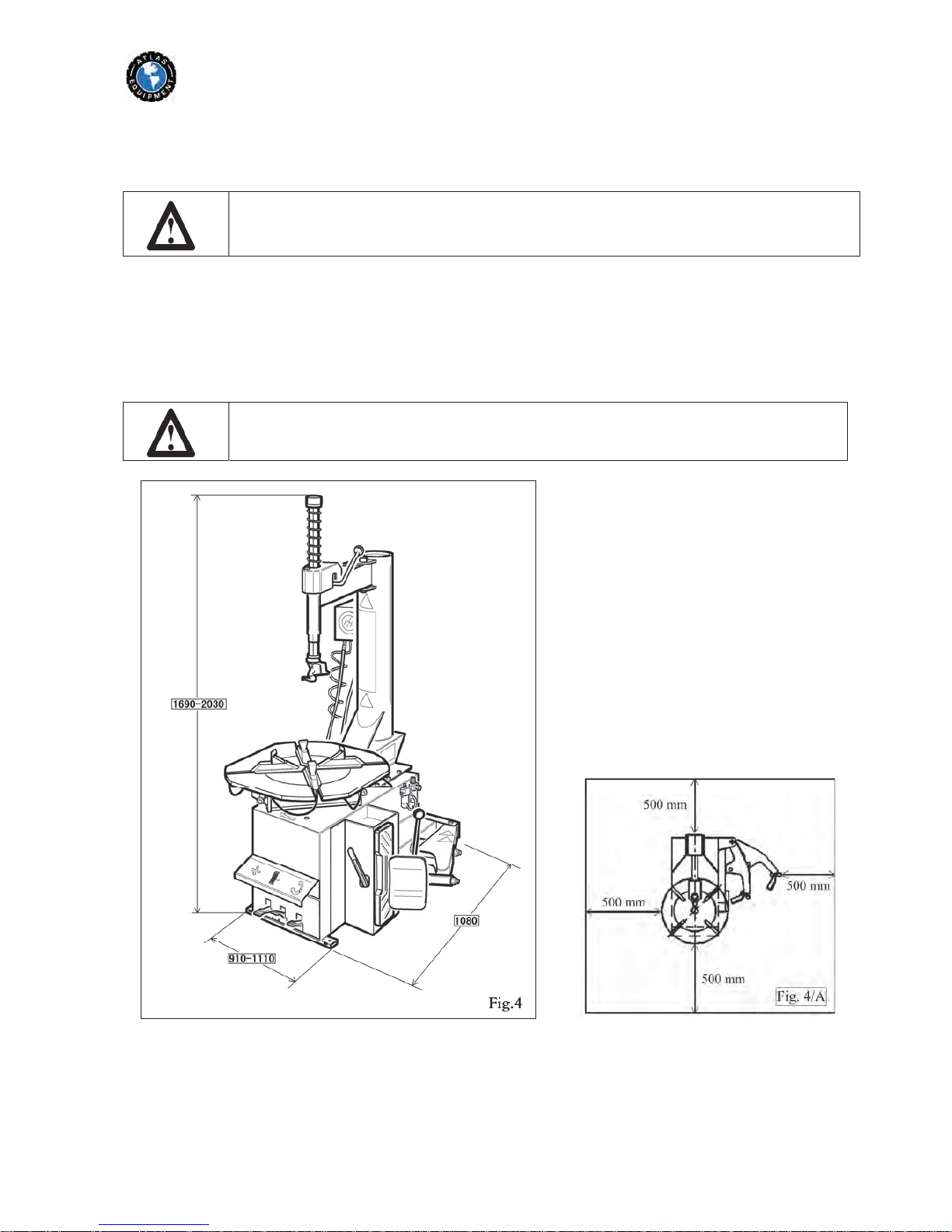

xThe place of installation must also provide at least the space shown in pictures 4 - 4/A so as to
allow all parts of the machine to operate correctly and without any restriction.
xIf the machine is installed outside it must be protected by a lean-to.
The tire changer with electric motor cannot be used in explosive atmospheres,
unless it is a proper version.

REV. 01 11 / 27
4.2 POSITIONING AND PARTS ASSEMBLY
xUnscrew the pallet fixing screws and set the tire changer on the floor.
xUnscrew the 4 screws from the body, set the vertical arm into the proper seat and fix the screw
again (Fig. 5/a).
xMake sure the horizontal arm is on the vertical arm’s support and the pin is locked with nuts
and washers as shown in Fig. 5/b.
Before connecting all the power sources ALWAYS check your installations.
They must exactly correspond to those requested by the machine.
xConnect the machine to the compressed air network (Fig. 5/d)
xMount the bead breaker arm as shown in Fig. 5/e:
- Set the arm “a” into the proper seat, set the screw into the hole and screw the nut
WITHOUT TIGHTENING.
- Set the pivot pin “b” into the hole on the arm and let the cylinder’s shaft pass through
the pin’s hole. Screw two nuts WITHOUT TIGHTENING.
- Set the spring by hooking it at the indicated points.
xScrew the bead breaker arm’s screw as indicated in Fig 5/f
xScrew the nut as indicated in Fig 5/g

REV. 01 12 / 27

REV. 01 13 / 27
4.2.2 Mounting and connecting the GT
xRoute the tube (1), situated inside the
machine body, though the hole on the back
side of the body.
xConnect the hose (4) to the connectors (2)
using the bands (3).
4.2.3 Mounting and connecting the manometer
xFix the manometer to the vertical arm
through the proper screw. Fig. 11.
xRoute the connecting spiral hose through the
small hole on the back side of the machine
body.
xConnect the rilsan hose to the union of the
pressure limiting device, situated on the
inflating pedal.

Attention! Check your air connections before using your new machine.
Your tire changer has been manufactured with the highest quality components and
greatest care. However, the unpacking, final assembly, and set up are the responsibility of
the customer. We want you to have a trouble-free experience. The following steps will
help you “check your work” and ensure that your machine will operate reliably.

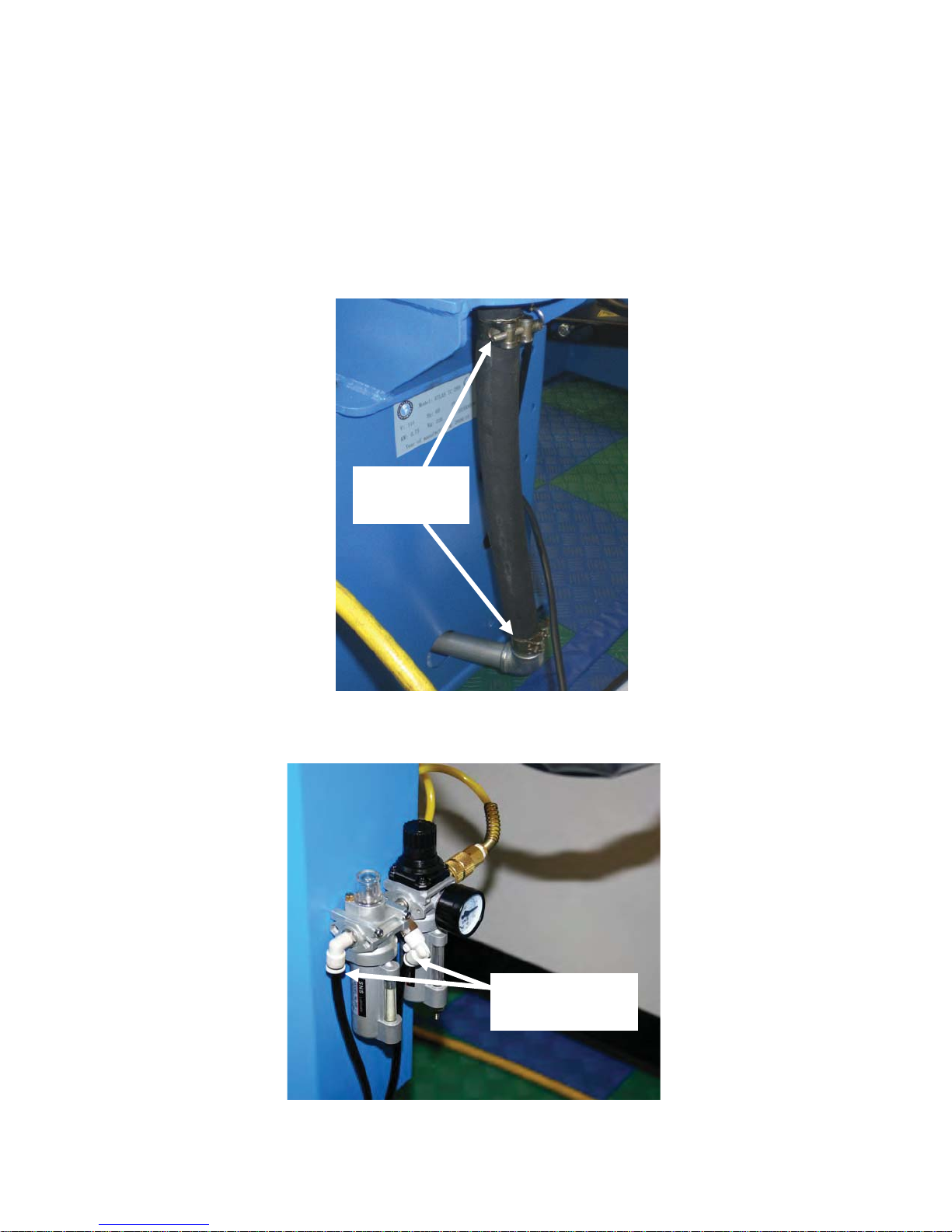

Step 1: Air tank connections
Make sure the
hose clamps are
tightened securely
Step 2: FRL connections
Press the air lines into
the push-lock fittings as
far as possible.

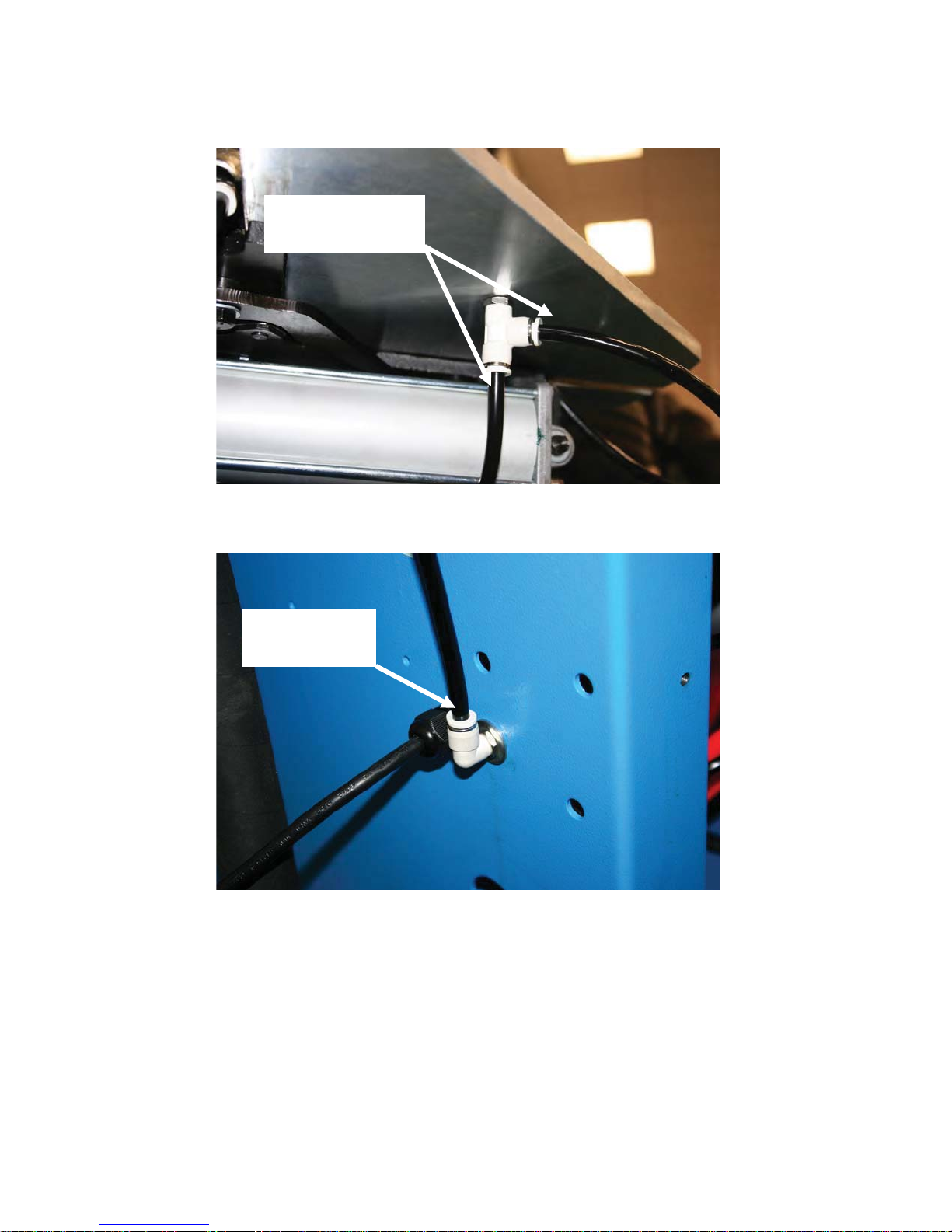

Step 3: Turntable connections
Press the air lines into the
push-lock fittings as far as
possible.
Step 4: Inflator box connection
Press the air line as
far into the push-lock
fitting as possible.

Step 5: A
Press all of the air lines into the
push-lock connectors as far as
possible.
ccessory connections

REV. 01 14 / 27
4.3 COMMISSIONING
Any electric connection job must be carried out by professionally qualified
personnel.
Make sure that the power supply is right.
Make sure the connection of the phases is right. Improper electrical hook-up
can damage motor and will not be covered under warranty.
xCheck to make sure the characteristics of your systems correspond to those required by the
machine. If you have to change the machine’s operating voltage, make the necessary
adjustments to the terminal board referring to the electric diagram in chapter 9.
xConnect the machine to the compressed air system by means of the air connection (Q) that
protrudes from the rear section.
Connect the machine to the electric network, which must be provided with lin
e
fuses, a good earth plate in compliance with regulations in force and it must b
e
connected to an automatic circuit breaker (differential) set at 30 mA.
Should the tire-changer be lacking in electric plug, the user must set one, which
is at least 16 A and which conforms to the voltage of the machine, in compliance
with the regulations in force.
4.4 OPERATING TESTS

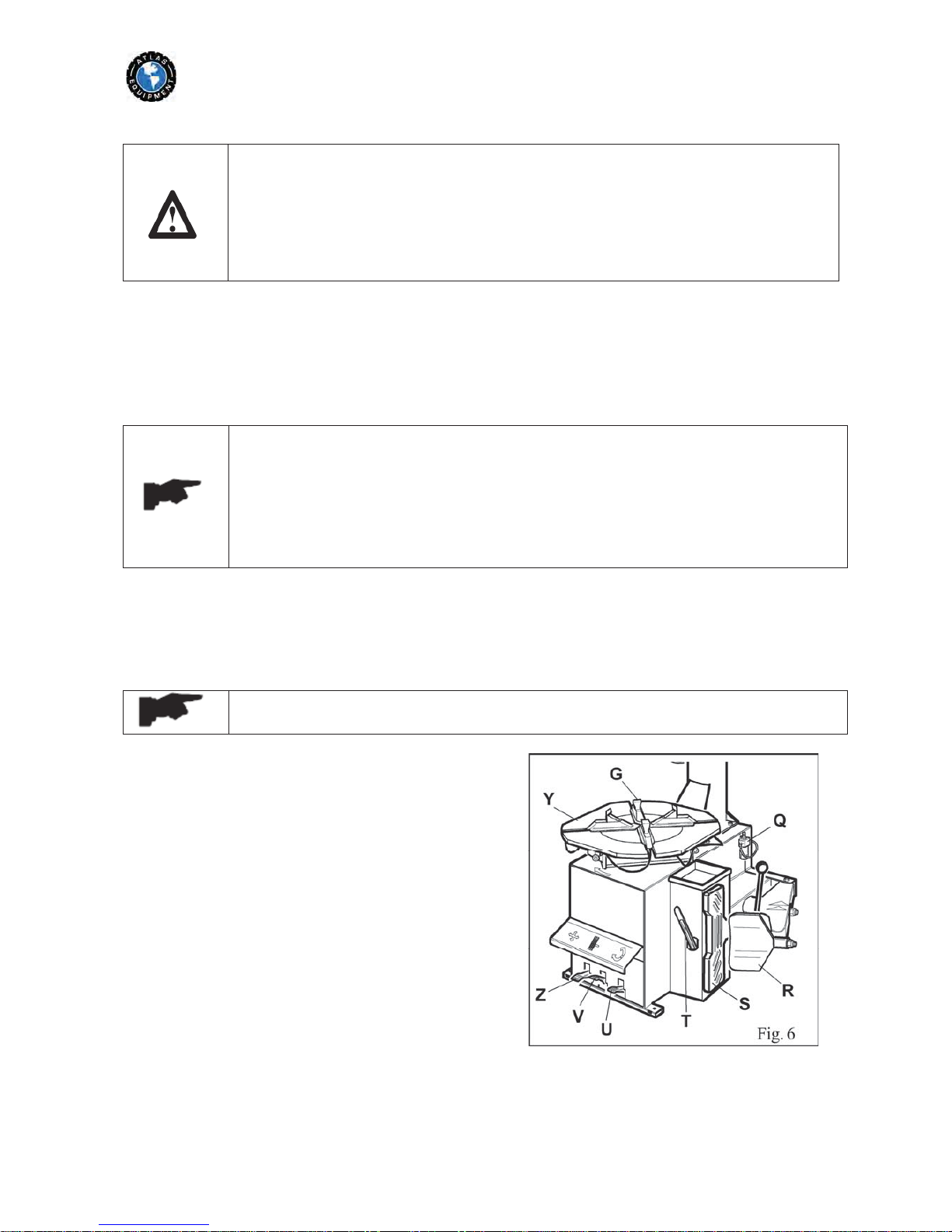

xWhen pedal (Z) is pressed down the turntable (Y) should turn in a clockwise direction. When
pedal is pulled up the turntable should turn in an anticlockwise direction.
If the turntable turns in the opposite direction to that shown, reverse two of the
wires in the tree-phase plug.
xPressing the pedal (U) activates the bead
breaker (R); when the pedal is released the
bead breaker returns to its original position.
xPressing the pedal (V) opens the four clamps
(G); when the pedal is pressed again they
close.
xPressing the trigger on the airline gauge cause
air to be released from the head.

REV. 01 15 / 27
4.4.1 GT version
Do NOT LEAN on the turntable during this operation. Possibly dirty dust on
turntable could offend the operator’s eyes. For the same reason, be carefully as
not to accidentally push the inflating pedal while working.
xWhen the pedal located on the left side of the machine
body is pushed down to its intermediate position (B),
air is released from the airline gauge.
xWhen the pedal (C) is pushed down completely, air is
released from the airline gauge with a powerful jet from
the nozzles located on the turntable clamps.
4.5 TURNTABLE LOCKING VALUE ADJUSTING
The tire changer turntable is preset by the manufacturer on a middle range measure from11” to 23”
ext. (considering the rim outer side and) from 13” – 25” int. (if you lock the rim from inner side).
It is however possible to change this dimension range in case of need when working on larger or
small rims; it is enough to change the position of the 4 clamps are shown in the figures below.
The obtainable value starts from a minimum of 10”-22” ext. and 12”-24” int. until a maximum of 12”-
24” ext. and 14”-26” int.
To change the position, proceed as follows:
xUnscrew screw (1) by means of the Allen wrench.
xRemove the locking clamp (2) and the slide piece (3).
xAlign the slide hole with one of the guide holes (4) according to the locking dimensions you
want to set. Use the measures below for reference.
It is important to perform the above mentioned operation for all the 4 clamps to
avoid any unbalance in locking phase.
Fig. 13

REV. 01 16 / 27
CHAPTER 5 – OPERATION
Do not use the machine until you have read and understood the entire manual
and the warning provided.
Before carrying out any operation, deflate the tire and take off all the wheel
balancing weights.
The operation of the tire changer is divided into three parts:
a) BREAKING THE BEAD b) REMOVING THE TIRE c) MOUNTING THE TIRE
It is advised to equip the tire changer with the pressure regulator.
5.1 BREAKING THE BEAD
Bead breaking must be done with the utmost care and attention. When the bead
breaker pedal is operated the bead breaker arm moves quickly and powerfully.
Anything within its arrange of action can be in danger of being crushed.
xCheck that the tire is deflated. If not, deflate it.
xClose the turntable clamps completely.
Bead breaking with the clamps in open position can be extremely dangerous for
operator’s hands.
During bead breaking operations NEVER touch the side of the tire.
xPosition the wheel against the rubber stops on the right side of the tire changer (S).
xPosition the bead breaker (R) against the tire bead at a distance of about 1 cm from the rim (fig.
8). Pay attention to the blade, which must operate correctly onto the tire and not onto the rim.
xPress down the pedal (U) to activate the bead breaker and release it when the blade has reached
the end of its travel or in any case when the bead is broken.
xRotate the tire slightly and repeat the operation around the entire circumference if the rim and
from both sides until the bead is completely detached from the rim.
